INSTRUCTION MANUAL
Dual Channels SemiSolid/LiPo Charger For Big Drones UP600+
Product Description
Operation Procedure
Features
UP600+ is specifically designed for dual channels SemiSolid/LiPo charger of big drones, it can
charge & storage 2pcs of 2-6S SemiSolid/LiPo battery packs simultaneously, with “one-button charge”
function, easy to use. In addition, UP600+ has over-voltage, over-current, reverse polarity, and over
-temperature protection to ensure maximum safety.
1. Power on: Connect to the power source and turn on the power switch. The two-color indicators
will illuminate for 2 seconds, and the LCD display screen will show the start-up page for 2 seconds,
and then it will enter into the standby page.
Specification
Battery Type: SemiSolid/LiPo
Battery Cell Count: 2-6S(also can charge 2S/3S radio battery)
Working Mode: Charge / Storage
Dimension: 268X140X127mm
Net Weight: 3.1KG
Input Voltage: AC 110V or 220V
Charge Output Power: 1200W(600W x2)
Discharge Power: 80W(40WX2)
Charge Current : 5A/10A/15A/20A/25A
Balance Current: 1.5A/cell
Support charging 2 pcs of 2-6S batteries.SemiSolid/LiPo
With independent radio battery connection port, support charge 2S/3S redio battery.(Only one
radio battery can be charged one time).
Charging current is adjustable: 5A/10A/15A/20A/25A.
Two working modes: Balance charge mode, Storage mode.
Memorizing last charging current.
Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature
protection.
- 1 - - 2 -
2. Battery connection: Please connect your batteries according to below picture.
1) Connect to the battery 2) Connect to the balance socket.
3. Setting the charging parameter.
1
1 2
SemiSolid Charge 25A
-.--V -.--V -.--V
-.--V -.--V -.--V
3
4 5 6
1) Press button to choose the appropriate current, 5A,10A,15A,20A,25A (Normally,
we suggest to charge with 1C charge current).
2) Pressbutton to choose the mode you need, the default mode is charge mode.
3) Long press  for 2 seconds until heard “beep” sound, the two-color indicator will
flash, now the charger is under charging process.
Stop: If you want to stop in working process, please press button.
Cooling Fan
Power Switch
AC Input 110V or 220V
Handle
Current Button
Working Mode Setting Button
LCD Display Screen
Two-color Indicator
Start/Stop Button
Balance Socket
Cooling Fan
Radio Battery
Connection Port
XT90 Battery Port

- 3 - - 4 -

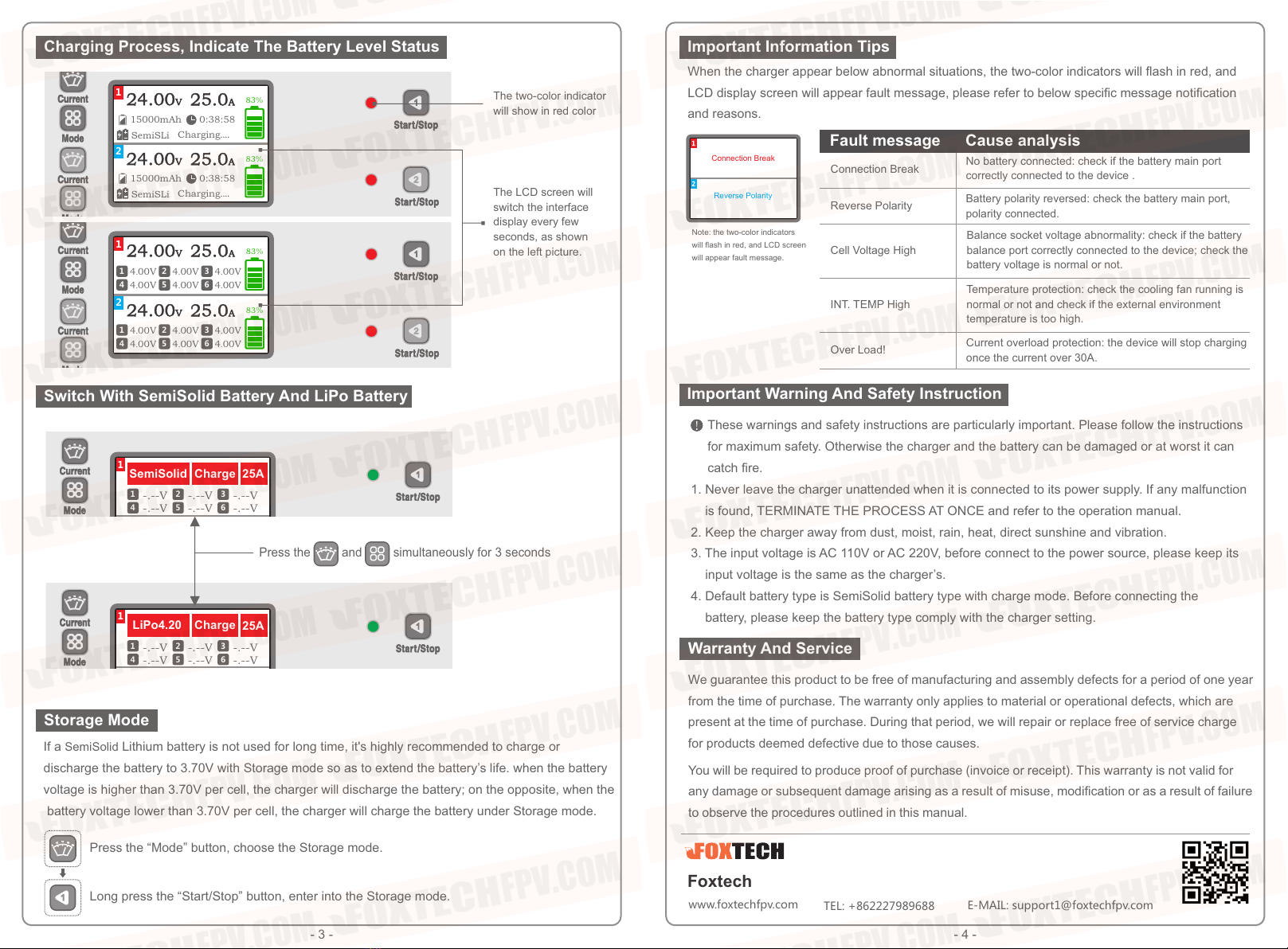

Charging Process, Indicate The Battery Level Status
Switch With SemiSolid Battery And LiPo Battery
Storage Mode
If a SemiSolid Lithium battery is not used for long time, it's highly recommended to charge or
discharge the battery to 3.70V with Storage mode so as to extend the battery’s life. when the battery
voltage is higher than 3.70V per cell, the charger will discharge the battery; on the opposite, when the
battery voltage lower than 3.70V per cell, the charger will charge the battery under Storage mode.
1
224.00V
24.00V
Charging....
Charging....
25.0A
25.0A
15000mAh
15000mAh
0:38:58
0:38:58
83%
83%
SemiSLi
SemiSLi
1
224.00V
24.00V
25.0A
25.0A83%
83%
1 2
4.00V 4.00V 4.00V
4.00V 4.00V 4.00V
3
4 5 6
1 2
4.00V 4.00V 4.00V
4.00V 4.00V 4.00V
3
4 5 6
Press the “Mode” button, choose the Storage mode.
Long press the “Start/Stop” button, enter into the Storage mode.
Fault message
Connection Break
Reverse Polarity
Cell Voltage High
INT. TEMP High
Over Load!
No battery connected: check if the battery main port
correctly connected to the device .
Battery polarity reversed: check the battery main port,
polarity connected.
Balance socket voltage abnormality: check if the battery
balance port correctly connected to the device; check the
battery voltage is normal or not.
Temperature protection: check the cooling fan running is
normal or not and check if the external environment
temperature is too high.
Current overload protection: the device will stop charging
once the current over 30A.
Cause analysis
When the charger appear below abnormal situations, the two-color indicators will flash in red, and
LCD display screen will appear fault message, please refer to below specific message notification
and reasons.
Important Warning And Safety Instruction
Warranty And Service
1. Never leave the charger unattended when it is connected to its power supply. If any malfunction
is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
2. Keep the charger away from dust, moist, rain, heat, direct sunshine and vibration.
3. The input voltage is AC 110V or AC 220V, before connect to the power source, please keep its
input voltage is the same as the charger’s.
4. Default battery type is SemiSolid battery type with charge mode. Before connecting the
battery, please keep the battery type comply with the charger setting.
We guarantee this product to be free of manufacturing and assembly defects for a period of one year
from the time of purchase. The warranty only applies to material or operational defects, which are
present at the time of purchase. During that period, we will repair or replace free of service charge
for products deemed defective due to those causes.
You will be required to produce proof of purchase (invoice or receipt). This warranty is not valid for
any damage or subsequent damage arising as a result of misuse, modification or as a result of failure
to observe the procedures outlined in this manual.
These warnings and safety instructions are particularly important. Please follow the instructions
for maximum safety. Otherwise the charger and the battery can be damaged or at worst it can
catch fire.
Connection Break
Reverse Polarity
Note: the two-color indicators
will flash in red, and LCD screen
will appear fault message.
www.foxtechfpv.com TEL: [phone] E-MAIL: [e-mail]
Foxtech
Important Information Tips
The two-color indicator
will show in red color
The LCD screen will
switch the interface
display every few
seconds, as shown
on the left picture.
Press the  and  simultaneously for 3 seconds
1
1 2
SemiSolid Charge 25A
-.--V -.--V -.--V
-.--V -.--V -.--V
3
456
1
1 2
LiPo4.20 Charge 25A
-.--V -.--V -.--V
-.--V -.--V -.--V
3
456
