Fracarro SIG7804H264 User manual

QUICK GUIDE - GUIDA RAPIDA
Multi-H264 Encoder
SIG7804H264

2
ENGLISH
2
ENGLISH
ENGLISH
CONTENTS
1 Introduction page 3
2 Safety Warnings page 4
3 Technical specification page 5
4 Installation page 6
5 General use of the SIG7804H264 page 6
6 Operating adjustment via LCD & buttons page 8
7 Operation adjustment via web browser page 13

3
ENGLISH
3
ENGLISH
ENGLISH
1 - INTRODUCTION
General Description
Main features
LAN
Connection LCD Display Settings Buttons
ASI Output
(Up/Down/Left/Right)
HDMI Input 1
HDMI Input 2 HDMI Input 4
HDMI Input 3
◆ Integration of encoder and TS Mux in one 19” INCH 1U rack mounting-format.
◆ Four HDMI video inputs
◆ Multiple video format compatibility including 1080p, 1080i, 720p,576p and 480p
◆ Multiple audio format compatibility including MPEG-1 Layer II
◆ Programmable PMT/Video/Audio/PCR PID
◆ Programmable service name and logical channel number insertion
◆ User friendly front panel operation and web interface management through LAN connection
Status LED
Video Signal Input presence
GND
AC 100-240V
SIG7804H264 is a quadruple HDMI video inputs H264 encoder able to encode up to 4 HD sources in only
one DVB-ASI signal. SIG7804H264 is designed to achieve 1080p by using H264/AVC encoding.
The SIG7804H264 is an excellent choice to transport high definition video/audio signals from TV satellite
receivers, surveillance camera or video/media players to ASI output interface for different application.
The package contain:
• 1pc of digital ASI encoder;
• 4pc of HDMI-HDMI standard 1.5 mt lenght;
• 1pc of Mains Power cable;
• 1pc of standard BNC-BNC cable 1,5 mt length for the ASI connection;
• quick start guide reference.

4
ENGLISH
2 - SAFETY WARNINGS
The product must only be installed by qualified persons, according to the local safety standards and regulations.
Fracarro Radioindustrie is free from all civil and criminal responsibilities due to breaches of the current legislation
derived from the improper use of the product by the installer, user or third parties. The product must be used in full
compliance with the instructions given in this manual in order to protect the operator against all possible injuries
and the product from being damaged. Never remove the lid of the product as there are live parts inside.
INSTALLATION WARNINGS
• The product must not be exposed to any dripping or splashing and thus it should be installed indoors and in
a dry location.
• Humidity and condensation could damage the product. In case of condensation, wait until the product is dry
before using it.
• Handle the product carefully. Impacts can damage the product.
• Leave enough space around the product to ensure sufficient ventilation.
• Excessive temperatures and/or an overheating may affect the performance and the life of the product.
• Don’t install the product above or near any heat sources, in dusty places or where it might come into contact
with corrosive substances..
• In the event that the unit is fixed to the wall, use the proper screw anchors suitable to the characteristics of
the fixing support. The wall and the anchoring system must be able to support at least 4 times the weight of
the unit.
• Warning: to avoid injury, this appliance must be secured to the wall / floor depending on the installation
instructions.
• For “PERMANENTLY INSTALLED APPLIANCES”, an easily accessible cutting device must be added to the
exterior of the appliance; for “APPLIANCES WITH A POWER PLUG”, the socket must be installed close to the
appliance and easily accessible.
• The product must be connected to the grounding electrode of the antenna system in compliance with standard
EN 60728-11. The screw provided for this purpose is marked with the symbol .
• We recommend that you comply with the provisions of standard EN 60728-11 and do not connect this screw
to the Protective Earth of the electricity supply.
Class II symbol Earth screw/Faston connector symbol
GENERAL WARNINGS
In the event of a malfunctioning, do not try to fix the product as the guarantee would be invalidated.
Only use the power supply supplied with the product. Although the information given in this manual has been
prepared carefully and thoughtfully, Fracarro Radioindustrie S.r.l. reserves the right to modify it without notice
and to improve and/or modify the product described in this manual. See the website www.fracarro.com to have
information relevant to the technical support and product guarantee.
CONFORMITY TO EUROPEAN LAWS
Fracarro declares that the product complies with EU Directive 2014/53 and 2011/65/UE. The full text of the EU
Declaration of Conformity is available on the following website ce.fracarro.com.
USER’S INFORMATION
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment and human health, wich could otherwise be caused
by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.
4
ENGLISH
ENGLISH
2 - SAFETY WARNINGS
The product must only be installed by qualified persons, according to the local safety standards and regulations.
Fracarro Radioindustrie is free from all civil and criminal responsibilities due to breaches of the current legislation
derived from the improper use of the product by the installer, user or third parties. The product must be used in full
compliance with the instructions given in this manual in order to protect the operator against all possible injuries
and the product from being damaged. Never remove the lid of the product as there are live parts inside.
INSTALLATION WARNINGS
•
The product must not be exposed to any dripping or splashing and thus it should be installed indoors and in
a dry location.
•
Humidity and condensation could damage the product. In case of condensation, wait until the product is dry
before using it.
•
Handle the product carefully. Impacts can damage the product.
•
Leave enough space around the product to ensure sufficient ventilation.
•
Excessive temperatures and/or an overheating may affect the performance and the life of the product.
•
Don’t install the product above or near any heat sources, in dusty places or where it might come into contact
with corrosive substances..
•
In the event that the unit is fixed to the wall, use the proper screw anchors suitable to the characteristics of
the fixing support. The wall and the anchoring system must be able to support at least 4 times the weight of
the unit.
•
Warning: to avoid injury, this appliance must be secured to the wall / floor depending on the installation
instructions.
•
For “PERMANENTLY INSTALLED APPLIANCES”, an easily accessible cutting device must be added to the
exterior of the appliance; for “APPLIANCES WITH A POWER PLUG”, the socket must be installed close to the
appliance and easily accessible.
•
The product must be connected to the grounding electrode of the antenna system in compliance with standard
EN 60728-11. The screw provided for this purpose is marked with the symbol
The product must be connected to the grounding electrode of the antenna system in compliance with standard
.
•
We recommend that you comply with the provisions of standard EN 60728-11 and do not connect this screw
to the Protective Earth of the electricity supply.
Class II symbol
Earth screw/Faston connector symbol
GENERAL WARNINGS
In the event of a malfunctioning, do not try to fix the product as the guarantee would be invalidated.
Only use the power supply supplied with the product. Although the information given in this manual has been
prepared carefully and thoughtfully, Fracarro Radioindustrie S.r.l. reserves the right to modify it without notice
and to improve and/or modify the product described in this manual. See the website www.fracarro.com to have
information relevant to the technical support and product guarantee.
CONFORMITY TO EUROPEAN LAWS
Fracarro declares that the product complies with EU Directive 2014/53 and 2011/65/UE. The full text of the EU
Declaration of Conformity is available on the following website ce.fracarro.com.
USER’S INFORMATION
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment and human health, wich could otherwise be caused
by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.

5
ENGLISH
GENERAL
Consumption
19 inch rack mount
44×440×280mm / 3,5Kg
AC 110~240
40W
Type
Dimensions / Weight
Power supply
INPUT
Channel number
Video input
Audio input
4
HDMI, compliant with HDMI 1.3a
HDMI
Connector type HDMI: Type A receptacle
LCN
CONTROL
LCD panel and buttonsLocal operation
Ethernet web browserRemote operation
ASI
Output number
Format
Max. bit rate
1
DVB-ASI
216Mbps
Valid data rate 4~72Mbps
BNC (75
Ω)
Connector type
ENCODING
Video resolution
Video compression
Audio compression
Up to 1080p @60Hz
H.264/AVC
MPEG-1 Audio Layer ll (ISO/IEC 11172-3)
PID setting PMT/Video/Audio/PCR
Network configuration
Service name
NID/ONID/P.D.S./TS ID
Up to 1023
At most 15 characters
Encoding rate 128,256,384Kbps
3 - TECHNICAL SPECIFICATIONS
5
ENGLISH
ENGLISH
GENERAL
Consumption
19 inch rack mount
44×440×280mm / 3,5Kg
AC 110~240
40W
Type
Dimensions / Weight
Power supply
INPUT
Channel number
Video input
Audio input
4
HDMI, compliant with HDMI 1.3a
HDMI
Connector type
HDMI: Type A receptacle
LCN
CONTROL
LCD panel and buttons
Local operation
Ethernet web browser
Remote operation
ASI
Output number
Format
Max. bit rate
1
DVB-ASI
216Mbps
Valid data rate
4~72Mbps
BNC (75
Ω)
Connector type
ENCODING
Video resolution
Video compression
Audio compression
Up to 1080p @60Hz
H.264/AVC
MPEG-1 Audio Layer ll (ISO/IEC 11172-3)
PID setting
PMT/Video/Audio/PCR
Network configuration
Service name
NID/ONID/P.D.S./TS ID
Up to 1023
At most 15 characters
Encoding rate
128,256,384Kbps
3 - TECHNICAL SPECIFICATIONS

6
ENGLISH
4 - INSTALLATION
Please follow the instructions below to install the SIG7804H264.
!
For the protection of your equipment and its proper working is necessary to
connect the SIG7804H264 to a ground connection.
See basic safety instruction chapter.
A. Connect the power plug to the socket.
B. Connect the earth cable.
C. Connet to a video player (DVD, satellite receiver, STB)
D. Connect to a modulator with ASI inputs (for EX 3DGFLEX ASI TWIN modulator)
E. Connect the encoder to a personal computer and follow the instructions listed in the
“operating adjustment via web browser” chapter
Below is described how to operate the SIG7804H264 by using the control buttons on the front panel.
In the menus and submenus, move the up or down button to browse upwards and downwards.
In the settings, move the up or down button to modify values.
In the menus, move the right or left button to select or go back.
In the settings, move the right or left button to select or go back.
A
E
MENU
ENTER
EXIT
LOCK
In the menus, use “ENTER” button to select submenu.
In the submenus, use “ENTER” button to select setting.
In the settings, use “ENTER” button to confirm your setting.
In the settings, use “LOCK” button to lock the LCD operation after parameter setting.
B
C
D
5 - GENERAL USE OF THE SIG7804H264
6
ENGLISH
ENGLISH
4 - INSTALLATION
Please follow the instructions below to inst
a
ll
t
he SIG7804H264.
!
For the protection of your equipment and it
s
proper working is necessary to
connect the SIG7804H264 to a ground conn
e
ction.
See basic safety instruction chapter.
A. Connect the power plug to the socket.
B. Connect the earth cable.
C. Connet to a video player (DVD, satellite r
e
ceiver, STB)
D.
Connect to a modulator with ASI inputs (for EX 3DGFLEX ASI TWIN modulator)
E.
Connect the encoder to a personal computer and follow the instructions listed in the
“operating adjustment via web browser” chapter
Connect the encoder to a personal computer and follow the instructions listed in the
“operating adjustment via web browser” chapter
Connect the encoder to a personal computer and follow the instructions listed in the
Below is described how to operate the SIG7804H264
b
y using the control buttons on the front panel.
In the menus and submenus,
m
ove the up or down button to browse upwards and downwards.
In the settings, move the up or down button to modify values.
In the menus, move the right or left button to select or go back.
In the settings, move the right
o
r left button to select or go back.
A
E
MENU
ENTER
ENTER
ENTER
EXIT
LOCK
LOCK
In the menus, use “ENTER” button t
o
select submenu.
In the submenus, use “ENTER” button to select setting.
In the settings, use “ENTER” button t
o
confirm your setting.
In the settings, use “LOCK” butt
o
n to lock the LCD operation after parameter setting.
B
C
D
5 - GENERAL USE OF THE SIG7804H264

7
ENGLISH
5.1 FAST MENU GUIDE
System booting
Main menu
FRACARRO
SIG7804H264 OK
Main Menu
Video
Main Menu
Audio
Main Menu
Stream
Main Menu
System
Boot system
Please wait...
FRACARRO
SIG7804H264
Submenu
Main Menu
Video
Video
Set Video
OK Video
Rtrv Status
Main Menu
Audio
Audio
Port Number
OK
Main Menu
Stream
OK
Stream
Set Service Name
Stream
Set LCN
Stream
Set Service ID
Stream
Set PID
Stream
Set NIT
Stream
Set PDS
Stream
Set TS ID
Stream
Set Service Type
Stream
Rtrv Status
Main Menu
System
OK
System
Reset System
System
Upgrade Code
System
Setup IP
System
Rtrv IP
Stream
Set Language
System
Rtrv Inventory
1
2
3 4
7
ENGLISH
ENGLISH
5.1 FAST MENU GUIDE
Syst
e
m bo
o
ting
M
ain me
n
u
FRACARRO
SIG7804H264
OK
Main Menu
Video
Main Menu
Audio
Main Menu
Stream
Main Menu
System
Boot system
Please wait...
FRACARRO
SIG7804H264
S
u
b
me
n
u
Main Menu
Video
Video
Set Video
OK
Video
Rtrv Status
Main Menu
Audio
Audio
Port Number
OK
Main Menu
Stream
OK
Stream
Set Service Name
Stream
Set LCN
Stream
Set Service ID
Stream
Set PID
Stream
Set NIT
Stream
Set PDS
Stream
Set TS ID
Stream
Set Service Type
Stream
Rtrv Status
Main Menu
System
OK
System
Reset System
System
Upgrade Code
System
Setup IP
System
Rtrv IP
Stream
Set Language
System
Rtrv Inventory
1
2
3
4

8
ENGLISH
6 - OPERATING ADJUSTMENT VIA LCD & BUTTONS
The following submenu settings, press the RIGHT button to easily get into the adjustment mode.
In the adjustment mode, there will be an asterisk “✻”on the upper right corner.
Use UP or Down button to select parameter values, then press “ENTER” button again to confirm the setting.
B. Retrieve Status
Following the main submenu flow charts enter the ‘Retrieve Status’ mode, you can check the
parameters of your previous settings in ‘Video’
AUDIO
Port Number:
1
Following the main menu flow charts enter the ‘Audio’. Press the “ENTER”
button to enter the submenu. Press “ENTER” button to enter ‘Adjustment Mode’
using the Up or Down buttons to adjust the Port Number then press “ENTER” to save.
VIDEO
Video
Set Video
Port Number:
1
2) Press the “ENTER” button to enter the next page for selecting port number.
1) Following the Submenu flow charts enter the ‘Set Video’
Port Number: *
1
3) Press the “ENTER” button to enter the adjustment mode. The LCD dis-
play will show an asterisk “*” in the upper right corner.
4) Now you can use UP or Down button to select the port number you
require. (1÷2) “ENTER” to save.
Use the same steps to adjust the following item in submenus.
iNOTE
A. Set Video
Resolution:
Auto
Encoder Rate:
Auto Auto/ 4~14M
Are you sure?
y
Are you sure?
n
When all the item in Set Video are done, there will be a confirm-
ation on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
1
2
Encoder Rate:
128K 128K, 256K, 384K
Are you sure?
y
Are you sure?
n
When all the item in ‘Audio’ are done, there will be a confirm-
ation on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
8
ENGLISH
ENGLISH
6 - OPERATING ADJUSTMENT VIA LCD & BUTTONS
The following submenu settings, press the RIGHT button to easily get into the adjustment mode.
In the adjustment mode, there will be an asterisk “
✻
”on the upper right corner.
Use UP or Down button to select parameter values, then press “ENTER” button again to confirm the setting.
B. Retrieve Status
Following the main submenu flow charts enter the ‘Retrieve Status’ mode, you can check the
parameters of your prev
i
ous settings in ‘Video’
A
U
D
I
O
Port Number:
1
Following the main menu flow charts enter the ‘Audio’. Press the “ENTER”
button to enter the submenu. Press “ENTER” button to enter ‘Adjustment Mode’
using the Up or Down buttons to adjust the Port Number then press “ENTER” to save.
VIDEO
Video
Set Video
Port Number:
1
2) Press the “ENTER” button to enter the next page for sele
c
ting port number.
1) Following the Submenu flow charts enter the ‘Set
V
ideo’
Port Number:
*
1
3) Press the “ENTER” button to enter the adjustment mode. The LCD dis-
play will show an
a
sterisk “
*
” in the upper right corner.
4) Now you can use UP or Down button to select the port number you
require. (1÷2) “ENTER” to save.
Use the same steps to adjust the following item in submenus.
i
NOTE
A. Set Video
Resolution:
Auto
Encoder Rate:
Auto
Auto/ 4
~
14M
Are you sure?
y
Are you sure?
n
When all the item in Set
Video are done, there will
b
e a confirm-
ation on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
1
2
Encoder Rate:
128K
128K, 256K, 384K
Are you sure?
y
Are you sure?
n
When all the item in ‘Au
d
io’ are done, there will
b
e a confirm-
ation on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.

9
ENGLISH
STREAM
Stream
Set Service Name
Port Number:
1
2) Press the “Enter” button to enter the next page for selecting port number.
1) Following the main menu flow charts enter the ‘Stream’
Port Number: *
1
3) Press the “Enter” button to enter the adjustment mode. The LCD dis-
play will show an asterisk “*” in the upper right corner.
4) Now you can use UP or Down button to select the port number you
needed. “Enter” to save.
Use the same steps to adjust the following item in submenus.
iNOTE
A. Set Service Name
Service Name:
HDCH-E58-1
Edit the sevice name by preference.
0~9 ; A~Z ; “-” ; “ ” 15 characters
Are you sure?
y
Are you sure?
n
When all the item in ‘Set Service Name’ are done, there will be a confirm-
ation on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
B. Set Service ID
Service ID:
1Edit the sevice ID by preference.
Are you sure?
y
When all the item in ‘Set Service ID’ are done, there will be a confirm-
ation on the display. Press UP or Down button to select y or n.
Are you sure?
n
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
C. Set LCN
Set LCN:
224
Edit the sevice name by preference.
1~1023
Are you sure?
y
When all the item in ‘Set LCN’ are done, there will be a confirm-
ation on the display. Press UP or Down button to select y or n.
Are you sure?
n
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
D. Set PID
Port Number:
1
PMT:
173
1~4
32~8191 (excluding 71)
Suggest using the different PMT PID parameter values if there are
many channel.
iNOTE
3
9
ENGLISH
ENGLISH
STREAM
Stream
Set Service Name
Port Number:
1
2) Press the “Enter” button to enter the next page for sele
c
ting port number.
1) Following the main menu flow charts enter the ‘Str
e
am’
Port Number:
*
1
3) Press the “Enter” butt
o
n to enter the adjustment mode. The LCD dis-
play will show an
a
sterisk “
*
” in the upper right corner.
4) Now you can use UP or Down button to select the port number you
needed. “Enter” to save.
Use the same steps to adjust the following item in submenus.
i
NOTE
A. Set Service Name
Service Name:
HDCH-E58-1
Edit the sevice name by
preference.
0~9 ; A~Z ; “-” ; “ ” 15 cha
r
acters
Are you sure?
y
Are you sure?
n
When all the item in ‘Set
Service Name’ are done, there will
b
e a confirm-
ation on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
B. Set Service ID
Service ID:
1
Edit the sevice ID by
preference.
Are you sure?
y
When all the item in ‘Se
t
Service ID’ are done, there will
b
e a confirm-
ation on the display. Press UP or Down button to select y or n.
Are you sure?
n
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
C. Set LCN
Set LCN:
224
Edit the sevice name by
preference.
1~1023
Are you sure?
y
When all the item in ‘Se
t
LCN’ are done, there will
b
e a confirm-
ation on the display. Press UP or Down button to select y or n.
Are you sure?
n
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
D. Set PID
Port Number:
1
PMT:
173
1~4
32~8191 (excluding 71)
Suggest using the different PMT PID parameter values if
t
here are
many channel.
i
NOTE
3

10
ENGLISH
PCR:
812
Video:
2152
32~8191 (excluding 71)
32~8191 (excluding 71)
Audio:
2156 32~8191 (excluding 71)
Are you sure?
y
Are you sure?
n
When all the item in Set PID are done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
E. Set NIT
OrgNetwork ID:
8442
Network ID:
1
According to different area to setup the parameter values.
1~65535
1~65535
Network Name:
NETWORK
Network Ver:
1
A~Z, 0~9, at most 7 characters
1~31
Are you sure?
y
Are you sure?
n
When all the item in Set NIT are done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
F. Set PDS
Private Data:
00000028 8 Hex
Are you sure?
y
Are you sure?
n
When the item in Set PDS is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
G. Set TS ID
TS ID:
11~65535
10
ENGLISH
ENGLISH
PCR:
812
Video:
2152
32~8191 (excluding 71)
32~8191 (excluding 71)
Audio:
2156
32~8191 (excluding 71)
Are you sure?
y
Are you sure?
n
When all the item in Set
PID are done, there will
b
e a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
E. Set NIT
OrgNetwork ID:
8442
Network ID:
1
According to different area to setup the parameter values.
1~65535
1~65535
Network Name:
NETWORK
Network Ver:
1
A~Z, 0~9, at most 7 characters
1~31
Are you sure?
y
Are you sure?
n
When all the item in Set
NIT are done, there will
b
e a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
F. Set PDS
Private Data:
00000028
8 Hex
Are you sure?
y
Are you sure?
n
When the item in Set P
D
S is
d
one, there will
b
e a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
G. Set TS ID
TS ID:
1
1~65535

11
ENGLISH
C. Upgrade Code
Upgrading Software
Please wait... Please remember to connect Ethernet cable to LAN port to access
internet and make sure the IP setting correctly before upgrading
code .
iNOTE
Are you sure?
y
Are you sure?
n
When the item in Set TS ID is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
I. Retrieve Status
Following the main submenu flow charts enter the ‘Retrieve Status’ mode, you can check the
parameters of your previous settings in ‘Stream’
SYSTEM
System
Rtrv Inventory
System Info
HW:1.2 SW: 1.04
2) Press the “ENTER” button to enter the next page, you can check both
hardware and software versions.
1) Following the main menu flow charts enter the ‘System’. Press “ENTER”
button to enter the Submenu.
System Info
Apr 2017
3) Press the Down button to enter the next page for more information.
Press “ENTER” button to exit.
B. Retrieve Inventory
H. Set Service Type
Service Type:
HD Service HD Service, SD service
Are you sure?
y
Are you sure?
n
When the item in ‘Service Type’ is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
4
A. Reset System
Reset Mode:
Hard Reset Hard Reset, Soft Reset, Reset to default
Are you sure?
y
Are you sure?
n
When the item in Reset System is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
11
ENGLISH
ENGLISH
C. Upgrade Code
Upgrading Software
Please wait...
Please remember to connect Ethernet cable to LAN port to access
internet and make sure the IP setting correctly before upgrading
code .
i
NOTE
Are you sure?
y
Are you sure?
n
When the item in Set TS
ID is done, there will
b
e a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
I. Retrieve Status
Following the main submenu flow charts enter the ‘Retrieve Status’ mode, you can check the
parameters of your prev
i
ous settings in ‘Stream’
S
YSTEM
SYSTEMS
System
Rtrv Inventory
System Info
HW:1.2 SW: 1.04
2) Press the “ENTER” button to enter the next page, you ca
n
check both
hardware and software versions.
1) Following the main menu flow charts enter the ‘Sy
s
tem’. Press “ENTER”
button to enter the Submenu.
System Info
Apr 2017
3) Press the Down b
u
tton to enter the next page for more information.
Press “ENTER” button t
o
exit.
B. Retrieve Inventory
H. Set Service Type
Service Type:
HD Service
HD Service, SD service
Are you sure?
y
Are you sure?
n
When the item in ‘Servic
e
Type’ is done, there will
b
e a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will
b
e stored in memory.
Select
n
for NO to canc
e
l.
4
A. Reset System
Reset Mode:
Hard Reset
Hard Reset, Soft Reset,
R
eset to default
Are you sure?
y
Are you sure?
n
When the item in Reset
S
ystem is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will be stored in memory.
Select
n
for NO to canc
e
l.

12
ENGLISH
IP Address:
192.168.1.181
Net Mask:
255.255.255.0
Default Gateway:
192.168.1.3
x . x . x . x
x . x . x . x
x . x . x . x
D. Setup IP
Enable DHCP:
DISABLE DISABLE, ENABLE
Are you sure?
y
Are you sure?
n
When all the item in Setup IP are done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
Before editing the IP Address, you need to select “DISABLE” in
“Enable DHCP”. Otherwise the IP setting will not complete.
iNOTE
E. Retrieve IP
◆IP Address
◆Net Address
◆MAC Address
User can login SIG7804H264 webpage by IP Address.
iNOTE
F. Set Language
Language:
English
NOTE
Only provide English in this version.
Are you sure?
y
Are you sure?
n
When the item setting in Set Language is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select yfor YES, all the settings above will be stored in memory.
Select nfor NO to cancel.
Following the submenu flow charts enter the ‘Retrieve Status’ mode, you can check the parameters of
your previous settings in ‘System’
12
ENGLISH
ENGLISH
IP Address:
192.168.1.181
Net Mask:
255.255.255.0
Default Gateway:
192.168.1.3
x . x . x . x
x . x . x . x
x . x . x . x
D. Setup IP
Enable DHCP:
DISABLE
DISABLE, ENABLE
Are you sure?
y
Are you sure?
n
When all the item in Set
u
p IP are done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will be stored in memory.
Select
n
for NO to canc
e
l.
Before editing the IP Ad
d
ress, you need to select “DISABLE” in
“Enable DHCP”. Otherwise the IP setting will not complete.
i
NOTE
E. Retrieve IP
◆
IP Address
◆
Net Address
◆
MAC Address
User can login SIG7804H264 webpage by IP Address.
i
NOTE
F. Set Language
Language:
English
NOTE
Only provide English in this version.
Are you sure?
y
Are you sure?
n
When the item setting i
n
Set Language is done, there will be a confirmation
on the display. Press UP or Down button to select y or n.
Select
y
for YES, all the
s
ettings above will be stored in memory.
Select
n
for NO to canc
e
l.
Following the submenu flow charts enter the ‘Retriev
e
Status’ mode, you can check the parameters of
your previous settings in ‘System’

13
ENGLISH

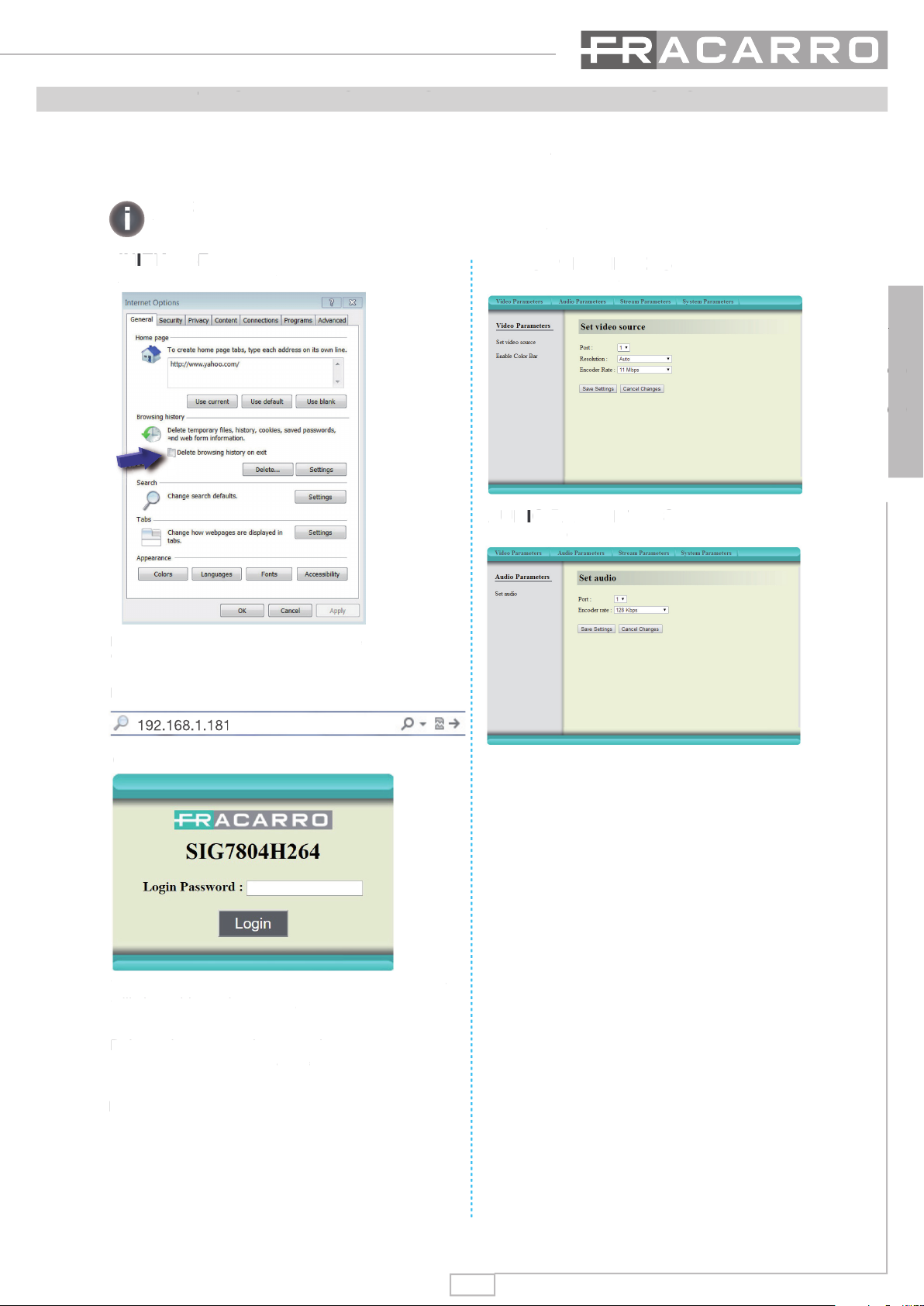

7 - OPERATING ADJUSTMENT VIA WEB BROWSER
The web browser interface will allow the user to fully configure the SIG7804H264 via an ethernet connection.
Your laptop will require a static IP address in the range 192.168.X.X.
The following instructions are using the Internet Explorer 10.iNOTE
A. Clear browser history
Enter the internet options, and choose
“Delet browsing history on exit”
B. Input the IP address on the browser
192.168.1.181
C. System login page
When input the IP address completed, the browser
will show this on the screen.
D. Input the password to enter the system
The default password is “1234”.
E. Now you can enter system setup pages for
more advanced setup.
INITIAL SETTING VIDEO PARAMETERS
a. Set Video Source
AUDIO PARAMETERS
a. Set audio
13
ENGLISH
ENGLISH
7 - OPERATING ADJUSTMENT VIA WEB BROWSER
The web browser interface will allow the user to fully configure the SIG7804H264 via an ethernet connection.
Your laptop will require a static IP address in the range 192.168.X.X.
The following instructions are using the Internet Explorer 10.
i
NOTE
A. Clear browser history
Enter the internet options, and choose
“Delet browsing history on exit”
B. Input the IP address on the browser
192.168.1.181
C. System login page
When input the IP address completed, the browser
will show this on the screen.
D. Input the password to enter the system
The default password is “
1234
”.
E. Now you can enter system setup pages for
more advanced setup.
IN
I
TI
A
L S
E
TTING
VIDEO P
A
RAM
E
TE
R
S
a. Set Video Source
A
U
D
I
O P
A
RAM
E
TE
R
S
a. Set audio

14
ENGLISH

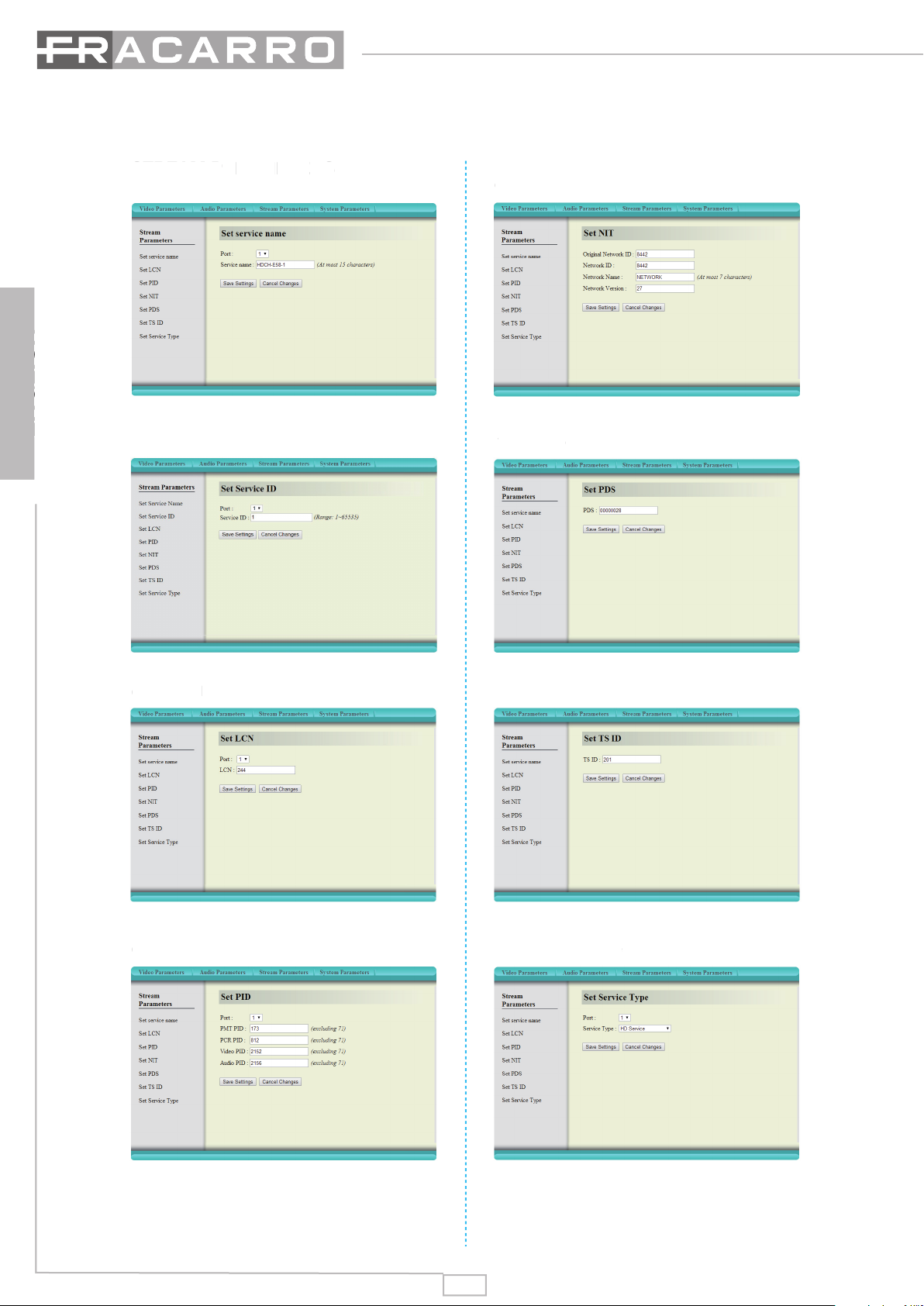

STREAM PARAMETERS
a. Set service name
c. Set LCN
d. Set PID
e. Set NIT
f. Set PDS
g. Set TS ID
b. Set Service ID
h. Set Service Type
14
ENGLISH
ENGLISH
STREAM P
A
RAM
E
TE
R
S
a. Set service name
c. Set LCN
d. Set PID
e. Set NIT
f. Set PDS
g. Set TS ID
b. Set Service ID
h. Set Service Type

15
ENGLISH

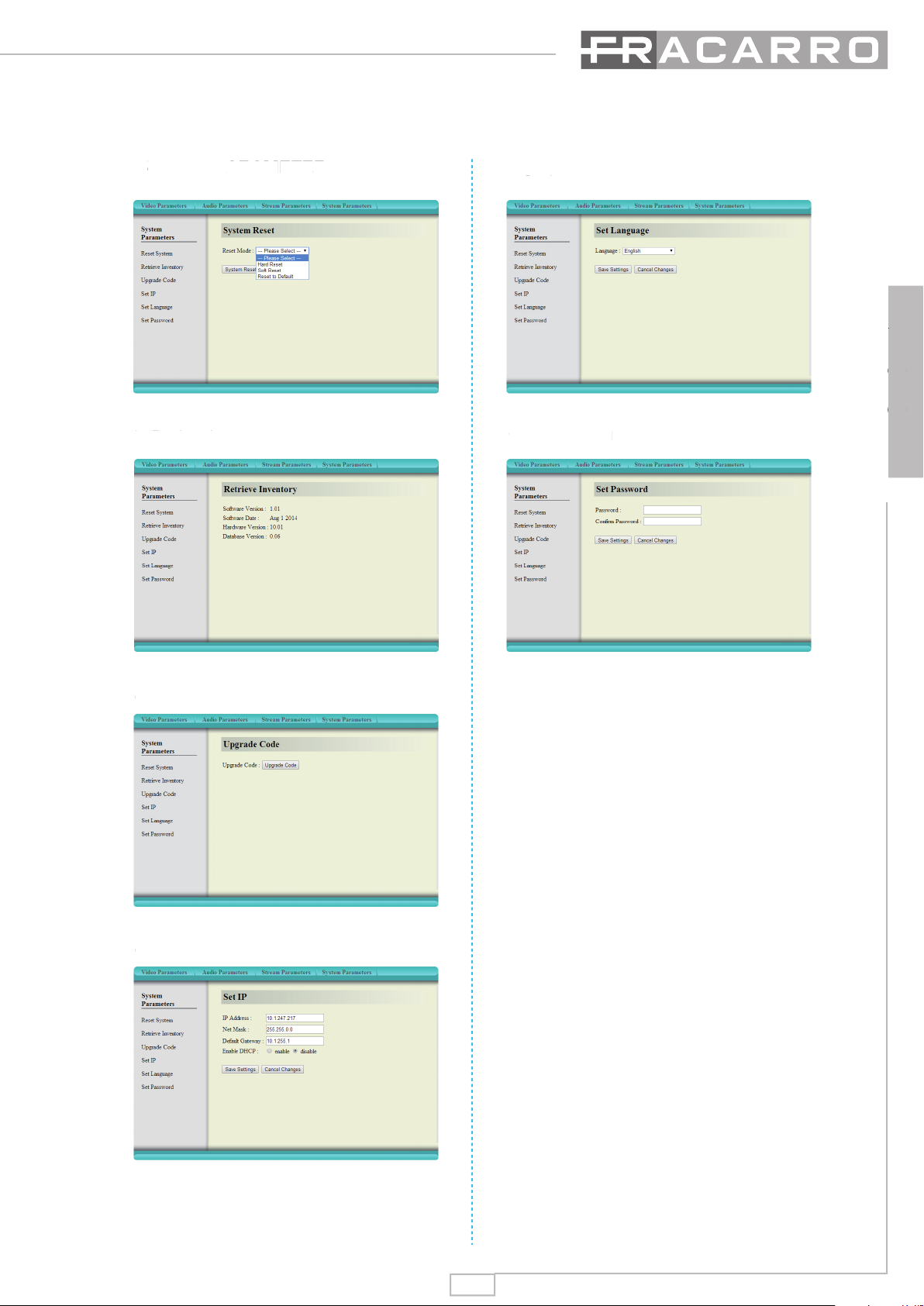

b. Retrieve Inventory
c. Upgrade code
f. Set Password
d. Set IP
e. Set language
SYSTEM PARAMETERS
a. System Reset
15
ENGLISH
ENGLISH
b. Retrieve Inventory
c. Upgrade code
f. Set Password
d. Set IP
e. Set language
S
YSTEM P
SYSTEM PS
A
RAM
E
TE
R
S
a. System Reset

16
ITALIANO
INDICE
1 Introduzione pagina 17
2 Avvertenze per la sicurezza pagina 18
3 Specifiche Tecniche pagina 19
4 Installazione pagina 20
5 Indicazioni generali per l’uso del SIG7804H264 pagina 20
6 Programmazione tramite display lcd e tastierino frontale pagina 21
7 Programmazione tramite interfaccia web pagina 27
Connessione
LAN LCD Display Pulsanti per la programmazione
Uscita ASI
(Up/Down/Left/Right)
Ingresso HDMI 1
Ingresso HDMI 2 Ingresso HDMI 4
Ingresso HDMI 3
LED di stato
Presenza segnale video di ingresso
GND
AC 100-240V
L’encoder SIG7804H264, installabile su rack standard 19” è in grado di codificare in H264 e multiplexare fino
a 4 sorgenti HD, ad esempio ricevitori terrestri o satellitari, telecamere di videosorveglianza, e riproporle
sull’uscita ASI (DVB-ASI).
L’encoder SIG7804H264 si basa sui sistemi di compressione H264/AVC in alta definizione e le tecnologie
standard TS MUX e può gestire i formati video fino a 1080p.
Il SIG7804H264 è una scelta ideale per convertire e distribuire segnali Audio/Video in alta definizione prove-
nienti da ricevitori TV e Satellite, telecamere di videosorveglianza, Mediaplayers attraverso l’interfaccia di
uscita ASI.
◆Encoding e rimultiplexing integrato in un unico apparato in formato rack standard 19” da una unità (1U).
◆Quadruplo ingresso HDMI indipendente.
◆Compatibilità con molti formati video, inclusi 1080p, 1080i, 720p,576p and 480p.
◆Compatibilità con molti formati audio, incluso anche MPEG-1 Layer II.
◆Service Name e LCN programmabile
◆Programmazione tramite il tastierino e il display sul frontale e mediante l’interfaccia web intuitiva integrata
16
ITALIANO
ITALIANO
INDICE
1 Introduzione pagina 17
2 Avvertenze per la sicurezza pagina 18
3 Specifiche Tecniche pagina 19
4 Installazione pagina 20
5 Indicazioni generali per l’uso del SIG7804H264 pagina 20
6 Programmazione tramite display lcd e tastierino frontale pagina 21
7 Programmazione tramite interfaccia web pagina 27

17
ITALIANO
1 - INTRODUZIONE
Descrizione Generale
Caratteristiche Principali
Connessione
LAN LCD Display Pulsanti per la programmazione
Uscita ASI
(Up/Down/Left/Right)
Ingresso HDMI 1
Ingresso HDMI 2 Ingresso HDMI 4
Ingresso HDMI 3
LED di stato
Presenza segnale video di ingresso
GND
AC 100-240V
L’encoder SIG7804H264, installabile su rack standard 19” è in grado di codificare in H264 e multiplexare fino
a 4 sorgenti HD, ad esempio ricevitori terrestri o satellitari, telecamere di videosorveglianza, e riproporle
sull’uscita ASI (DVB-ASI).
L’encoder SIG7804H264 si basa sui sistemi di compressione H264/AVC in alta definizione e le tecnologie
standard TS MUX e può gestire i formati video fino a 1080p.
Il SIG7804H264 è una scelta ideale per convertire e distribuire segnali Audio/Video in alta definizione prove-
nienti da ricevitori TV e Satellite, telecamere di videosorveglianza, Mediaplayers attraverso l’interfaccia di
uscita ASI.
◆Encoding e rimultiplexing integrato in un unico apparato in formato rack standard 19” da una unità (1U).
◆Quadruplo ingresso HDMI indipendente.
◆Compatibilità con molti formati video, inclusi 1080p, 1080i, 720p,576p and 480p.
◆Compatibilità con molti formati audio, incluso anche MPEG-1 Layer II.
◆Service Name e LCN programmabile
◆Programmazione tramite il tastierino e il display sul frontale e mediante l’interfaccia web intuitiva integrata
L’imballo contiene:
• 1 encoder digitale ASI;
• 4 cavi standard HDMI-HDMI lunghi 1,5mt;
• 1 cavo di alimentazione;
• 1 cavo BNC-BNC standard per il collegamento ASI lungo 1,5mt;
• guida rapida.
17
ITALIANO
ITALIANO
1 - INTRODUZIONE
Descrizione Generale
Caratteristiche Principali
Connessione
LAN
LCD Display
Pulsanti per la programmazione
Uscita ASI
(Up/Down/Left/Right)
Pulsanti per la programmazione
(Up/Down/Left/Right)
Pulsanti per la programmazione
Ingresso HDMI 1
Ingresso HDMI 2
Ingresso HDMI 4
Ingresso HDMI 3
LED di stato
Presenza segnale video di ingresso
GND
AC 100-240V
L’encoder SIG7804H264, installabile su rack standard 19” è in grado di codificare in H264 e multiplexare fino
a 4 sorgenti HD, ad esempio ricevitori terrestri o satellitari, telecamere di videosorveglianza, e riproporle
sull’uscita ASI (DVB-ASI).
L’encoder SIG7804H264 si basa sui sistemi di compressione H264/AVC in alta definizione e le tecnologie
standard TS MUX e può gestire i formati video fino a 1080p.
Il SIG7804H264 è una scelta ideale per convertire e distribuire segnali Audio/Video in alta definizione prove
-
nienti da ricevitori TV e Satellite, telecamere di videosorveglianza, Mediaplayers attraverso l’interfaccia di
uscita ASI.
◆
Encoding e rimultiplexing integrato in un unico apparato in formato rack standard 19” da una unità (1U).
◆
Quadruplo ingresso HDMI indipendente.
◆
Compatibilità con molti formati video, inclusi 1080p, 1080i, 720p,576p and 480p.
◆
Compatibilità con molti formati audio, incluso anche MPEG-1 Layer II.
◆
Service Name e LCN programmabile
◆
Programmazione tramite il tastierino e il display sul frontale e mediante l’interfaccia web intuitiva integrata
L’imballo contiene:
•
1 encoder digitale ASI;
•
4 cavi standard HDMI-HDMI lunghi 1,5mt;
•
1 cavo di alimentazione;
•
1 cavo BNC-BNC standard per il collegamento ASI lungo 1,5mt;
•
guida rapida.

18
ITALIANO
18
ITALIANO
ITALIANO
2 - AVVERTENZE PER LA SICUREZZA
L’installazione del prodotto deve essere eseguita da personale qualificato in conformità alle leggi e normative
locali sulla sicurezza. Fracarro Radioindustrie di conseguenza è esonerata da qualsivoglia responsabilità civile
o penale conseguente a violazioni delle norme giuridiche vigenti in materia e derivanti dall’uso del prodotto da
parte dell’installatore, dell’utilizzatore o di terzi. L’installazione del prodotto deve essere eseguita secondo le
indicazioni di installazione fornite, al fine di preservare l’operatore da eventuali incidenti e il prodotto da eventuali
danneggiamenti. Non aprire il contenitore del prodotto, parti a tensione pericolosa possono risultare accessibili
all’apertura dell’involucro.
AVVERTENZE PER L’INSTALLAZIONE
• Il prodotto non deve essere esposto a gocciolamento o a spruzzi d’acqua e va pertanto installato in un
ambiente asciutto, all’interno di edifici.
• Umidità e gocce di condensa potrebbero danneggiare il prodotto.
• In caso di condensa, prima di utilizzare il prodotto, attendere che sia completamente asciutto.
• Maneggiare con cura. Urti impropri potrebbero danneggiare il prodotto.
• Lasciare spazio attorno al prodotto per garantire una ventilazione sufficiente.
• L’eccessiva temperatura di lavoro e/o un eccessivo riscaldamento possono compromettere il funzionamento
e la durata del prodotto.
• Non installare il prodotto sopra o vicino a fonti di calore o in luoghi polverosi o dove potrebbe venire a contatto
con sostanze corrosive.
• In caso di montaggio a muro utilizzare tasselli ad espansione adeguati alle caratteristiche del supporto di
fissaggio. La parete ed il sistema di fissaggio devono essere in grado di sostenere almeno 4 volte il peso
dell’apparecchiatura.
• Attenzione: per evitare di ferirsi, questo apparecchio deve essere assicurato alla parete/pavimento secondo
le istruzioni di installazione.
• Per “APPARECCHIATURE INSTALLATE PERMANENTEMENTE”, un dispositivo di sezionamento facilmente
accessibile deve essere incorporato all’esterno dell’apparecchiatura; per “APPARECCHIATURE CON SPINA
DI CORRENTE”, la presa deve essere installata vicino all’apparecchiatura ed essere facilmente accessibile.
• Il prodotto deve essere collegato all’elettrodo di terra dell’impianto d’antenna conformemente alla norma EN
60728-11. La vite predisposta per tale scopo è contrassegnata con il simbolo .
• Si raccomanda di attenersi alle disposizioni della norma EN 60728-11 e di non collegare tale vite alla terra di
protezione della rete elettrica di alimentazione.
Simbolo di classe II Simbolo di terra dell’impianto d’antenna
AVVERTENZE GENERALI
In caso di guasto non tentate di riparare il prodotto altrimenti la garanzia non sarà più valida.
Utilizzare esclusivamente l’alimentatore fornito in dotazione con il prodotto.
Le informazioni riportate in questo manuale sono state compilate con cura, tuttavia Fracarro Radioindustrie S.r.l.
si riserva il diritto di apportare in ogni momento e senza preavviso, miglioramenti e/o modifiche ai prodotti de-
scritti nel presente manuale. Consultare il sito www.fracarro.com per le condizioni di assistenza e garanzia.
CONFORMITA’ ALLE DIRETTIVE EUROPEE
Fracarro dichiara che il prodotto è conforme alle direttive 2014/53/UE e 2011/65/UE. Il testo completo della
dichiarazione di conformità UE è disponibile al seguente indirizzo internet ce.fracarro.com.
INFORMAZIONE AGLI UTENTI
A sensi dell’art. 26 del Decreto Legislativo 14 marzo 2014, n. 49 “Attuazione della direttiva 2012/19/UE sui rifiuti di apparecchiature elettriche ed elettroniche
(RAEE)”
Il simbolo del cassonetto barrato riportato sull’apparecchiatura indica che il prodotto alla fine della propria vita utile deve essere raccolto
separatamente dagli altri rifiuti. L’utente dovrà, pertanto, conferire l’apparecchiatura giunta a fine vita agli idonei centri di raccolta differenziata
dei rifiuti elettronici ed elettrotecnici, oppure riconsegnarla al rivenditore al momento dell’acquisto di una nuova apparecchiatura di tipo
equivalente, in ragione di uno a uno. L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dismessa al riciclaggio,
al trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute e
favorisce il riciclo dei materiali di cui è composta l’apparecchiatura.

19
ITALIANO
3 - SPECIFICHE TECNICHE
INGRESSI
No. di ingressi 4
Video HDMI, conformi con HDMI 1.3a
Audio HDMI
Tipologia di connettori HDMI: Type A receptacle
ENCODING
Risoluzione Video Fino a 1080p@60Hz
Compressione Video H264/AVC
Compressione Audio MPEG-1 Audio Layer ll (ISO/IEC 11172-3)
Impostazioni PID PMT/Video/Audio/PCR
Configurazione TS network NID/ONID/P.D.S./TS ID
Campionamento Audio 128,256,384Kbps
Impostazioni LCN Fino a 1023
Service Name Al massimo 15 caratteri
USCITA ASI
No. di uscite 1
Standard DVB-ASI
Bitrate di uscita massimo 216Mbps
Bitrate di uscita effettivo 4÷72Mbps
Tipologia di connettore BNC (75 Ω)
PROGRAMMAZIONE
Locale Display LCD e pulsanti frontali
Remota Interfaccia web mediante connessione LAN
CARATTERISTICHE GENERALI
Installazione Montaggio su rack standard 19”
Dimensioni (L x H x P) / peso 440 x 44 x 280mm / 3,5 Kg.
Tensione di alimentazione 110~240Vac, 50/60Hz
Consumo tipico 40W
Temperatura di funzionamento 0 a +45°C
Conformità EN50083-2, EN60065
19
ITALIANO
ITALIANO
3 - SPECIFICHE TECNICHE
INGRESSI
No. di ingressi
4
Video
HDMI, conformi con HDMI 1.3a
Audio
HDMI
Tipologia di connettori
HDMI: Type A receptacle
ENCODING
Risoluzione Video
Fino a 1080p@60Hz
Compressione Video
H264/AVC
Compressione Audio
MPEG-1 Audio Layer ll (ISO/IEC 11172-3)
Impostazioni PID
PMT/Video/Audio/PCR
Configurazione TS network
NID/ONID/P.D.S./TS ID
Campionamento Audio
128,256,384Kbps
Impostazioni LCN
Fino a 1023
Service Name
Al massimo 15 caratteri
USCITA ASI
No. di uscite
1
Standard
DVB-ASI
Bitrate di uscita massimo
216Mbps
Bitrate di uscita effettivo
4÷72Mbps
Tipologia di connettore
BNC (75
Ω
)
PROGRAMMAZIONE
Locale
Display LCD e pulsanti frontali
Remota
Interfaccia web mediante connessione LAN
CARATTERISTICHE GENERALI
Installazione
Montaggio su rack standard 19”
Dimensioni (L x H x P) / peso
440 x 44 x 280mm / 3,5 Kg.
Tensione di alimentazione
110~240Vac, 50/60Hz
Consumo tipico
40W
Temperatura di funzionamento
0 a +45°C
Conformità
EN50083-2, EN60065

20
ITALIANO
4 - NSTALLAZIONE
Per installare l’encoder SIG7804H264 si raccomanda di seguire le istruzioni indicate di seguito.
E
!
Seguire scrupolosamente le avvertenze della sicurezza per il collegamento
corretto dell’encoder SIG7804H264 al sistema di messa a terra
(Vedere il capitolo AVVERTENZE PER LA SICUREZZA)
A) Collegare il cordone di alimentazione alla presa di alimentazione primaria
B) Collegare il cavo di messa a terra
C) Collegare agli ingressi HDMI le sorgenti video (ricevitore satellitare, ecc.)
D) Collegare l’uscita ASI ad un modulatore digitale DVB-T/C
(ad esempio al modulatore twin ASI della famiglia 3DGFlex).
E) Collegare l’encoder ad un computer mediante un cavo LAN.
Per la programmazione tramite l’interfaccia web integrata, seguire le istruzioni
elencate nel paragrafo “PROGRAMMAZIONE TRAMITE INTERFACCIA WEB”
Di seguito viene descritto come programmare l’encoder SIG7804H264 utilizzando il tastierino e il display LCD frontale.
Utilizzare le frecce in ALTO e in BASSO per navigare nei menu e nei sottomenù.
Utilizzare le frecce in ALTO e in BASSO per modificare i parametri all’interno della programmazione.
Nei menù e all’interno della programmazione, utilizzare le frecce DESTRA e SINISTRA
per selezionare o per ritornare al menù precedente.
Nei menù utilizzare il tasto ENTER per entrare nei sottomenù o nei menu secondari.
Nei sottomenù utilizzare il tasto ENTER per selezionare la voce da impostare.
La selezione viene confermata utilizzando il tasto ENTER.
All’interno dei settaggi, dopo aver effettuato la programmazione,
utilizzare il tasto “LOCK” per fissare le impostazioni.
A
B
C
D
5 - INDICAZIONI GENERALI PER L’UTILIZZO DEL SIG7804H264
20
ITALIANO
ITALIANO
4 - NSTALLAZIONE
Per installare l’encoder SIG7804H264 si raccomanda di seguire le istruzioni indicate di seguito.
E
!
Seguire scrupolosamente le avvertenze della sicurezza per il collegamento
corretto dell’encoder SIG7804H264 al sistema di messa a terra
(Vedere il capitolo AVVERTENZE PER LA SICUREZZA)
A) Collegare il cordone di alimentazione alla presa di alimentazione primaria
B) Collegare il cavo di messa a terra
C) Collegare agli ingressi HDMI le sorgenti video (ricevitore satellitare, ecc.)
D) Collegare l’uscita ASI ad un modulatore digitale DVB-T/C
(ad esempio al modulatore twin ASI della famiglia 3DGFlex).
E) Collegare l’encoder ad un computer mediante un cavo LAN.
Per la programmazione tramite l’interfaccia web integrata, seguire le istruzioni
elencate nel paragrafo “PROGRAMMAZIONE TRAMITE INTERFACCIA WEB”
Di seguito viene descritto come programmare l’encoder SIG7804H264 utilizzando il tastierino e il display LCD frontale.
Utilizzare le frecce in ALTO e in BASSO per navigare nei menu e nei sottomenù.
Utilizzare le frecce in ALTO e in BASSO per modificare i parametri all’interno della programmazione.
Nei menù e all’interno della programmazione, utilizzare le frecce DESTRA e SINISTRA
per selezionare o per ritornare al menù precedente.
Nei menù utilizzare il tasto ENTER per entrare nei sottomenù o nei menu secondari
.
Nei sottomenù utilizzare il tasto ENTER per selezionare la voce da impostare.
La selezione viene confermata utilizzando il tasto ENTER.
All’interno dei settaggi, dopo aver effettuato la programmazione,
utilizzare il tasto “LOCK” per fissare le impostazioni.
A
B
C
D
5 - INDICAZIONI GENERALI PER L’UTILIZZO DEL SIG7804H264
This manual suits for next models
1
Table of contents
Languages:
Other Fracarro Media Converter manuals
Popular Media Converter manuals by other brands

Linear
Linear LTC1704 quick start guide

DeLOCK
DeLOCK 64198 user manual

Esoteric
Esoteric D-01VU Specifications

Mid-Continent Instrument
Mid-Continent Instrument True Blue Power TC234 Installation manual and operating instructions

Niagara
Niagara GoStream Mini 200 manual

Transition Networks
Transition Networks M/GE-PSW-LX-01 user guide
