Franke FCBI 1204 C X User manual

Instructions for use and installation
Cooker Hood
Instrucciones para el uso y la instalaciòn
Campana
FCBI 1204 C X
GB
ES

2
2
INDEX
SAFETYINFORMATION......................................................................................................................................................... 3
CHARACTERISTICS.............................................................................................................................................................6
INSTALLATION...................................................................................................................................................................... 7
USE........................................................................................................................................................................................ 8
CAREANDCLEANING.........................................................................................................................................................10
ÍNDICE
INFORMACIÓNDESEGURIDAD..........................................................................................................................................12
CARACTERÍSTICAS ...........................................................................................................................................................15
INSTALACIÓN..................................................................................................................................................................... 16
USO......................................................................................................................................................................................17
LIMPIEZAYMANTENIMIENTO.............................................................................................................................................19
EN
ES

EN 3
3
For your safety and correct operation of the appliance, read this manual
carefully before installation and use. Always keep these instructions
with the appliance even if you move or sell it. Users must fully know the
operation and safety features of the appliance.
The wire connection has to be done by specialized technician.
 The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
 The minimum safety distance between the cooker top and the extractor
hood is 650 mm (some models can be installed at a lower height,
please refer to the paragraphs on working dimensions and installation).
 If the instructions for installation for the gas hob specify a greater
distance, this must be respected.
 Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
 Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
 For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
 Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
 Regulations concerning the discharge of air have to be fulfilled.
 Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
SAFETY INFORMATION

EN 4
4
 If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust gas.
When the cooker hood is used in conjunction with appliances supplied
with energy other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back into the room
by the cooker hood.
 The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
 If the supply cord is damaged, it must be replaced from the manufac-
turer or its service agent.
 Connect the plug to a socket complying with current regulations, lo-
cated in an accessible place.
 With regards to the technical and safety measures to be adopted for
fume discharging it is important to closely follow the regulations pro-
vided by the local authorities.
WARNING: Before installing the Hood, remove the protective films.
 Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
 Do not look directly at the light through optical devices (binoculars,
magnifying glasses…).
 Do not flambè under the range hood; risk of fire.
 This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
 Children should be supervised to ensure that they do not play with the
appliance.

EN 5
5
 The appliance is not to be used by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
Accessible parts may become hot when used with cooking appliances.
 Clean and/or replace the Filters after the specified time period (Fire
hazard). See paragraph Care and Cleaning.
 There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels (not
applicable to appliances that only discharge the air back into the room).
 The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed informa-
tion about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you pur-
chased the product.

EN 6
6
CHARACTERISTICS

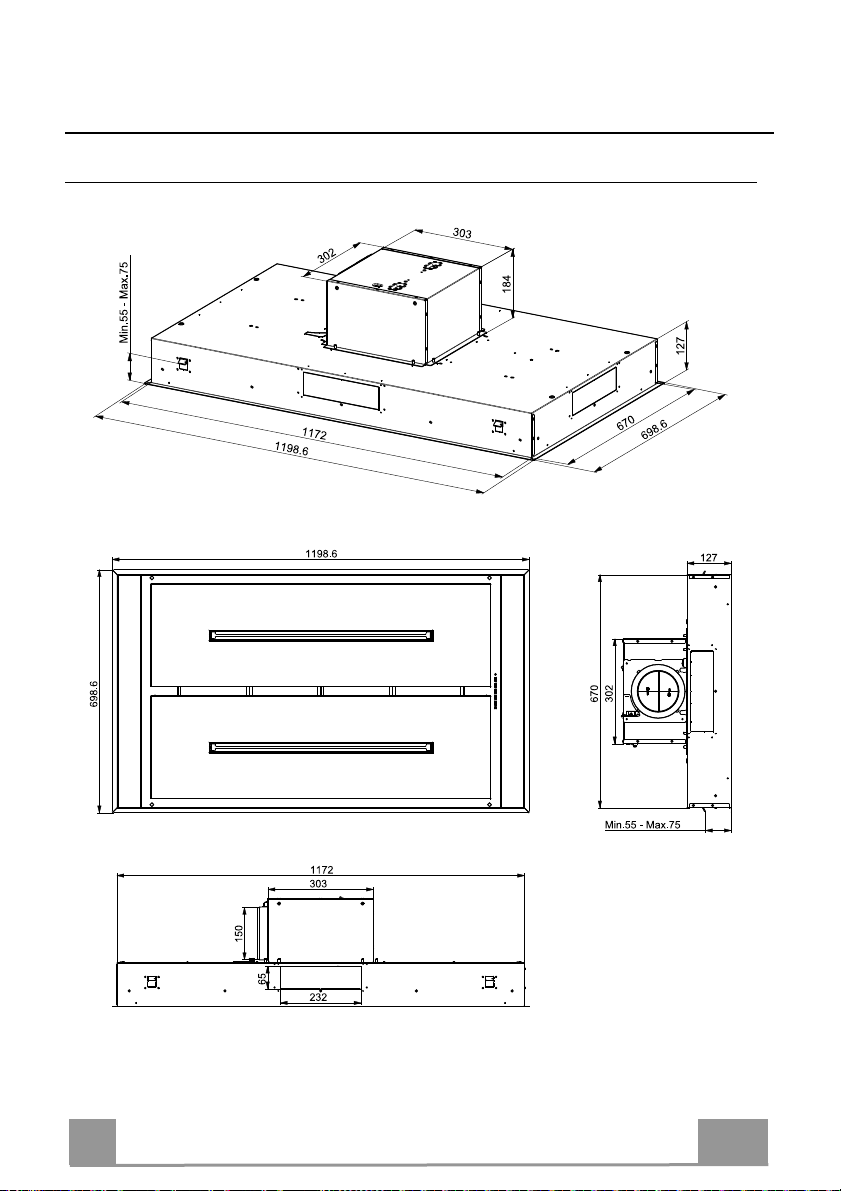

Dimensions

EN 7
7
INSTALLATION
Fixing the Hood
• In all cases where the ceiling is not strong enough at the suspension point, the installer must
provide strengthening using suitable plates and backing pieces anchored to the structurally
sound parts.
ELECTRICAL CONNECTION
•Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm..

EN 8
8
USE
L
S1
T1 T2 T3 T4
LT3
S1
T2
T1 T4
23
I
F
LT3T2T1 T4
S1

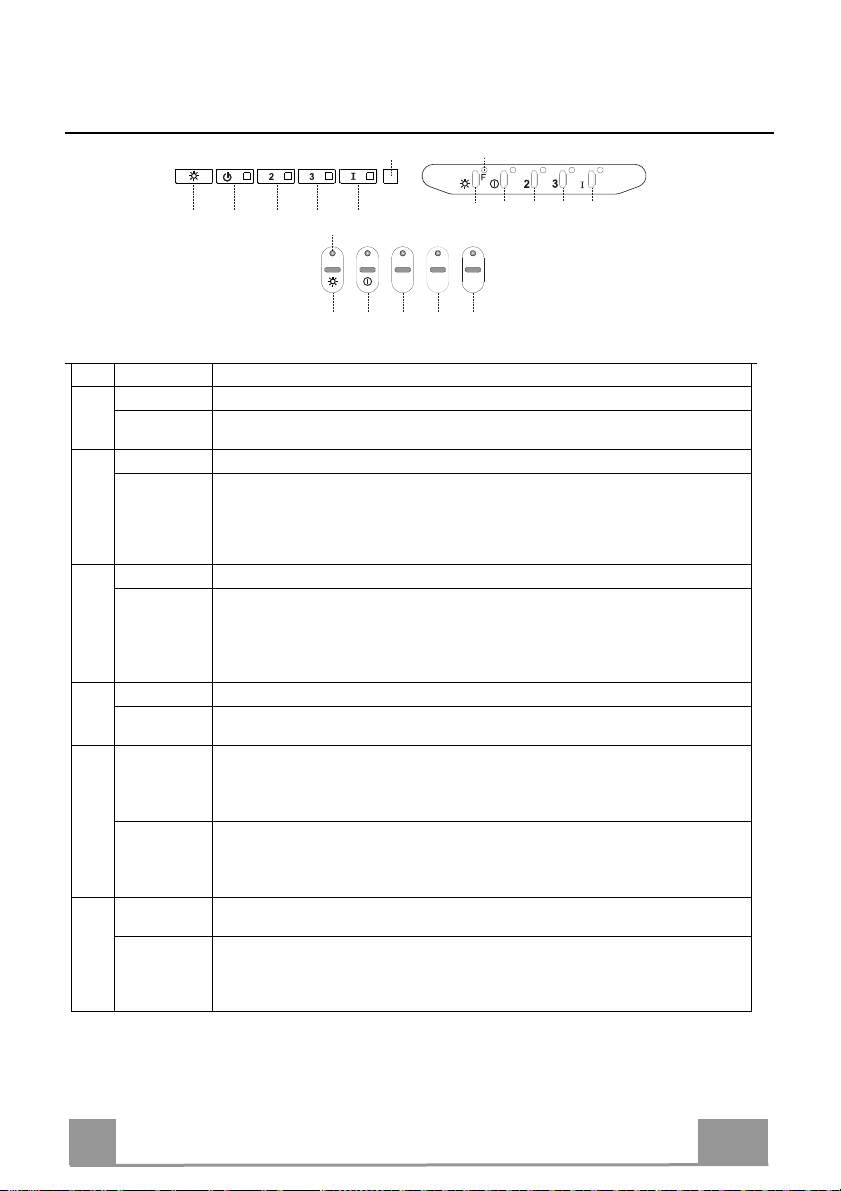

Control panel
Button Led Function
L - Turns thelights ON/OFF at maximum strength.
Pressand hold forapprox. 2seconds to turnthe lightingsystemonandoffat reducedintensity.
T1 Fixed Turnsthe motoron/offat speedone.
Delay function:
Press and hold the button for approx. 3 seconds to Activate/Deactivate the Delay function
(automatic switching off of the Motor, the Fans and the Lighting with a 30' delay).
Cannotbeenabled whenIntensive or24hare on.
T2 Fixed Turnsthe Motoronat speed two.
Press and hold the button for approximately 5 seconds, withall the loads turned off (Motor and Lights),
toturnthe ActivatedCharcoalFilter alarm on.The relevant LEDflashestwice to confirm.
To turn the alarm off, press the button again and hold for at least 5 seconds. The relevant LED flashes
once.
T3 Fixed Turnsthe Motor onatspeed three.
Press and hold the button for approximately 3 seconds, withall the loads turned off (Motor and Lights),
toperformareset. The LED S1flashesthree times.
T4 Fixed Turnsthe Motoronat INTENSIVESpeed.
This speed is timed to run for6 minutes. At the end of this time, the system returns automatically to the
speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of
thetime.
Pressand hold for5 secondstoenable theremotecontrol, indicated bythe LED flashing twice.
Pressand hold for5 secondstodisable theremotecontrol, indicated by the LED flashing just once.
S1 Fixed Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The
alarmis triggeredafterthe Hoodhasbeen inoperation for100 workinghours.
Flashing When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter
must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter satura-
tionalarmcomes intooperation aftertheHood hasbeenworking for200 hours.

EN 9
9
REMOTECONTROL
This appliance can be controlled using a remote control.
Remote control panel
Motor Motor On / Off.
- -
- -
Lights On / Off
Light Press for 2 seconds to modify the intensity of the Light.
Intensive Activates the Intensive function
Delay Activates / Deactivates the Delay function
- Increases the working speed each time it is pressed.
- Decreases the working speed each time it is pressed.

EN 1
10

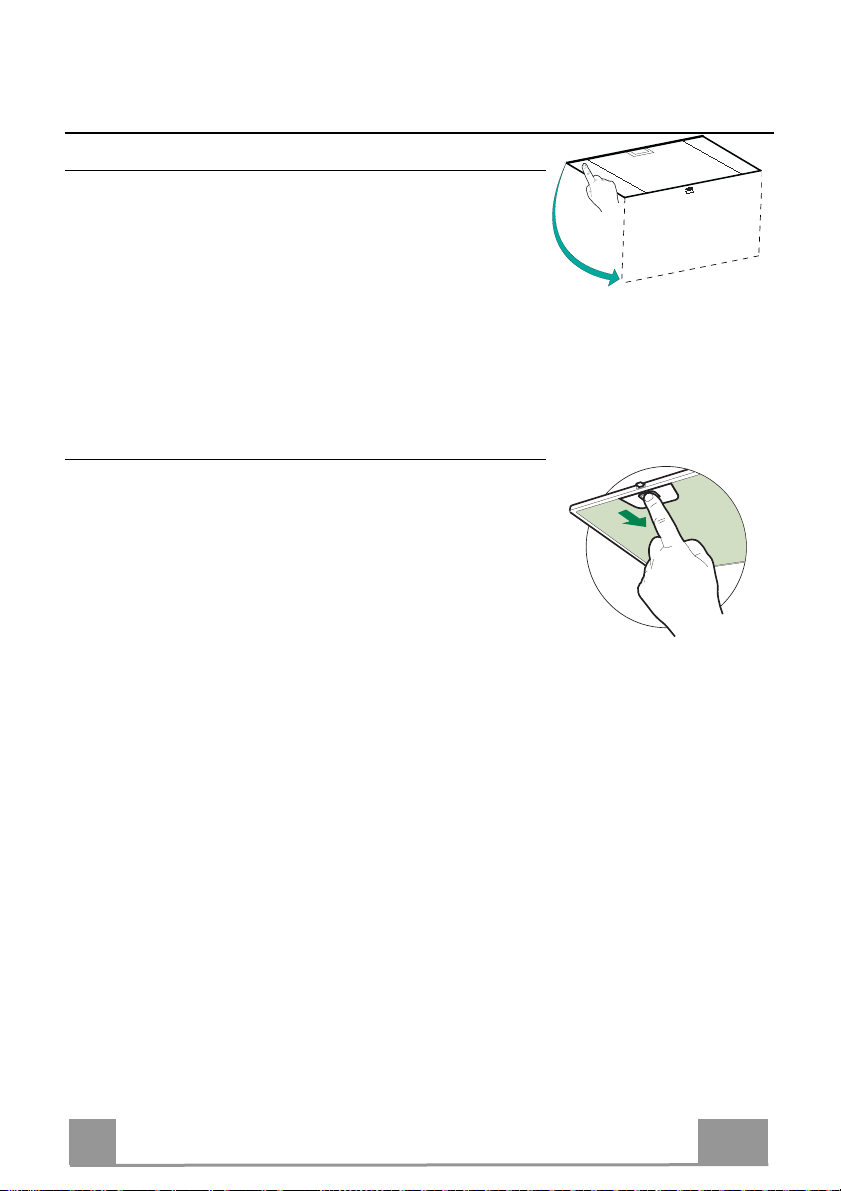

Opening Panel
• Open the Panel by pulling it.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent; do
not use wet cloths or sponges, or jets of water; do not use
abrasive substances.
Metal grease filters
These can be washed in the dishwasher, and need to be cleaned
whenever the S1 Led comes on or at least once every 2 months
use, or more frequently if use is particularly intensive.
CLEANING THE FILTERS
Resetting the alarm signal
• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes
three times in confirmation.
Cleaning the Filters
• Open the doors.
• Remove the Filter, pushing it towards the back of the unit and
at the same time pulling downward.
• Wash the filter without bending it, and leave it to dry thor-
oughly before replacing (if the surface of the filter changes
colour over time, this will have absolutely no effect on its effi-
ciency).
• Replace, taking care to ensure that the handle faces forwards.
• Close the doors again.
CARE AND CLEANING
