Introduction
These instrucons detail how to replace the 7" LCD display (part #245-5004) and the
Interface Board (part #229073901 Rev. 4) for an EVO™ 550, EVO™ 5000,
EVO™ 600 or EVO™ 6000 Automac Tank Gauge (ATG). Firmware 2.25.1 or greater
must be installed in the EVO™ 550 or 5000.
Replacement LCD Display Preparation Instructions
1. Make sure you have the parts, tools, and plan needed.
Parts:
• Replacement 7" LCD Display (245-5004)
• Interface Board (229073901)
• Phillips and athead screwdrivers
2. The replacement LCD Display arrives in an anstac bag (Figure 1). Carefully remove the
Interface Board, LCD Display and cable to prevent damage (Figure 2).
Figure 1 Figure 2
1

3. Turn over LCD display and connect cable (Figure 3). Note: cable pins need to face the LCD.
Figure 3
4. Make two folds in the cable and carefully remove tape (Figure 4).
Figure 4
Figure 5
5. LCD Display is now ready for installaon (Figure 5).
2

3
Figure 6: Remove Cover Back Panel
Replacement Instructions
IMPORTANT: Always use good safety and electrostac discharge (ESD) pracces when turning on
or o power to an ATG.
1. Turn o power to the ATG and perform lock out/tag out.
2. Open the ATG door.
3. Use a Phillips Screwdriver to remove the four corner screws located inside the front cover
(Figure 6). Aer the removal of these four screws, the cover back panel can be removed
from the front door, exposing the LCD.

Figure 9: Connector and Screw Locaons
4
4. Determine if ATG has NEW Interface Board REV4 or higher (Figure 7) or REV3 (Figure 8).
Replace interface board if it is REV3 or if exisng interface board is damaged.
Figure 7: NEW Interface Board Rev 4. Contains Connector J11 (circled)
Figure 8: OLDER Interface Board Rev 3. Contains Connector J3 and Dip Switches (circled)
5. Remove the backlight connector (1).
6. Pull the black pull/push tab down and pull the white ribbon cable (2) down from the
connector to unplug it.
7. Carefully pull the printer ribbon from the connector (3).
8. Li the pull/push tab on the touchscreen connector (4) and remove the cable.
9. Remove the 4 board mounng screws (5) , if replacing the Interface Board.
10. Remove the plasc snap-on stando in the center of the board and install with the new
Interface Board.
Remove Connecons (Figure 9).

15

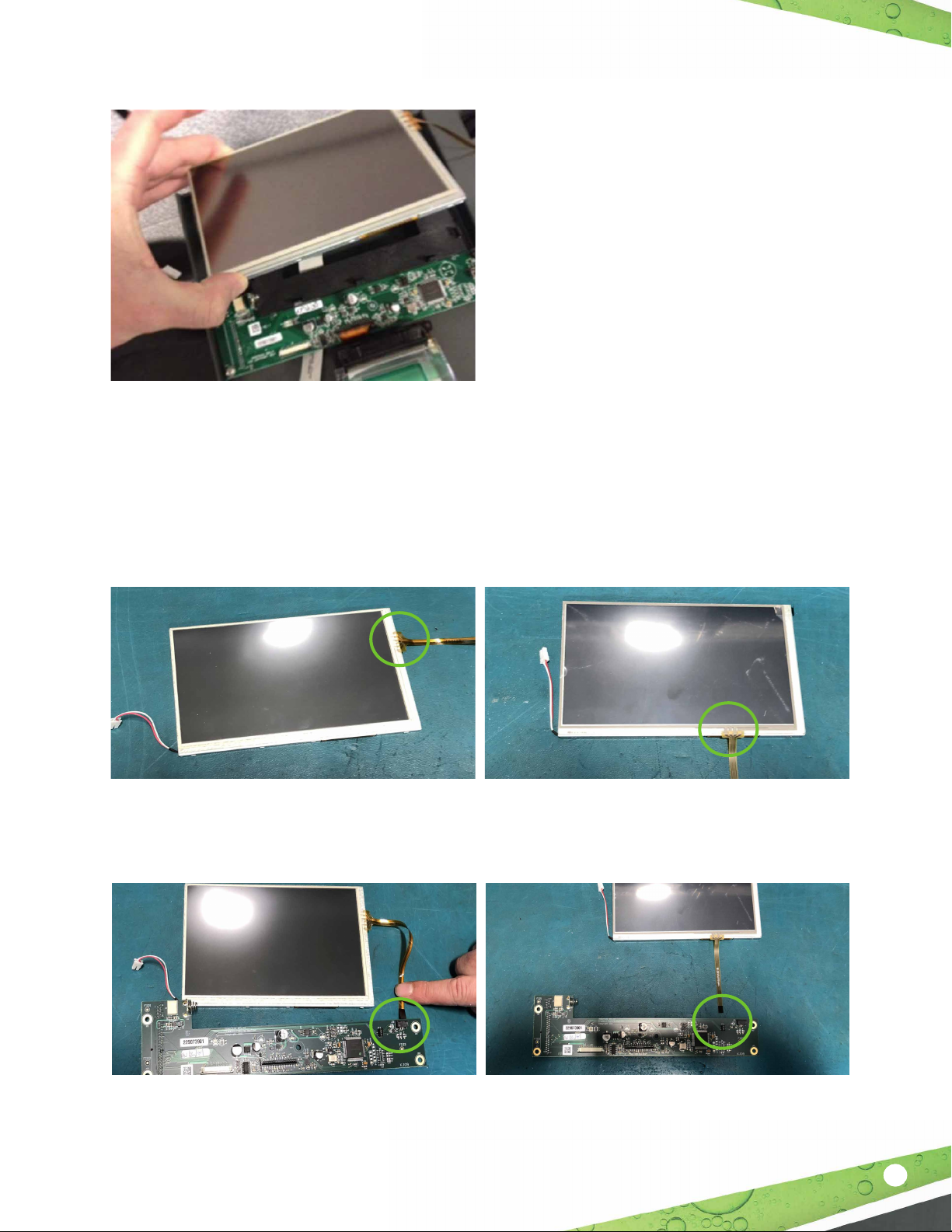

Figure 10: Li LCD and Remove
Figure 12: Side Cable Figure 13: Boom Cable
11. Remove the LCD (Figure 10).
12. Grasp the LCD and gently pull up while CAREFULLY prying the tabs from the LCD frame
(Figure 10). Aer a few of the tabs are unlatched, the LCD can slide out sideways and removed.
Installing the New LCD Display
13. Inspect the LCD Display, does the touchscreen cable come out of the side (Figure 12) or the
boom (Figure 13)?
14. If side cable, it will connect to J3 on interface board (Figure 14). If boom cable, it will
connect to J11 on interface board (Figure 15).
Figure 14: Side Cable Figure 15: Boom Cable

6
15. Install the replacement LCD. Feed the ribbon cable that is aached to the LCD underneath
the circuit board toward the J5 connector (Figure 16).
16. Verify that the LCD is snapped into place and held by the LCD frame clips. Also, be sure the
grounding spring in the lower le hand corner is pressing against the frame of the display and
not stuck underneath it.
17. Plug the ribbon cable into the J5 connector, as well as the J4 backlight connector (Figure 17).
Figure 17: Reconnect J4 & J5 Ribbon Cable
J4
J5
Figure 16: Reconnect J5 Ribbon Cable
18. Connect the touchscreen cable as determined in step 14 into J3 or J11.
19. Replace the front cover and reinstall the four corner screws.
20. Power up and Test.
