Franklin U601 User manual

Mobile Broadband modem U601
User Manual
U601 Access Manager™

U601 Mobile Broadband Modem
2
CONTENTS
1. BEFORE USING U601 ......................................................................................... 3
About This User‟s Manual.................................................................................. 4
Product Overview ............................................................................................ 4
Product Package Contents................................................................................. 4
Introduction to U601 USB Modem ...................................................................... 5
Product Specifications ...................................................................................... 5
Product handling ............................................................................................. 5
Configuration .................................................................................................. 6
2. INSTALLATION AND SETUP FOR U601 ACCESS MANAGER™ .................................... 7
Installing Software........................................................................................... 8
Setup Program for Windows .............................................................................. 9
Setup Program for Mac OS X ........................................................................... 13
3. STARTING U601 ACCESS MANAGER™ ................................................................ 17
Features ....................................................................................................... 18
Getting Started ............................................................................................. 18
Connecting to the Internet .............................................................................. 19
4. USING U601 ACCESS MANAGER™ ..................................................................... 21
The Session Menu.......................................................................................... 22
The Tools Menu ............................................................................................. 23
The Options Menu.......................................................................................... 25
The Help Menu .............................................................................................. 30
Additional Features ........................................................................................ 31
5. INSTALLING U601 ........................................................................................... 33
Recommended System Requirements............................................................... 34
Remove the Modem from your Computer.......................................................... 34
Using the USB Extension cable ........................................................................ 34
Trouble Shooting ........................................................................................... 34
CARE AND MAINTENANCE............................................................................... 35
WARRANTY ................................................................................................... 35
SAR INFORMATION ........................................................................................ 37
SAFETY INFORMATION ................................................................................... 37
U.S.A. .......................................................................................................... 38
FCC Compliance Information ........................................................................... 38

U601 Mobile Broadband Modem
3
Section 1,
1. BEFORE USING U601
 About This User’s Manual
 Product Overview
 Product Package Contents
 Introduction to U601 USB Modem
 Product Specifications
 Product handling
 Configuration

U601 Mobile Broadband Modem
4
About This User’s Manual
This user manual contains all the necessary information regarding the device installation
and how to use the modem for your internet navigation. Please make sure that you are
familiar with the device operation by carefully reading this user manual before using the
U601 EVDO and WiMAX USB modem.
Instructions
• Install the U601 Access Manager™ software by inserting the U601 USB Device into
your PC. The installation software is included in the U601 modem memory. When you
insert the U601 into your computer, the installation process will automatically begin.
• It is highly recommended that you read the safety precautions described in this manual
before using the U601.
Documents Included on your Modem Memory
Broadband Usage Conditions, Terms & Conditions
User Manual
Product Overview
Welcome and thank you for choosing U601 USB Modem for your wireless internet
connection.
The U601 is a high-speed wireless device that enables your computer to connect to 3G
high-speed wireless network. The U601 provides simple yet powerful user interface that
is easy to install and use.
Product Package Contents
The following items are included in the product package. If any of the items listed below
are missing, please contact the local retail store where you purchased the product.
U601 Modem Device
Quick Start Guide
USB Extension Cable
Carrying Pouch

U601 Mobile Broadband Modem
5
Introduction to U601 USB Modem
The U601 is designed for the USB port on your computer, which is available in most PC
models. The U601 allows you to
Access the Internet,
Send and receive e-mail
Access your corporate network through VPN
With U601, you are always connected whether you are away from home, on the road, or
wherever wired Internet access is not readily available.
Product Specifications
Power management: The U601 utilizes power management and system overhead
reduction functions provided by the USB interface for maximum power savings.
Antenna design: Its efficient and innovative design optimizes data transfer rate and
sensitivity to network signals.
Extension USB cable connector: This extension cable may be used to increase RF
performance, and to resolve clearance issues if there is any.
USB Modem that supports Type A USB Port interface.
Supports PCS(1900MHz) and Cellular (800MHz) dual bands.
Utilizes Qualcomm QSC6085 chipset
Supports high-speed network technologies
Support Windows XP, Vista, 7 and Apple Macintosh systems with installed U601
Access Manager™connection manager software and driver.
Product handling
Do not place any adhesive labels on the USB connector. It may leave a sticky residue
that can cause problems inside the PC USB port.
The U601 USB device should easily slide into the USB port. Do not force the U601
into the USB port as it may cause damage to the modem and/or the port.
Keep the U601 in a dry and clean place. (Storage temperature: -22°F to 149°F [-
30°C to 65°C]). Keep your device away from liquids, dust and excessive heat.

U601 Mobile Broadband Modem
6
Configuration
To use the U601 on your computer, you need to install the U601 Access Manager™
software included in the modem memory and configure the U601 USB device. See the
next section for more information on software installation and USB device configuration.
The following section will guide you through the installation and setup process for U601
Access Manager™ software. Before getting started, you should become familiar with the
documentation that came with your USB Modem.

U601 Mobile Broadband Modem
7
Section 2,
2. INSTALLATION AND SETUP FOR
U601 ACCESS MANAGER™
 Installing Software
 Setup Program (for Windows)
 Setup Program (for Mac)

U601 Mobile Broadband Modem
8
This section will guide you through the installation and setup process for U601 Access
Manager™ software.
Before getting started, you should become familiar with the documentation that came
with your USB Modem.
Installing Software
Warnings
Make sure to complete the unplugging/ejection process before removing the U601.
If you remove the device improperly, the modem may be damaged.
Notes
If you have inserted the device properly, Windows will inform you of the new
hardware. Wait until Windows completes the “Found New Hardware” task.
It is normal to hear a short beep sound each time you insert or remove the U601.
It is an audible notification that your PC recognizes the new hardware.
Getting Started (Windows)
To install the U601 Access Manager™ software:
①Turn on your computer then close all applications.
②Insert the U601 modem into your USB port.
③Your computer will recognize U601 modem and start the installation sequence
automatically. If the program does not launch automatically, go to my computer and
select the „FAMCD‟drive and double click „start.exe‟ program.
④Follow the steps in the next section.

U601 Mobile Broadband Modem
9
Setup Program for Windows
STEP 1:
The “Welcome to the U601 Access Manager Setup Wizard” screen appears. Click the
[Next] button to continue with the installation process.
.

U601 Mobile Broadband Modem
10
STEP 2:
You are now ready to install U601 Access Manager™ application. Click the [Next] button
to continue.

U601 Mobile Broadband Modem
11
STEP 3:
During this step the components of U601 Access Manager product are being installed
onto your computer. Installation will occur to the “Program Files/Franklin/U601 Access
Manager”folder.

U601 Mobile Broadband Modem
12

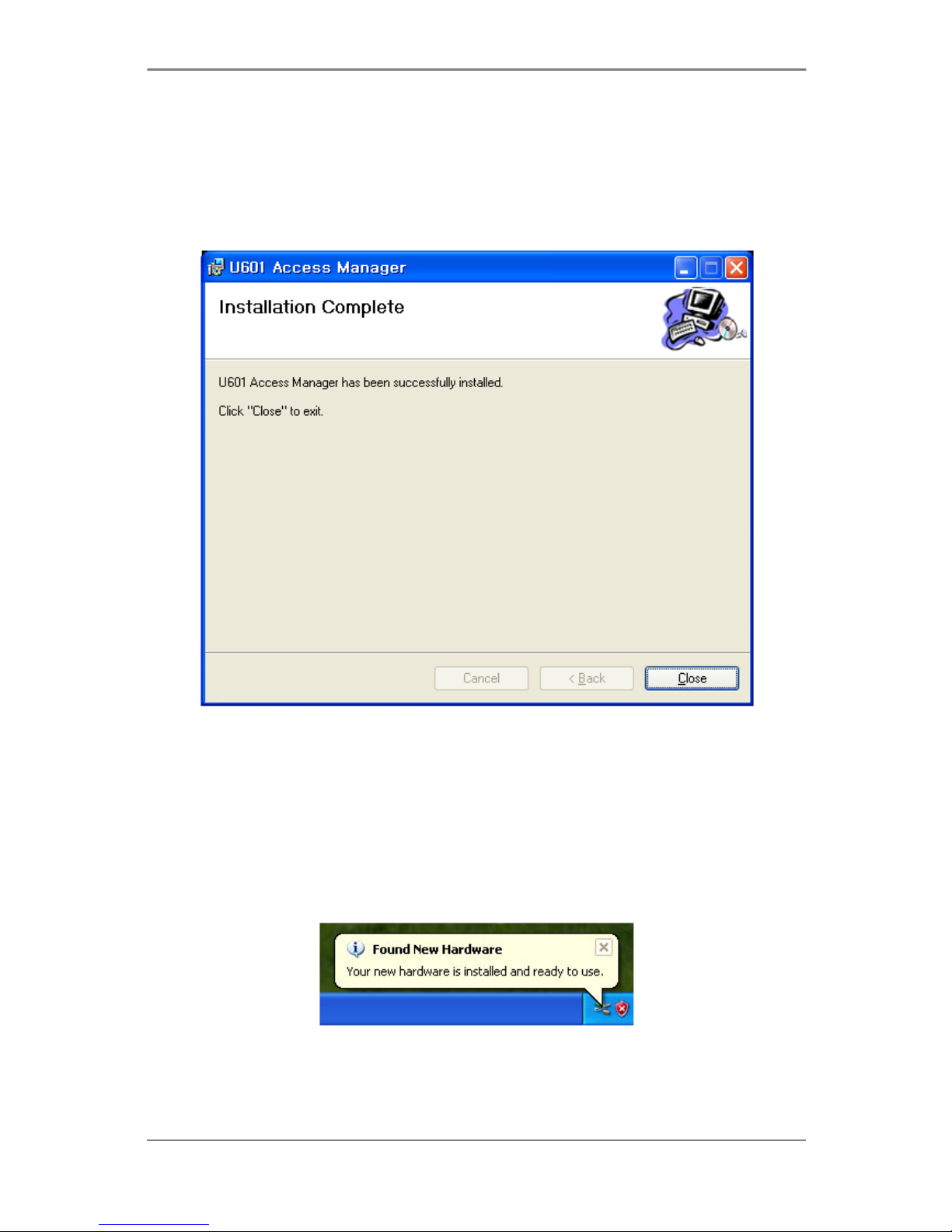

STEP 4:
Installation of U601 Access Manager is now complete. Click the [Close] button to leave
the U601 Access Manager setup program and begin using your new software.
※The setup program will automatically create a U601 Access Manager shortcut on your
desktop.
STEP 5:
Please wait while U601 is installed and ready to use.

U601 Mobile Broadband Modem
13
Setup Program for Mac OS X
STEP 1: Insert U601 into the PC, then U601 CD disk drive should be automatically
mounted. Double click U601 CD icon on the Desktop. Double click the U601 Access
Manager Setup icon to launch the installer.
STEP 2: Click [Continue] button in the welcome window to proceed with the installation.

U601 Mobile Broadband Modem
14
STEP 3: The Read Me file appears. Click the [Continue] button.
STEP 4: Click “Install” to begin the standard installation on system volume

U601 Mobile Broadband Modem
15
STEP 5: Finally, the Setup Wizard shows confirm window, click the [OK] button to
continue.
Enter the Name/Password used to log into the computer then click „OK‟.
STEP 6: U601 Access Manager installation begins.

U601 Mobile Broadband Modem
16
STEP 7: Installation is now complete. Click „Restart‟ button to close the setup wizard.
Then OS is restarted.

U601 Mobile Broadband Modem
17
Section 3,
3. STARTING U601 ACCESS
MANAGER™
 Features
 Getting Started
 Connecting to the Internet

U601 Mobile Broadband Modem
18
U601 Access Manager™ is a connection manager application for U601 USB modem. It
allows you to manage and monitor the Internet connection between your computer and
the wireless network. It has user friendly interface and is equipped with many useful
features that will enhance your internet navigation experience.
Features
WWAN (Wireless Wide Area Network, 1xEV-DO/1xRTT/CDMA/WiMAX)
Specific Features:
Configures your computer to use your USB Modem
Creates a Data Connection for your USB Modem
Copies utility to create wireless copies of your dial-up connections, if supported by
your device
Test function for WWAN device
※A WWAN capable device is required to use the WWAN features. Individual WWAN
features are also device dependent as described in the WWAN section above.
Other Features:
Logs connections used, duration of the usage, and bytes sent and received.
See the section “Additional Features” for more information about the features of
U601 Access Manager™software.
Getting Started
Double click on the U601 Access Manager icon on your desktop or click on the Windows
Start menu and select U601 Access Manager from the list of programs.
About the Wireless Networks View
U601 Access Manager will open the Broadband Networks window as shown below. This
view is where you manage your Broadband connections. The Broadband Networks
window displays all the available network connections.
At a glance you can see the signal strength. Your current connection state and the

U601 Mobile Broadband Modem
19
elapsed time of the connection are displayed along the bottom of the status bar.
Connecting to the Internet
Once your device is properly configured, connecting to the Internet is as simple as
clicking the “Connect” button.
Once connected, the “Connect” button will change to “Disconnect”.
Simply click this “Disconnect” button to end your current connection. To connect to any
other network shown, select it, and then click the “Connect” button.
The Status Bar
Information regarding your current network connection can be seen in the status bar
along the bottom of U601 Access Manager interface. For more information on this status
bar, see the section “The Status Bar” in the “Additional Features” section.
U601 Access Manager will display status information at the bottom during the connection
process as well as while connected.
When it is not connected, the status text in the lower left corner will display “Not
connected” for the currently selected network. The timer will display “00:00:00”. Once
connected, the status text will display “Connected” and the timer will begin to run.
Right clicking on the tray icon provides various options and double clicking on it will
always show the application. Placing your mouse pointer on it will display the current
connection status.
Based on your preferences, your browser can be launched automatically upon connection.

U601 Mobile Broadband Modem
20
Using the “Data” connection:
By default U601 Access Manager enables the software for data connections.
If your connection fails when you try to connect, please try to reconnect.
Dormancy:
The data session can go to dormant mode if you are not sending or receiving any data
for an extended period of time. As soon as you resume sending or receiving data, the
data session will return to an active state automatically.
