USER
GUIDE

START
WITH YOUR
HOROLOGICAL
SMARTWATCH
2
ACTIVATE BLUETOOTH
ON YOUR PHONE
3
FOLLOW THE INSTRUCTIONS
within the app to pair your watch and set your goals.
1
GET THE APP
Download the MMT-365 App
for iPhone® or Android.
MMT-365

PAIR
YOUR
WATCH
WITH THE
MMT-365
APPLICATION
To pair your watch, launch
the MMT-365 application
and touch the watch icon in
the upper right corner of the
screen. Press the crown on
your watch to wake up the
Bluetooth radio, then press
the “start“ button in the app
screen. Keep your watch
close to your phone during the
pairing process. You will be
prompted to push the crown
on your watch one more time
to complete the pairing.

ACTIONS
RESULTS
PUSH
ONCE
CONNECTION & SYNC OF
THE WATCH WITH THE APP
PUSH
TWICE
WHILE IN ACTIVITY MODE
SHOW PROGRESS TOWARD ACTIVITY GOAL
WHILE IN SLEEP MODE
SHOW PROGRESS TOWARD SLEEP GOAL
PUSH
THREE TIMES
WORLDTIMER
HOUR HAND SHOWS TIME IN SELECTED TIMEZONE
3 SECONDS PUSH
& HOLD
CHANGE MODES
• ACTIVITY
If the BLUE hand shows the date,
you are in activity tracking mode
• SLEEP
If the BLUE hand shows the moon,
you are in sleep monitoring mode
USE
THE
HOROLOGICAL
SMARTWATCH
285 - CLASSICS

MO
DES
If the BLUE hand shows
the date, you are in
activity tracking mode
ROSE GOLD hand
points to 0-100 scale
representing 60% Activity
ACTIVITY
MODE
SLEEP
MODE
If the BLUE hand
shows the moon, you are
in sleep monitoring mode
ROSE GOLD hand
points to 0-100 scale
representing 70% Sleep
285 - CLASSICS

ACTIONS
RESULTS
PUSH
ONCE
WHILE IN ACTIVITY MODE
SHOW PROGRESS TOWARD ACTIVITY GOAL
WHILE IN SLEEP MODE
SHOW PROGRESS TOWARD SLEEP GOAL
PUSH
TWICE
WHILE IN ACTIVITY MODE
SHOW PROGRESS TOWARDS SLEEP GOAL
WHILE IN SLEEP MODE
SHOW PROGRESS TOWARDS ACTIVITY GOAL
PUSH
THREE TIMES
WORLDTIMER
HOUR HAND SHOWS TIME IN SELECTED TIMEZONE
3 SECONDS PUSH
& HOLD
CHANGES MODES BETWEEN ACTIVITY AND SLEEP
USE
THE
HOROLOGICAL
SMARTWATCH
281/282 - NOTIFY

MO
DES
After the crown press,
minute hand moves
to 8 o‘clock icon.
HOUR HAND points to
0-100 scale representing
40% Activity.
Two seconds later, hands
will move back to time.
ACTIVITY
MODE
SLEEP
MODE
One press on crown will
move minute hand to
4 o‘clock icon.
HOUR HAND points to
0-100 scale representing
80% Sleep.
Two seconds later, hands
will move back to time.
281/282 - NOTIFY

NOTI
FICA
TIONS
CALLS
MESSAGES
CALIBER WILL VIBRATE WHEN A MISSED CALL IS DETECTED
HANDS WILL POINT TO ICON AT 2 O’CLOCK
WITH PUSH ON CROWN, HANDS WILL GO BACK TO TIME
CALIBER WILL VIBRATE WHEN A MESSAGE IS RECEIVED
HANDS WILL POINT TO ICON AT 10 O’CLOCK
WITH PUSH ON CROWN, HANDS WILL GO BACK TO TIME
281/282 - NOTIFY

SWISS
CONNECT
MESS
ENGER

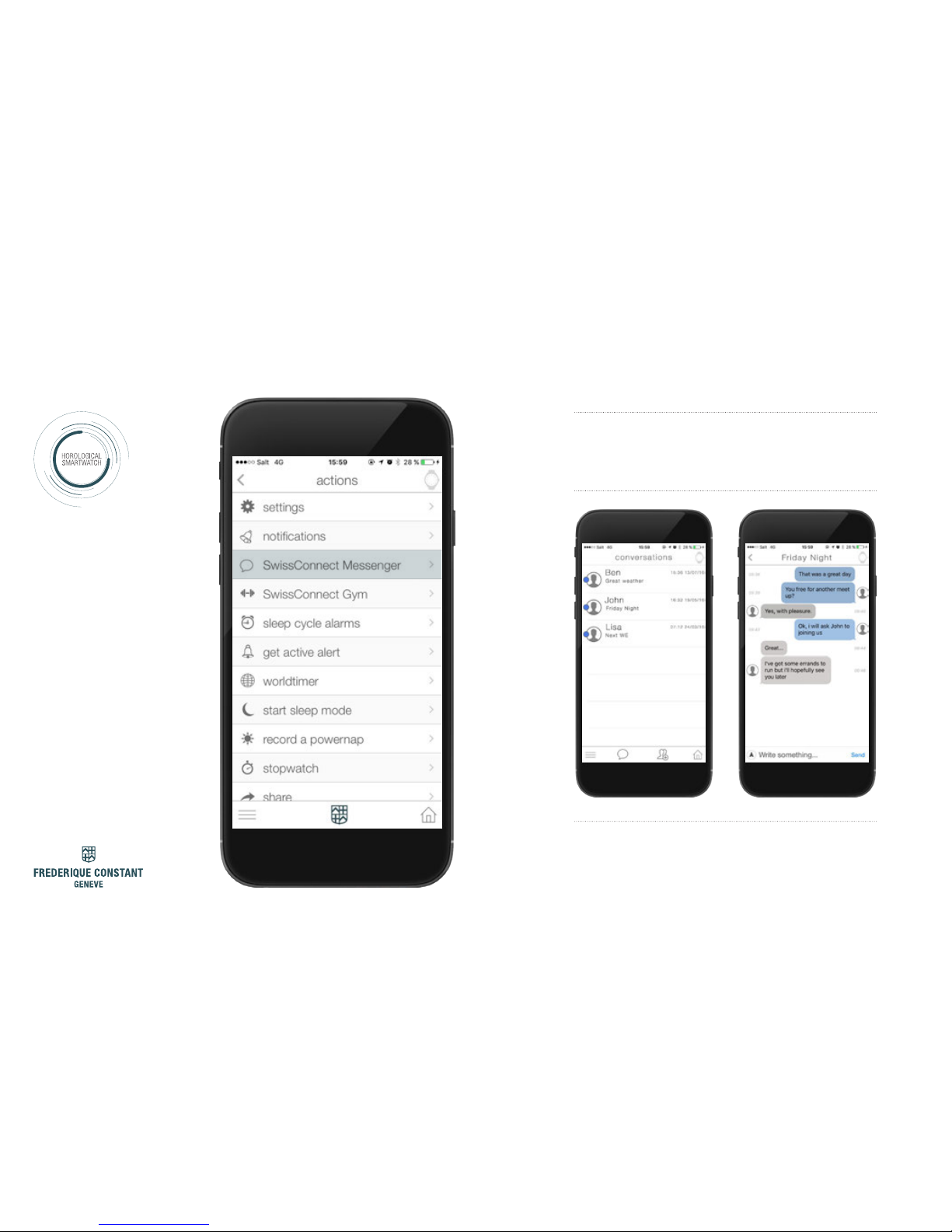

SWISSCONNECT
MESSENGER
SwissConnect Messenger was especially created to grant an exclusive
access to one’s Horological Smartwatch by family and friends. For
example, a mother and daughter could easily communicate and keep
in touch by authorizing each other to send vibrating alerts to their
connected watches.
FROM MAIN MENU,
SELECT SWISSCONNECT MESSENGER
IN THE MMT-365 APPLICATION
SWISSCONNECT MESSENGER works like typical sms/messenger applications.
please see www.swiss-connect.ch/messenger for more information.
281/282 - NOTIFY

ALWAYS ON-TIME
& DATE
You never have to set a time and date -
traveling across time zones, the Frederique
Constant Horological Smartwatch picks up
the time from your smartphone and displays
new time automatically.
ACTIVITY
TRACKING
Keep track of daily steps, calories burned,
and total distance.
SLEEP
MONITORING
Wear your watch at night or put it under your
pillow to record your sleep. Sleep monitoring
function provides details on how much time
you spent in deep sleep, light sleep, or
awake.
HOROLOGICAL
SMARTWATCH
FUNC
TIONS

DYNAMIC
COACH
Get suggestions, tips, and information
catered specifi cally to you based on your
activity and sleep goals
GET ACTIVE
ALERTS
Set an alert to remind you to move if you’ve
been idle for a set amount of time. Customize
your Get Active Alert from the MMT-365 app.
SMART SLEEP
ALARMS
Set a smart sleep alarm that will help you to
wake up at the best appropriate time in your
sleep cycle so that you wake up refreshed.
WORLDTIMER
The new version now includes a world timer
function, displaying a chosen second time
zone (hometown)

2+ YEARS
BATTERY LIFE
Your Frederique Constant Horological
Smartwatch is a real Swiss watch in its pure
tradition. Your timepiece features an electronic
movement with 2+ years battery life.
CLOUD
Recover all of your data, even if you lose your
watch or phone. The Horological Smartwatch
independently stores your activity and sleep
for 30 days without having to synchronise it
to your smartphone. A great way to collect
and keep your data on-the-go!

LINKED
TO MOTION
MORE INFORMATION
frederiqueconstant.com/smartwatch
LEGAL
NOTICES

USA
CANADA
FREDERIQUE CONSTANT SA
Chemin du Champ-des-Filles, 32
1228 Plan-les-Ouates
Switzerland
NOTE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment dœs cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
NOTICE
This device complies with Part 15 of the FCC Rules and with
Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
Changes or modifications made to this equipment not expressly
approved by Frederique Constant SA may void the FCC
authorization to operate this equipment.
FREDERIQUE CONSTANT SA - Chemin du Champ-
des-Filles, 32 - 1228 Plan-les-Ouates - Switzerland
Declares that the product:
Erklärt, dass das Produkt : / Déclare, que le produit/
si dichiara che il prodotto:
HOROLOGICAL SMARTWATCH
FC-285X5B4/6 - FC-282XB4/6 - FC-281X3ER2/6
complies with the essential requirements of
Article 3 of the R&TTE 1999/5/EC Directive,
if used for its intended use and that the
following standards has been applied:
bei bestimmungsmäßiger Verwendung den grundlegenden
Anforderungen gemäß Artikel 3 der R&TTE-Richtlinie 1999/5/
EG entspricht und daß die folgenden Normen angewandt
wurden:
répond aux exigences essentielles du Article 3 de la directive
R&TTE 1999/5/EC , prévu qu’il soit utilisé selon sa destination,
et qu’il répond aux standards suivants:
soddisfa tutti i requisiti secondo l’art. 3 della direttiva R&TTE
1999/5/EC qualora venga utilizzato per l’uso previsto e che le
seguenti norme siano applicate:
Geneva, Oto 1, 2016
Place and date of the declaration of conformity
(Ort und Datum der Konformitätserklärung)
(lieu et date de la declaration de conformité)
(Luogo e data della dichiarazione di conformità)
P C. Sas
Name and signature
(Name und Unterschrift)
(Nom et signature)
(Nome, cognome e firma)
EUROPE

1. HEALTH
(ARTICLE 3.1.A OF THE R&TTE DIRECTIVE)
Gesundheit (Artikel 3.1.a der R&TTE-Richtlinie)
Santé (Article 3.1.a de la Directive R&TTE)
Salute (Aricolo.3.1 a della Direttiva R&TTE)
APPLIED STANDARD(S)
applied standard(s) / standard(s) appliqué(s) / norma(e) applicata(e)
EN 62311:2008
2. SAFETY
(ARTICLE 3.1.A OF THE R&TTE DIRECTIVE)
Sicherheit (Artikel 3.1.a der R&TTE-Richtlinie)
Sécurité électrique (Article 3.1.a de la Directive R&TTE)
Sicurezza elettrica (Articolo 3.1 a della Direttiva R&TTE)
APPLIED STANDARD(S)
applied standard(s) / standard(s) appliqué(s) / norma(e) applicata(e)
EN 60950-1:2006 + A11:2009 + AC:2011 + A12:2001 + A1:2010
3. ELECTROMAGNETIC COMPATIBILITY
(ARTICLE 3.1.B OF THE R&TTE DIRECTIVE)
Elektromagnetische Verträglichkeit (Artikel 3.1.b der R&TTE-Richtlinie)
Compatibilité Electromagnétique(Article 3.1.b de la Directive R&TTE)
Compatibilità Elettromagnetica (Articolo 3.1 b della Direttiva R&TTE)
APPLIED STANDARD(S)
applied standard(s) / standard(s) appliqué(s) / norma(e) applicata(e)
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
4. EFFICIENT USE OF THE RADIO
(ARTICLE 3.2 OF THE R&TTE DIRECTIVE)
Effiziente Nutzung des Funkfrequenzspektrums (Artikel 3.2 der R&TTE-Richtlinie)
Efficacité du spectre radio (Article 3.2 de la Directive R&TTE)
Effettivo uso dello spettro radio (Articolo 3.2 della Direttiva R&TTE)
APPLIED STANDARD(S)
applied standard(s) / standard(s) appliqué(s) / norma(e) applicata(e)
EN 300 328 V1.8.1
SOUTH
AFRICA TA-2015/1103 / TA-2015/1104 / TA-2015/1105
AUSTRALIA

NEW FEATURES
From time to time, we will add new features.
Please subscribe at
www.frederiqueconstant.com/smartwatch/subscribe
to receive an email update.
MORE INFORMATION
www.frederiqueconstant.com
