FREEWAY M205 User manual

Doc No. 993069 Revision of document: A
Revision Date: 24.05.21
Pre Sales Information
M205 Mobile Hoist

993069 – Revision A Page | 2 of 18
CONTENTS
Intended Use.....................................................................................................................................3
Raising and Lowering the Hoist ..........................................................................................................5
Open / Close Mobile Hoist Legs..........................................................................................................5
Handset Operations ...........................................................................................................................6
Slings..................................................................................................................................................6
Technical Specification.....................................................................................................................14
Specifications ...................................................................................................................................15
Environmental - Storage and Operating Conditions..........................................................................15
Normal Operating Conditions...........................................................................................................15
Shipping and Storage Conditions......................................................................................................15
Inspection ........................................................................................................................................16
General cleaning ..............................................................................................................................17
Disinfecting (if necessary) ................................................................................................................17

993069 – Revision A Page | 3 of 18
Freeway M205 Pre-Sale Information
For further information on the product and details summarised within this document please refer to the M205 User Manual.
If you require larger print or videos – these are available on the Prism Website http://prismmedical.co.uk
INTENDED USE
For internal use only.
The Mobile Hoist is a lifting aid used by trained personnel. The Mobile Hoist makes it possible to transfer/lift mobility
impaired clients with minimal strain or risk to the caregiver, while providing complete safety, dignity and comfort to the client.
The Mobile Hoist is one of two components that makes this possible. The other component, the sling, is a specially designed
fabric accessory that attaches to the Hoist by means of a carry bar and straps, and holds the client during the lift/transfer.
Please refer to the user guides supplied with the sling and reference them while reviewing this manual.
The functions of raising and lowering the boom, and opening and closing of the legs on the Hoist, are accomplished by pressing
buttons on the hand control. The hand control is attached to the Mobile Hoist.
The device is used under instruction, and the operation of the aid is undertaken by a trained carer.
A risk assessment must be performed before using any other manufactured slings or Mobile Hoist, to ensure safe
use can be established.
•The Freeway M205 Mobile Hoist is intended to be installed on a flat and levelled surface prior to use.
•The Hoist must be installed only by persons authorised by Prism Medical UK or who have the rights to install and
commission the Hoist safe for use.
•Under no circumstance should the Freeway M205 Mobile Hoist or entire system be put in control of a person who has
not been properly trained in the use and care of this equipment. Failure to adhere to this warning may result in serious
injury to the operator and/or the individual being transferred.
•In facilities where more than one operator will be responsible for using the Mobile Hoist and sling(s) it is imperative
that all such members be trained in the Freeway M205 Mobile Hoist proper use. A training program should be
established by the facility to acquaint new operators with this equipment.
•The Freeway M205 Mobile Hoist, and associated slings are not toys. Do not use it for unsafe practices. Do not allow
children to play with the Hoist or any of its components.
•Your guarantee is void if persons unauthorised by Prism Medical UK perform work on the Mobile Hoist.
•To maintain optimum function, the Freeway M205 Mobile Hoist should be inspected and maintained on a regular basis.
See section ‘General Inspection, Maintenance and Cleaning’ within this user manual.
•Any accessories used with this Mobile Hoist including belt(s), should be checked to ensure that they are in good
working order. Check for signs of wear to each component prior to use. Report any unusual wear, or damage
immediately to your local authorised dealer.
•The Freeway M205 Mobile Hoist and Slings(s) are intended only for transferring of a person. Prism Medical UK will not
be responsible for any damage caused by the misuse, neglect or purposeful destruction of the Unit and/or its
associated components.

993069 – Revision A Page | 4 of 18
•The Mobile Hoist and its associated parts are certified to a maximum load of 205kg. Do not exceed the maximum rated
load of any of the components.
•Ensure that a clear space is maintained around the Mobile Hoist. Before performing a transfer, check for and move all
obstacles out of the way.
•Your product is for aiding and transferring a patient. Do not use it, or allow it to be used, for any other purpose.
•Protecting the people present, visually monitor the sling(s) loops connection points during transfer stages, so the belt
remains firmly attached to the clipped carry bar.
•In areas where children are prone to be present be vigilant when carrying out a transfer.
•To reduce the risk of unintended use, when the hoist is not in use, remove the sling(s) from the product to prevent
entrapment or strangulation should the device be tampered with.
•Between Hoist, Spreader Bar and Body-Support Unit, the lowest maximum load shall always be used.
You may need to seek specialist advice on how to assist some people with specific moving and handling needs.
Sources of advice include, but is not limited to, professional bodies and organisations, occupational therapist,
physiotherapists, manual handling advisers and ergonomist with experience in health and social care.

993069 – Revision A Page | 5 of 18
ELECTRICAL CONNECTIONS
Connect all the cables to the control box as shown in the pictures opposite.
A. Connect the lift actuator cable connector to the second port (marked No. 1) from
the left side of the control box (as shown in Fig. 1).
B. Connect the leg spreading actuator cable connector to the third port (marked No. 2 in Fig. 1)
C. Connect the handset connector to the large port on the left side of the control
box. A locator pin on the plug ensures correct orientation of the connector (as
shown in Fig. 3).
D. Connect the mains cable/power cord to the control box (as shown in Fig. 4).
Ensure that all cables are located and secure before operating the Mobile Hoist
RAISING AND LOWERING THE HOIST
The up and down movement of the boom on the Freeway M205 Mobile Hoist is achieved by
an electric actuator which is controlled by hand control. The hand control has two buttons
with directional arrows up and down. The actuator stops automatically at the limit of travel in
both directions.
OPEN / CLOSE MOBILE HOIST LEGS
The legs of Freeway M205 Mobile Hoist are opened/closed using the appropriate buttons on
the hand control, see figure 6 for guidance. The legs’ motion will be stopped whenever the hand control button is released. The
legs can be opened to enable access around arm chairs or wheel chairs. When relocating
the Mobile Hoist, manoeuvring through narrow doorways and/or passages, the Mobile
Hoist legs should be in the closed position.
Figure 5
Figure 6
Figure 1
Figure 4
Figure 3
Figure 2

993069 – Revision A Page | 6 of 18
HANDSET OPERATIONS
The Hand Controls has 4 functions: Up and Down, this will raise and lower the Mobile Hoist,
and Legs Open and Legs Close, these functions will open and close the legs.
Press down on each symbol to operate the desired function. It is not possible to use two
functions at the same time. Once the Mobile Hoist has reached the extent of its travel in a
given direction, the actuator will automatically stop, allowing you to then choose the opposite
direction.
The handset is attached to the control box via a flexible, coiled cable that is secured in place
with a friction-fit plug. The coiled cable is designed to give the greatest number of options for
carer positioning without having a trailing cable around the patient. The handset also
incorporates a hook which gives the carer flexibility whist moving/positioning the patient. Clear
and easy to understand labelling of the buttons enable ease of use for the care giver.
SLINGS

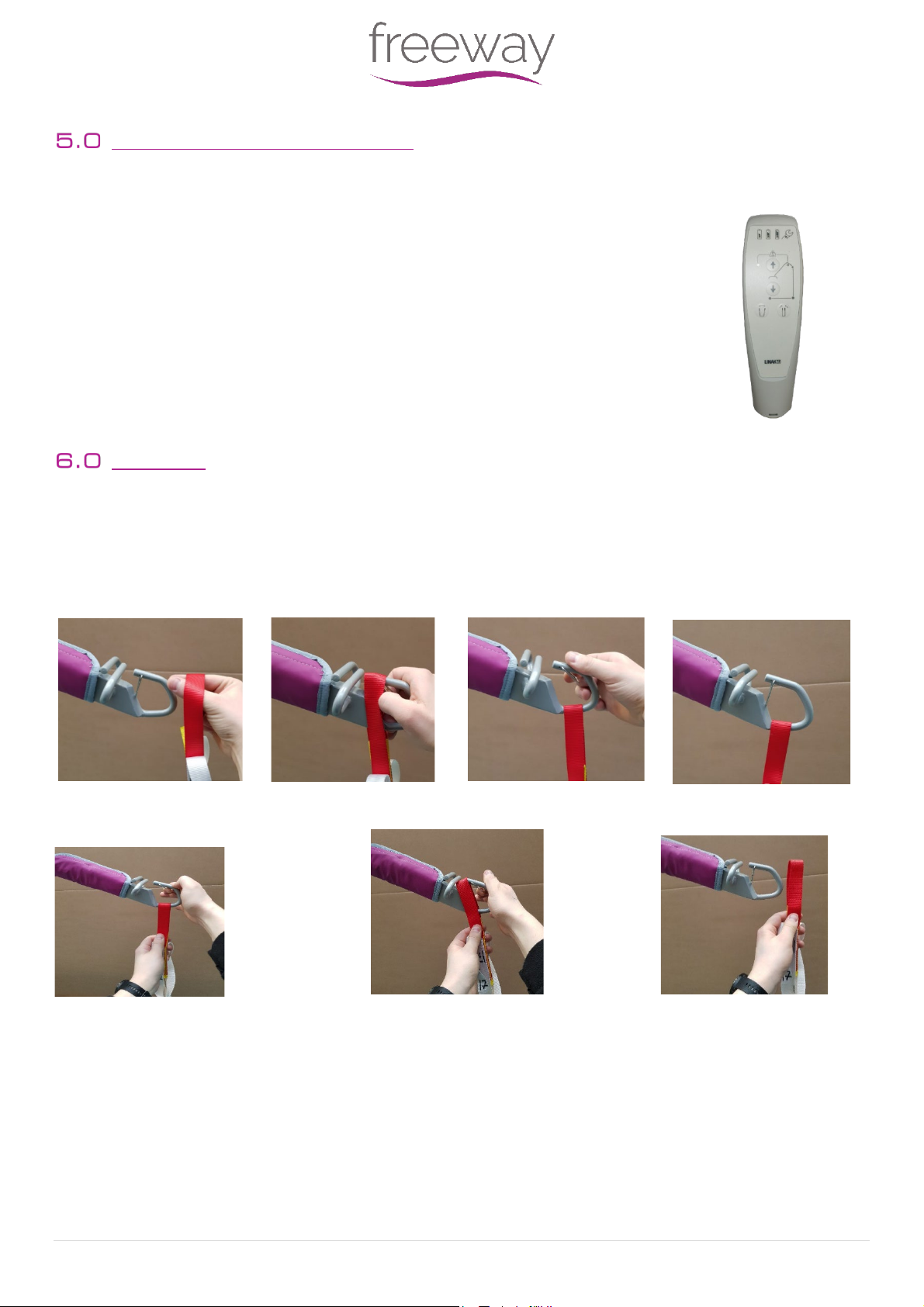

Sling loops should be attached as follows:
1. Put the required sling loop onto your finger and thumb and then using the same finger or thumb, pull back the spring
locking mechanism on the correct hook on the correct side of the carry bar (Figure 8).
2. Slide the sling loop from your finger and thumb over the edge of the hook (Figure 9).
3. After positioning the loop below the locking mechanism (Figure 10) release the spring locking mechanism to secure the
sling loop (Figure 11).
To remove the sling, simply reverse the process – pull back on the spring locking mechanism, lift the loop out of the hook and
release the locking mechanism.
We recommend the use of the Mackworth Healthcare and Care-Ability manufactured sling range (type ‘B’ applied part) to be
utilised with the Freeway M205 Mobile Hoist. It is at the user’s discretion to use alternative supplied product. In utilising another
manufacturer’s sling, checks must first be made to ensure the sling is safe to use and meets the requirements of BS EN ISO
10535 before its use.
The slings with a safe working load of 205kg that can be used with the Freeway M205 Mobile Hoist are shown below in Table’s 1
and 2, complete with product codes. For all components, the lowest maximum safe working load must always be adhered to.
Figure 12
Figure 13
Figure 14
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11

993069 – Revision A Page | 7 of 18
