Frezzi M1000 User manual

page 1page 12
NOTES:
Please read entire owners manual before operation.
WARNING
The product is marked with this symbol when it is required to refer to
the instruction manual to protect the operator from safety hazards.
IMPORTANT: DO NOT EXPOSE TO RAIN OR MOISTURE TO
PREVENT FIRE AND SHOCK HAZARD
POWER INPUT: 90-135 OR 180-240VAC 50/60 HZ.
THE INPUT RANGE IS AUTOSELECT BY THE UNIT.
GROUNDING/EARTHING: THIS UNIT MUST BE CONNECTED
TO A STANDARD 3 PIN POWER SOURCE WHICH IS
GROUNDED THROUGH NORMAL WIRING.
AUTHORIZED SERVICE PERSONNEL ONLY: OPENING THIS
UNIT VOIDS ALL WARRANTIES. SERVICE PERSONNEL WAIT
10 MINUTES AFTER REMOVING POWER BEFORE OPENING.
DO NOT BLOCK AIR VENTS DURING OPERATION
ONLY CHARGE NICAD AND NiMH RECHARGEABLE BATTER-
IES
STUDY THIS COMPLETE MANUAL BEFORE OPERATION. THIS
UNIT INCORPORATES PARTS SUCH AS SWITCHES AND RE-
LAYS THAT ARE LIKELY TO PRODUCE ARCS AND SPARKS;
THEREFORE WHEN OPERATING IN A GARAGE OR SIMILAR
LOCATION, LOCATE THE UNIT IN A ROOM OR ENCLOSURE
PROVIDED FOR THIS PURPOSE IF APPLICABLE.
CLASS I COMPLIANT DEVICE
WATER INGRESS CLASSIFICATION -IXPO
THIS UNITS WAS DESIGNED AND MANUFACTURED TO BE
COMPLIANT UNDER:
BS-EN-60335-1 HOUSEHOLD SAFETY OF ELECTRONIC
EQUIPMENT
BS-EN-60335-2-29 BATTERY CHARGERS
BS-EN-50081-1 EMISSION REQUIREMENT
BS-EN-55104:95 IMMUNITY REQUIREMENT
EMC DIRECTIVE 89.336/EEC//93/68/EEC
MANUFACTURED IN USA
SAFETY - READ BEFORE GOING FURTHER

page 10 page 3
1. SETUP
Connect power cord and turn on the charger via the switch at the
rear of the unit. The charger will flash through a self test to verify
proper operation.
2. AUTO FAST CHARGE
Insert a battery into the top NP1 port, Brick adapter or front BP-90
port. Charging will begin automatically indicated by the flashing
yellow “Charge” LED.
IMPORTANT: BP-90 front port bypasses the top battery connec-
tor.
When charging is complete, the green “Ready” LED will come on.
The battery may remain on the charger until needed. The M1000
will supply a maintenance charge to keep the battery topped off until
ready for use.
Note 1: If the red “10V” LED flashes, this indicates a low voltage
situation and the “Rescue” program should be engaged. See
below.
Note 2: If the red “Fault” LED comes on, the battery is faulty or has
anomalous characteristics.
3. DISCHARGE
To engage the discharge function, press the “Discharge” button.
The orange LED will flash indicating that discharge is in progress. At
the end of the discharge cycle and a 15 minute rest period, the unit
will automatically switch to the charge cycle.
4. RESCUE
The M1000 has a unique Rescue mode designed to restore abused,
low capacity, or over-discharged batteries. If a battery begins to
show signs of poor performance, or low voltage is indicated, the
battery rescue mode should be engaged by pressing the “Rescue”
button. While engaged, the orange “Rescue” LED will flash. The
rescue process could take a long as 20 hours, so it is recommended
to run it overnight or over a weekend.
NOTES: OPERATION

page 8 page 5
3. PROTECTION CIRCUITS
OVERLOAD
This unit can supply approximately 40 Watts of energy to a load. If
a red “10V” LED flashes, the maximum power output has been
reached and the overload protection has engaged. Remove or
reduce the load to return to normal operation.
OVER-VOLTAGE
This unit is set to 13.5 Volts DC output. If the red FAULTY LED
burns steady during the Power Supply mode, the unit experienced
an over-voltage condition which was greater then 16.5 Volts. Reset
the unit by switching back to the charger mode to clear the over-
voltage condition. If the condition continues, the unit is in need of
servicing and should sent back to the Frezzi service center.
NOTES:

page 13
Frezzi Energy Systems has a fully equipped service center. If you
have a question about your Frezzi product or are in need of service
support, please contact the Frezzi technical service center at: +1
[phone] between the hours of 8:00am and 5:00pm EST.
One year on parts and labor. Please fill out the warranty card and
return to Frezzi. NOTE: Frezzi can not guarantee unauthorized
repairs done outside its facility.
Frezzi Energy Systems has been manufacturing portable lighting
and power products for the broadcasting industry for over 60 years.
Frezzi offers a complete line of high capacity battery packs, bracket
systems, advanced chargers, battery belts, portable lighting, lighting
kits and accessories. Contact us for more information on other
Frezzi products at [phone] or visit our web site at
HTTP://WWW.FREZZI.COM
SAFETY ........................................................................... PAGE 1
INTRODUCTION..............................................................PAGE 2
OPERATION ................................................................... PAGE 3
FRONT PANEL LAYOUT ................................................ PAGE 6
SPECIFICTATIONS ........................................................ PAGE 7
SERVICE ........................................................................ PAGE 13
WARRANTY.................................................................... PAGE 13
ABOUT FREZZI
INDEX
WARRANTY
SERVICE

Congratulations on your purchase the Frezzi M1000 Universal
Battery Charger. The M1000 is an extremely compact, lightweight
single channel Fast Charger-Discharger with Battery Rescue and
LED voltmeter. The M1000 is designed with the same Award
Winning technology and features as the Frezzi M2100 Battery
Charger. Designed with the cameraman in mind, its compact size,
shape and multi-features make it the perfect companion on any
ENG or event shoot, easily finding a home in any camera bag.
Fast Charge
The M1000-P is the only charger in its size class which features a
Fast charge
program to rapidly charge all 12.0 13.2 or 14.4Volt NiCad or NiMH
batteries.
Discharge
The Discharge feature enables the user to fully cycle and exercise
his battery.
This is beneficial to the performance of the battery by balancing the
internal cells while deep discharging the battery down to its proper
low voltage cut off (LVCO).
Periodic discharging improves battery cycle life and is recom-
mended once a month.
Rescue
Battery Rescue is a unique feature to Frezzi chargers which can
restore and
improve the performance of over-discharged, low voltage, or abused
batteries.
This program can be run when a battery is beginning to show
decreased run times or low voltage condition.
Major Features
· Single Fast Charger/Discharger & Battery Rescue features
· Extremely compact, lightweight and portable
· Charges virtually any professional broadcast NiCad/NiMH
batteries
· Expanded Scale LED voltmeter
· Brick Battery Mounting Block (optional M1000A)
· Worldwide Input Operation
· User Friendly Interface
· Cost Effective Price/Performance Ratio
page 2 page 11
NOTES:
INTRODUCTION

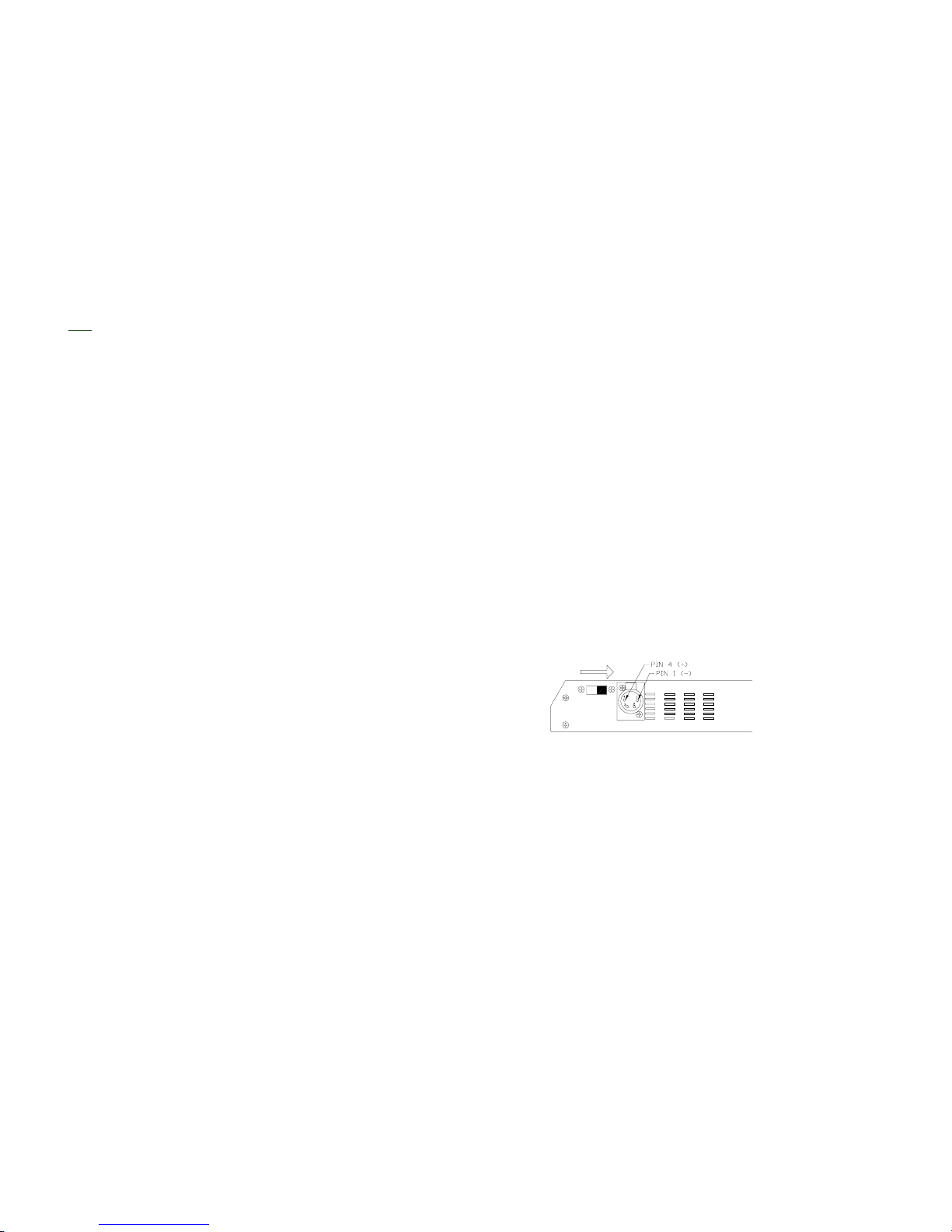

SLIDE SWITCH FOR
POWER SUPPLY MODE
 page 9
To quickly boost a low voltage battery, press the “Rescue” button
and wait for the voltage to rise above 12 Volts. Remove the battery
and wait for the “Rescue” light to stop flashing. Reinsert the
battery and confirm that Charging has begun. Repeat the above
steps if the low voltage condition continues or let the Rescue
program run a full overnight cycle.
POWER SUPPLY OPERATION (M1000P or M1000AP ONLY)
The M1000P is equipped with a 40 Watt DC power supply. The
power supply features an output overload protection and over-
voltage protection. When the power supply is engaged, all charger
operation is suspended until the unit is switched back to the charger
mode. At this point, charging operation will continue from the point
at which the charge mode was interrupted.
1. SETUP
Connect an XLR-4 DC power cable to the side mount XLR-4 Power
Supply connector.
IMPORTANT: XLR-4 POLARITY: PIN 4(+) PIN 1 (-)
13.5 VOLT DC OUTPUT
40 WATT MAXIMUM OUTPUT
2. POWER SUPPLY CONTROL
Locate the Power Supply switch and slide to the POWER SUPPLY
position, towards the rear of the unit. (The front panel display will
sequence through the LED Voltmeter one time to indicate Power
Supply mode has engaged.) The output voltage will now be dis-
played on the LED Voltmeter as a flashing yellow 12V LED.
To switch back to the charger mode, slide the switch back to the
CHARGER position, towards the front of the unit.
This will return the unit back to the charger mode and continue any
previous charging or discharging activity.
NOTES:

page 6 page 7
Size: 8.60 x 5.10 x 1.95 ”
Weight: 2.0 lbs.
Input Voltage: 90-135 or 180-240 VAC 50/60 Hz Autoselect
Consumption: 90 W Max
Output: 3 Amps Max
Connector: NP-1 Cup Top & BP-90 Port Front (Brick
M1000A)
Range: 12.0 - 14.4V 1-8 AH NiCd/NiMH Batteries
Power Supply: 40W 13.5 V Polarity 4(+) 1(-) (M1000P and
M1000AP Only)
Ordering Information
Item No. Model No. Description
94111 M1000 Universal Single Charger
94112 M1000A M1000 w/ Brick Battery Mount
94109 M1000P M1000 w/ Power Supply
94110 M1000AP M1000 w/ Brick Mount & PS

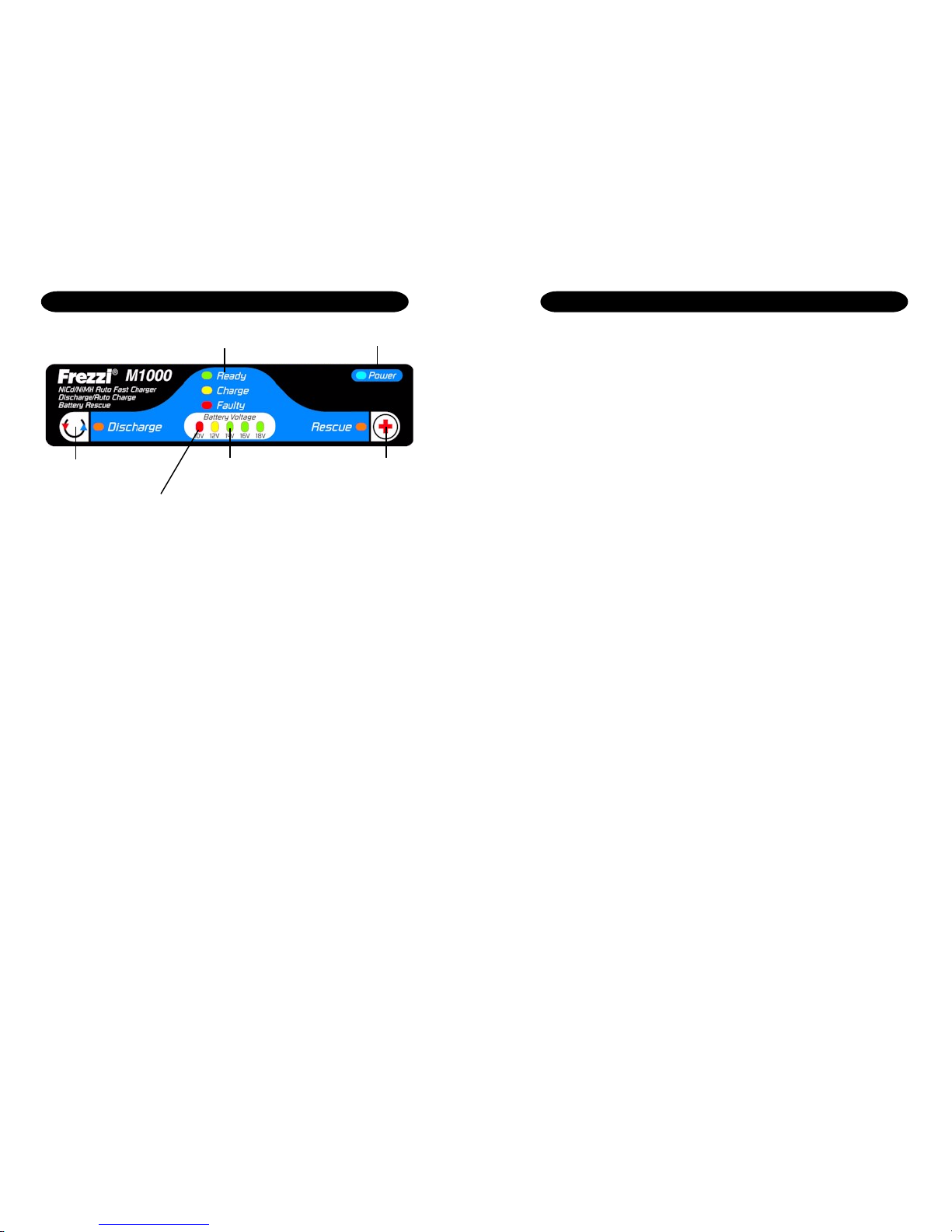

DISCHARGE
BUTTON
CHARGER
FUNCTION
LED
VOLTMETER
POWER
INDICATOR
Battery Rescue Button
Press to engage
IMPORTANT: Rescue may
take up to 20 Hours to
complete.
10V LED Flashes when
Battery is Low Voltage
SPECIFICATIONSFRONT PANEL LAYOUT
