FRIEDHELM LOH Rittal SK 3178800 User manual

Enclosure cooling unit
Assembly and operating instructions
SK 3178800
SK 3178801
SK 3179800
SK 3179801
SK 3180800
SK 3184800
SK 3184840

Preface
EN
2Rittal enclosure cooling unit
Preface
Dear Customer!
Thank you for choosing a "Blue e+" enclosure cooling
unit (referred to hereafter as "cooling unit") from Rittal.
Yours
Rittal GmbH & Co. KG
Rittal GmbH & Co. KG
Auf dem Stützelberg
35745 Herborn
Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
www.rittal.com
www.rittal.de
We are always happy to answer any technical questions
regarding our entire range of products.
DE

Rittal enclosure cooling unit 3
Contents
EN
Contents
1 Notes on documentation .................. 4
1.1 CE labelling................................................... 4
1.2 Storing the documents.................................. 4
1.3 Symbols used in these operating
instructions ................................................... 4
1.4 Other applicable documents ......................... 4
2 Safety instructions ............................ 5
2.1 General safety instructions ............................ 5
2.2 Safety instructions for transportation............. 5
2.3 Safety instructions for assembly.................... 5
2.4 Safety instructions for installation .................. 5
2.5 Safety instructions for operation.................... 5
2.6 Safety instructions for maintenance............... 5
2.7 Operating and technical staff......................... 5
2.8 Other dangers when using the cooling unit ... 5
2.9 IT safety instructions ..................................... 5
2.9.1 Measures for products and systems ..................... 6
3 Product description .......................... 7
3.1 Functional description and components........ 7
3.1.1 Function ............................................................... 7
3.1.2 Components ........................................................ 8
3.1.3 Control ................................................................. 8
3.1.4 Safety devices ...................................................... 8
3.1.5 Condensation ....................................................... 8
3.1.6 Filter mats ............................................................ 9
3.1.7 Door limit switch ................................................... 9
3.2 Intended use, foreseeable misuse ................. 9
3.3 Supply includes........................................... 10
4 Transport and handling .................. 11
4.1 Delivery....................................................... 11
4.2 Unpacking .................................................. 11
4.3 Transport .................................................... 11
5 Installation ...................................... 13
5.1 Safety instructions....................................... 13
5.2 Siting location requirements ........................ 13
5.3 Assembly procedure ................................... 13
5.3.1 Assembly instructions ......................................... 13
5.3.2 Mounting options ............................................... 14
5.3.3 Make a mounting cut-out in the enclosure .......... 14
5.3.4 External mounting of the cooling unit .................. 15

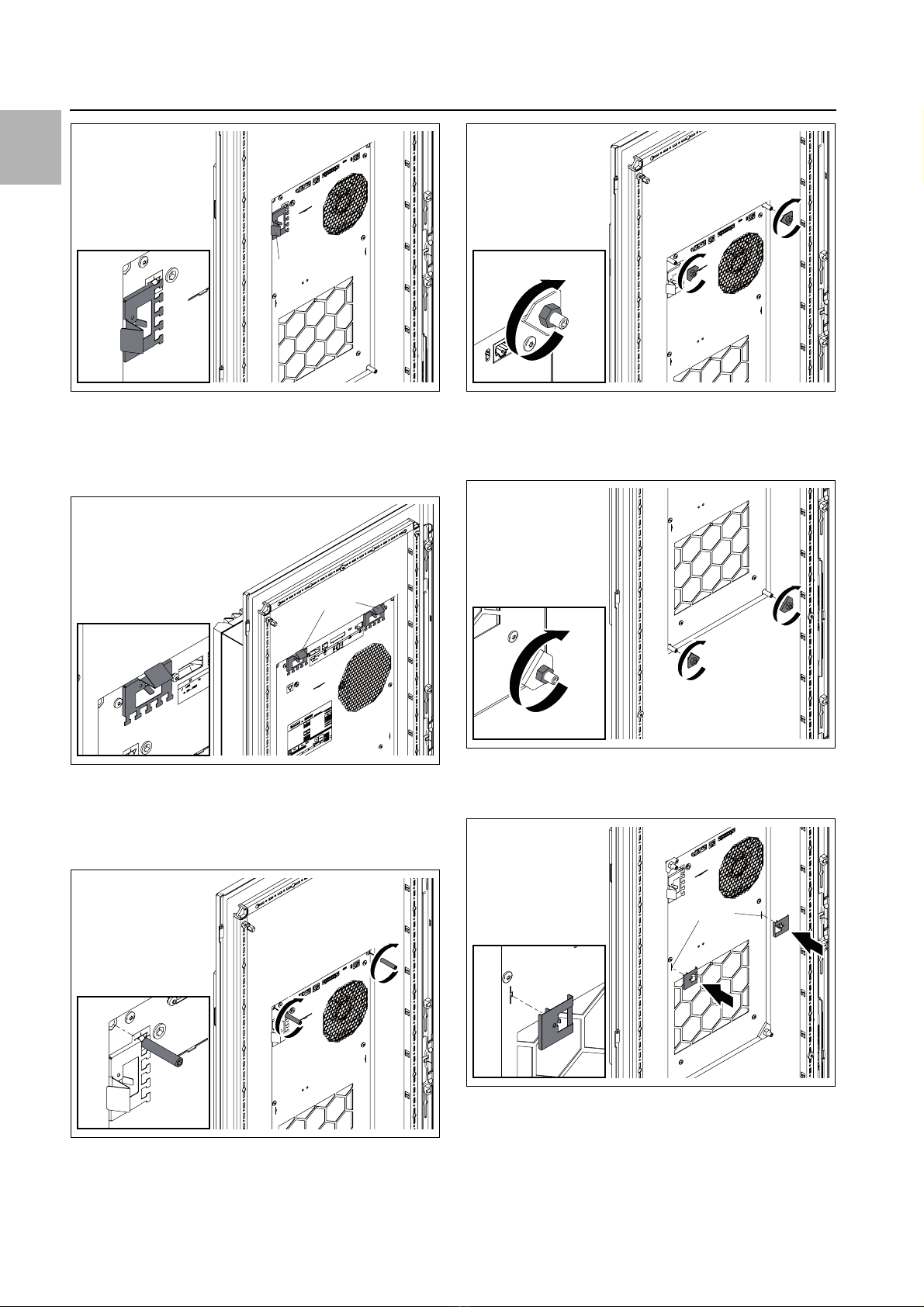

5.3.5 Internal mounting of the cooling unit ................... 16
5.3.6 Connect the condensate water discharge .......... 20
5.4 Electrical connection ................................... 21
5.4.1 Notes on electrical installation ............................. 21
5.4.2 Install the power supply ...................................... 23
5.4.3 Connect the alarm relay ...................................... 24
5.4.4 Interfaces ........................................................... 24
6 Commissioning .............................. 25
7 Operation ....................................... 26
7.1 Control via the display................................. 26
7.2 General information about programming ..... 26
7.3 Updater program ........................................ 26
7.4 Setting options via the display .................... 27
7.4.1 Selecting a control mode .................................... 27
7.4.2 Setting the target temperature ............................ 27
7.4.3 Setting the unit ................................................... 28
7.4.4 Launching test mode .......................................... 28
7.4.5 Manually acknowledge a system message ......... 28
7.4.6 Programming overview ....................................... 29
7.4.7 Parallel device control ......................................... 29
7.4.8 Evaluate system messages ................................ 29
7.5 Rittal Scan & Service app........................... 29
7.5.1 General .............................................................. 29
7.5.2 Configuration ...................................................... 30
7.5.3 Technical Guide ................................................. 31
7.5.4 Product informationen ........................................ 31
7.5.5 Services and spare parts .................................... 31
7.5.6 Fast Copy .......................................................... 31
7.6 List of system messages............................ 32
8 Inspection and maintenance ........... 35
8.1 Safety instructions for maintenance work ... 35
8.2 Notes on the refrigerant circuit ................... 35
8.3 Maintenance work on the cooling unit ........ 35
8.4 Compressed air cleaning............................ 35

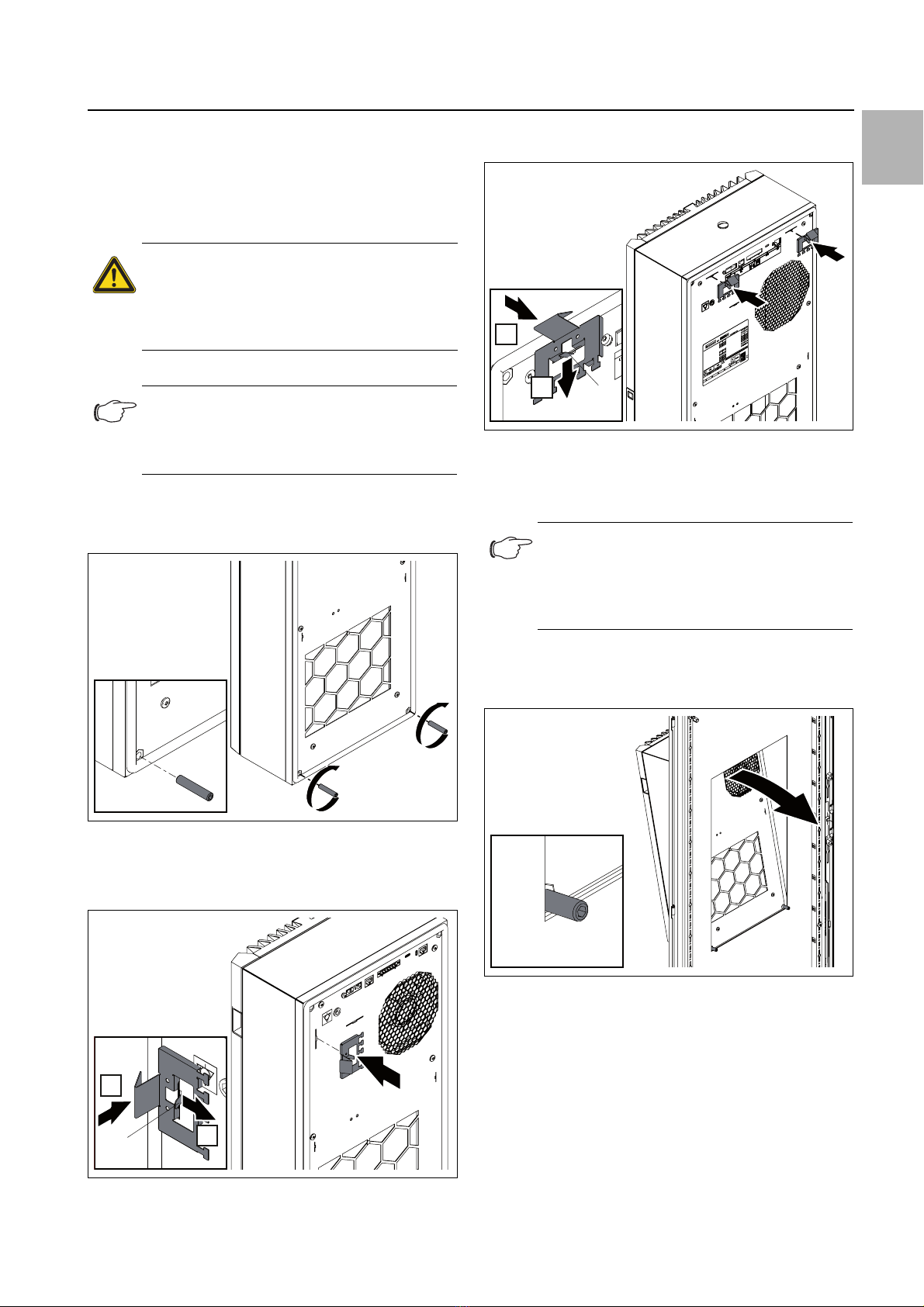

8.4.1 Removing an internally mounted unit .................. 35
8.4.2 Removing an externally mounted unit ................. 36
8.4.3 Removing the cover ........................................... 36
8.4.4 Cleaning the components with compressed air .. 37
8.4.5 Re-assembling the cooling unit ........................... 38
9 Storage and disposal ...................... 39
10 Technical specifications .................. 40
11 List of spare parts ........................... 45
12 Drawings ........................................ 47
12.1 Representation of mounting cut-outs ......... 47
12.2 External and internal mounting dimensions
(SK 317880x – width 300 mm) ................... 48
12.3 External and internal mounting dimensions
(SK317980x – width 300 mm) ................... 49
12.4 External and internal mounting dimensions
(SK3180800 – width 300 mm) ................... 50
12.5 External and internal mounting dimensions
(SK31848x0 – width 400 mm) ................... 51
13 Accessories .................................... 52
14 Customer service addresses .......... 53
15 Compact service information .......... 57

1 Notes on documentation
EN
4Rittal enclosure cooling unit
1 Notes on documentation
1.1 CE labelling
Rittal GmbH & Co. KG confirms the conformity of the
cooling unit with the European Union's Machinery Direc-
tive 2006/42/EC and EMC Directive 2014/30/EU. A sim-
plified declaration of conformity can be found in the as-
sembly and installation instructions enclosed with the
device (see also the Rittal website). These are the origi-
nal operating instructions.
1.2 Storing the documents
The assembly and operating instructions as well as all
other applicable documents are an integral part of the
product. They must be issued to everyone who works
with the unit and must always be available and on hand
for operating and maintenance personnel.
1.3 Symbols used in these operating in-
structions
The following symbols are used in this documentation:
This symbol indicates an "action point" and shows that
you should perform an operation or procedure.
1.4 Other applicable documents
Paper copies of the assembly and operating instructions
are available for the unit types described here and are
enclosed with the equipment.
We cannot accept any liability for damage associated
with failure to observe these instructions.
Please also observe the instructions for any accesso-
ries used.
Warning!
A dangerous situation which may cause
death or serious injury if the instructions
are not followed.
Caution!
A dangerous situation which may lead to
(minor) injuries if the instructions are not
followed.
Note:
Important notices and indication of situations
which may result in material damage.

Rittal enclosure cooling unit 5
2 Safety instructions
EN
2 Safety instructions
2.1 General safety instructions
Please observe the following general safety instructions
for the installation and operation of the system:
– Always wear the required personal safety equipment
when working on this device.
– Before removing the hood, allow the unit to cool for at
least 10 minutes to eliminate the risk of burns from hot
surfaces.
– Please do not make any changes to the cooling unit
that are not described in these operating instructions
or other applicable assembly and operating instruc-
tions.
– The products should only be combined and operated
with the prescribed Rittal system accessories.
– Other than these general safety instructions, it is also
vital to observe the specific safety instructions when
carrying out the tasks described in the following chap-
ters.
2.2 Safety instructions for transportation
– Please observe the maximum permissible weight to be
lifted by one person. Use suitable lifting devices, if
needed.
– Cooling units must be transported in an upright posi-
tion and secured to prevent them from tipping over.

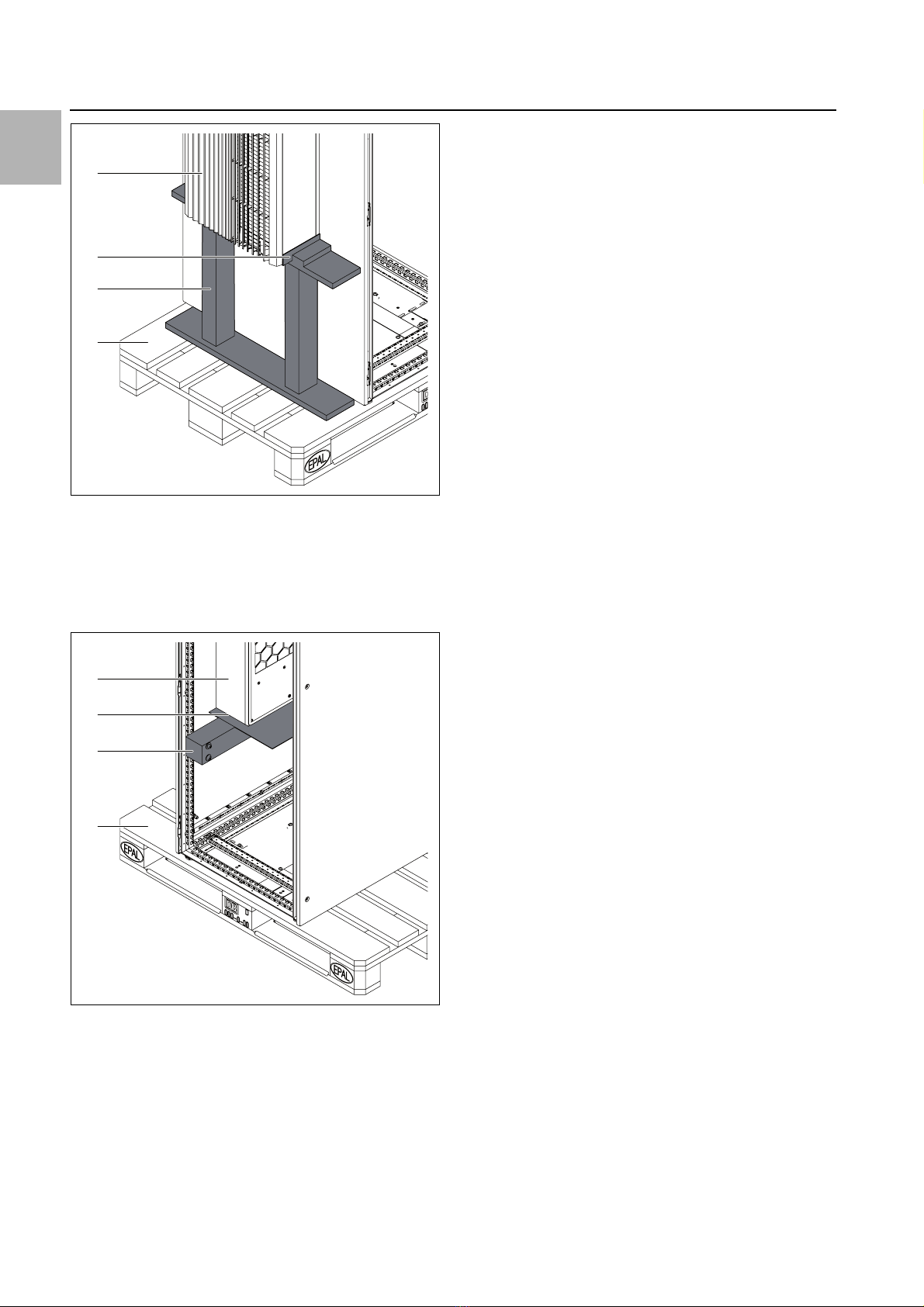

– Shipping braces (such as a structure made from
square timbers or boards) must be used when trans-
porting cooling units already mounted on the enclo-
sure. These braces support the cooling unit and pre-
vent it from slipping in case of impact.
– Use a sufficiently large pallet to prevent it tipping over.
– If the cooling unit has been mounted on a door, close
the door and keep it closed during transportation.
2.3 Safety instructions for assembly
– During assembly, the cooling unit is at risk of dropping
through the mounting cut-out.
– Do not assemble and re-activate the device until it is
completely dry.
2.4 Safety instructions for installation
– Please be sure to observe the applicable regulations
governing electrical installations of the country in
which the device is installed and operated as well as
national regulations for accident prevention. Please
also observe any internal company regulations, such
as work, operating and safety regulations.
– The connection regulations of the appropriate power
supply company are to be followed. Otherwise, there
is risk of injury from electric shock if the connection to
the unit is defective or connected incorrectly in any
way.
– Do not strip too much insulation from the connection
cable, otherwise the admissible clearance/creepage
distances from the terminal point may not be met.
– The cooling unit must be connected to the mains via
an all-pole disconnect to overvoltage category III (IEC
61058-1).
– Pin 4 on the signal connector should not be used. Oth-
erwise, the admissible clearance/creepage distance
between the alarm relay and door contact connec-
tions will not be met.
2.5 Safety instructions for operation
– The operational safety of the cooling unit is only war-
ranted if used as intended. The technical specifica-
tions and limit values stated must not be exceeded un-
der any circumstances. In particular, this applies to the
specified ambient temperature range and IP protec-
tion category.
– Operating the cooling unit in direct contact with water,
aggressive materials or inflammable gases and va-
pours is prohibited.
2.6 Safety instructions for maintenance
– The device must only be cleaned by trained special-
ists. De-energise the device prior to cleaning.
– Never use flammable liquids for cleaning.
2.7 Operating and technical staff
– The assembly, installation, commissioning, mainte-
nance and repair of this cooling unit may only be per-
formed by qualified, trained personnel.
– Only properly instructed personnel may operate a
cooling unit with the system operational.
– Children and persons with limited cognitive/coordina-
tive abilities must not operate, maintain or clean the
unit or be allowed to use it as a toy.
2.8 Other dangers when using the cooling
unit
When installing the cooling unit (see section 5 "Installa-
tion"), there is a risk that the enclosure could become
unbalanced and tip over.
In such cases, the enclosure should be bolted to the
floor as a precaution.
If the air inlet or outlet of the cooling unit is obstructed,
there is a risk of air short-circuits, resulting in inadequate
climate control.

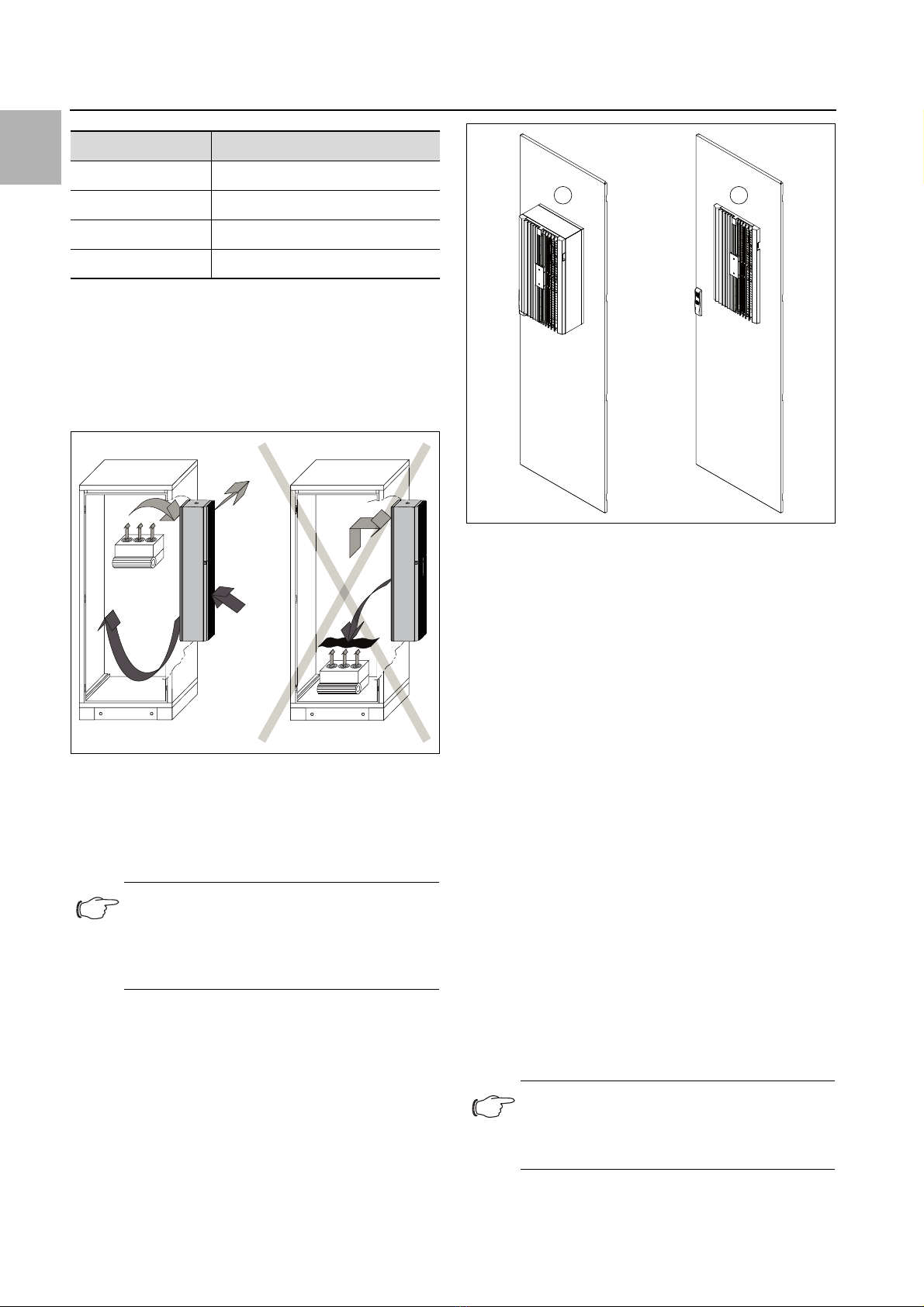

Please ensure that the electronic assemblies in the en-
closure are installed in accordance with section 5.3.1
"Assembly instructions".
Where applicable, use suitable components to divert
the air.
Please observe the prescribed minimum distances at
the installation site as outlined in section 5.3.1 "As-
sembly instructions".
2.9 IT safety instructions
To ensure the availability, confidentiality and integrity of
data, products, networks and systems must be protect-
ed against unauthorised access.
