FRIEND FL-8214D Guide

Model No. FL-8214D
Clear Floor Two Post Lift，
Manual Release
Lifting Capacity 9200LB
Installation, Operation
and Parts Manual
Distributed by

Installation, Operation and Parts Manual
FL-8214D
2
INDEX
1. Important safety instructions……………………………………………………………………..….…3~4
1.1 Important notices
1.2 Qualified personnel
1.3 Danger notices
1.4Training
1.5 Warning signs
2. Overview of the lift………………………………………………………………………………………..….5
2.1 General descriptions
2.2 Technical data
2.3 Construction of the lift
3. Installation instructions…………………………………………………………………………………...6~13
3.1 Preparations before installation
3.2 Precautions for installation
3.3 Installation
3.4 Items to be checked after installation
4. Operation instructions……………………………………………………………………………………14~15
4.1 Precautions
4.2 Flow chart for operation
4.3 Operating instructions
5. Trouble shooting………………….………………………………………………………………………….16
6. Maintenance…………………………………………………………………………………………………..17
7. Annex…………………………………………………….……………………………………………………....18~32
Annex1, Packing list of the whole lift

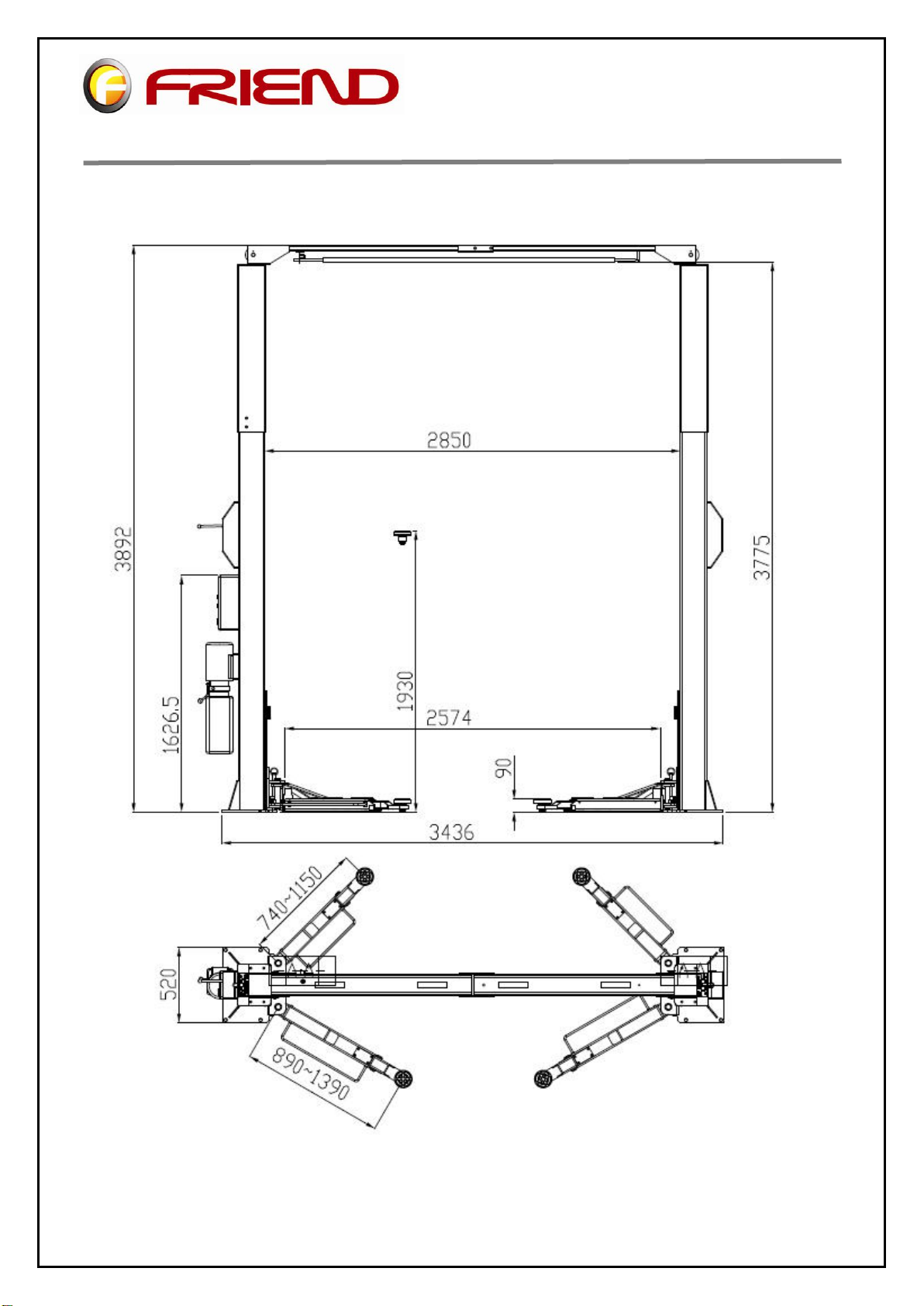

Annex2, Overall diagram

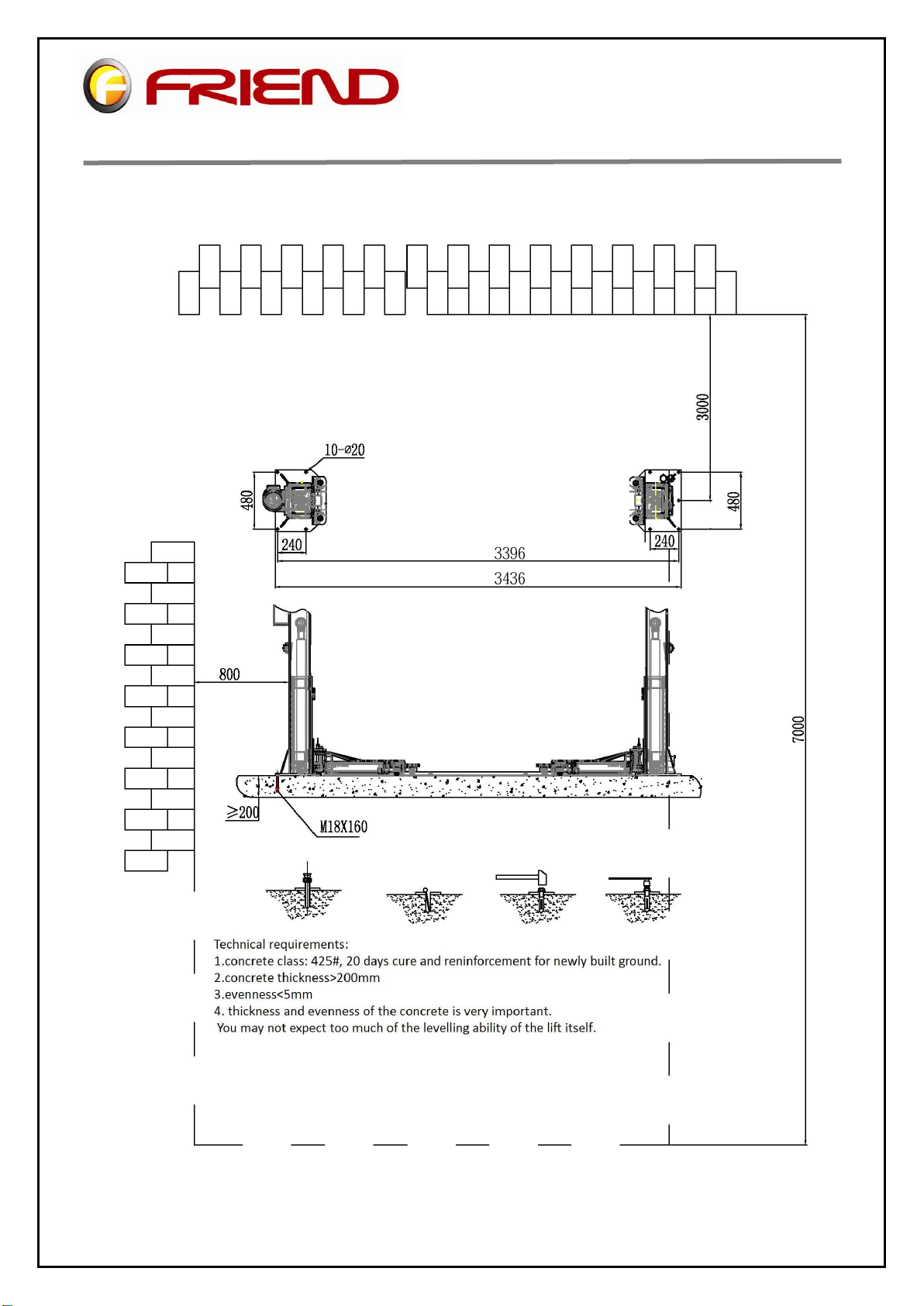

Annex3, Floor plan

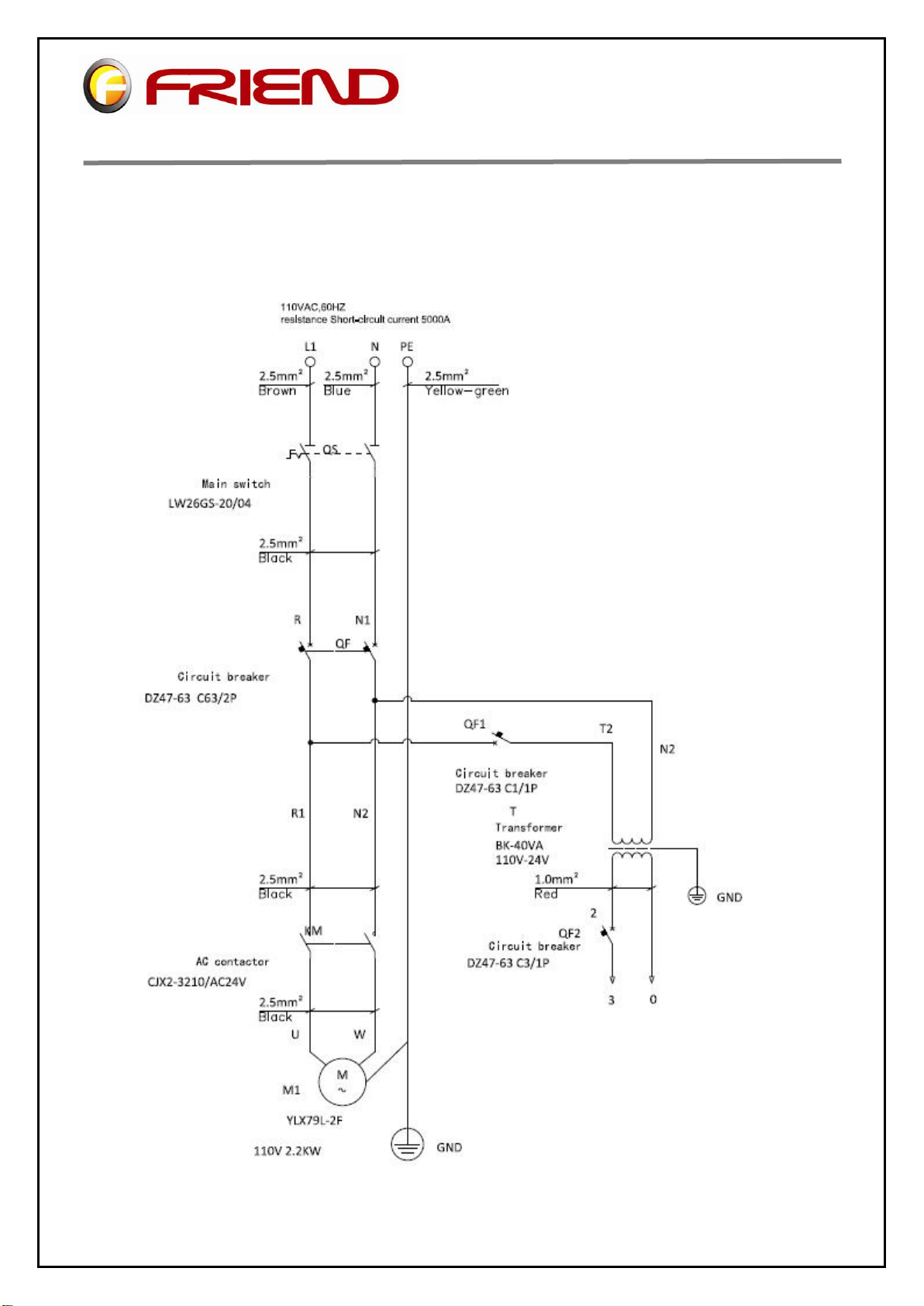

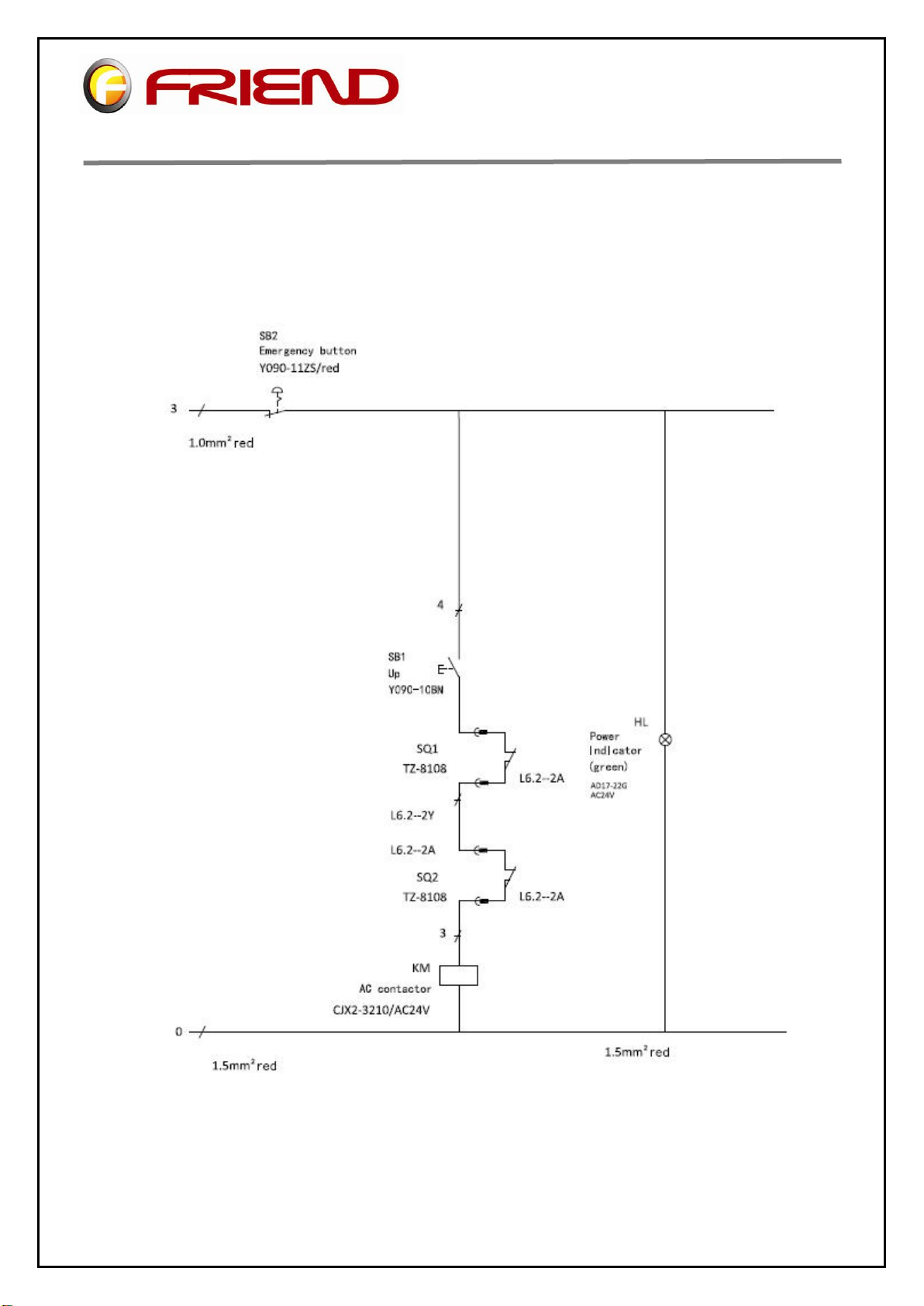

Annex4, Wiring diagram
Annex5, Hydraulic working system
Annex6, Separated drawings for the lift
Read this entire manual carefully and completely before installation or operation of the lift.

Installation, Operation and Parts Manual
FL-8214D
3
Annex7, Spare parts list
IMPORTANT SAFETY INSTRUCTIONS
1.1 Important notices
FRIEND will offer one-year's quality warranty for the whole machine，during which any quality problem will be properly solved to the
user's satisfaction. However, we will not take any responsibility for whatever bad consequence resulted from improper installation
and operation, overload running or unqualified ground condition.
This 2-posts lift is specially designed for lifting motor vehicles that weighs within its outmost lifting capacity. Users are not allowed to
use it for any other purposes. Otherwise, we, as well as our sales agency, will not bear any responsibility for accidents or damages of
the lift. Make sure to pay careful attention to the label of the lifting capacity attached on the lift and never try to lift cars with its
weight beyond.
Read this manual carefully before operating the machine so as to avoid economic loss or personnel casualty incurred by wrong
operation.
Without our professional advice, users are not permitted to make any modification to the control unit or whatever mechanical unit.
1.2 Qualified personnel
1.2.1 Only these qualified staff, who have been properly trained, can operate the lift.
1.2.2 Electrical connection must be done by a competent electrician.
1.2.3 People who are not concerned are not allowed in the lifting area.
1.3 Danger notices
1.3.1 Do not install the lift on any asphalt surface.
1.3.2 Read and understand all safety warnings before operating the lift.
1.3.3 The lift, if is not specially designed upon customer’s request, is not fit for outdoor use.
1.3.4 Keep hands and feet away from any moving parts. Keep feet clear of the lift when lowering.
1.3.5 Only these qualified people, who have been properly trained, can operate the lift.
1.3.6 Do not wear unfit clothes such as large clothes with flounces, tires, etc, which could be caught by moving parts of the lift.
1.3.7 To prevent evitable incidents, surrounding areas of the lift must be tidy and with nothing unconcerned.
1.3.8 The lift is simply designed to lift the entire body of vehicles, with its maximum weight within the lifting capacity.
1.3.9 Always insure the safety latches are engaged before any attempt to work near or under the vehicle.
1.3.10 Make sure to place the lifting pads to the positions as suggested by vehicle makers and when gradually lift the vehicle to the
desired height, operators should be certain that the vehicle will not slant, roll-over orslide in lifting process.
1.3.11 Check at any time the parts of the lift to ensure the agility of moving parts and the performance of synchronization. Ensure
regular maintenance and if anything abnormal occurs, stop using the lift immediately and contact our dealers for help.
1.3.12 Lower the lift to its lowest position and do remember to cut off the power source when service finishes.
1.3.13 Do not modify any parts of the lift without manufacturer’s advice.
1.3.14 If the lift is going to be left unused for a long time, users are required to:

Installation, Operation and Parts Manual
FL-8214D
4
a. Disconnect the power source;
b. Empty the oil tank;
c. Lubricate the moving parts with hydraulic oil.
1.4 Training
Only these qualified people, who have been properly trained, can operate the lift. We are quite willing to provide professional
training for the users when necessary.
Attention: For environment protection, please dispose the disused oil in a proper way.

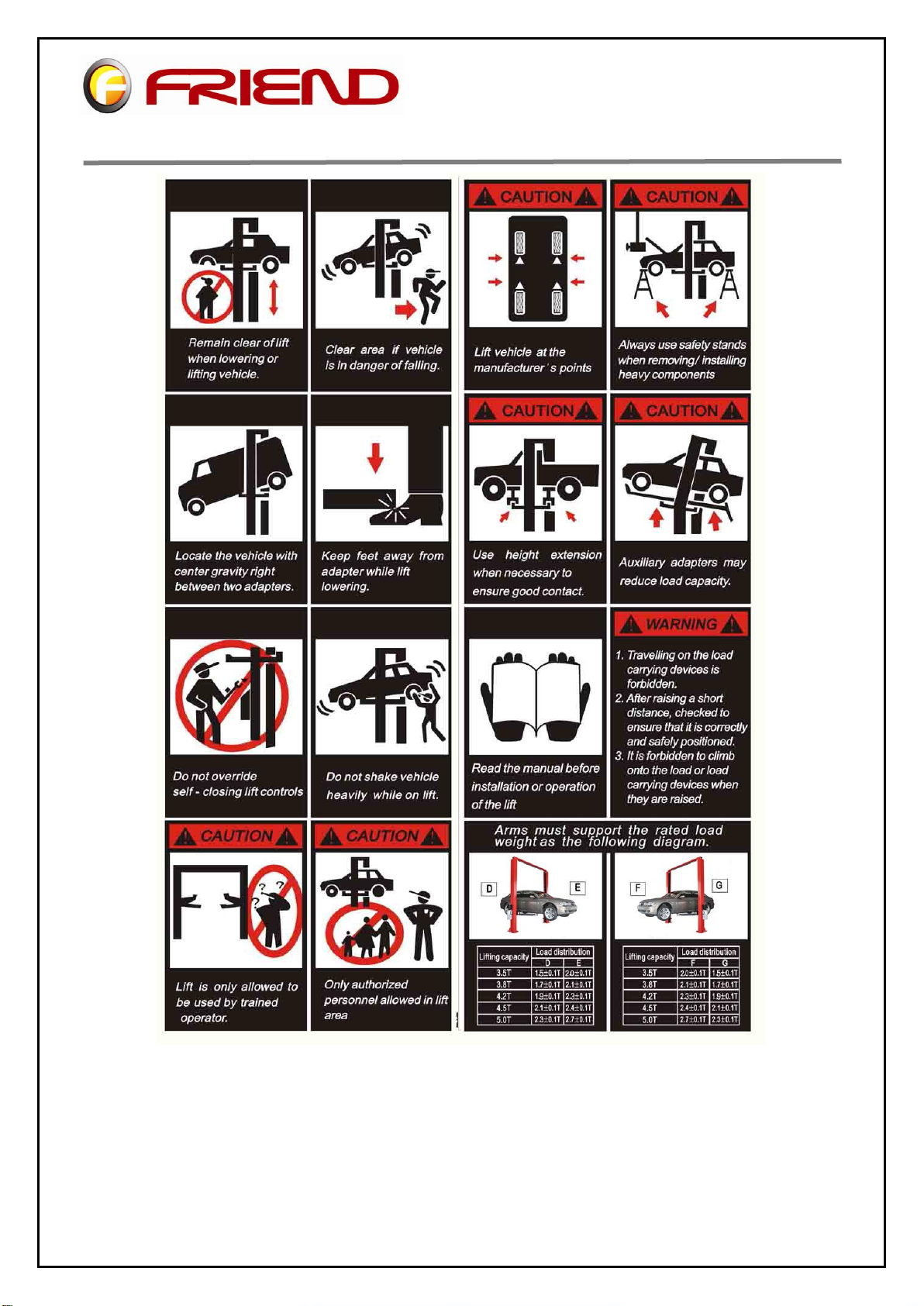

1.5 Warning signs
All safety warning signs attached on the machine are for the purpose of drawing the user’s attention to safety operation. The labels
must be kept clean and need to be replaced when they are worn-out or have dropped. Read the explanations of the labels carefully
and try to memorize them.

Installation, Operation and Parts Manual
FL-8214D
5
OVERVIER OF THE LIFT
2.1 General descriptions
This two- post lift is composed of posts, carriages, lifting arms, cylinders and motor unit, etc.
The lift is driven by an electro-hydraulic system. The gear pump delivers hydraulic oil to oil cylinders and pushes upwards its piston.
The piston drives the chain to raise the carriage and the lifting arms. During lifting process,

Installation, Operation and Parts Manual
FL-8214D
6
the safety teeth will automatically and firmly bite with the safety rod in the posts. Therefore, no slipping will happen in case the
hydraulic system beaks down.

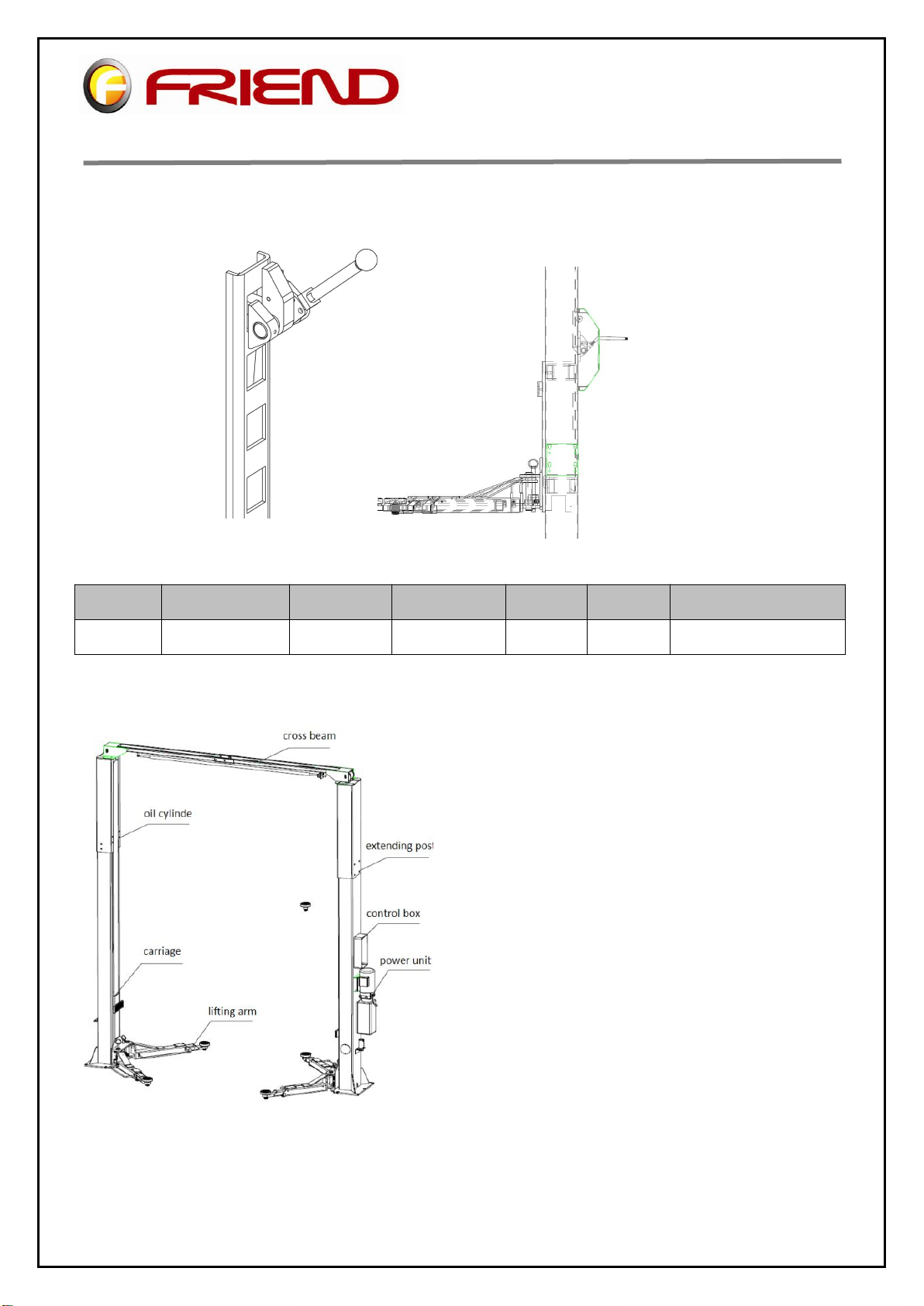

Safety structure
2.2 Technical data
Model
Lifting capacity
Lifting time
Lifting height
Height
Width
Width between posts
FL-8214D
9200LB
50 Sec
1930mm
3892mm
3436mm
2850mm
2.3 Construction of the lift

Installation, Operation and Parts Manual
FL-8214D
7
INSTALLATION INSTRUCTIONS
3.1 Preparations before installation
3.1.1 Tools and equipments needed
Appropriate lifting equipment
Anti-abrasion hydraulic oil.
Rotary Hammer Drill with 3/4’’ drill bit.
Chalk and tape measure, magnetic plump, 8 metersФ15 level pipe.
Sockets and open wrenches, a set of inside hex wrenches, cross and straight screw drivers.
Hammer, 4pounds, sharp nose pliers, Ф17,Ф19,Ф22 socket spanners。
3.1.2 List for parts checking ---Annex 1（Packing list）
Unfold the package and check if any parts missed as per Annex 1. Do not hesitate to contact us in case any parts missed, but if you
do not contact us and insist installing upon the lack of some parts, FRIEND as well as our dealers will not bear any responsibility for
this and will charge for any parts subsequently demanded by the buyer.
3.1.3 Ground conditions
The lift should be fixed on a smooth and solid concrete ground with its strength more than 3000psi, tolerance of flatness less than
5mm and minimum thickness of 200mm. In addition, newly built concrete ground must undergo more than 28days’ cure and
reinforcement.
3.2 Precautions for installation
3.2.1 Make sure the two posts stand paralleled and are vertical to the ground. No slanting.
3.2.2 Joints of oil hose and steel cable must be firmly connected in order to avoid the looseness of steel cable and leakage of oil
hose.
3.2.3 All bolts should be firmly screwed up.
3.2.4 Do not place any vehicle on the lift in the case of trial running.
3.3 Installation
Step 1: Remove the packaging, take out the carton for accessories.
Step 2: Firstly, put something supporting between the two posts or suspend one of the posts by a crane and then remove the bolts
from the packing frame.
Attention：Please pay special attention not to let the post fall down for it may cause casualty or bring damages to the accessories
fixed in the post.
Step 3: When the first post has been taken away, place something supporter under the second post and then remove the bolts
from the packing frame.

Installation, Operation and Parts Manual
FL-8214D
8
Step 4: Connect extending posts and cross beams.
1. Firstly have the extending post firmly secured on to the body posts. This is only necessary when your lift is ordered with extending
posts.
2. Unfold the package and decide on which post the power unit will be mounted.
3. Refer to Annex 2 and Annex 3 to ascertain the position for the two posts with chalk and tape measure and draw an outline of the
two base plates on the ground.
Step 5: Erect and secure the post, power side post (the post on which the control box and pump assembly will be mounted) first
and then the other post.
1. Drill anchor holes for expansion bolts on the ground with an electrical drill. Make sure to drill vertically.
2. Remove thoroughly the debris and dust in holes and ascertain that the posts stay right upon the circle previously marked by chalk.
3. Erect and secure the other post similarly as per step, 1, 2.

Installation, Operation and Parts Manual
FL-8214D
9
Step6: Install cross beam and hang on the top roof protection bumper.
Step7: Connect steel cables.
1. Route and fix according to the following diagram of steel cable connection.
2. Raise carriages on both sides approximately 800mm above the ground. Carriages must be on the same height from the floor.
3. Make sure that the mechanical safety locks in each post are fully engaged before attempting to route cables.
4. After the cable being fixed, adjust and make the cable at both sides be with the same tightness which could be judged by the
sound emitted during lifting process. Make judge and adjustment after trial running.
5. Grease after being fixed. (It is a must.)
Step8: Connect oil hoses.
1. Mount the power unit onto the power side post.

Installation, Operation and Parts Manual
FL-8214D
10
Step9. Connect oil hoses
NOTE: make sure the connectors and hose are clean.
Step10: Connect wires.
Attention: Only licensed electricians are allowed to carry out electrical connection.
1. Mount the control box on to the power side post.
2. Connect the limit switch fixed inside the power-side post.
3. Connect the limit switch fixed at the cross beam.
4. Connect motor wire and power suppply cable .

Installation, Operation and Parts Manual
FL-8214D
11
POWER SIDE POST OTHER POST
Step11: Install lifting arms.
Connect the lifting arms and the carriage by shafts.
Step12: Put oil inside.
Oil tank volumn is 10L. Normal work should have 80% oil inside the tank.
Step13: Connect power supply and do trial running.
Do refer to the operation instructions in advance and keep in mind that no vehicle left on the lift in the process of trial running.
1. Assure all the connections are in good condition and connect the power supply.
2. Usually it needs 13 liters of hydraulic oil. Firstly, fill about 10Ls into the oil tank to run the lift up and down for 2 or 3 times and
then fill into the rest 3Ls. It is suggested to use 32#anti-abrasion hydraulic oil for winter, 46# for summer.
3.Check if mechanical locks can be well engaged or released in the running process. Adjust by screwing the hex head screw as
showed in the following drawing in case the locks do not work well. (Screw clockwise in case the lock can not release and screw
counterclockwise in case the lock can’t be engaged.)
Step13: Fix feet protection fenders, chain protection clothes, door-opening protections and lifting trays.
3.4 Items to be checked after installation.
S/N
Check items
YES
NO
1
Are the posts vertical to the floor?
2
Are the two posts paralleled?
3
Is the oil hose well connected?
4
Is the steel cable well connected?
5
Are all lifting arms well fixed?
6
Are electrical connections right?
7
Are the rest joints firmly screwed?
8
Are all items need lubricating added with grease?

Installation, Operation and Parts Manual
FL-8214D
12
Press UP button
Motor drives the gear pump work
Cylinder piston drives the chain work
Chain drives the carriage rise
The lift is raised
Start
Start
Press UP button to raise the carriage 5cm
Pull the unlocking steel cable at both sides
The lift is lowered
Press the unloading handle
OPERATION INSTRUCTIONS
4.1 Precautions
4.1.1 Check all the joints of oil hose. Only when there is no leakage, the lift can start work.
4.1.2 The lift, if its safety device malfunctions, shall not be used.
4.1.3 The machine shall not lift or lower an automobile if its center of gravity is not positioned midway of the lifting arms. Otherwise,
the FRIEND as well as our dealers will not bear any responsibility for any consequence resulted thereby.
4.1.4 Operators and other personnel concerned should stand in a safety area during lifting and lowering process.
4.1.5 When lifting arms rise to the desired height, switch off the power at once to prevent any mal-operation done by unconcerned
people.
4.1.6. Make sure the safety lock of the lift is engaged before start working under the vehicle and no people under the vehicle during
lifting and lowering process.
4.2 Flow chart for operation
Raise the lift
1. Make sure that you have read and understood the operation manual before operation.
2. Park the vehicle between two posts.
3. Adjust the lifting arms until they reach the supporting positions of the vehicle and make sure the gravity of vehicle located in
the center of four lifting arms.
Raising
Lowering

Installation, Operation and Parts Manual
FL-8214D
13
4. Connect the power supply as per requirements on the nameplate attached, and switch on.
5. Press the”UP”button on the control box until pads of lifting arms touched the prop-position of vehicle.
6. Keep on raising the vehicle to let it have a bit clearance from the ground and check again its stability.
7. Raise the vehicle to the desired height, check it is safe or not, press the “unlocking handle” button to have the safety locks
engaged, and then perform maintenance or repair work underneath.
Lower the lift
1. Press the “UP” button on the control box to raise the lifting arms about 5CM which looses the safety lock.
2. Pull the unlocking steel cable at both sides to release the safety locks.
3. Press the unloading handle to lower the arms.
4. After the lifting arms lower to the lowest position, pull them out from under the vehicle and clear up all the obstacles.
5. Drive the vehicle away.
TROUBLE SHOOTING
ATTENTION: If the trouble could not be fixed by yourself, please do not hesitate to contact us for help .We will offer our service at the
earliest time we can. By the way, troubles could be judged and solved much faster if more details or pictures could be provided.
TROUBLES
CAUSE
SOLUTION
Abnormal noise
Abrasion exists on insider surface of the posts.
Grease the inside of the post.
Trash in the post.
Clear the trash
Motor does not run and
will not rise
The wire connection is loose.
Check and make a good connection.
The motor is blown.
Replace it.
The limit switch is damaged or the wire connection is loose.
Connect it or adjust or replace the limit
switch.
Motor runs but will not
raise
The motor run reversely.
Check the wire connection.
Overflow valve is loose or jammed.
Clean or adjust it.
The gear pump is damaged.
Replace it.
Oil level is too low.
Add oil.
The oil hose became loose or dropped off.
Tighten it.
The cushion valve became loose or jammed.
Clean or adjusts it.
Carriages go down
slowly after being
raised
The oil hose leaks.
Check or replace it.
The oil cylinder is not tightened.
Replace the seal.
The single valve leaks.
Clean or replace it.
E-magnetic valve fails to work well.
Clean or replace it.
Steel cable is loose or not with same tightness
Check and adjust the tightness.
Raising too slow
The oil filter is jammed.
Clean or replace it.
Oil level is too low.
Add oil.

Installation, Operation and Parts Manual
FL-8214D
14
The overflow valve is not adjusted to the right position.
Adjust it.
The hydraulic oil is too hot ( above 45°）.
Change the oil.
The seal of the cylinder is abraded.
Replace the seal.
Inside surface of the posts is not well greased.
Add grease.
Lowering too slow
The throttle valve jammed.
Clean or replace.
The hydraulic oil is dirty.
Change the oil.
The anti-surge valve jammed.
Clean it.
The oil hose jammed.
Replace it.
The steel cable is
abraded
No grease when installation or out of lifetime
Replace it.
MAINTENANCE
Easy and low cost routine maintenance can ensure the lift work normally and safely. Following are requirements for routine
maintenance. Frequency of routine maintenance is determined by working condition and frequency.
The following parts need lubrication.
6.1 Daily checking items before operation
The user must perform daily check. Daily check of safety lock system in very important – the discovery of device failure before action
could save time and prevent great loss, injury or casualty.
·Before operation, judge whether the safety locks are engaged by sound.
·Check whether oil hose well connected and whether it leaks or not.
·Check the connections of chain and steel cable and check the power unit.
·Check whether expansion bolts are firmly screwed.
·Check if arm lock works well or not.
6.2 Weekly checking items
·C heck the flexibility of moving parts.
· Check the working conditions of safety parts.
S/N
Name
1
UP pulley
2
Steel cable
3
Slider
4
Shaft
5
Arm lock
6
Lifting arm
7
Lifting tray
8
DOWN pulley

Installation, Operation and Parts Manual
FL-8214D
15
· Check the amount of oil left in the oil tank. Oil is enough if the carriage can be raised to highest position. Otherwise, oil is
insufficient.
·Check whether expansion bolt s firmly screwed.
6.3 Monthly checking items
·Check whether expansion bolts are firmly screwed.
· Check the tightness of the hydraulic system and screw firm the joints if it leaks.
· Check the lubrication and abrasion circumstance of axial pins, carriages, lifting arms and other related parts and replace in time with
new ones if they failed to work well.
·Check the lubrication and abrasion circumstance of steel cable.
6.4 Yearly checking items
·Empty the oil tank and check the quality of hydraulic oil.
·Wash and clean the oil filter.
If the above maintenance suggestions are strictly followed, the lift will always keep in a good working condition
and meanwhile accidents could be avoided to a large extent.
ANNEX
Annex 1, Packing List of the whole lift
S/N
Name
Drawing#/Spec.
Qty
Property
1
Power-side post
FL-8214-A1
1
Assembly
2
Post
FL-8214-A2
1
Assembly
3
Long arm
FL-8214-A7
2
Assembly
4
Short arm
FL-8214-A8
2
Assembly
8
Power unit
1
Assembly
9
Control box
1
Assembly
10
Cross beam (in)
FL-8214-A3-B1
1
Powder-coating
11
Cross beam (out)
FL-8214-A3-B2
1
Powder-coating
12
Roof protection bar
FL-8214E-A21-B5
1
Powder-coating
14
Extending post
FL-8214E-A20
2
Powder-coating
15
Inside Box
16
Protection rubber pad
FL-8224-A3-B7
2
Rubber
17
Rubber oil hose L=500
FL-8214-A4-B1
1
Assembly
18
Chain protection cloth L=3655
FL-8214-A7
2
Assembly
19
Rod of chain protection cloth
FL-8224-A13
4
Zinc-plating
20
Lifting tray
FL-8224-A7-B3
4
Assembly
21
Long fender
FL-8224-A7-B4
2
Powder-coating
22
Short fender
FL-8224-A8-B3
2
Powder-coating
23
Height adapter
FL-8224-A15
4
Zinc-plating
24
Shaft
FL-8224-A12
4
Zinc-plating
25
Hex head full swivel screw
M8*35
4
Standard
26
Hex socket button head screw
M8*12
8
Standard
27
Cross socket flat head screw
M8*16
4
Standard
28
Cross socket cap head screw
M6*8
23
Standard
29
Flat washer
M6
23
Standard
30
Flat washer
M8
4
Standard

Installation, Operation and Parts Manual
FL-8214D
16
S/N
Name
Drawing#/Spec.
Qty
Property
31
Spring washer
M8
4
Standard
32
Nut
M8
4
Standard
33
Nut
M6
8
Standard
34
Circlip
Φ38
9
Standard
35
Expansion bolt
M18*180
10
Standard
36
Hex head full swivel screw
M14*25
5
Standard
37
Hex head full swivel screw
M14*30
16
Standard
38
Spring washer
M14
21
Standard
39
Flat washer
M14
21
Standard
40
Nut
M14
21
Standard

Installation, Operation and Parts Manual
FL-8214D
17
Annex2, Overall diagram

Installation, Operation and Parts Manual
FL-8214D
18
Annex3, Floor plan

Installation, Operation and Parts Manual
FL-8214D
19
Annex4, Wiring diagram
Single phase

Installation, Operation and Parts Manual
FL-8214D
20
Three phase
Annex5, Hydraulic working system
