Frigidaire LCGQ2152FE0 User manual

DRYER
SECHEUSE
Table of Contents
Product registration ..................................... Cover
Enregisttrement du produit .............. Page couverture
Warranty ...................................................................... 2
Important Safety Instructions ......................................... 3
Drying Procedures ..................................................... 4
Features ...................................................................... 4
Common Drying Problems ......................................... 5
Care and Cleaning .................................................... 5
Avoid Service Checklist .............................................. 6
Francais ................................................................. 7-11
Consignes de securite importantes ........................... 7
Instructions de sechage ............................................. 8
Caracteristiques .......................................................... 8
Problemes de sechage courants ............................... 9
Entretien et nettoyage ................................................ 9
Guide de depannage .............................................. 10
Garantie ..................................................................... 11
Back Cover ................................................................ 12
Read all instructions before
using this appliance. This book contains
valuable information about
• Operation
® Care
• Service
Keep it in a safe place.
Lire ce manuel en entier avant de se servir
decetappareil. Cemanuel renfermede
precieuses informations sur
• le fonctionnement
• I'entretien
• le service apres-vente
Le conserver en lieu s0r.
Read and Save These Instructions
Record Your Model and Serial Numbers
The model and serial numbers of your dryer are found on the dryer serial plate located
of the left side of ttqe door opening. Record and retain these numbers.
Life et conserver ces instructions
Noter les num_ros de module et de s_rie
Les num_ros de modele et de serie de la secheuse se trouvent sur la plaque
signaletique _ la gauche de I'ouverture de la porte. Noter et conserver ces numeros.
Model Number
N ° de modele
Serial Number
N°de serie
Purchase Date
Date de !'achat
www.frigidaire.com P/N 134674500A (0606)

Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateof
purchase,Electroluxwillpayall costsfor repairingorreplacinganypartsofthis appliancethat proveto
be defectivein materialsorworkmanshipwhensuchapplianceis installed,usedandmaintainedin
accordancewiththe providedinstructions.
Exclusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. tn the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
EIectrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Electrolux
Canada
1.800.668.4606
ElectroIux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4

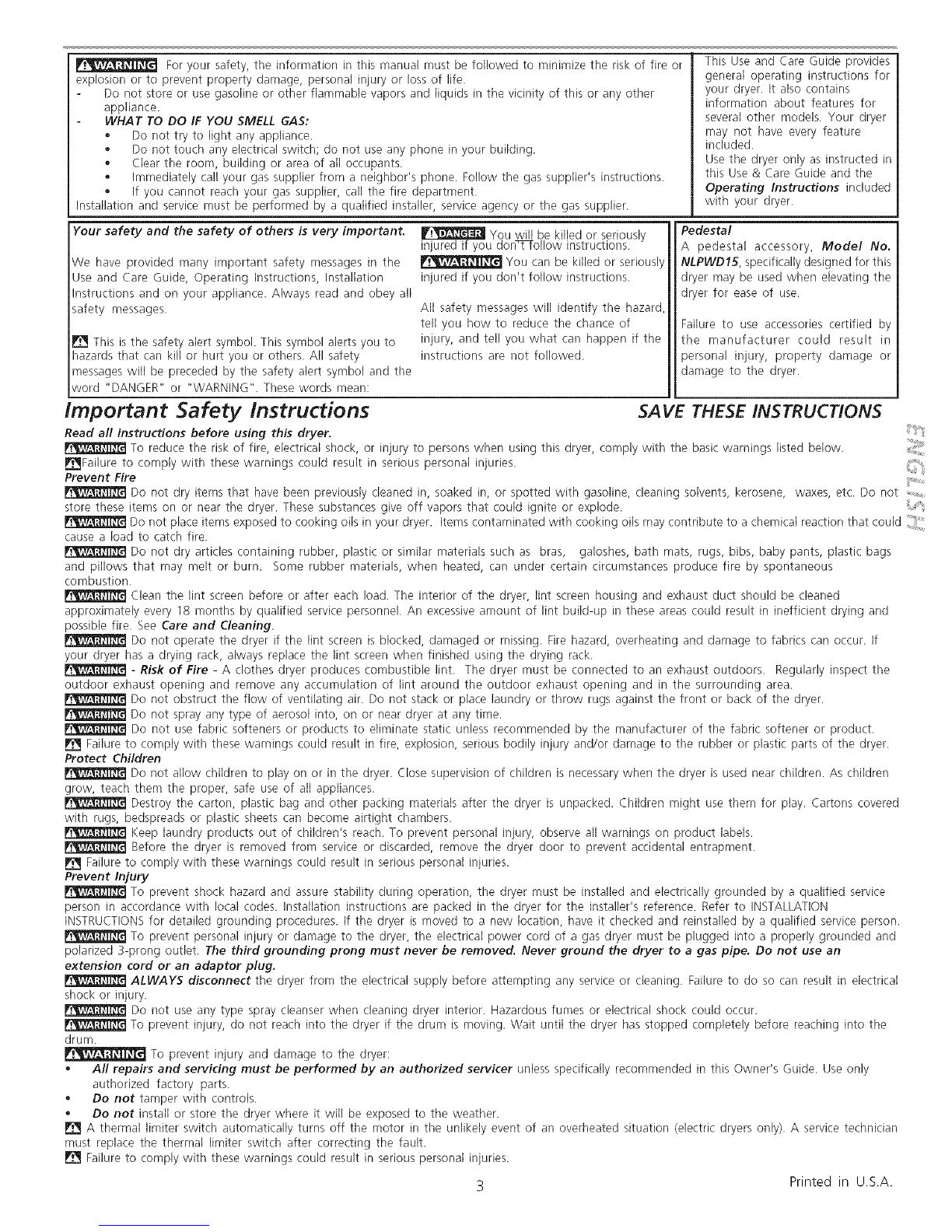

Foryoursafety,theinformationinthismanualmustbefollowedtominimizetheriskoffireor
explosionortopreventpropertydamage,personalinjuryorlossoflife.
Donotstoreorusegasolineorotherflammablevaporsandliquidsinthevicinityofthisoranyother
appliance.
WHAT TO DO IF YOU SMELL GAS:
.. Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This Use and Care Guide provides
general operating instructions for
your dryer. It also contains
information about features for
several other models. Your dryer
may not have every feature
included.
Use the dryer only as instructed in
this Use & Care Guide and the
Operating Instructions included
with your dryer.
Your safety and the safety of others is very important.
We have provided many important safety messages in the
Use and Care Guide, Operating Instructions, Installation
Instructions and on your appliance. Always read and obey all
safety messages.
[] This is the safety alert symbol. This symbol alerts you to
hazards that can kill or hurt you or others. All safety
messages will be preceded by the safety alert symbol and the
word "DANGER" or "WARNING". These words mean:
important Safety Instructions
Read all instructions before using this dryer.
You will be killed or seriously
injured if you don_Efollow instructions.
You can be killed or seriously
injured if you don't follow instructions.
All safety messages will identify the hazard,
tell you how to reduce the chance of
injury, and tell you what can happen if the
instructions are not followed.
Pedestal
A pedestal accessory, Model No.
NLPWD15, specifically designed for this
dryer may be used when elevating the
dryer for ease of use.
Failure to use accessories certified by
the manufacturer could result in
personal injury, property damage or
damage to the dryer.
SAVE THESE INSTRUCTIONS
To reduce the risk of fire, electrical shock, or injury to persons when using tNs dryer, comply witt] the basic warnings listed below.
[]Failure to comply with these warnings could result in serious personal injuries.
Prevent FireDo not dry items that have beet] previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes, etc. Do not
store these items on or near the dryer. Tt]ese substances give off vapors tt]at could ignite or explode.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could I
cause a load to catch fire.
Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants, plastic bags
and pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous
combustion. Clean the lint screen before or after each load. Tile interior of the dryer, lint screen housing and ext]aust duct should be cleaned
approximately every 18 montt]s by qualified service personnel. An excessive amount of lint build-up in tt]ese areas could result in inefficient drying and
possible fire. See Care and Cleaning.
Do not operate the dryer if the lint screen is blocked, damaged or missing. Fire hazard, overheating and damage to fabrics can occur. If
your dryer has a drying rack, always replace the lint screen wt]en finished using the drying rack.
-Risk of Fire - A clothes dryer produces combustible lint. The dryer must be connected to an exhaust outdoors. Regularly inspect the
outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.
Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against the front or back of the dryer.
Do not spray any type of aerosol into, on or near dryer at any time.
Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
[] Failure to comply witt] these warnings could result in fire, explosion, serious bodily injury and/or damage to tile rubber or plastic parts of tile dryer.
Protect Children
Do not allow children to play on or it] the dryer. Close supervision of children is necessary when the dryer is used near children. As children
grow, teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing materials after the dryer is unpacked. Ct]ildren might use them for play. Cartons covered
with rugs, bedspreads or plastic st]eets can become airtight chambers.
Keep laundry products out of cNIdren's reach. To prevent personal injury, observe all warnings on product labels.
Before the dryer is removed from service or discarded, remove tile dryer door to prevent accidental entrapment.
[] Failure to comply with these warnings could result in serious personal injuries.
Prevent Injury
To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded by a qualified service
person in accordance with local codes. Installation instructions are packed in the dryer for the installer's reference. Refer to INSTALLATION
INSTRUCTIONSfor detailed grounding procedures, if tile dryer is moved to a new location, have it ct]ecked and reinstalled by a qualified service person.
To prevent personal injury or damage to the dryer, the electrical power cord of a gas dryer must be plugged into a properly grounded and
polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the dryer to a gas pipe. Do not use an
extension cord or an adaptor plug.
ALWAYS disconnect the dryer from the electrical supply before attempting any service or cleaning. Failure to do so carl result in electrical
st]ock or injury.
Do not use any type spray cleanser wt]en cleaning dryer interior. Hazardous fumes or electrical shock could occur.
To prevent injury, do not reach into the dryer if the drum is moving. Wait until the dryer has stopped completely before reaching into the
drum. To prevent injury and damage to the dryer:
•All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Owner's Guide. Use only
authorized factory parts.
•Do not tamper with controls.
Do not install or store the dryer wt]ere it will be exposed to the weather.
[] A thermal limiter switch automatically turns off the motor in tt]e unlikely event of an overheated situation (electric dryers only). A service technician
must replace the thermal limiter switch after correcting the fault.
[] Failure to comply with these warnings could result in serious personal injuries.
Printed in U.S.A.

Avoid fire
hazard or electrical shock.
Do not use an adaptor
plug or extension cord or
remove grounding prong
from electrical power
cord. Failure to follow this
warning can cause serious
injury, fire or death.
ELECTRIC DRYERS:
14-30R
FUSED3OAMP T
120/240VOR
120/208VWALL
CORRECT DRYER SERVICE
FoNow fabric care label instructions.
_4_
4; ?;;;'¢
Place small items in a mesh bag.
Fill dryer drum 113to 112full.
Place the front bar under
the lip of the lint screen opening.
Grounding type GAS DRYERS:
wall receptacle
any circumstances
cut, remove,
or bypass
grounding plug
CORRECT Use tNs way ONLY
Note: The instructions
appearing in this Use and
Care Guide are not meant to
cover every possible condition
and situation that may occur.
Common sense and caution
must be practiced when
installing, operating and
maintaining any appliance.
Drying Procedures
Follow the guidelines below for preparing the load for drying.
• Read the Operating Instructions card for operating your specific model.
•Always read and follow fabric care labels and laundry product labels.
_l_ilTo reduce the risk of fire, electrical shock, or injury to persons, read Important
Safety Instructions before operating this dryer.
Prepare items for drying.
* Dry items of similar fabric, weight and construction in the same load.
, Separate dark items from light-colored items. Separate items that shed lint from those
that attract lint. If an item sheds lint, turn it inside out.
* Be sure buckles, buttons and trim are heatproof and won't damage the drum finish.
Close zippers, fasten hooks and Velcro®-Iike fasteners. Tie strings and sashes to
prevent snagging and tangling.
* If possible, turn pockets inside out for even drying.
, Check for stains which may not have been removed in washing. Dryer heat may
permanently set some stains. Repeat stain removal process before drying.
* Place small items in a mesh bag to prevent tangling and for easy removal.
2. Check that tint screen is clean and in place.
Load the dryer.
* The average load will fill the drum 113to 112 full. Items need room to tumble freely for
even drying and less wrinkling. Do not overload dryer.
* When drying large items, dry only 2 or 3 at a time. Fill out the load with small and
medium sized items.
* For delicate or very small loads, add 2 lint-free towels for better drying, less wrinkling,
and to prevent grease stains caused by fabric softener sheets.
* Do not overdry items. Overdrying can cause wrinkling, shrinkage, harshness, and a
build-up of static electricity, which can produce more lint.
* If desired, add a dryer fabric softener sheet.
4. Close the dryer door and select the cycle, temperature, dryness level and options
desired. See Operating Instructions for your specific model information.
5. Press START to begin the cycle.
• To add or remove items when the dryer is running open the door. The dryer will stop
when the door is opened. Allow the drum to come to a complete stop before reaching
inside.
Close the door and press STARTto resume the cycle.
6. When the cycle ends, remove items immediately and hang or fold.
Features
End of Cycle Signal
A signal will sound at the end of the cycle and periodically during Press Saver at the volume
level selected. (some models)
Drum Light (some models)
A drum light will come on whenever the door is opened to illuminate the dryer drum during
loading and unloading. Closing the door turns off the light.
Reversible Dryer Door
Your dryer is equipped with a reversible door. The door can be hinged on the right or left side.
Refer to the INSTALLATION INSTRUCTIONS for directions on changing the door.
Drying Rack (some models)
Use the drying rack to dry items which should not be tumble dried.
1. Open the dryer door and remove the lint screen.
2. Insert drying rack into the dryer drum. Place the front bar under the lip of the lint screen
opening.
3. Place items to be dried on top of the rack. Weight should not exceed 10 Ibs. Leave space
between items, but do not let items hang over the sides or through the grids. Do not
tumble other items when using the drying rack.
4. Select Timed Dry. Use only the Air Fluff/No Heat option for items containing plastic, foam
rubber, rubber-like materials, feathers or down.
5. When items are dry, remove the rack and replace the lint screen. If lint screen is not in
place, tumbling items could enter the exhaust system and cause damage to the dryer.
4

Care and Cleaning
Clean lint screen after every load.
To reduce risk of fire or serious injury to persons or property, comply with
the basic warnings listed in Important .Safety Instructions and those listed below.
Before cleaning the dryer interior, unplug the electrical power cord to avoid
electrical shock hazards.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or
electrical shock could occur.
Inside
Clean the lint screen after every load. Lint build-up in the screen restricts air flow,
which causes longer drying times. The screen is located at the bottom of the door
opening. Remove by pulling straight up. Remove the lint and replace the screen.
CAUTION - Risk of Fire - A clothes dryer produces combustible lint. The dryer must
be connected to an exhaust outdoors. Regularly inspect the outdoor exhaust
opening and remove any accumulation of lint around the outdoor exhaust opening
and in the surrounding area.
Do not store or place laundry products
on top of dryer at any time. They can
damage the finish or controls.
Occasionally a waxy build-up may form on the lint screen from using dryer-added
fabric softener sheets. To remove this build-up, wash the lint screen in warm, soapy
water. Dry thoroughly and replace. Do not operate the dryer without the lint screen in
place.
If the dryer drum becomes stained from noncolorfast fabrics, clean the drum with a
damp cloth and a mild liquid household cleanser. Remove cleanser residue before
drying the next load.
Every 18 months an authorized servicer should clean the dryer cabinet interior and
exhaust duct. These areas can collect lint and dust over time. An excessive amount of .....
lint build-up could result in inefficient drying and possible fire hazard.
Outside
Clean the cabinet with mild soap and water. Never use harsh, gritty or abrasive
cleansers.
If the cabinet becomes stained, clean with diluted chlorine bleach [1/2 cup
(120 ml) in 1 quart (.95 liter) water]. Rinse several times with clear water.
Remove glue residue from tape or labels with a mixture of warm water and mild
detergent. Or, touch residue with the sticky side of the tape or label.
Before moving the dryer, place a strip of cardboard or thin fiberboard under the
front leveling legs to prevent damage to floor.
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory drying
results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM POSSIBLECAUSES SOLUTIONS PREVENTIVEMEASURES
Greasy, oily o Fabric softener sheet, o Rub fabric softener stains with bar soap. _ Add a few bath towels to small loads for
stains Rinse and rewast_, proper tumbling.
Some "silk-like" fabrics should be oh-dried.
Use proper drying temperature.
Place fabric sotte_er sheet on top of load
before starting the dryer.
Lint ® Overloading. ® Reduce load size and rewash using liquid _ Do not overload dryer.
Overdrying causes static fabric softener in the final rinse, o Use fabric softener in wastqer or dryer to
electricity. _ Or, add a fabric softener sheet and tumble reduce static electricity.
Lint screen not clean when without heat. _ Remove items wtqen ttqey are slightly damp to
cycle began. _ Use lint brush or roller to remove lint. avoid overdryJng.
Lint is ati_ached to "pills." _ Check that lint _creen is clean and in place.
Pilling o Pilling is normal with _ Use fabric softener to lubricate fibers.
(Fibers break off, syntl-ietic and permanent _ Use a lint brustq or stqaverto remove pills. _ Wtqen ironing, use spray starch or fabric finish
ball up and cling press fabrics. This is due to on collars and cuffs.
to fabric.) - abrasion from normal wear. _ Turn items inside out to reduce abrasion.
Shrinking o Overdrying. _ Irreversible condition. _ Follow fabric care label directions.
If shrinking is a concern, check load often.
Remove items wtqile slightly damp and hang or
lay flat to complete drying.
Block knits into stqape.
Wrinkling _ Overloading. _ Reduce load size and tumble at medium or _ Do not overload dryer.
Leaving items in dryer after low heat for 5-10 minutes, o Remove items as soon as cycle ends.
cycle ends. _ Remove items immediately. Hang or fold.
5

Avoid Service Beforecalling for service, reviewthis list. It may saveboth time and exper_se.The list includes
common occurrences that are not the resuIt of defective workmanship or materials inth isdryer.
Checklist
OCCURRENCE POSSIBLE CAUSE SOLUTION
Dryer does not start. Electrical power cord is not securely Make sure the plug fits tightly in wall outlet.
plugged in or plug may be loose.
House fuse blown or circuit breaker Reset circuit breaker or replace fuse.
tripped. Make sure electrical line is not overloaded and the
dryer is on a separate circuit.
Thermal limiter tripped. Call authorized service person for replacement.
Dryerrunsbutwon'theat. There are 2 house fuses in the dryer Replace fuse.
circuit. If 1 of the 2 fuses is blown, the
drum may turn but the heater will not
operate.
Gas supply valve is not open (gas Check to make sure supply valve is open. See
models). INSTALLATION INSTRUCTIONS for procedure.
Dryer does not have anough air supply See INSTALLATION INSTRUCTIONS.
to support the burner flame (gas models).
LP gas supply tank is empty or there has Refill or replace tank.
been a utility interruption of natural gas
(gas models). Dryer should heat when utility service is restored.
Drying cycle takes too long, Lint screen is clogged with lint. Make sure all lint has been removed from the dryer lint
outsideofthedryerfeelstoo screen before starting each cycle.
hot or smells hot. Exhaust duct requirements have not
been met. Exhaust duct must be at least 4 inches in diameter and
made of rigid or flexible metal.
When in place, the duct must have no more than two
90° bends and must not exceed length listed in
INSTALLATION INSTRUCTIONS.
Electric dryer is connected to a 208 volt Drying time will be 20% longer than drying on a 240
circuit, volt circuit.
Drying procedures have not been See Drying Procedures.
followed.
Outside exhaust hood or exhaust duct Clean out any obstruction.
may be clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Excessive wrinkling. Dryer is overloaded. Do not overload. See Drying Procedures.
Items left in dryer too long. Remove items as soon as cycle ends.
Insufficient sorting of items. See Drying Procedures.
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping of the
drum finish. Foreign objects such as coins, pins, clips
or buttons are inside the dryer.
Permanently attached items such as belt
buckles, zippers and fasteners may be
hitting the inside of the drum.
Always remove foreign objects from pockets before
laundering. Remove objects from drum and restart
dryer.
It may be necessary to baste a scrap of material
securely around ornaments before drying to prevent
scratching and damage to the dryer.
Drum damage caused by foreign objects or permanently
attached items is not covered by the warranty.
