Introduction .................................................................................... 2

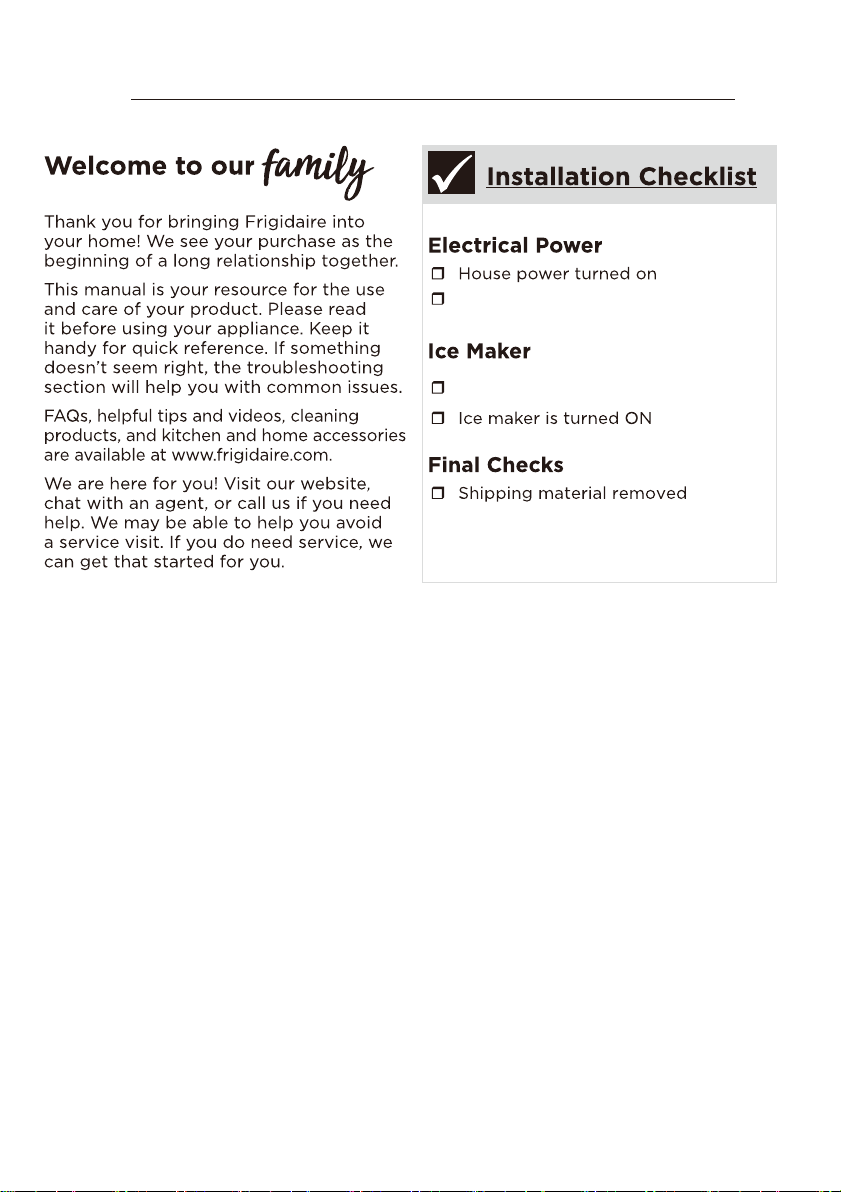

INTRODUCTION
2
Pour the water into the water tray
Ice maker plugged in

1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker to
ensure it is in good condition and that there is no damage to the ice
maker or power cord and plug.
3. Before using the Ice maker for the first time, please wait 2 hours after
positioning it, and keep the transparent lid open for at least 2 hours.
4. Pure water is not allowed to be used on this unit, spring water is
recommended.
5. Ensure the voltage is compliant with the voltage range stated on the
rating label, and ensure the earthing of the socket is in good condition.
6. If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
7. Do not upend this product or incline it over a 45 angle.
8. To protect against risk of electric shock, do not pour water on cord,
plug and ventilation, immerse the appliance in water or any other liquid.
9. Unplug the appliance after using or before cleaning.
10. Keep the appliance 15cm from other objects to ensure the good heat
releasing.
11. Do not use the accessories which are not recommended by
Manufacturer.
12. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction con-cerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
13. Do not use the appliance close by flames, hot plates or stoves.
14. Do not switch on the power button frequently (ensure 5 mins. interval at
least) to avoid the damage of compressor.
3
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should always
be followed to reduce the risk of fire, electric shock, and/or injury,
including the following:

IMPORTANT SAFEGUARDS
4
15. Metal sheet or other electric object are not allowed to be inserted into
the appliance to avoid fire and short circuit.
16. Do not use outdoors.
17. Never clean with scouring powders or hard implements.
18. Please keep the instruction manual.
19. Warning: Do propellant in this appliance.
20. This appliance is intended to be used in household and similar
applications such as;
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residebtial
type environments;
- Bed and breakfast type environments;
- Catering and similar non-retial applications
21. When positing the appliance, ensure the supply cord is not trapped or
damaged.
22. Do not locate multiple portable socket-outlets or portable power
supplier at the rear of the appliance.
23. Children under 8 years old are not allowed to load and unload
refrigerating appliances.
24. The refrigerant and insulation blowing gas is flammable, when
disposing of the appliance, do so only at an authorized waste disposal
centre. Do not expose to flame.
This symbol indicates the refrigerant R600a and the non-metallic
materials of the appliance are flammable. It's a warning symbol.
Warning: Risk of fire / flammable materials.

KNOW YOUR ICE MAKER 5
1
7
8
9
10
2
3
4
5
6
1. Transparent lid
2. Water tray
3. Ice shovel board
4. Ice basket
5. Button
6. Ice shovel
7. Upper cover
8. Bullet evaporator
9. Rear housing
10. Front housing

KNOW YOUR ICE MAKER
6
1. During transportation, do not tilt the machine more than 45 degrees,
do not reverse the machine. This may damage the compressoor and the
sealing system.
2. Remove all packing materials, check the machine carefully and make
sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should be
at least 150 mm, it should be away from the oven, radiator or other heat
source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltagle is consistent with the voltage
indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.
FEATURES
Quick ice making time can help you enjoy ice in a short time.
It Prompts when the ice is full and water is insufficient.
The machine can make bullet shaped ice.
9 pcs ice can be made in eight minutes.

A
C
B
A. Ice Full (Ice full alarm)
B. Add Water (Water shortage alarm)
C. Ice Making (Ice making alarm )
1) Plug in the power, the "ICE MAKING" indicator flashes, and the machine
will start the deicing function. Press the power button, the
"ICE MAKING" indicator light is always on and then the ice block will be
made auto-matically. After the ice making is completed, the deicing will be
carried out, and then the ice shoveling function will be entered, and so on.
2) ADD WATER: water shortage alarm
When the "ADD WATER" light turns red, it means that there is water
shortage in the water tank. You need to add water and press the power
button to restart the machine.
3) ICE FULL: Ice full alarm
When the ice reaches the maximum capacity of the ice storage container,
the "ICE FULL" light flashes, and the machine stops. At this time, the ice
needs to be poured out. When the ice position is lower than the full sensor
position, the machine will restart automatically.
4) ICE MAKING: Ice making alarm
When this light is always on, it means that the ice maker is making ice.
7
CONTROL PANEL OPERATION

Step 1
Open the lid and take out the basket and add water to the reservoir.
Note: There is a maximum scale MAX in the reservoir. The water
should not
exceed the MAX position. If the water exceeds the maximum scale
MAX, you need to open the bottom drain plug, release the excess
water, and cover with a transparent cover.
Step 2
Plug in the power and press the power button to start the machine.
When the ice basket is full, please take out the ice immediately, do not
let the ice overflow the ice basket.
1. The three cycles used for the first time, the ice produced is small and
irregular.
2. When the ice basket is full, please take out the ice immediately, do
not let the ice overflow the ice basket.
USE YOUR ICE MAKER
8

1. Clean the inner liner, ice collecting tray, water box, ice shovel and
evaporator frequently. When cleaning, unplug the unit and remove
the ice cubes. Use a diluted solution of water and vinegar to clean
the inside and the outside surface of the Ice maker. Do not spray Ice
maker with chemicals or diluted agents such as acids, gasoline or oil.
Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-
in structure, clear of obstruction. Do not use mechanical devices or
other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may not
have enough water to pump for air retard, in this case, the water
shortage indicator "ADD WATER" will light up, repress power button
to restart the ice maker is okay.
4. To ensure the cleanness of ice, please change water for water
reservoir at least once one day. If do not use for a long time, please
drain the water out and clean it up.
5. If the compressor takes a strike action for shortage water, fully water
or interruption of power supply, it will delay for 3 mins to start up
after restarted.
6. Always use fresh water before starting ice production either at initial
installation or after a long shut-off period.
9
CLEANING AND MAINTENANCE

TROUBLESHOOTING
10
1. Please note, if a power failure occurs due to disconnection of the power
cord, or the power button has been pushed off during an ice making
cycle, small ice chips may formed and lodge in the automatic shovel
causing it to jam. If this occurs, the ice chips may be removed by
disconnecting the power cord and gently pushing the shovel to the rear
of the cabinet and removing the ice chips, then restarting.
2. Please check if the water reservoir is flat when the ice shovel can not
remove the ice to ice basket. If not, please push the ice shovel gently by
finger, then press POWER button to restart.
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor
works
abnormally with
a Buzzing Noise
The voltage is lower
than recommended
Stop the Ice maker and do
not restart until the voltage
is normal.
Water shortage
indicator light is on
There is no water
The pump is full of air
Add to some water until it
reaches MAX position
Press POWER to
button restart
Indicator lights on
display are not on Blown fuse/No power Replace fuse / Turn power on
The Ice made is too
large and with
pieces sticking
together.
Ice of previous cycles
left in the water tray
Take out the ice under
the standby state
The ice making
process was
correct, but no ice
came out?
The compressor has
no refrigerant
Compressor damaged
Fan motor damaged
Call the service hotline
CLEANING AND MAINTENANCE

All indicators
twinkle
simultaneously
Water tray is blocked
by ice cube
Unplug the power to take
out the ice which blocking
the tray, then plug the power
and press the POWER
button, the machine will
restart 3mins later.
CLEANING AND MAINTENANCE
The machine has
been working, but
the water has been
warming
Solenoid broke down Replace the solenoid valve
When the ice is full,
the machine does
not display the ICE
FULL Icon
Ice full sensor damaged
Replace the ice full sensor
Making ice indoor
Call the service hotline
1. If the power cord is damaged; it must be replaced by the manufacturer,
its service agent or a similarly qualified person in order to avoid a hazard.
2. Fill with patable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 70°C (158°F) to 90°C (194°F) during operation and
surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may appear "Cloudy". This air trapped in
the water and will not affect quality or taste of ice.
5. This appliance is intended for use by persons (including children) with
reduced physical, sensory orr mental capabilities or lack of experience and
knowledge unless they have been given suppervision or instruction
concerning use of the appliance by a person responsible for their safety.
6. Children shuld be supervised to ensure that they do not play with the
appliance.
7. Do not immerse in water.
11

12 CLEANING AND MAINTENANCE
Correct Disposal of this product
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources.
To return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product
for environmental safe recycling.

TECHNICAL PARAMETERS
Model number :
Daily ice output :
Ice storage capacity :
Refrigerant :
Water tank capacity :
Power :
Power consumption :
N.W :
G.W :
Max overall dimensions:(LxWxH):
Packing dimensions:(LxWxH) :
EFIC206-B-TG-SILVER
12kg/24hours
1.5L/600g
R600a
1.5L
120V~/60Hz
120W
7.75KG
8.6KG
308x224x283mm
348x262x324mm
13

To make a warranty claim, do not return this product to the store. Please email
[email protected] or call 1-800-968-9853.
1 Year Warranty
This product is warranted to be free from defects in material and workmanship
for a period of one (1) year from the date of original purchase. During this
period, your exclusive remedy is repair or replacement of this product or
component found to be defective, at our option; however, you are responsible
for all costs associated with returning the product to us. If the product or
component is no longer available, we will replace with a similar one of equal or
greater value. Prior to a replacement being sent, the product must be rendered
inoperable or returned to us.
This warranty does not cover glass, filters, wear from normal use, use not in
conformity with the printed directions or damage to the product resulting from
accident, alteration, abuse, or misuse. This warranty extends only to the
original consumer purchaser or gift recipient. Keep the original sales receipt,
as proof of purchase is required to make a warranty claim. This warranty is
void if the product is used for other than single-family household use or
subjected to any voltage and waveform other than as on the specified rating on
the label (e.g., 120V~60Hz).
We exclude all claims for special, incidental, and consequential damages
caused by breach of express or implied warranty. All liability is limited to the
amount of the purchase price. Every implied warranty, including any statutory
warranty or condition of merchantability or fitness for a particular purpose, is
disclaimed except to the extent prohibited by law, in which case such warranty
or condition is limited to the duration of this written warranty. This warranty
gives you specific legal rights. You may have other legal rights that vary
depending on where you live. Some states or provinces do not allow limitations
on implied warranties or special, incidental, or consequential damages, so the
foregoing limitations may not apply to you.
For faster service, locate the model, type, and serial numbers on your
appliance.
Canada
WARRANTY CARD
14
