Frigidaire GLCS376ABA User manual

30"
DUAL FUEL
SLIDE -IN RANGE
INSTALLATION
INSTRUCTIONS
(Models
with an Electric Oven and a Gas
Cooktop)
~
INSTALLATION AND SERVICE MUST BE PERFORMED BY
A
QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR
LOCAL
ELECTRICAL INSPECTOR'S
USE.
READ AND SAVE
THESE INSTRUCTIONS
FOR FUTURE
REFERENCE.
AWARNING
result
causing
property damage,
personal
injury or death.
If the
information in this
manual
is not
followed
exactly,
a
fire or
explosion may
FOR
YOUR
SAFETY:
—
Do
not
store or use gasoline
or other fl ammable
vapors and liquids
in
the
vicinity of this
or any
other
appliance.
— WHAT TO DO
IF YOU SMELL GAS:
• Do not
try to light
any appliance.
• Do not
touch
any electrical
switch;
do not
use any phone
in your building.
•
Immediately call
your
gas
supplier from a
neighbor's phone.
Follow the gas
supplier's
instructions.
•
If
you
cannot re
ach your gas
supplier, call the fi re
department.
— Installation and
service must be
performed by a
qualified
installer, service agency
or
the
gas
supplier.
Do not
pinch the
power supply cord or the
flexible gas
conduit
between the
range and the
wall.
Do not
seal the
range to the side cabinets.
**NOTE: 30"
(76.2 cm)
minimum clearance
between
the
cooktop and the
bottom
of
the cabinet
when the
bottom
of wood or
metal cabinet is protected
by not less
than
Y,"
(0.64 cm) flame
retardant millboard
covered with not less
than No. 28
MSG sheet
metal, 0.015" (0.4 mm) stainless
steel,
0.024" (0.6 mm)
aluminum, or 0.020" (0.5
mm)
copper.
36"
(91.4 cm)
minimum clearance when the cabinet
is
unprotected.
• NOTE: Allow at
least 19 ¼" (48.9
cm) clearance for door
depth when it is
open.
• Door Open
(see note)
59.7 cm)
Regulator
Shave Raised
Edge
to Clear 30"
(76.2
cm)
Wide
Cooktop
Rim.
1
Y"
Max.
(3.8
cm Max.)
Locate Cabinet
Doors
1" (2.5
cm)
Min.
from Cutout
Opening.
*Note: 29"
(73.7 cm) Wide
Opening for
Overlapping
Cooktop and
Built-in Look.
3" Min.
(7.6 cm
Min.)
From
Wall
This Side
Only
If Installing
Model With
Optional Side Panels,
Cutout Area
Including
Countertop
Must Be At
Least 30"
(76.2 cm) Wide.
30" Min.
(76.2 cm
Min.)
30
Min.**
(76.2
cm Min.**)
30"
(76.2 cm)
Exact
H
18"
Min.
(45.7 cm)
Min.
Grounded
Jonction Box or
Wall
Outlet Should Be
Located 8"
to
17" (20.3 cm to 43.2
cm)
From
Right
Cabinet and
2' to
4" (5.1 cm to 10.2 cm)
From
Floor.
A.
HEIGHT B. W1DHT
i C DPTH
TO
FRONT
OF RANGE
f. <
hUM
GE1iOIIF
WIDTH
G. CUTOUT
DEPTH
H:. HEIGHT QF..
. . COUNTERTOP' . .
35 3/8" (90 cm) -
36 3/8" (92 cm)
30"
(76.2 cm)
26 1/4"
(66.7 cm)
29"
(73.7 cm)
21 3/4"
(55.2 cm)
36
(91.4 cm) standard
35 3/8" (90
cm) min.
G.
Minimum Cutout
Depth is increased to
24" (61 cm) with backgua d.
FRONT
OF
CABINET
13"
(33 cm)
24"
Min.
(61 cm Min.)
22 7/8"
(58.1 cm)
l
f
1 1/8"
(45.7 cm)
.---
G
Ref
NOTE:
Wiring
diagram for these
appliances are
enclosed
in this booklet.
fi r
Recycled
paper
P/N 318201652
(0104) Rev. A
English — pages
1-12
Espanol — paginas
13-24
Francais —
pages 25-36
Notes - pages 37-38
Wiring Diagrams - pages
39-40

30"
DUAL FUEL
SLIDE -IN
RANGE
INSTALLATION
INSTRUCTIONS
(Models
with an Electric
Oven and a Gas
Cooktop)
Important
Notes to the
Installer
1. Read
all instructions
contained in these
installation
instructions before
installing range.
2. Remove
all packing
material from the
oven
compartments before
connecting the gas and
electrical
supply to the range.
3.
Observe
all governing codes and
ordinances.
4. Be sure to leave
these instructions
with the
consumer.
Important Note
to the
Consumer
Keep
these
instructions
with your owner's guide
for future
reference.
IMPORTANT
SAFETY
INSTRUCTIONS
Installation of this range
must
conform with local codes
or, in the
absence of
local
codes,
with the
National
Fuel
Gas Code
ANSI 2223.1 —latest
edition, in United
States
or with
CAN/CGA-B149.1 and
CAN/CGA-B149.2
standards in Canada.
This
range has
been design certified by the
American
Gas
Association.
As
with
any
appliance
using gas
and
generating heat,
there are
certain safety precautions
you
should
follow. You
will
find
them in the Use and
Care
Guide, read it
carefully.
•
Be
sure
your range is installed
and
grounded
properly by a
qualified
installer or service
technician.
• This range
must be
electrically
grounded in
accordance
with local codes
or, in
their absence,
with the
National
Electrical Code
ANSI/NFPA No.
70
—latest
edition in United
States (see
Grounding
Instructions)
or
with CSA standard
C22.1,
Canadian
Electrical Code,
Part 1
in Canada.
• The
installation of
appliances designed
for
manufactured
(mobile) home
installation must
conform
with Manufactured
Home
Construction and
Safety
Standard,
title
24CFR, part 3280
[Formerly the
Federal
£WARNING aWARNING
Toreduce
the risk
of tipping
of
the
• All ranges
•
~ • ~!
can tip.
• Injury to
range, the range must be
secured by
properly
persons could
installed
anti -tip bracket
result.
provided
with the range.
•
Install anti -tip
To
check if the bracket
is
device
installed
properly, grasp
packed
with
the
top
rear edgge of the
range.
range and
carefully tilt it
forward to
make sure the
range is
anchored.
Standard
for Mobile Home
Construction and Safety,
title
24, HUD (part 280)1 or
when such standard is
not
applicable, the Standard
for Manufactured
Home
Installation 1982
(Manufactured Home Sites,
Communities and Setups),
ANSI Z225.1/NFPA
501A -
latest
edition, or with local codes in United States
or
with CAN/CSA-Z240 MH,
in
Canada.
• Make
sure the wall coverings
around
the
range
can withstand the
heat generated by the range.
• Before
installing the range
in an area covered
with
linoleum or any other synthetic
floor
covering, make sure the
floor covering can
withstand heat at least
90°F (32.2°C) above
room
temperature without shrinking,
warping or
discoloring. Do not
install the range over
carpeting
unless you
place an insulating pad
or
sheet
of Y4" (0.6
cm) thick plywood
between
the
range and
carpeting.
• Do not
obstruct the flow
of combustion air at the
oven vent
nor around the base
or beneath the
lower front
panel of the range. Avoid
touching the
vent openings
or nearby surfaces as they may
become
hot
while the
oven
is
in operation. This range
requires
fresh
air for proper burner
combustion.
£WARNING
Never leave
children alone or
unattended
in the area where
an appliance is in use.
As
children grow, teach them the
proper, safe use of
all
appliances.
Never leave the
oven door open when the
range
is unattended.
£WARNING
Stepping, leaning
or sitting on the
doors or drawers
of this range
can result in serious
injuries
and can also cause
damage to the range.
•
Do
not store items
of interest to
children in the
cabinets
above the range.
Children could be
seriously
burned
climbing
on
the
range to reach
items.
• To
eliminate the need
to reach over the
surface
burners,
cabinet storage space
above the
burners
should be
avoided.
• Adjust
surface
burner flame size so it does
not
extend beyond
the edge
of
the
cooking
utensil.
Excessive
flame is hazardous.
• Do not use
the oven as a storage
space. This
creates a
potentially hazardous
situation.
• Never use
your
range
for
warming or heating the
room. Prolonged use
of
the
range without
adequate
ventilation
can
be
dangerous.
• Do not store
or use
gasoline or other
flammable
vapors and
liquids near this
or any
other
appliance. Explosions
or fires could result.
• In the event
of an
electrical power outage, the
surface
burners
can
be
lit
manually.
To
light a surface
burner,
hold a lit
match to the
burner head and
slowly turn the
Surface
Control Knob to
LITE. Use caution
when
lighting surface burners
manually.
•
Reset
all controls to the
"off" position
after using
2
a
programmable
timing operation.

30"
DUAL
FUEL SLIDE -IN
RANGE
(Models with an
Electric
O
INSTALLATION
INSTRUCTIONS
yen and
a
Gas
Cooktop)
I WARNING
CANADA ONLY : This
appliance is
equipped
with
a
4 -prong grounding
plug for your
protection against shock hazard, and
should be
plugged directly into a properly grounded
receptacle. Do not cut or
remove the ground
prong
from this plug.
FOR MODELS WITH
SELF
-CLEAN FEATURE:
• Remove
broiler pan,
food and
other
utensils
before
self-cleaning the oven.
Wipe up excess
spillage.
Follow the precleaning instructions in
the Use
and
Care Guide.
1.
Power Supply
Cord Kit (U.S.A.)
The
user is responsible for connecting
the
power supply
cord to the
connection block
located behind the back
panel
access
cover.
This appliance may be connected by means
of
permanent "hard wiring" (flexible armored or
nonmetallic shielded
copper
cable),
or
by means of a
power supply cord kit. Only a power supply cord kit
rated at
125/250 volts minimum, 40 amperes
and
marked
for use with ranges shall be used.
See
chart
(below) for cord kit connection opening size rating
information. Cord must have either 3 or 4
conductors.
For
mobile home
installation, or
areas
where local
codes
do not permit
grounding through neutral,
a
4 conductor
power supply cord kit rated at 125/250 volts minimum,
40 amperes and
marked for
use
with
ranges should be
used (see
Figure 5).
Terminals
on end of wires must be either closed
loop
or
open-end
spade lugs with upturned ends. Cord must
have strain -relief clamp.
See below for 3
or 4 conductor
wire
connection.
Range Connection Opening Size Chart
Refer
to
chart below for
range
connection opening
size and
power
supply
cord kit ampere
rating information.
See
serial
plate
on
range
for kilowatt rating
data.
See Serial Plate on Range for Se
S Rating Kw
Cord Kit
Ampere
Rating
Diameter (inches (cm)) of
Range Connection
Opening
120/240 Volts 120/208 Volts Cord Kit
Direct
Connection
0-16.5 Kw
16.6-22.5 Kw
0-12.5 Kw
12.6-18.5 Kw
40 Amp.
50 Amp.
13/8(3.5)
1
3/8(3.5)
1 1/8 (2.9)
1
3/8(3.5)
NOTE: Dual fuel Slide -in Range is shipped
from
factory
with 1
1/8"
(2.9 cm) dia. hole as shown
on
figure 4. If
a
larger hole is required,
punch
out the knockout.
j
WARNING
Risk of
fire
or electrical shock exists if
an incorrect size
range cord
kit is used, the
Installation Instructions are not followed,
or
the
strain relief
bracket is discarded.
QCAUTION
U.S.A.
Figure 1
Do not loosen
the
nuts which secure
the
factory
-installed range
wiring
to
terminal block
while connecting range. Electrical failure
or
loss
of
electrical connection
may
occur.
2. Factory
Connected
Power Supply
Cord (Canada
only)
This range is equipped with a
factory
-connected
power
cord
(see
Figure 2).
Cord must be
connected to a
grounded 120/240 volt or 120/208 volt range outlet.
If
not outlet is available, have one installed by a qualified
electrician.
Canada Style
Figure 2
àWARNING
Electrical Shock Hazard
• Electrical
ground is required
on this appliance.
•
Do not connect
to
the
electrical supply until
appliance is permanently grounded.
•
Disconnect
power
to the circuit
breaker or fuse
box
before
making
the
electrical connection.
• This appliance must be connected to a
grounded, metallic, permanent
wiring system,
or
a
grounding connector
should
be connected
to the
grounding terminal
or wire
lead on the
appliance.
• Do
not use the gas
supply
line
for grounding
the appliance.
Failure to do
any of
the above could result
in a
fire, personal
injury
or electrical shock.
3

30"
DUAL FUEL
SLIDE
-IN RANGE
INSTALLATION
INSTRUCTIONS
(Models with
an
Electric
Oven and a Gas
Cooktop)
3.
Electrical
Connection to the
Range
(U.S.A.)
This appliance is
manufactured
with the
neutral
terminal
connected to the
frame.
Three
Conductor Wire
Connection to
Range
If
local
codes
permit
connection of the frame
grounding
conductor
to the
neutral wire
of
the
copper power
supply
cord (see Figure
4).
1. Remove the 3
screws at the
lower end
of the rear
wire
cover, then bend the
lower end
of
the
rear wire
cover (access
cover) upward to expose
range
terminal
connection block (see
Figure 3).
BEND
REAR WIRE
COVER HERE
FOR ACCESS
TO ELECTRIC
HOOK-UP
Figure 3
2. Remove
the 3 loose nuts
(after
you
removed
the
rubber
band)
on the
terminal
block using a 3/8"
nut
driver
or socket.
3.
Connect the
neutral white
wire of the
copper
power
supply cord to the
center silver -colored
terminal
of
the
terminal block, and
connect the
other wires to
the
outer terminals.
Match
wires
and terminals
by
color (red wires
connected to
the right
terminal,
black wires
connected to the left
terminal).
4.
Replace the 3 nuts
on the
terminal block (see
Figure
4).
5.
Lower the
terminal cover and
replace the 3
screws.
Terminal
Block
Black
Wire
A
User Supplied
Strain -
relief Must Be
Installed
at This
Location.
Silver Colored
Terminal
To
240 V
Receptacle
Figure 4
Red
Wire
Neutral
(White Wire)
Grounding
Strap
1 1/8" (2.9
cm) Dia.
Direct
Connection
Hole.
Punch Out
Knockout for 1 3/8"
(3.5
cm) Dia. Cord
Kit Hole.
4

30" DUAL FUEL
SLIDE -IN
RANGE
INSTALLATION
INSTRUCTIONS
(Models
with
an Electric Oven and a Gas Cooktop)
Four Conductor Wire
Connection to
Range
(mobile
homes)
1
Remove
the
3
screws
at the
lower
end
of
the rear
wire
cover, then raise
the
lower
end of the rear wire
cover
(access
cover)
upward to expose range
terminal connection
block (see Figure 3).
2.
Remove the 3 loose nuts
(after
you
remove
the
rubber
band)
on
the
terminal
block using a 3/8" nut
driver or
socket.
3. Remove
the grounding
strap
from
the terminal block
and
from
the
appliance frame.
4. Connect
the
ground
wire
(green)
of the copper
power supply cord to the frame
of
the appliance
with the ground
screw,
using the
hole
in the
frame
where
the
ground
strap
was removed (see Figure 5).
5. Connect
the
neutral of
the
copper power supply
cord
to the
center silver
-colored terminal of the terminal
block,
and
connect the
other
wires to
the outer
terminals. Match
wires
and
terminals
by color
(red
wires connected to the right terminal, black wires
connected
to the
left terminal).
6. Replace
the
3 nuts
on
the terminal
block (see
Figure
5).
7. Lower
the
terminal
cover and replace the 3 screws.
Terminal Block
Black Wire
1 1/8" (2.9
cm)
Dia. Direct
Connection
Hole.
Punch
Out Knockout
for
1 3/8(3.5
cm)
Dia.
Cord
Kit
Hole.
A
User Supplied
Strain -relief
Must
Be Installed at
This
Location
Silver
Colored
Terminal
Red
Wire
Neutral
(White
Wire)
Ground
(Bare
Copper Wire)
To 240 V
Receptacle
NOTE: Be
sure
to
remove the
supplied grounding strap.
Figure 5
Direct Electrical Connection to the
Circuit
Breaker,
Fuse Box
or Junction
Box
If the appliance is connected
directly to the circuit
breaker,
fuse box
or junction box,
use flexible,
armored
or nonmetallic sheathed
copper
cable
(with
grounding
wire). Supply
a
U.L. listed
strain
-relief at each
end
of
the cable.
At
the appliance end,
the
cable goes
through
the Direct
Connection
Hole (see Figure 5)
on
the
Cord
Mounting
Plate.
Wire
sizes
(copper wire only) and
connections
must conform to the
rating of
the
appliance.
Where local codes permit connecting the
appliance -
grounding
conductor to the
neutral
(white)
wire
(see
Figure 6):
1. Disconnect the power
supply.
2.
In the
circuit
breaker,
fuse
box or
junction
box:
a) Connect the green (or bare
copper)
wire,
the
white
appliance
cable
wire,
and
the
neutral
(white)
wire
together.
b) Connect the 2 black wires
together.
c) Connect
the 2
red
wires together.
Cable
from
Residence
Neutral
(white) Wire
Red
Wires
Green
(or
Bare
Copper)
Wire
Cable
from
Appliance
Black
Wires
Junction
Box
White
Wire
U.L.-listed Conduit
Connector (or
CSA
listed)
Figure 6
3
-Wire
(Grounded
Neutral) Electrical System
(Example: Junction
Box)
5

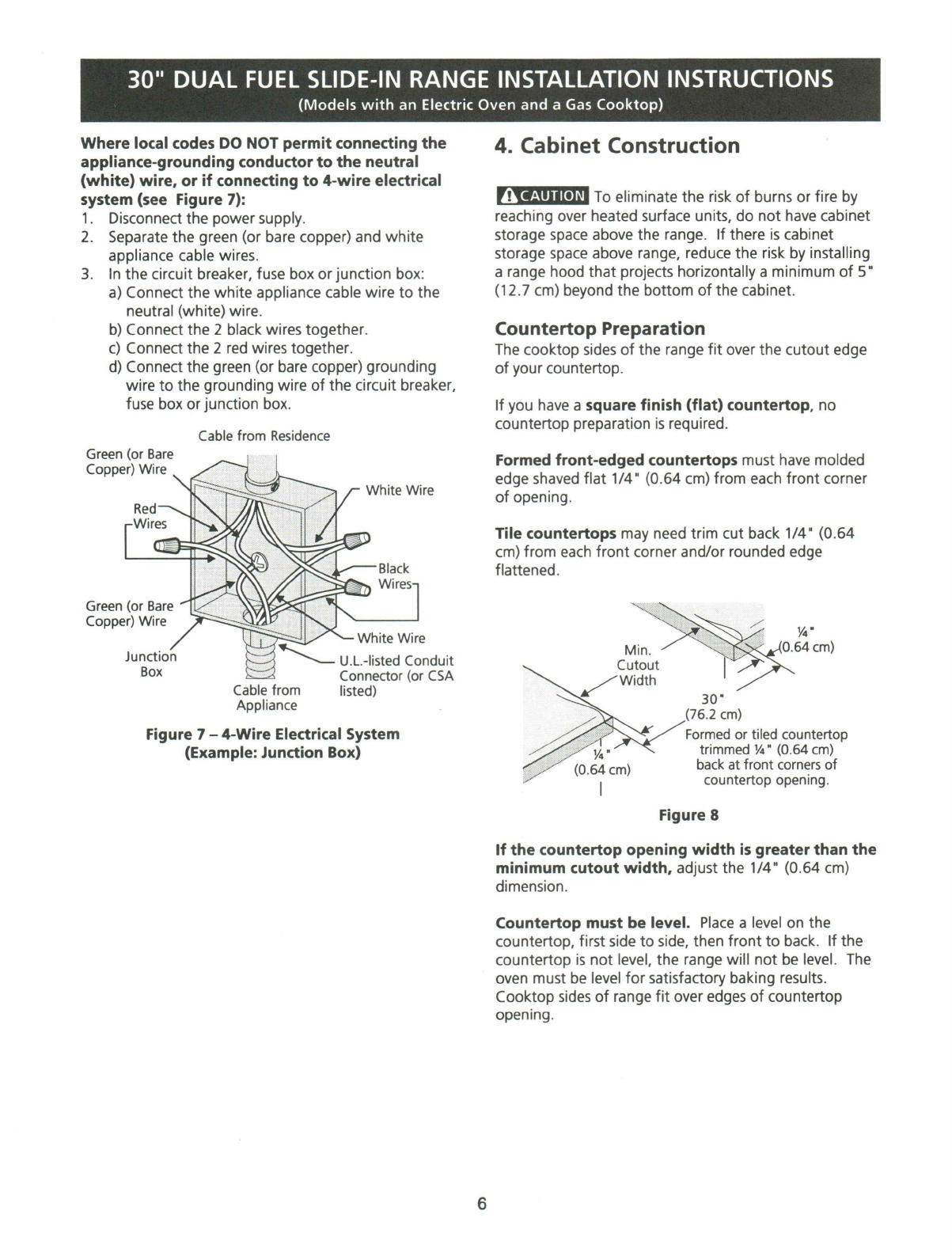

30" DUAL
FUEL SLIDE -IN
RANGE
INSTALLATION
INSTRUCTIONS
(Models
with an
Electric
Oven and a Gas Cooktop)
Where
local
codes DO
NOT
permit
connecting
the
appliance -grounding
conductor
to the
neutral
(white) wire, or if connecting to 4 -wire
electrical
system (see Figure 7):
1. Disconnect the power
supply.
2. Separate the green
(or
bare
copper)
and white
appliance cable wires.
3.
In
the circuit
breaker, fuse box or junction box:
a) Connect the white
appliance cable wire to the
neutral
(white)
wire.
b) Connect the 2
black
wires
together.
c) Connect the 2 red wires
together.
d) Connect the
green (or
bare
copper) grounding
wire to the
grounding
wire
of the circuit
breaker,
fuse box or junction
box.
Green (or
Bare
Copper) Wire
Red
Wires
Green (or Bare
Copper)
Wire
Junction
Box
Cable
from
Residence
Cable
from
Appliance
White Wire
Black
Wires
White Wire
U.L.-listed Conduit
Connector (or
CSA
listed)
Figure 7 — 4 -Wire
Electrical System
(Example: Junction Box)
4. Cabinet
Construction
QCAUTION
To eliminate the
risk of
burns
or fire by
reaching over
heated surface units, do not have
cabinet
storage space above the range.
If
there is cabinet
storage space above range, reduce the
risk
by
installing
a range hood that
projects horizontally
a
minimum of 5"
(12.7 cm)
beyond the
bottom of
the cabinet.
Countertop
Preparation
The cooktop sides
of
the range fit
over
the cutout edge
of your
countertop.
If you have a square
finish
(flat)
countertop,
no
countertop preparation is required.
Formed front -edged countertops must have molded
edge shaved flat
1/4" (0.64 cm) from each front corner
of opening.
Tile
countertops may need
trim
cut back
1/4" (0.64
cm) from each
front
corner and/or rounded edge
flattened.
Min.
Cutout
/
Width
(0.64 cm)
30"
(76.2 cm)
Formed or tiled countertop
trimmed
Y4" (0.64 cm)
back
at front corners
of
countertop
opening.
Figure 8
If the countertop
opening width is greater than the
minimum
cutout
width, adjust
the
1/4" (0.64 cm)
dimension.
Countertop
must
be level. Place a
level on the
countertop, first side to
side, then front to
back. If
the
countertop
is
not level, the range
will
not be
level . The
oven
must be
level for satisfactory baking results.
Cooktop sides of range fit
over
edges
of
countertop
opening.
6

30" DUAL FUEL SLIDE -IN RANGE INSTALLATION
INSTRUCTIONS
(Models with an Electric Oven and a Gas Cooktop)
5. Gas
Supply - Installation
When
shipped
from the factory, this unit is designed to
operate on 4"
water column
(1.0 kPa)
Natural
gas
manifold pressure.
A
convertible pressure
regulator
is
connected to
the range manifold and
MUST
be
connected
in series with the gas
supply
line. To access
the
regulator,
remove
the drawer.
For proper operation, the
maximum
inlet pressure to
the
regulator
should be
no more than 14" of water
column pressure
(3.5 kPa).
The inlet
pressure to the
regulator
must be at least
1"
(.25 kPa)
greater than the
regulator
manifold pressure
setting.
The
regulator is set
for
4" water
column
(1.0
kPa)
Natural gas
manifold pressure, the inlet pressure
must be at
least 5"
water column
(1.25 kPa)
Natural
gas. For LP/Propane gas,
the regulator must be set for
10" water column (2.5 kPa)
manifold
pressure,
the inlet
pressure must be at least
1 1 " water column (2.75 kPa).
The
supply
line should be
equipped with an approved
shutoff valve (see Figure 9). This valve should be located
in the same
room
as the
range and should be in a
location that allows ease
of
opening and
closing.
Do not
block access to
the shutoff valve. The valve is
for
turning on or
shutting off
gas to the
appliance.
Open the
shutoff valve in the gas
supply
line. Wait a
few minutes for gas to move
through the gas line.
The gas
supply between the
shutoff
valve and the
regulator
may
be connected by rigid
piping or
by A.G.A./
C.G.A.-approved
flexible metallic union -connected
piping where
local codes permit use.
The gas
supply piping can be through the side
wall of
the right
cabinet. The right side cabinet is
an ideal
location
for
the
main shutoff valve.
QCAUTION
Do not make the
connection
too tight.
The
regulator
is die cast.
Overtightening may crack the
regulator resulting in
a
gas leak and possible fire or
explosion.
Assemble
the flexible
connector from the gas supply pipe
to the
pressure
regulator in order: 1- manual shutoff
valve,
2- flare union
adapter,
3- flexible
connector, 4 -
flare
union
adapter,
5- pressure
regulator.
The gas
supply line to the shutoff valve should be 1/2" or
3/4" solid pipe.
The user must
know the location of the
main shutoff
valve and have
easy access to it.
When using
flexible gas
conduit on the
range, allow
sufficient slack to pull the range outside
the cutout for
cleaning or servicing.
NOTE: Do not
allow
the flexible
conduit to get pinched
between
the
wall
and the range.
To visually
check,
remove the drawer.
Use pipe -joint compound
made for use
with Natural and
LP/Propane gas to seal all gas connections.
If flexible
connectors are used, be
certain connectors are not
kinked.
Leak testing of the appliance
shall be conducted
according to the manufacturer's
instructions.
Check for
leaks.
After connecting the range to
the gas
supply, check the system for leaks
with
a
manometer. If
a
manometer
is not available,
turn on the gas
supply and
use a liquid
leak detector
at
all
joints
and connections to
check
for
leaks.
QWARNING
Do not use a flame to
check for leaks
from gas connections. Checking
for
leaks
with
a
flame
may result
in
a fire
or explosion.
All
openings
in the wall or floor where the range is
to be
installed must be sealed.
Tighten all connections
if
necessary
to prevent gas
leakage
in
the cooktop
or supply line.
Check alignment of valves
after connecting the
cooktop to the gas supply to be sure the
manifold pipe
has not been moved.
Disconnect this range and its
individual shutoff
valve
from
the gas
supply piping
system during any
pressure testing of that system at test
pressures
greater
than 1/2 psig
(3.5
kPa or 14" water
column).
Isolate the
range from the gas supply
piping system
by closing its individual manual
shutoff
valve
during any
pressure testing
of
the gas
supply piping system at test
pressures
equal
to
or
less
than
1/2
psig (3.5 kPa
or 14"
water column).
6. LP/Propane Gas
Conversion
This
appliance can be used
with Natural gas or LP/
Propane gas. It is shipped
from the factory
for
use
with
natural
gas.
If
you
wish to convert your range for use
with
LP/Propane
gas, use the
supplied fixed orifices located
in
a bag
containing the literature marked "FOR
LP/PROPANE
GAS
CONVERSION". Follow
the instructions
packaged with
the orifices.
7

30"
DUAL FUEL
SLIDE -IN RANGE
INSTALLATION INSTRUCTIONS
(Models with an Electric
Oven
and
a Gas Cooktop)
PRESSURE
REGULATOR
LOCATION
TO
APPLIANCE
REAR WIRE
ACCESS
COVER
Solid Piping Gas
Supply
TO
GAS
SUPPLY
Sutoff
LINE
Valve
Flexible
Appliance Conduit
Install sufficient
length of flexible conduit
to allow the range
to be pulled
completely
out
of the cut-out area
for
proper servicing (supplied by user).
Flare
RANGE
DOOR
DRAWER
LP/Propane Gas
Conversion (continued)
The
conversion must be
performed by a qualified
service
technician in accordance
with
the
manufacturer's
instructions and
all local codes and
requirements. Failure
to
follow
these
instructions could result
in serious injury
or property damage. The
qualified agency
performing
this
work assumes responsibility
for the
conversion.
QWARNING
Failure to make the
appropriate
conversion can
result
in personal
injury and property
damage.
7.
Moving
the
Appliance
for
Servicing
and
Cleaning
Turn off
the
range line fuse
or
circuit
breakers at the
main power source, and
turn off the
manual
gas
shut-off
valve. Make sure the
range is cold.
Remove the service
drawer (warmer drawer on some
models) and
open
the
oven door. Lift the range at the
front and slide it out
of
the cut-out
opening without
creating undue
strain on
the
flexible gas
conduit. Make sure not
to pinch the flexible
gas conduit at
the back
of
the
range
when replacing
the
unit into the
cut-out
opening. Replace the
drawer,
close
the
door
and
switch on the
electrical
power
and gas to
the
range.
Place
flexible conduit
through hole provided—..
above right
rear leveling leg.
Flare Union :.;
Adaptor
Pressure
Regulator
Figure
9
Union
Adaptor
w~frr
SIDE OF
MN
Manual
Sutoff Valve
(supplied by
user) Connect
to Yf
0r 3 / 4 "
solid gas
supply pipe
from the wall
or
floor.
GAS
SUPPLY
The
regulator must be
disconnected before moving the
appliance,
if
the range
regulator is connected to rigid
piping. If the range is
equipped with a warmer drawer,
the regulator
can
be
accessed through a lateral side
panel.
Remove the
2 screws securing the
panel, then
remove the
panel.
Disconnect
the regulator from the
piping. Reassemble in reverse
order
(see Figure
10).
r
Figure 10
Lateral
side
panel
warmer
(RH SIDE)
Screw
Drawer glide
(do not
remove)
8

30" DUAL FUEL SLIDE -IN RANGE INSTALLATION INSTRUCTIONS
(Models
with
an Electric
Oven
and a Gas
Cooktop)
8.
Range
Installation
ACAUTION
When unpacking the range, do not
discard the 4 shipping bolts. These are to be replaced
on
the unit
for
use as
leveling
legs and height
adjustments.
1. Installation
Without Side
Panel(s)
A.
The range
cooktop overlaps the countertop at
the
sides
and the range rests
on
the
floor.
The
cooktop is 30"
(76.2
cm) wide.
B.
Install
base
cabinets 29" (73.7
cm)
apart. Make
sure
they
are
plumb
and
level
before
attaching
cooktop.
Shave
raised countertop edge to clear
30"
(76.2
cm) wide range
top
rim.
C.
Install
cabinet doors 31"
(78.7 cm) min. apart
so
as
not
to
interfere
with
range
door opening.
D. Cutout countertop exactly
as
shown
on
page 1.
E.
A backguard
kit
can be ordered
through your
dealer.
F. Adjust leveling legs
so
that the underside
of
the
cooktop
is
sitting on the
countertop.
G.
Level
the range. The
floor where
the
range
is
to
be installed must
be
level (see
Figure
11).
2. Installation With Side
Panel(s)
A.
Install
base cabinets
30'/s" (76.5
cm) min.
apart. Make sure
they
are
plumb
and level.
B. Install cabinet doors 31" (78.7
cm) min.
apart so
as not to interfere with range door opening.
c.
A backguard
kit
can
be ordered through
your
dealer.
D
An end
panel
kit
can
be ordered through your
dealer.
E.
Level
the range
and adjust
cooktop
height.
3. Installation With Backguard
The
cutout
depth
of
21 s/8" (55
cm)
needs
to be
increased
to
24" (61
cm)
when installing
a
backguard.
9.
Leveling the Range
Level the
range and
set
cooktop
height before
installation in
the
cut-out
opening.
1. Install an oven rack in the
center of the
oven.
2. Place a level on the
rack. Take 2 readings
with the
level placed diagonally
in
one
direction
and
then
the
other. Level
the range,
if necessary,
by adjusting the
4
leg levelers
with a wrench (see
Figure 15).
3.
Taking
care
to not damage the countertop,
slide
range into cut-out
opening and
double check for
levelness.
If
the range is not
level, pull unit out
and
readjust leveling legs,
or make sure
floor is level.
Figure 9
9

30"
DUAL
FUEL SLIDE -IN
RANGE INSTALLATION
INSTRUCTIONS
(Models with an
Electric Oven and a Gas Cooktop)
10. Check Operation
Refer
to the
Owner's
Guide
packaged
with
the range
for
operating
instructions and
for
care and cleaning of your
range.
©CAUTION
Do not
touch
the elements or burners.
They may be hot enough
to cause burns.
Remove all packaging from
the
oven
before
testing.
1. Install Burner
Bases and Burner Caps
This range
is
equipped with
sealed burners as
shown
(see Figure
12).
Burner Cap
Burner
Base
Burner Pan
Electrode
Figure 12
Gas
Opening
A.
Unpack burner bases
and
burner caps.
B.
Place
burner
bases
over each
gas
opening.
C. Make sure the burner is properly aligned and
leveled. Place burner caps
over
appropriate
burner bases.
NOTE: There are no burner adjustments necessary on
this range.
2. Turn on Electrical Power
and
Open Main Shutoff
Gas Valve
3. Check the Igniters
Operation of
electric igniters
should be checked after
range and
supply
line connectors have
been carefully
checked for leaks and range has
been
connected to
electric power.
To
check for proper lighting:
A. Push in
and
turn
a surface
burner
knob to the
LITE position.
You
will
hear the igniter
sparking.
B.
The surface
burner
should light when gas is
available to the
top
burner. Each burner should
light
within
four
(4)
seconds in normal operation
after air
has
been
purged from supply lines.
Visually check
that
burner
has lit.
C. Once the
burner
lights, the control knob should
be rotated out of the LITE position.
There are
separate
ignition
devices
for
each burner.
Try
each knob separately until all burner
valves have
been
checked.
4. Adjust the "LOW" Setting of
Surface Burner
Valves (see Figure 13)
A. Push in and turn each control
to
LITE until burner
ignites.
B. Ouickly turn
knob to
LOWEST POSITION.
C.
If burner
goes out, readjust valve as follows:
Reset
control
to
OFF.
Remove the surface
burner
control
knob,
insert
a thin -bladed screw driver
into the
hollow
valve
stem
and engage the
slotted
screw
inside. Flame size can be
increased
or
decreased with the turn of
the
screw. Adjust flame until you can quickly turn
knob
from
LITE to LOWEST POSITION without
extinguishing
the flame. Flame should be as
small
as possible without
going
out.
Figure 13
10

30" DUAL FUEL SLIDE -IN
RANGE INSTALLATION
INSTRUCTIONS
(Models
with
an Electric
Oven and a
Gas Cooktop)
5. Operation
of
Oven
Elements
The oven
is equipped
with
an
electronic
oven control.
Each
of the functions has been factory checked
before
shipping. However,
it
is
suggested that you
verify
the
operation of the electronic oven
controls
once
more.
Refer
to
the
Owner's Guide
for
operation. Follow the instructions
for
the Clock, Timer, Bake,
Broil,
Convection
(some
models) and Clean functions.
Bake
—After setting the oven to
350°F
(177°C)
for
baking,
the lower
element
in the oven should become
red.
Broil
—When
the
oven
is set to
BROIL,
the
upper
element
in
the
oven
should
become
red.
Clean
—When
the
oven
is set
for
a
self-cleaning
cycle, the
upper
element should
become
red during the
preheat
portion
of
the cycle.
After reaching
the self-cleaning
temperature, the
lower
element
will
become
red.
Convection
(some models)
—When
the
oven
is set to
CONY. BAKE/ROAST at 350°F
(177°C), both
elements
cycle
on and off
alternately
and the
convection
fan will
turn.
The convection
fan
will stop turning
when
the
oven door is opened
during
convection
baking or
roasting.
Warmer
Drawer (some models)
—Set the
control
knob
to HI and check to see
the drawer is heating.
When
All Hookups
are Complete
Make sure
all controls are
left
in the OFF position.
Make
sure
the flow of combustion and ventilation
air to
the range is
unobstructed.
Model and Serial Number Location
The serial plate
is
located
on the
oven
front frame
behind the oven
door
(some models) or behind
the
drawer (some models).
When
ordering
parts for or making
inquiries about
your
range,
always
be sure
to
include
the model and serial
numbers
and a
lot number
or letter from the
serial plate
on
your range.
Your
serial
plate also
tells
you the rating
of
the burners,
the
type
of fuel
and
the
pressure
the
range was adjusted
for when
it
left
the
factory.
Before You
Call
for Service
Read the Avoid
Service
Checklist and
operating
instructions
in your
Owner's Guide.
It may save you time
and expense.
The list includes common occurrences that
are
not
the
result of defective
workmanship
or materials
in this appliance.
Refer
to the
warranty
and
service information in
your
Owner's
Guide
for our phone number and address.
Please
call
or write
if
you have
inquiries
about
your
range product
and/or
need to order
parts.
11

30" DUAL FUEL
SLIDE -IN
RANGE INSTALLATION
INSTRUCTIONS
(Models
with an
Electric
Oven and
a Gas Cooktop)
11.
Important Safety Warning
To
reduce the risk
of
tipping of
the range,
the range
must be
secured to the floor
by properly
installed
anti -tip
brackets
and screws
packed
with
the range.
Those parts
are located in
a plastic bag in
the oven.
Failure to
install
the
anti
-tip
brackets will allow
the range to tip over if
excessive
weight is placed on an open door or
if a child
climbs upon
it.
Serious
injury
might
result
from
spilled
hot liquids or from
the
range
itself.
Follow
the
instructions below
to
install
the anti -tip
brackets.
If
range is ever
moved to a different location,
the
anti -tip
brackets
must also be moved
and installed with the
range.
To check for proper
installation, see step
5.
Tools
Required:
5/16" Nutdriver
or Flat
Head Screwdriver
Adjustable Wrench
Electric Drill
3/16" Diameter
Drill
Bit
3/16"
Diameter Masonry Drill
Bit (if installing in
concrete)
Anti -Tip
Brackets Installation
Instructions
Brackets attach to
the
floor
at the back of
the range to
hold both rear
leg levelers. When fastening
to the floor,
be sure
that screws do not
penetrate electrical wiring or
plumbing.
The screws
provided
will
work
in
either wood
or
concrete.
Back
Edge
of
Range or Rear Wall
½" (1.3 cm)
CL
~+
9 M" .
(49.5 cm)
;
- (24.8 cm?
(7
.
( 1
71.44 cm)
(Rear width of
range
with
body sides)
Anti -Tip
Bracket
34"
TYp•
(1.9 cm) Typ.
Anti -Tip
Bracket)
Figure 14
1.
2.
3.
4.
5.
Unfold paper
template and place
it flat
on
the
floor
with
the
back
and side edges
positioned
exactly
where the back
and sides of range will
be located
when
installed. (Use the diagram below
to locate
brackets
if
template is not
available.)
Mark on the floor
the
location
of the 4 mounting
holes shown on
the template. For easier installation,
3/16"
(0.5 cm) diameter pilot
holes 1/2" (1.3 cm)
deep can
be drilled into the floor.
Remove template and place
brackets
on
floor with
turned up
flange to the front. Line
up holes in
brackets
with
marks on floor
and
attach
with 4
screws provided.
Brackets must be
secured to solid
floor. If
attaching to
concrete
floor,
first drill
3/16"
(0.5 cm)
dia. pilot holes using a masonry drill
bit.
Level
range
if
necessary, by adjusting 4
leg
levelers
with wrench
(see Figure 15). A
minimum clearance
of
1/8" (0.8 cm) is
required
between
the bottom of
the range and the rear leg
levelers to allow room for
the
anti -tip
brackets.
Slide range into
place
making
sure rear
legs are
trapped by ends of
brackets. Range may
need to be
shifted slightly to one side
as it is being
pushed
back
to allow rear legs
to
align with
brackets. Grasp the
top rear edge of
the range and carefully
attempt to
tilt it
forward to make sure range
is
properly
anchored.
Figure 15
12

INSTRUCCIONES
DE INSTALACION PARA LA
ESTUFA DE FUEL
DUAL DE 30"
(Para Modelos
con un
Horno
Electrico y una Estufa a Gas)
aN
LA INSTALACION Y EL SERVICIO
DEBEN SER EFECTUADOS
POR
UN INSTALADOR CALIFICADO.
' I
IMPORTANTE: GUARDE
ESTAS
INSTRUCCIONES
PARA
USO
DEL
INSPECTOR LOCAL
DE ELECTRICIDAD.
'
LEA
Y GUARDE
ESTAS
INSTRUCCIONES PARA
REFERENCIA FUTURA.
aADVERTENCIA
Si la
informacion
contenida
en
este
manual no es seguida
exactamente,
puede
ocurrir un incendio o
explosion causando danos materiales,
lesion personal o la
muerte.
PARA SU
SEGURIDAD:
— No
almacene ni utilice gasolina u otros
vapores y liquidos inflamables
en
la
proximidad de este
o de
cualquier
otro artefacto.
—
QUE DEBE
HACER
SI
PERCIBE OLOR A
GAS:
• No trate de
encender ningun artefacto.
• No toque
ningun interruptor electrico; no use
ningun
telefono
en su edificio.
• Uame a su
proveedor
de gas
desde el telefono de un vecino. Siga las
instrucciones
del proveedor de gas.
•
Si
no
logra comunicarse
con
su
proveedor de gas, (lame
al departamento de bomberos.
—
La
instalacion y
el
servicio de
mantenimiento deben
ser
efectuados
por un instalador
calificado, la agenda
de servicio
o el proveedor de gas.
No pellizque
el cordon elactrico o
el
conducto flexible
de
gas
entre la estufa y la
pared.
No selle la
estufa a los armarios de lado.
**NOTA: Un espacio minimo de 30"
(76.2 cm) entre la
superficie de
la estufa y
el
fondo
del armario cuando el
fondo del armario de
madera o metal esta protegido
por
no
menos de
1/4" (0.64 cm) de madera resistente
at
Fuego
cubierta por una
lamina metalica de MSG, numero
28,
0.015"
(0.4 mm) de acero inoxidable,
0.024" (0.6 mm) de
aluminio,
00.02" (0.5 mm) de cobre.
Un espacio minimo de
36" cuando el armario no esta
protegido.
• NOTA: Deje
por los 19
/a"
(48.9 cm) de espacio
libre
para la
profundidad de la /.
puerta cuando c _
esta
abierta. 2354"
(59.7 cm)
• Puerta abierta
(yea la
not)
C.
PROFUNDIDAD
A LA FRENTE
D£
LA
ESTUFA
A
Regulador
Acepille el borde subido a que
deje
espacio para un borde
30" (76.2
cm)
de
anchura de
estufa
Min.
3"
(7.6
cm) de
la pared,
solamente
este lado
1 /2 " Max.
(3.8 cm Max.)
Localise las puertas
del armario 1"
(2.5 cm)
min
del
hueco de
la abertura.
*Nota:
29" (73.7
cm) Anchura
de
la
abertura para
plancha
translapadala y
apariencia
encerrada.
Para la instalaciOn de modelos
con paneles laterales opcibnales,
el area del hueco incluyendo
el
armario debe de
estar
30" (76.2
cm) de anchura minimo.
30" Mln.
(76.2
cm Min.)
30" Mtn.**
(76.2 cm Mln.**)
18" Mln.
(45.7 cm) Mln.
La caja de empa mes
o el
enchufe
de conexibn
con
la
tierra deberla situarse
de 8" a
17"
(20.3
cm a 43.2
cm) del
armario derecho y de
2" a 4"
(5.1 cm a 10.2
cm) del suelo.
A. ALTURA
B.
ANCHURA
35 3/8" (90 cm) - 30"
36 3/8" (92 cm)
(76.2 cm)
26
1/4"
(66.7 cm)
F.
ANCHURA
Mf J to
DE
RECORTADO
29"
(73.7
cm)
FROFUND(DAD
MIMMA
DE
RECORTADO
21 3/4"
(55.2
cm)
H.
ALTURA DEL
13"
(33 cm)
24" Mln.
(61 cm Min.)
22 7/8"
f
(58.1 cm)
l
MOSTRADOR
—, ,-1
1/8"
PARTE
(45.7 cm)
36' (91.4 cm) standard
DELANTERA G
DEL Ref.
35 3/8" (90 cm) min.
ARMARIO
G. La
profundidad minima de recortado se aumenta a
24" (61 cm) con el use de
un protector
trasero.
NOTA: Se adjunta
el diagrama de
cables de
esta
cocina al
final
de este libreta.
Papel
reciclado
PM
318201652 (0104)
Rev. A
English — pages 1-12
Espanol —
paginas
13-24
Francais — pages 25-36
Notas - paginas
37-38
Diagrama de la instalaciOn
alambrica - paginas 39-40

INSTRUCCIONES
DE INSTALACION PARA
LA
ESTUFA
DE
FUEL DUAL
DE 30"
(Para Modelos
con un
Horno
Electrico y una Estufa a
Gas)
Notas
importantes para el
Instalador
1. Lea todas las
instrucciones contenidas
en
este
manual
antes de
instalar
la
estufa.
2. Saque todo
el material usado en
el
embalaje
del
compartimiento del horno antes
de conectar el
suministro electrico o de gas a
la estufa.
3. Observe todos los
cOdigos y reglamentos
pertinentes.
4. Deje estas instrucciones
con el comprador.
Nota Importante
para el
Consumidor
Conserve estas instrucciones y
el
Manual del
Usuario
para
referencia futura.
IMPORTANTES
INSTRUCCIONES
DE
SEGURIDAD
InstalaciOn de esta estufa debe
cumplir con todos los
codigos locales, o
en ausencia de cOdigos
locales con el
Codigo
Nacional
de
Gas Combustible
ANSI Z223.1—
ultima
ediciOnen los Estados
Unidos, o el
CAN/CGA-
B149.2 en Canada.
El diseno de esta estufa ha
sido certificado
por
la
Asociacion
de Gas
Americana. En este
como en
cualquier
otro
artefacto que use
gas y genere
calor,
hay
ciertas
precauciones de
seguridad que usted debe
seguir.
Estas seran
encontradas en el
Manual del Usuario, lealo
cuidadosamente.
• Asegurese de que la
estufa sea
instalada y
conectada a tierra en forma
apropiada
por un
instalador calificado o
por un tacnico.
• Esta estufa
debe ser elactricamente
puesta a tierra
de
acuerdo con los
codigos locales, o
en su
ausencia,
con el Codigo Electrico
Nacional ANSI/
NFPA
No. 70,
ultima
edicion en los Estados Unidos
(yea
las instrucciones para la
puesta a tierra) o
el
codigo Electrico
Canadiense CSA
Standard C22.1,
Part 1,
en
Canada.
k
•
! •
PVE•TENCI•
• TODAS LAS
ESTUFAS
PUEDEN
VOLCARSE.
• ESTO
PODRIA
RESULTAR EN
LESIONES
PERSONALES.
•
INSTALE EL
DISPOSITIVO
ANTIVUELCOS
! •
.VE•TENCI•
PARA
REDUCIR EL
RIESGO
DE QUE
SE VUELQUE LA
ESTUFA, HAY QUE
ASEGURARLA
ADECUADAMENTE
COLOCANDOLE LOS
SOPORTES
ANTIVUELCO
QUE SE PROPORCIONAN.
PARA COMPROBAR SI
ESTOS
ESTAN INSTALADOS
Y
APRETADOS EN SU
QUE SE HA
LUGAR COMO SE
DEBE,
EMPACADO
ASE EL BORDE TRASERO
JUNTO CON
SUPERIOR DE
LA ESTUFA Y
ESTA ESTUFA.
CUIDADOSAMENTE
INCLINELA
HACIA
ADELANTE
PARA ASEGURAR
QUE LA
ESTUFA SE ANCLE.
• La
instalaciOn
de
aparatos disenados para
instalacibn
en casas prefabricadas
(mOviles) debe
conformar con
el
Manufactured
Home
Construction
and Safety
Standard,
titulo
24CFR, parte 3280
[Anteriormente el
Federal
Standard
for Mobil Home
Construction
and
Safety,
titulo 24,
HUD
(parte
280)] o cuando
tal estandar
no
se
aplica, el Standard
for Manufactured Home
Installation
1982 (Manufactured Home
sites,
Communities
and
Setups),
ANSI Z225.1/NFPA
501A-ediciOn
mas
reciente,
o con los cOdigos
locales en los Estados Unidos o
el
CAN/CSA-Z240 MH, en Canada.
• Asegurese de
que el
material
que recubre las
paredes
alrededor de la estufa, pueda
resistir el
calor
generado
por la estufa.
• Antes de
instalar la estufa
en un
area cuyo piso
este recubierto con linoleo
u otro tipo de piso
sintatico, asegurese de
que astos puedan
resistir
una
temperatura de por to
menos 90°F (32.2°)
sobre la temperatura
ambiental sin
provocar
encogimiento,
deformacion o
decoloracion. No
instale la estufa sobre una
alfombra al menos que
coloque una plancha de
material aislante de
por
to
menos 1
4"
(0.6
cm), entre la estufa y la alfombra.
•
No
obstruya el flujo
del
aire de
combustion en la
ventilaciOn del horno
ni tampoco alrededor de Ia
base o
debajo del panel
inferior
delantero de
la
estufa. Evite
tocar
las
aberturas o areas cercanas de
la
ventilaciOn,
ya que
pueden estar muy calientes
durante el funcionamiento
del horno. La estufa
requiere aire fresco para la
combustion apropiada de
los quemadores.
©ADVERTENCIA
Nunca deje
ninos solos o
desatendidos
en un area donde
un
artefacto esta
siendo usado. A medida que los
ninos crecen,
ens@neles
el
use apropiado y
de seguridad para todos los
artefactos. Nunca deje la puerta
del horno abierta
cuando la estufa esta
desatendida.
AADVERTENCIA
No se pare, apoye o
siente en la s
puertas o cajones de esta
estufa pues puede
resultar
en serias lesiones y
puede tambian
causar
dano
a la
estufa.
• No almacene articulos que
puedan interesar a los
ninos
en
los
gabinetes sobre la estufa. Los ninos
pueden quemarse seriamente
tratando de
trepar
a la
estufa para
alcanzar
estos articulos.
• Los gabinetes de
almacenamiento sobre la
estufa
deben ser evitados, para
eliminar la
necesidad de
tener que pasar sobre los quemadores
superiores
de la estufa para
Ilegar
a
ellos.
• Ajuste
el
tamano de
la llama de los quemadores
superiores de
tal manera que
asta no sobrepase el
borde de
los utensilios de
cocinar. La llama
excesiva
es peligrosa.
•
No
use el horno como espacio de
almacenaje. Esto
creara una
situaciOn potencialmente peligrosa.
14

INSTRUCCIONES
DE INSTALACION
PARA LA ESTUFA DE
FUEL
DUAL DE 30"
(Para
Modelos con un Horno Electrico y
una Estufa a Gas)
• Nunca use la
estufa para
calentar el cuarto. El
use
prolongado de la
estufa sin la adecuada
ventilacion
puede
resultar peligroso.
• No
almacene ni utilice
gasolina
u
otros vapores y
liquidos
inflamables en la
proximidad de este o de
cualquier otro
artefacto electrico. Puede
provocar
incendio o
explosion.
• En caso de una
interruption del
servicio
electrico, es
pasible
de
encender
los
quemadores de superficie a
mano. Para
encender
un quemador de suoerficie,
acerque
un fosforo
encendido
del cabezal del
quemador, y gire
delicadamente
el boton
de
control
de
superficie a
LITE (encendido).
Tener
cuidado
al
encender los
quemadores a mano.
• Ajuste todos los
controles a la
posicion OFF"
(apagada)
despues de haber hecho
una operacibn
con tiempo
programado.
PARA MODELOS
AUTOLIMPIANTES:
• Saque la
asadera,
alimentos
o
cualquier
otro
utensilio
antes de
usar el
ciclo
de autolimpieza
del
horno.
Limpie todo exceso de
derrame de alimentos.
Siga
las instrucciones de
prelimpiado en
el Manual del
Usuario.
A
AVISO CANADA
SOLAMENTE: Este aparato esta
equipado
con una enchufe de
4 patas puesta a tierra
para su
protecciOn contra choque
electrico, y debe de
ser conectado directamente
en una tomacorriente
correctamente puesta a
tierra. No cobee
ni
remueva
esta
pata
puesta a tierra
del enchufe.
1. Juego de
Cordon Electrico (Estados
Unidos)
El
consumidor
tiene
la responsabilidad de
conectar el
cordon electrico
al
bloque
de conexion ubicado detres de
la
cubierta de acceso
del panel trasero.
Este
electrodomestico puede
ser conectado por medio de
una "conexion directa" de
cables permanentes (cable
blindado flexible o no
metelico recubierto de cobre), o
por
medio de
un ensamblaje de cordon de suministro electrico.
Solamente un ensamblaje
de cordon de suministro electrico
con regimen de
125/250 voltios mfnimo, 40 amperios y
marcado para use
con cocinas debe
ser utilizado. Vea la
tabla (mas
abajo) para
informacion sobre el tamano de
abertura de
la conexion
del ensamblaje de
cordon. El
cordon debe de tener 3 o
4 conductores. En las
instalaciones para casas movibles, o
en areas donde los
codigos locales no
permitan
la puesta a
tierra al neutral, un
ensamblaje
de
cordon de suministro
electrico
a
4
conductores
con regimen de 125/250 voltios mfnimo,
40
amperios y marcado para use
con cocinas debe
ser
utilizado
(ver la figura 5).
Los bornes a la
extremidad de los
alambres
deben ser a
curvas cerradas o
con extremidades de
lenguetas
en
forma
de U abiertas y
curvadas. El
cordbn debe de
tener
una
abrazadera
releva de anclaje
Ver la tabla de
arriba para
conexibn de alambres de
3 o 4
conductores.
labia de.'tamana
de
abertura
de.conexion: de cocina
Referirse a la tabla de arriba para
el tamano de
abertura de
conexibn
de
cocina adecuada, y la
informacibn sobre el
regimen de amperios del
ensamblaje de
cordbn
de suministro
electrico.
yea
la placa de serie de la
cocina para
informacibn sobre
el regimen
de
kilovatio.
Regimen
de
amperios
de
ensamblaje
del cordbn
Diametro
(pulgados
(cm)) de abierta
de
conexibn de cocina.
120240 Volts
120/208 Volts
Ensemblaje
del
cordbn
Conexibn
directa
0-16.5
Kw
16.6-22.5 Kw
0-12.5 Kw
12.6-18.5
Kw
40 Amp.
50 Amp.
1 3/8 (3.5)
1 3/8 (3.5)
1
1/8(2.9)
1 3/8 (3.5)
Nota:
La
cocina corrediza
fuel dual viene de fabrica
con un
agujero
d diametro
1
1/8" (2.9
cm) come muestra
en la
figura
4. Si un agujero mas largo este
necesario retire la
arandela pre-cortada.
AADVERTENCIA
Riesgo de Choque
Electrico
• Una puesta
a tierra este
requerido en este
aparato.
• No to conecte a la corriente
electrica hasta
que
el aparato haya sido
puesto a
tierra
permanentemente.
•
Desconecte la corriente
electrica a Ia caja de
empalmes antes de
hacer
la
conexibn electrica.
• Este aparato debe
estar
conectado con
un
sistema de alambres
puesto en
tierra, metalico
y permanente o
un conector de
puesta a tierra
debe conectarse
al terminal de puesta
a tierra
o el alambre
conductor en el aparato.
• No utilice el suministro de
gas para
hacer la
puesta a tierra.
La falta de
hacer cualquier
de
las cosas
arriba
podria resultar
en
un incendio,
choque
electrico
o lesiones
personales.
15

INSTRUCCIONES DE INSTALACION
PARA
LA ESTUFA DE FUEL DUAL
DE 30"
(Para Modelos
con
un Horno Electrico y una Estufa a
Gas)
QADVERTENCIA
Puede
ocurrir
riesgo de incendio o
choque electrico
si se
usa
un
juego de cordon de
estufa de tamano incorrecto,
si las
instrucciones
de
instalacion
no
son
seguidas
o
si no se usa
el
anclaje
del
cable.
©PRECAUCION
Estilo Estados Unidos
Figura 1
No desate
las tuercas que
sujetan el
alambraje de cocina que ha sido instalado
en
la
factoria al bloque terminal, cuando
se
hace la
conexion
de
la
cocina.
Se puede ocurrir el mal
funcionamiento
o
una
interrupcion del
suministro
electrico.
2. Cordon
de fuente de
energia
conectado
de
fabrica
(Canada solamente)
Esta estufa viene de fabrica equipada con
un
cordon de
fuente de energia (yea a la figura
2). El cordon
debe
de
ser
conectado a
una
toms
de corriente a tierra de 120/
240
voltios
o de
120/208
voltios.
Si no
hay
una
toma
de
corriente a tierra en
la
habitacion, debe
de
ser
instalada
por un tecnico calificado.
Estilo Canada
Figura 2
3. Conexion Electrico de la Estufa
(Estados Unidos)
Este aparato
se
fabrica con el terminal
neutro conectado
al marco.
Nota: Refiere a
los diagramas
de
alambraje
al
final de
este
manual.
Conexion
de tres alambres
de conduccion a
la
estufa
Si
los codigos
locales
permiten
la
conexion del conductor
de tierra
del
marco con el alambre neutro
del cordon
electrico de cobre
(yea Figura 4).
1.
Quite
los
tres
tornillos
en
la parte mes
baja del panel
trasero, luego
levante la parte m3s baja
del panel
trasero
(la
cubierta de acceso)
exponiendo
el
bloque
de
conexiones de
los
terminales de
la
estufa
(yea
Figura 3).
LEVANTE
LA
PARTE MAS
BAJA
DEL PANEL TRASERO
AQUI
PARA
TENER ACCESO AL BLOQUE DE
CONEXIONES
DE
LOS TERMINALES
Figura 3
2.
Quite
las tres tuercas desatadas (despues
de
remover
la cinta de goma)
sobre
el bloque terminal usando
un destornillador
o
una
Ilave de casquillo de 3/8".
3.
Conecte
el
cable neutro
del cordon
electrico de
cobre
al
terminal de color de
plata
en
el
centro del
bloque, y conecte
los
otros cabels a
los terminales
laterales. Empareje los cables y los terminales
segun el color (cables rojos conectados con el
terminal derecho,
cables
negros
conectados
con
el
terminal
izquierdo.
4.
Repone las tres
tuercas
desatadas sobre el bloque
terminal.
5. Baje la
cubierta
del terminal y reinstate
los tres
(3)
tornillos.
Bloque
terminal
Alambre
Negro
Una arazadera
de
releva provista
debe
de
estar
instalada a esta
ubicacion.
Terminal plata
Hacia
el 240
V
receptaculo.
Figura
4
Alambre
rojo
Alambre
Blanco
(Neutro)
Banda
de
puesta
a tierra
1 1/8" (2.9 cm)
Agujero de
la
conexion directa.
Retira
la arandela
pre-cortada
para
1 3/8" (3.5
cm)
Dia.
agujero.
16

INSTRUCCIONES
DE
INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30"
(Para Modelos con un
Horno Electrico y una Estufa
a Gas)
Conexion
de 4 alambres
de conduccion
a la
estufa (casas
moviles)
1.
Quite
los tres tornillos
en
la
parte mas baja
del
panel
trasero, luego
levante la parte mas
baja
del panel
trasero (la cubierta de
acceso) exponiendo el
bloque
de conexiones de los
terminates de la estufa.
2.
Quite as tres tuercas
dasatadas (despues de remover
la
cinta de goma) sobre
el
bloque termianl
usando
un destornillador
o una Ilave de casquillo de 3/8".
3.
Quite la banda de puesta a
tierra
del
bloque de los
terminales y
del
marco
del
artefacto.
Retenga
el
tornillo de puesta a tierra.
4.
Conecte el alambre de
puesta a tierra (verde) del
cordon electrico de cobre al
marco
del
artefacto con
el
tornillo
de
puesta a tierra, usando el
agujero
en
el
marco donde se quit6
el
tornillo de
puesta a tierra
(yea figura 5).
5. Conecte
el
alambre neutro
(blanco)
del cordon
electrico de cobre al terminal
de
color
de plata en
el centro del bloque y
conecte los otros alambres al
los terminales
laterales.
6. Repone las tres
tuercas desatadas sobre el bloque
terminal.
7.
Baje la cubierta de acceso y vuelva a poner los 3
tornillos.
Bloque
terminal
Alambre
negro
1 1/8" (2.9 cm)
Dia. agujero de
la
conexibn
directa. Retira la
arandela pre-
cortada para
1
3/8" (3.5 cm)
dia. agujero.
Una
arazadera de
releva
provista
debe de estar
instalada a esta
ubicaciOn.
Terminal plata
Alambre
rojo
Alambre
Blanco (Neutro)
Puesta
de tierra
(cable de
cobre)
Hacia el 240 V
receptaculo
NOTA:
Asegurese de
quitar
la
banda de puesta
a tierra —
provista.
Figura 5
Conexion electrica directa al cortacircuito, a
la caja de
fusibles o la caja de
empalmes
Si el
aparato esta conectado directamente
al
cortacircuito,
a
la caja
de fusibles o a la caja de
empalmes, use un cable
blindado flexible
o no metalico
recubierto de cobre (con
alambre a tierra). Provee
una
abrazadera releva de anclaje
homologo UL a cada extremidad del cable. A la
extremidad
del
electrodomestico,
el
cable pase a traves
del
agujero de la conexibn
directa
(ver figura 5) en el cordon
de la placa de montaje. El tamano de los alambres
(alambre de cobre solamente) y las conexiones deben
estar
conforme
al regimen del
electrodome stico.
Donde los cbdigos
locales
permitan conectar el
conductor
de
puesta
a tierra
del
electrodomestico
al
neutral
(blanco) (yea figura 6):
1.
Desconecte
el
suministro electrico.
2.
En el
cortacircuito, la caja de fusibles o la caja de
empalmes
a) Conecte
el
alambre verde (o cobre desnudo), el
alambre blanco del cable del el@ctrodom@stico y el
alambre neutral
(blanco)
juntos.
b) Conecte los dos alambres negros juntos.
c) Conecte los dos alambres rojos juntos.
Cable de la fuente de
alimentacibn
Alambre blanco
(neutro)
Alambres
Rojos
Alambre
desnudo o verde
Cable de la
estufa
Alambres
Negros
Ca a de
empalmes
Alambre blanco
(neutro)
Conductor de union
listado-UL (listado-CSA)
Figura 6
Sistema electrico (ejemplo: caja de empalmes)
de 3 alambres (a tierra neutral)
17

INSTRUCCIONES
DE INSTALACION PARA
LA ESTUFA
DE FUEL
DUAL
DE 30"
(Para Modelos
con
un Horno Electrico y una
Estufa
a Gas)
Donde los cGdigos locales NO permitan conectar el
conductor de puesta a
tierra
del electrodomestico al
neutral (blanco), o si esta conectado con un sistema a
4 alambres
(yea
figura 7):
1.
Desconecte el
suministro
electrico
2.
Separe
el
alambre verde (o cobre desnudo) y el
alambre blanco
del
electrodomestico.
3. En el
cortacircuito,
la
caja de fusibles o la
caja
de
empalmes.
a.
Conecte
el
alambre
blanco del cable
del
electrodomestico al alambre neutral
(blanco).
b. Conecte los 2 alambres
negros juntos.
c. Conecte los
2 alambres rojos juntos.
d. Conecte
el alambre
verde (o de
cobre
desnudo)
de
la puesta a tierra del alambre al
alambre
de
puesta a tierra
del cortacircuito,
de la
caja
de
fusibles
o de
la
caja de empalmes.
Alambre desnudo
o verde
Alambres
Rojos
Alambre
desnudo
o verde
Caja de
empalmes
Cable
de
fuente de
alimentacibn
Cable de la
estufa
Alambre
blanco
Alambres
negros
Alambre blanco
(neutro)
Conductor de
union
listado-UL
(o listado-CSA)
Figura 7 — Sistema electrico
de
4 alambres
(ejemplo caja de empalme)
4.
Construccion
de los
Armarios
aPRECAUCION
Para eliminar el riesgo de quemaduras
e incendios
al
tocar
superficies sobre calentadas,
se
debe evitar
colocar
espacio
para armarios
de
almacenamiento sobre las estufas
con
elementos
al
descubierto.
Si
se
instalan
armarios
sobre
la
estufa, se
pueden reducir tales riesgos instalando una campana
purificadora que se
proyecta
horizontalemente
un
minimo de 5"
(12.7
cm) mas afuera de la parte inferior
de los armarios.
Preparacion
del
Mostrador
Los
lados de la superficie de la estufa se
sobreponen a
los
border recortados del mostrador.
Si
el mostrador es cuadrado
(piano),
no requeri
ninguna
preparacibn.
Si usted tiene
un mostrador de
frente
formado
(encorvado),
hay que
resurar
cada
esquina frontal
hasta
que este piano
hasta
1/4"
(0.64
cm) de la abertura.
Los mostradores embaldosados
pueden requerer un
recorte de 1/4"
(0.64
cm) desde cada
esquina
delatera
y/o
un aplanamiento
de los bordes redondeados.
Anchura
minima
de
recortado
~T
y/4
(0.64
cm)
y4"
30"
(76.2
cm)
Mostradores embaldosados o
encorvados pueden
requerer
un
recorte
de Y4" (0.64 cm) desde
cada
esquina
delatera.
Figura
8
Si la anchura
de la abertura
de superficie
del
armario es
mayor
que la anchura minima
del
recortado,
ajuste la dimension
de
1/4" (0.64 cm).
El
mostrador debe estar
nivelado. Ponga
un nivel
sobre el mostrador, primero de un lado
para
otro y
despues de delante
para
atr3s. Si el mostrador no esta
nivelado, la estufa tampoco to estara.
El
horno
debe
estar nivelado para resultados satisfactorios de
cocer.
Los
lados
de la superficie
de la
estufa se
encajan por
encima de los bordes de la abertura
del mostrador.
18

INSTRUCCIONES
DE
INSTALACION PARA LA ESTUFA DE FUEL
DUAL DE
30"
(Para Modelos con un Horno Electrico y una Estufa a Gas)
5. Instalacion de la alimentacion
de
gas
Esta unidad ha sido ajustada para operar con un
multiple
de admisibn para gas natural
de
4"
(1.0 kPa). Un
regulador de
presion
convertible esta conectado a
la
valvula distribuidora y
DEBE ser
conectado
en
serie con
la tuberia de suministro de gas.
Para la
operacion
apropiada, la maxima
presibn
de
entrada at
regulador
no debe
exceder
la presibn de una
columna de
aqua de 14 pulgadas (3.5 kPa).
La
presibn de entrada
al
regulador debe ser por
to
menos 1 pulgada mis grande que la valvula distribuidora
(.25
kPa).
El
regulador
ha sido ajustado para gas natural
a
4 pulgadas de presibn para la valvula distribuidora (1.0
kPa). La
presibn
de
entrada debe ser por to menos
de
5
pulgadas (1.25 kPa). Para propano liquido a 10
pulgadas de
presibn
para la valvula distribuidora (2.5
kPa) la presibn de entrada debe ser por to menos de 11
pulgadas (2.75 kPa).
La
tuberia
deberia ser equipada con una valvula de
cierre aprobada (yea Figura 9). Esta valvula debe
ubicarse en la misma
habitacion
que la estufa
en un
lugar
que permits
una una facilidad de abrir y cerrar.
No bloquoe
el
acceso a
la valvula de
cierre.
La
valvula
es para
abrir
o
cerrar el suministro de
gas
al aparato.
Abra la valvula de cierre
en
la linea de suministro de
gas. Espere unos
minutos
a que
el
gas se mueva
por el
tubo.
El
suministro
de gas entre la valvula de cierre y
el
regulador se puede
conectar con
tuberia rigida o
con
tuberia
flexible
union
metalica conectada y aprobada
por
la
AGA/CGA donde los cbdigos locales
permiten.
La tuberia
del suministro de gas puede pasar
por
la
pared
lateral del armario derecho. El
armario
lateral
derecho es un
lugar ideal
para la valvula de cierre
pincipal.
©PRECAUCION
No haga que la conexion estb
demadiado apretada. El
regulador
esti fundido a
troquel. Apretandolo demasiado podrla
romper el
regulador resultando
en escape de gas y
posiblemente
un incendio o
explosion.
Monte
el conector flexible desde
el
tubo de suministro
de gas hasta el regulador de presion segun este orden:
1- valvula de cierre
manual, 2- adaptor
de gas, 3-
conector
flexible, 4-
adaptor
de gas, 5- regulador de
presibn.
La tuberla de suministro de
gas
debe
ser
de
1/2"
o
3/4"
D.I.
El consumidor debe
saber
la
posicibn de
la valvula
principal de cierre y
tener acceso
facil
a ello.
Cuando se usa un conducto flexible en la estufa, permita
suficiente flojedad
como para
sacar la estufa fuera
del
recortado para la limpieza y el servicio.
NOTA:
No permita que
el
conducto se
pellizque entre la
pared y la estufa. Para verb , saque
el cajbn.
Use
un
compuesto para junturas de
tuberia hecho para
use
con
gas
natural y
de LP/Propano para
sellar todas las
conexiones
del
gas.
Si
se
usan
los
conectores flexibles
asegurese de que no
estbn
enroscados.
Para verificar si hay
fugas
en el electrodomestico
se debe de seguir las instrucciones
del fabricante.
Asegurese de que no haya escapes
de gas. Despubs
de
conectar
la estufa
al
suministro de
gas, compruebe el
sistema con un menbmetro. Si no tiene
un
manbmetro,
abre
el
gas y use
un detector
de fugas liquido
en todas
las junturas y conexiones para
averiguar si
hay escapes
de gas.
©ADVERTENCIA
No use
llama
para controlar que no
hayan
p@rdidas de gas. La
comprobacion
de p@rdidas de
gas con una llama puede resultar en un incendio o
explosion.
Se debe
sellar
todas las aberturas
en la pared o el piso
donde la estufa se instala.
Apriete todas las conexiones
si
hace falta para
prevenir fugas de gas en la superficie de la estufa o
en
la linea de suministro.
Asegurese del alineamiento de las valvulas despubs
de conectar
la superficie de la
estufa con el suministro
del gas para cerciorarse de que el tubo de escape no
se
haya movido.
Desconecte
esta estufa y su valvula individual de
cierre del sistema del siministro de gas durante
cualquier
prueba
de presibn
de ese
sistema a presiones
mayores de
1/2 psig (3.5
kPa o
14" columna de agua).
Aisla la estufa
del
sistema
del suministro de gas
cerrando su valvula
manual
de cierre
individual durante
cualquier prueba de presion del suministro
del
gas a
presiones iguales a menos de 1/2
psig (3.5 kPa o 14"
columna de
agua).
6.
Conversion para use
de
Propano Liquido
Este aparato puede
ser
usado
con
gas
natural o propano
liquido. Ha sido ajustado
en
la fabrica para
operar con
gas natural solamente.
Si
desea convertir su estufa para use con propano
liquido, use los orificios provistos ubicados
en el bolso
que contiene la literatura titulada
"FOR LP/PROPANE
GAS CONVERSION". Siga las instrucciones que vienen
con los orificios.
19

INSTRUCCIONES
DE
INSTALACION PARA
LA
ESTUFA DE FUEL
DUAL DE 30"
(Para
Modelos con un Horno
Electrico y una
Estufa a Gas)
UBICACION DEL
REGULADOR DE
PRESTON
TO
APPLIANCE
Conector Flexible
para Artefactos
(Instale
un conducto to suficientemente
largo para
poder
sacar
la
estufa
\totalmente fuera da la
area recortada para
un servicio
satisfactorio).
CUBIERTA V
DE ACCESO
TRASERA
Solid
Piping Gas
Supply
PUERTA DEL
HORNO
TO
GAS
SUPPLY
Sutoff
~
LINE
Valve
CAJON
Conversion para use de
Propano
Liquido
(continuacion)
La
conversion
debe
ser efectuado
por un tecnico de
servicio
capacitado, de acuerdo
con
las
instrucciones
del
fabricante y
con todos los codigos y
requisitos de las
autoridades correspondentes.
El no
seguir
las
instrucciones podria
dar
Como
resultado
lesiones graves
o danos
a
la
propiedad.
El organismo
autorizado para
Ilevar
a cabo
este trabajo asume
la
responsabilidad de la
conversion.
aADVERTENCIA
La
falta de una
conversion apropiada
puede
resultar en lesiones graves y
danos a la
propiedad.
7. La mudanza
del
aparato para
reparaciones o
limpieza
Apague la
corriente electrica
a la estufa a la
fuente de
poder
principal, y apague la
valvula de cierre
manual de
gas. Asegurese de
que la
estufa esto fresca.
Quite
el cajun
de
servicio
(el caj6n
calentador en algunos
modelos) y abre
la
puerta del horno.
Levante la
frente de la estufa y
deslicela fuera de la
abertura
sin crear
tension desmedida
sobre el conducto
flexible de
gas. Asegurese
de no
pellizque
el conducto
flexible de gas detras de
la estufa
al
reemplazar
la
unidad
en
la
abertura. Reemplace
el
caj6n,
cierre la puerta y
enciende
el gas y la corriente
el@ctrica a
la
estufa.
Ponga
el
conducto
flexible
por el agujero provisto
arriba de la pata
niveladora
detras a la
derecha.
Adaptor
de
gas
Regulador
de
presion
Figura
9
Adaptor
degas
Valvula
Manual
Externa de
Cierre
Conecte a
un
conducto
solido de
suministro
de
gas de
%z" o
3
" .
SUMINISTRO
jO gp~ O DEGAS
lado deredro
de la estufa -
EI
regulador
debe
desconectarse antes de
mover el
aparato, si el
regulador
de la
estufa se conecta a una
caneria rigida.
Si
la
estufa se equipa
con un cajun
calentador, el regulador puede accesarse
mediante un
panel lateral
de lado.
Quite los dos tornillos que
aseguran el
panel,
entonces
quite el panel. Desconecte
el
regulador
de la
caneria. Reensamble
en orden inverso
(consulte Figura 10).
Figura 10
El panel
lateral
de
lado-
calentador
(LADO
DERECHO)
Tornillo El desliz
del
caj6n (nob o quite)
20
