Drop-In Cooktop
FPEC3085K S 30" Electric
Signature Features
30" Electric
Drop-In Cooktops
FFEC3025L S / W/ B
Approved Over Frigidaire®
Electric Wall Ovens
Cooktops are approved for installation
above any of our Electric Single Wall
Ovens.
Ceramic Glass Cooktop
For a more beautiful cooktop that’s easy
to clean.
Extra-Large Element
Our extra-large 12" element gives you
space for larger pots and pans.
Ready-Select™ Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Product Dimensions
Width 30-3/4"
Depth 21-1/2"
Height 2-5/8"
More Easy-To-Use Features
Color-Coordinated Control Knobs
White and Black cooktops come with
matching knobs — while Stainless Steel
models feature our neutral black knobs.
Hot Surface Indicator
Alerts you when your cooktop may be
too warm to touch.
Available in:
White
(W)
Stainless
(S)
Black
(B)
Elements
Right Front
Right Rear
Left Front
Left Rear
Watts
2,500
1,500
2,700
1,200
Size
9"
7"
12"
6"

Accessories information available
on the web at frigidaire.com
Granite Countertop
Installation Kit available.
Product Dimensions
A - Width
B - Depth
C - Height
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
29-5/8"
29-3/4"
20-1/4"
20-1/2"
5"
30-3/4"
21-1/2"
2-5/8"
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Drop-In Electric Cooktops
Frigidaire Baseline
AB
C
1Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Hot Surface Indicator
Control Location
Knob Color
Knob Type
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts1
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation2
Shipping Weight (Approx.)
Ready-Select™
Black Ceramic Glass
(S), Color-Coordinated
Ceramic Glass (W/B)
9" - 2,500
7" - 1,500
12" - 2,700
6" - 1,200
Yes
Right Side
Black (S),
Color-Coordinated
(W / B)
Plastic
Right Rear
240V /208V / 60Hz
7.9 / 5.9
33.0 / 28 .0
30
Yes
45 Lbs.
USA
•
10200 David Taylor Drive • Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFEC3025L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Drop-In Cooktops
FFEC3025L S / W/ B 30" Electric

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
Combination Frigidaire Electric Cooktop/
27" & 30" Electric Wall Oven Under-Counter Installation
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW INST FR 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs. Install over two runners and flush
with toe plate.
•Base must be level and cabinet front must be square.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.

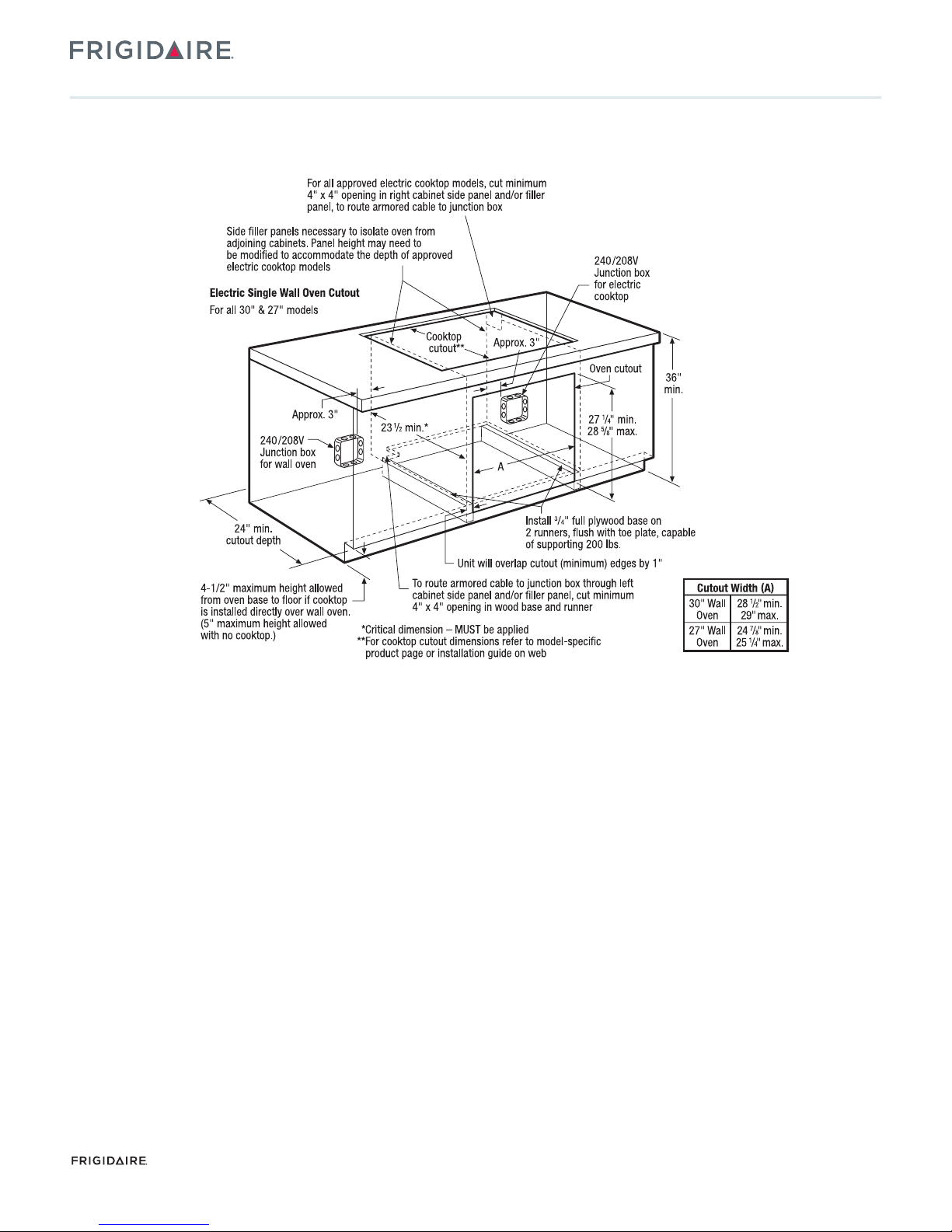

Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth
of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
