Drop-In Cooktop
FPEC3085K S 30" Electric
Signature Features
1Select models only.
Burners
Right Front
Right Rear
Left Front
Left Rear
BTU
12,000
5,000
9,500
9,500
White
(W)
Stainless
(S)
Black
(B)
Product Dimensions
Width 30"
Depth 21-1/2"
Height 2-7/8"
More Easy-To-Use Features
Electronic Pilotless Ignition
Saves energy and can be ignited
manually when electricity is out.
Porcelain Cooktop Grates
Grates are durable and easy to clean.
LP Gas Conversion Option
Available in:
30" Gas
Drop-In Cooktops
FFGC3015L S / W/ B
Color-Coordinated Control
Knobs
White and Black cooktops come with
matching knobs — while Stainless Steel
models feature our neutral black knobs.
Durable Stainless Steel
Cooktop1
A premium look that stands up to
everyday use.
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Sealed Gas Burners
Enjoy easier cleanup and a burner that
stays looking great.

Accessories information available
on the web at frigidaire.com
Granite Countertop
Installation Kit available.
Product Dimensions
A - Width
B - Depth
C - Height
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
27-1/4"
28-1/2"
19"
19-3/8"
6-1/2"
30"
21-1/2"
2-7/8"
NOTE: Always consult local and national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at frigidaire.com.
Drop-In Gas Cooktops
Frigidaire Baseline
AB
C
1For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
Features
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Element (BTU)
Right Rear Element (BTU)
Left Front Element (BTU)
Left Rear Element (BTU)
Control Location
Knob Color
Knob Type
Bowl Type
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation
Shipping Weight (Approx.)
Ready-Select®
Stainless Steel ( S ),
Color-Coordinated
Porcelain ( W/ B )
Yes
Cast Iron with Black
Matte Finish
12,000
5,000
9,500
9,500
Right Side
Black ( S ),
Color-Coordinated
( W/ B )
Plastic
Right Rear
Right Rear
Included
120V / 60V / 15A
.8
1.0
15
50 Lbs.
USA
•
10200 David Taylor Drive • Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFGC3015L 08/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Drop-In Cooktops
FFGC3015L S / W/ B 30" Gas

Accessories information available
on the web at frigidaire.com

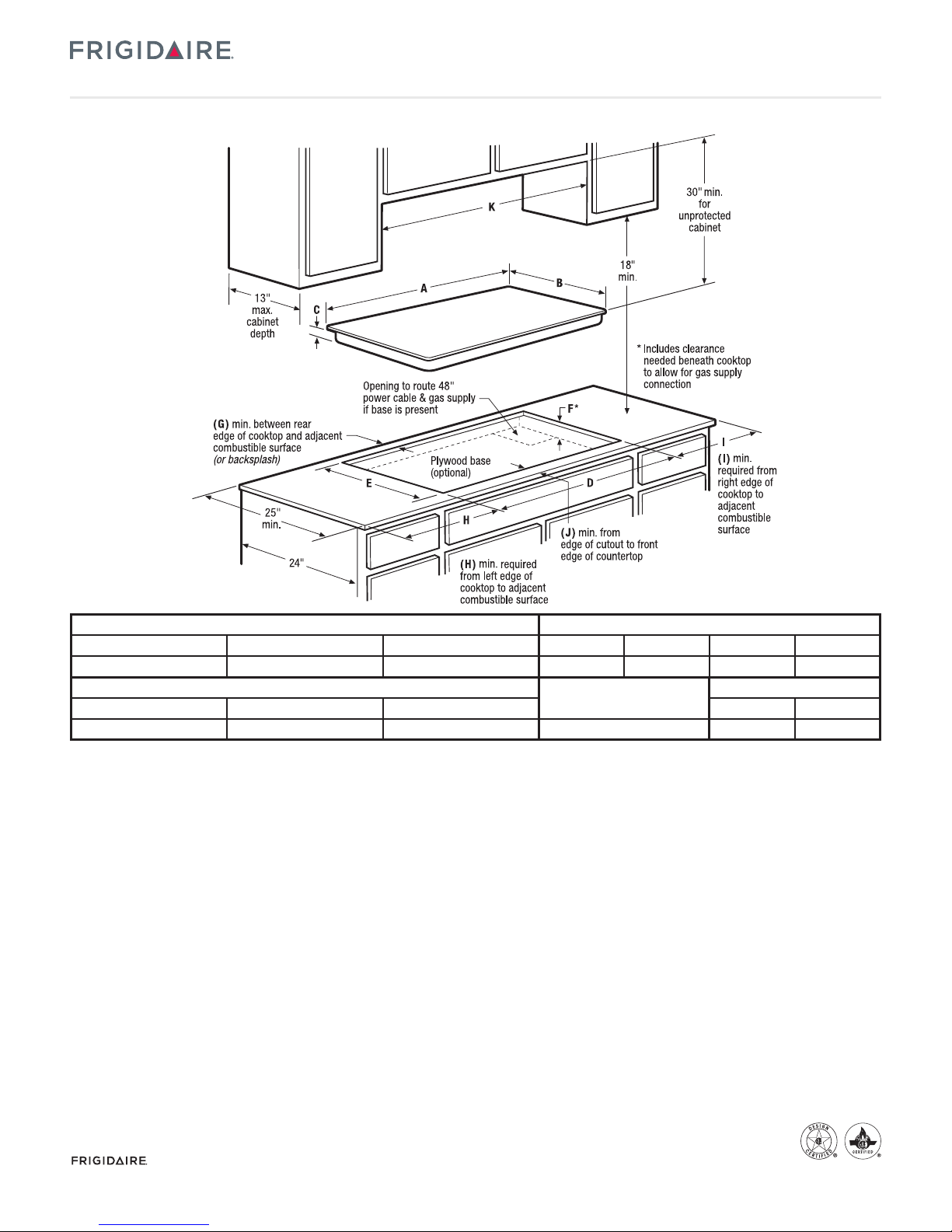

Drop-In Gas Cooktops (Version 1)
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
BASED ON INSTALL GUIDE
VERBIAGE (VERSION 1)
(G) min. between rear
edge of cooktop and adjacent
combustible surface
(or backsplash)
Product Dimensions Required Clearances
A- Width B- Depth C- Height G(min.) H(min.) I(min.) J(min.)
30" 21-1/2" 2-7/8" 1-3/4" 6" 4" –
Product Cutout Dimensions K- Cabinet Opening Width
(min.)
Utility Connection Locations
D- Width (min. - max.) E- Depth (min. - max.) F- Height (min.)* Power Supply Gas Supply
27-1/4" - 28-1/2" 19" - 19-3/8" 6-1/2" 30" Right Rear Right Rear
Drop-In Cooktop Specifications
•Product Shipping Weight (approx.) – 50 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
•Amps @ 120 Volts = 1.0 Amps
•Always consult local and national electric and gas codes.
•Cooktop cutout height includes clearance needed beneath cooktop
to allow for gas supply connection. Recommended location for
grounded 120V outlet is on rear wall in an 8"-wide by 10"-high area,
positioned 22" above floor surface and 4" from right side of cooktop
centerline. Access to underside of cooktop and junction box must
be provided for inspection and service.
•Cooktop ships with 3/4" factory regulator.
•LP Gas conversion kit supplied.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30".
•Allow 30" minimum clearance between top of cooktop platform and
bottom of unprotected wood or metal overhead cabinet.
•Allow 1-3/4" minimum distance between rear edge of cooktop and
adjacent combustible surface (or backsplash).
•Allow 6" minimum required clearance from left edge of cooktop to
adjacent combustible surface and 4" minimum from right edge of
cooktop to adjacent combustible surface.
•Drawer can NOT be installed beneath cooktop.
•To reduce risk of fire when using overhead cabinetry, install range
hood that projects horizontally a recommended minimum of 5"
beyond bottom of cabinets.
•Gas Drop-In Cooktop model FFGC3015L is approved to be used over
any Frigidaire® Single Wall Oven.
•Gas Drop-In Cooktop model FFGC3015L is approved to be used in
combination with Frigidaire® 30" Downdraft Vent PL30DD50EC.
(Refer to model-specific Downdraft Vent product page on web for
detailed countertop preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Granite Countertop Installation Kit – (PN # 903103-9010).
Drop-In Cooktops
FFGC3015L S / W/ B 30" Gas
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFGC3015L 08/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
