Frigidaire LI30KC Owner's manual

USA 1-800-944-9044
www.frigidaire.com Canada 1-800-265-8352 www.frigidaire.ca LI30KC / 316902495
May/13

2
Thank you for choosing Frigidaire.
This Use & Care Guide is part of our commitment to
customer satisfaction and product quality throughout the
service life of your new appliance.We view your purchase
as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record
important product information.
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual.
It contains instructions to help you use and maintain your
range properly.
If you received a damaged range Hood...
immediately contact the dealer (or builder) that sold you
the range hood.
Save time and money.
Check the “Troubleshooting” list. This section helps step
you through some common problems that might occur. If
you do need service, help is only a phone call away. Call
Frigidaire Customer Services at 1-800-944-9044.
Product Registration
Registering your product with Frigidaire enhances our
ability to serve you. You can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.

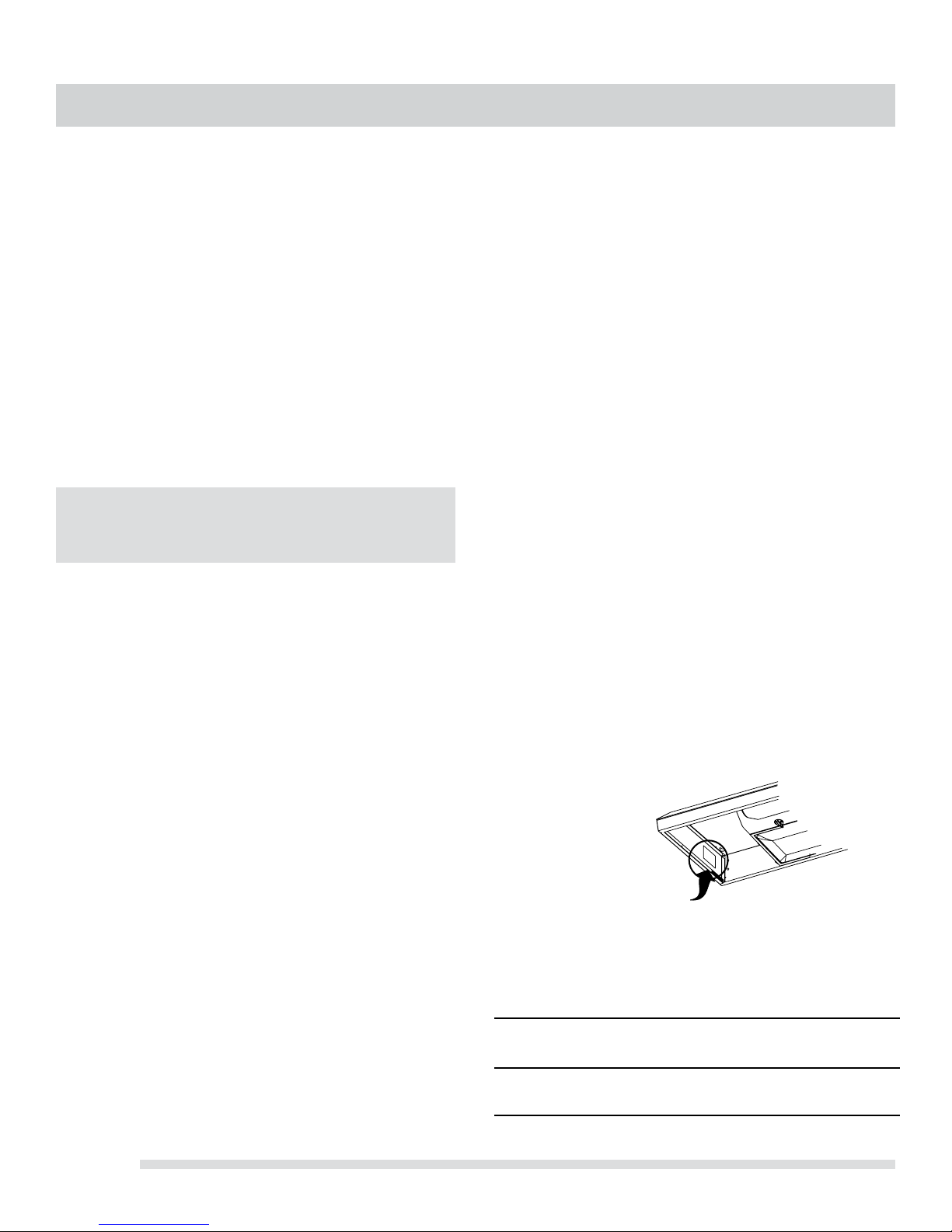

Serial Plate
Location
Serial plate location:
Find it on the left side of the range hood.
Record model & serial numbers here
Purchase date
Model number
Serial number
PRODUCT RECORD AND REGISTRATION
CONTENTS
Important Safety Instructions ............................... 3
List of materials ................................................... 5
Electrical requirements ......................................... 5
Location requirements ..........................................6
Product dimensions ..............................................6

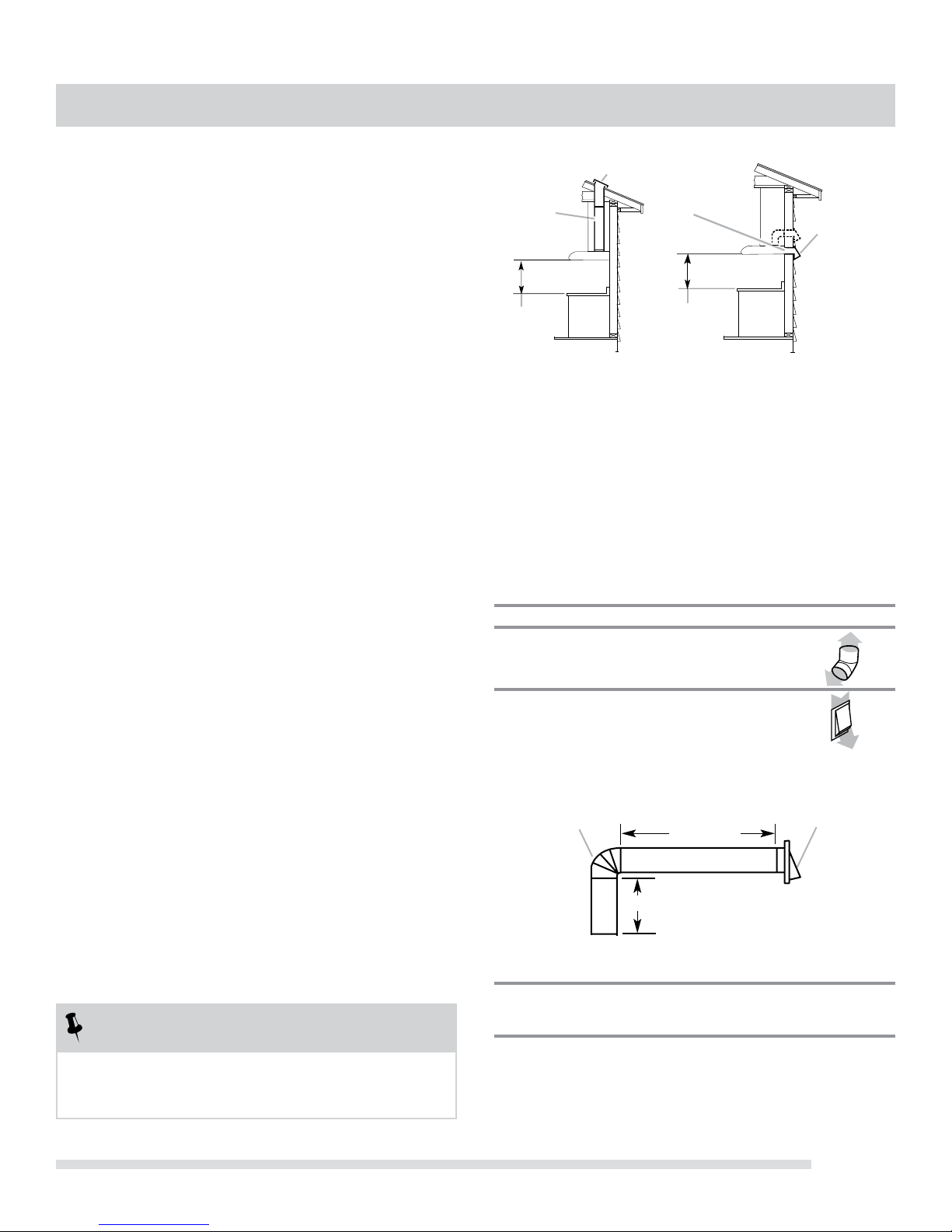

Venting Requirements .......................................... 7
Prepare the location ............................................. 8

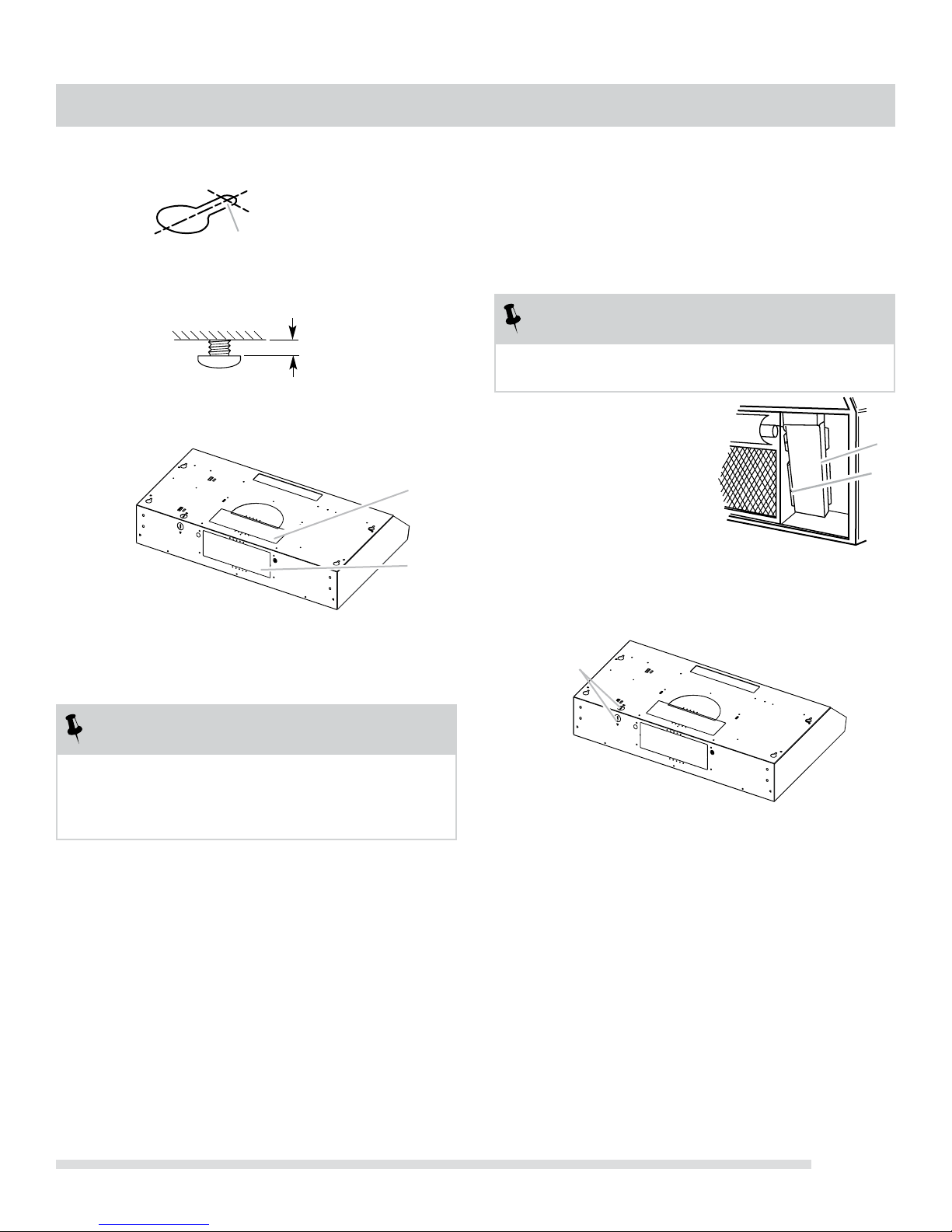

Install Range Hood (Ducted version) ..................... 10
Make Electrical Connection ....................................12
Installing Range Hood (Recirculating version) .........10
Range Hood Use .................................................. 13

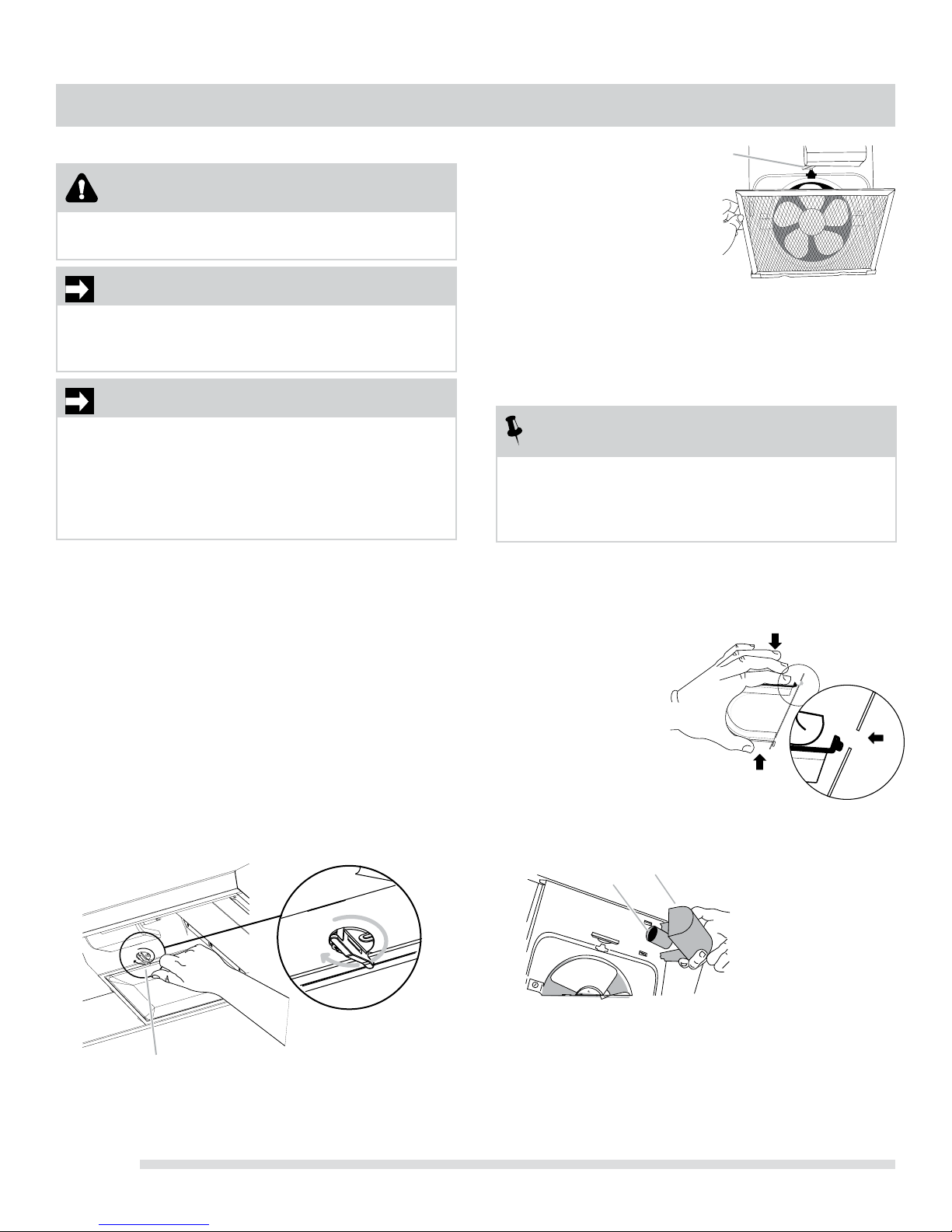

Range Hood Care .................................................14
Troubleshooting ................................................... 15
Warranty Information ........................................... 16
Be sure to visit us online at
www.frigidaire.com
for a complete line of accessories.

3
Save these instructions for future references
Approved for residential appliances
For residential use only
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety mes-
sages that follow this symbol to avoid possible injury or
death.
WARNING
This symbol alerts you to situations that may
cause serious body harm, death or property
damage.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
Before servicing or cleaning the unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
Installation Work and Electrical Wiring Must Be Done
 ByQualiedPerson(s)InAccordanceWithall
Aplicable Codes & Standards, Including Fire-rated
Construction.
Sufcientairisneededforpropercombustionandex
 haustingofgasesthroughtheue(Chimney)offuel
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA), the
American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted systems must always be vented to the
outdoors.
A.
B.
C.
D.
E.
F.
CAUTION
To reduce risk of re and to properly exhaust
air, be sure to duct air outside - do not vent ex-
haust air into spaces within walls, ceilings,
attics, crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements
specied.

4
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS,
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
SMOTHER FLAMES withaclose-ttinglid,cookie
sheet, or other metal tray, then turn off the gas
burner or the electric element.
BE CAREFUL TO PREVENT BURNS.Iftheamesdo
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be
burned.
DO NOT USE WATER, including wet dishcloths or
 towels-aviolentsteamexplosionwillresult.
UseanextinguisherONLY if:
YouknowyouhaveaclassABCextinguisher,
and you already know how to operate it.
Thereissmallandcontainedinthearea 
where it started.
Theredepartmentisbeingcalled.
Youcanghttherewithyourbacktoanexit.
OPERATION
Alwaysleavesafetygrillsandltersinplace.Without
these components, operating blowers could catch onto
hair,ngersandlooseclothing.
The manufacturer declines all responsibility in the
event of failure to observe the instructions given here
for installation,maintenance and suitable use of the
product. The manufacturer further declines all respon-
sibility for injury due to negligence and the warranty of
theunitautomaticallyexpiresduetoimpropermainte-
nance.
a)
b)
c)
d)1)
2)
3)
4)
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Hood With Any External Solid State
Speed Control Device.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
Always turn hood ON when cooking at high heat or
 whenambeingfood(l.e.CrepesSuzette,Cherries
Jubilee, Peppercorn Beef Flambe’).
Clean ventilating fans frequently. Grease should not
 beallowedtoaccumulateonfanorlter.
Use proper pan size. Always use cookware
appropriate for the size of the surface element.
a)
b)
c)
d)

5
LIST OF MATERIALS
LIST OF MATERIALS
Parts included in your hood
4-0.45x1.3cmmountingscrews
3¼”x10”(8.3x25.4cm)rectangularmetalvent
system.
NOTE: An optional 7” round duct kit is available. You can
order this kit as part number 5304487139.
Parts Needed
2 - UL listed wire connectors
1-75Wmax,120Vincandescentlightbulb
Wall or roof cap with damper to match vent system
Vent clamps/duct tape as required
UL listed or CSA approved ½” strain relief
Tools/Materials required
Drill
1¼” (3.0 cm) drill bit
⅛”(0.3cm)drillbitforpilotholes
Pencil
Wire stripper or utility knife
Tape measure or ruler
Caulking gun and weatherproof
caulking compound
Flat-blade screwdriver
Phillips screwdriver
Saber or keyhole saw
For cabinets with recessed bottoms:
Two2”(5.1cm)widellerstrips.Lengthand
thickness determined by recess dimensions.
Fouratheadwoodscrewsormachinescrews
 withwashersandnuts(toattachllerstrips).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ELECTRICAL REQUIREMENTS
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA
70 (latest edition), or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edi-
tion) and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is
recommendedthataqualiedelectriciandeterminethat
the ground path is adequate.
A copy of the above code standards can be obtained
from: National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
A 120 volt, 60 Hz., AC only, 15-amp, fused
electrical circuit is required.
If the house has aluminum wiring, follow the
procedure below:
Connect a section of solid copper wire to the
pigtail leads.
Connect the aluminum wiring to the added
section of copper wire using special co
nectors and/or tools designed and UL listed
for joining copper to aluminum.
Follow the electrical connector manufacturer’s recom-
mended procedure. Aluminum/copper connection must
conform with local codes and industry accepted wiring
practices.
Wire sizes and connections must conform with
 theratingoftheapplianceasspeciedonthe
model/serial rating plate.
The model/serial plate is located on the left side of
the range hood.
Wire sizes must conform to the requirements of
the National Electrical Code, ANSI/NFPA 70 (la
est edition), or CSA Standards C22. 1-94, Canad
an Electrical Code, Part 1 and C22.2 No. 0-M91
(latest edition) and all local codes and ordinances.
•
•
1.
2.
•
•

6

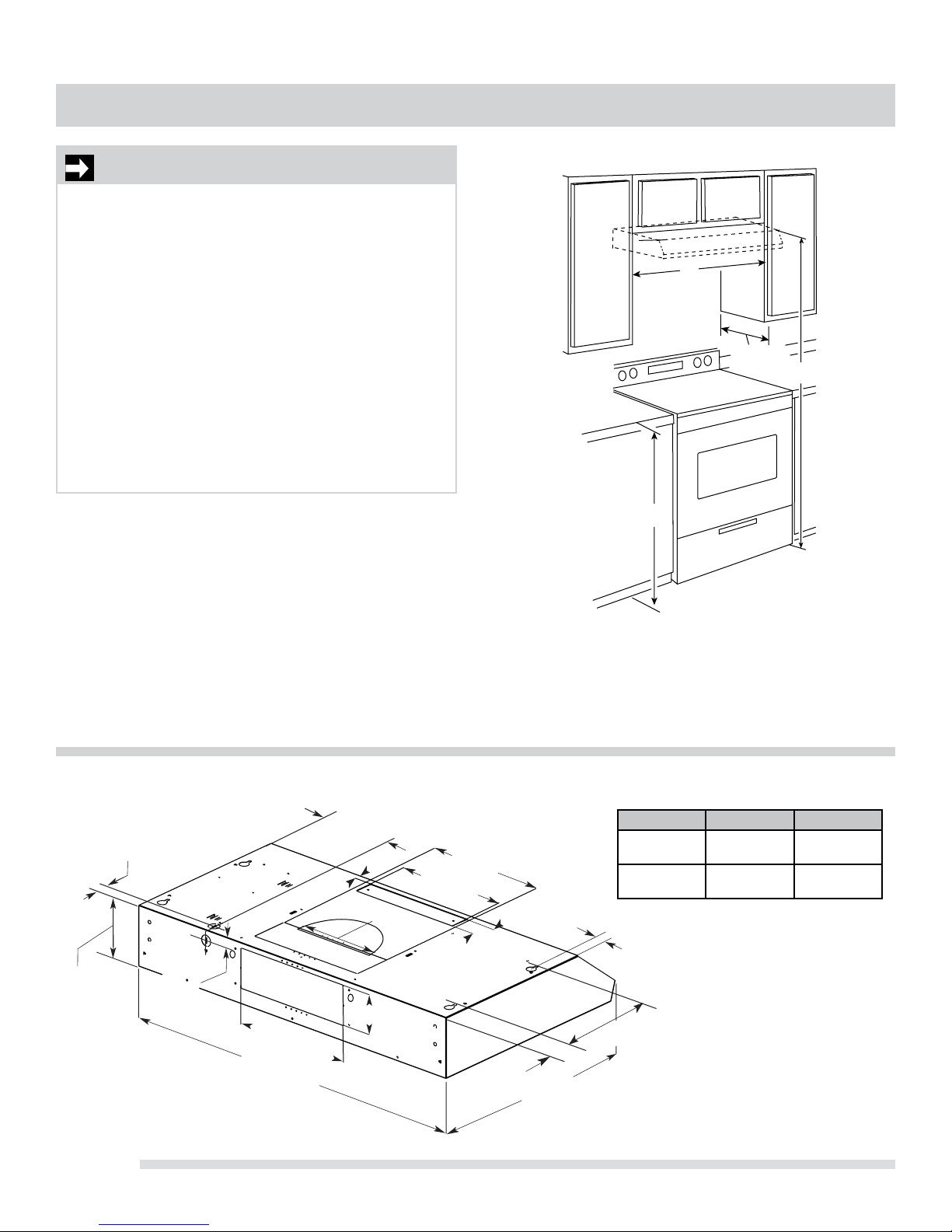

IMPORTANT
Observe all governing codes and ordinances.
It is the installer’s responsibility to comply with
 installationclearancesspeciedonthemodel/serial
rating plate. The model/serial rating plate is located
inside the range hood on the left side (See page 2
for location). Range hood location should be away
from strong draft areas, such as windows, doors and
strong heating vents.
Cabinet opening dimensions that are shown must
be used. Given dimensions provide minimum
clearance. Consult the cooktop/range manufacturer
installation instructions before making any cutouts.
Grounded electrical outlet is required. See
“Electrical Requirements” section.
All openings in ceiling and wall where canopy hood
will be installed must be sealed.
•
•
•
•
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD, Part
280) or when such standard is not applicable, the stan-
dard for Manufactured Home Installation 1982 (Manu-
factured Home Sites, Communities and Setups) ANSI
A225.1/NFPA 501A, or latest edition, or with local codes.
Cabinet Dimensions
A. 66” (167 cm) suggested min. - top of range hood to floor.
B. 30” (76.2 cm) min. cabinet opening width for 30” (76.2 cm)
models and 36” (91.4 cm) min. cabinet width for 36” (91.4 cm)
models.
C. 13” (33.0 cm) cabinet depth
D. 36” (91.4 cm) base cabinet height
LOCATION REQUIREMENTS
PRODUCT DIMENSIONS
A
B
C
D
hood model Dim A Dim B
FHWC3025
30” models
30” (76.2 cm) 69/16” (16.7 cm)
FHWC3625
36” models
36” (91.44 cm) 9½” (24.3 cm)
DIM B
DIM A
3¼”
(
8.25cm
)
10” (25.4cm
9½” (24cm)
recirculating cover
1½” (4cm)
recirculating cover
)
10” (25.4cm)
7” (17.8cm
9
/
16
”(1.4cm)
)1” (2.5cm)
typical both side
s
9” (22.9cm)
typical both sides
18
5
/ 8 ”
(47.3cm)
7
/
8
”
(2.2cm)
7
/
8
”
(2.2cm)
4
15
/
16
”
(
12.5cm)
1½” (3.8cm)
typical both sides

7
Vent system must terminate to the outdoors.
Do not terminate the vent system into an attic or other
enclosed area.
Do not use a 4” (10.2 cm) laundry-type wall cap.
Use a 3¼”x10”(8.3x25.4cm)rectangularmetal
vent. Rigid metal vent is recommended. Plastic or
metal foil vent is not recommended.
The length of vent system and number of elbows
 shouldbekepttoaminimumtoprovideefcient
performance.
Forthemostefcientandquietoperation:
Use no more than three 90° elbows.
Make sure there is a minimum of 24” (61 cm) of straight
vent between the elbows if more than 1 elbow is used.
Do not install 2 elbows together.
Use clamps or duct tape to seal all joints in the
vent system.
Theventsystematexitmusthaveacoldairdamper.
Usecaulkingtosealexteriorwallorroofopening
around the cap.
Best performances are reached with straight piping,
without elbows and using smooth pipe.
Maximumrecomendedventsystemlength:35ft(10.7m).
Cold Weather Installations
An additional back draft damper should be installed to
minimizebackwardcoldairowandathermalbreak
should be installed to minimize conduction of outside tem-
peratures as part of the vent system. The damper should
be on the cold air side of the thermal break.
The break should be as close as possible to where the
vent system enters the heated portion of the house.
Makeup Air
Local building codes may require the use of makeup air
systems when using ventilation systems greater than
speciedCFMofairmovement.ThespeciedCFMvaries
from locale to locale. Consult your HVAC professional for
specicrequirementsinyourarea.
Venting Methods
Vent system can terminate either through the roof or wall.
Use 3¼”x10”(8.3x25.4cm)rectangularwithamaximum
vent length of 35 ft (10.7 m) or 7” (17.8 cm) round vent with
amaximumlengthof50ft(15.2m)forventsystem.
NOTE
Flexible vent is not recommended. Flexible vent
creates both back pressure and air turbulence
that greatly reduce performance.
•
•
•
•
•
•
•
•
•
•
•
•
•
Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the
system.
7” (17.8 cm) Round Vent System
Vent Piece
90° elbow 5.0 ft
(1.5 m)
7” (17.8 cm) wall cap 0.0 ft
(0.0 m)
Example Vent System
A
B
C
A
B
C
A. 3¼”x10”(8.3x25.4cm)
rectangular vent through the
roof. (purchased separately)
B. Roof cap with damper
(purchased separately)
C. 24” (61.0 cm) min. to 30”
(76.2cm) above the cooking
surface
A. 3¼”x10”(8.3x25.4cm)
rectangular vent through the
wall or out the top
(purchased separately)
B. Wall cap with damper
(purchased separately)
C. 24” (61.0 cm) min. to 30”
(76.2cm) above the cooking
surface
Roof Venting Wall Venting
MaximumRecommendedLength =50ft(15.2m)
1-90°elbow =5.0ft(1.5m)
8ft(2.4m)straight =8.0ft(2.4m)
1-wallcap =0.0ft(0.0m)
Lengthof7”(17.8cm)system =13.0ft(3.9m)
2 ft (0.6 m)
7” (17.8 cm) round
90° elbow 6 ft (1.8 m) Wall Cap
VENTING REQUIREMENTS

8
PREPARE THE LOCATION
NOTE
Before making cutouts, make sure there is
proper clearance within the ceiling or wall.
Disconnect power.
Selectaatsurfaceforassemblingtherangehood. 
Place covering over that surface.
Lift the range hood and set it upside down onto covered
surface.
Ifcabinethasrecessedbottom,addwoodllerstrips
 oneachside.Installscrewstoattachllerstripsin
locations shown.
Determine Wiring Hole Location
Determine and clearly mark a vertical centerline on
the wall and cabinet bottom.
1.
2.
3.
4.
1.
A
A Centerline
Wood filler strips
(recessed cabinet
bottoms only)
Wall
Cabinet
bottom
3” (7.6 cm)
3” (7.6 cm)
4.5x13mm
mounting screws

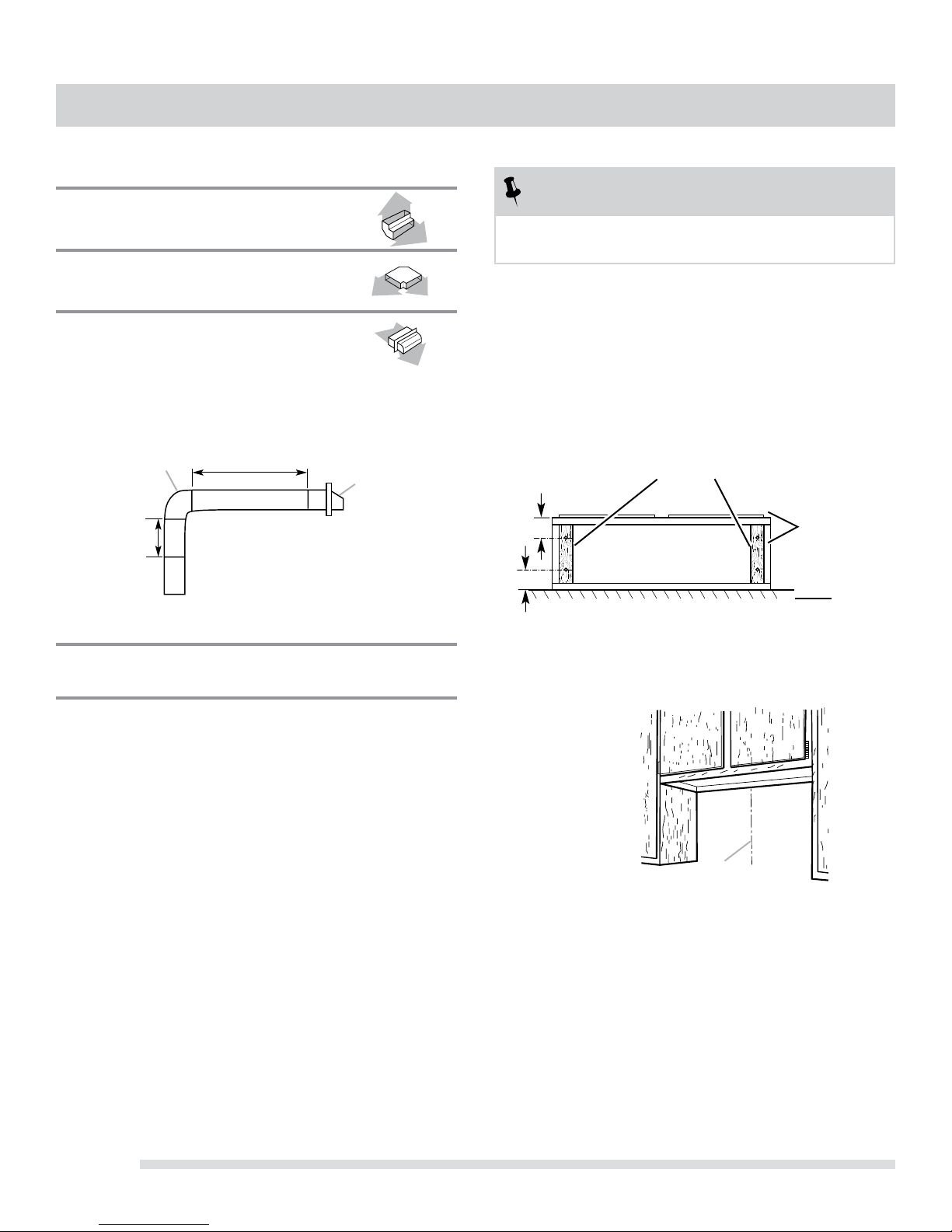

VENTING REQUIREMENTS
3¼” x 10” (8.3 cm x 25.4 cm) Vent System
Vent Piece
3¼”x10”(8.3cmx25.4cm) 5.0ft
90° elbow (1.5 m)
3¼”x10”(8.3cmx25.4cm) 12.0ft
flat elbow (3.7 m)
3¼”x10”(8.3cmx25.4cm) 0.0ft
wall cap (0.0 m)
Example Vent System
MaximumRecommendedLength =35ft(10.7m)
1-90°elbow =5.0ft(1.5m)
8ft(2.4m)straight =8.0ft(2.4m)
1-wallcap =0.0ft(0.0m)
Length of 3¼”x10” =13.0ft(3.9m)
(8.3cmx25.4cm)system
2 ft
(0.6 m)
3¼”x10”
(8.3x25.4cm)
elbow 6 ft (1.8 m)
Wall Cap

9

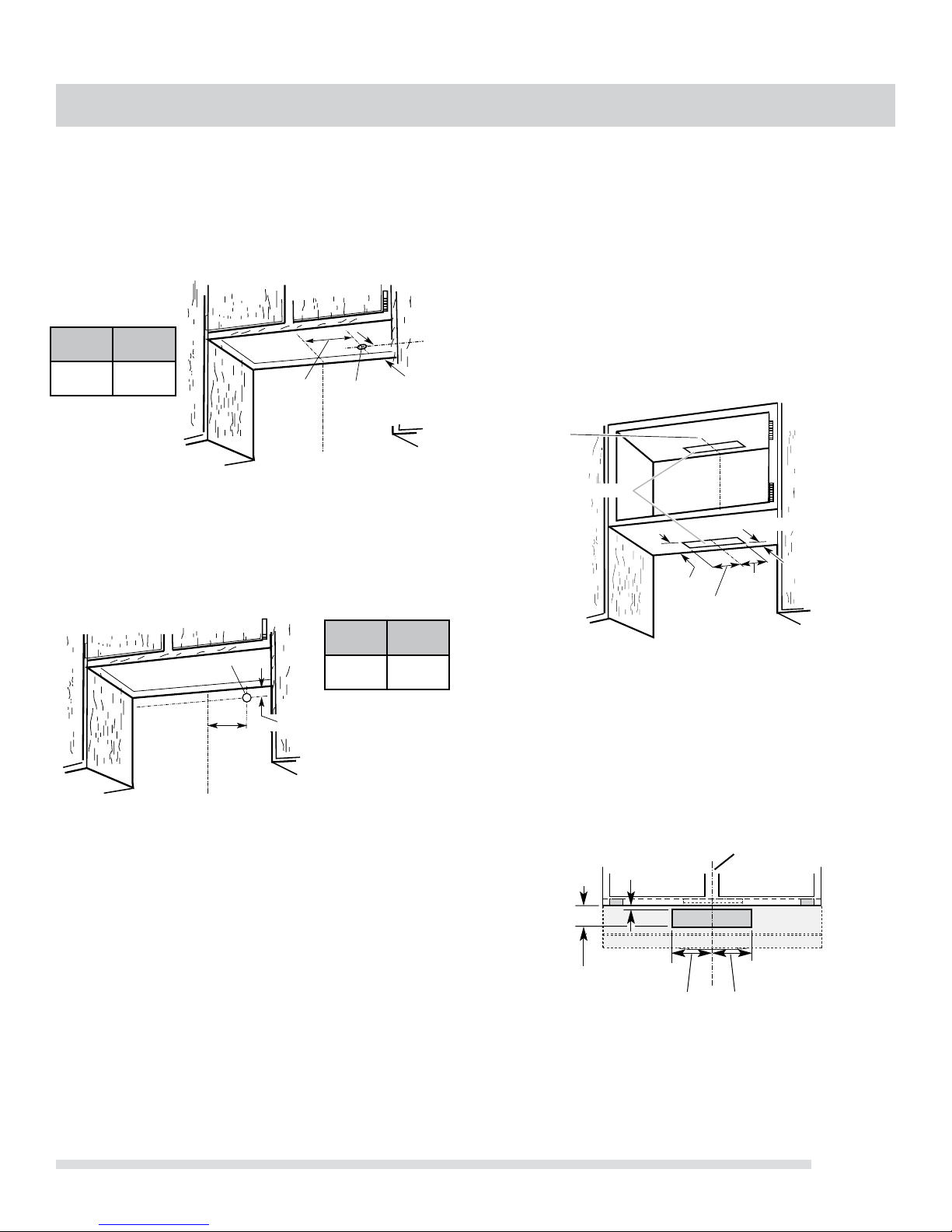

To wire through top:
Mark a line distance (A) from the right of the
centerline on the underside of the cabinet. Mark the
point on this line that is 7⁄8” (2.2 cm) from back wall.
Drill a 1¼” (3.2 cm) diameter hole (B) through the cab
net at this point.
To wire through wall:
Mark a line distance (A) from the right of the
centerline on the underside of the wall. Mark the point
on this line that is 7⁄8” (2.2 cm) from the underside of
the cabinet. Drill a 1¼” (3.2 cm) diameter hole (B)
through the rear wall at this point.
VENTING
Chooseventingexhaustdischargefromthevarious
options listed - Style 1 - 4 that follows:
Style 1 - Recirculating Hood version
For this installation, go to “Install Range Hood
(recirculating version)” on page 11.
2.
1.
A
Centerline
7⁄8” (2.2 cm)
from wall,
not cabinet frame
B
A
A Centerline
7⁄8”
(2.2 cm)
B
Style 2 - Cut Openings for 3¼” x 10” (8.3 cm x
25.4 cm) Rectangular Vent System
Roof Venting
Tomakea4”x10½”(10.16cmx26.7cm)rectangular
cutout on the underside of cabinet top and bottom:
Mark lines ½” (1.3 cm) and 4¾” (12.1 cm) from the
back wall on the centerline of the underside of cabinet.
Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the underside of cabinet.
Use saber or keyhole saw to cut a rectangular opening
for vent.
Repeat steps 1-3 for the underside of the top of the
cabinet.
Wall Venting
Tomakea3½”x10½”(8.9cmx26.7cm)rectanglein
the wall:
Make 2 lines by measuring 3⁄8” (0.9 cm) and 37⁄8”
(9.8 cm) down from underside of cabinet and mark on
the centerline on the back wall.
Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the wall.
Use saber or keyhole saw to cut a rectangular opening
in the wall for the vent.
1.
2.
3.
4.
1.
2.
3.
Cabinet cutouts
*From wall, not cabinet frame
*1/2(1.3 cm)
51/4
(13.3 cm)
51/4
(13.3 cm)
*43/4
(12.1 cm)
Cabinet
front
Centerline
51/4”
(13.3 cm)
37/8”
(9.8 cm)
3/8”
(0.9 cm)
51/4”
(13.3 cm)
Centerline
PREPARE THE LOCATION
hood
model
Dim
A
30” & 36”
models
8³⁄8”
(21.3 cm)
hood
model
Dim
A
30” & 36”
models
8³⁄8”
(21.3 cm)

10
Install Vent System
Install vent through the vent opening in upper cabinet
or wall. Complete venting system according to the
selected venting method. See “Venting Requirements”
section.
Usecaulkingtosealexteriorwallorroofopening
around the cap.
INSTALL RANGE HOOD
(Ducted version)
NOTE
Your model will have a 3¼” x 10” (8.3 x 25.4
cm) rectangular vent connector on the inside of
the range hood.
Unpackthe3¼”x10”(8.3x25.4cm)rectangular
vent from the inside of your range hood. To detach the
vent connector, remove the 2 installation screws
 (.35x.95cm)andkeepthescrewsinasafeplaceto 
reinstall later (see Step 5).

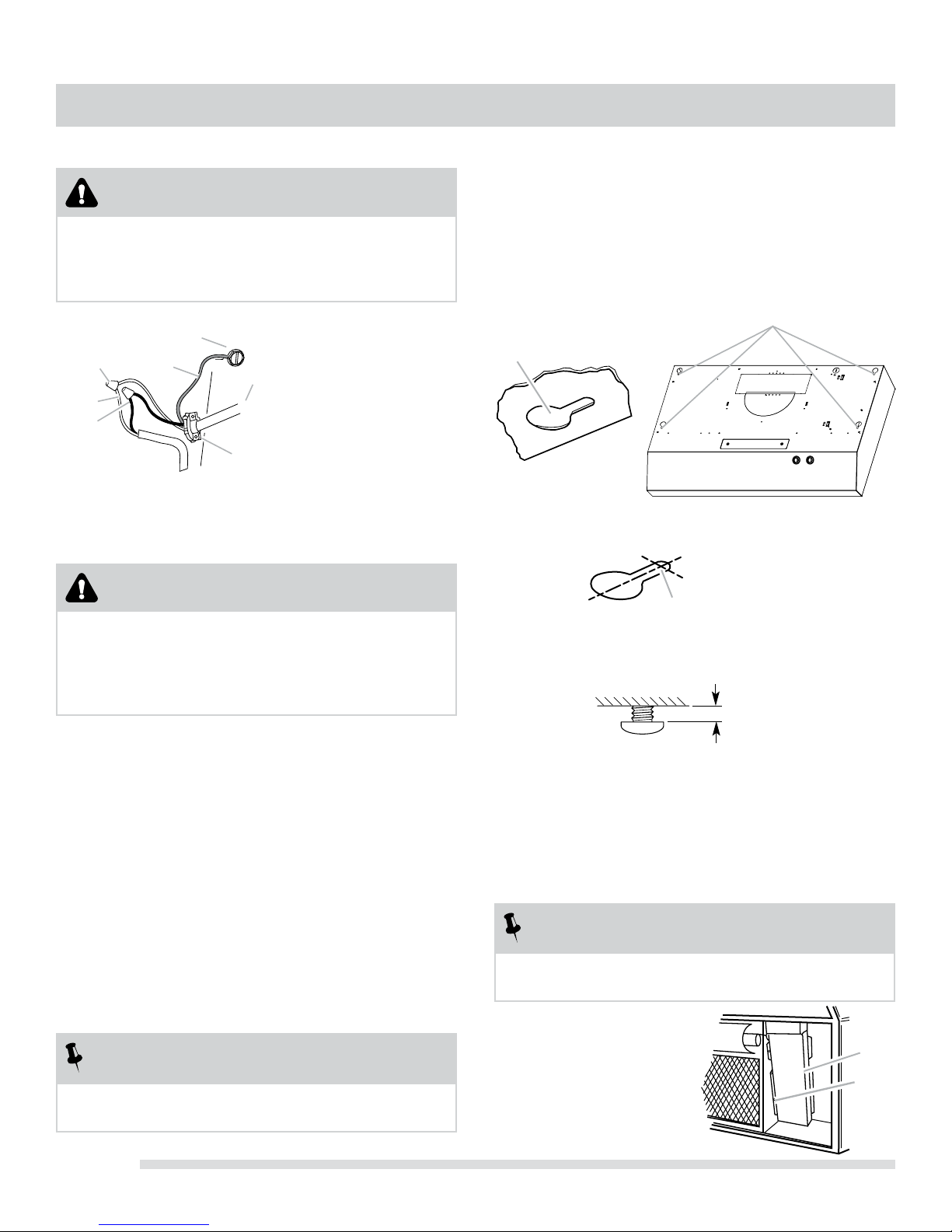

Lift the range hood up under cabinet and determine
 nallocationbycenteringbeneathcabinet.Markon
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slot dimensions
on page 6). Set range hood aside on a covered surface.
1.
2.
1.
2.
A
A. Keyhole slot
A
A
B
A. 3¼” x 10” (8.3 x 25.4 cm) rectangular vent damper
B. 3.5 x 9.5 mm screws
PREPARE THE LOCATION

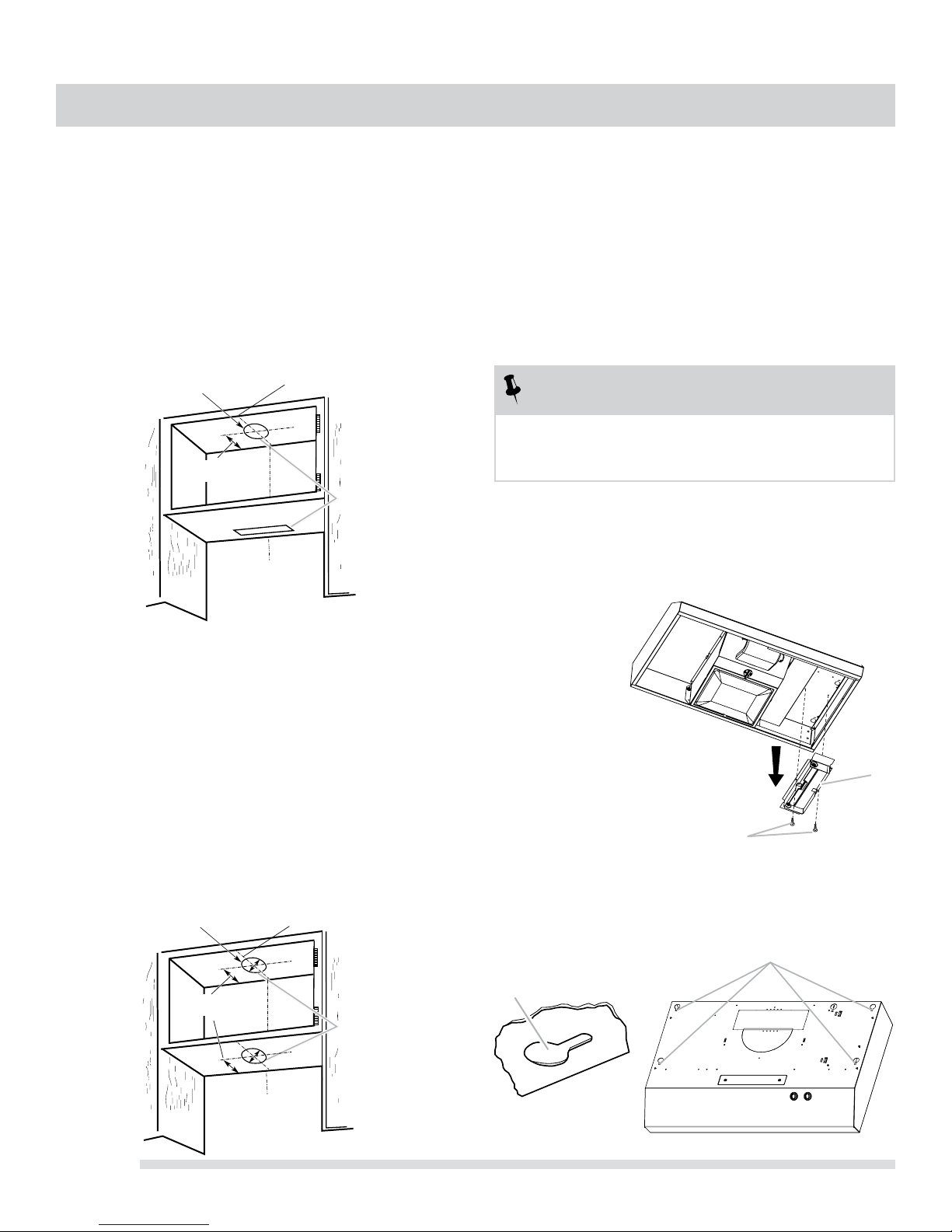

Style 3 - Cut Openings for 3¼” x 10” (8.3 x 25.4
cm) Rectangular Vent Transition to Round Vent
Roof Venting
To make a circular vent opening on the underside of the
cabinet top:
Mark a centerline on the underside of the top of cabinet.
Mark a line 5” (12.7 cm) from the back wall on the
underside of the top of cabinet.
Use a compass or a circle template to draw a circle with
a diameter of 7½” (19 cm).
Use saber or keyhole saw to cut the circular vent
opening.
Style 4 - Cut Openings for 7” (17.8 cm) Round Vent
to Round Vent Transition
Roof Venting
To make a circular vent opening on the underside of the
cabinet top:
NOTE: The 7” round transition kit, part number
5304487139, is required for this installation.
Mark a centerline on the underside of the top of cabinet.
Mark a line 5” (12.7 cm) from the back wall on the
underside of the top of cabinet.
Use a compass or a circle template to draw a circle with
a diameter of 7½” (19 cm).
Use saber or keyhole saw to cut the circular vent opening.
Repeat steps 1-3 for the underside of the top of the
cabinet.
1.
2.
3.
1.
2.
3.
4.
*From wall, not
cabinet frame
*5”
(12.7 cm)
Cabinet
cutouts
Ø 7½”
(19 cm)
Centerline
*From wall, not
cabinet frame
*5”
*
*
(12.7 cm)
Cabinet
cutouts
*Ø 7½”
(19 cm)
Centerline

11
Use¹⁄8” (3 mm) drill bit and drill 4 pilot holes as shown.
NOTE: Make the drill holes on the thin area of the slot.
Installthe4-.45cmx1.3cmmountingscrewsin
pilot holes. Leave about ¼” (6.4 mm) space between
screw heads and cabinet to slide range hood into place.
For roof installations, remove the top rectangular
vent knockout. For wall installations, remove the rear
rectangular vent knockout.
Installthe3¼”x10”(8.3x25.4cm)ventconnector.
 Attachtorangehoodwiththe.35x.95cmscrews
that you previously removed (step 1) and remove tape
 fromdamperap.
NOTE
The 3¼” x 10” (8.3 x 25.4 cm) rectangular vent
connector can be installed up to 1” (2.5 cm) on
either side of the hood center to accommodate
off center ductwork.
If a vent damper is installed with a wall cap with
damper, check that they do not interfere with each
 other.Removetheventconnectordamperapif
they interfere.
3.
4.
5.
•
¹⁄4”
(6.4 mm)
A
A. Drill pilot hole
A
B
A. Vertical connector
B.3.5x9.5mmscrews
C. Vent knockouts
D. Horizontal connector
Power Supply Cable Installation
For direct wire installations, run the home power
supply cable according to the National Electric Code
or CSA standards and local codes and ordinances.
There must be enough wiring from the fused disconnect
 (orcircuitbreaker)boxtomaketheconnectioninthe
 hoodelectricalterminalbox.
NOTE
Do not reconnect power until the installation is
complete.
Remove the screw from the
 terminalboxcover.
 Removeterminalboxcover
and set aside.
Remove the power supply knockout from the top
or rear of the vent hood (depending on the incoming
location of your home power supply cable) and
install a UL listed or CSA approved ½” strain relief.
Using2ormorepeople,liftthehoodintonalposition.
Feed enough electrical wire through the ½” UL listed
or CSA approved strain relief to make connections in
 theterminalbox.Tightenthestrainreliefscrews.
Position the range hood so that the large end of
the keyhole slots are over the mounting screws.
Then push the hood toward the wall so that the screws
are in the neck of the slots. Tighten the mounting screws,
making sure the screws are in the narrow neck of slots.
Connect ventwork to hood. Seal joints with vent
clamps or duct tape to make secure and airtight.
Check that back draft dampers work properly.
1.
2.
3.
4.
5.
6.
7.
A
B
A. Terminal box cover
B. Screw
A
A. Power supply
knockout
INSTALLING THE HOOD

12
INSTALLING THE HOOD
INSTALL RANGE HOOD
(Recirculating version)
Lift the range hood up under cabinet and determine
 nallocationbycenteringbeneathcabinet.Markon
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slots
dimensions on page 6). Set range hood aside on a
covered surface.
Use¹⁄8” (3 mm) drill bit and drill 4 pilot holes as shown.
NOTE: Make the drill holes on the thin area of the slot.
Installthe4-.45cmx1.3cmmountingscrewsin
pilot holes. Leave about ¼” (6.4 mm) space between
screw heads and cabinet to slide range hood into place.
Power Supply Cable Installation
For direct wire installations, run the home power
supply cable according to the National Electric Code
or CSA standards and local codes and ordinances.
There must be enough wiring from the fused disconnect
 (orcircuitbreaker)boxtomaketheconnectioninthe
 hoodelectricalterminalbox.
NOTE
Do not reconnect power until the installation is
complete.
Remove the screw from the
 terminalboxcover.
 Removeterminalboxcover
and set aside.
1.
2.
3.
1.
2.
A
A. Keyhole slot
A
¹⁄4”
(6.4 mm)
A
A. Drill pilot hole
A
B
A. Terminal box cover
B. Screw
MAKE ELECTRICAL CONNECTION
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Disconnect power.
2. Use UL listed wire connectors and connect white wires
(A) together.
3. Use UL listed wire connectors and connect black wires
(B) together.
WARNING
Fire Hazard
Electrically ground the blower. Use copper wire.
Connect ground wire to green ground screw in
terminal box. Failure to do so can result in death,
re, or electrical shock.
4. Connect green (or bare) ground wire from power supply
togreengroundscrewinterminalboxandsecurelytighten.
5.Installterminalboxcover.
6. Installthe75W(max.)Incandescentlightbulb.See
“Replacing the Incandescent Light Bulb” in the “Range
Hood Care” section.
7. Reconnect power.
Complete Installation
Replacegreaselterifremoved.Seethe“RangeHood
Care” section.
Check the operation of the range hood fan and light.
See “Range Hood Use” section.
If range hood does not operate, check to see whether a
circuit breaker has tripped or a household fuse has blown.
Disconnect power and check wiring connections.
NOTE
To get the most efcient use from your new
range hood, read the “Range Hood Use” section.
1.
2.
A
B
CD
E
F
G
A.White wires
B. Black wires
C. UL listed wire connector
D. Green (or bare) ground wire
E. Home power supply cable
F. UL listed or CSA approved
½” strain relief
G. Green ground screw

13
Remove the power supply knockout from the top
or rear of the vent hood (depending on the incoming
location of your home power supply cable) and
install a UL listed or CSA approved ½” strain relief.
Using2ormorepeople,liftthehoodintonalposition.
Feed enough electrical wire through the ½” UL listed
or CSA approved strain relief to make connections in
 theterminalbox.Tightenthestrainreliefscrews.
Position the range hood so that the large end of
the keyhole slots are over the mounting screws.
Then push the hood toward the wall so that the screws
are in the neck of the slots. Tighten the mounting screws,
making sure the screws are in the narrow neck of slots.
Recirculation Vent Cover
Forinstallationswhicharerecirculatingtheairexhaust,
the recirculation vent cover must be removed.
Remove the recirculating
vent cover by removing
the 2 mounting screws
with a phillips screwdriver.
NOTE: For installations
which are venting out
the roof or wall, the
recirculating vent cover
must remain in place.
Do not remove as unit
will not perform properly.
To complete the installation, go to “Make Electrical
Connection” section on page 11.
3.
4.
5.

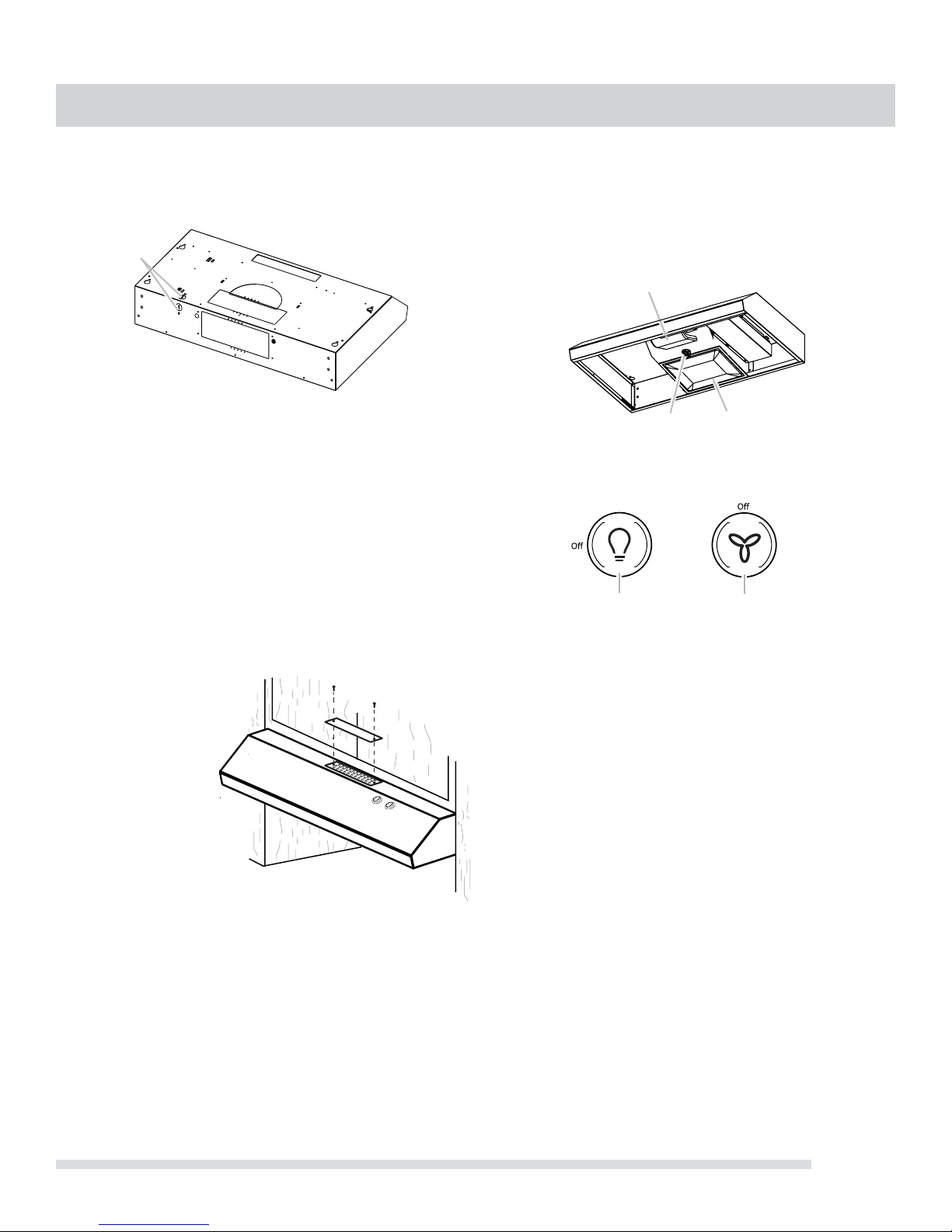

RANGE HOOD USE
The range hood is designed to remove smoke, cooking
vapors and odors from the cooktop area. For best results,
start the hood before cooking and allow it to operate
several minutes after the cooking is complete to clear all
smoke and odors from the kitchen.
The hood controls are located on the top of the range hood.
Range Hood Controls
Operating the light
Push the light switch to the right to turn the light On.
Push the light switch to the left to the turn the light Off.
Operating the fan
Push the fan switch to the left for Low speed. Push the
fan switch to the right for High speed. Push the fan
switch to the middle for Off.
A. Incandescent light housing and cover
B. Charcoal filter retainer
C. Grease filter
A
C
B
A. On/Off light switch
B. Fan speed switch
AB
woLnO High
RANGE HOOD USE
Part being removed
A
A. Power supply
knockout

14
Replacescrewinthelter
retainer.
Tocleangreaselter,soak
 theltersinhotwaterusing
a mild detergent. Rinse well
and shake to dry. Or place
in upper rack of dishwasher
to clean.
NOTE: Do not use ammo-
nia.Thealuminumonthegreaselterwillcorrodeand
darken.
NOTE: You can use either dishwasher or hot detergent
solution and rinse in clean water.
NOTE
The grease lter is dishwasher safe.
To avoid grease lter damage while cleaning,
place lter into the dishwasher top rack for
cleaning
Replacing the Incandescent LightBulb
Turn off the range hood and allow the light bulb to cool.
Disconnectpower-Turnoffhousebreakeratbreakerbox.
Squeeze the plastic lens cover and remove it from the hood.
Screw a 75Wmax,120V
incandescent light bulb
into socket.
Replace lens cover by
squeezing cover and
inserting tabs into
slots.
Reconnect power.
If new light does not operate, make sure the lamp is
inserted correctly before calling service.
Charcoal / Grease Filter Accesory Kit
Forrecirculatingventhood,anoptionalcharcoallteris
available. You can order this as part number 5304486302.
Thecharcoallterisnotwashable.Itshouldlastupto6
months with normal use.
Replacetheoldcharcoallterwithanewcharcoallter.
4.
5.
1.
2.
3.
4.
5.
6.
A
A. Filter screw
RANGE HOOD CARE
AB
A. Light bulb socket
B. Lens cover
Cleaning
WARNING
To Reduce The Risk Of Fire Or Electrical shock
disconnect from power supply before cleaning.
IMPORTANT
Clean the hood and grease lters frequently
according to the following instructions. Replace
grease lter before operating hood.
IMPORTANT
Exterior Surfaces
Donotusesoap-lledscouringpads,abrasivecleaners,
Cooktop Polishing Creme, steel wool, gritty washcloths
or paper towels.
To avoid damage to the stainless steel, do not use
cleaners that contain chlorine.
Cleaning Method:
Use warm water with liquid detergent or all purpose
cleaner and soft cloth to clean outside surfaces.
Rinse with clean water and dry with soft, lint-free cloth.
Useglasscleanertoremovengerprints.
Forstainlesssteelnishrubindirectionofgrainto 
avoid scratching or damaging the surface.
NOTE: Onstainlesssteelnish,cleanindirectionof
stainless steel brush to avoid scratching or damaging
the surface.

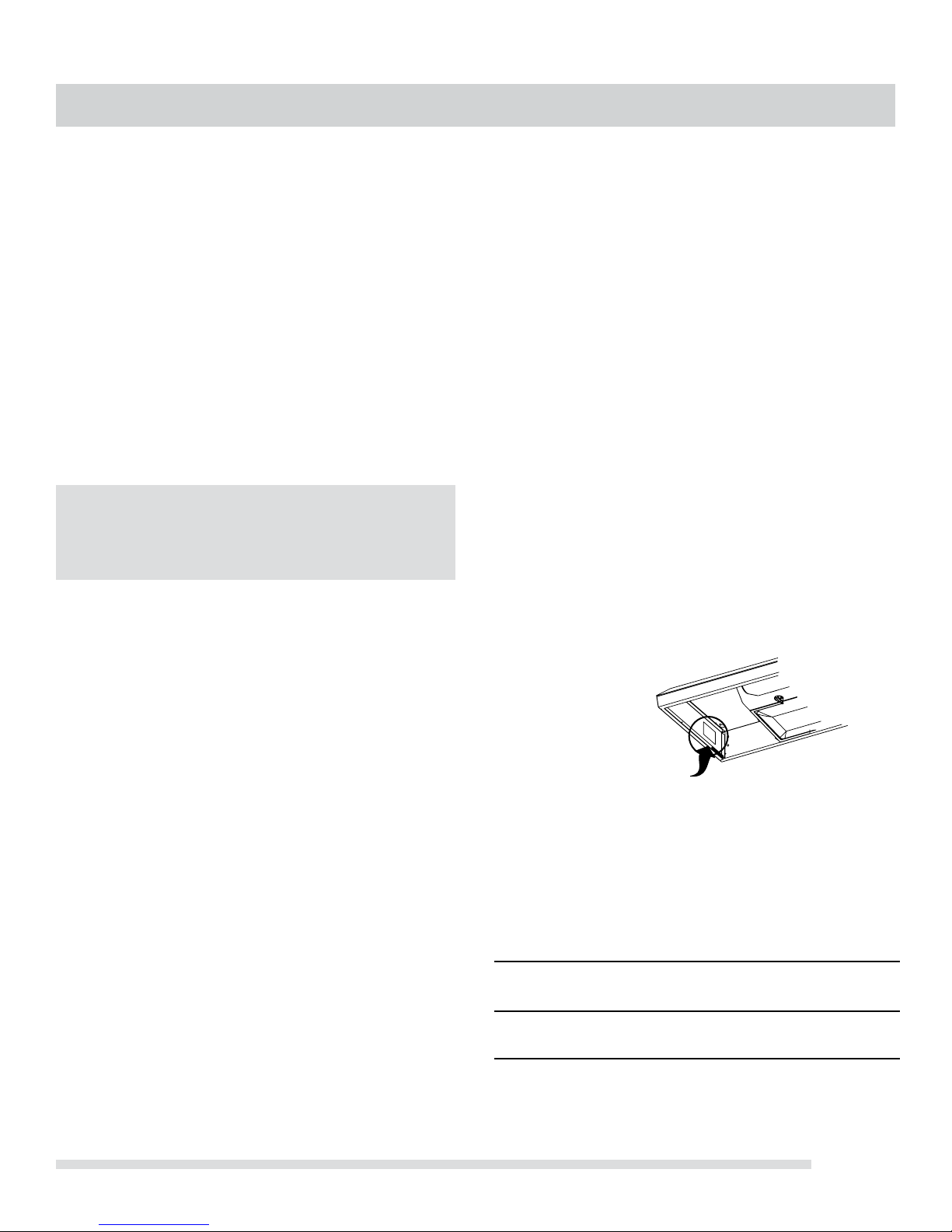

To clean or replace grease lter:
Removescrewfromtheplasticlterretainerclipwith
phillips screwdriver
Turnthelterretainertoreleaselter.
Reinstallthelterbyplacingthebackedgeinthe
 channelatrearofhood.Pushlterintoplace,turn
 thelterretainertosecureltertorangehood.
•
•
•
•
1.
2.
3.
A
A. Filter screw

15
TROUBLESHOOTING
Problem Possible Causes Solutions
After installation,
the unit doesn’t
work.
1. The power line and the cable locking
connector is not connecting properly. 1. Check the power connection with the unit is connected properly.
2. The wires from the switches are disconnected
or loose. 2. Make sure the wires on the switches are connected properly.
Light works,
but motor is not
turning.
1. The motor is defective, possible seized. 1. Change the motor.
2. The thermally protected system detects if the
motor is too hot to operate and shuts the motor
down.
2. The motor will function properly after the
thermally protected system cool down.
4. The motor wire is not connected. 4. Make sure the motor wire is plugged into the
molexconnector.
The unit is
vibrating. 1. The motor is not secure in place. 1. Tighten the motor in place.
2. Damaged blower wheel. 2. Change the blower.
3. The hood is not secured in place. 3. Check the installation of the hood.
The motor is
working, but the
lights are not.
1. Defective bulb. 1. Change the bulb.
2. The light bulb is loose. 2. Tighten the light bulb.
3. The wires on the light switch are loose. 3. Make sure the wires on light switch are
connected properly.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top. 1. Adjust the distance between the cook top and the bottom of the hood within 24” (61 cm) and
32” (76.2 cm) range.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
2. Close all the windows and doors to eliminate
theoutsidewindow.
3. Blockage in the duct opening or duct work. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the
wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to correct size.
Metallteris
vibrating. 1.Greaselterisloose. 1.Makesurelterretainerstillworks.
2. Filter retainer does not freely move 2.Replacegreaselter.

16
Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used, and maintained in accordance with the provided instructions. In addition, the glass cooktop or radiant surface
limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement
glass cooktop or radiant surface element for your appliance which has proven to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Products used in a commercial setting.
6. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
7. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
8. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
9.
handles, or other cosmetic parts.
10.
original date of purchase.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges,
or mileage expense for service calls to remote areas, including the state of Alaska.
13.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service
be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty
must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance
is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
USA
1.800.944.9044
Electrolux Home Products, Inc.,
10200 David Taylor Drive
Charlotte, NC 28262

17
Merci d’avoir choisi Frigidaire.
Ce guide d’utilisation et d’entretien fait partie de notre
engagement à la satisfaction du client et la qualité produit
tout au long de la de vie de votre nouvelle appliance.
Votre achat comme le début d’une relation. Pour assurer
notre capacité à continuer servant vous, s’il vous plaît
utiliser cette page pour enregistrer important information
sur les produit.
Emplacement
de l’étiquetta
de série
Retirezleltreetletrouversurlaparoi
latérale gauche hotte.
Modèle de dossier et numéro de série
Date d’achat
Le numéro de modèle
Le numéro de serie
besoin d’aide?
Visitez notre site Web à www.frigidaire.com
Avant d’appeler le service, il ya quelques choses que vous
pouvezfairepournousaideràmieuxvousservir.
Lisez ce manuel d’utilisation et de soins.
Il contient des instructions pour vous aider à utiliser et à
entretenir votre hotte correctement.
Si vous avez reçu une hotte endommagé ...
contactez immédiatement le revendeur (ou constructeur)
que vous avez vendu la hotte.
Gagnez du temps et d’argent.
Voir “Dépannage” dans votre manuel. Cette section
permet pas vous grâce à certains problèmes courants
qui pourraient survenir. Si vous n’avez besoin de service,
l’aide est seulement un appel téléphonique. Appelez Ser-
vices à la clientèle au 1-800-944-9044.
Enregistrement du produit
L’enregistrement de votre produit avec Frigidaire améliore
notre capacité à vous servir. Vous pouvez inscrire en ligne
à www.frigidaire.com ou déposant votre produit Fiche
d’Inscription par la poste.
ENREGISTREMENT DU PRODUIT
SOMMAIRE
Avis de sécurité important..................................... 18
Listedesmateriaux...............................................20
Spécicationsélectriques.......................................20
Exigencesd’emplacement......................................21
Dimensions du produit...........................................21
Exigencescencernantl’evacuation.........................22
Préparation d’emplacement....................................23
Installation de la hotte
(pour systeme d’evacuacion)..................................26
Raccordement électrique....................................... 27
Installation de la hotte
(sans décharge àl’extérieur(recyclage)).................28
Utilisation de la hotte............................................ 29
Entretien de la hotte..............................................30
Dépannage...........................................................31
Garantie............................................................... 32
Visitez notre site web
www.frigidaire.com
pour voir notre ligne d’accessoires

18
Conserver ces instructions pour une
future consultation.
Approuvé comme appareil domestique.
Pour usage résidentiel uniquement.
Ne pas essayer d’installer ou d’utiliser votre appareil
si vous n’avez pas lu les instructions de sécurité de
ce manuel. Les particularités de sécurité de ce
manuel sont marqués d’ un AVERTISSEMENT ou
ATTENTION selon le type de risque.
Ceci est le symbole d’alerte de sécurité. Il est utilisé
pour vous alerter au risques potentiels de blessure.
Respectez tous les messages de sécurité qui suivent ce
symbole pour éviter d’éventuelles blessures ou la mort.
AVERTISSEMENT
Ce symbole vous avertit de situations pouvant
causer de graves lésions corporelles, la mort
ou un dommage matériel.
ATTENTION
Ce symbole vous avertit de situations pouvant
causer des blessures corporelles ou des dégâts
matériels.
IMPORTANT
indiquel’installation,l’exploitation,entretienoudes
renseignementsprécieuxquin’estpasdedanger
connexes.
Avis de sécurité important
ATTENTION
Cet appareil est conçu uniquement pour la
ventilation générale. Ne pas l’utiliser pour
l’extraction de matières ou vapeurs dangereuses
ou explosives.
Lire toutes les instructions avant d’utiliser l’appareil.
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE D’INCENDIE, CHOC
ÉLECTRIQUE OU DOMMAGES CORPORELS,
RESPECTER LES INSTRUCTIONS SUIVANTES :
Utiliser cet appareil uniquement dans les applications
envisagées par le fabricant. Pour toute question,
contacter le fabricant.
Avant d’entreprendre un travail d’entretien ou de
nettoyage, interrompre l’alimentation de la hotte
au niveau du tableau de disjoncteurs, et verrouiller le
tableau de disjoncteurs pour empêcher tout
rétablissement accidentel de l’alimentation du circuit.
Lorsqu’il n’est pas possible de verrouiller le tableau de
disjoncteurs, placer sur le tableau de disjoncteurs une
étiquette d’avertissement proéminente interdisant le
rétablissement de l’alimentation.
Tout travail d’installation ou câblage électrique
 doitêtreréaliséparunepersonnequaliée,dansle
respect des prescriptions de tous les codes et normes
applicables, y compris les codes du bâtiment et de
protection contre les incendies.
Ne pas faire fonctionner un ventilateur dont le cordon
 oulacheestendommagé(e).Jeterleventilateurou
le retourner à un centre de service agréé pour
 examenet/ouréparation.
Unesourced’airdedébitsufsantestnécessaire
pour le fonctionnement correct de tout appareil à gaz
(combustion et évacuation des gaz à combustion par
 lacheminée),pourqu’iln’yaitpasdereuxdesgaz
de combustion. Respecter les directives du fabricant
de l’équipement de chauffage et les prescriptions
des normes de sécurité - comme celles publiées par la
National Fire Protection Association (NFPA) et
l’American Society for Heating, Refrigeration and
AirConditioning Engineers (ASHRAE), et les
prescriptions des autorités réglementaires locales.
Lors d’opérations de découpage et de perçage dans
un mur ou un plafond, veiller à ne pas endommager
les câblages électriques ou canalisations qui peuvent
s’y trouver.
Les ventilateurs d’évacuation doivent toujours
 déchargerl’airàl’extérieur.
A.
B.
C.
D.
E.
F.
G.
AVIS DE SÉCURITÉ IMPORTANT

19
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE DE DOMMAGES
CORPORELS APRÈS LE DÉCLENCHEMENT
D’UN FEU DE GRAISSE SUR LA CUISINIÈRE,
APPLIQUER LES RECOMMANDATIONS
SUIVANTES
Placer sur le récipient un couvercle bien ajusté, une
tôle à biscuits ou un plateau métallique POUR
ÉTOUFFER LES FLAMMES, puis éteindre le brûleur.
 VEILLERÀÉVITERLESBRÛLURES.Silesammesne
s’éteignent pas immédiatement, ÉVACUER LA PIÈCE
ET APPELER LES POMPIERS.
NE JAMAIS PRENDRE EN MAIN UN RÉCIPIENT
ENFLAMMÉ - vous risquez de vous brûler.
NE PAS UTILISER D’EAU, ni un torchon humide - ceci
 pourraitprovoqueruneexplosiondevapeurbrûlante.
UtiliserunextincteurSEULEMENTsi:
 –Ils’agitd’unextincteurdeclasseABC,donton
connaît le fonctionnement.
– Il s’agit d’un petit feu encore limité à l’endroit où il
s’est déclaré.
– Les pompiers ont été contactés.
– Il est possible de garder le dos orienté vers une
sortie pendant l’opération de lutte contre le feu.
OPERATION
Toujourslaisserlesgrillesdesécuritéetdeltresdans
place.Sanscescomposants,dessoufeusesexploita-
tionpourraitattrapersurlescheveux,lesdoigtsetles
vêtements amples.
Le fabricant décline toute responsabilité en cas de non-
respect des instructions données ici pour l’installation,
la maintenance et appropriée du produit. Le fabricant
décline toute responsabilité pour d’autres blessures
duesàlanégligenceetlagarantiedel’unitéexpire
automatiquement à cause d’un mauvais entretien.
a)
b)
c)
d)
ATTENTION
Pour minimiser le risque d’incendie et évacuer
adéquatement les gaz, veiller à acheminer l’air
aspiré par un conduit jusqu’à l’extérieur - ne pas
décharger l’air aspiré dans un espace vide du bâ-
timent comme une cavité murale, un plafond, un
grenier, un vide sanitaire ou un garage.
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE D’INCENDIE,
UTILISER UNIQUEMENT DES CONDUITS
MÉTALLIQUES.
AVERTISSEMENT
Pour réduire le risque d’incendie ou de choc
électrique, ne pas utiliser ce ventilateur avec un
quelconque dispositif de réglage de la vitesse à
semiconducteurs.
AVERTISSEMENT
POUR MINIMISER LE RISQUE
D’UN FEU DE GRAISSE SUR LA CUISINIÈRE :
Ne jamais laisser un élément de surface fonctionner
 àpuissancedechauffagemaximalesans
surveillance. Un renversement/débordement de
matière graisseuse pourrait provoquer une
 inammationetlagénérationdefumée.
Utiliser une puissance de chauffage moyenne ou
basse pour le chauffage d’huile.
Veiller à toujours faire fonctionner le ventilateur de la
hotte lors de la cuisson avec une puissance de
chauffage élevée ou lors de la cuisson d’un mets à
 amber(àsavoircrêpesSuzette,cerisejubilée,steak
 aupoivreambé).
Nettoyerfréquemmentlesventilateursd’extraction.
Veiller à ne pas laisser la graisse s’accumuler sur les
 surfacesduventilateuroudesltres.
Utiliser toujours un ustensile de taille appropriée.
Utiliser toujours un ustensile adapté à la taille de
l’élément chauffant.
a)
b)
c)
d)
AVIS DE SÉCURITÉ IMPORTANT

20
Outils et pièces
Pièces fournies
4visdemontagede0.45x1.3cm
Adaptateur rectangulaire du conduits de ventilation de
3¼”x10”(8.3x25.4cm)
REMARQUE: Une optionel kit de conduit rond de 7” est
disponible. Vous pouvez commander ce kit dans le nu-
méro de la pièce: 5304487139.
Pièces nécessaires
2connecteursdelshomologuésUL
1ampouleàincandescencede75wattsmax.,120V
Bouche de décharge murale ou à travers le toit (avec
clapet) correspondant au système d’évacuation
Brides de conduit/ruban adhésif (selon le besoin)
Serre-câble homologué UL ou CSA de ½”
Outils nécessaires
Perceuse
Foret de 1¼” (3 cm)
Foret de ⅛” (3 mm) pour avant-trous
Crayon
Pince à dénuder ou couteau utilitaire
Mètre-ruban ou règle
Pistolet à calfeutrage et composé de calfeutrage
 résistantauxintempéries
Tournevis à lame plate
Tournevis Phillips
Scie sauteuse ou scie à guichet
Pour placards avec cavité au fond :
Deuxtringlesd’appuidelargeur2”(5,1cm).Longueur
et épaisseur selon les dimensions de l’encastrement.
Quatrevisàboisàtêteplateouvisàmétauxavec
 rondellesetécrous(pourlaxationdestringles
 d’appui).Exigencesd’emplacement
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
LISTE DES MATERIAUX
SPÉCIFICATIONS ÉLECTRIQUES
Observer les dispositions de tous les codes et règlements
en vigueur.
Vérierquel’installationélectriqueaétécorrectement
effectuéeetqu’elleestconformeauxspécicationsdela
plus récente édition des normes National Electrical Code,
ANSI/NFPA 70, ou de la norme CSA C22.1-94, Code cana-
dien de l’électricité, partie 1 et C22.2 N° 0-M91 (dernière
édition) et de tous les codes et règlements en vigueur
locaux.
Si les codes le permettent et si on utilise un conducteur
distinct de liaison à la terre, il est recommandé qu’un
électricienqualiévérielaqualitédelaliaisonàlaterre.
Pourobtenirunexemplairedelanormedescodesci-des-
sus, contacter :
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
L’appareil doit être alimenté par un circuit de 120 V, CA
seulement, 60 Hz, 15 A, protégé par fusible.
Si le domicile est équipé d’un câblage en aluminium,
suivre les instructions suivantes :
Connecterunesectiondecâbleencuivremassifaux
conducteurs en queue de cochon.
Connecter le câblage en aluminium à la section ajoutée
de câblage en cuivre en utilisant des connecteurs et/ou
des outils spécialement conçus et homologués UL pour
 xerlecuivreàl’aluminium.
Appliquer la procédure recommandée par le fabricant des
connecteurs.Laconnexionaluminium/cuivredoitêtre
conformeauxcodeslocauxetauxpratiquesdecâblage
acceptées par l’industrie.
Lecalibredesconducteursetlesconnexionsdoivent
être compatibles avec la demande de courant de
 l’appareilspéciéesurlaplaquesignalétique.Laplaque
 signalétiquedel’appareilestsituéederrièreleltre,sur
la paroi arrière de la hotte.
Lecalibredesconducteursdoitsatisfaireauxexigences
de la plus récente édition de la norme National
Electrical Code, ANSI/NFPA 70, ou de la norme CSA
C22.1-94, Code canadien de l’électricité, partie 1 et
C22.2 n° 0-M91 (dernière édition) et de tous les codes
et règlements en vigueur.
•
•
1.
2.
•
•
