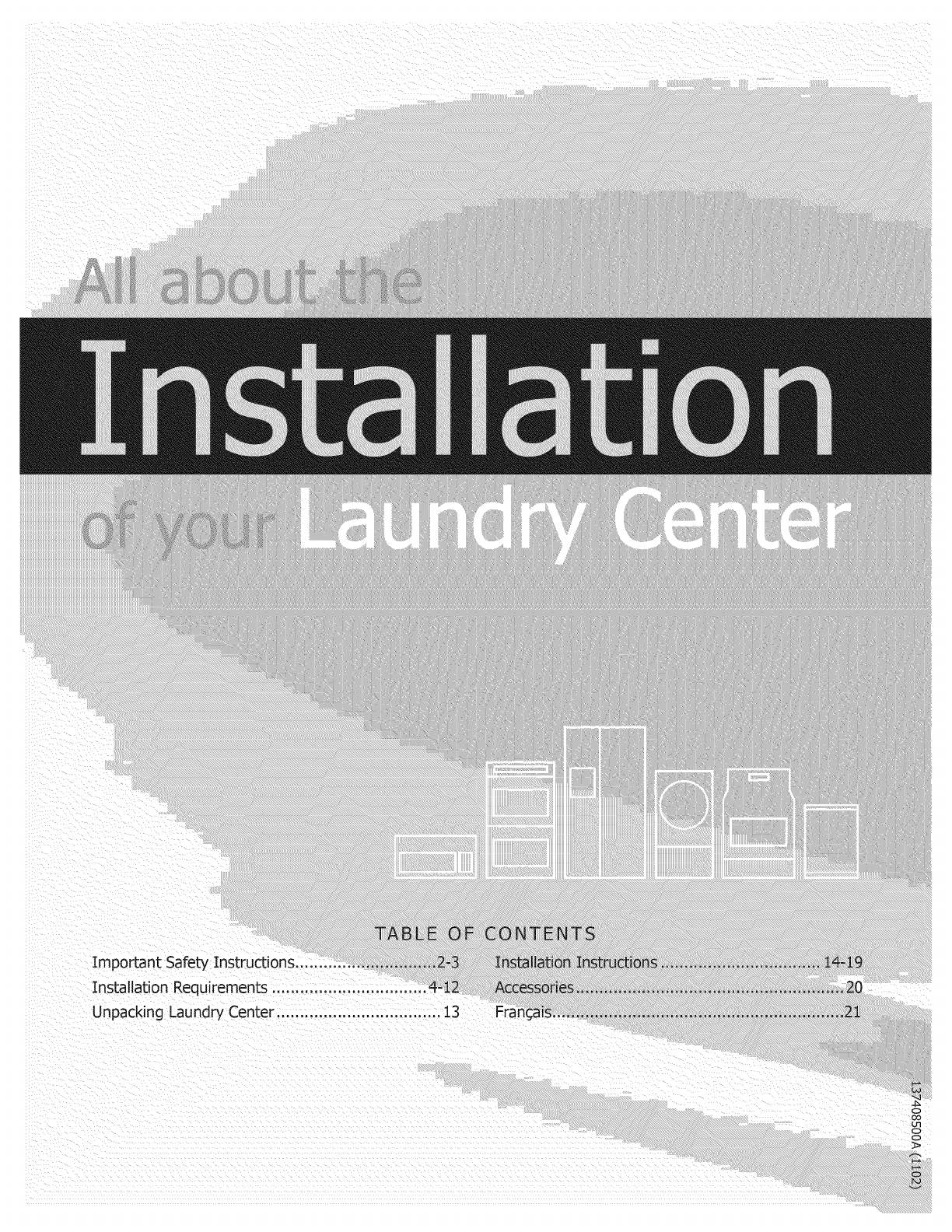

Frigidaire CFLE1011MW0 User manual

allation
TABLE OF CONTENTS
Important Safety: Instructions.. 2-3 Installation Instructions
Installation Requirements ACCeSSOries....
Unpacking Laundry. Center Francais...
(col)
voossorZet

IMPORTANT SAFETY INSTRUCTIONS
4 WARNING
For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent
property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
4 WARNING - RISK OF FIRE
Read all of the following instructions before installing and using this appliance:
« Destroy the carton and plastic bags after the laundry center is unpacked. Children might use them for play. Cartons
covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all mate-
rials in a garbage container or make materials inaccessible to children.
e Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
¢ Install the appliance according to the manufacturer's instructions and local codes.
e The electrical service to the appliance must conform with local codes and ordinances and the latest edition of the
National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
e The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National
Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. An individual manual shut-off valve must be
installed within 6 ft (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
* The laundry center is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for
HOME USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
¢ Do not install a clothes dryer with flexible plastic or flexible foil venting material. Flexible venting materials are
known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase
the risk of fire.
« The instructions in this manual and all other literature included with this appliance are not meant to cover every
possible condition and situation that may occur. Good safe practice and caution MUST be applied when installing,
operating and maintaining any appliance.
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance. A CAUTION
* Do not touch any electrical switch; do not use any phone in EXCESSIVE WEIGHT HAZARD
your building, To avoid back or other injury, have more than
¢ Clear the room, building or area of all occupants. one person move or lift the appliance.
« Immediately call your gas supplier from a neighbor’s phone. . .
Follow the gas supplier’s instructions. Save these instructions for
e If you cannot reach your gas supplier, call the fire department. future reference.
Pre-Installation Requirements
Tools and materials needed for installation:
« Adjustable pliers * Carpenter’s level * Gas line shutoff valve (gas dryer)
* Phillips, straight, & square bit « External vent hood « % NPT union flare adapters (x2)
screwdrivers @ 4-inch (102 mm), rigid metal or and flexible gas supply line (gas
* Adjustable wrench semi-rigid metal exhaust duct work dryer)
e Pipe wrench for gas supply (gas e 3-wire or 4-wire 240 volt cord kit « Metal foil tape (not duct tape)
dryer) (electric dryer)
« LP-resistant thread tape (for natu- = « 4 in. (10.2 cm) clamp
ral gas or LP supply, gas dryer)
2

IMPORTANT SAFETY INSTRUCTIONS
4 WARNING
Please read all instructions before using this
appliance.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled
with a WARNING or CAUTION based on the risk
type as described below:
Definitions
& This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
4y DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
4 WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
4y CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
2 IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but
not hazard-related.
4 Installation Checklist
Shipping Hardware
&} Foam shipping restraint (inside wash tub) removed and
stored
) Shipping bolt (underneath appliance) removed and stored
Leveling
{! Laundry Center is level, side-to-side and front-to-back
() Cabinet is setting solid on all corners
Water Supply
!} Rubber washers (shipped in tub) are installed in NEW inlet
hoses (shipped in tub)
&} HOT supply is connected to HOT inlet and COLD supply is
connected to COLD inlet
&} HOT and COLD water supply turned on
&! No leaks present at water supply connections or appliance
inlet connections - recheck in 24 hours
Drain
&! Stand pipe or wall drain height minimum 33”
&! Drain hose secured in place with cable tie (shipped in
drum)
Exhaust Venting
) Free-flowing, clear of lint buildup
&)} 4 inch (102 mm) rigid or semi-rigid ducting of minimal
length and turns
&} NO foil or plastic venting material
&! Approved vent hood exhausted to outdoors
Gas Supply (Gas Dryer)
=} Manual shutoff valve present in supply
) All connections sealed with approved sealer and wrench
tight
&} Conversion kit for LP system
() Gas supply turned on
f! No leaks present at all connections -
check with soapy water, NEVER check with flame
240v Electric Supply (Electric Dryer)
=! Approved NEMA 10-30R or 14-30R service cord with all
screws tight on terminal block
! Approved strain relief installed
} Terminal access cover installed before initial operation
Electrical Power
f)} House power turned on
) Laundry Center plugged in
Final Checks
“) Installation Instructions and Use and Care Guide
read thoroughly
{} Water enters drum when cycle starts with lid lowered.
Dryer door latches and drum tumbles when cycle starts.
) Registration card sent in

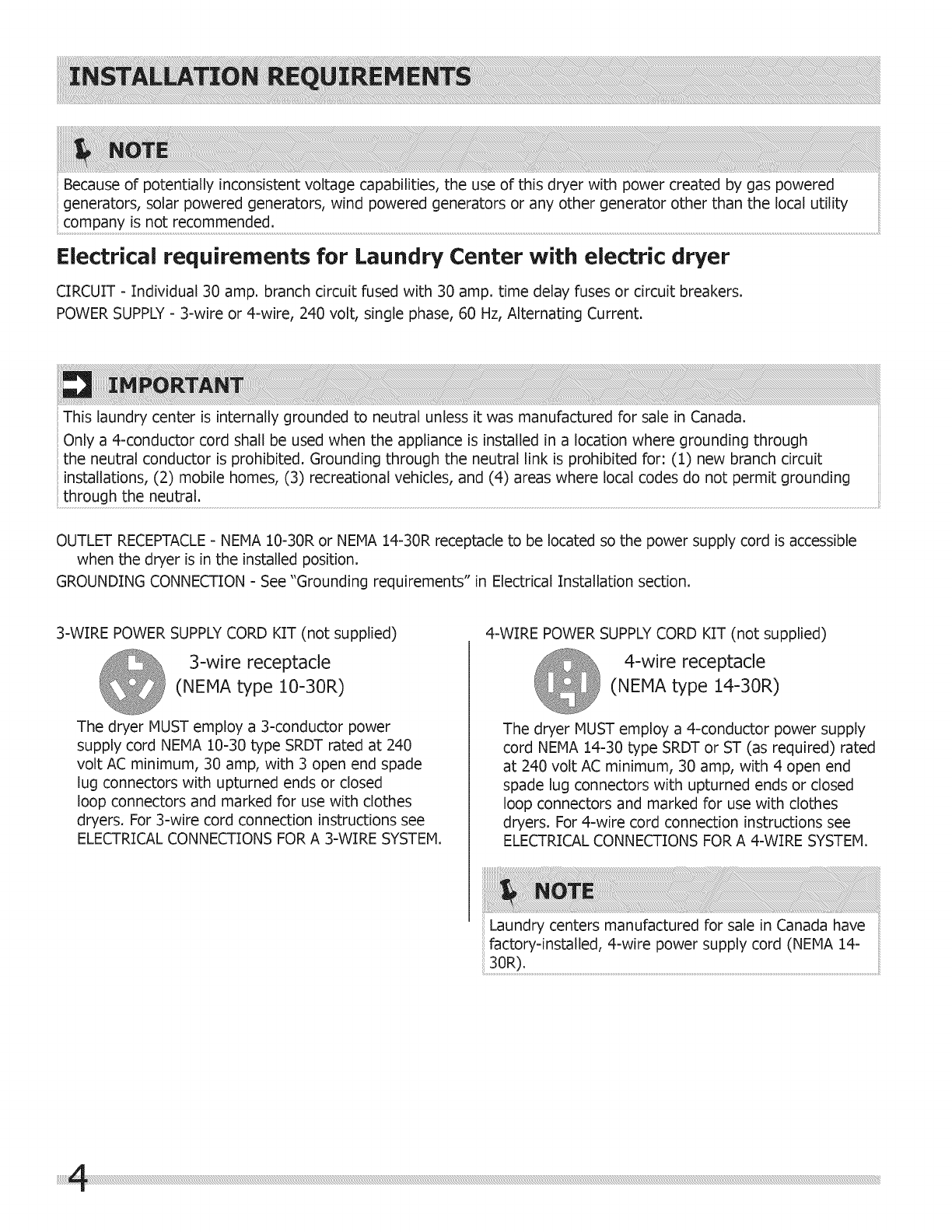

INSTALLATION REQUIREMENTS
& NOTE
Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered
generators, solar powered generators, wind powered generators or any other generator other than the local utility
company is not recommended.
Electrical requirements for Laundry Center with electric dryer
CIRCUIT - Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers.
POWER SUPPLY - 3-wire or 4-wire, 240 volt, single phase, 60 Hz, Alternating Current.
=a IMPORTANT
This laundry center is internally grounded to neutral unless it was manufactured for sale in Canada.
Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the neutral link is prohibited for: (1) new branch circuit
installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes do not permit grounding
through the neutral.
OUTLET RECEPTACLE - NEMA 10-30R or NEMA 14-30R receptacle to be located so the power supply cord is accessible
when the dryer is in the installed position.
GROUNDING CONNECTION - See “Grounding requirements” in Electrical Installation section.
3-WIRE POWER SUPPLY CORD KIT (not supplied)
3-wire receptacle
| (NEMA type 10-30R)
The dryer MUST employ a 3-conductor power
supply cord NEMA 10-30 type SRDT rated at 240
volt AC minimum, 30 amp, with 3 open end spade
lug connectors with upturned ends or closed
loop connectors and marked for use with clothes
dryers. For 3-wire cord connection instructions see
ELECTRICAL CONNECTIONS FOR A 3-WIRE SYSTEM.
4-WIRE POWER SUPPLY CORD KIT (not supplied)
4-wire receptacle
(NEMA type 14-30R)
The dryer MUST employ a 4-conductor power supply
cord NEMA 14-30 type SRDT or ST (as required) rated
at 240 volt AC minimum, 30 amp, with 4 open end
spade lug connectors with upturned ends or closed
loop connectors and marked for use with clothes
dryers. For 4-wire cord connection instructions see
ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM.
& NOTE
Laundry centers manufactured for sale in Canada have
factory-installed, 4-wire power supply cord (NEMA 14-
30R).

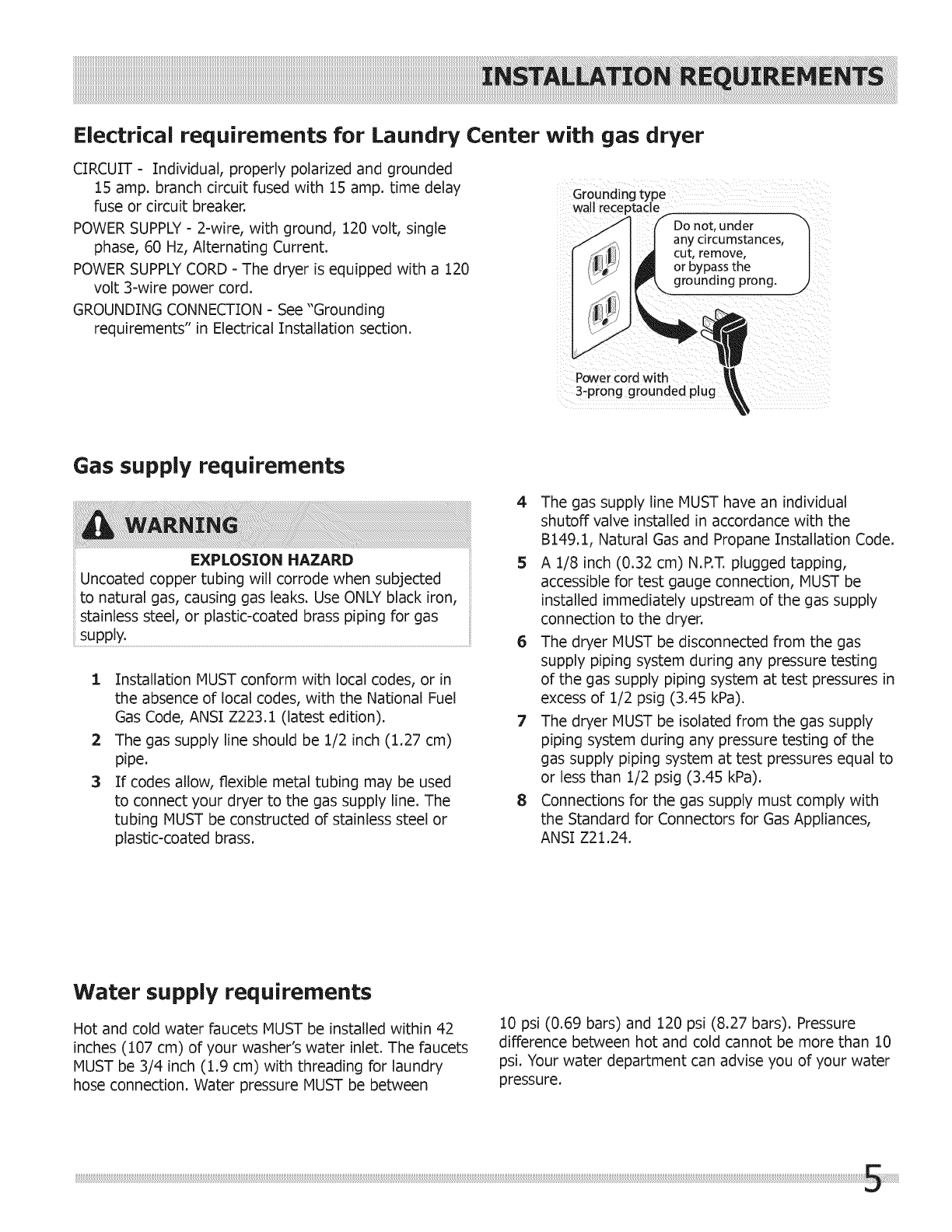

INSTALLATION REQUIREMENTS
Electrical requirements for Laundry Center with gas dryer
CIRCUIT - Individual, properly polarized and grounded
15 amp. branch circuit fused with 15 amp. time delay
fuse or circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current.
POWER SUPPLY CORD - The dryer is equipped with a 120
volt 3-wire power cord.
GROUNDING CONNECTION - See “Grounding
requirements” in Electrical Installation section.
Gas supply requirements
4 WARNING
EXPLOSION HAZARD
Uncoated copper tubing will corrode when subjected
to natural gas, causing gas leaks. Use ONLY black iron,
stainless steel, or plastic-coated brass piping for gas
supply.
1 Installation MUST conform with local codes, or in
the absence of local codes, with the National Fuel
Gas Code, ANSI 2223.1 (latest edition).
2 The gas supply line should be 1/2 inch (1.27 cm)
pipe.
3 If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing MUST be constructed of stainless steel or
plastic-coated brass.
Water supply requirements
Hot and cold water faucets MUST be installed within 42
inches (107 cm) of your washer’s water inlet. The faucets
MUST be 3/4 inch (1.9 cm) with threading for laundry
hose connection. Water pressure MUST be between
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with
3-prong grounded plug
4 The gas supply line MUST have an individual
shutoff valve installed in accordance with the
Bi49.1, Natural Gas and Propane Installation Code.
5 A 1/8 inch (0.32 cm) N.P.T. plugged tapping,
accessible for test gauge connection, MUST be
installed immediately upstream of the gas supply
connection to the dryer.
6 The dryer MUST be disconnected from the gas
supply piping system during any pressure testing
of the gas supply piping system at test pressures in
excess of 1/2 psig (3.45 kPa).
7 The dryer MUST be isolated from the gas supply
piping system during any pressure testing of the
gas supply piping system at test pressures equal to
or less than 1/2 psig (3.45 kPa).
8 Connections for the gas supply must comply with
the Standard for Connectors for Gas Appliances,
ANSI 221.24.
10 psi (0.69 bars) and 120 psi (8.27 bars). Pressure
difference between hot and cold cannot be more than 10
psi. Your water department can advise you of your water
pressure.

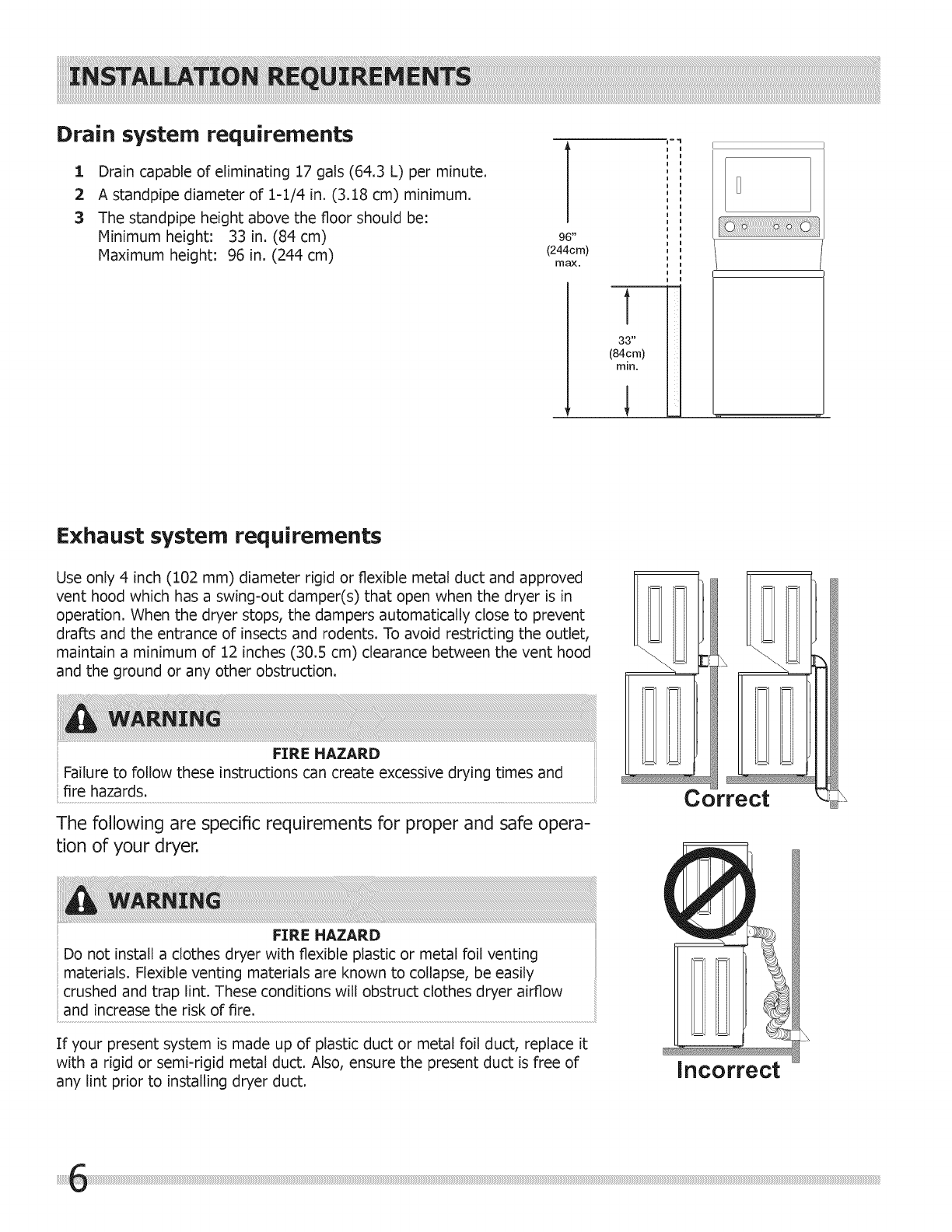

INSTALLATION REQUIREMENTS
Drain system requirements
1 Drain capable of eliminating 17 gals (64.3 L) per minute.
2 Astandpipe diameter of 1-1/4 in. (3.18 cm) minimum.
3 The standpipe height above the floor should be:
Minimum height: 33 in. (84 cm) 96”
Maximum height: 96 in. (244 cm) (eitcm) oo]
33”
(84cm)
min.

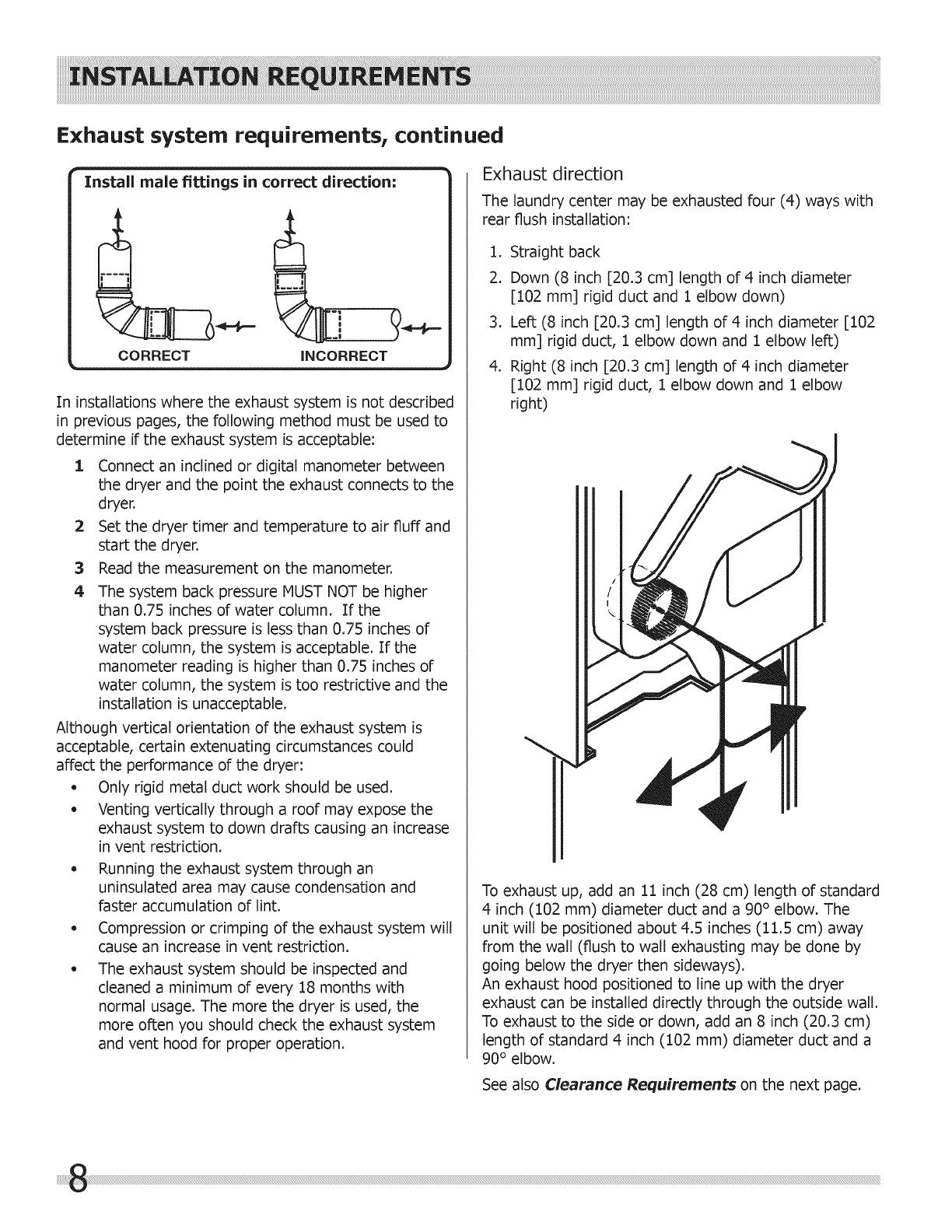

Exhaust system requirements
Use only 4 inch (102 mm) diameter rigid or flexible metal duct and approved
vent hood which has a swing-out damper(s) that open when the dryer is in
operation. When the dryer stops, the dampers automatically close to prevent
drafts and the entrance of insects and rodents. To avoid restricting the outlet,
maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood
and the ground or any other obstruction.
4y WARNING
FIRE HAZARD
Failure to follow these instructions can create excessive drying times and
fire hazards.
The following are specific requirements for proper and safe opera-
tion of your dryer.
44 WARNING
FIRE HAZARD
Do not install a clothes dryer with flexible plastic or metal foil venting
materials. Flexible venting materials are known to collapse, be easily
crushed and trap lint. These conditions will obstruct clothes dryer airflow
and increase the risk of fire.
If your present system is made up of plastic duct or metal foil duct, replace it «
with a rigid or semi-rigid metal duct. Also, ensure the present duct is free of
any lint prior to installing dryer duct. Incorrect

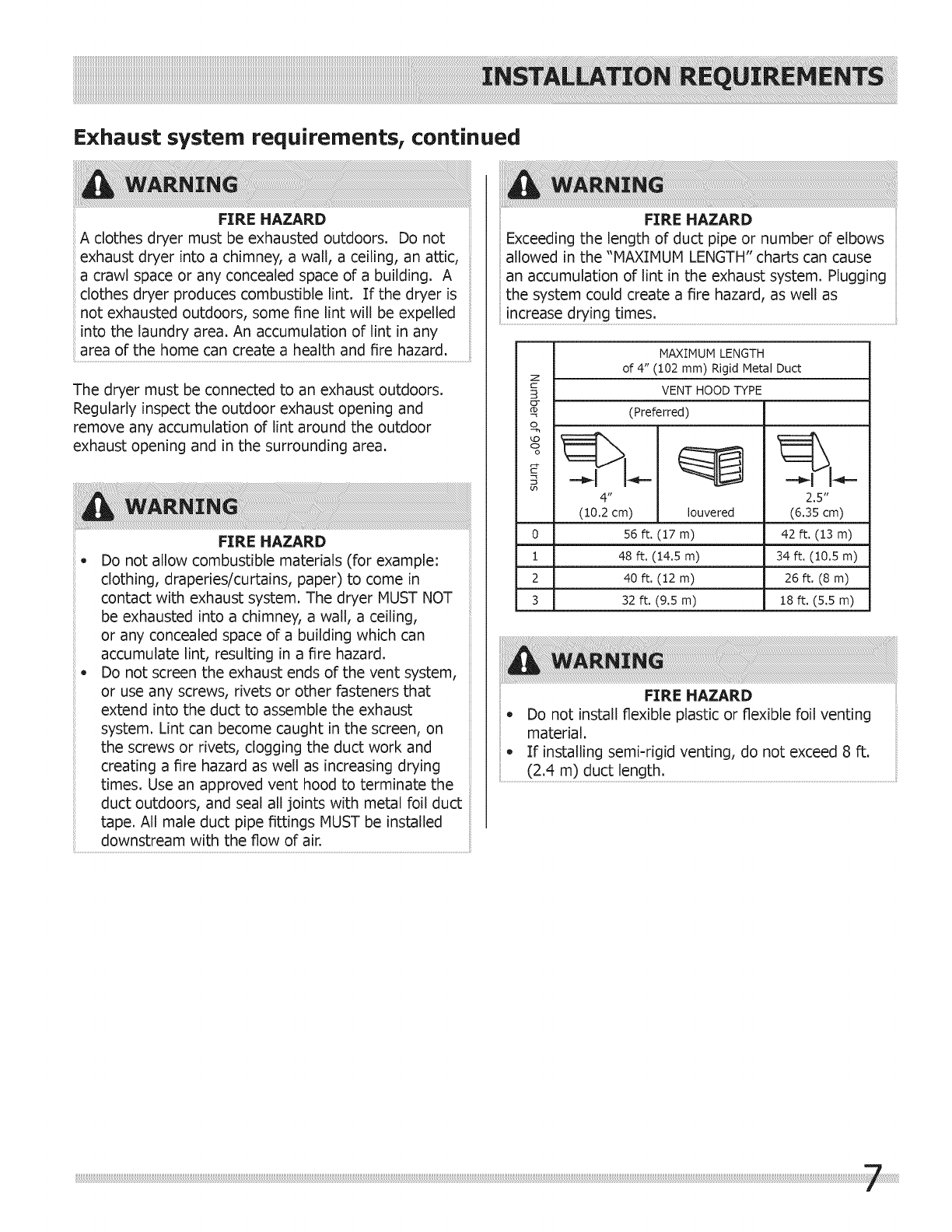

INSTALLATION REQUIREMENTS
Exhaust system requirements, continued
4 WARNING
FIRE HAZARD
A clothes dryer must be exhausted outdoors. Do not
exhaust dryer into a chimney, a wall, a ceiling, an attic,
a crawl space or any concealed space of a building. A
clothes dryer produces combustibie lint. If the dryer is
not exhausted outdoors, some fine lint will be expelled
into the laundry area. An accumulation of lint in any
area of the home can create a health and fire hazard.
The dryer must be connected to an exhaust outdoors.
Regularly inspect the outdoor exhaust opening and
remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area.
fy WARNING
FIRE HAZARD
« Do not allow combustible materials (for example:
clothing, draperies/curtains, paper) to come in
contact with exhaust system. The dryer MUST NOT
be exhausted into a chimney, a wail, a ceiling,
or any concealed space of a building which can
accumulate lint, resulting in a fire hazard.
« Do not screen the exhaust ends of the vent system,
or use any screws, rivets or other fasteners that
extend into the duct to assemble the exhaust
system. Lint can become caught in the screen, on
the screws or rivets, clogging the duct work and
creating a fire hazard as well as increasing drying
times. Use an approved vent hood to terminate the
duct outdoors, and seal all joints with metal foil duct
tape. All male duct pipe fittings MUST be installed
downstream with the flow of air.
4 WARNING
FIRE HAZARD
Exceeding the length of duct pipe or number of elbows
allowed in the “MAXIMUM LENGTH” charts can cause
an accumulation of lint in the exhaust system. Plugging
the system could create a fire hazard, as well as
increase drying times.
material.
MAXIMUM LENGTH
> of 4” (102 mm) Rigid Metal Duct
5 VENT HOOD TYPE
8 (Preferred)
2
oO
Oo
o
5
SE
3 —>|
w
4" 2.5"
(10.2 cm) louvered (6.35 cm)
0 56 ft. (17 m) 42 ft. (13 m)
1 48 ft. (14.5 m) 34 ft. (10.5 m)
2 40 ft. (12 m) 26 ft. (8 m)
3 32 ft. (9.5 m) 18 ft. (5.5 m)
4 WARNING
FIRE HAZARD
e Do not install flexible plastic or flexible foil venting
® If installing semi-rigid venting, do not exceed 8 ft.
(2.4 m) duct length.

INSTALLATION REQUIREMENTS
Exhaust system requirements, continued
! Install male fittings in correct direction:
EN
CORRECT
INCORRECT
te
In installations where the exhaust system is not described
in previous pages, the following method must be used to
determine if the exhaust system is acceptabie:
1 Connect an inclined or digital manometer between
the dryer and the point the exhaust connects to the
dryer.
2 Set the dryer timer and temperature to air fluff and
start the dryer.
3 Read the measurement on the manometer.
4 The system back pressure MUST NOT be higher
than 0.75 inches of water column. If the
system back pressure is less than 0.75 inches of
water column, the system is acceptable. If the
manometer reading is higher than 0.75 inches of
water column, the system is too restrictive and the
installation is unacceptable.
Although vertical orientation of the exhaust system is
acceptable, certain extenuating circumstances could
affect the performance of the dryer:
e Only rigid metal duct work should be used.
« Venting vertically through a roof may expose the
exhaust system to down drafts causing an increase
in vent restriction.
« Running the exhaust system through an
uninsulated area may cause condensation and
faster accumulation of lint.
« Compression or crimping of the exhaust system will
cause an increase in vent restriction.
« The exhaust system should be inspected and
cleaned a minimum of every 18 months with
normal usage. The more the dryer is used, the
more often you should check the exhaust system
and vent hood for proper operation.
Exhaust direction
The laundry center may be exhausted four (4) ways with
rear flush installation:
1. Straight back
2. Down (8 inch [20.3 cm] length of 4 inch diameter
[102 mm] rigid duct and 1 elbow down)
3. Left (8 inch [20.3 cm] length of 4 inch diameter [102
mm] rigid duct, 1 elbow down and 1 elbow left)
4. Right (8 inch [20.3 cm] length of 4 inch diameter
[102 mm] rigid duct, 1 elbow down and 1 elbow
right)
To exhaust up, add an 11 inch (28 cm) length of standard
4 inch (102 mm) diameter duct and a 90° elbow. The
unit will be positioned about 4.5 inches (11.5 cm) away
from the wall (flush to wall exhausting may be done by
going below the dryer then sideways).
An exhaust hood positioned to line up with the dryer
exhaust can be installed directly through the outside wall.
To exhaust to the side or down, add an 8 inch (20.3 cm)
length of standard 4 inch (102 mm) diameter duct and a
90° elbow.
See also Clearance Requirements on the next page.

Manufactured or mobile home installation
1 Installation MUST conform to current Manufactured
Home Construction & Safety Standard, Title 24
CFR, Part 32-80 (formerly the Federal Standard
for Mobile Home Construction and Safety, Title 24,
HUD Part 280) or Standard CAN/CSAZ240 MH.
2 Dryer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducting
that will not support combustion. Metal ducting
must be 4 inches (10.16 cm) in diameter with no
obstructions. Rigid metal duct is preferred.
3 If dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the exhaust
Clearance requirements
4 WARNING
EXPLOSION HAZARD
Do not install the dryer where gasoline or other
flammables are kept or stored. If the dryer is installed
in a garage, it must be a minimum of 18 inches (45.7
cm) above the floor. Failure to do so can result in
death, explosion, fire or burns.
=a IMPORTANT.
DO NOT INSTALL YOUR LAUNDRY CENTER:
i In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60° F (15.6° C) to
maximize detergent effectiveness.
2 Inan area where it will come in contact with
curtains, drapes, or anything that will obstruct
the flow of combustion and ventilation air.
3 On carpet. Floor MUST be solid with a maximum
Slope of 1 inch (2.5 cm). To minimize vibration
or movement, reinforcement of the floor may be
necessary.
Installation in a Recess or Closet
1 A dryer instalied in a bedroom, bathroom, recess or
closet, MUST be exhausted outdoors.
2 No other fuel burning appliance shall be installed in
the same closet as the gas dryer.
3 Your dryer needs the space around it for proper
ventilation.
INSTALLATION REQUIREMENTS
system MUST terminate outside the enclosure with
the termination securely fastened to the mobile
home structure.
Refer to previous sections in this guide for other
important exhaust venting system requirements.
When installing a gas dryer into a mobile home, a
provision must be made for outside make up air.
This provision is to be not less than twice the area
of the dryer exhaust outlet.
Installer MUST anchor this laundry center to the
floor with approved Mobile Home Installation Kit -
P/N 137067200.
DO NOT install your dryer in a closet with a solid door.
4 Closet door ventilation required: A minimum
of 120 square inches (774.2 cm2) of opening,
equally divided at the top and bottom of the
door, is required. Openings should be located 3
inches (7.6 cm) from bottom and top of door.
Openings are required to be unobstructed when a
door is installed. A louvered door with equivalent
air openings for the full length of the door is
acceptable.
oy
60 sq. in.
(887.1cm2)
60 sq. in.
(887.1cm2}

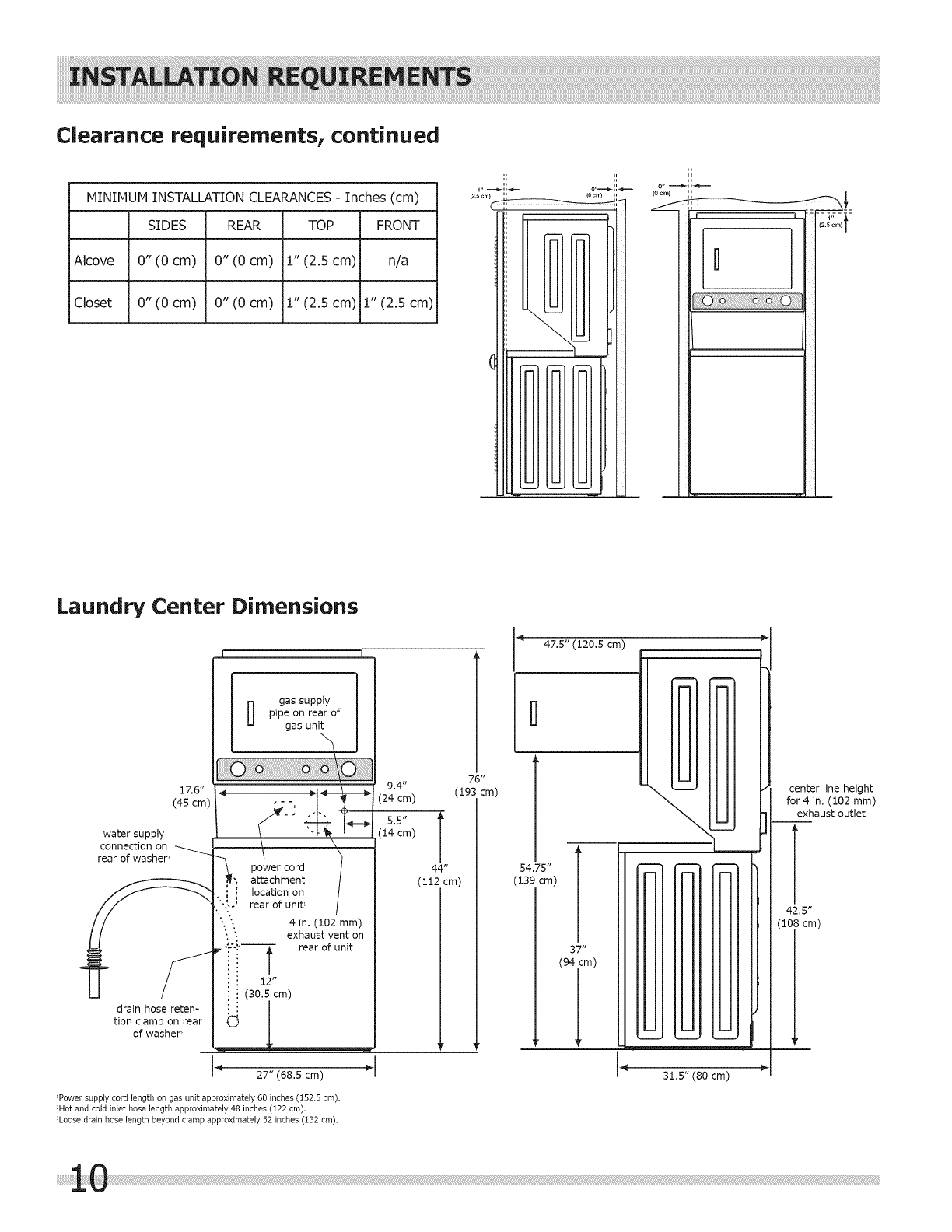

INSTALLATION REQUIREMENTS
Clearance requirements, continued
u
07 ee Jha
MINIMUM INSTALLATION CLEARANCES - Inches (crm) aes i eon) —}
SIDES REAR TOP FRONT 4 esem
Alcove | 0”7(O0cm) | 0” (0 cm) |1” (2.5 cm) n/a |
Closet | 0” (0 cm) | 0” (0 cm) | 1” (2.5 cm)/ 1” (2.5 cm) Oe °20
q \
Laundry Center Dimensions
47.5” (120.5 cm) >
f l a
L.
gas supply
pipe on rear of |
gas unit
a
Oo 9.910 | ; i,
17.6" | pl ¢—_|__p 9.4 (193 em) “, — center line height
(45 em) ert, ‘ (24 em) for 4 in. (102 mm)
a
oe
5.5”
a
]
exhaust
outlet
water supply ‘she Fd (14cm) 4
connection on es \ _
tear of washer
ry power cord 44” 54.75” )
W attachment (112 cm) (139 cm)
. 14 location on
hoe rear of unit: 42.5"
oad 4 in. (102 mm) (108 cm)
Lk exhaust vent on
= Se rear of unit 37"
tt { (94 cm)
Db 12”
: + (30.5 cm)
drain hose reten- ft
tion clamp on rear | €3
of washer
wv v vy yy ¥
27” (68.5 cm)
1Power supply cord length on gas unit approximately 60 inches (152.5 cm).
?Hot and cold inlet hose length approximately 48 inches (122 cm).
Loose drain hase length beyond clamp approximately 52 inches (132 cm).
10
31.5” (80 cm)

Electrical installation
The following are specific requirements for proper and
safe electrical installation of your dryer. Failure to follow
these instructions can create electrical shock and/or a fire
hazard.
4 WARNING
ELECTRICAL SHOCK HAZARD
e This appliance MUST be properly grounded.
Electrical shock can result if the dryer is not properly
grounded. Follow the instructions in this manual for
proper grounding.
« Do not use an extension cord with this dryer. Some
extension cords are not designed to withstand the
amounts of electrical current this dryer utilizes
and can melt, creating electrical shock and/
or fire hazard. Locate the dryer within reach of
the receptacle for the length power cord to be
purchased, allowing some slack in the cord. Refer to
the pre-installation requirements in this manual for
INSTALLATION REQUIREMENTS
4y WARNING
ELECTRICAL SHOCK HAZARD
« A U.L.-approved strain relief must be installed onto
power cord. If the strain relief is not attached, the
cord can be pulled out of the dryer and can be cut
by any movement of the cord, resulting in electrical
shock.
« Do not use an aluminum wired receptacle with a
copper wired power cord and plug (or vice versa).
A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The
proper wiring and receptacle is a copper wired
power cord with a copper wired receptacle.
the proper power cord to be purchased.
& NOTE
Dryers operating on 208 volt power supply will have
longer drying times than dryers operating on 240 volt
power supply.
Grounding requirements - Electric dryer (USA)
4 WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check
with a licensed electrician if you are in doubt as to
whether the appliance is properly grounded.
For a grounded, cord-connected dryer:
i The dryer MUST be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electrical shock by a path of least
resistance for electrical current.
2 After you purchase and install a 3 wire or 4 wire
power supply cord having an equipment-grounding
conductor and a grounding plug that matches your
wiring system, the plug MUST be plugged into
an appropriate, copper wired receptacle that is
properly installed and grounded in accordance with
all local codes and ordinances. If in doubt, call a
licensed electrician.
3 DO NOT modify the plug you've installed on this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
For a permanently connected dryer:
i The dryer MUST be connected to a grounded
metal, permanent wiring system; or an equipment
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
rt

INSTALLATION REQUIREMENTS
Grounding requirements - Electric dryer (Canada)
the risk of electrical shock by a path of least
a WARNING resistance for electrical current.
ELECTRICAL SHOCK HAZARD 2 Since your dryer is equipped with a power supply
Improper connection of the equipment grounding cord having an equipment-grounding conductor
conductor can result in a risk of electrical shock. Check and a grounding plug, the plug must be plugged
with a licensed electrician if you are in doubt as to into an appropriate outlet that is properly installed
whether the appliance is properly grounded. and grounded in accordance with all local codes
and ordinances. If in doubt, call a licensed
For a grounded, cord-connected dryer: electrician.
1 The dryer MUST be grounded. In the event of a 3 DO NOT modify the plug provided with this
malfunction or breakdown, grounding will reduce appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Grounding requirements - Gas dryer (USA and Canada)
1 The dryer is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a Grounding type
properly grounded three-prong receptacle. wall receptacle
2 The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances. If
in doubt, call a licensed electrician.
3 DO NOT modify the plug provided with this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with \
3-prong grounded plug
12

Unpacking Instructions
2 IMPORTANT
To prevent vibration, possible machine damage and
maximize performance, the foliowing steps must be
completed.
1. If foam tub block has been removed, reinsert it now
and retape the lid securely.
2. Using a rug, blanket or piece of cardboard to protect
the floor, carefully lay the laundry center on its left
side.
4y CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one
person move or lift the appliance.
PLASTIC WIRE CLIP
SPACER
PLASTIC
CLIP
3. Using a ratchet with 3/8” (10 mm) socket, remove the
mechanism shipping bolt and plastic spacer block from
the center of the base.
UNPACKING LAUNDRY CENTER
& NOTE
If the laundry center is to be transported at a later
date, the tub blocking pad, shipping bolt, and plastic
spacer block should be retained.
4. Carefully return the laundry center to an upright
position.
5. Remove the tape holding the lid shut and open the lid.
6. Remove the foam tub biock.
7. Remove the inlet hoses and other tub contents.
8. From the back of the washer, remove the wire
shipping clip securing the drain hose.
9. DO NOT remove the PLASTIC CLAMP which secures
the drain hose to the right side of the washer
backsheet. It helps form a standpipe to prevent water
siphoning.
10.Carefully move the laundry center to within 4 feet of
the final location for the start of the installation.
£3

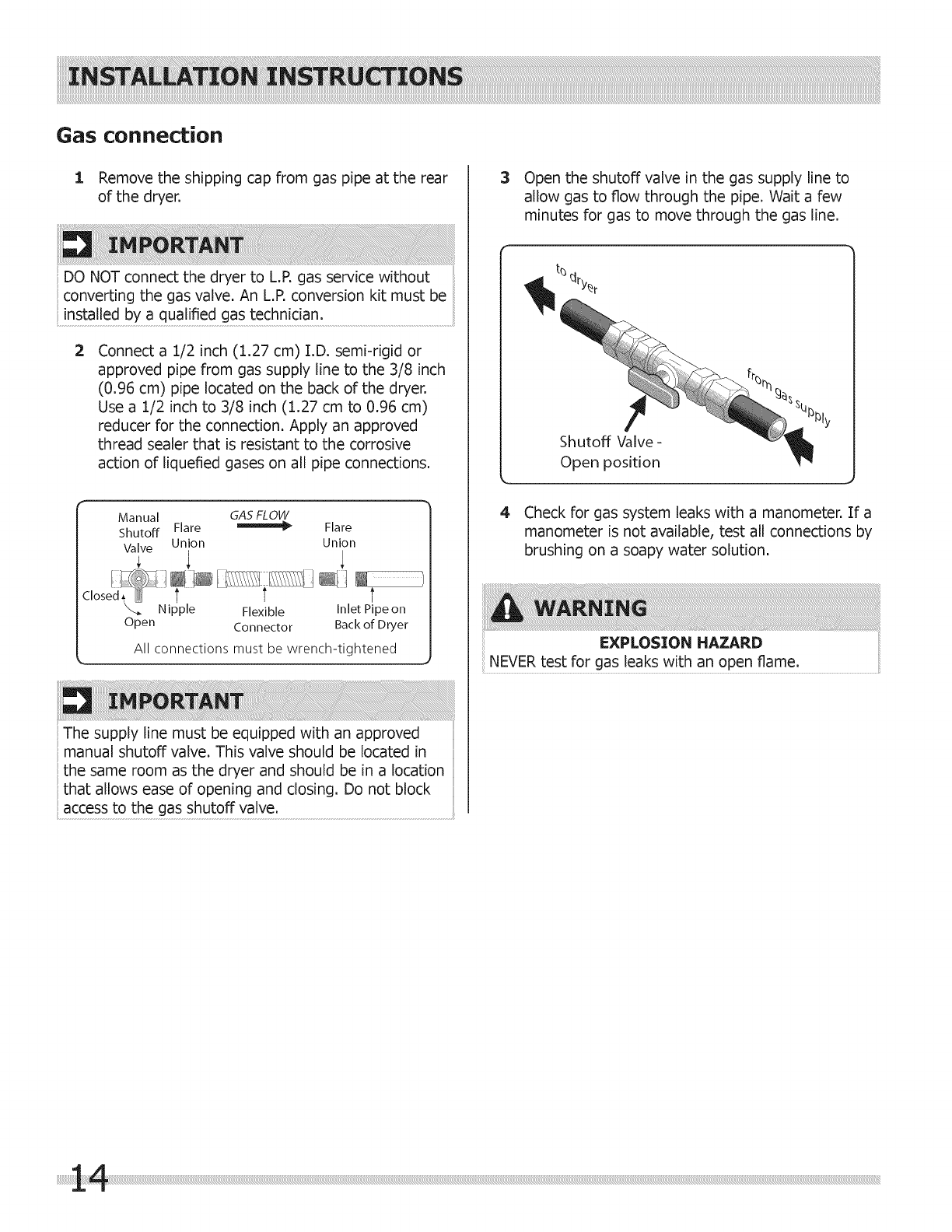

INSTALLATION INSTRUCTIONS
Gas connection
i Remove the shipping cap from gas pipe at the rear
of the dryer.
2 IMPORTANT
DO NOT connect the dryer to L.P. gas service without
converting the gas valve. An L.P. conversion kit must be
installed by a qualified gas technician.
2 Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or
approved pipe from gas supply line to the 3/8 inch
(0.96 cm) pipe located on the back of the dryer.
Use a 1/2 inch to 3/8 inch (1.27 cm to 0.96 cm)
reducer for the connection. Apply an approved
thread sealer that is resistant to the corrosive
action of liquefied gases on all pipe connections.
Manual GAS FLOW
Shutoff Flare nt Flare
Valve Union Union
Xe Nigple
Open
inlet Pipe on
Back of Dryer
Flexible
Connector
All connections must be wrench-tightened
=a IMPORTANT
The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in
the same room as the dryer and should be in a location
that allows ease of opening and closing. Do not biock
access to the gas shutoff valve.
3 Open the shutoff valve in the gas supply line to
allow gas to flow through the pipe. Wait a few
minutes for gas to move through the gas line.
Shutoff Valve - %
Open position
\. vA
4 Check for gas system leaks with a manometer. If a
manometer is not available, test all connections by
brushing on a soapy water solution.
44 WARNING
EXPLOSION HAZARD
NEVER test for gas leaks with an open flame.
14

INSTALLATION INSTRUCTIONS
Electrical connection (non-Canada) - 3 wire cord
3-wire receptacle
(NEMA type 10-30R)
44 WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal biock
access cover on the back of the dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer’s instructions
in the power cord entry hole below the access
panel. At this time, the strain relief should be
loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 10-30 type SRDT, through the
strain relief.
5 Attach the power cord neutral (center wire)
conductor to the SILVER colored center terminal on
the terminal block. Tighten the screw securely.
6 Attach the remaining two power cord outer
conductors to the outer, BRASS colored terminals on
the terminal block. Tighten both screws securely.
44 WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/conductor at
connections.
7 Follow manufacturer's guidelines for firmly securing
the strain relief and power cord.
8 Reinstall the terminal block cover.
=a’ IMPORTANT:
If moving dryer from a 4-wire system and installing it
in a 3-wire system, move the internal ground from the
center terminal back to the GREEN screw next to the
terminal block.
30 AMP
NEMA 10-30 Neutral
(center wire)
Neutral
terminal
DO NOT remove
internal ground in a
3-wire system!
15

INSTALLATION INSTRUCTIONS
Electrical connection (non-Canada) - 4 wire cord
4-wire receptacle
(NEMA type 14-30R)
44 WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal biock
access cover on the back of the dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer's instructions
in the power cord entry hole below the access
panel. At this time, the strain relief should be
loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 14-30 type ST or SRDT, through
the strain relief.
5 Disconnect the internal (WHITE) dryer harness
ground wire from the (GREEN) ground screw next
to the terminal block.
6 Attach the ground (GREEN) power cord wire to the
cabinet with the ground (GREEN) screw. Tighten
the screw securely.
7 Move the internal dryer harness ground (WHITE)
wire to the terminal block and attach it along with
the neutral (WHITE) power cord wire conductor
to the center, SILVER colored terminal on the
terminal block. Tighten the screw securely.
8 Attach the RED and BLACK power cord conductors
to the outer, BRASS colored terminals on the
terminal block. Tighten both screws securely.
44 WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/conductor at
connections.
9 Follow manufacturer’s guidelines for firmly securing
the strain relief and power cord.
10 Reinstall the terminal block cover.
16
Neutral
(WHITE wire)
30 AMP
7 NEMA 14-30
Ground
Oo (GREEN wire)
gd
Neutral
terminal
GREEN
ground screw
WHITE
neutral wire
Fe
Move internal ground
(WHITE) wire to neutral
(silver) terminal for
4-wire system BLACK
or RED
power wire
BLACK
or RED
power wire

INSTALLATION INSTRUCTIONS
Leveling your laundry center
Excessive noise and vibration can be prevented by
properly leveling the laundry center.
1 With the laundry center within 4 feet (1 m) of its
final location, place a level on top of the washer lid.
2 Use adjustable pliers to adjust the leveling legs so
the laundry center is level front-to-rear and side-to-
side, and stable corner-to-corner.
3 Press down on alternate corners and sides and feel
for the slightest movement. Adjust the appropriate
leg(s) so the laundry center sits solidly on the floor
on ALL four legs. Keep the leveling leg extension at
a minimum for best performance of the washer.
Connecting inlet water
i Run some water from the hot and cold faucets to
flush the water lines and remove particles that might
clog the water valve screens and to determine which
faucet is hot and which is cold supply.
2 Remove the inlet hoses and rubber washers from the
plastic bag located in the drum of the washer and install
the rubber washers in each end of the inlet hoses.
RUBBER WASHERS oS
MUST BE PRESENT USE ONLY
~NEW HOSES
3 Connect the HOT inlet hose to the HOT inlet
connection on the washer and the COLD inlet hose to
the COLD inlet connection on the washer. Tighten by
hand until snug. Then tighten each supply connection
another 2/3 turn with pliers. Do not cross thread
or over-tighten these connections.
4 Connect the HOT iniet hose to the HOT water
supply and the COLD inlet hose to the COLD water
supply. Tighten by hand until snug. Then tighten
each supply connection another 2/3 turn with pliers.
Do not bend, kink or pinch water inlet hoses.
5 Turn on the water and check for leaks. (COLD)
17

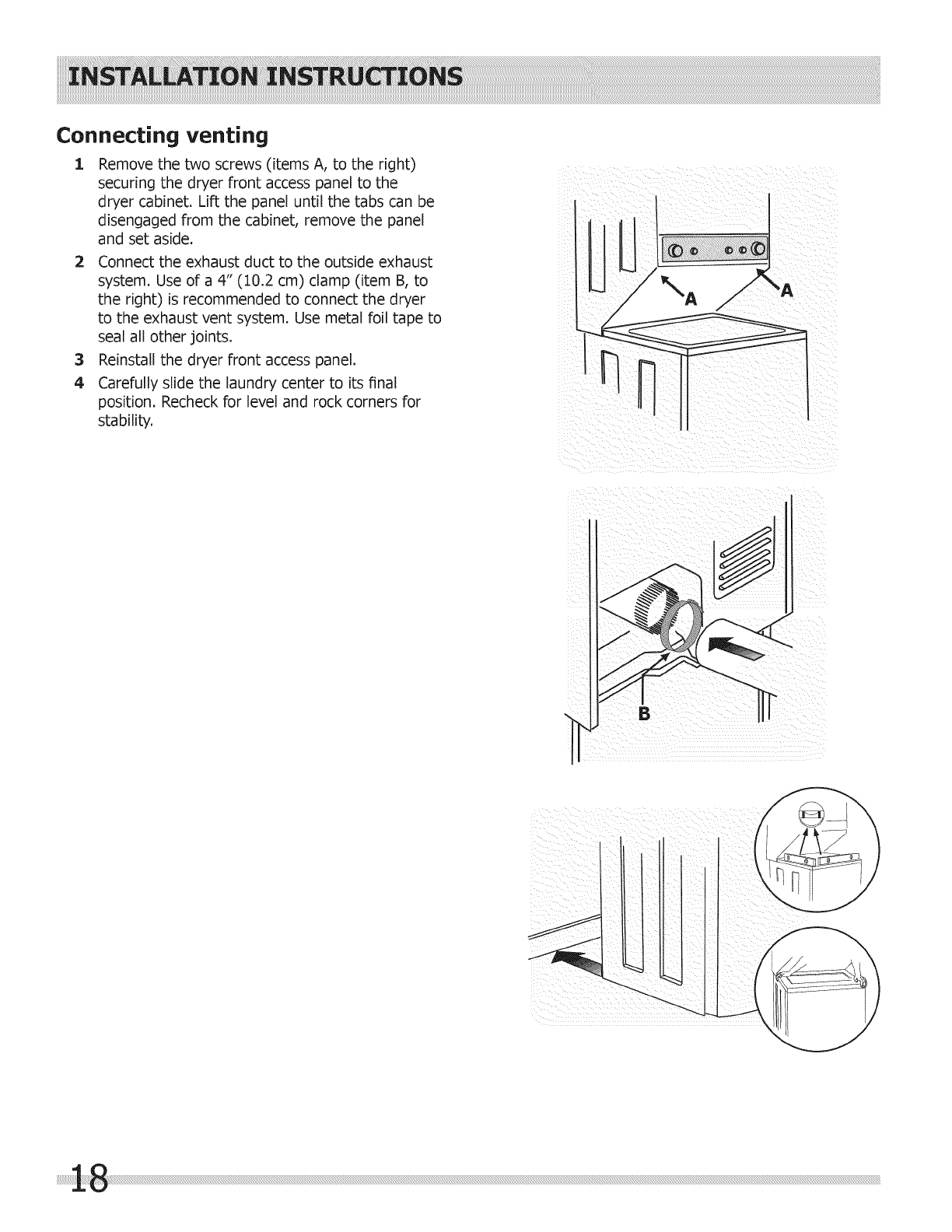

INSTALLATION INSTRUCTIONS
Connecting venting
1 Remove the two screws (items A, to the right)
securing the dryer front access panel to the
dryer cabinet. Lift the panel until the tabs can be
disengaged from the cabinet, remove the panel
and set aside.
2 Connect the exhaust duct to the outside exhaust
system. Use of a 4” (10.2 cm) clamp (item B, to
the right) is recommended to connect the dryer
to the exhaust vent system. Use metal foil tape to
seal all other joints.
Reinstall the dryer front access panel.
4 Carefully slide the laundry center to its final
position. Recheck for level and rock corners for
stability.
Gd
18

INSTALLATION INSTRUCTIONS
Connecting drain and electrical
i
Form a “U” shape on the end of the drain hose with the
hose pointed toward the drain. Place the formed end in
a laundry tub or a standpipe and secure with a cable tie
provided in the enclosure package.
Place the hook end of the drain hose in the drain
opening. Secure the drain hose with the cable tie
(provided in the enclosure package) to the standpipe,
inlet hose, laundry tub, etc. so the hose does not pull
out from the force of the water.
=a IMPORTANT
Be sure the power is off at a circuit breaker/fuse box before
plugging the power cord into an outlet.
3
Grounding type
wall receptacle
3-prong grounded plug
4
5
Power cord with \ =
aay
Plug the power cord into a grounded outlet.
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
|
Turn on the power at the circuit breaker/fuse box.
Read the Use & Care Guide provided with the laundry
center. It contains valuable and helpful information that
will save you time and money.
Run the washer through a complete cycle, checking for
water leaks and proper operation.
If you have any questions during initial operation,
please review the “Avoid Service Checklist” in your Use
& Care Guide before calling for service.
Place these instructions in a location near the appliance
for future reference.
i NOTE
A wiring diagram and technical data sheet are located
behind the dryer access panel.
CABLE TIE
£9

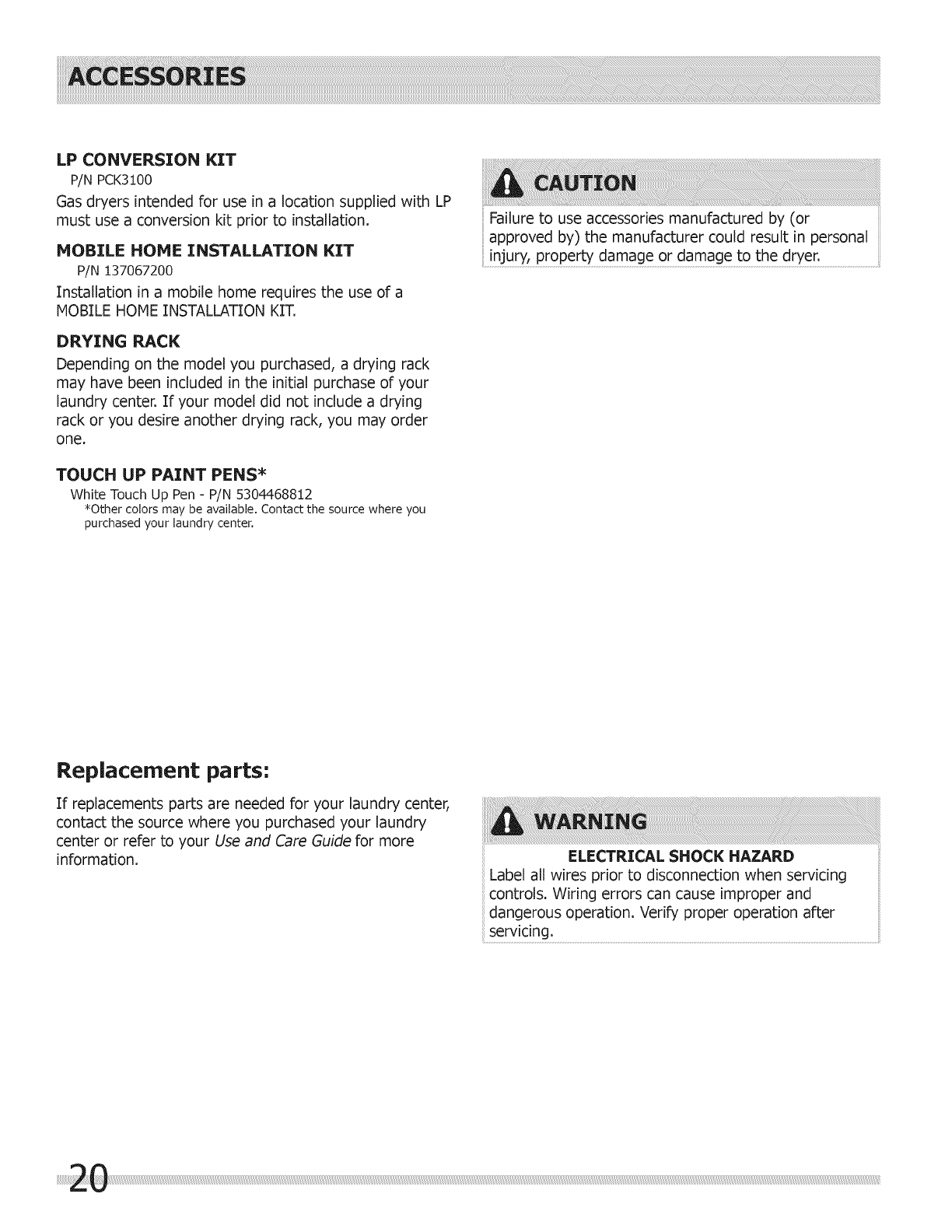

ACCESSORIES
LP CONVERSION KIT
P/N PCK3100
Gas dryers intended for use in a location supplied with LP
must use a conversion kit prior to installation.
MOBILE HOME INSTALLATION KIT
P/N 137067200
Installation in a mobile home requires the use of a
MOBILE HOME INSTALLATION KIT.
DRYING RACK
Depending on the model you purchased, a drying rack
may have been included in the initial purchase of your
laundry center. If your model did not include a drying
rack or you desire another drying rack, you may order
one.
TOUCH UP PAINT PENS*
White Touch Up Pen - P/N 5304468812
*Other colors may be available. Contact the source where you
purchased your laundry center.
Replacement parts:
If replacements parts are needed for your laundry center,
contact the source where you purchased your laundry
center or refer to your Use and Care Guide for more
information.
20
44 CAUTION
Failure to use accessories manufactured by (or
approved by) the manufacturer could result in personal
injury, property damage or damage to the dryer.
4& WARNING
ELECTRICAL SHOCK HAZARD
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after
servicing.
