Frigidaire PLWC486GS0 User manual

e
Welcome ....................... 2
e_ Safety instructions ......... 2°3
Unstaitation o- i.o_.de, c...g_ng
the Reversible Door ................ 3 ® 4
Care & C_eaning ............... 6
Warranty ...................... 7 "_
Before You Call ............... 8
READ AND SAVE THESE INSTRUCTIONS pin5995485017(Feb 07)

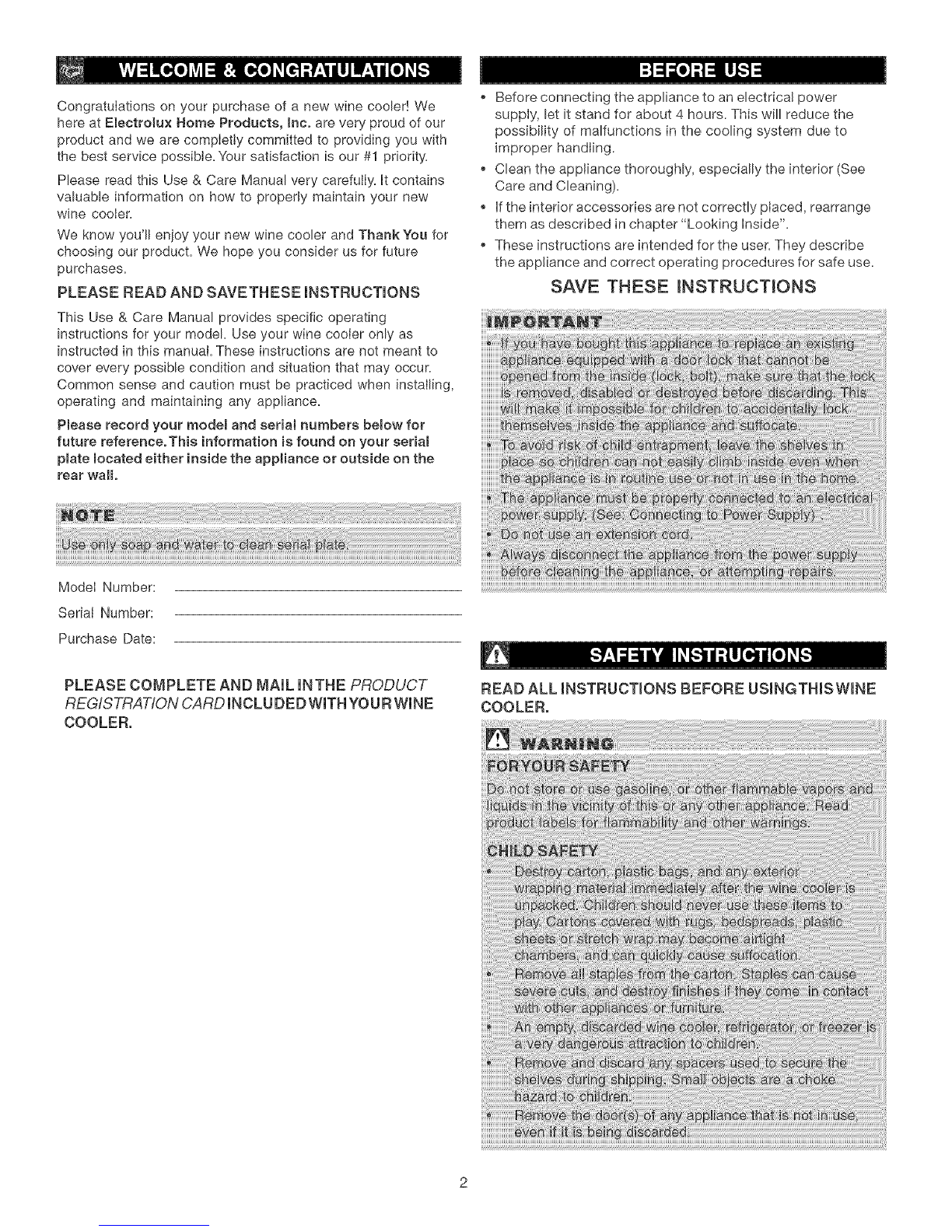

Congratulations on your purchase of a new wine cooler! We
here at EBectrotux Home Products, inc. are very proud of our
product and we are completiy committed to providing you with
the best service possible. Your satisfaction is our #1 priority.
Please read this Use & Care Manual very carefuily. It contains
valuable information on how to properly maintain your new
wine cooler.
We know you'll enioy your new wine cooler and Thank You for
choosing our product. We hope you consider us for future
purchases.
PLEASE READ AND SAVETHESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your wine cooier only as
instructed in this manuai. These instructions are not meant to
cover every possible condition and situation that may occur.
Common sense and caution must be practiced when instailing,
operating and maintaining any appliance.
Pmeaserecord your modeB and serial numbers below for
future reference.This information is found on your seriaB
pmateBocated either inside the appliance or outside on the
rear wall.
,, Before connecting the appliance to an electrical power
supply, let it stand for about 4 hours. This will reduce the
possibility of malfunctions in the cooling system due to
improper handling.
Clean the appliance thoroughly, especially the interior (Bee
Care and Cleaning).
o Iftheinterioraccessoriesarenotcorrectlyptaced, rearrange
them as described in chapter "Looking inside".
These instructions are intended for the user. They describe
the appliance and correct operating procedures for safe use.
SAVE THESE mNSTRUCTIONS
Model Number:
Serial Number:
Purchase Date:
PLEASE COMPLETE AND MAIL INTHE PRODUCT
REGISTRATION CARD INCLU DED WITH YOURWINE
COOLER.
READ ALL iNSTRUCTiONS BEFORE USINGTHISWINE
COOLER.

Grounding type
wall receptacle
Power supply
cord with 3-prong
grounding plug
This Use and Care Guide provides specific operating
instructions for your model, Use the wine cooler only as
instructed in this guide, Before starting the wine eooter follow
these important first steps.

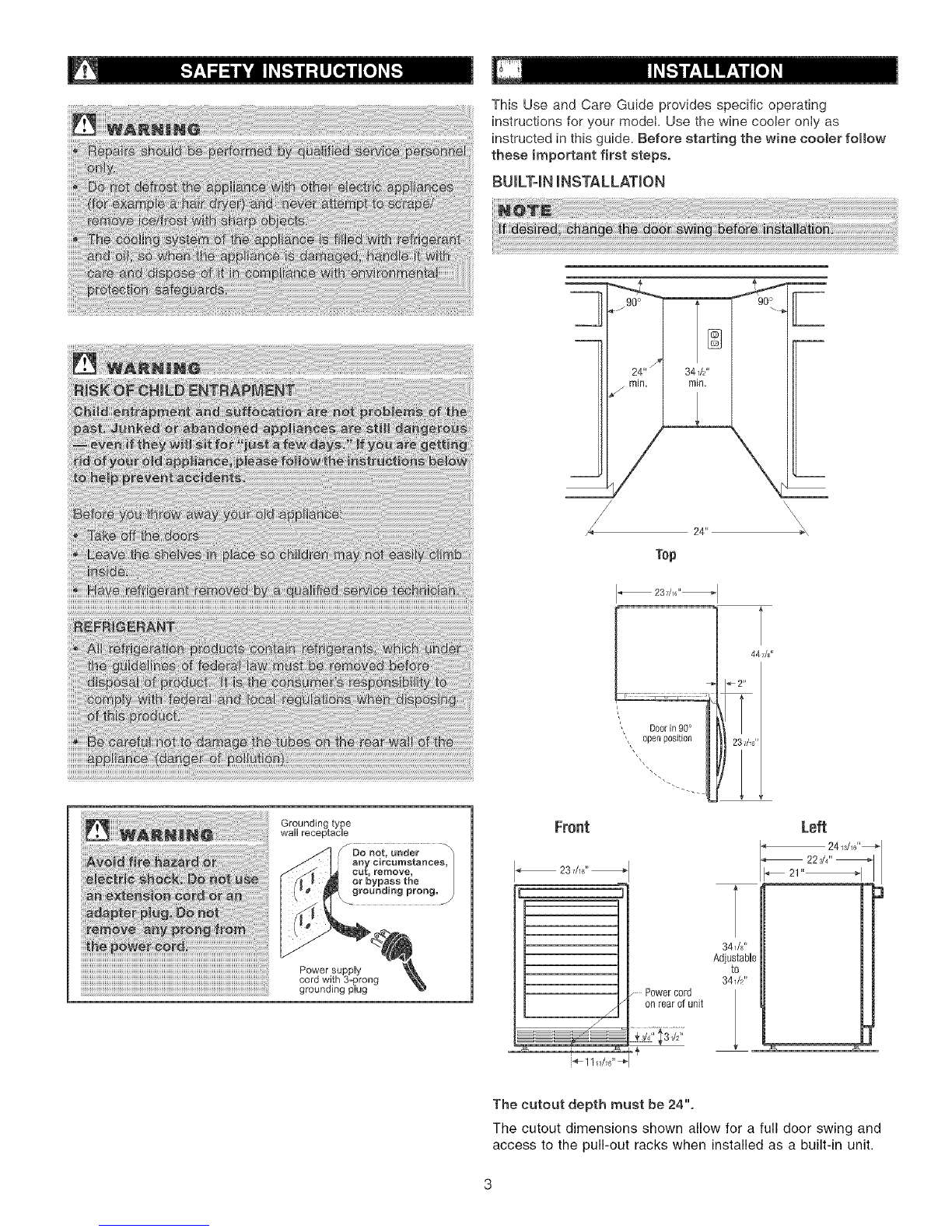

BUILTAN INSTALLATION
44#_"
Door in 90_ '_
0pe_ position
34_/_"
Adiustable
to
34F¢'
Powercord
on rear dunit
The cutout depth must be 24".
The cutout dimensions shown allow for a full door swing and
access to the pull-out racks when installed as a built-in unit.

Ifinstallingbetweenframelesscabinets,a1/2"widefillerstrip
orsidepanelmaybeneededonthehingeside.Thefillerstrip
willactasaspacerbetweentheapplianceandtheadjacent
cabinetdoorswing.Thewidthoftheopeningmustincludethe
fillerpanels.
CHANGING THE REVERSIBLE DOOR
Connecting to Power Supply
,, A 115 volt 60Hz., 15 or 20 amp power supply is required.
,, An individual, properly grounded branch circuit or circuit
breaker is recommended.
,, Install a properly grounded 3-prong electrical receptacle
recessed into the back wall as shown.
,, The receptacle must be located on the rear wall as shown.
,, Consult a qualified electrician or serviceman if the wiring
instructions are not clearly understood, or if doubt exists as
to whether the appliance is properly grounded.
Plug Buttons
or Screws
The appliance can also be installed as a freestanding unit.
FREE STANDING INSTALLATION
Choose the location
Be sure the front of the appliance is unobstructed to allow air
circulation and proper access to the door.
Do not install the appliance where the temperature will go
below 55°F or above 90°F.
Do not install the appliance where it will be subject to direct
sunlight, heat or moisture.
Allow sufficient space for door swing.
This unit is not designed for use in a garage or any other
outside installation.
Adjustable Feet
Some appliances have adjustable feet on the front side; use
them to level the appliance.
Note: For additionaI clearance when installing the unit beneath
a low counter top, remove the hinge cover,
Bottom Hinge
1. Remove top hinge assembly and keep for later use.
2. Remove bottom hinge assembly and keep for later use.
3. Remove plug buttons from upper left holes and transfer
them to uncovered holes at right side. Be sure to press plug
buttons firmly into holes.
4. Re-install top hinge assembly removed in step 1 on
opposite side.
5. Re-install bottom hinge assembly removed in step 2 on
opposite side.
6. Make sure door assembly is properly aligned on cabinet
before tightening screws.
The process is now complete.

Engagedwineracks
Therearefive,fulldepth
wineracksontheupperpart
ofthecabinettostore
winebottIes.
Thesecondsupporting
guido(countingfrom
top-down,see
illustrationmarked"A')
isnotsuitabmeforwine
racks.Allofthetopfive
winerackshavetabsto
engage the cabinet on both
sides. Any of the wine racks
can be removed to store
larger bottles.
To remove a rack:
1. Remove all bottles from rack.
2. Lift rack upwards and then pull out.
To replace a rack: place sides of rack back onto supporting
guides in cabinet and push racks all the way into place.
Bottle arrangement
The top five racks each hold
eight bottles with the necks
alternating front to back.
The bottom rack consists of two
stories, each of which holds
six bottles with the necks
facing the front.
Interior Light
The appliance has an interior
light (max. 15W) for easy
interior visibility.
WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS
WITH NO EFFECT ON THE OPERATION OFTHE APPLIANCE.
RED WHITE 15W
MAX
COOL DOWN PERIOD
The intended temperature range of the wine cooler is 39°F to
64°F (+/- 5°F ).
Average temperature for red wine is 54°F to 61°R
Average temperature for white wine is 43°F to 50°R
The display usually shows the average temperature of the
appliance at that moment.
PRESETWINE ZONES:
Press the [Red] or [White] pads to choose preset storage
conditions for Red or White Wine. (The indicator 'RED' or
'WHITE' will light accordingly.) The programmed temperature
for red or white wine will be displayed for a few seconds.
MANUAL TEMPERATURE SETTING:
The temperature of the wine cooler can be set anywhere
between 39°F to 64°F by the temperature up =& and
temperature down _" pads as follows:
(1) Press the [SET] pad until you hear a "beep" sound
(approximately two seconds).
(2) Press the "_-_'_ pads to increase or decrease the desired
temperature in increments of one degree.
(3) Press the [SET] pad to confirm your choice - if no pad is
pressed within ten seconds your choice will be
automatically confirmed.
The ,_ indicator indicates status of the refrigeration cycle as
follows:
(1) It remains ON during the refrigeration cycle;
(2) It remains OFF during the idle cycle.
To switch the interior light on/off, simply press the [Light] pad.
To switch the Appliance on/off, simply press and hold [White]
pad for approximately two seconds.

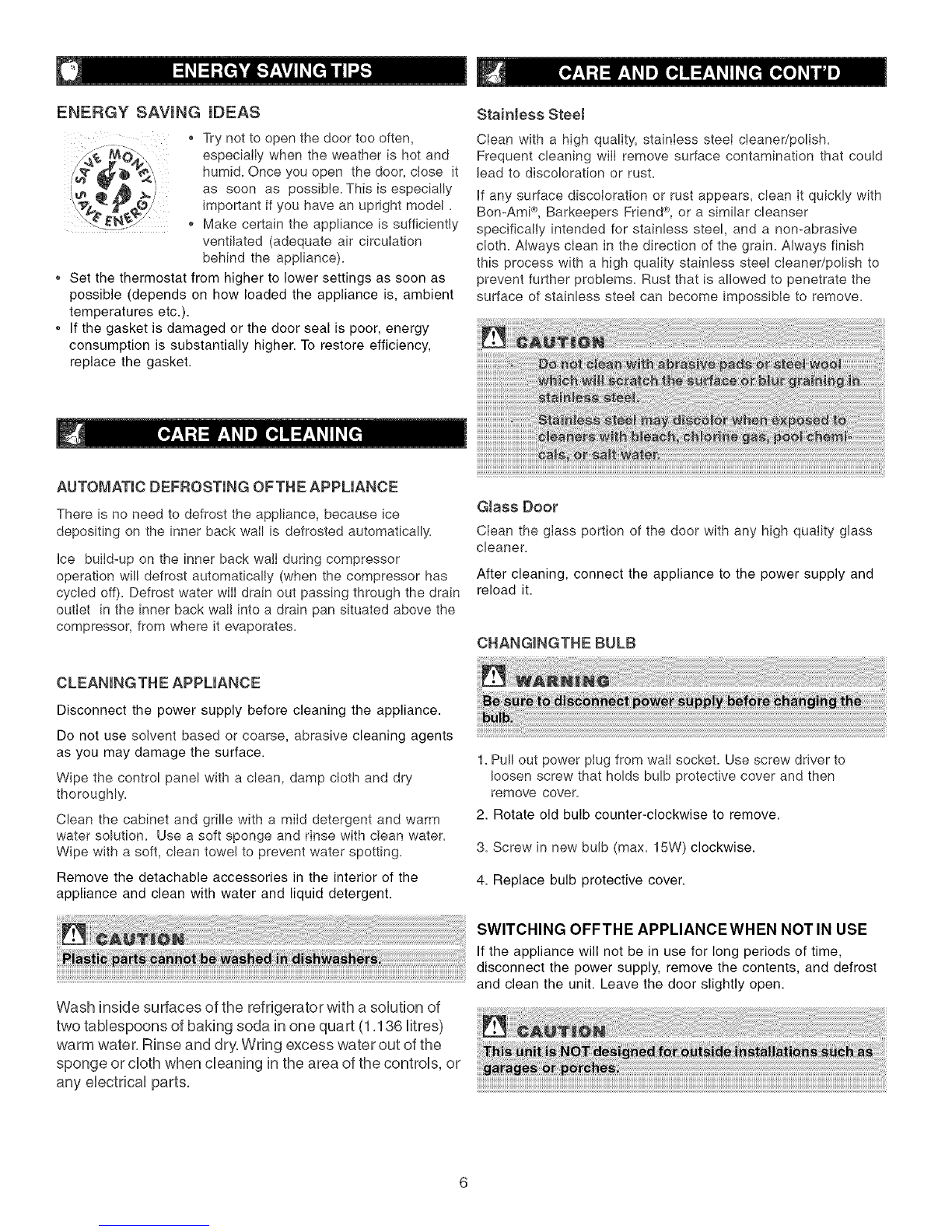

ENERGY SAVING mDEAS
Try not to open the door too often,
especially when the weather is hot and
humid. Once you open the door, ctose it
as soon as possible. This is especially
important if you have an upright model.
Make certain the appliance is sufficiently
ventilated (adequate air circulation
behind the appliance).
,, Set the thermostat from higher to lower settings as soon as
possible (depends on how loaded the appliance is, ambient
temperatures etc.).
,, If the gasket is damaged or the door seal is poor, energy
consumption is substantially higher. To restore efficiency,
replace the gasket.
Stainless Steel
Ctean with a high quality, stainIess steei cleaner/polish.
Frequent cleaning wiII remove surface contamination that could
lead to discoloration or rust.
If any surface discoloration or rust appears, clean it quickly with
Bon-Ami ®, Barkeepers Friend®, or a similar cleanser
specifically intended for stainless steel, and a non-abrasive
cloth. Always cIean in the direction of the grain. Always finish
this process with a high quality stainless steei cleaner/polish to
prevent further problems. Rust that is allowed to penetrate the
surface of stainless steel can become impossible to remove.
AUTOMATIC DEFROSTING OF THE APPLIANCE
There is no need to defrost the appliance, because ice
depositing on the inner back wail is defrosted automatically.
Ice build-up on the inner back wall during compressor
operation will defrost automatically (when the compressor has
cycled off). Defrost water wilI drain out passing through the drain
outlet in the inner back wail into a drain pan situated above the
compressor, from where it evaporates.
Gtass Door
Clean the glass portion of the door with any high quality glass
cleaner.
After cleaning, connect the appliance to the power supply and
reload it.
CHANGINGTHE BULB
CLEANINGTHE APPLIANCE
Disconnect the power supply before cleaning the appliance.
Do not use solvent based or coarse, abrasive cleaning agents
as you may damage the surface.
Wipe the control panel with a clean, damp cloth and dry
thoroughly.
Clean the cabinet and grille with a mild detergent and warm
water solution. Use a soft sponge and rinse with clean water.
Wipe with a soft, clean towel to prevent water spotting.
Remove the detachable accessories in the interior of the
appliance and clean with water and liquid detergent.
Wash inside surfaces of the refrigerator with a solution of
two tablespoons of baking soda in one quart (1,136 litres)
warm water, Rinse and dry, Wring excess water out of the
sponge or cloth when cleaning in the area of the controls, or
any electrical parts,
1.Pull out power plug from wail socket. Use screw driver to
loosen screw that holds bulb protective cover and then
remove cover.
2. Rotate old bulb counter-clockwise to remove.
3. Screw in new bulb (max. 15W) clockwise.
4. Replace bulb protective cover.
SWITCHING OFFTHE APPLIANCEWHEN NOT IN USE
If the appliance will not be in use for long periods of time,
disconnect the power supply, remove the contents, and defrost
and clean the unit. Leave the door slightly open.

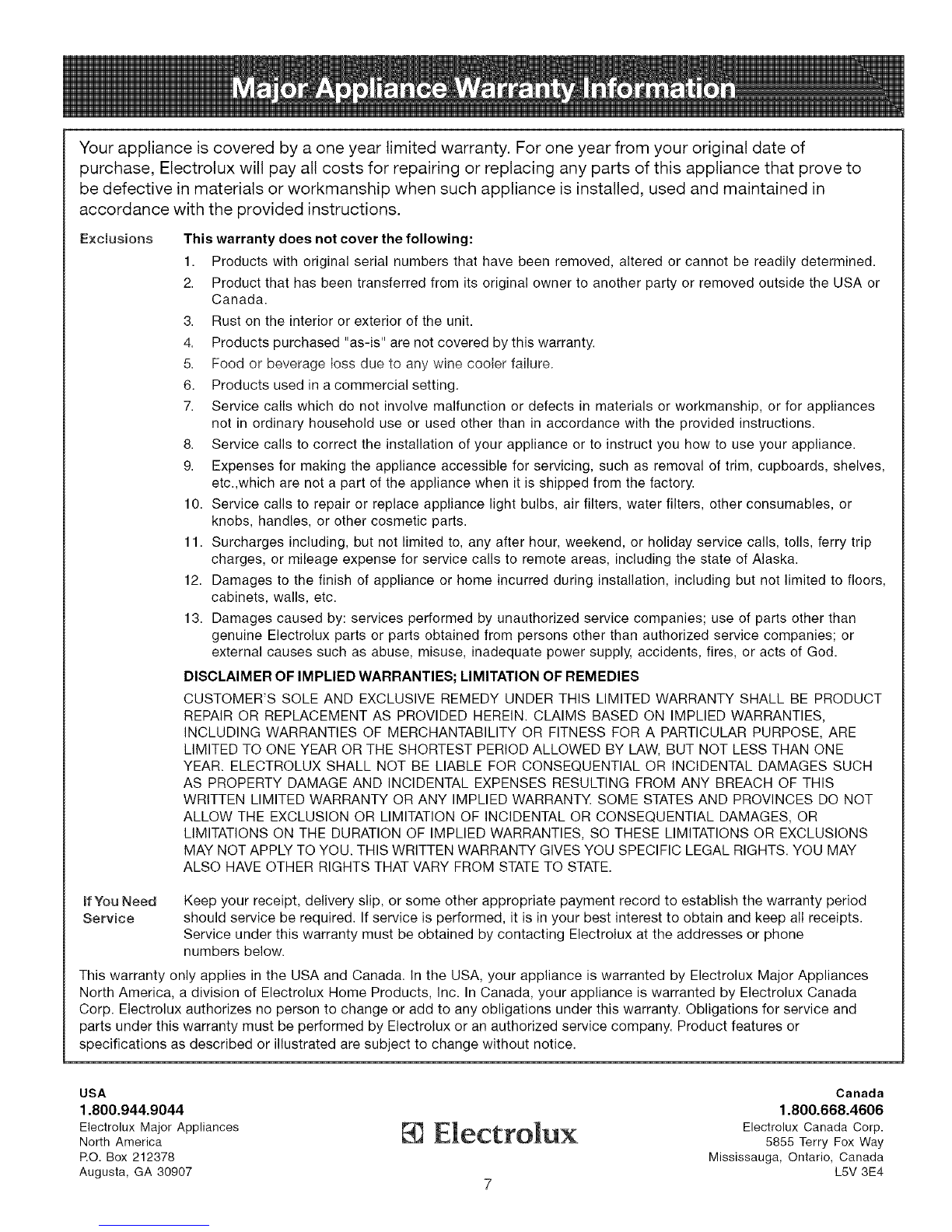

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Excmusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food or beverage toss due to any wine cooler failure.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
LEV 3E4

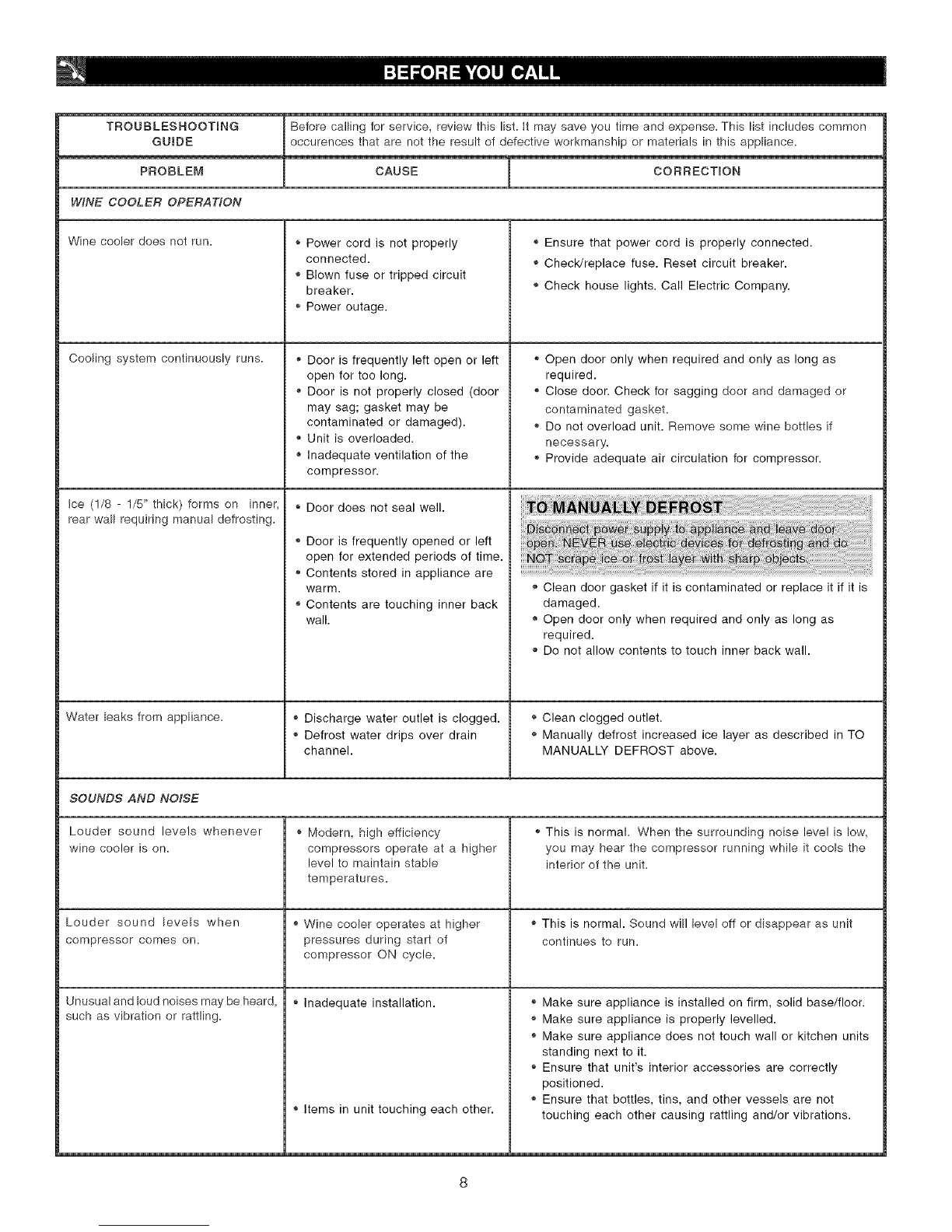

TROUBLESHOOTINGBeforecallingforservice,reviewthislist.itmaysaveyoutimeandexpense.Thislistincludescommon
GUmDE occurencesthatarenottheresultofdefectiveworkmanshipormaterialsinthisappliance.
PROBLEM CAUSE CORRECTION
WINE COOLER OPERATION
Wine cooler does not run. ,' Power cord is not properly
connected.
o Blown fuse or tripped circuit
breaker.
o Power outage.
Cooling system continuously runs.
Ice (!/8 - 1/8" thick) forms on inner
rear wall requiring manual defrosting.
Water leaks from appliance.
_' Door is frequently left open or left
open for too long.
_' Door is not properly closed (door
may sag; gasket may be
contaminated or damaged).
o Unit is overloaded.
_' Inadequate ventilation of the
compressor.
,' Door does not seal well.
Door is frequently opened or left
open for extended periods of time.
,' Contents stored in appliance are
warm.
,' Contents are touching inner back
wall.
o Discharge water outlet is clogged.
o Defrost water drips over drain
channel.
Ensure that power cord is properly connected.
o ChecWreplace fuse. Reset circuit breaker.
o Check house lights. Call Electric Company.
_' Open door only when required and only as long as
required.
_' Close door. Check for sagging door and damaged or
contaminated gasket.
_' Do not overload unit. Remove some wine bottles if
necessary.
_' Provide adequate air circulation for compressor.
o Clean door gasket if it is contaminated or replace it if it is
damaged.
_' Open door only when required and only as long as
required.
o Do not allow contents to touch inner back wall.
o Clean clogged outlet.
_' Manually defrost increased ice layer as described in TO
MANUALLY DEFROST above.
SOUNDS AND NOISE
Louder sound levels whenever
wine cooler is on.
Louder sound levels when
compressor comes on.
Unusual and loud noises may be heard,
such as vibration or rattling.
,' Modern, high efficiency
compressors operate at a higher
level to maintain stable
temperatures.
,' Wine cooler operates at higher
pressures during start of
compressor ON cycle.
,' Inadequate installation.
o Items in unit touching each other.
_' This is normal. When the surrounding noise level is low,
you may hear the compressor running while it cools the
interior of the unit.
This is normal. Sound will level off or disappear as unit
continues to run.
Make sure appliance is installed on firm, solid base/floor.
,' Make sure appliance is properly levelled.
,' Make sure appliance does not touch wall or kitchen units
standing next to it.
,' Ensure that unit's interior accessories are correctly
positioned.
o Ensure that bottles, tins, and other vessels are not
touching each other causing rattling and!or vibrations.

PROBLEM CAUSE I CORRECTION
SOUNDS AND NOISE (Cont.)
Popping or cracking sound
when compresson comes on.
Bubbling or gurgling sound, like
water boiling.
Snapping sound.
,' Metal parts undergo expansion
and contraction, as in hot water
pipes.
_' Refrigerant (used to cool wine
cooler) is circulating throughout
the system.
,' Cold control turning the wine
cooler on and off.
o This is normal. Sound will level off or disappear as wine
cooler continues to run.
" This is normal.
,' This is normal.
