Viking DDWB301CRSS User manual

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
All models include
• Capacity—accommodates up to 150
full-size bottles
o 84”H./24”D.
•Exclusive TriTemp™ storage system
o Three independent temperature
zones
o Settings are adjustable in each zone
from 43˚F (6.1˚C) – 65˚F (18.3˚C)
o Electronic control center maintains
set temperature within 1.5˚F (0.83˚C)
•Exclusive glass control pad
• Versatile shelving system stores
standard, magnum, and half-size
bottles
• Two convertible wine shelves adjust to
allow for bottle display
• Solid maple wood facings provide
additional ultraviolet protection, and
may be finished to coordinate with
surrounding cabinetry
• Coated wine shelves reduce vibration
and hold bottles in place
• Shelves are fully removable for easy
cleaning
• Ultraviolet-resistant tempered glass
and black interior protect wine from
harmful light
• Low-intensity lighting displays wine
with minimal heat and light output
• Lower zone with raised wood facings
• High temperature alarm
• Door open alarm
• Home security system connection
• Dual magnet and spring assist door
closure mechanism
• Keyed door lock
• Adjustable door stays standard—90˚,
110˚, or 120˚
• Power interruption switch
• Top-mounted and front-venting sealed
refrigeration system
• lower kickplate
• Must be ordered right or left hinge.
(As you face unit, RIGHT has hinge on
right side and handle on left side;
LEFT has hinge on left side and
handle on right side.)

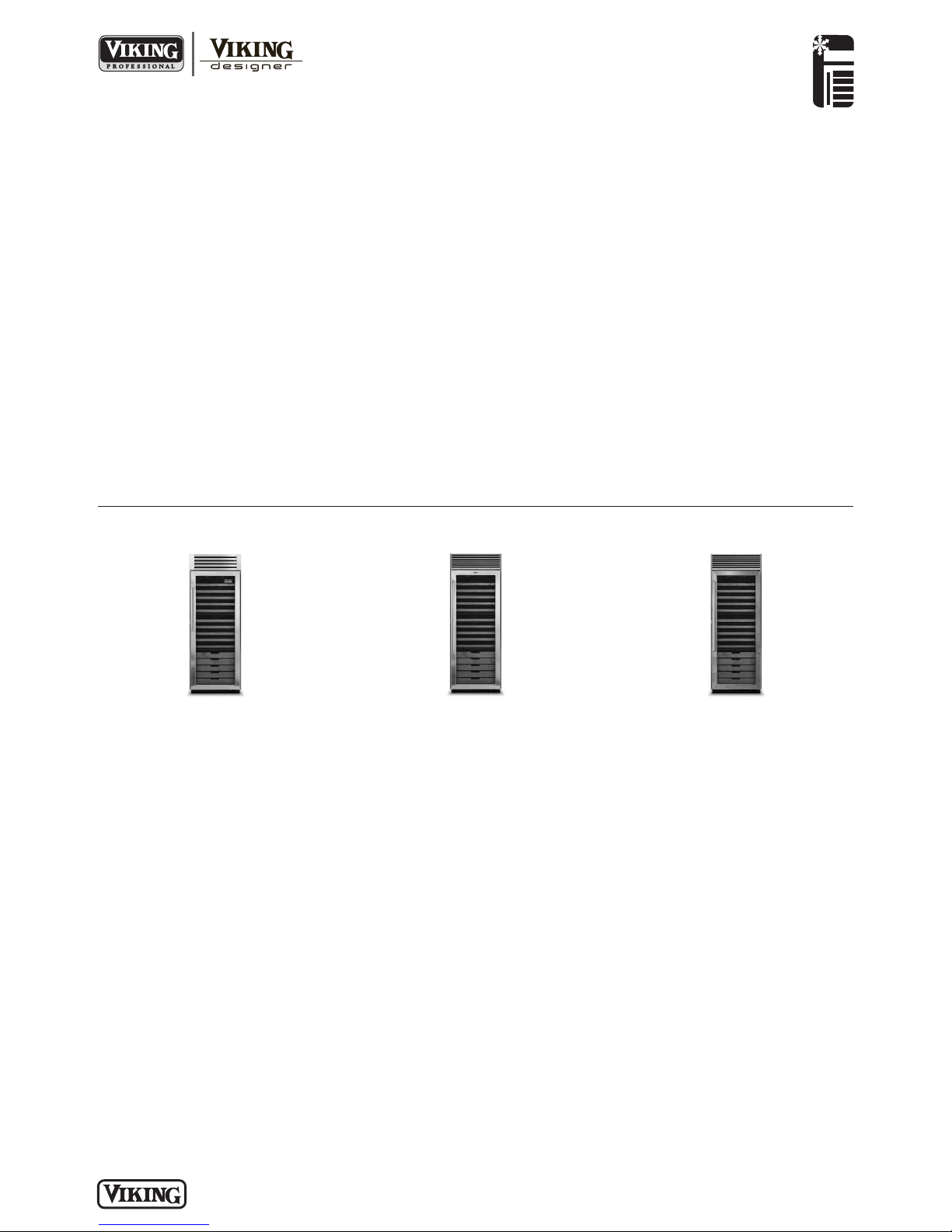

VCWB300
Professional
FINISH DETAILS FOR DFWB MODEL
• Black interior
• Handle not included—opt for custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• Accepts 3/4”-thick custom panel—no
visible trim
• See Custom Panels section for more
information and additional
specifications.
FINISH DETAILS FOR DDWB MODEL
• Clear and fluted glass doors
• Stainless Steel (SS)—stainless steel
frame around large window door,
stainless steel handle, and black
interior.
FINISH DETAILS FOR VCWB MODEL
• Clear and fluted glass doors
• Stainless Steel (SS)—stainless steel
frame around large window door,
stainless steel handle with chrome-
plated brackets, and black interior.
• Brass Accent Option (BR)—nameplate
and handle endcaps. Brass components
have a durable protective coating for
maintenance-free normal use.
DDWB301
Designer
DFWB300
Custom Panel
Model Options
Standard Features & Accessories
ORDERING INSTRUCTIONS
First specify model number. If ordering special fluted or solid door (“F” for fluted or ”D” for solid), specify immediately after model
number (VCWB300F). Next, specify hinge preference (“R” for right or “L” for left), and then color code (VCWB300FRSS).
If ordering optional brass accent, specify code at end (VCWB300FRSSBR).

REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE

Please see
Installation Notes &
Accessories
for important
information,
including panel and
handle kits.
Dimensions & Speci ications
82-7/8”
(210.5cm)
min.
to
84-1/16”
(213.5cm)
max.
29”
(73.7cm)
70”
(177.5 cm)
9-5/16”
(23.6cm)
22-3/16”
(56.4cm)
24-1/2”
(62.2 cm)
30”
(76.2cm)
27”
(68.6 cm)
30”
(76.2cm)
23-13/16”
(60.5cm)
29”
(73.7cm)
82-7/8”
(210.5cm)
min.
to
84-1/16”
(213.5cm)
max.
70”
(177.5cm)
9-5/8”
(24.4cm)
24-1/32”
(61.0cm)
24-3/4”
(62.9cm)
26-1/2”
(67.3cm)VARIES
PROFESSIONAL DESIGNER/
CUSTOM PANEL
VCWB300 DDWB301 DFWB300
Overall width 30” (76.2 cm)
Overall height (fr m b tt m) 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (fr m rear)
T fr nt edge f side trim 22-3/16” (56.4 cm) 23-13/16” (60.5 cm) 23-13/16” (60.5 cm)
T fr nt f t p grille 24-1/2” (62.2 cm) 24-1/32” (61.0 cm) 24-3/4” (62.9 cm)
T fr nt f handle 27” (68.6 cm) 26-1/2” (67.3 cm) Varies
Appr x. ship weight 560 lbs. (252.0 kg)
VCWB300
Professional
DDWB301
Designer
DFWB300
Custom Panel
PRODUCT DIMENSIONS
See Custom Panels section for
more information and additional
specifications.
ALL MODELS
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
90
o
110o
120o
2-1/2”
(6.4 cm)
48-5/8”
(123.5 cm)
50”
(127.0 cm)
51-7/8”
(131.8 cm)
11-3/8”
(28.9 cm)
15-3/8”
(39.1 cm)
REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
Dimensions & Speci ications
DOOR SWING
• Adjustable door stops standard—90 , 110 , or 120 swing
90
o
110o
120o
11-1/2”
(29.2 cm)
15-1/2”
(39.4 cm)
48-5/8”
(123.5 cm)
51-7/8”
(131.8 cm)
50-1/2”
(128.2 cm)
2-1/2”
(6.4 cm)
PROFESSIONAL
DESIGNER
VCWB300
Professional
DDWB301
Designer
DFWB300
Custom Panel
See Custom Panels section for
more information and additional
specifications.

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
Door
29-1/2” (90.2 cm)
Wall
1-13/16” (4.6 cm)
space if 24” (61.0 cm)
standard cabinet
depth is used
3/4”
(1.9 cm)
full end
panel
2-5/16”
(5.9 cm)
offset
24” (61.0cm)
standard
cabinet depth
Partial overlay cabinet door
Door
Wall
29-1/2” (90.2 cm)
1-13/16”
(4.6 cm)
3/4”
(1.9cm)
full end
panel
24” (61.0cm)
standard
cabinet depth
5/16”
(0.8 cm)
2-5/16”
(5.9 cm)
offset
Door
Countertop overhang
29-1/2” (90.2 cm)
Wall
1-13/16” (4.6 cm)
space if 24”
(61.0cm)
standard cabinet
depth is used
3/4”
(1.9 cm)
full end
panel 24” (61.0cm)
standard cabinetdepth
2-5/16”(5.9 cm)
offset
Dimensions & Speci ications
CLEARANCE DIMENSIONS—PROFESSIONAL
TOP VIEW
TOP VIEW
TOP VIEW

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
Door
Wine cellar and
cabinet door flush
30” (76.2 cm)
Wall 3/4” (1.9 cm) space if 24” (61.0 cm)
standard cabinet depth is used
24-3/4”
(62.9 cm)
24” (61.0 cm)
standard
cabinet
depth
Cabinet front
Door
Flush
30” (76.2 cm)
Wall
3/4” (1.9 cm)
full end
panel
25”
(63.5 cm)
1”
(2.5 cm)
Door
Flush
Countertop depth
30” (76.2 cm)
Wall 1” (2.5 cm) space if 25” (63.5 cm)
cabinet depth is used
3/4” (1.9 cm)
full end panel 25”
(63.5 cm)
24” (61.0 cm)
standard
cabinet
depth
Cabinet front
Dimensions & Speci ications
CLEARANCE DIMENSIONS—DESIGNER
TOP VIEW
TOP VIEW
TOP VIEW

REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115 VAC/60 Hz;
15 amp
dedicated circuit
• Maximum amp
usage—2.0
PLUMBING
Not applicable
Installation Requirements
29-1/2” (74.9 cm) Professional
30” (76.2 cm) Designer/Custom Panel
82-7/8” (210.5 cm) min.
anti-tip board and opening
height
73-3/4”
(187.3 cm)
1-1/2”
(3.8 cm)
3-1/2”
(8.9 cm)
84-1/16” (213.5 cm) max.
anti-tip board and opening
height
2” x 4” Mounting Board (1-1/2” (3.8 cm) x 3-1/2” (8.9 cm))
Attached to anti-tip mounting bracket
Note: If unit is installed deeper than 24” (61.0 cm), then
shim behind anti-tip bracket thickness by the same amount
8-1/4”
(20.9 cm)
24” (61. 0 cm) Professional/Designer
25” (63.5 cm) Custom Panel
Electrical
outlet
location
Anti-tip mounting
brackets attached
to wall studs
4”
(10. cm)
ACCESS REQUIREMENTS
VCWB300 DDWB301 DFWB300
Cut ut width 29-1/2” (74.9 cm) 30” (76.2 cm) 30” (76.2 cm)
Cut ut height 82-7/8” (210. cm) min. to 84-1/16” (213. cm) max.
Cut ut depth 24” (61.0 cm) 24” (61.0 cm) 25” (63.5 cm)*
*Can be installed in 24”-deep (61.0 cm) penings; d r faces and t p grille will pr trude 3/4” (1.9 cm) int r m.
VCWB300
Professional
DDWB301
Designer
DFWB300
Custom Panel
See Custom Panels section for
more information and additional
specifications.

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
REFRIGERATION
Built-In 30”W. Full-Height Wine Cellar
R E L E A S E D 7 / 1 4 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
Side Panel Kits
• Stainless Steel (SS)
• Panels provide finished freestanding look; unit must still be secured to the wall
•Kit includes one panel and installation hardware
Side Panel Hardware Kit
• For use with Designer built-in refrigerator/freezers
• Hardware allows installation of custom side panels
• Kit includes brackets, screws, and installation instructions to mount panels on left and right side
Top Panel Kit
• Stainless Steel (SS)
• Panel provides finished freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Handle Kits
• For use with custom panel wine cellars
• For use on locally supplied custom panels
• Handles allow wine cellar with custom panels to coordinate with other Professional & Designer products
• Kit includes one handle and installation hardware
Compliance In ormation
WARRANTY SUMMARY*
• Two-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Twelve-year limited warranty—sealed refrigeration system
• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
PSSPL2 Pr fessi nal side panel left 45 (20.2)
PSSPR2 Pr fessi nal side panel right 45 (20.2)
DSSPL2 Designer side panel left 45 (20.2)
DSSPR2 Designer side panel right 45 (20.2)
Model Description Approx. ship wt. lbs. (kg)
PHK28-SS Pr fessi nal handle (Stainless Steel) 7 (3.2)
DDHK41-SS Designer handle (Stainless Steel) 7 (3.2)
Model Description Approx. ship wt. lbs. (kg)
TOP-30 30 ”W.t p panel 21 (9.5)
Model Description Approx. ship wt. lbs. (kg)
SPHKDS Side panel hardware 3 (1.4)
