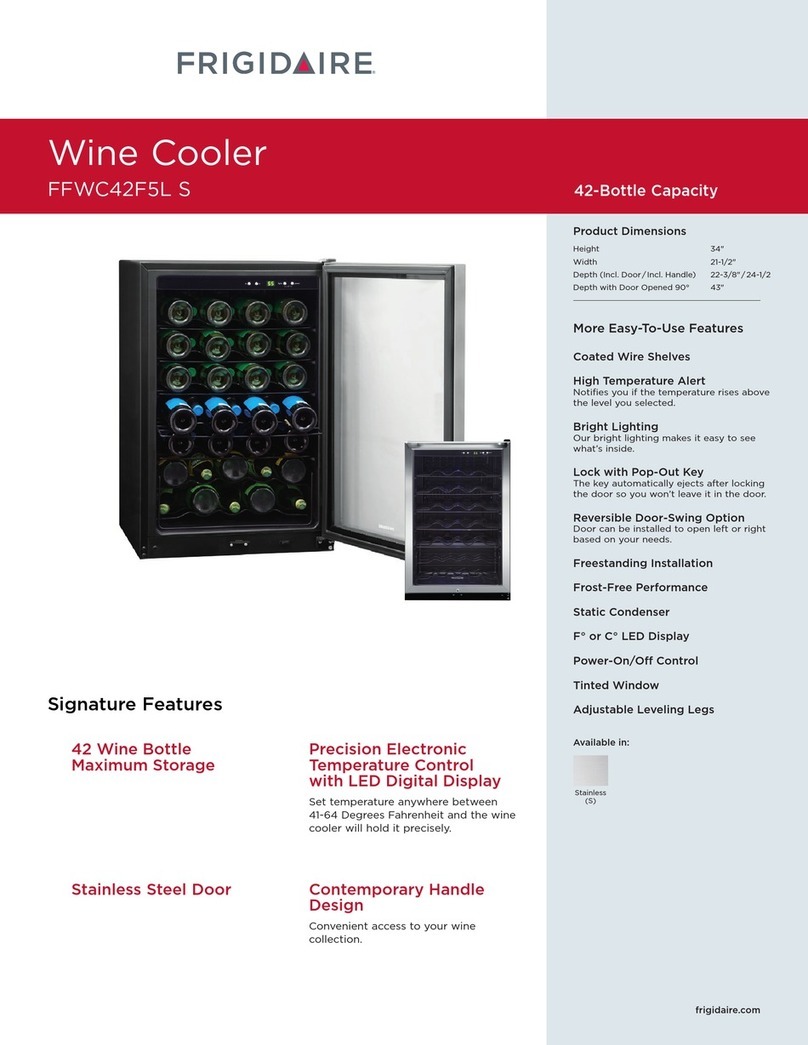

Frigidaire FFWC42F5LS User manual

FFWC42F5LS Cover.jpg FFWC42F5LS Parts.eps LFWC42F5LS Wiring
Diagram.tif
Product No. FFWC42F5LS
Series Frigidaire
Market North America
Color glass/steel
Volts 115
Owner's Guide 242101900
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995573416
10/09/10
(EN/SERVICE/KC)
099
WINE COOLER
Model No.
FFWC42F5L

Publication No: 5995573416 FFWC42F5LS
09/10 2
RECOMMENDED SPARES
FFWC42F5LS Parts

FFWC42F5LS Publication No: 5995573416
# Functional Parts 3 09/10
* Non-Illustrated Parts
RECOMMENDED SPARES
POS. NO PART NO. DESCRIPTION
2 5304479779 Plug, hinge hole, cabinet
3 5304479780 Washer, top hinge
4 5304479781 Hinge, top
5 5304479802 Screw, tapping
6 5304479782 Cover, top hinge
7 # 5304479803 Lamp Assembly, LED
8 5304479804 Screw, tapping, stainless steal
9 5304479805 Cover, temp sensor
9* # 5304479971 Thermistor, temp sensor
10 # 5304479806 Evaporator
11 5304479807 Screw, tapping, stainless steel
12 # 5304479808 Gasket, door
13 5304479809 Plug, door hole
14 5304479810 Door Assembly, glass
15 5304479789 Bushing, hinge
16 5304479811 Screw, shoulder, door handle
17 5304479812 Handle Assembly, door
18 5304479813 Screw, tapping, door
19 5304479790 Stop, door
20 5304479791 Bracket, door switch
21 5304479814 Control Panel, console
22 5304479936 Push Button
23 5304479815 Overlay, control board, cover
24 # 5304479816 PC Board, input, display
25 5304479817 Screw, tapping
26 5304479818 Base, display board
27 5304479792 Hinge, bottom
28 5304479819 Foot, leveling screw, cabinet
29 # 5304479794 Switch, lamp/light
30 5304479795 Latch, door
32 5304479820 Shelf, wine, wood
33 5304479821 Rack, removeable, bottom
34 5304479822 Cover, access, rear
35 5304480022 Screw, tapping
36 5304479823 Clamp, strain relief, power cord
37 5304479838 Sleeve, power cord
38 # 5304479824 Power Cord, electric
39 5304479825 Base, compressor
40 # 5304479826 Tube, adapter
41 # 5304479827 Compressor
42 5304479828 Pad, thermal mastic
43 5304479799 Tray, drip pan
44 # 218944002 Drier-filter, R134a System
45 # 5304479834 Wiring Harness, electrical
46 5304479835 Cover, control box
47 # 5304479836 PC Board, power, main

Publication No: 5995573416 FFWC42F5LS
09/10 4
WIRING DIAGRAM
