Frontgate Carlisle 28019 User manual

Assembly Instructions
28019 Carlisle Dining Swivel Rocker
*Warning：DO NOT use power tools.
1.On a soft clean surface position the chair bucket upside down with the arms on the floor.
2.Remove the hardware and aluminum plates *1, *2, *3, *4 loosely attached to the springs shown in Picture 1. Do
not remove the hardware, springs, and aluminum plates *5 and *6 from the chair swivel base shown in Picture 3.
3.Align the 4 holes in the springs on the chair base with the four holes on the chair crossbar 1. Using the removed
hardware from Step 2 attach the springs to the crossbar using4 bolts (A), 4 aluminum plates (B), 4 flat washers (C),
4 lock washers (D), and 4 nuts (E) as shown in Picture 2. Complete final assembly is shown in Picture 1. Correct
assembly of the chair to the swivel base is shown in Picture 3.
4.Once chair is assembled, firmly tighten all 8 bolts attaching the springs to the swivel base and to the chair shown
in Picture 3.
*Warning：The six (6) Plates MUST BE correctly assembled as shown in Pictures 1, 2 and 3. Failure to
position the plates as shown will result in spring failure which could cause personal injury. Product warranty
is void if the plates are not correctly positioned.
Care & Maintenance: Please do not use acid or alkaline washing liquid to clean the product. We recommend a
mild dish soap and warm water for best cleaning results on the metal frames and fabrics.
PARTS INCLUDED
Parts Pictures Description Qty
A Bolt 4
B *Aluminum plate 4
C Flat Washer 4
D Lock Washer 4
E Nut 4
F Outer Hexagonal Wrench （M8）1
Frontgate: Please contact one of our Product Specialists for assembly assistance or questions at
1-800-537-8484 or email [email protected].

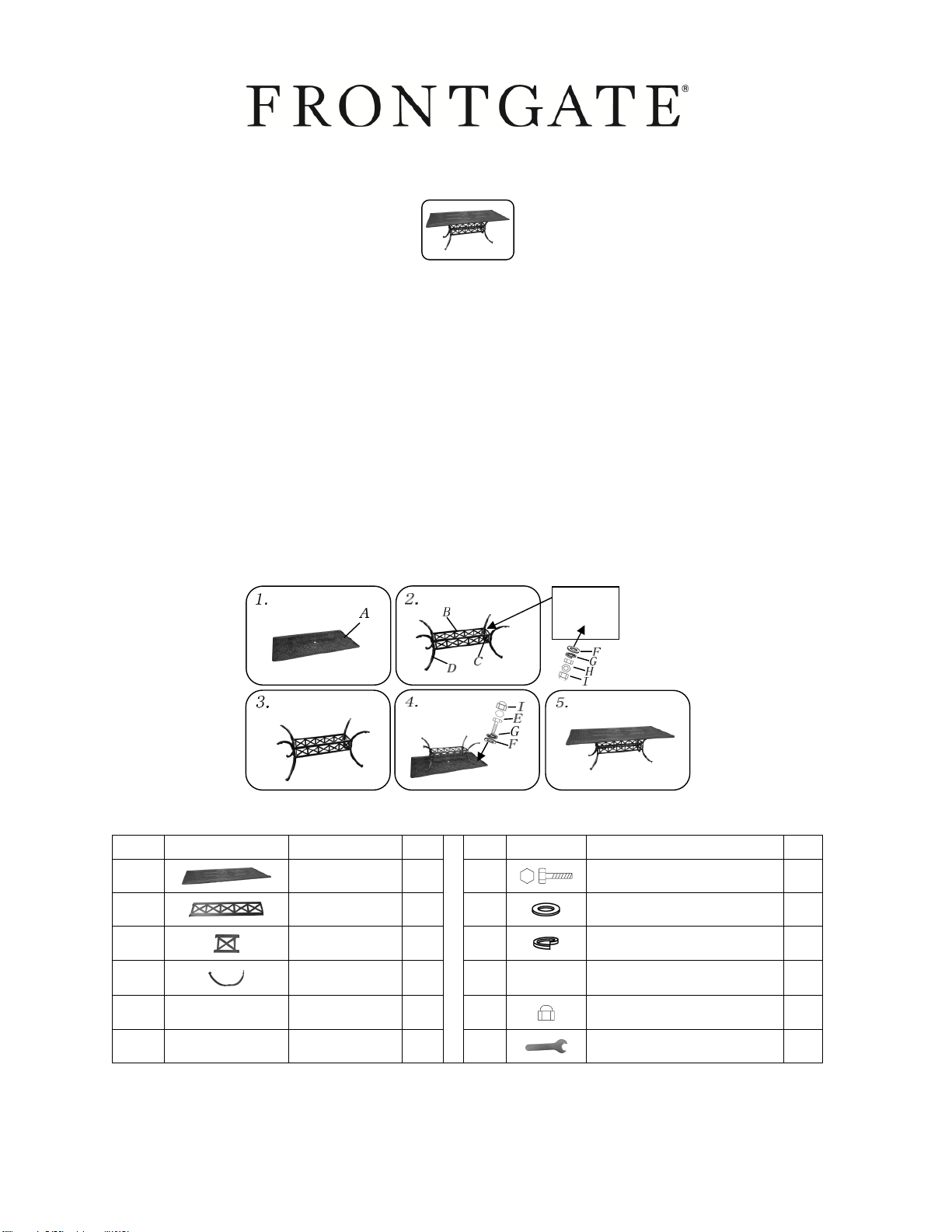

Assembly Instructions
47610 Carlisle Cast Rect. Dining Table 42" x 86"
ATTENTION:
1. Please read this instruction carefully before assembly.
2. Aluminum is soft metal, over tightening may strip threads or break the part.
3. Do not use power tools.
Assembly steps:
1. Turn table top (A) upside down on a soft clean surface.
2. Attach table legs (D) to long center plates (B) and short center plates（C）with flat washers (F), lock
washers (G) and nuts (H). Don’t tighten.
3. This is the outlook of the assembled table legs with center plates.
4. Loosely attach four legs with center plates to the table top with flat washers (F), lock washers (G) and bolts
(E). Please do not tighten bolts to center bracket until all legs are aligned properly, and do not over
tighten.
5. After all the parts are put in place, tighten all the bolts and nuts completely with outer hexagonal wrench
（J）, but don’t over tighten. Then attach all the nut caps (I). Use feet adjusters to level the table. This is the
outlook of the assembled cast 42”*86” rect. dining table.
Care & Maintenance: Please do not use acid or alkaline washing liquid to clean the product. We recommend a
mild dish soap and warm water for best cleaning results on the metal frames and fabrics.
Frontgate: Please contact one of our Product Specialists for assembly assistance or questions at
1-800-537-8484 or email [email protected].
Parts Pictures Description Qty Parts Pictures Description Qty
A Table top 1 E Bolt (M8*30) 4
B Long center plate 2 F Flat washer (Φ16*1.0*Φ8.5) 12
C Short center plate 2 G Lock washer (Φ12.5*2.0*Φ8.5) 12
D Leg 4 H Nut (M8) 8
I Nut cap (M8) 12
J Outer hexagonal wrench （M8）1
