Introduction
The handheld optical power meter is a fiber optic tester with compact size and
friendly operation interface. It has a wide range of power measurement and high
accuracy. When combine with a light source, it offers a quick and accurate testing
solution. The figures below display the product images of the four optical power
meters.
FOPM-201/FOPM-202 FOPM-205FOPM-107
λ
Menu
Enter
Units Ref
Optical MPO Power Meter
Accessories
FOPM-201/FOPM-202
ST Adapter x1SC Adapter x1 FC Adapter x1
VFL
REF
OPTICAL POWER METER
>2s UNIT >2s SET
GLINT
PERM Set
>2s OFF
1310nm
ONU
1490nm
MODE
MENU dBm/dB REF/SEL
SAVE
1550nm
VideoOLT
CO
OPTICAL POWER METER
1

EN
FOPM-205
SC Adapter x2 ST Adapter x1 FC Adapter x2
FOPM-107
USB Cable x1
AC Adapter x1 CD x1
CD x1
AC Adapter x1 Ceramic Sleeve x3
2

EN
Installing
1. Install ST connector.
Install FC fiber cable.
Inserting ST Cables
Inserting FC Cables
3

EN
2. Install ST fiber cable.
1. Install SC connector.
Inserting SC Cables
4

EN
2. Install SC fiber cable.
Install MTP fiber cable.
Inserting MTP Cables
5

EN
Function Introductions
FOPM-201/FOPM-202
Button Description
REF
VFL
Power/Backlight Button
Wavelength/Unit Shift Button
REF Setting Button
VFL Control Button
VFL
REF
OPTICAL POWER METER
>2s UNIT >2s SET
GLINT
PERM Set
>2s OFF
6

EN
1. Power On/Off and Auto-off Function
Press the button to turn on the instrument. Press it again for 2 seconds or
more to turn it off.
This power meter has a power-saving function. If 10 minutes without any
operation, the instrument will automatically shut down. If you need to disable this
function, only need to press the button for 2 seconds when you turn on the
instrument till it displays "PERM".
2. Backlight Function
When the instrument is powered on, short press the button , you can control
the backlight function on or off. The backlight function supports you to use the
power meter at night or darker occasions.
3. Wavelengths
According to the project, we need to measure optical signals of different
wavelengths.
Then we need to select a corresponding wavelength to measure the optical
power. If the wavelength needs to be measured does not match with the
wavelength we select on the optical power meter, it will lead to the measuring
values meaningless.
Press the button , the instrument will change wavelength, and display.
FOPM-201/FOPM-202 optical power meter calibration measured wavelengths are:
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm.
4. Unit
button can be used to change the display unit of the measurement data to
meet the different requirement. When press this button for 2 seconds, the display
will successively show the dBm value or mW/uW value.
The numeric relationship between mW value and dBm value is: 10lg (mW) =
(dBm).
Operation Instructions
7

EN
5. Reference
button is used to set or check the reference value. Short press this button, the
display will show "REF" and the dBm value saved as reference value. When long
press for 2 seconds or more, the instrument will save the current dBm value as a
new reference value. Meanwhile the "REF" sign will flash 3 times on the display.
After that the display will show the dB value. Each wavelength can set its
reference value.
6. Visual Fault Locator Function (Optional)
When power meter with visual fault locator, you can short press the button to
control VFL status (on, glint, or off).
REF
VFL
FOPM-205
1310nm
ONU
1490nm
MODE
MENU dBm/dB REF/SEL
SAVE
1550nm
VideoOLT
CO
OPTICAL POWER METER
8

EN
1. Power On/Off and Auto-off Function
Press the button to turn on the instrument. It will automatically go to test
menu. In test menu, short press the button (less than 2 seconds) to activate
or deactivate the auto-off function. The auto-off function means the instrument
will shut down automatically if the instrument has not been operated for a certain
period of time. The time period can be set and the default is 10 minutes.
2. Test Mode Switch
In the test menu, press the button to switch between normal test mode and
P/F test mode.
(1) Normal Test Mode
Normal test mode means do not setup threshold value but display optical power
MODE
MENU
dBm/dB
REF/SEL
SAVE
Button Description
Power Button
Test Mode Button
Storage Button
Menu Mode Shift Button
Unit Shift Button
REF Setting Button
Operation Instructions
MODE
9

EN
directly. In this mode, the LED indicators will not light. The results are displayed in
2 units: dB and dBm, using button to switch. See Fig. 1.
Unit dBm is to display the actual power.
Unit dB is to display a power value relative to a reference value. In this mode,
reference value needs to be preset correctly.
(2) P/F Test Mode
P/F test mode means the measured light power comparing to a preset threshold
value to determine if the measured light power meets user’s requirement or not.
LCD will display the optical power and current state. The LED indicators below the
LCD display will also change color to match the current state of measured light.
This test mode is very useful in some special cases required. See Fig. 2.
dBm/dB
10-03-03 11: 43: 15
1310nm 1.2
-4.5
-15.0
1490nm
ONU
dB
dB
dB
Auto off
OLT
1550nm
VIDEO
Fig. 1 Normal Test Mode Menu (dB)
10-03-03 11: 43: 15
1310nm 1.2
-4.5
-15.0
1490nm
ONU
dBm
Pass
Fail
Warning
dBm
dBm
Auto off
OLT
1550nm
VIDEO
Fig. 2 P/F Test Mode Menu
10

EN
3. Threshold Setup
The user can set up the value. The steps are as following:
In the menu mode, select the second "Threshold Setup" enters to threshold setup
menu. See Fig. 3.
In this menu, left side displays wavelength and right side displays threshold value.
Top line indicates system information (date and time) and bottom line indicates
the information of threshold including threshold symbol, threshold number and
name.
In this menu, short press Threshold button (less than 2 seconds) to switch the
wavelength among 1310nm, 1490nm and 1550nm. Press button ▲( ) to
view the previous record, button▼( ) to view the next record, button
to validate the current threshold value. After the above operation, all P/F mode
test results will base on this threshold value.
dBm/dB
Fig. 3 Threshold Setup Menu
10-03-03 11: 43: 15
1310nm 1.2
-4.5
-15.0
ONU
dBm
Pass
Fail
Warning
dBm
dBm
TelecomThreshold 01
USING
MODE
dBm/dB
NOTE: The threshold value can only be preset by PC software. See PC
software section for detail. After finishing the setup, press the button
(less than 2 seconds) to exit the setup menu.
4. Time Setup
In the menu mode, select the forth "Time Setup" enters to time setup menu. See
Fig. 4.
11

EN
In the time setup menu, the button becomes arrow button - using it to
move cursor. When the cursor moves to a number, the user can use button ▲to
increase the value and button ▼to decrease the value. When the cursor moves to
"Yes" and press the button for more than 2 seconds, the " Yes" will flash,
means the instrument accepts the time change. During the time setup, the user
can press the button (less than 2 seconds) to exit time menu and back to the
test menu, then the system time setup remains unchanged.
5. Unit Switch
When the instrument is in normal test mode, press the button can switch
the unit between dBm and dB. Here, the unit dBm is the actual power and unit dB
is a power value relative to reference value. Refer to the next section about
"Reference Value Setup". When the instrument is in the P/F test mode, pressing
the button will automatically exit P/F test mode and switch to normal test
mode. Its unit will be in dB.
6. Reference Value Setup
In the test menu, press the button for more than 2 seconds, then the LCD
will display "REF" in red (see Fig. 5). This means the instrument chooses the
current light power as the reference value. The test results afterward are the
values after comparing to this reference value. Now, the unit will be in dB and LED
below the LCD display will not light.
Fig. 4 Time Setup Menu
10-03-03 11: 43: 15
Time Setup
Yes
08-10-25
15：02：03
dBm/dB
dBm/dB
REF/SEL
SAVE
REF/SEL
MENU
12

EN
In the test menu, short press the button (less than 2 seconds), then current
reference value will appear on LCD display. See Fig. 6.

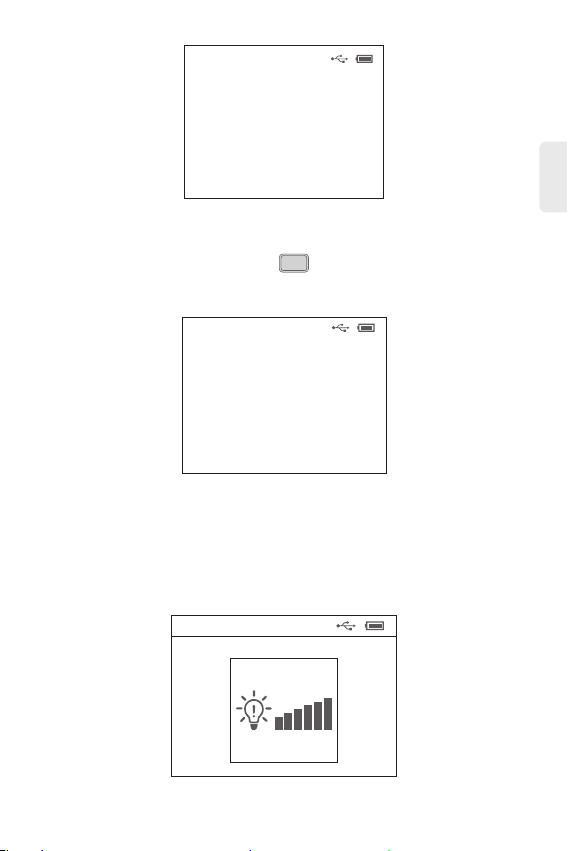

7. Backlight Setup
In the menu mode, select the third "Backlit Setup" enters to backlight setup
menu. See Fig.7.
REF/SEL
Fig. 5 REF Value Setup Menu
Auto off
10-03-03 11: 43: 15
1310nm
ONU
1490nm
OLT
1550nm
VIDEO
REF
Fig. 6 View REF Value Menu
10-03-03 11: 43: 15
1310nm 1.2
-4.5
-15.0
ONU
dBm
Ref
Ref
Ref
dBm
dBm
Auto off
1490nm
OLT
1550nm
VIDEO
10-03-03 11: 43: 15
Fig. 7 13

EN
8. Description of Memory Record Function
Description of Interface:
At the main interface, it shows the current recording number on the left bottom
of the page.
Displaying: num: xxxx (xxxx means the current recording number, the maximum
number up to 1000 pieces). As you may refer to the Fig. 8, it means there are 24
pieces of test recording inside.
Press the button for longer than 3 seconds to save the current testing value,
as you may refer to the Fig. 9, the recording number automatically adds 1 when
the interface shows "SAVE".
In this menu, press button ▲( ) to brighten the backlight and button ▼
( ) to weaken the backlight. After completing the setup, press the button
(less than 2 seconds) to save the setting, exit and back to the menu mode.
Press the button twice to exit and back to the main mode.
MENU
MODE
dBm/dB
MENU
Fig. 8
10-03-03 11: 43: 15
1310nm
ONU
dBm
dBm
dBm
Auto off
1490nm
OLT
num: 0024
Low
Low
1550nm
VIDEO Low
MODE
Fig. 9
10-03-03 11: 43: 15
SAVE
14

EN
At the "record view" interface, you may see the main menu on the bottom of the
page, they are (from left to right): ESC X RST
There is an underline when you selected the menu ( the "ESC" has been chosen in
Fig. 10), press "Threshold" shortly to move the underline from left to right , after
the underline moved to your ideal menu, press shortly to execute it.
At the "record view" interface (refer to Fig. 10), the characters on top of the
horizon line are"total number of recording" and "wavelength" (from left to right).
The characters under horizon line are "the number of recording" and the optical
power value in accordance with the corresponding wavelengths.
In the menu mode, select the first "record view", and press the button to
enter the "record view" interface, refer to Fig. 10 for this interface.
REF/SEL
Fig. 10
3 1310 1490 1550
Esc X RST
low
low
low
low
low
low
low
low
low
1:
2:
3:
10-03-03 11: 43: 15
REF/SEL
Description of every individual menu:
: Page up to the last 10 recording
: Page down to the next 10 recording
: Page up to the last 100 recording
: Page down to the next 100 recording
Fig. 11
Esc X RST
10-03-03 11: 43: 15
25 1310 1490 1550
13: high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
high
14:
15:
16:
17:
18:
19:
20:
15

EN
ESC: Exit the "record view" interface ( same as press )
X: Select one or more than one recording to delete
RST: Reset the recording memory, this operation is not reversible and it'll take 5
seconds to complete with power supply can not be disconnected, otherwise it
may damage the chip of tester.
At the "record view" interface, press the button to move "X" upward one
step, press the button to move "X" downward one step. In Fig. 10, the
interface explains that there are totally 3 testing results inside, "low" means the
saving power value is lower than the value of the threshold setting. In Fig. 11,
"high" means the saving power value is higher than the value of the threshold
setting. The digital means the power value of corresponding wavelength.
MODE
dBm/dB
FOPM-107
λ
Menu
Enter
Units Ref
Optical MPO Power Meter
16

λ
Menu
Enter
Units
Ref
Button Description
Power Button
Wavelength Shift and Up Button
Menu Mode Shift Button
Left Button
Confirmation Button
Right Button
Function Switch Shortcut Button
Unit Shift Button
REF Setting Button
17
EN

1. MPO Mode
(1) Insert Loss Test
Press thebutton to enter the main menu as shown in Fig. 1.
Press thebutton / to select mode and press to enter. Select MPO
mode and press to confirm, and then select line order. After entering, select
the type to be tested (such as A-Type).
Press the button / to select the Threshold setting. The buttons ,
, and could adjust the threshold, as shown in Fig. 2.
(2) MPO Line Sequence Test
When the type of MPO jumper under test is unknown, press the button to
switch to the line sequence test function, and press the button to test the
line sequence. The obtained line sequence will be automatically modified in the
MPO test. The test results are displayed in the area after Type. If communication is
interrupted, it will prompt: link timeout!
Menu
Enter
Enter
Operation Instructions
λ
Units
Enter
Fig. 1 Main Menu
Main menu
Select mode
Select line order
Threshold setting
Laser options
Historical records
Language setting
About me
Fig. 2 Threshold Settings
Threshold
00.00dB
λ
Units
λ
Units
NOTE: please confirm that works on MPO light source interface, not
menu or other interface when testing line sequence.
18
EN

Fig. 3 Multi-channel Power Meter
MPO mode Type-a 850nm
ch->01:
-50.00 dBm
ch->02:
-50.00dBm
ch->03:
-50.00dBm
ch->04:
-50.00 dBm
ch->05:
-50.00dBm
ch->06:
-50.00dBm
ch->07:
-50.00 dBm
ch->08:
-50.00dBm
ch->09:
-50.00dBm
ch->10:
-50.00 dBm
ch->11:
-50.00dBm
ch->12:
-50.00dBm
Fig. 4 Single-channel Power Meter
Power meter
850nm
Chann. : CH->01
Power. :
10. 00 nw
Refer. : 00. 00 dBm
-50. 00dBm
2. OPM Mode
This mode has two main functions, multi-channel power meter (as shown in Fig.
3) and single-channel power (as shown in Fig. 4).
Multichannel optical power meter: it is equivalent to a 12-channel optical power
meter, which supports the selection and release of a single channel or all
channels. The wavelength of individual channels can be edited when selected,
and the global operation of all channels can be carried out when all channels are
selected.
19
EN
