FSR DV-HMSW4K-44AUD User manual
Operating Instructions
2
Thank you for purchasing this product.For optimum performance and
safety,please read these instructions carefully before connecting,
operating or adjusting this product.Please keep this manual for future
reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes,surges,electric shock,lightning strikes,
etc.Use of surge protection systems is highly recommended in order to
protect and extend the life of your equipment.
Operating Instructions
3
Table of Contents
1. Features...............................................................................................4
2. Package Contents ..............................................................................4
3. Specifications.....................................................................................4
4. Panel Descriptions.............................................................................5
4.1 Front panel ....................................................................................5
4.2 Rarepanel .....................................................................................6
5. Connecting and Operating................................................................6
6. Application Diagrams ........................................................................7
7. Remote Control Description .............................................................7
8. Panel Control Description ............................................................... 8
8.1 Video switch operation ................................................................8
8.2 Video control.................................................................................9
8.3 Audio control interface .............................................................. 11
8.4 EDID setting interface................................................................ 12
8.5 Preset application ...................................................................... 14
8.6 Setup interface ........................................................................... 15
8.7 Query information interface...................................................... 18
9. RS232 Control...................................................................................20
9.1 Open Comm Uart Assistant.......................................................20
9.2COM port setting: ......................................................................
20
9.3 Enter Port Command in Send options .....................................20
9.4 Command List.............................................................................20
10. Web Control....................................................................................21
10.1 Change IP address of PC.........................................................21
10.2 Log in by browser.....................................................................22
10.3 Video interface ..........................................................................22
10.4 Audio Interface..........................................................................23
10.5 EDID Interface...........................................................................24
10.6 Network Interface .....................................................................25
10.7. System Setting Interface .................................................... 26
11. Firmwareupdate ............................................................................27
11.1. Burn MCU bottom layer ..........................................................27
11.2. MCU application layer upgrade..............................................27
11.3 Web Upgrade .......................................................................... 28
Warranty Policy ....................................................................................29
Operating Instructions
4
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating, or adjusting this product.
Please keep this manual for future reference.
1. Features
•HDMI 2.0 version ( Supports 4 K@60Hz YUV4:4:4)
•Bandwidth up to 18Gbps
•HDCP1.4/2.2 compliant
•Supports HDR10, HLG, Dolby vision
•4 xHDMI Input, 4xHDMI output with 4 xSPDIF coaxial Audio, and 4 x Analog Audio
•Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
•Supports IR control for long distance; RS232 control, Panel Button control,
TCP/IP
control and Web GUI Control
•Supports PCM 2.0, Dolby True HD and DTS-HD master audio, LPCM 7.1, audio
•Sampling rate up to 192KHZ.
•Supports analog and S/PDIF audio extraction
•Supports EDID management and EDID copy
•Supports firmware updating through RS232 port.
2 . Package Contents
1. 1x HDMI Matrix
2. 1x 12V/2A DC power supply
3. 1x Remote control
4. 1x IR Ext RX Cable
5. 5x Screw terminal plugs for RS232 cable termination & L/R Audio termination.
6. 1x CD for control software & user manual
3. Specifications
Operating Temperature 0Cto+40C (+32℉to+104℉)
Operating Humidity 5 to 90% RH (Non-Condensation)
Max resolution 4K@ 60hz YUV4:4:4
HDCP Compliant HDCP2.2 and HDCP1.4
Output Video HDMI2.0 and HDMI 1.4
Audio Format Supported PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1
RS-232 serial port 3PIN terminal block connectors
Ethernet port (IP control) RJ45, female
IR Ext port 1x3.5mm stereo jack
Bandwidth 18 Gbps
Default IP 192.168.1.168
Dimensions (WxHxD) L8.56” (216.2mm) X W5.07” (128.5mm) X H1.38” (34mm)
Net Weight 1.04 lbs.
Power consumption 14W (Max)
Operating Instructions
5
4. Panel Descriptions
`4.1 Front panel
1. IR receive window.
2. Output 1-4: short press will select one output, press again to cancel; long press
will select all outputs, long press again to cancel.
3. Input 1-4: short press will select one input if an output is already selected; a long
press will select one input for all output.
4. PRESET: short press for preset
5. UP: short press for up
6. LOCK: long press to lock, long press again to unlock, all but the lock button is de-
activated when locked.
7. MENU: press for the main menu interface or return to the previous menu interface.
8. DOWN: short press for down
9. ENTER: short press to confirm
10. LCD screen
Note:Unit will exit the menu interface will return to audio channel interface automatically
30s after last button press; after 60s without a button press the LCD screen will turn off.
Operating Instructions
6
4.2 Rear panel:
1. Analog audio out
2. S/PDIF audio out
3. RS232 for control
4. IR-Ext
5. Ethernet port
6. DC12V/2A input.
7. HDMI output port.
8. HDMI input port.
5. Connecting and Operating
1. Connect source devices to input ports of the matrix
2. Connect HDMI output ports to TV or other HDMI sink devices.
3. Optional: connect RS232 cable from PC RS232 port.
4. Optional: connect an Ethernet cable from the TCP/IP port on the matrix to a local
area network.
5. Connect 12V POWER supply to DC power socket.
6. Power on the matrix, HDMI sources and displays.
Operating Instructions
7
6. Application Diagram
7. RemoteControl Description
1. Power on/Standby.
2. M: Turn off the HDMI output audio
3. W: Lock remote control
4. Output 1-4
5. All outputs select INPUT-Y:
a. Press the ALL button.
b. Press INPUT-Y button (Y
means 1 to 4 of the inputs),then
INPUT-Y switched to ALL
OUTPUTS.
6. Turn off output channel.
7. PTP button: Mirror all inputs and
outputs (Ex. Input 1 to output 1, input 2
to output 2, etc.)
8. Input 1-4 (press output-X then Input-Y):
9. Switching input left and right.
10. Up and down, left and right
Operating Instructions
8
Note: All buttons use short button presses.
•Power on/standby: in standby the LCD screen will show “System Shutdown”, 5V
on the HDMI output will be disconnected and the display with have no image.
•Video switch: output + input (e.g., output1+input2, switches output1 to input1)
•Turn off HDMI output audio: output + M (e.g., output1+M, turns off output1 audio)
•Lock remote control: short press “W” to lock, short press again to unlock.
•Turn off output channel: output + “X” (eg: Output1 + X, output1 turns to black
screen, output + X again to return to normal)
•Switching input left and right: output + <(>)；(e.g., All + < ,TV image will change
according to the next input, it will skip inputs with no signal).
8. Panel Control Description
8.1. Video switch operation:
The unit can be randomly configured according to requirements to form a 1×4~4×4
matrix. It can switch any input signal to 1 or more output channels.
Operation format: “output channel” + “input channel”, or long press “input channel” for all
output channels.
For example：
1. Switch output 1 to input 4.
Operation: press output1+input4 to complete switch
2. Output 1, 2, 3 switch to input 2.
Operation: press output 1, 2, 3 + input 2 to complete switch
3. All output switches to input 4.
Operation: long press input 4 to complete switch
Note: to quickly (< 10s) switch between inputs press the output + input to switch, then the
input button can be press repeatedly without then need to press the output again
Operating Instructions
9
8.2 Video control:
There are 2 sub-menus in video interface: 1. Switching; 2. On/Off
8.2.1 Video switching
Operation:
1. Select “Video” in the main menu, press the “ENTER” button.
2. press “up and down” button to choose “Switching”.
3. press “ENTER “to enter the next sub-menu.
4. press the “up and down” button to select “Output1~4“, (“All” means all output,
“Switching”), the bottom color of the selected output turns to white
5. press “ENTER” to enter the next sub-menu.
6. press the “up and down” button to select input, the bottom color of the selected
input turns to white.
7. press “ENTER “button to complete video switching.
Operating Instructions
10
8.2.2 Output switch control
You can open/close any output port, or open/close all output ports. Video outputs
are defaulted to open.
1. In the main menu, select “Video” and press “ENTER” button.
2. press “up and down” button to select “On/Off”
3. press the “ENTER” button to enter the next sub-menu.
4. press “up and down” button to select “output1-4” (All means all outputs), the
bottom color of the selected output turns to white.
5. press “ENTER” to enter the next sub-menu.
6. select Output-HDMI1~4, press “ENTER” button to enter the next sub-menu.
7. press the “up and down” button to select Off or On
8. Press the “ENTER” button to confirm that the output port is open/closed.
Operating Instructions
11
8.3 Audio control interface
There are 2 sub-menus in audio control interface: Line out, De-Embed (both are
defaulted to open)
Operating Instructions
12
8.3.1 Switch output audio
“Line out” mute/unmute HDMI embedded output audio on any one or all output channels.
Operation：
1. select “Audio” in the main menu and press the “ENTER” button.
2. Press “up and down” button to select “Line out”, press the “ENTER” button, the
bottom color of the selected turns to white. Select output 1-4 or “ALL” via pressing
the up and down buttons, press “ENTER” button to choose “on” or “off “.
3. e.g., mute sound of the TV connected to HDMI output1, operation: “Audio” +
“ENTER” + “Line out” + “Output1-HDMI1” + “Off”, will return to upper-menu after
“ENTER”.
8.3.2 Audio extraction control:
“De -Embed” enables the output audio (for both analog and SPDIF audio) on one or all
output channels.
Operation：
1. select “Audio” in main menu and press “ENTER” button.
2. Press “up and down” button to select “De -Embed”, press “ENTER” button, the
bottom color of the selected turns to white, Able to select output1-4 and all via
pressing “up and down” button, press “ENTER” button to choose ”on” and “off “
3. e.g., turn off audio extraction of HDMI output1, operation: “Audio” + “ENTER” + “De -
Embed” + “Output1” + “Off”, will return to upper-menu after “ENTER”.
8.4 EDID setting interface:
EDID management: User EDID, build-in EDID, Copy EDID mode.
The default EDID is “Default1”
Default1
4K60 444-LPCM: 2.0, HDR: HLG
Default2
4K60 420-LPCM: 2.0, HDR: None
Default3
4K30 444-LPCM: 2.0, HDR: None
Default4
1080P60 444-LPCM: 2.0, HDR: None
Operating Instructions
13

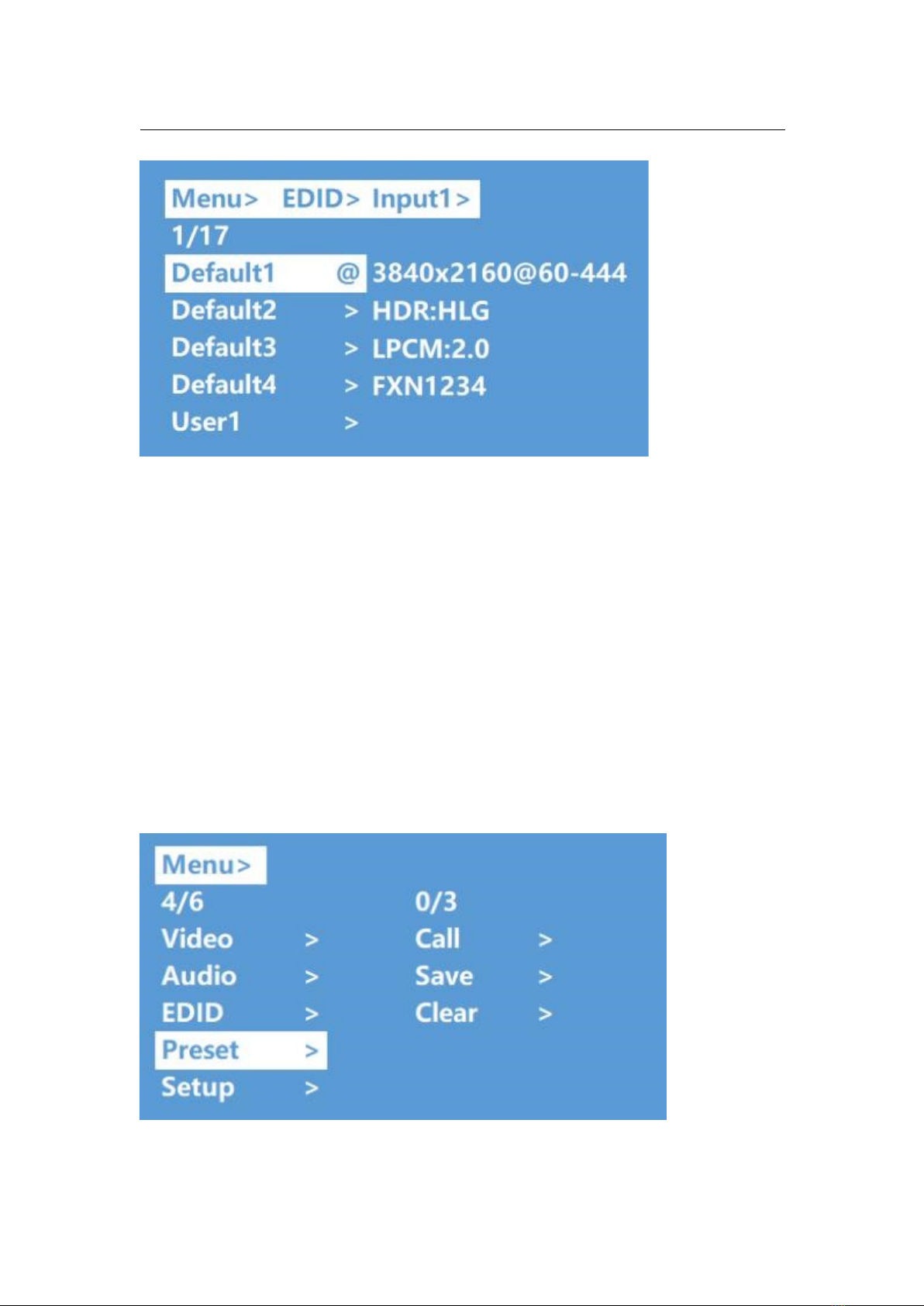

Example: switch default1 to output1:
Operation：
1. select “EDID” in main menu and press “ENTER” button
2. press “up and down” button to select “Input 1” (“All” means all input)
3. press “ENTER” button to enter the next sub-menu.
4. press “up and down” button to select “Default1”, the bottom color of the selected
turns to white, press “ENTER” to complete setting.
5. behind the selected EDID, it will show the max supported resolution, audio format
and audio channel.
Operating Instructions
14
8.5 Preset application
Preset interface can save the current video, audio, EDID, system setting, etc…
Supports 8 different presets, can execute a preset through the web, command, panel
button, and recall.
Preset control interface has three sub-menus:
Call scene
Save scene
Clear scene
Operation：
1. select “Preset” in main menu and short press “ENTER” button to enter preset
interface; call, save and clear preset.
2. save preset: select Save- > anyone of Preset1~8- >ENTER.
3. call preset: Call- >any of the saved Preset1~8- >ENTER.
4. clear preset: Clear- >any of the saved Preset1~8- >ENTER (the saved preset
will return to the default).
Operating Instructions
15
8.6 Setup Interface
The setup interface can set serial port baud rate, DHCP switch, device reboot and factory
reset.
8.6.1 Baud rate setting
The options for the baud rate setting are: 9600,19200, 57600, 115200.
The default serial port is 115200.
Below example is setting baud rate to 9600.
Operation：
1. select “Setup” in the main menu and press “ENTER” button.
2. press the “up and down” buttons to select “Baud”
3. press “ENTER” to enter the next sub-menu.
4. press “up and down” button to select “9600”
5. press “ENTER” to complete setting the new Baud Rate
Operating Instructions
16
8.6.2 DHCP Switch
DHCP On: dynamic IP address; DHCP Off: static IP address (default is DHCP off)
DHCP Operation:
1. select “Setup” in the main menu and press the “ENTER” button.
2. press “up and down” buttons to select “DHCP” setting.
3. press “ENTER” to enter the next sub-menu.
4. press “up and down” buttons to select “On”.
5. press “ENTER” to open DHCP to allocate IP address automatically.
8.6.3 Reboot
Reboot device, default is “NO”.
Operation：
1. select “Setup” in the main menu and press “ENTER” button.
2. press “up and down” button to select “Reboot”.
3. press “ENTER” to enter the next sub-menu.
4. press “up and down” button to select “Yes”.
5. press “ENTER” to complete reboot device.
Operating Instructions
17
8.6.4 Factory Reset
reinitializing the setting for the device (default is “NO”). There are two factory settings:
1. Factory Common: factory reset for video switch, EDID, audio and setting (IP
address will not be factory rest)
2. Factory All: factory set for video switch, EDID, audio, setting, preset
and device name.
Factory Reset Operation:
1. select “Setup” in the main menu and press “ENTER” button.
2. press “up and down“ button to select “Factory”.
3. press “ENTER” to enter the next sub-menu.
4. press “up and down” button to select “ALL” and press “ENTER” button.
5. press “up and down” button to select “Yes” and press “ENTER” button.
Operating Instructions
18
8.7 Query information interface
Query IP and system information.
System interface query; company name, device name and version
information IP interface query device IP address, MAC address and
DHCP status.
Operation：
1. select “INFO” In main menu and press “ENTER” button.
2. press “up and down” button to select “System” or “IP”, bottom color will turn
white when selected.
3. press “ENTER” to enter the next sub-menu, then able to query device
information.
Operating Instructions
19
Operating Instructions
20
9. RS232 Control
9.1 Open Comm Uart Assistant.
9.2 Comport setting:
Choose correct COM port that connects to PC in parameter configuration area
Baud Rate:
115200 bps (Default)
Parity:
None
Data Bit:
8 bit
Stop Bit:
1 bit
9.3 Enter Port Command in Send options.
9.4. Command List
1. All commands start with “#”
2. The “_” underline cannot be omitted.
3. Command header, Parameter and target need to have one “SPACE”.
The following table is only an example. Please refer to the list of instructions.
Type
Format
Value
Regulation
Command Header
#cmd
without
Explain Can be used to search command, after receiving command, the system will
feedback all open command format fields
Example1
#cmd
Search all open command
Table of contents
Other FSR Matrix Switcher manuals
