FSR DV-HMSW4K-88 User manual

DV-HMSW4K-88 Matrix Manual
Based on firmware revision 1.20
244 Bergen Blvd Woodland Park NJ 07424 973-785-4347 www.fsrinc.com
43059
LIT1486B

2
PROPRIETARY INFORMATION
All information in this manual is proprietary to and the property of FSR Inc. This
publication is protected by the Federal Copyright Law, with all rights reserved. No
part of this document may be reproduced, transcribed, or transmitted, in any form
or by any means, without prior explicit written permission from FSR Inc.
UNPACKING
The DV-HMSW4K-88 8x8 Matrix Switcher package includes the following items;
DV-HMSW4K-88 8x8 HDMI Switcher
Power supply: 12VDC 5A
9 IR Receivers
8 IR Transmitters

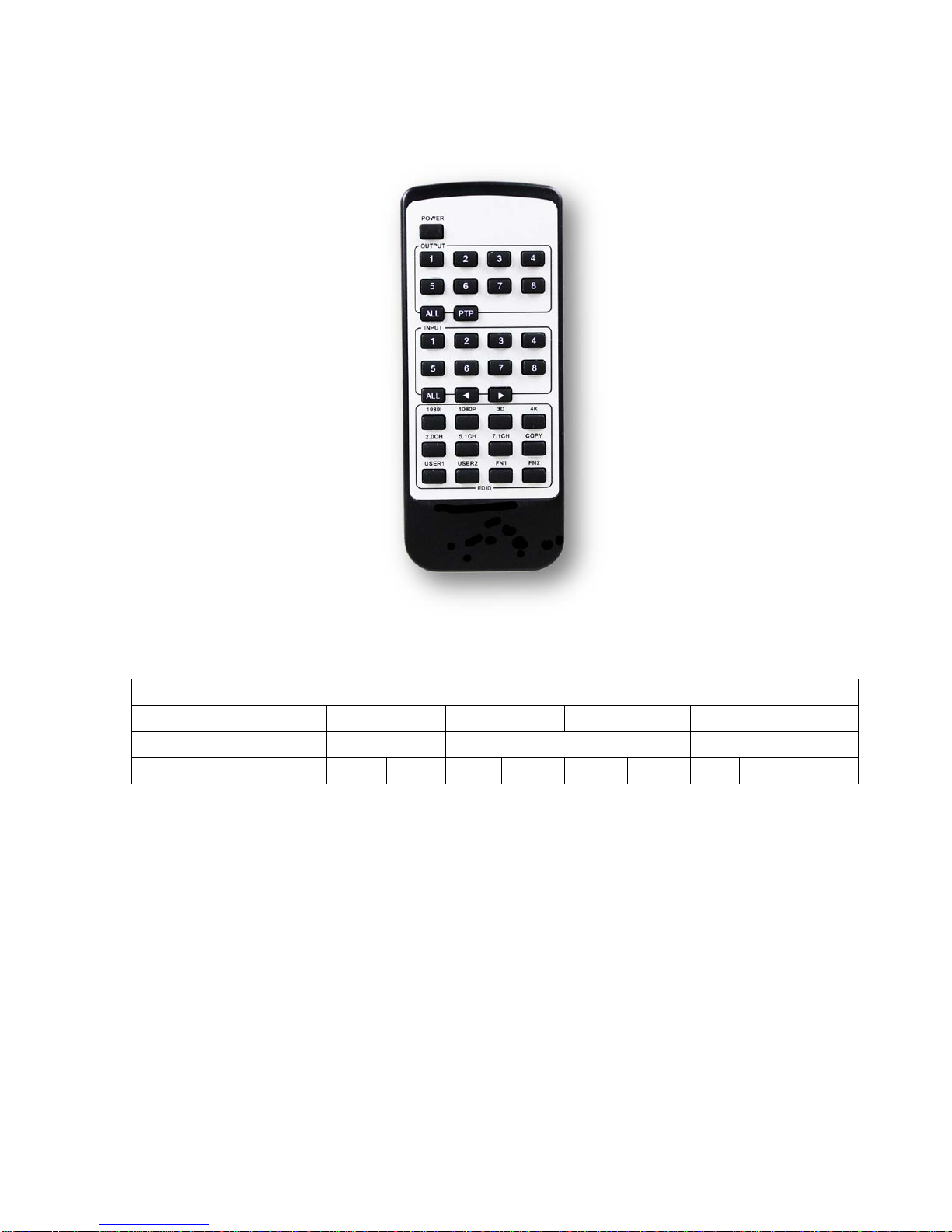

IR Remote Control
Rack Ears
CD with GUI, User’s and Protocol Manual
HDMI is a trademark of HDMI licensing, LLC.
Dolby is a trademark Dolby Laboratories
DTS is a trademark of DTS, Inc
Specifications may be changed without any notice in order to
improve the function of the product.

3
LIMITED WARRANTY
The DV-HMSW4K-88 Matrix is warranted against failures due to defective parts or faulty
workmanship for a period of three years after delivery to the original owner. During this period,
FSR will make any necessary repairs or replace the unit without charge for parts or labor. Shipping
charges to the factory or repair station must be prepaid by the owner, return-shipping charges (via
UPS Ground) will be paid by FSR.
This warranty applies only to the original owner and is not transferable. In addition, it does not
apply to repairs done by other than the FSR factory orAuthorized Repair Stations.
This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to
physical abuse or has been modified in any way without written authorization from FSR. FSR’s
liability under this warranty is limited to repair or replacement of the defective unit.
FSR will not be responsible for incidental or consequential damages resulting from the use or
misuse of its products. Some states do not allow the exclusion of incidental or consequential
damages, so the above limitations may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Warranty claims should be accompanied by a copy of the original purchase invoice showing the
purchase date (if a Warranty Registration Card was mailed in at the time of purchase, this is not
necessary). Before returning any equipment for repair, please read the important information on
service below.
SERVICE
Before returning any equipment for repair, please be sure that it is adequately packed and
cushioned against damage in shipment, and that it is insured. We suggest that you save the
original packaging and use it to ship the product for servicing. Also, please enclose a note giving
your name, address, phone number and a description of the problem.
NOTE: all equipment being returned for repair must have a Return authorization (RMA) Number.
To get a RMANumber, please call the FSR Service Department (1-800-332-FSR1). Please display
your RMA Number prominently on the front of all packages.
CONTACT INFORMATION
FSR INC.
244 Bergen Blvd.
Woodland Park, NJ 07424
Phone: [phone]
Order Desk Fax: [phone]
E-mail: [e-mail]
Web Site: http://www.fsrinc.com

4
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the life
of your equipment.
SAFETY
All the safety and user manual should be read before the appliance is
operated.
The safety and operating instructions should be retained for future
reference.
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this equipment near wet place.
This product should be operated only from the type of power sources
indicated on the marking label. If you are not sure of the type of power
supplied to your home, consult your local power company.
This equipment may be equipped with a 3 wire grounding-type plug, a plug
having a third (grounding) pin. This pin will only fit in to a grounding type
power outlet. This is a safety feature. If you are unable to insert the plug in to
the outlet, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
Openings on the case are provided for ventilation and to ensure reliable
operation of the equipment and to protect it from overheating. The openings
should never be blocked.
Do not use any damaged power cords or plugs, or loosed outlets, this may
cause electrical shock or fire.
Do not put heavy articles such as other equipments on this product. Keep it
away from liquid, magnetic and flammable substances.

5
TABLE OF CONTENTS
PROPRIETARY INFORMATION.....................................................................2
UNPACKING......................................................................................................................2
LIMITED WARRANTY.....................................................................................3
SAFETY.............................................................................................................................4
DESCRIPTION ................................................................................................6
APPLICATION DIAGRAM ...............................................................................7
DIMENSIONS..................................................................................................8
PANEL DESCRIPTION....................................................................................9
FRONT PANEL..................................................................................................................9
BACK PANEL ..................................................................................................................10
FRONT PANEL OPERATION........................................................................11
MENU ..............................................................................................................................11
EDID SETTING SUB-MENU....................................................................................11
SET THE EDID TO THE DEFAULT SETTING SUB-MENU ...................................12
NETWORK CONFIGURATION SUB MENU...........................................................12
TECH SUPPORT SUB-MENU (INFORMATIONAL) ...............................................12
FIRMWARE VERSION SUB-MENU (INFORMATIONAL).......................................12
MATRIX ROUTING..........................................................................................................13
MANUAL ROUTING: ...............................................................................................13
1T1 (ONE TO ONE) ROUTING:..............................................................................13
ALL ROUTING:........................................................................................................13
IR REMOTE CONTROL ROUTING...............................................................14
SET EDID ........................................................................................................................14
COPY EDID.....................................................................................................................15
MATRIX ROUTING..........................................................................................................15
PTP (ONE TO ONE) ROUTING: .............................................................................15
ALL ROUTING:........................................................................................................15
GRAPHICAL USER INTERFACE (GUI)........................................................17
WEB INTERFACE CONTROL.......................................................................21
DEFAULT COMMUNICATION SETTINGS....................................................22
SPECIFICATIONS.........................................................................................22

6
DESCRIPTION
The DV-HMSW4K-88 8x8 HDMI Matrix routes eight HD sources to any eight HDTV
displays. The unit supports 1080p Full HD up to 4K plus all 3D formats, along with
multichannel digital audio formats such as PCM, Dolby®True HD and DTS-HD® Master
Audio™. Switching and other commands can be implemented using the front-panel
push buttons, IR remote control, RS-232, and via TCP/IP.
Features:
Supports resolutions up to 1080p @ 60Hz, 48-bit deep color, 4k @ 30Hz
Allows any source to be displayed on multiple displays at the same time
Allows any HDMI display to view any HDMI source at any time
PCM, Dolby TrueHD and DTS-HD master audio pass through HDMI output
Multiple switching mode, Front Panel push-buttons, IR remote control, RS-232
control, and TCP/IP control
Easy installation with rack-mounting ears
Full 3D pass through
HDCP compliant
Includes 9 IR receivers, 8 IR Transmitters and a handheld IR Remote

7
APPLICATION DIAGRAM
FSR 12345678
IR INPUT 12345678 IR OUTPUT
12345678
HDMI INPUT 12345678 HDMI OUTPUT LAN RS-232
WIRED
IR
CONTROL
IR 12 VDC
PC PC LAPTOP CAMERA
DVD DVD BLUE-RAY SET-TOP
DVD BOX
MONITOR
MONITOR
MONITOR
MONITOR
MONITOR
MONITOR
MONITOR
MONITOR
PC
IR INPUT
(RECEIVER) IR OUTPUT (EMITTER)
WIRED IR
CONTROL
INPUT
POWER
SUPPLY

8
DIMENSIONS
DV-HMSW4K-88
DV PRO - HDMI 8x8 4K MATRIX SWITCHER
IR POWER
LOCK
INPUT SELECT
OUTPUT SELECT
1T1
ALL
12345678
MENU
SELECT
UP
DOWN
ESC
ENTER
FSR
FSR
1 2 345678
IR INPUT
12345678
IR OUTPUT
12345678
HDMI INPUT
12345678
HDMI OUTPUT
LAN RS-232
WIRED
IR
CONTROL
IR 12 VDC
DEPTH INSIDE RACK IS APPROXIMATELY 9.25"
17.32 CHASSIS WIDTH
18.34
19.02
1.25 1.74

9
PANEL DESCRIPTION
Front Panel
1. LCD display — Shows the status of input-output selection, EDID info and other
information.
2. Power LED indicator — Blue (on), Red (off, standby). Press to turn ON. Press and
hold to turn OFF
3. IR receiver window for the Matrix IR remote control.
4. HDMI input selection buttons 1 to 8 — Press to select the input from 1 to 8.
5. 1T1 button — Press to mirror all inputs and outputs (e.g. input 1 to output 1, input 2 to
output 2 and so on).
6. MENU — Press the MENU then use the UP and DOWN buttons to scroll through the
following five sub-menus:
1. EDID Setting
2. Set EDID to default setting
3. Network Config
4 Tech Support (Informational)
5. Firmware version (Informational)
7. UP selection button
8. ESC — Press to quit menu (escape)
9. LOCK LED indicator — Panel is locked when lit.
10. LOCK button — Press and hold to lock and unlock Front Panel
11. HDMI output selection button 1 to 8 — Press to select the output from 1 to 8.
DV-HMSW4K-88
DV PRO - HDMI 8x8 4K MATRIX SWITCHER
IR POWER
LOCK
INPUT SELECT
OUTPUT SELECT
1T1
ALL
1234 5678
MENU
SELECT
UP
DOWN
ESC
ENTER
FSR
11
5
31 4
2
6
7
8
9
10
12 13
14
15

10
12. ALL button — Routes the specified input to all the outputs
13. SELECT button
14. DOWN button
15. ENTER button

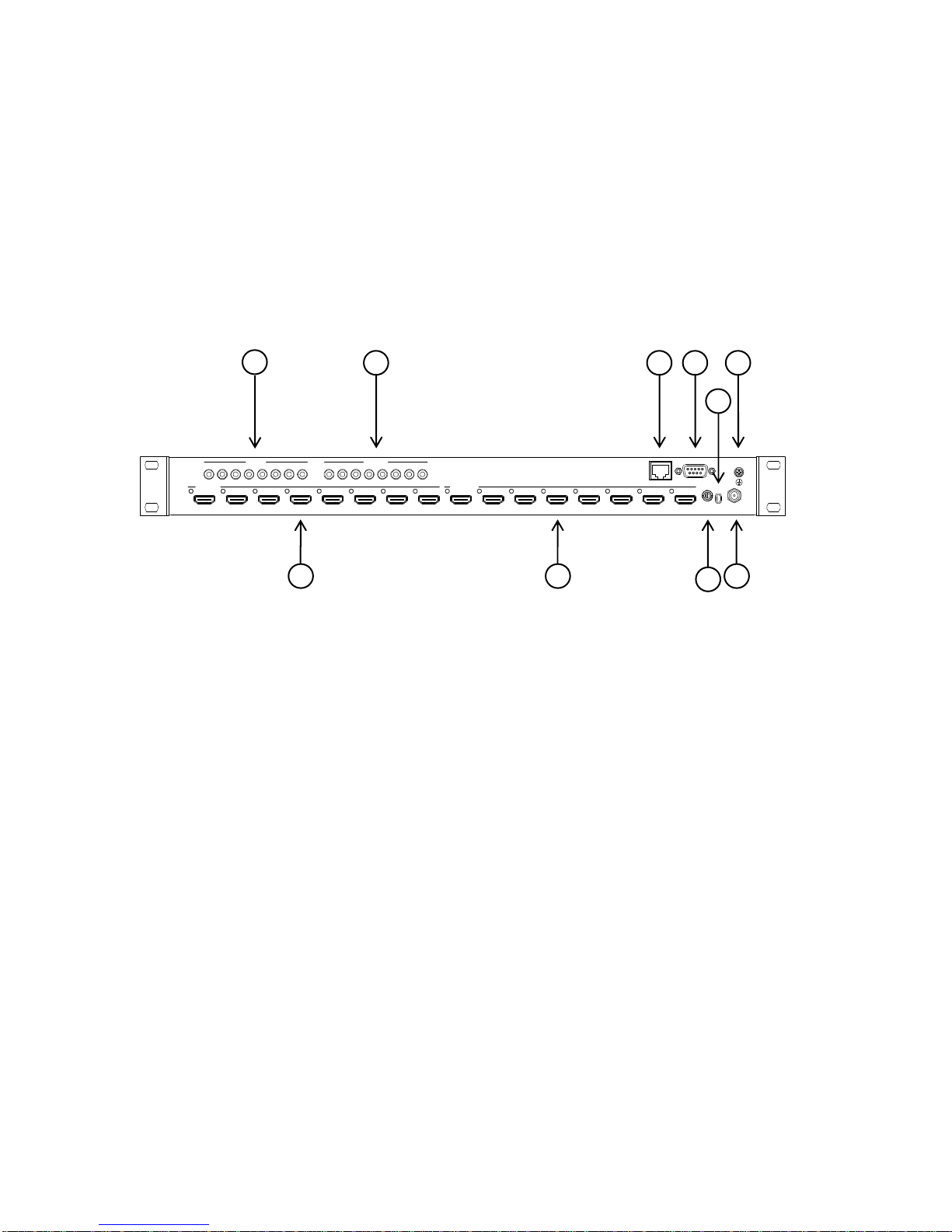

Back Panel
1. 8 IR inputs 3.5mm stereo phone-jack
2. 8 IR outputs 3.5mm stereo phone-jack
3. 3.5 mm stereo phone-jack Matrix IR receiver input
4. LAN port
5. RS-232 port
6. 8 HDMI inputs
7. 8 HDMI outputs
8. Matrix remote control IR receiver window
9. Power input
10. Ground terminal screw
FSR 12345678
IR INPUT 12345678
IR OUTPUT
12345678
HDMI INPUT 12345678 HDMI OUTPUT LAN RS-232
WIRED
IR
CONTROL
IR 12 VDC
1 2
3
45 10
76 9
8
