FSR TWISTER MMTP-100 User manual

TWISTER
MMTP SERIES
MULTI MEDIA TWISTED PAIR
TRANSMITTER MMTP-100
RECEIVER MMTP-200 (S)
HUB MMTP-300
OPERATION MANUAL
LIT1032 D2
Issue date: 11/05
FSR
300
43873

PROPRIETARY INFORMATION
All information in this manual is proprietary to and the
property of FSR inc. This publication is protected by the Federal
Copyright Law, with all rights reserved. No part
of this document may be reproduced, transcribed, or transmitted,
in any form or by any means, without prior
explicit written permission from FSR inc.
Operators Safety Summary
The general safety information in this summary is for operating
personnel.
Read Instructions Read and understand all safety and operating
instructions before using this equipment. Keep the instructions
handy.
Do Not Remove Covers or Panels There are no user-serviceable
parts within the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the
top cover. Do not operate the unit without the cover installed.
Power Source This product is intended to operate from the
specified wall plug-in transformer. Do not use any other power
source.
Grounding the Product This product is grounded through the
grounding conductor of the power cord. To avoid electrical shock,
plug the power cord into a properly wired receptacle before
connecting to the product input or output terminals.
Use the Proper Power Cord Use only the power cord and
connector specified for your product. Use only a power cord that is
in good condition. Refer cord and connector changes to qualified
service personnel.
REGULATORY COMPLIANCE
FSR'S ELECTRONIC PRODUCTS have been tested for compliance with: FCC Class A and CE
The Power Adapter has been tested for compliance with: UL, CSA and CE.
WARRANTY POLICY
This product is warranted against failures due to defective parts or faulty workmanship for a period
of one year after delivery to the original owner. During this period, FSR will make any necessary
repairs or replace the unit without charge for parts or labor. Shipping charges to the factory or repair
station must be prepaid by the owner, return-shipping charges, via UPS / FedEx ground, will be paid
by FSR.
This warranty applies only to the original owner and is not transferable. In addition, it does not apply
to repairs done by other than the FSR factory or Authorized Repair Stations.
This warranty shall be cancelable by FSR at its sole discretion if the unit has been
subjected to physical abuse or has been modified in any way without written authorization from FSR.
FSR’s liability under this warranty is limited to repair or replacement of the defective unit.
FSR will not be responsible for incidental or consequential damages resulting from the use or misuse
of its products. Some states do not allow the exclusion of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Warranty claims should be accompanied by a copy of the original purchase invoice
showing the purchase date (if a Warranty Registration Card was mailed in at the time of purchase,
this is not necessary). Before returning any equipment for repair, please read the important informa-
tion on service below.
SERVICE
Before returning any equipment for repair, please be sure that it is adequately packed and cushioned
against damage in shipment, and that it is insured. We suggest that you save the original packaging
and use it to ship the product for servicing. Also, please enclose a note giving your name, address,
phone number and a description of the problem.
NOTE: All equipment being returned for repair must have a Return Authorization (RMA)
Number. To get a RMA Number, please call:
FSR Service Department (973-785-4347).
Please display your RMA Number prominently on the front of all packages.
Contact Information:
FSR Inc.
244 Bergen Boulevard,
West Paterson, NJ 07424
Tel: [phone] · Fax: [phone]
E-Mail: [email protected] · Web: http://www.fsrinc.com

INTRODUCTION

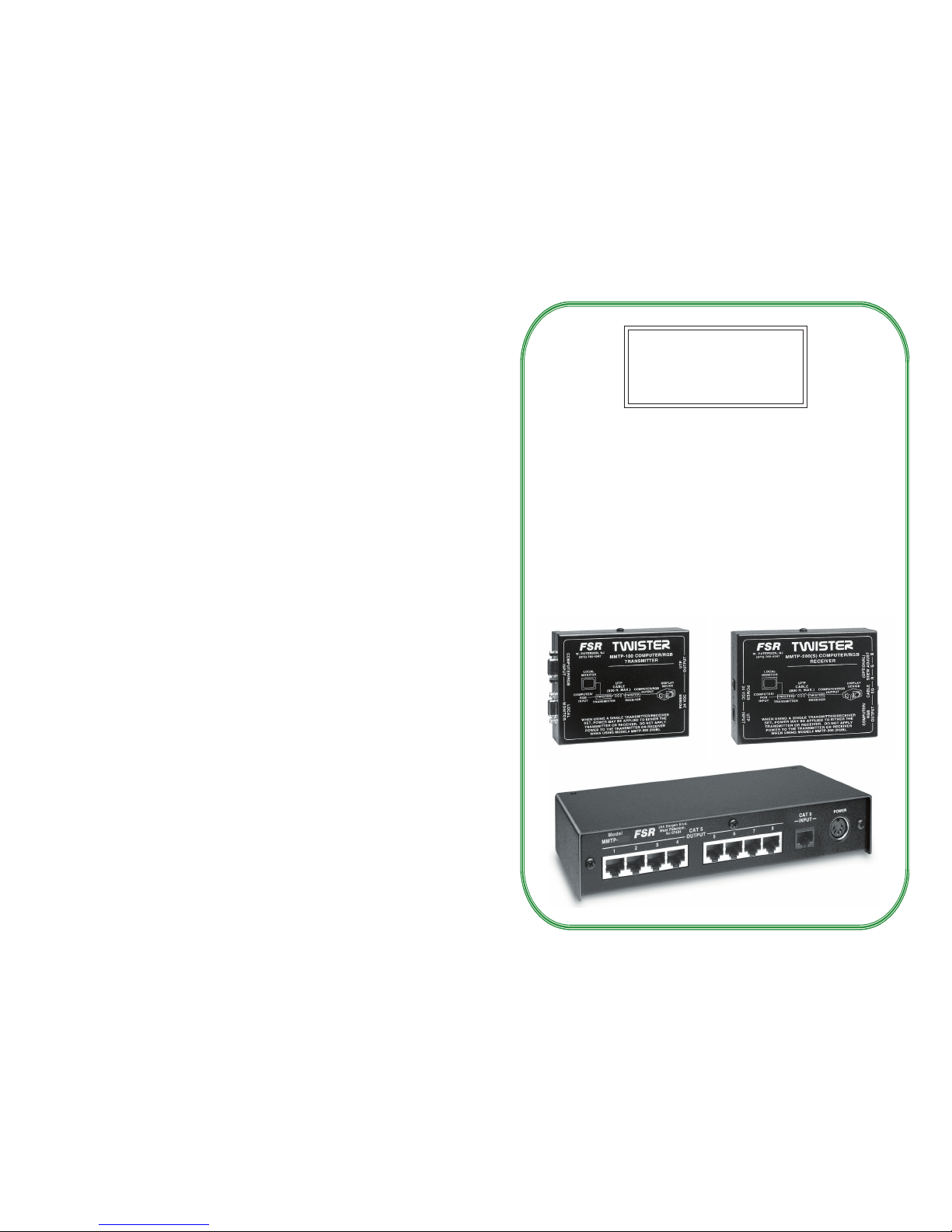

The all new TWISTER, MMTP SERIES, which includes three pieces
of equipment, an MMTP-100 COMPUTER/RGB TRANSMITTER,
an MMTP-200 COMPUTER RGB RECEIVER, and when required an
MMTP-300 1 X 8 HUB were designed for applications requiring the
transport of video over long distances on Cat 5 type cable.
The Receiver has an equalization control to permit fine tuning of the
displayed image.
Cable runs of up to 1000 feet are within the capabilities of the product.
The MMTP-200S skew compensating receiver option is recommended
in any image critical RGBHV application over 200 feet, and all RGBHV
applications over 500 feet. There are three, 16 position rotary switches
for RGB skew adjustment on this option.
The MMTP-300 HUB is available to drive up to eight additional
Receivers. Up to three hubs can be cascaded to expand out to additional
receivers. It includes a larger power supply to power all transmitters,
receivers and the Hub itself.
When this equipment is used the original signal will arrive at the far
end of the cable with an almost immeasurable amount of loss and / or
distortion.
FEATURES
• Computer compatible sychronizing circuitry
• HD-15 female connectors for the input and output
• CAT-5 connections are via RJ-45 Connectors (EIA/TIA-568B)
• Full cable equalization control for the output channel
• Compatible with all computer standards
• UL and CSA approved external power source (wall plug-in)
APPLICATIONS
• Boardrooms • Houses of Worship• Control Rooms
• Classrooms• Staging and Rental

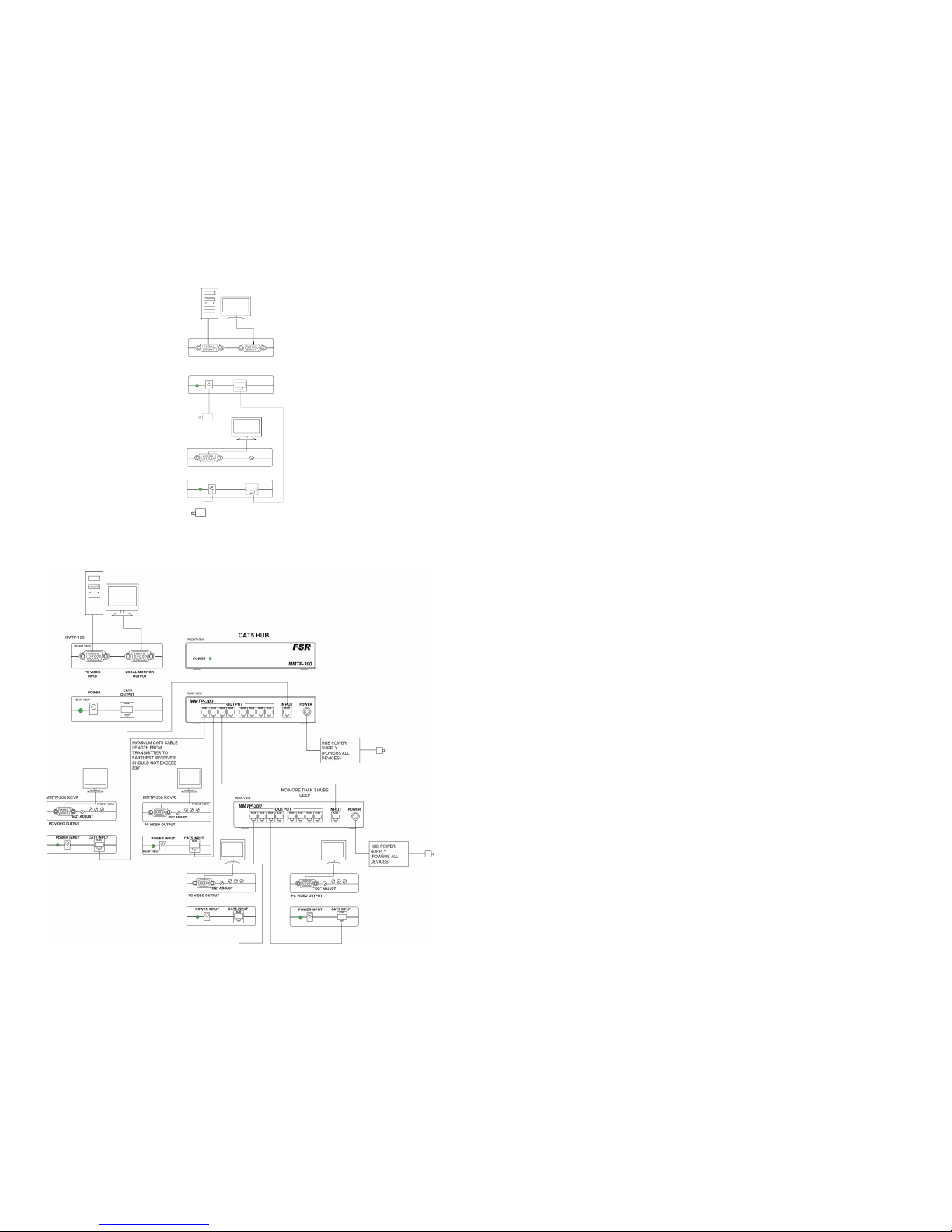

TYPICAL APPLICATION with the HUB and multiple Receivers
PC VIDEO
INPUT
LOCAL MONITOR
OUTPUT
PC VIDEO OUTPUT
“EQ” ADJUST
POWER INPUT
RJ45
CAT5 INPUT
MMTD-RGBRX
POWER SUPPLY
POWERS BOTH TRANSMITTER
AND RECEIVER
ALTERNATE
POWER SUPPLY
LOCATION
RJ45
POWER
CAT5
OUTPUT
MMTD-RGBTX
FRONT VIEW
REAR VIEW
FRONT VIEW
REAR VIEW
TOTAL CAT5 CABLES
RUN SHOULD NOT
EXCEED 1000'
TYPICAL APPLICATION showing a single Transmitter and
Receiver link
TECHNICAL SPECIFICATIONS
Video Input
Number/Type: 1 RGBHV, RGBS, RGsB, RsGsBs, component
video, S-video, HD - 15 female connector
Impedance: 75 Ohms
Output Offset: +/-20 mv
Level (nominal): Analog 0.7V p-p
Level (maximum): 1.5V p-p
Local Monitor Output
Number/Type 1 HD - 15 female connector
Gain Unity
Offset voltage +/- 6 mv max
Bandwidth 300 MHz
Sync output
Level 5V p-p into HiZ, 2V into 75 ohms
Impedance 75 ohms
Video Output
Number/Type: 1 RGBHV, RGBS, RGsB, RsGsBs, component
video, S-video, HD - 15 female connector
Gain: Unity (buffered)
Impedance: 75 Ohms
Power
Receiver/ Transmitter only
Input 100-240 VAC, 50-60 Hz
Output 24 VDC @ .5 Amp
Hub (This supply is required when using a hub. It replaces the Receiver/
Transmitter Supply)
Input 100-240 VAC, 47-63 Hz
Output 24 VDC @ 3 Amps
General
Enclosure
Transmitter Metal 4.7"W x 4"D x 1.31"H Weight: 1.05lbs.
Receiver Metal 4.7"W x 4"D x 1.31"H Weight: 1.05lbs.
Hub Metal 8.47"W x 4.75"D x 1.59"H Weight: 1.6 lbs.
UTP cable wiring standard: EIA / TIA-568B
Recommended Transmission range: 0-1000 ft. for resolutions up to 1600
X 1280 @ 60 hz.
Skew compensation Option Specifi cations (MMTP-200S):
Skew compensation adjust: Three 16 position rotary switches
for RGB skew adjustment

Installation and Operation
Mount the units as appropriate for the particular installation. Install and
terminate the UTP cable, taking note of the following. The cable must
be terminated using the EIA/TIA-568B standard pairing. Where pos-
sible, the use of pre terminated, pretested cables is highly recommended.
If field termination is required, be sure to use a commercially available
cable tester to confirm the proper wiring. Miswired interconnect cables
can damage your Twister and void it’s warranty.
While Cat 5/5E cables are the most commonly used with the system
other types of UTP cable can be used successfully. One of the most im-
portant cable parameters affecting the image quality of component video
systems (RGB/RGBHV/YUV, etc.) transmitted over the Twister is delay
skew. Delay skew in a cable will result in a loss of color convergence
at the display. Using a low skew cable may eliminate the need for the
MMTP-200S skew compensated receiver in short and moderate length
systems.
Once the interconnect cables are tested, connect the system as per the
diagram and perform the final operation check.
Two different power supplies are specified depending on the type of
installation. Point to point systems using a single transmitter/receiver
require the smaller wall mounted supply. This supply may be connected
to either the transmitter or receiver in systems under 800 feet. In systems
over 800 feet using the MMTP-200S skew compensated receiver, the
supply must be connected to the receiver.
Multipoint distribution systems employing the MMTP-300 8 output hub
require the larger desktop style power supply. In this type of system the
hub distributes power to the transmitter and all receivers in the system.
MMTP-200S skew compensated receivers must be located less than 800
feet from the hub.

System Calibration
For best results the following test patterns will be required:
• A crosshatch pattern with one pixel wide vertical and one pixel
high horizontal lines.
• Standard SMPTE color bars.
• A full width one on/one off burst pattern.
These test patterns will need to be output from the source equipment
(computer, DVD player, etc.) that you intend to connect to the Twister
Transmitter.
If possible, perform a display calibration without the Twister by connect-
ing the source directly to the display device using a short (less than 25
foot) video cable. Use the burst pattern to set the display size, phase and
pitch as per the display manufacturers instructions. Most displays will
have an “auto sync” function that will get you close, but might require
some additional fine-tuning. Once the display is set, connect the source
and display to the Twister.
Set the “EQ” adjustment to the minimum (full CCW) setting. If using the
MMTP-200S skew compensated receiver, make sure the delay settings
for R, G, and B are all at “0” (fully CCW). Using the crosshatch test pat-
tern, slowly increase the EQ setting until the vertical lines are nearly as
bright as the horizontal lines. In general, you will have to set the vertical
lines a little dimmer than the horizontal or you will have too much peak-
ing. You can check for over peaking by using the SMPTE color bars and
looking for two or three overly bright vertical lines at the beginning of
each color transition. If this occurs, back the EQ pot off slightly.
Once you are happy with the EQ setting, set the delay skew if available.
The object of the delay skew adjustment is to merge the separate red,
green, and blue vertical lines into a solid white line. Using the crosshatch
test image, identify the left most color in each vertical line of the im-
age. Use the corresponding rotary adjustment on the Twister to merge
this color with the right most vertical line in the image. Then adjust the
remaining color to merge with the first two. Once you have adjusted the
skew, use the burst pattern to fine-tune the display phase adjustment.
These last two steps may be repeated to optimize the image quality.

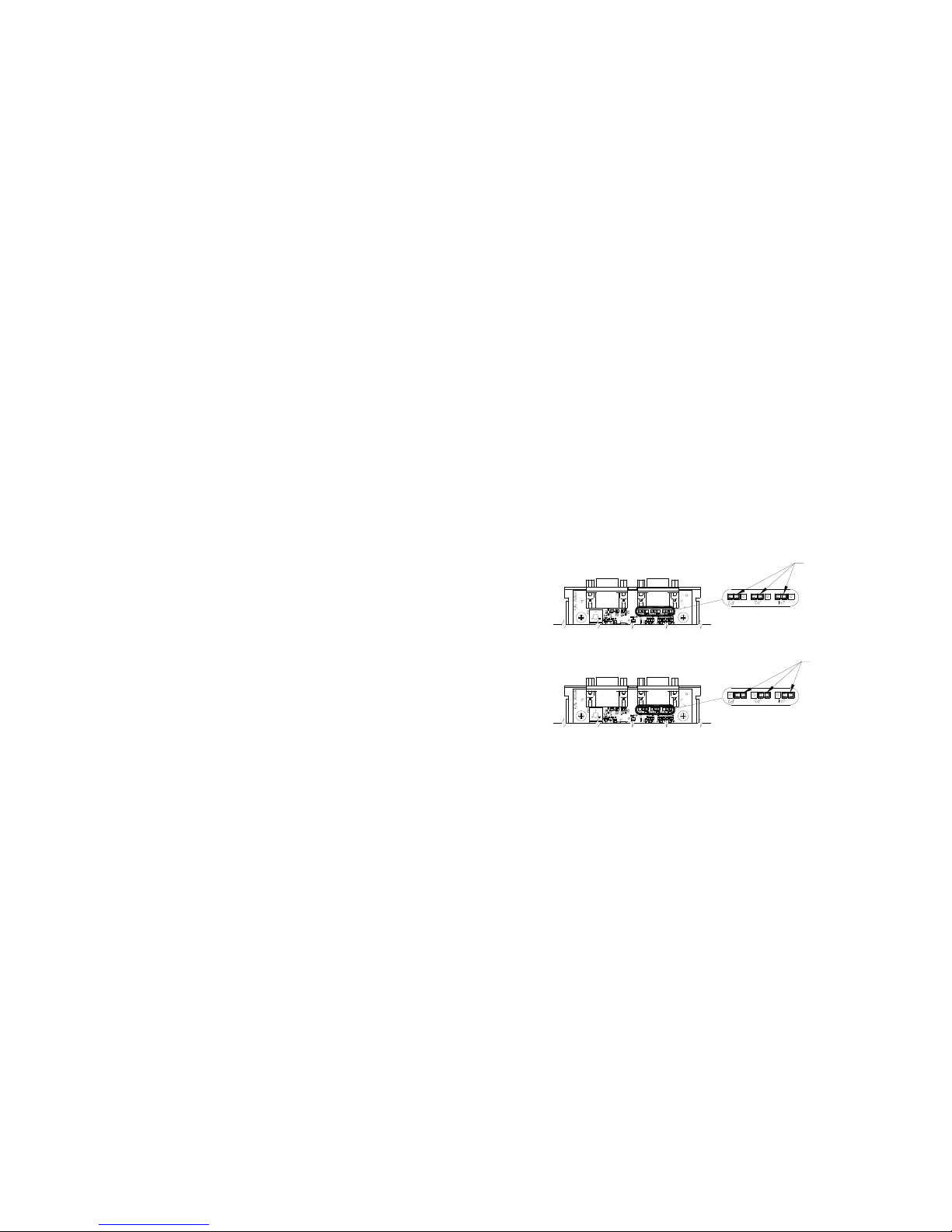

DC Restoration Jumpers
The MMTP-100 transmitter is equipped with DC restoration for compat-
ability with AC coupled sources. This feature relies on the presence of
a TTL compatible H sync signal applied to the H sync input pin (pin 13
of the HD-15 input connector). If you are transmitting a signal that does
not have a TTL H sync signal, you must disable the DC Restore circuit by
setting the three jumpers inside the transmitter as shown in the diagram
below. With the power to the unit dis-connected, simply remove the two
cover screws and cover on the MMTP-100 transmitter to access the three
jumpers.
DC RESTORE ENABLED
(FACTORY DEFAULT)
DC RESTORE DISABLED
JUMPERS
JUMPERS
(CHASSIS COVER REMOVED)
MMTP-100 TRANSMITTER PARTIAL TOP VIEW
