FTE MAX S700 CI+ User manual

MAX S700 CI+
USER'S MANUAL

MAX S700 CI+
ENGLISH
USER'S MANUAL

USER’S MANUAL· MAX S700CI+
- 1 - MAX S700 CI+ Version 1.1 © FTEmaximal
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to “dangerous
voltage” and to prevent from a
risk of electric shock.
Warning:
To reduce the risk of electric shock,
don’t open the cabinet. Refer servicing
to qualified personnel only.
The exclamation point within an
equilateral triangle is intended to
alert the user to important
operating and maintenance
(servicing).
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Warning:
-The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
- Do not place naked flame sources, such as lighted candles on the apparatus; otherwise, there is the danger of fire.
- The unit should be connected to a power supply only of the type described in the operating instructions or as
marked on the unit. If you are not sure of the type of power supply (for example: 120 or 230V) to your home, consult
your local dealer or local power company.
- Do not open the cabinet or touch any parts in the inner mechanism. Consult your local dealer for technical service
if the opening is required.
- The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Take attention to the environmental aspects of battery disposal. The battery of remote control should not be
exposed excessive heat such as sunshine, fire or the like.
- Maintenance man must use the appointed screw in the rear plate.
- Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation.
- Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers,
table-cloths, curtains, etc.
- Use the apparatus only in moderate climates (not in tropical climates).
- Do not open the cabinet to avoid the unit direct exposure to radiation.
Unit Cleaning: After the unit power is turned off, you can clean the cabinet, panel and remote control with a soft
cloth lightly moistened with a mild detergent solution.
Attachments: Never add any attachments and/or equipment without the manufacturer consent; as such additions
may result in the risk of fire, electric shock or other personal injury.
Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating. Do not block
these openings or allow them to be blocked by placing the STB on a bed, sofa or other similar surface, nor should it
be placed over a radiator or heat register.
Power-Cord Protection: Place the power-supply cord out of the way, where it will not be walked on. Please take
special attentions to cords at plugs, convenience receptacles and the point where they exit from the unit.
Object and Liquid Entry: Never put objects of any kind into this STB through openings, as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill any liquid on the
STB.
Note: Moisture may be formed inside the unit in the following conditions:
When the unit is suddenly moved from a cold environment or an air-condition room to a warm place.
Immediately after a heater has been turned on.
In a steamy or very humid room.
If the moisture forms inside the unit, it may not operate properly. To correct this problem, turn on the power and wait
about two hours for the moisture to evaporate.
Parts Replacement: When the unit parts need to be replaced, user should make sure the service technician use
the replacement parts specified by the manufacturer or having the same characteristics as the original part.
Unauthorized replacement may put the unit in the risk of fire, electric shock or other hazards.
Safety Check: After all the maintenances and repairs are done, user is required to request the service technician to
conduct the overall safety check to ensure the machine is in the proper condition.
RISK OF ELEKTRIC SHOCK
DO NOT OPEN
CAUTIONR

USER’S MANUAL· MAX S700CI+
- 2 - MAX S700 CI+ Version 1.1 © FTEmaximal
Note: This user’s manual is adapted to the version v.1.114.
In order to download the complete user’s guide and get more information about receivers, please visit
the website http://receivers.ftemaximal.com.

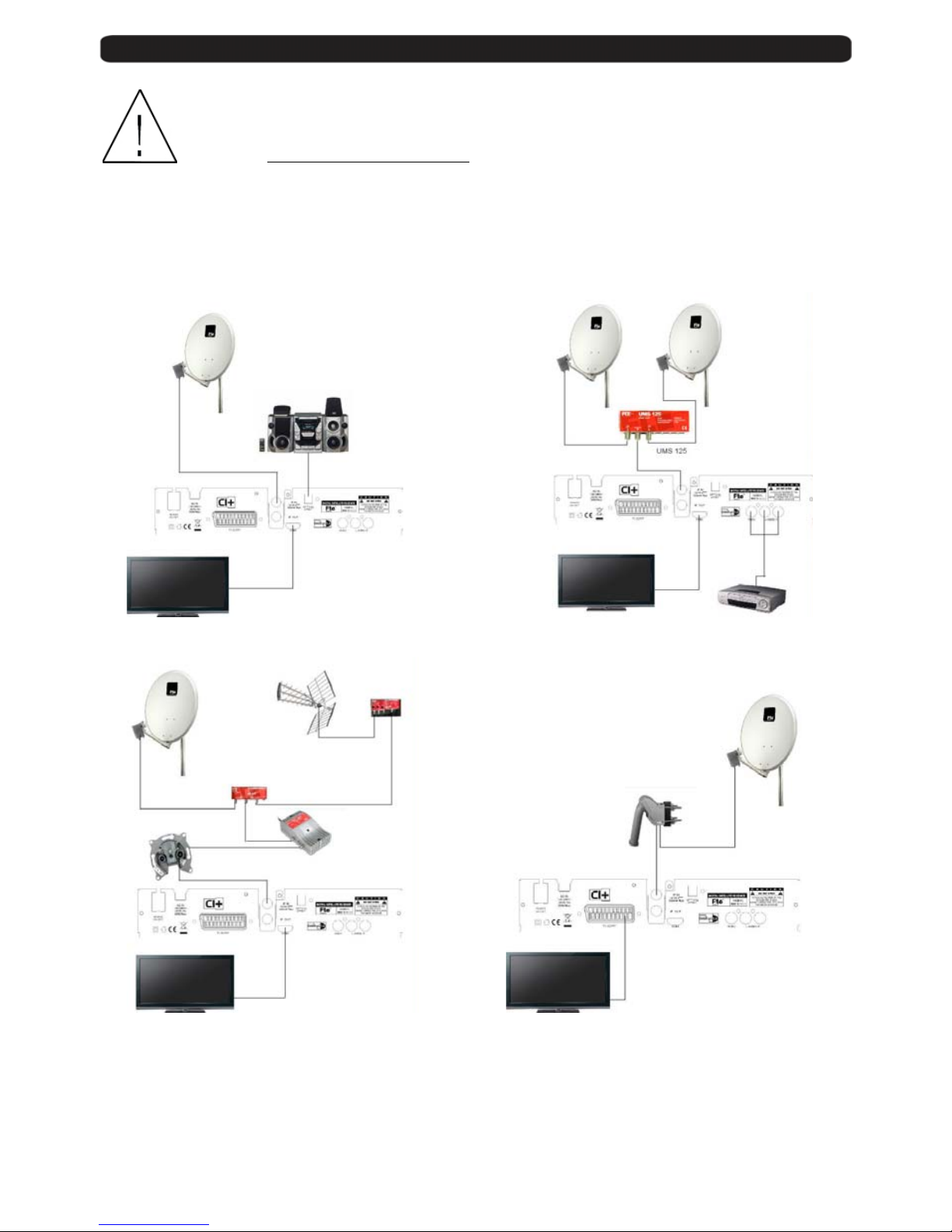

The coaxial cable, with satellite signal, must be connected to the “IF IN” connector. The “TV SCART” or “HDMI”
connectors must be connector to the TV set.
Depending on the type of installation, the receiver should be connected and configured following next examples.

USER’S MANUAL· MAX S700CI+
- 3 - MAX S700 CI+ Version 1.1 © FTEmaximal
Quick setup
The receiver includes an installation assistant (Quick Setup) that will
help you to setup the different parameters.
When the receiver is turned on at first time (using the button at the
rear panel of the receiver), the next menu is shown on the TV.
NOTE: Basic operation hints display on the sidebar and lower bar.
- OK : Press [OK] to enter into the menu or choose the item.
- ←OK→: Press [◄/►] to change the option; Press [OK] to popup
the options, and press [▲/▼] to select the option, then press OK to
confirm your selection.
- 0...9, ←→: Press 0-9 button to enter the specific number; Press
[◄/►] to change one by one.
Language settings
Enter the menu and you will see the Configuration of languages:
- OSD language: The selection of languages include: English ,
German, French, Spanish, Italian, Portuguese.
- Preferred audio language: some channels offer more than one
audio language. If a channel offers the same audio language as the
“Preferred audio language” you set the system will play this audio
language as default. If the channel does not offer this audio
language then the system will compare the offered languages with
the second audio language.
- Second audio language: If the channel has no audio language that
corresponds with “First Audio” but with “Second Audio” the system will play the second audio language as default. If
no audio language corresponds with the “Second Audio” then the default language of the current channel will be
played instead.
- Preferred subtitle language: You can choose the predetermined subtitles language.
- Second subtitle language: You can choose the secondary subtitles language.
Time settings
Enter the menu and set up the time.
- Adapt to automatic time: Choose Yes to use the default time, and
No to set the time manually.
- Date: set the date.
- Time: set the time.
- Daylight saving time: Select On at daylight saving time;
- Adapt to automatic timezone: Choose Yes to use the default
timezone; Choose No to set the timezone manually

USER’S MANUAL· MAX S700CI+
- 4 - MAX S700 CI+ Version 1.1 © FTEmaximal

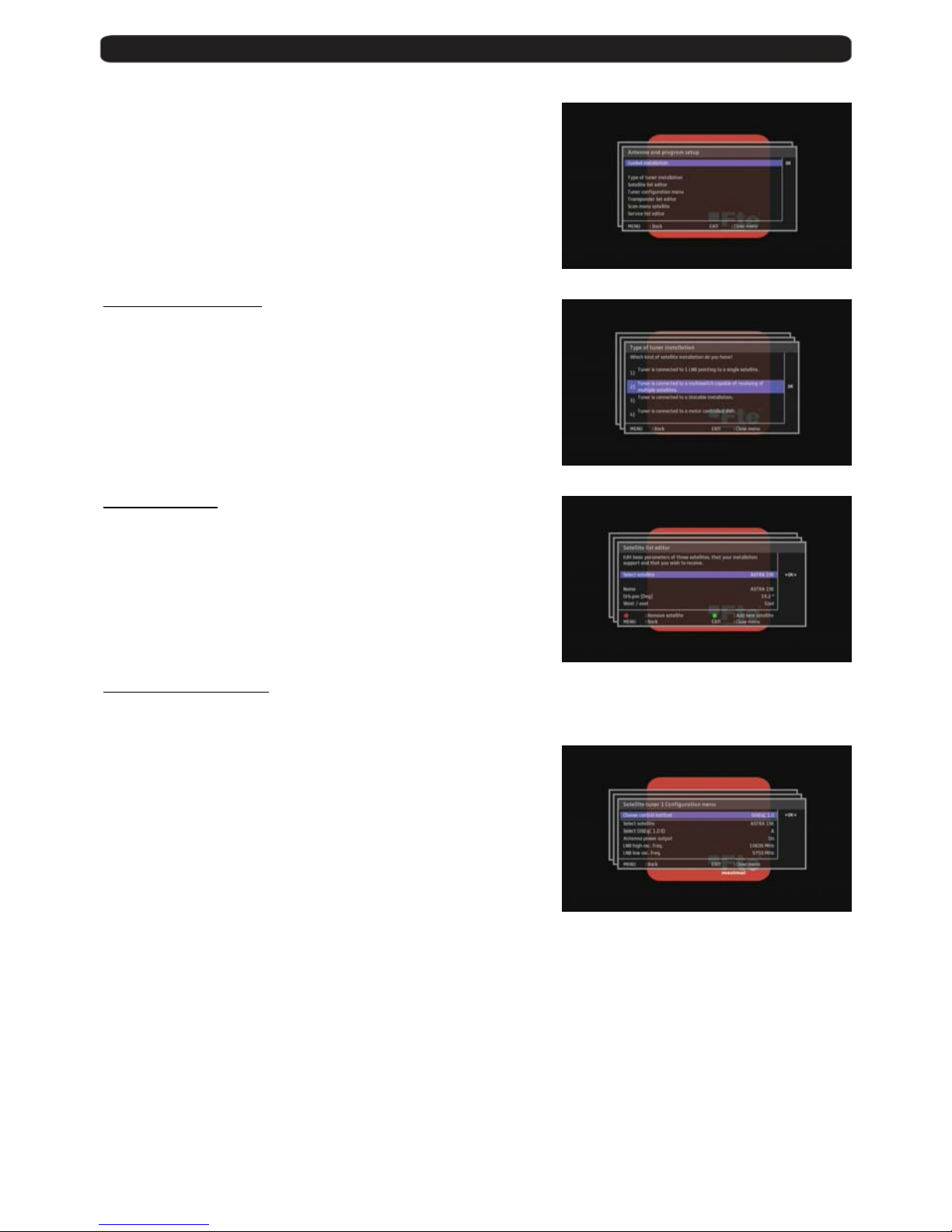

Antenna and program setup
Enter the Guided installation or enter the sub-menu to change the
settings manually.
Type of tuner installation
Select the same way of your tuner and press [OK] to confirm the
setting.
Satellite list editor
- Select satellite: Select the satellite in the satellite list.
- Name: Edit the name of the satellite.
- Orb.pos[Deg]: Edit the degree of Orb.
- West/east : choose west or east.
- Press [Red] button to remove the current satellite.
Press [Green] button to add a new satellite.
Tuner configuration menu
- Choose control method:
You can choose the type of your tuner: DiSEqC 1.0, DiSEqC 1.1 SMATV, DiSEqC 1.1 DTH , DiSEqC 1.2,
Toneburst and 22KHz, 14/18V.
- Select satellite: choose the satellite you are using now.
- If your receiver is connected to the LNB directly then you need to
set the LNB Power to “On”. If your receiver is connected to a multi
switch (SMATV signal distribution system) then it may be that you
don’t need to provide the power to the LNB. But since this is
depending on the kind of installed distribution system we recommend
you to contact your installer or to refer to the user manual of this
system to get the correct information.You also just can change this
setting and check if you still can receive the channels. If the LNB
Power is off and you still can see all channels then we recommend
this setting.
- Select DiSEqC ID: choose the ID of your DiSEqC
- LNB high osc. Freq. / LNB low osc. Freq. : Set the LNB freq manually.

USER’S MANUAL· MAX S700CI+
- 5 - MAX S700 CI+ Version 1.1 © FTEmaximal
Transponder list editor
- Select satellite position: choose the satellite you are using.
- Select transponder: choose the transponder from the list.
- Frequency: edit the frequency.
- Symbol rate: edit the symbol rate
- Modulation: Change the modulation to QPSK, QPSK S2 or 8 PSK
- Polarization: Change the polarization to Horizontal or Vertical.
- Press [Red] to remove the current transponder
Press [Green] to add new transponder
Satellite Scan menu
- Select satellite: choose the satellite you are using now.
- Scan method: Select the scan method to be Channel or all.
- Kind of service: choose the service you are going to scan: All
services
Service list editor
You can edit your service list follow the operation guide in the
underside window.
Press the specific buttons on your remote control unit to do the
operation.

USER’S MANUAL· MAX S700CI+
- 6 - MAX S700 CI+ Version 1.1 © FTEmaximal
Main menu
- File viewer
- Media viewer *
- Select picture
- Select music
- Leave media viewer
- Recordings *
- Timer programming
- Mosaic preview
- Stream selection
- Subtitle track
- Audio track
- Digital output
- System setup
- Language setttings
- Time settings
- Antenna and program setup
- Audio/Video setup
- General settings
- CI Settings
- OSD Setup
- Mass-storage utilities
- Password and parental settings
- Software update
- Restore factory settings
- Information
* This function will only be available in models with PVR ready functionability.

USER’S MANUAL· MAX S700CI+
- 7 - MAX S700 CI+ Version 1.1 © FTEmaximal
Index
1. Panel & remote control description............................................................... 9

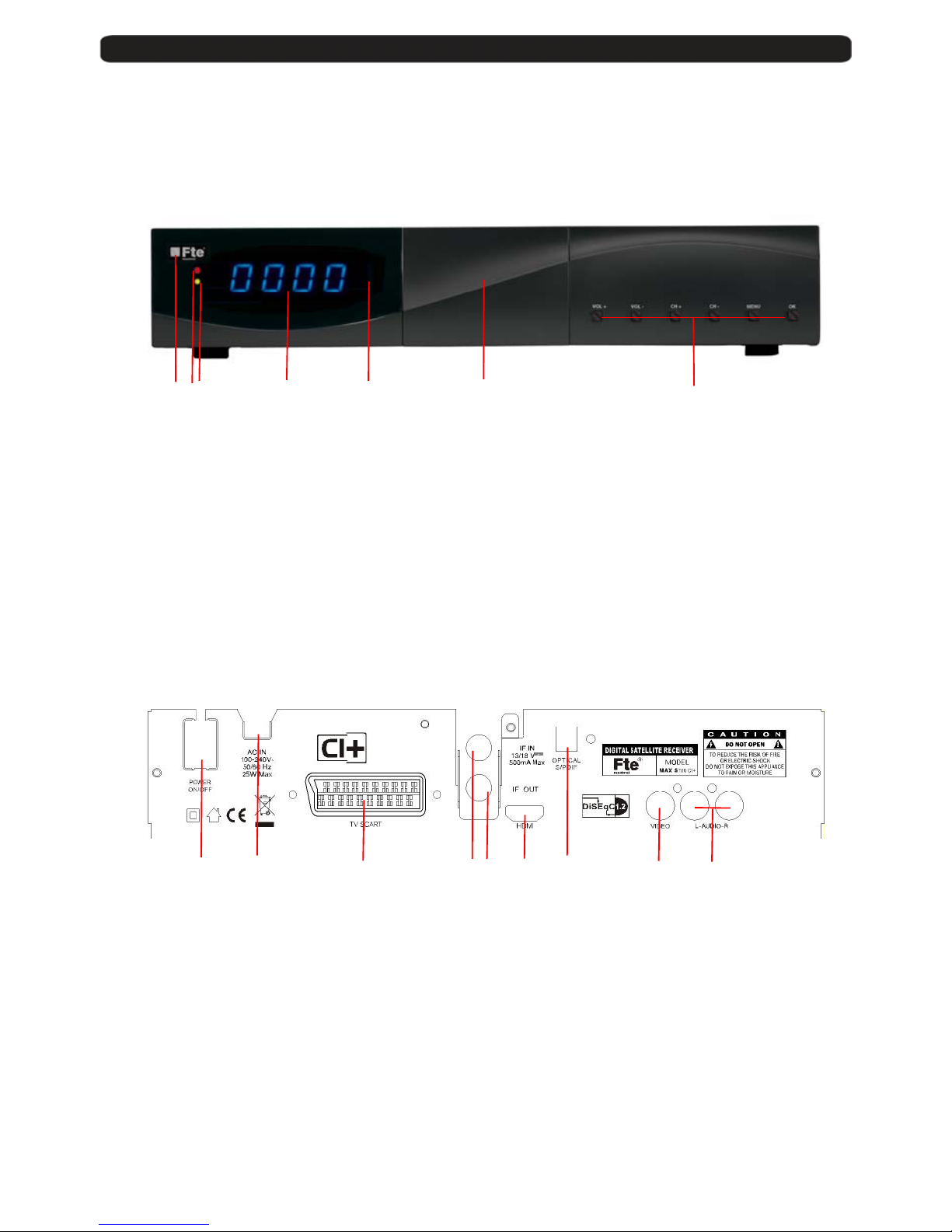

1.1. Front panel description ......................................................................................................... 9
1.2. Rear panel description.......................................................................................................... 9
1.3. Remote control description.................................................................................................10
2. Basic operation on remote control unit. ..................................................... 11
2.1. Standby Mode .................................................................................................................... 11
2.2. Mute.................................................................................................................................... 11
2.3. Audio................................................................................................................................... 11
2.4. TV/Radio............................................................................................................................. 11
2.5. SUB .................................................................................................................................... 11
2.6. TXT .................................................................................................................................... 11
2.7. FORMAT............................................................................................................................. 11
2.8. Channel Number ................................................................................................................ 11
2.9. PGUP / PGDN .................................................................................................................... 11
2.10. FAV +/- ............................................................................................................................. 11
2.11. FAV................................................................................................................................... 12
2.12. EPG .................................................................................................................................. 12
2.13. Up / down (▲/▼).............................................................................................................. 12
2.14. Left / Right (◄/►)............................................................................................................. 12
2.15. Channel list....................................................................................................................... 13
2.16. MENU ............................................................................................................................... 13
2.17. EXIT.................................................................................................................................. 13
2.18. PAUSE.............................................................................................................................. 13
2.19. ZOOM ............................................................................................................................... 14
2.20. INFO ................................................................................................................................. 14
2.21. PVR LIST * ....................................................................................................................... 14
2.22. T.S *.................................................................................................................................. 14
2.23. STOP (■) * ........................................................................................................................ 14
2.24. Fast recording (●) *........................................................................................................... 14
2.25. Forward / rewind (◄◄|►►) *.......................................................................................... 15
2.26. Play / Pause (►II) * .......................................................................................................... 15
2.27. I◄◄/►►I * ...................................................................................................................... 15

USER’S MANUAL· MAX S700CI+
- 8 - MAX S700 CI+ Version 1.1 © FTEmaximal
3. Main menu...................................................................................................... 16
3.1. File viewer........................................................................................................................... 16
3.1.1. Play Picture.................................................................................................................. 17
3.1.2. Play music.................................................................................................................... 17
3.1.3. Play recorded service *................................................................................................ 17
3.1.4. Software ....................................................................................................................... 17
3.2. Media viewer ...................................................................................................................... 17
3.2.1. Select picture menu ..................................................................................................... 18
3.2.2. Select music menu....................................................................................................... 18
3.3. Recordings * ....................................................................................................................... 18
3.4. Time programming ............................................................................................................. 18
3.4.1. Edit timer menu,........................................................................................................... 19
3.5. Mosaic Preview .................................................................................................................. 19
3.6. Stream selection................................................................................................................. 19
3.7. System setup...................................................................................................................... 19
3.7.1. Language settings........................................................................................................ 19
3.7.2. Time settings................................................................................................................ 19
3.7.3. Antenna and program setup ........................................................................................ 19
3.7.4. Audio/video setup ........................................................................................................ 20
3.7.5. CI settings .................................................................................................................... 21
3.7.6. OSD setup ................................................................................................................... 23
3.7.7. Mass storage utilities ................................................................................................... 23
3.7.8. Password and parental settings .................................................................................. 23
3.7.9. Software update........................................................................................................... 23
3.7.10. Restore factory settings… ......................................................................................... 24
3.8. Information.......................................................................................................................... 24
4. Technical Specification................................................................................. 25
5. Conformity declaration ................................................................................. 26

USER’S MANUAL· MAX S700CI+
- 9 - MAX S700 CI+ Version 1.1 © FTEmaximal
1. Panel & remote control description
1.1. Front panel description
1 2 3 4 5 6 7
1. POWER: Switches the receiver on, or enters standby mode. To completely switch off the receiver,
you have to use the switch on the back of the receiver.
2. STAND BY LED: Shows if the receiver is in Standby mode
3. LOCK LED: Indicates a sufficient signal level at the IF IN input.
4. DISPLAY: 4 Digits to display the program numbers.
5. IR SENSOR: Reception sensor for the IR remote control signals.
6. FRONT COVER: Opening the front cover, you will access to the Conditional Access system and to
the USB connector.
7. BUTTONS: These buttons allow controlling the main functions of the receiver, and provide the same
functionality as the remote control ones.
1.2. Rear panel description
2 3
1 2 3 4 5 6 7 8 9
1. POWER ON/OFF: Allows to completely switching off the receiver
2. AC IN: Mains input cable.
3. TV SCART: Output SCART for the connection to a TV set.
4. IF IN: Satellite input.
5. IF OUT: Satellite output for cascading to other devices.
Note: The operation of another receiver at the same time is only possible with limited
channel
selection.
6. HDMI: HDMI output for connecting to a TV
7. S/PIDF: Optical output for digital audio (AC3).
8. VIDEO: Video output for external monitor, TFT or video beamer.
9. AUDIO: Audio output for home audio systems.

USER’S MANUAL· MAX S700CI+
- 10 - MAX S700 CI+ Version 1.1 © FTEmaximal
1.3. Remote control description
1. MUTE: Switches audio on and off.
2. AUDIO: Opens audio menu.
3. TV/STB: Without function.
4. SLEEP: Starts the sleep timer to turn off the receiver
automatically. Press repeadtedly to change the
timer.
5. SUB: Switches subtitle on and off..
6. MULTI: Without function.
7. P/N: Switches between PAL and NTSC.
8. 0~9: For direct typing values and names
9. PG UP / DN: Moves cursor in block steps
10. SAT: Without function.
11. EPG: Shows the EPG information.
12. OK: Confirms selections or opens channel list..
13. ◄V / V►:Adjusts audio volume or controls the cursor in
Menus.
14. ▲CH/CH▼:Changes channel up and down.
15. MENU: Opens the main menu.
16. RED: Opens the Multi-feed menu.
17. GREEN:Opens the options available in the menu
18. PAUSE: Pauses the playback or starts the timeshift
19. ZOOM: Zoom function
20. USB: Opens directly the “File viewer” menu
21. MP3: Opens directly the “Media viewer” menu
22. PIP: OPT function in menu.
23. A-B: Screenshot function (with HDD connected to
USB).
24. STOP: Stop button for recording *
25. REC: Quick start for recording. *
26. ►||: Start / Stop button for recording. *
27. ►|◄:Without function.
28. ON/OFF: Switches receiver ON or in stand-by-mode.
29. TV/R: Switches between TV and Radio channels.
30. TXT: Opens and closes teletext.
31. RECALL: Watch the last viewed channel.
32. FAV +/-: Moves favourite channel up and down..
33. FAV: Opens favourite channel list.
34. EXIT: Exit menus or stop operations.
35. BLUE: Selects picture format.
36. YELLOW: Opens “audio/video setup” menu.
37. INFO: Shows channel information with signal bar.
38. EDIT: Edit channels.
39. PVR-List: Opens “Playbacks list” menu. *
40. JPEG: Opens directly the “Media viewer” menu (jpeg)
41. GOTO: Without function.
42. T.S.: Starts and stops the timeshift. *
43. << / >>: Forward and rewind buttons, pressing repeatedly change the speed. *
44. |<< / >>|: Switch between marker position (each chapter). *
* This function will only be available in models with PVR ready functionability.

USER’S MANUAL· MAX S700CI+
- 11 - MAX S700 CI+ Version 1.1 © FTEmaximal
2. Basic operation on remote control unit.
2.1. Standby Mode
1. Press [Power] button to switch from TV/radio mode to standby mode
2. In standby mode press [Power] button again to switch back to TV/radio mode. The last active channel will be
showed.
3. To switch off the STB complete press the main power button.
2.2. Mute
1. Press the [Mute] button to mute the sound. On the screen an icon will be displayed to indicate the muted sound.
2. Press the [Mute] button again to restore the sound.
2.3. Audio
In TV or Radio mode, press [AUDIO] button to open the Stream Selection menu window. Please read 3.6 for
reference.
2.4. TV/Radio
1. In TV mode, press [TV/R] to switch to Radio mode.
2. In Radio mode press [TV/R] again to switch back to TV mode.
3. Press [OK] button, then press Red button to switch to TV list or
press Green button to switch to Radio list in the menus.
2.5. SUB
Press [SUB] to enable the subtitle and press [SUB] again to disable
the subtitle.
2.6. TXT
Press [TXT] button in TV mode to open the teletext page. This
service is depending on the support of the channel provider.
If the channel does not support teletext information, it will only show
“P100” on the screen.
2.7. FORMAT
In TV or radio mode, press [BLUE] button to display Mode is used to
switch the display mode.
2.8. Channel Number
In TV mode you can enter the channel number directly with your
remote control unit and confirm the number with the OK button to
change to the desired channel.
2.9. PGUP / PGDN
In TV mode, press [PGUP / PGDN] to switch directly between
channels.
2.10. FAV +/-
1. In full screen, press [FAV +/-] keys can switch the favorite channels in current satellite channels list directly.
2. The sequence of the favourite channels will regroup after the favourite group is set up.

USER’S MANUAL· MAX S700CI+
- 12 - MAX S700 CI+ Version 1.1 © FTEmaximal

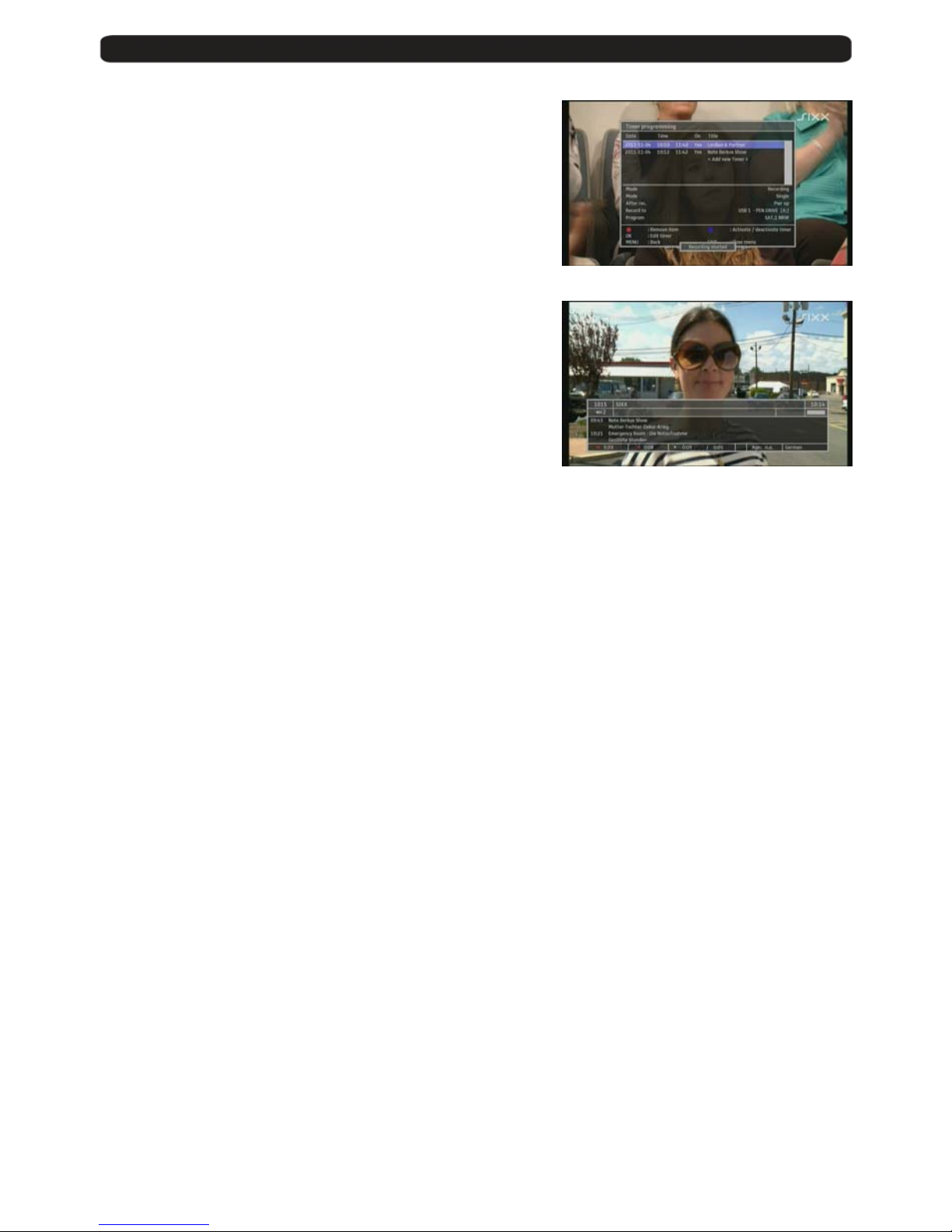

2.11. FAV
In TV mode press the [FAV] button to display the Favorite Group window on the screen as the picture beside shows.
In the Favorite Group window you can select the desired favorite channel with [CH▲/▼] and confirm it with [OK] to
switch to it. In bigger groups you can navigate with [PGUP/ PGDN].
Press [Exit] to close the Favorite Group window.
2.12. EPG
The STB supports Electronic Program Guides (EPG) to give you information about the actual programs of certain
channels like event name, subtitle, description, start and finish time.
This feature is depending on the service of the channel provider.
Press [EPG] to open the EPG window.
1. You can move the highlighted channel with [▲/▼] and preview
the highlighted program in the preview window. with [◄/►] and
display the event’s detailed description.
2. To close the EPG menu press [Exit / Menu]. Press [REC] button
to set timer on selected service.
3. Press [Green] button to enter in to the previous day; press
[Yellow] button to go to Next day. Press [OK] to select service;
press [INFO] to see extended info; press [REC] to set timer on
selected service.
2.13. Up / down (▲/▼)
In TV/Radio mode press [▲/▼] to change channel. In Main menu, press [▲/▼] to move and select item. When you
want to change the option, you can also press [OK] to pop up the option list, press [▲/▼] to select the option and
then press [OK] to confirm your selection.
2.14. Left / Right (◄/►)
In TV/Radio mode, press [◄/►] to adjust volume. In Main menu, press [◄/►] to change the option directly, and you
do not need to press [OK] to confirm.

USER’S MANUAL· MAX S700CI+
- 13 - MAX S700 CI+ Version 1.1 © FTEmaximal
2.15. Channel list
In TV mode press [OK] button to open the TV service window.
1. Press the [Red] button to display TV services.
Press [▲/▼] button to select TV service and press [OK] to
change to your selected service.
2. Press [Green] display Radio services
Press [▲/▼] button to select Radio service and press [OK] to
change to your selected service.
3. Press [Yellow] button to open the next favourite list, Press [▲/▼]
button to select Favourite service and press [OK] to change to your
selected service.
4. Press [Blue] button to sort the list of files. Options:
1. “123”: Sorting in numerical order (increasing).
2. “321”: Sorting in numerical order (decreasing).
3. Name “ABC”: Sorting in Alphabetical order (increasing).
4. Name “CBA”: Sorting in Alphabetical order (decreasing).
2.16. MENU
1. Press [Menu] button to pop up the main menu in TV/Radio mode.
2. Press [Menu] button to turn back to the previous menu.
2.17. EXIT
1. Press [Exit] button to exit the all menu.
2. Press [Exit] button to exit the option list.
2.18. PAUSE
In playing mode, press [PAUSE], the video including the sound will be paused
Press [PAUSE] again, the video will continue playing from where it was paused.

USER’S MANUAL· MAX S700CI+
- 14 - MAX S700 CI+ Version 1.1 © FTEmaximal
2.19. ZOOM
1. The [Zoom] key allows you to magnify a certain area on the
images and the current screen will show
2. Press [Zoom] key again, the image will enlarge rotate as x1, x2,
x4, x6, x8, x12, x16.
3. In “x2 ~ x16” image, using [CH▲/▼/ VOL◄/►] keys to move
the image center area you want to see.
4. In zoom mode, press [Exit] to close “Zoom” window.
2.20. INFO
1. In TV mode, press [INFO] button can open information screen, in the window shows the parameters of current
channel. Please read 3.8 for reference.
2. In File Viewer mode and Media Viewer mode, press [INFO] button to pop up the information of the picture or
music you are playing at the moment.
2.21. PVR LIST *
In TV mode, press [PVR LIST] button to access directly to the
“Record List” menu.
2.22. T.S *
TMS function is working the same way as recording function.
2.23. STOP (■) *
When you play a recorded program, press [■] button will stop the
recorded channel playing and back to the Record Management
menu. When you are recording a program, press [■] button you will
be asked to “stop recording?” menu.
2.24. Fast recording (●) *
In TV mode, press [●] button you will see “Recording started” tip.
1. You can record 2 services at once, if there is no recording service,
the REC1 and REC2 will appear blank.
* This function will only be available in models with PVR ready functionability.

USER’S MANUAL· MAX S700CI+
- 15 - MAX S700 CI+ Version 1.1 © FTEmaximal
2. If some services are being recorded, it will show the service name
on REC1 and REC2.
2.25. Forward / rewind (◄◄|►►) *
When you play a recorded channel, press [◄◄] button to back the
program fast and Press [►►] to fast forward the program.Selection:
2x, 4x, 8x, 16×, 64× speed.
2.26. Play / Pause (►II) *
When you play a current or recorded program, press [►II] will stop the program, press [►II] again will play the
program continually.
2.27. I◄◄/►►I *
Press [I◄◄/►►I] button when you play a marked program, the screen will jump to the next mark point.
* This function will only be available in models with PVR ready functionability.

USER’S MANUAL· MAX S700CI+
- 16 - MAX S700 CI+ Version 1.1 © FTEmaximal
3. Main menu
Press [Menu] to enter into the main menu. Press [▲/▼] to select the
sub menu, Press [OK] to enter the selected sub-menu.
3.1. File viewer
1. In File viewer menu, all of the connected storage device can be
seen. Select the storage device and press [OK] to enter into the
device.
2. Press [▲/▼] to select the file.
After the file has been selected, press [OK] to play the file,
whether it can be played depends on whether the format can
be supported by the software.
The software supports to show the Recorded service,
software, pictures and music.
When you select one file, the basic information of the file will
appear on the right side window such as the size of the file,
software edition number, time of the recorded service,
information of the picture and music .
3. Press [Yellow] button to pop up the Options: new folder, copy,
move, rename, delete
Choose New folder to create a new folder in the current folder.
Choose Copy or Move when one file is selected. Open the aim
folder, press [Green] button to finish the Copy or Move.
