FujiFilm EF-42 User manual

EN-1 ENGLISH
For Your Safety
Be sure to read these notes before use
Thank you for your purchase of this product. For repair, inspection, or internal
testing, contact your FUJIFILM dealer.
Safety Notes
• Make sure that you use your fl a s h correctly. Read these safety notes and your
Owner’s Manual carefully before use.
• After reading these safety notes, store them in a safe place.
About the Icons
The icons shown below are used in this document to indicate the severity of
the injury or damage that can result if the information indicated by the icon
is ignored and the product is used incorrectly as a result.
WARNING This icon indicates that death or serious injury can result if
the information is ignored.
CAUTION This icon indicates that personal injury or material damage
can result if the information is ignored.
The icons shown below are used to indicate the nature of the instructions
which are to be observed.
Triangular icons tell you that this information requires attention (“Im-
portant”).
Circular icons with a diagonal bar tell you that the action indicated is
prohibited (“Prohibited”).
Filled circles with an exclamation mark indicate an action that must be
performed (“Required”).
WARNING
WARNING
Unplug from power socket
If a problem arises, turn the fl a s h off,and removethe batteries. Con-
tinued use of the fl a s h when it is emitting smoke, is emitting any
unusual odor, or is in any other abnormal state can cause a fire or
electric shock. Contact your FUJIFILM dealer.
Do not allow water or foreign objects to enter the fl a s h . If water or
foreign objects get inside the fl a s h , turn the fl a s h off and re-
move the batteries. Continued use of the fl a s h can cause a fire
or electric shock. Contact your FUJIFILM dealer.
Do not use in the bathroom
or shower
Do not use the fl a s h in the bathroom or shower. This can cause a
fire or electric shock.
Do not
disassemble
Never attempt to change or take apart the fl a s h (never open the
case) Failure to observe this precaution can cause fire or elec-
tric shock.
Do not touch internal parts
Should the case break open as the result of a fall or other accident,
do not touch the exposed parts. Failure to observe this precaution
could result in electric shock or in injury from touching the dam-
aged parts. Remove the batteries immediately, taking care to
avoid injury or electric shock, and take the product to the point
of purchase for consultation.
Do not place the fl a s h on an unstable surface. This can cause the
fl a s h to fall or tip over and cause injury.
Never attempt to use the flash while in motion. Do not use the fl a s h
while walking or driving. This can result in you falling down or
being involved in a traffic accident.
Do not touch any metal parts of the fl a s h during a thunderstorm.
This can cause an electric shock due to induced current from
the lightning discharge.
WARNING
WARNING
Do not use the batteries except as specified. Load the batteries as
shown by the indicator.
Do not heat, change or take apart the batteries.Do not attempt to
charge non-rechargeable batteries.Do not drop or subject the bat-
teries to impacts. Do not store the batteries with metallic products.
Any of these actions can cause the batteries to burst or leak and
cause fire or injury as a result.
Use only batteries specified for use with this fl a s h .The use of other
power sources can cause a fire.
Do not use the flash in the vicinity of containers holding cosmetics or
drugs. Should the contents spill or overflow, they could enter the
flash and cause fire, electric shock, or other injury.
Do not direct the flash at the operator of a motor vehicle. Failure to
observe this precaution could result in accidents.
Do not use in the presence of flammable or volatile gases.
If the batteries leak and fluid gets in contact with your eyes, skin or
clothing, flush the affected area with clean water and seek medical
attention or call an emergency number right away.
When discarding batteries, cover the battery terminals with insula-
tion tape. Contact with other metallic objects or batteries could
cause the battery to ignite or burst.
Donot use thisfl a s h inlocationsaffected byoil fumes,steam, humidity
or dust. This can cause a fire or electric shock.
Donotleavethis fl a s h inplacessubjecttoextremelyhightemperatures.
Do not leave the camera in locations such as a sealed vehicle or
in direct sunlight. This can cause a fire.
Keep out of the reach of small children. This product could cause
injury in the hands of a child.

EN-2
ENGLISH
CAUTION
CAUTION
Do not place heavy objects on the fl a s h . This can cause the heavy
object to tip over or fall and cause injury.
Do not cover or wrap the fl a s h in a cloth or blanket. This can cause
heat to build up and distort the casing or cause a fire.
When you are cleaning the fl a s h or you do not plan to use the fl a s h
for an extended period, remove the batteries. Failure to do so can
cause a fire or electric shock.
Using a flash too close to a person’s eyes can cause temporary visual
impairment. Take particular care when photographing infants
and young children.
Request regular internal testing and cleaning for your fl a s h . Build-
up of dust in your fl a s h can cause a fire or electric shock. Con-
tact your FUJIFILM dealer to request internal cleaning every two
years. Please note that this service is not free of charge.
Do not use alcohol, thinner, benzine, or other volatile chemicals to
clean the flash. Failure to observe this precaution can cause fire
or electric shock.
AA Alkaline/Rechargeable Ni-MH Batteries
The following describes the proper use of batteries and how to prolong their
life. Incorrect use can shorten battery life or cause leakage, overheating, fire,
or explosion.
■Cautions: Handling the Batteries
• Do not expose to water, flame, or heat, or store in warm or humid condi-
tions.
• Do not transport or store with metal objects such as necklaces or hairpins.
• Do not disassemble or modify the batteries or battery casing.
• Do not subject to strong physical shocks.
• Do not use batteries that are leaking, deformed, or discolored.
• Keep out of reach of infants and small children.
• Insert in the correct orientation.
• Do not mix old and new batteries, batteries with different charge levels, or
batteries of different types.
• If the fl a s h will not be used for an extended period, remove the batteries.
Note that flash settings will be reset.
• The batteries may be warm to the touch immediately after use. Turn the
fl a s h off and allow the batteries to cool before handling.
• Battery capacity tends to decrease at low temperatures. Keep spare bat-
teries in a pocket or other warm place and exchange as necessary. Cold
batteries may recover some of their charge when warmed.
• Fingerprints and other stains on the battery terminals can impair battery
performance. Thoroughly clean the terminals with a soft, dry cloth before
inserting them in the fl a s h .
If the batteries leak, clean the battery chamber thoroughly before
inserting new batteries.
If fluid from the battery comes into contact with skin or clothing,
flush the affected area with water. If fluid enters your eyes, immedi-
ately flush the affected area with water and seek medical attention. Do
not rub your eyes. Failure to observe this precaution could result in per-
manent visual impairment.
■Ni-MH Batteries
The capacity of Ni-MH batteries may be temporarily reduced when new, af-
ter long periods of disuse, or if they are repeatedly recharged before being
fully discharged. This is normal and does not indicate a malfunction.
The fl a s h draws a small amount of current even when off. Ni-MH batteries that
have been left in the fl a s h for an extended period may be drawn down to the
point that they no longer hold a charge. Battery performance may also drop
if the batteries are run down in a device such as a flashlight. Batteries that no
longer hold a charge even after repeatedly being discharged and recharged
have reached the end of their service life and must be replaced.
Ni-MH batteries can be recharged in a battery charger (sold separately). Bat-
teries may become warm to the touch after charging. Refer to the instructions
provided with the charger for more information. Use the charger with compat-
ible batteries only.
Ni-MH batteries gradually lose their charge when not in use.
■Disposal
Dispose of used batteries in accord with local regulations.

EN-3 ENGLISH
Liquid Crystal
In the event that the display is damaged, care should be taken to avoid con-
tact with liquid crystal. Take the urgent action indicated should any of the
following situations arise:
• If liquid crystal comes in contact with your skin, clean the area with a cloth
and then wash thoroughly with soap and running water.
• If liquid crystal enters your eyes, flush the affected eye with clean water for
at least 15 minutes and then seek medical assistance.
• If liquid crystal is swallowed, rinse your mouth thoroughly with water.
Drink large quantities of water and induce vomiting, then seek medical
assistance.
Caring for the Flash
To ensure continued enjoyment of the product, observe the following pre-
cautions.
■Storage and Use
If the flash will not be used for an extended period, remove batteries. Do not
store or use the flash in locations that are:
• exposed to rain, steam, or smoke
• very humid or extremely dusty
• exposed to direct sunlight or very high temperatures, such as in a closed
vehicle on a sunny day
• extremely cold
• subject to strong vibration
• exposed to strong magnetic fields, such as near a broadcasting antenna,
power line, radar emitter, motor, transformer, or magnet
• in contact with volatile chemicals such as pesticides
• next to rubber or vinyl products
■Water and Sand
Exposure to water and sand can also damage the flash and its internal cir-
cuitry and mechanisms. When using the flash at the beach or seaside, avoid
exposing the flash to water or sand. Do not place the flash on a wet surface.
■Condensation
Sudden increases in temperature, such as occur when entering a heated
building on a cold day, can cause condensation inside the flash. If this occurs,
turn the flash off and wait for the condensation to evaporate.
■Cleaning
Use a blower to remove dust from the flash window, then gently wipe with a
soft, dry cloth. Any remaining stains can be removed by wiping gently with
a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-
cleaning fluid has been applied. Care should be taken to avoid scratching
the flash, particularly the flash window. The body of flash can be cleaned
with a soft, dry cloth.

EN-4
ENGLISH
Thank you for your purchase of a FUJIFILM EF-42 clip-on flash unit.
Please read this manual thoroughly before using the product.
■Using the Flash
After mounting the flash on the camera, do not pick the camera up
by the flash. The flash may become separated from the hot shoe,
causing the camera to fall.
For information on compatible cameras, visit our website at http://
www.fujifilm.com/products/digital_cameras/index.html
Table of Contents
Principal Features
• Maximum flash output equivalent to a GN of 42/138 (ISO 100, m/ft): Auto zoom
() automatically matches flash angle to lens focal lengths in the
24–105 mm range (35 mm format equivalent).

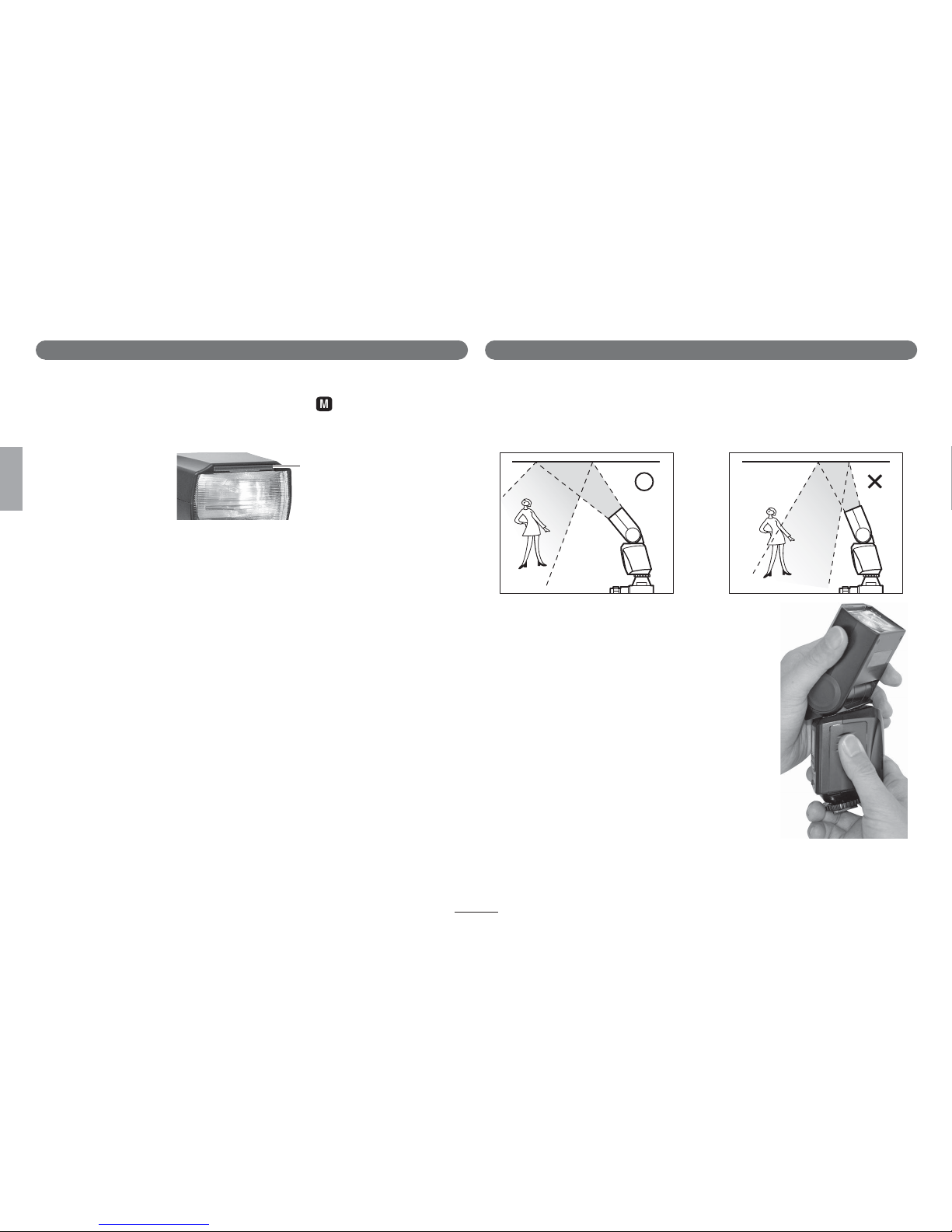

• Flexible bounce-flash lighting: The flash head can be rotated 90° ver-
tically, 180° left, or 120° right to provide bounce-flash lighting in
nearly all situations.
• Exposure compensation: Exposure compensation of ±1.5 EV gives free
rein to your creative powers. Choose from settings of –1.5, –1, –0.5,
0, +0.5, +1, and +1.5 EV.
• Adjustable flash output: Manual flash level adjustment gives you a
choice of full output (
/
) or 
/
, 
/
, 
/
, 
/
, 
/
, 
/
 of full power.
• Adjustable focal length display: Lens focal can be displayed during
shooting either in APS-C ( ) or 35 mm ( ) format.
• Built-in wide panel: With coverage for focal lengths as short as 20 mm
(35 mm format equivalent), the EF-42 can also be used for wide-
angle shots.
For Your Safety ............................................................................................................................14
Table of Contents.......................................................................................................................16
Principal Features ......................................................................................................................16
Parts of the Flash........................................................................................................................17
Inserting Batteries.....................................................................................................................18
Attaching the EF-42.................................................................................................................18
Auto Power Off ...........................................................................................................................18
The LCD Display..........................................................................................................................19
Through-the-Lens (TTL) Flash Photography............................................................20
Adjusting Settings ....................................................................................................................21
Manual Flash Photography .................................................................................................22
Using the Wide Panel..............................................................................................................23
Bounce Lighting.........................................................................................................................23
Continuous Use ..........................................................................................................................24
Specifications...............................................................................................................................24

EN-5 ENGLISH
Parts of the Flash
* Lights to assist the focus operation if the shutter button is pressed halfway
when lighting is poor. May not light with some cameras.
Built-in wide panel
Flash window
Battery-chamber cover
AF-assist lamp*
Lock ring
Hot shoe contacts
LCD display
SEL (select) button
Ready lamp/test button
MODE button
ON/OFF switch

EN-6
ENGLISH

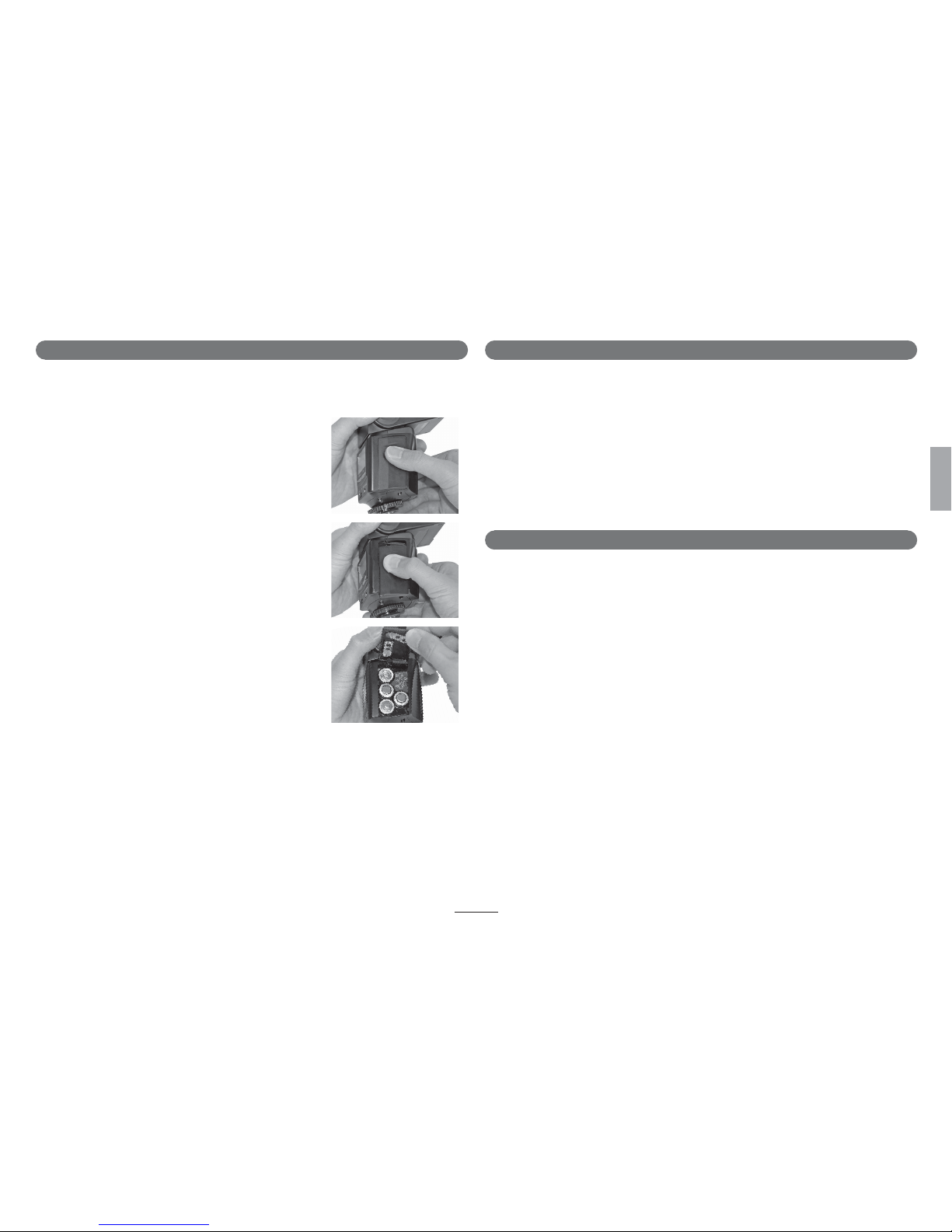

Inserting Batteries
The EF-42 can be used with lithium, alkaline, nickel-metal hydride
(NiMH), and Oxyride batteries. Choose NiMH batteries for reduced
flash charging times and longer battery life.
1
Place your thumb in the depression at the
top of the cover and push the cover slightly
in to release the latch, then slide the cover
down to open it.
QBefore opening the cover, be sure the ON/OFF
switch is in the OFF position.
2
Insert four AA batteries in the orientation
shown on the inside of the cover. Close the
cover.
QAlthough the battery chamber is designed to
prevent the batteries being inserted incor-
rectly, failure to insert the batteries in the cor-
rect orientation could result in malfunction.
3
Turn the flash on. A beep will sound as the
flash starts charging. The flash is ready for
use when charging is complete and the
ready lamp lights.
4
Turn the flash off. The ready lamp will turn
off to show that the flash will not fire.
QTurn the flash off before mounting it on the hot shoe. If the flash is on, it
may short the hot shoe contacts, causing the flash to fire unexpectedly or
other product malfunction.
Attaching the EF-42
Be sure the EF-42 is off before mounting it on or removing it from the
camera. Failure to observe this precaution could result in damage to
the camera.
1
Rotate the flash lock ring to the right to release the lock.
2
Mount the flash securely on the camera hot shoe.
3
Rotate the lock ring to the left to lock the flash in place.
QBe sure the release the lock before attaching the flash. Attempting to at-
tach the flash without releasing the lock could damage the hot shoe.
Auto Power Off
If no operations are performed for 15 minutes while the flash is on,
the displays will turn off and the flash will be disabled. Normal opera-
tion can be restored by pressing the camera shutter button halfway
or turning the flash off and then on again.
RThe flash continues to draw power from the batteries after the displays
have turned off automatically. To reduce the drain on the batteries, turn
the flash off when it is not in use.

EN-7 ENGLISH
The LCD Display
Focal length format AUTO OK indicator1 Zoom mode
Wide panel indicator
Focal length
Integrated flash range
indicator
Exposure compensation/
power ratio2
Exposure compensation
± indicator
Power ratio indicator
Flash control mode
1. If this indicator is not displayed after the flash fires, the subject may be underexposed. Move closer to your subject or choose a wider aperture (lower f-number).
2. The fraction of full power at which the flash fires in manual flash control mode.

EN-8
ENGLISH

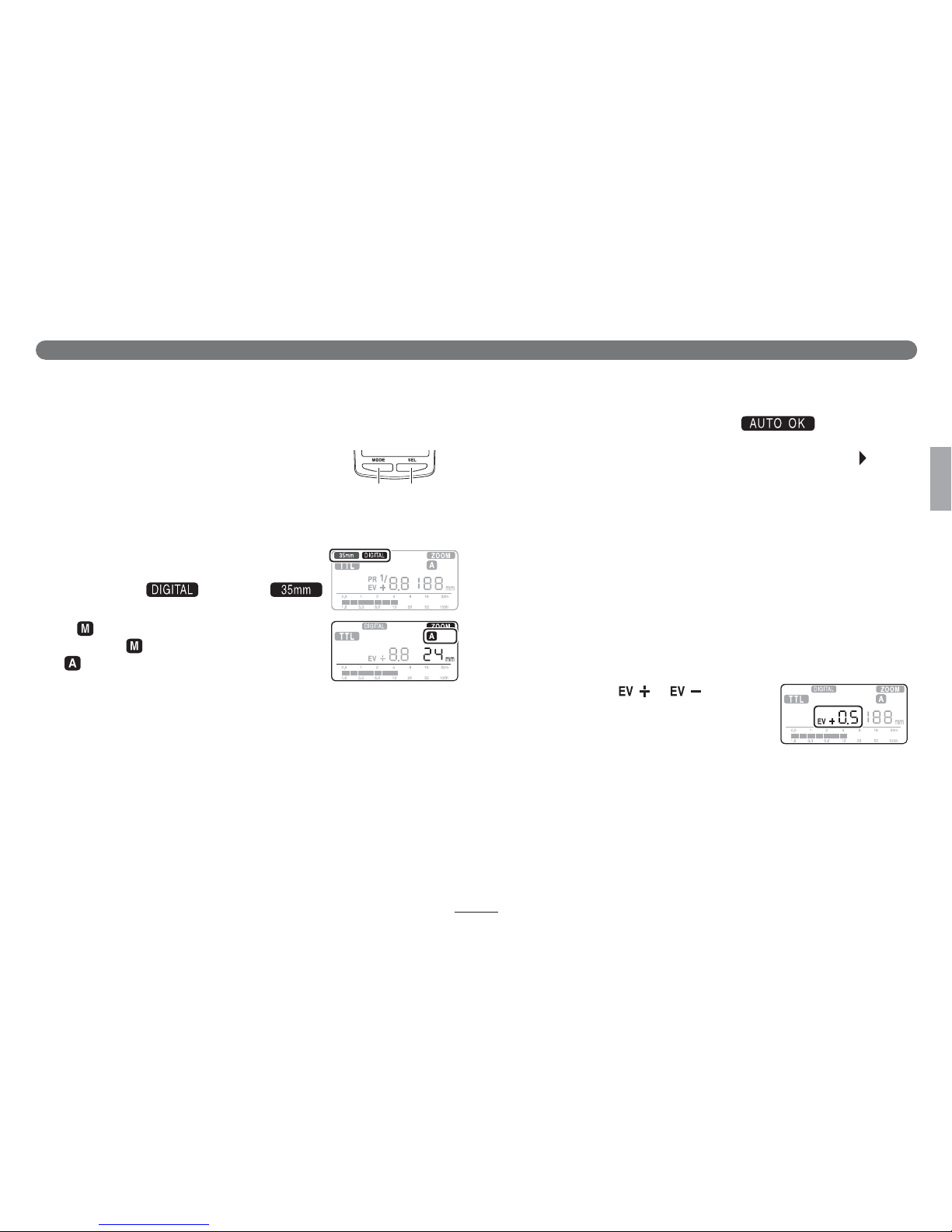

TTL flash control automatically adjusts flash output for optimal
brightness. The flash also responds to changes in camera settings,
allowing the flash to be used at shutter speeds slower than the flash
sync speed.
To adjust flash settings, press MODE until the
icon for the desired item blinks and then press
SEL to choose an option while the red display
backlight is on. Setting is complete when the
backlight turns off and the icon stops blinking.
Flash control panel
MODE button SEL button
1
Turn the camera and flash on.
2
Press MODE until the icon for the current fo-
cal length display blinks and press SEL to
choose from (APS-C) or
(35 mm).
3
If (manual) is selected for zoom, press
MODE until blinks and press SEL to choose
(auto zoom). Zoom will automatically
be adjusted in response to changes in lens
focal length in the 24 mm–105 mm range
(35 mm format equivalent).
4
Settings are complete when the red backlight turns off. Wait for
the ready lamp to light before taking photographs.
■TTL Flash Control
The EF-42 instantly calculates the effective flash range based on
aperture, sensitivity, and other camera settings. When the camera
shutter button is pressed halfway or the icon lights, the
range appears in the bar graph display, which shows distances of
0.5 m–32 m/1.6 ft.–105 ft. (greater distances are indicated by ).
■The Ready Lamp
The ready lamp blinks while the flash charges. If the flash is fired im-
mediately after charging, output will be reduced by the equivalent
of about one stop. For maximum flash output, wait until the ready
lamp lights. Replace the batteries if charging takes over 30 seconds
following a test flash performed with the EF-42 not mounted on the
camera.
■Performing a Test Flash
To test the flash before taking a photograph, check that the ready
lamp is lit and press the test button.
■Exposure Compensation
Press MODE until the or icon blinks
and press SEL to adjust exposure compensa-
tion.
Through-the-Lens (TTL) Flash Photography

EN-9 ENGLISH
Adjusting Settings
To adjust flash settings, press MODE until the icon for the desired item blinks and then press SEL to choose an option. Pressing the MODE button
selects items in the order shown by the arrow, while pressing the SEL button selects options in the order shown by the arrow.
Item
Item
Icon that flashes when item is selected
Icon that flashes when item is selected
Display
Display
Options
Options
q
Focal length format or Choose the focal length format
(APS-C) (35mm)
w
Exposure
compensation
(positive)
Increase flash output
0.0 +0.5
+1.5 +1.0
e
Exposure
compensation
(negative)
Reduce flash output
0.0 –0.5
–1.5 –1.0
r
Zoom or
Choose from auto ( ) or manual ( ) zoom
• 35mm ( ) format:
24 28 35
105 85 70 50
• APS-C ( ):
16 19 24
70 58 48 34
t
Power ratio
Choose the power ratio for manual flash control mode ( )

/
 
/
 
/
 
/


/
 
/
 
/


EN-10
ENGLISH

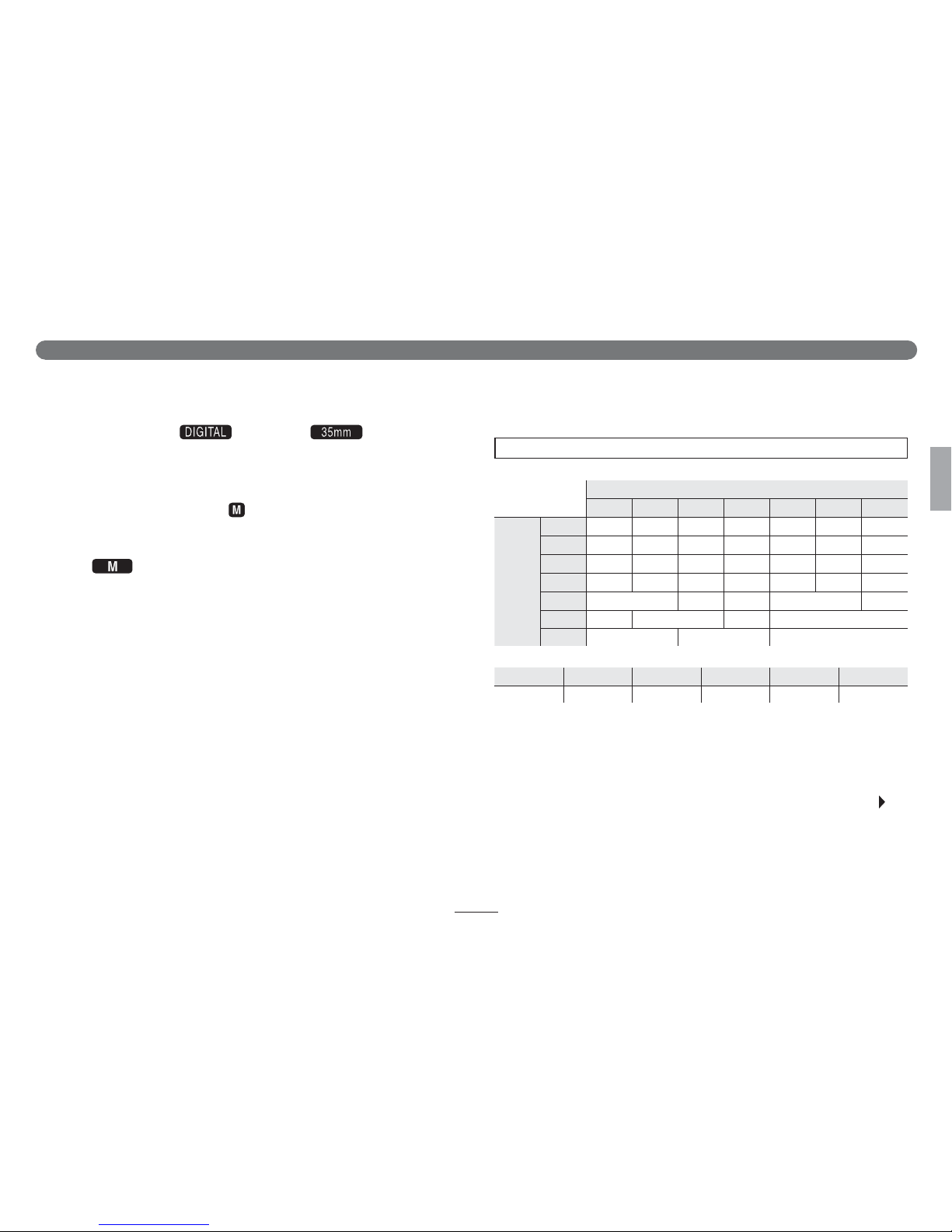

Manual Flash Photography
Manual flash control is unaffected by reflections, making it the ideal
choice for pictures of highly reflective or unreflective subjects.
1
Turn the camera and flash on.
2
Choose from the (APS-C) or (35 mm) focal
length format displays.
3
Adjust exposure compensation. Choose higher values to increase
flash output, lower values to decrease.
4
Adjust zoom. Note that if is selected, the flash not light the
entire subject if zoom less than the focal length of the lens.
5
Adjust flash output by choosing a power ratio (PR) and confirm
that appears in the display.
6
Settings are complete when the red backlight turns off and the
icon for the selected setting stops blinking. Wait for the ready
lamp to light before taking photographs.
■Effective Range
The effective shooting range of the flash in meters can be calculated
by multiplying the guide number by the sensitivity (ISO) coefficient
and dividing by the aperture (for feet, multiply the result by 3.28).
Flash range = guide number × ISO coefficient ÷ aperture (f-number)
The guide number varies with flash output and lens focal length.
Focal length in mm (35 mm format/APS-C)
Focal length in mm (35 mm format/APS-C)
24/16
24/16
28/9
28/9
35/24
35/24
50/34
50/34
70/48
70/48
85/58
85/58
105/70
105/70
Power
Power
ratio
ratio
FULL
FULL 24 26 28 34 38 40 42


/
/

17 18 20 24 27 28 30


/
/

12 13 14 17 19 20 21


/
/

8 91012131415


/
/

 6 781011


/
/

 45 6 7


/
/

 34 5
The ISO coefficient is shown in the table below.
ISO 100
ISO 100
ISO 200
ISO 200
ISO 400
ISO 400
ISO 800
ISO 800
ISO 1600
ISO 1600
ISO 3200
ISO 3200
11.422.845.7
For example, the range for a power ratio of 
/
 and a focal length of
35 mm, an aperture of f/4, and a sensitivity of ISO 400 is 10 (the guide
number) ×2 (the ISO coefficient) ÷4 (the aperture), or in other words
5 m (16.4 ft.).
RThe bar graph in the flash unit display shows the range at which optimal
exposure will be achieved; distances over 32 m (105 ft.) are shown by .

EN-11 ENGLISH
Using the Wide Panel
The wide panel is located above the flash window. When shooting
with wide-angle lenses with focal lengths as short as 20 mm (35 mm
format equivalent), extend the wide panel (if is selected for zoom,
you will also need to zoom the flash out to 24 mm). Flash output
drops slightly when the wide panel is used.
Wide
panel
Bounce Lighting
Light from the EF-42 can be reflected (bounced) from a ceiling or wall
in TTL mode. Under some conditions, the flash may create dark shad-
ows in the background when aimed directly at the subject. A softer,
more natural effect can be produced by bouncing the light from the
flash off a ceiling or wall.
Rotate the flash head to choose the flash angle
and direction.
QDo not attempt to rotate the flash head beyond
the limits shown on the flash body. Failure to ob-
serve this precaution could damage the flash.
QFlash intensity may drop by about 25% depend-
ing on the color and type of the reflecting sur-
face.
QIf possible, bounce lighting off a surface that is
white or nearly white. Particular care is advised
when taking color photographs, as light reflected
from colored surfaces may affect the colors in the
image.

EN-12
ENGLISH
Continuous Use
Using the flash many times in quick succession can cause overheating
that may damage the flash. It is recommended that you turn off the
flash for ten minutes after about ten consecutive shots.
Specifications
Power zoom Adjusted automatically on signal from camera
Can be adjusted manually by pressing zoom button
Color temperature Approx. 5,600K when fired at full power
Batteries Four AA lithium, alkaline, NiMH, or Oxyride batteries
Operating temperature 0°C to 40°C/32°F to 104°F
Dimensions
(H×W×D)
Approx. 116mm×64mm×102mm/
4.6in.×2.5in.×4.0in.
Weight Approx. 260g/9.2oz., excluding batteries
■Guide Number (ISO 100, m)
Lens focal length in mm (35 mm format/APS-C)
Lens focal length in mm (35 mm format/APS-C)
24/16
24/16
28/9
28/9
35/24
35/24
50/34
50/34
70/48
70/48
85/58
85/58
105/70
105/70
Power
Power
ratio
ratio
FULL
FULL 24 26 28 34 38 40 42


/
/

17 18 20 24 27 28 30


/
/

12 13 14 17 19 20 21


/
/

8 91012131415


/
/

 6 781011


/
/

 45 6 7


/
/

 34 5
■Working Range (ISO 100, m)
Lens focal length in mm (35 mm format/APS-C)
Lens focal length in mm (35 mm format/APS-C)
24/16
24/16
28/9
28/9
35/24
35/24
50/34
50/34
70/48
70/48
85/58
85/58
105/70
105/70
Aperture
Aperture
f/2
f/2 12 13 14 17 19 20 21
f/4
f/4 6 6.5 7 8.5 9.5 10 10.5
f/8
f/8 3 3.3 3.5 4.3 4.8 5 5.2
f/16
f/16 1.5 1.7 1.8 2.2 2.4 2.5 2.6
f/32
f/32 0.8 0.9 1.1 1.2 1.3
f/64
f/64 0.4 0.5 0.6 0.7
■Battery Life and Recycling Time
Number of uses (full power)
Number of uses (full power)
Recycling time (full power)
Recycling time (full power)
AA alkaline batteries ×4
AA alkaline batteries ×4 Approx. 220 Approx. 3.5s
AA NiMH batteries ×4
AA NiMH batteries ×4 Approx. 240 Approx. 3.0s
RBattery life measured using fresh batteries manufactured within the previ-
ous three months. The number of uses is the number of times the flash can
be fired at intervals of 30 seconds; the count ends when the ready lamp
takes more than 30 seconds to light.
RThe recycling time is the time needed after the flash fires for the ready lamp
to light, as measured under the conditions described above.
