FujiFilm EF-X500 User manual

Owner’s Manual
BL00004854-200

ii
Introduction
About This Manual
This manual contains instructions for the EF-X500, a
powerful, multi-functional ash unit from FUJIFILM.
When using the ash, refer to both this guide and the
camera manual.
Symbols
The following symbols are used in this manual:
O
Information that should be read to prevent damage to
the product.
N
Additional information that may be helpful when using
the product.
PPages on which related information may be found.
Using the Flash
Do not pick up the camera by the ash. The ash may slip
from the hot shoe, causing the camera to fall.
The LED video light is intended only to provide lighting for
the camera and should not be used for other purposes.
Remove the batteries immediately after immersion in water
or in the event that water or metal objects nd their way into
the product. Failure to observe this precaution could result in
re or electric shock.
For information on compatible cameras, visit our website at
http://www.fujifilm.com/sd/
Supplied Accessories
Check that the following items are supplied with your EF-X500
shoe mount ash. Please contact your retailer should any-
thing be missing.
• EF-X500 shoe-mount ash • Diuser
• Mini stand • Quick Start Guide • Soft case

iii
P Chapter Index
First-time users should read the Introduction and
Chapter 1 for basic information on using the ash.
Introduction ii
1Getting Started 12
2Flash Controls 22
3Single Flash Mode 28
4Wireless Flash Photography 46
5Slave Mode 76
6Setup 80
7Setting Save, Load, and Reset 86
8Appendix 90

iv
Table of Contents
About This Manual .......................................................................ii
Symbols.........................................................................................................ii
Using the Flash.........................................................................................ii
Supplied Accessories............................................................................ii
The EF-X500................................................................................... 1
Flash Placement...................................................................................... 2
Parts of the Flash.......................................................................... 3

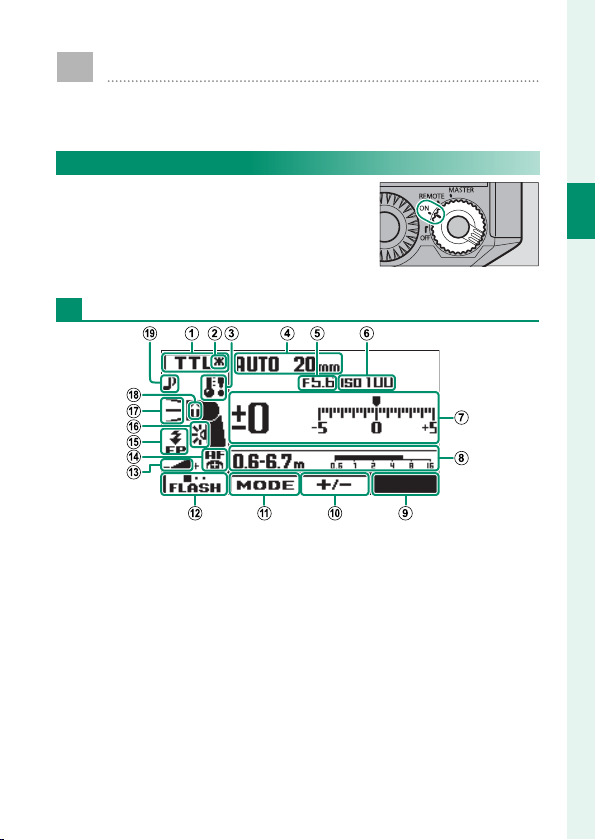

The LCD Display ........................................................................... 4
Single Flash Mode ................................................................................. 4

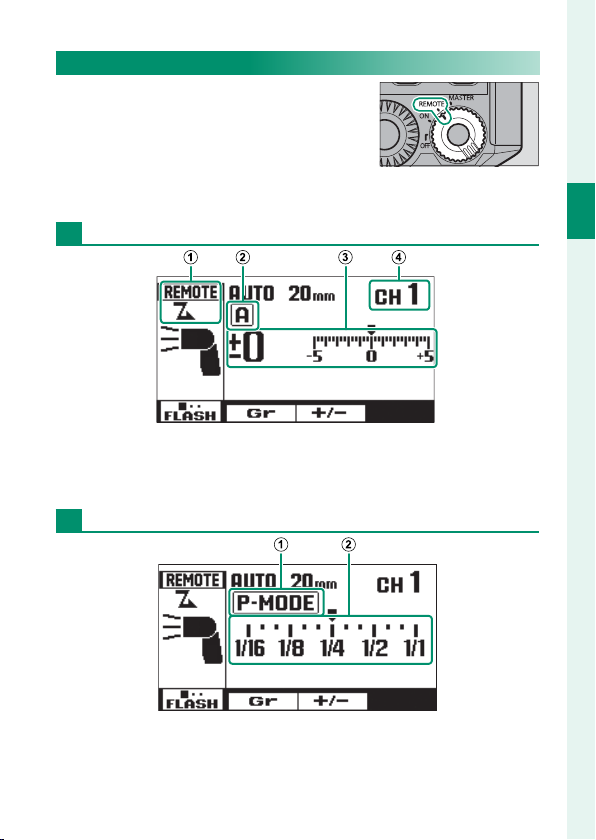

Remote Mode .......................................................................................... 6

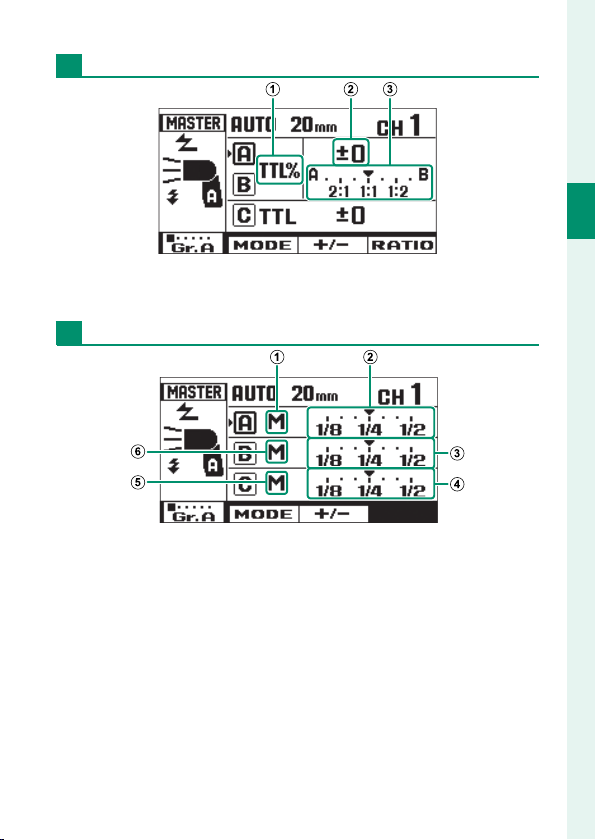

Master Mode.............................................................................................7

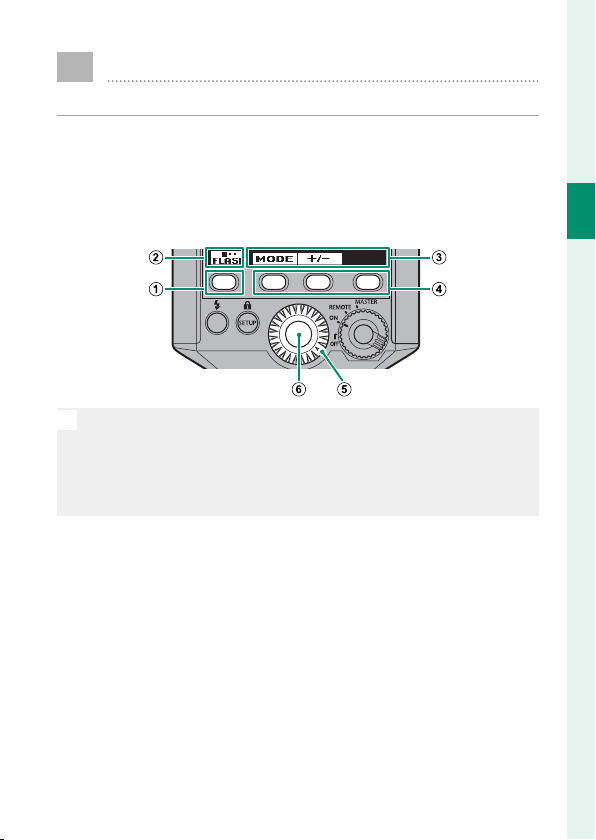

Adjusting Settings.....................................................................10
1
Getting Started 12
Getting Started 12
Inserting Batteries.....................................................................13
Battery Life and Recycling Time................................................. 14
Attachment and Removal ......................................................15
Attaching the Flash............................................................................ 15
Detaching the Flash .......................................................................... 16
Turning the Flash On and O................................................17
Turning the Flash On ........................................................................ 17
Charging................................................................................................... 18
Standby..................................................................................................... 18
The LCD Backlight............................................................................... 19
The D(Lock) Button ......................................................................... 19
Turning the Flash O ........................................................................ 19
Taking Photographs .................................................................20

v
Table of Contents
2
Flash Controls 22
Flash Controls 22
Bounce Lighting.........................................................................23
Using the Wide Panel ...............................................................24
Catchlight Photography..........................................................25
The Diuser .................................................................................26
3
Single Flash Mode 28
Single Flash Mode 28
Flash Control Mode...................................................................29
TTL Mode................................................................................................. 29
Manual Mode........................................................................................ 31
Repeating Flash Mode..................................................................... 33
Camera Controls ........................................................................37
Flash Setup.............................................................................................. 37
Other Settings.............................................................................38
Lighting..................................................................................................... 38
Coverage.................................................................................................. 39
LED Video Light On/O................................................................... 40
LED Video Light Brightness........................................................... 41
LED AF-Assist Lamp/Catchlight ................................................. 42
Single Flash Mode Options........................................................... 44

vi
4
Wireless Flash Photography 46
Wireless Flash Photography 46
Wireless Flash Control..............................................................47
Placement and Range..............................................................48
Remote Flash Units...................................................................49
Group.......................................................................................................... 50
Flash Compensation/Output....................................................... 51
Channel..................................................................................................... 52
Remote Mode Options: Summary ........................................... 53
The Master Flash........................................................................54
Group.......................................................................................................... 55
Channel..................................................................................................... 56
Master Mode Options: Summary.............................................. 57
Camera Controls ........................................................................59
Flash Setup.............................................................................................. 59
Taking Photographs .................................................................60
TTL Mode................................................................................................. 60
TTL Output Ratio Selection........................................................... 64
Manual Mode........................................................................................ 68
Repeating Flash.................................................................................... 71
5
Slave Mode 76
Slave Mode 76
P and N (Slave) Modes .............................................................77
Flash Output........................................................................................... 79

vii
Table of Contents
6
Setup 80
Setup 80
The Setup Menu.........................................................................81
TEST BUTTON......................................................................................... 82
TTL TEST POWER.................................................................................. 82
SCALE UNITS .......................................................................................... 82
LCD DENSITY.......................................................................................... 82
LCD ILLUMINATION............................................................................ 83
BEEP............................................................................................................. 83
REMOTE READY INDICATOR.......................................................... 83
SENSOR FORMAT................................................................................. 84
CUSTOM SENSOR FORMAT ........................................................... 84
STANDBY................................................................................................... 84
REMOTE STANDBY .............................................................................. 85
AUTO POWER OFF.............................................................................. 85
7
Setting Save, Load, and Reset 86
Setting Save, Load, and Reset 86
Saving Settings...........................................................................87
Loading Settings........................................................................88
Restoring Default Settings .....................................................89
8
Appendix 90
Appendix 90
Troubleshooting/FAQ...............................................................91
Temperature/Battery Warnings............................................95
Specications..............................................................................96
Guide Number (ISO 100/m).......................................................... 98

1
Introduction
The EF-X500
This powerful, multi-functional ash unit features
support for i-TTL ash control, FP (high-speed sync),
and optical wireless remote control.
The EF-X500 can be controlled remotely via optical wireless
ash control or mounted on the camera hot shoe for use
as a stand-alone ash unit or as a master ash controlling
remote FUJIFILM ash units via optical wireless control.
The following features are available when the unit is
mounted on an X-series camera with a hot shoe.
Feature
Feature
Camera with full EF-X500 support?
Camera with full EF-X500 support?
Yes
Yes
No
No
Single flash
TTL flash control Normal ✔✔
FP ✔—
Manual flash control Normal ✔✔
FP ✔—
Repeating flash ✔✔
Master flash (optical remote control) ✔—
LED AF-assist lamp ✔—
LED catchlight ✔—
The EF-X500 can also function as a remote ash unit (either
full manual or with optical remote control) or LED video
light.
N
For more information, visit http://www.fujifilm.com/sd/

2
Introduction
The EF-X500
Flash Placement
When using the FUJIFILM optical wire-
less remote ash control system, orient
the remote units with their optical re-
ceivers facing the master unit and rotate
the ash heads to the desired angles.
Receiver
The ash can control remote ash units in up to three
groups (A, B, and C), each of which may contain multiple
ash units.
A
C
B
BB
The approximate maximum ranges for remote ash con-
trol are as shown. Range may be reduced by obstacles or
interference from sunlight or other light sources.
∼ 10m (33 ft.)
∼ 15m (49 ft.)
∼70°
∼7m (22ft.)
∼10m (33 ft.)
Remote control range
Indoors
Outdoors

3
Introduction

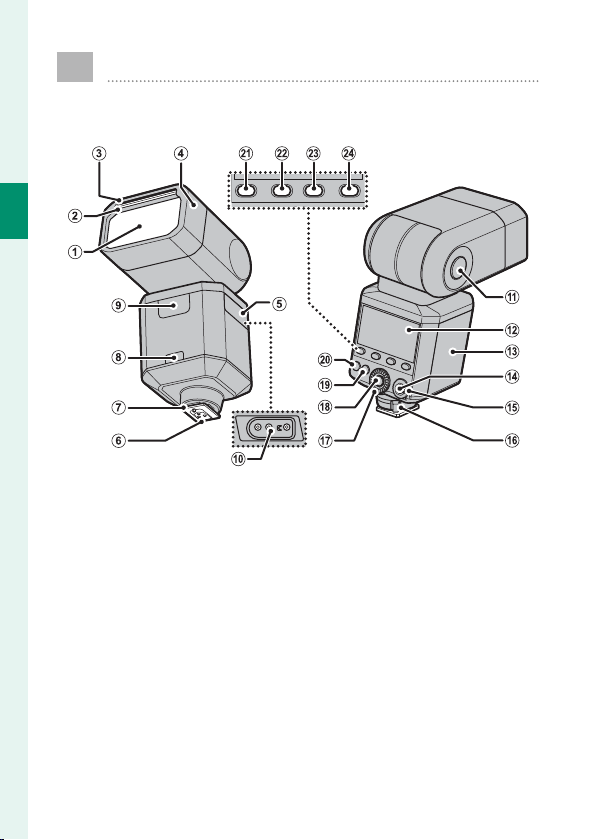

Parts of the Flash
See the page numbers to the right of each item for
more information.
A
Fresnel lens (flash window)................ 23
B
Wide panel...............................................24
C
Catchlight panel .................................... 25
D
Accessory mount (cover)..................... 26
E
Power connector cover
F
Hot shoe contacts.................................. 15
G
Mount ....................................................... 15
H
Optical receiver............................2, 48, 49
I
LED video light...........................40, 41, 42
J
Power connector
K
Bounce latch ........................................... 23
L
LCD display.................................................4
M
Battery-chamber cover........................ 13
N
Power-switch latch ...............................17
O
Power switch........................................... 17
P
Latch.......................................................... 15
Q
Command dial
R
OK button
S
SETUP/D(lock) button................. 19, 81
T
Ready lamp/
test button ..................................18, 82, 83
U
Page button.........................10, 44, 53, 57
V
Function button 1
.................................................10, 44, 53, 57
W
Function button 2
.................................................10, 44, 53, 57
X
Function button 3
.................................................10, 44, 53, 57
