FujiFilm Discovery S600 ZOOM Date User manual

OWNER,S MANUAL
• Fujinon35-60mmAutoFocusZoomLens
•Automatic Flash
•Easy Film Loading
•Automatic Film Rewind
•
FullInformationLEDOperatingDisplay
•Date/Time Imprinting
(on the DISCOVERY S600 ZOOM DATE /
ZOOM DATE 60 only)
•Red-Eye Reduction
ENGLISH

2
FEATURES ............................................................................... 2
PART NAMES ........................................................................... 3
1. PRELIMINARY STEPS
ATTACHING THE STRAP ........................................................ 7
LOADING THE BATTERIES .................................................... 8
TURNING ON YOUR CAMERA ............................................. 10
CHECKING YOUR BATTERY ................................................ 11
SETTING THE DATE
(YEAR-MONTH-DAY/HOUR-MINUTE)
(on the DISCOVERY S600 ZOOM DATE/
ZOOM DATE 60 only) ............................................................. 12
SELECTING THE DATE MODE
(on the DISCOVERY S600 ZOOM DATE/
ZOOM DATE 60 only) ............................................................. 14
2. USING YOUR CAMERA
LOADING THE CAMERA ....................................................... 15
USING YOUR FINDER ........................................................... 19
USING YOUR CAMERA ......................................................... 20
USING THE AUTO-FOCUS LOCK ........................................ 25
UNLOADING THE FILM OR REMOVING FILM IN MID-ROLL ... 27
3. ADVANCED TECHNIQUES
SELECTING THE EXPOSURE MODE .................................. 31
USING THE SELF-TIMER ...................................................... 35
TROUBLE SHOOTING ........................................................... 37
COMMON SENSE CAMERA CARE ...................................... 40
SPECIFICATIONS .................................................................. 41
FEATURES
•Fujinon 35-60mm Auto Focus Zoom Lens
•Automatic Flash
•Easy Film Loading
•Automatic Film Rewind
•Full Information LED Operating Display
•Date/Time Imprinting
(on the DISCOVERY S600 ZOOM DATE/ZOOM DATE 60 only)
•Red-Eye Reduction
CONTENTS
The “CE” mark certifies that this product satisfies the
requirements of the EU (European Union) regarding
safety, public health, environment and consumer
protection.(“CE” is the abbreviation of Conformité
Européenne.)
Thisproductisin conformity withDirective 89/336/EEC.

3
PART NAMES
1Liquid Crystal Display
2Power Button
3Zoom Button
4Shutter Release Button
5Strap Lug
6AF (Autofocus) Window
7Viewfinder Window
8MODE Button
9Mid-Roll Rewind Button
0Red-eye Reduction/Self-
Timer Lamp
AFlash
BAE Light Sensor
CFujinon Lens/ Lens Cover
8(→p.31, 35)
9(→p.29)
0(→p.32, 36)
C(→p.10)
A(→p.23, 31)
B
7
1(→p.5)
2(→p.10)
3(→p.21)
5(→p.7)
6
4(→p.22)

4
DViewfinder Eye-piece
EAF/Flash Ready Lamp
FFilm Take-up Spool
GCamera Back Lock
HFilm Leader Mark
IFilm Chamber
JCamera Back
KFilm Pressure Plate
LFilmConfirmationWindow
MBattery Compartment
Cover
NTripod Socket
J(→p.16, 28)
N
M(→p.8)
L(→p.16)
K
F
E(→p.22)
D(→p.19)
H(→p.17)
G(→p.16, 28)
I

5
Liquid Crystal Display ORed-eye Reduction Flash
Mode
PFilm Display
QBattery Status
RFill-in Flash Mode/
Flash off Mode/
Flash Charging
SExposure Counter
TSelf-Timer Mode
O(→p.32)
P(→p.18)
Q(→p.11)
∗The diagram shows all crystal displays in the “on” state.
S(→p.18)
T(→p.35)
R(→p.34, 22)

6
UMonth Display
VDate/Time Imprinting
WDate Display
XSELECT Button
YMODE Button
ZSET Button
Date/Time Display
(on the DISCOVERY S600 ZOOM DATE/ZOOM DATE 60 only)
X(→p.12)
Y(→p.12, 14)
∗The diagram shows all crystal displays in the “on” state.
U(→p.12, 14)
V(→p.14)
W(→p.12, 14)
Z(→p.13)

7
1. PRELIMINARY STEPS
ATTACHINGTHE STRAP
Slip the thin cord on the carrying strap through the strap lug on the side of the
camera leaving a loop. Slide the thick part of the strap through this loop and pull
tight.Take up any slack to make sure the strap is securely attached to the camera.
Do not use a strap made for cellular phones or similar electronic products. These straps are
usually too light to hold your camera securely. Use straps designed for cameras for safety.
1
2
A: Button Push Projection
Use the button push projection to push the DATE-MODE, SELECT, SET button and
the button.
A

8
LOADINGTHE BATTERIES
Make sure you have the correct batteries for your camera and that they are fresh.
Your camera uses two alkaline batteries (Size AA/LR6) for reliable service.Do not try
to use other types or sizes of batteries and do not mix an old battery with a new one.
It is best to buy two batteries of the same brand at the same time.
To load batteries...
Open the battery compartment cover by pressing your finger against the finger rest and slid-
ing the cover in the direction of the arrow.
2
1
1
21It is important to insert the batteries correctly. Follow the instructions in the diagram on
the insider of the battery cover. Pay particular attention to the position of the ,and -
poles of the batteries. If the batteries are no inserted correctly, the camera will not
operate.
2Oncethebatteries arecorrectly inserted, closethe battery compartmentcoverbysnap-
ping it into place.When the cover is closed properly, it fits flush against the bottom of the
camera.If you have trouble, check the placement of the batteries to make sure they are
properly seated in the battery compartment.

9
∗Do not apply excessive force when opening the battery cover.
∗Do not load film before insertng the battery into the camera.
∗Make sure that the new batteries are both the same brand and type.
∗Do not use Ni-Cd batteries.
∗Two alkaline batteries should be sufficient for approximately 360 exposures (based on our test
conditions).
∗When traveling, take extra batteries to provide power for extra exposures, particularly important
if you visit areas where fresh batteries may be difficult to obtain.
∗Check the battery capacity symbol before using your camera. (→p.11)
∗At low temperatures, battery capacity is reduced.Warm the batteries, e.g.in your pocket, before
using them.

10
TURNING ONYOUR CAMERA
To prepare to use your camera, first press the power supply button to turn on the
power. Pressing the button once more turns the power off.
☞When you turn your camera on, the lens cover will open and the initial display will appear in the
LCD panel.
∗When you are finished using your camera, turn the power off to conserve your battery. If the
power supply is left on for more than 5 minutes without the camera being used, the camera will
automatically turn itself off.If the POWER button is pressed, the power is turned back on again.
Before you turn the camera on, make sure that the lens is not blocked to avoid any interference
with the lens extending into its picture taking position.

11
1
2
3

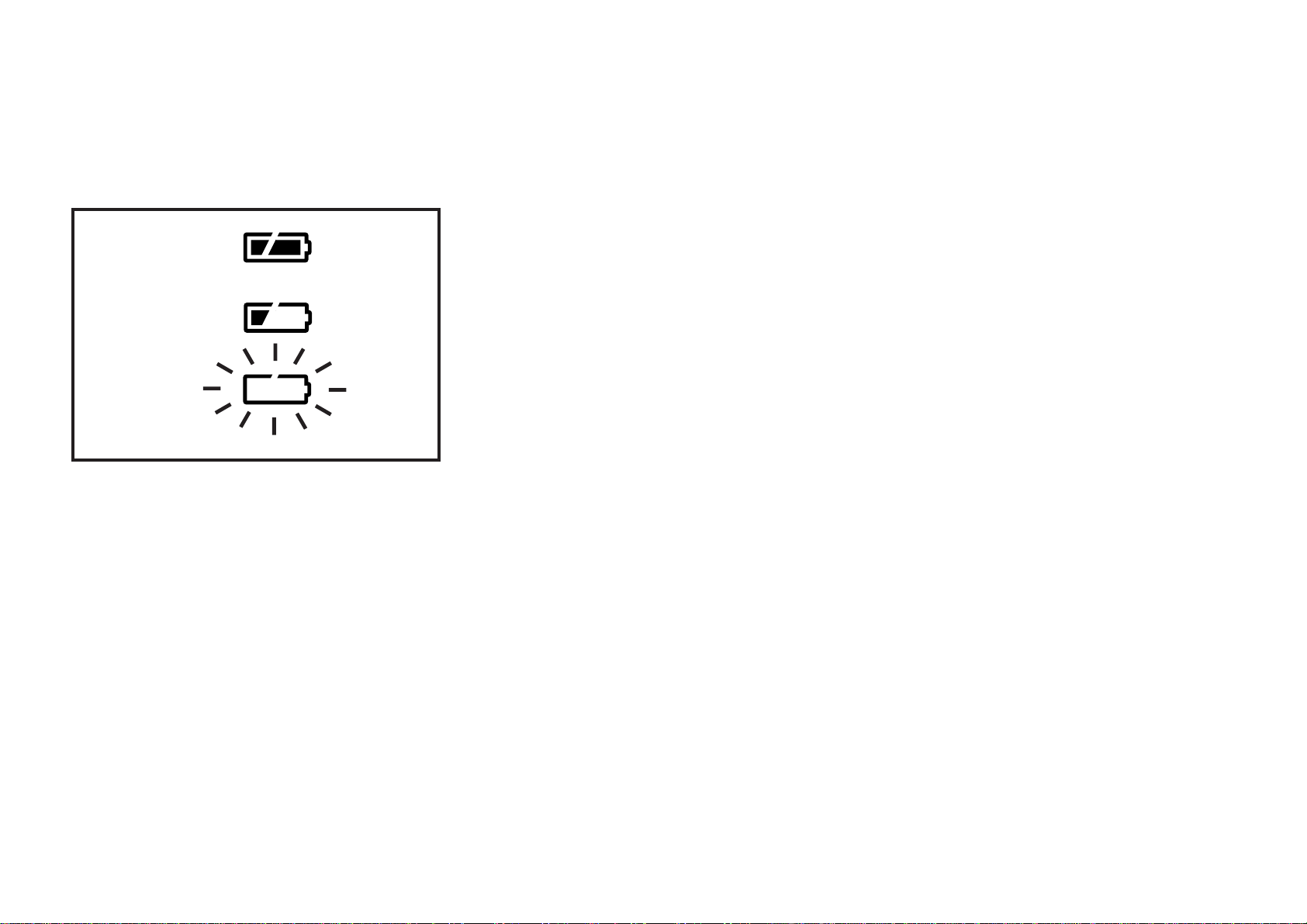

CHECKINGYOUR BATTERY
To determine the condition of the battery in your camera, turn it on and check the
battery capacity indicator on the LCD panel.
1on :Battery capacity is OK.
2on :Battery capacity is low.Replace with a new battery.
3blink :Shutter cannot be released because battery is exhausted. Replace with a
fresh battery.
∗Check the battery capacity before you start to use your camera.

12
1
1 2
SETTINGTHE DATE
(YEAR-MONTH-DAY/HOUR-MINUTE)
(on the DISCOVERY S600 ZOOM DATE/ZOOM DATE 60 only)
Setting the Date
1Press the MODE button and “ ” to display the year, month and day.
2Press the SELECT button.
☞The numerals will blink and the camera will enter the date setting mode.
∗The numeral under the “ ” in the display area indicates the month.
1 2
Setting the Time
1Press the MODE button to display the hour and minute.
2Press the SELECT button.
☞The numerals will blink and the camera will enter the time setting mode.
∗The date cannot be changed at this stage.
The date changes along with the time.To display both correctly, set the date and time together.

13
2
3
1Press the SET button to change the blinking setting.
2Press the SELECT button to select the next part of the date/time information.
●You can set:
Year : ’98 to ’49 (1998 to 2049)
Month : 1 to 12 Day : 1 to 31
Time : 0 to 23 hours; 00 to 59 minutes
12
Once the date and time are set, press the SELECT button and setting will cease.
☞To set the time (hour or minute) by the radio, set the correct time using the time correction
mode, and press in the SELECT button when the time signal indicates zero.

14
Y M D
D T
M D Y
D M Y
SELECTINGTHE DATE MODE
(on the DISCOVERY S600 ZOOM DATE/ZOOM DATE 60 only)
The date and time (year-month-day/ hour-minute) will be imprinted at the lower right
of the photograph.
Y :Year M : Month D : Day T :Time
With each press of the MODE button, the date mode changes as in the illustration.
☞The date and time will be printed based on the mode you select.
∗If “ ” is showing in the upper right of the display area, the date will be imprinted on the
photograph.
∗The numeral under the “ ” in the display area indicates the month.
∗If “- - - - - -” is chosen, no date will appear on the photograph.
_
∗The date display printed on the front of the picture may not be clearly visible against a dark
background.

15
2. USINGYOUR CAMERA
LOADINGTHE CAMERA
Your camera uses standard 35mm film available anywhere. Almost all 35mm films
will have a DX coding symbol on the film box and on the cassette itself. Use only
35mm films with ISO rating of 100, 200 or 400.Information you will see includes:
A: Number of Exposures
B: DX Code symbol
C:Film Speed (sensitivity to light or ISO rating)
A
C
B
•If non-DX coded film is used, the camera’s automatic exposure system automatically sets itself
to ISO 100.
•Always load and remove film from your camera away from direct sunlight.

16
2
2
1
1Check the film check window to make sure no film is loaded into the camera.
1To load the film, slide camera back lock in the direction of the arrow as shown in
the picture at left.
2Open the back as shown.
∗Never open the camera back while film is in your camera.
∗Never apply excessive force when opening or closing the camera back.
Insert batteries before loading film.

17
1Hold the film at an angle and place it in the camera.
2Press the film until you hear a clicking sound.This indicates the film cassette is
seated properly.
3
4
A
2
1
A: FILM TIP mark
While holding the film cassette in place, gently pull the end of the film leader out as
far as the FILM TIP mark in the camera.
∗Hold the film cassette down so that it does not pop out of the film compartment.
∗Make sure the end of the film is correctly threaded onto the spool.
∗If you should pull the film out too far, remove the film cassette and rotate the longer end of the
spool slowly to rewind some of the exposed film and adjust the leader to the correct length to
reach the FILM TIP mark. Be careful not to rewind the leader completely into the cassette.

18
5Close the camera back.
☞The film advances automatically.
☞“” and “ ” are displayed.
6Check that the exposure counter (“ ”) and “ ” appear in the LCD.
∗The type, number of exposures, and speed of the film that has been loaded may be checked
with the film check window.
If “ ” and “ ” are not displayed in the LCD, the film is not advancing.Load the film again.

19
USINGYOUR FINDER
The large viewfinder of your FUJIFILM camera makes it easier to take better, more
interesting pictures.The finder consists of two parts:
A: Framing Area
Compose your picture within these framelines.
B:AF (Autofocus) frame
Position this frame over the main subject being photographed to ensure sharp.
B
A

20
USINGYOUR CAMERA
Turn the camera on and hold it firmly using both hands as shown in the illustration.
When taking vertical pictures, hold the camera with the flash unit at the top.
Before taking important, once-in-a-lifetime pictures such as weddings or special events, take a
few test shots to make sure your camera is functioning correctly. If you purchased your camera
before going on a trip, shoot a roll or two to familiarize yourself with the operation of the camera.
And don’t forget to get an extra set of batteries.You should also keep this instruction book with
you for handy reference.
2
1
Make sure that nothing is in front of the lens, the flash, the autofocus windows or the
automatic exposure light sensor.
