Fujikura Future Access One-Click Ultra Cleaner 2.5 User manual

Latest information also available on the internet URL :
www.fujikura.co.jp
For Enquiry E−mail : [email protected]
Features
mRemoves dust and oil adhering to the ferrule endface of fiber optic connector with one push mechanical action.
mCleans the ferrule endface inside an adapter or connectors on jumpers by making full use of guide cap.
mRefrains from transmission error or endface damage by dirty endface.
mComfortable and user friendly design with one click cleaning.
mComplies with EU/98/2002/EC directive (RoHS).
Applications
mCleans the ferrule endface inside an adapter or connectors on jumpers and builds reliable networks for Datacom, FTTH, etc.
with faster installation of patchcords, pigtails and field assembly connectors.
One-Click®Cleaner
OPTICAL COMPONENTS
MONITORING / MANAGEMENT SYSTEM
OPTICAL CABLES
Product Name One-Click Ultra
Cleaner 2.5
One-Click
Cleaner SC
One-Click
Cleaner SC Mini
One-Click
Cleaner MU/LC
One-Click Cleaner
MU/LC Mini
One-Click
Cleaner ODC
One-Click
Cleaner M20
Model Number*3 M250-E-CLK-B SC-CLK-B SC-MINI-CLK-A MU/LC-CLK-B MU/LC-MINI-CLK-A ODC-CLK-A M20-CLK-A
Applicable
Fiber Optic
Connector &
Adapter*1
SC mmm
FC mmm
ST mmm
MU mmm
LC mmm
φ1.25 mm
Multi-connector(ODC®)m
φ2.0 mm
Multi-connector
(SMPTE 304M, etc.)
m
Applicable Polish Type PC, UPC, APC PC, UPC
Type Enlarged Area Standard Mini Standard Mini Standard Standard
Nozzle Extendability mm mm
No. of Cleanings ≥500 times
Cleaning Method Dry (Cleaning the ferrule endface with cleaning cloth, with no chemical or solvent.)
Dimensions (mm)*2
Extended Dimensions
22.5 W x 33.4 H
x 193 L
17.5 W x 17.5 W
x 165 L (200 L)
17.5 W x 30.5 H
x 104 L
17.5 W x 17.5 W
x 173 L (208 L)
17.5 W x 30.5 H
x 104 L
17.5 W x 17.5 H
x 178 L (213 L)
17.5 W x 17.5 H
x 164 L (199 L)
*1: Limited to the connector endface inside an adapter. *2: Guide cap dimensions and prongs are not included. *3: Last letter indicates model version. This is subjected to change.
Cable Tray
Cable Tray
Adapter
Equipment
Adapter
Telephone Table
Adapter
Rosette / Outlet
Wall
Termination Box
Adapter
Adapter
Wall
M250 SC
Cleaning Area
Ferrule
Optical fiber
* The above is an example only.
Cleaning Example (UPC Polish) with Enlarged Area Type
M250 type can clean wider area of the connector endface.
Applications of Mini Type
Mini type is useful when the work space is limited and it is difficult for workers
to access to adapters.
CO20

One-Click®Cleaner
Specifications and descriptions are subject to change without prior notice.
Fujikura Ltd. 1-5-1, Kiba, Koto-ku, Tokyo 135-8512, Japan
Phone : [phone] Fax : [phone] http://www.fujikura.co.jp
Fujikura Asia Ltd. 460, Alexandra Road, #22-01 PSA Bldg., Singapore 119963
Phone : [phone] Fax : [phone] http://www.fujikura.com.sg
Fujikura Europe Ltd. C51 Barwell Buisiness Park, Leatherhead Road, Chessington, Surrey KT9 2NY, UK
Phone : +44-20+8240-2000 Fax : [phone] http://www.fujikura.co.uk
AFL Telecommunications 260, Parkway East, Duncan, SC29334, USA
Phone : [phone] Fax : [phone] http://www.afltele.com
Fujikura (Shanghai) Trading Co., Ltd.
16th Floor, Shanghai HSBC Tower, 1000 Lujiazui Ring Road,
Pudong New Area, Shanghai 200120, China
Tel : [phone] Fax : [phone]
Fujikura (Shanghai) Trading Co., Ltd. Beijing Office
Room No.807, Tower A, Capital Group Plaza, 6,
Chaoyangmen Beidajie 100027, Beijing China
Tel : [phone] Fax : [phone]
Fujikura Hong Kong Ltd.
Room 801 & 808, Mirror Tower, 61 Mody Road, Tsimshatui East,
Kowloon, Hong Kong
Tel : [phone] Fax : [phone]
Malaysia
Fujikura Asia (Malaysia) Sdn. Bhd.
Suite W403, Wisma Consplant, 2, Jalan SS16/4, Subang Jaya,
47500 Petaling Jaya, Selangor, Darul Ehsan, Malaysia
Tel : [phone] Fax : [phone]
Indonesia
Fujikura Asia Indonesia office
Equity Tower Building, 35th Floor
Sudirman Central Business District (SCBD)
JI. Jend. Sudirman Kav. 52-53
Jakarta Selatan 12190, Indonesia
Tel : [phone]b7847 Fax : [phone]
Middle East
Fujikura Middle East Office
King Hussein, Street, Abdali, AQARCO Building 7th Floor, Suite 2
Amman 11192, Jordan
PO Box 923448
Tel : [phone] Fax : [phone]
Russia
Fujikura Ltd. Representative Office in Moscow
Leninsky Prospect 45, Entrance 16, Room 450,
Moscow, 119334, Russian Federation
Tel : [phone] Fax : [phone]
915-0728-947・01-00 PrintedinJapan1104-1104-1000-DNP

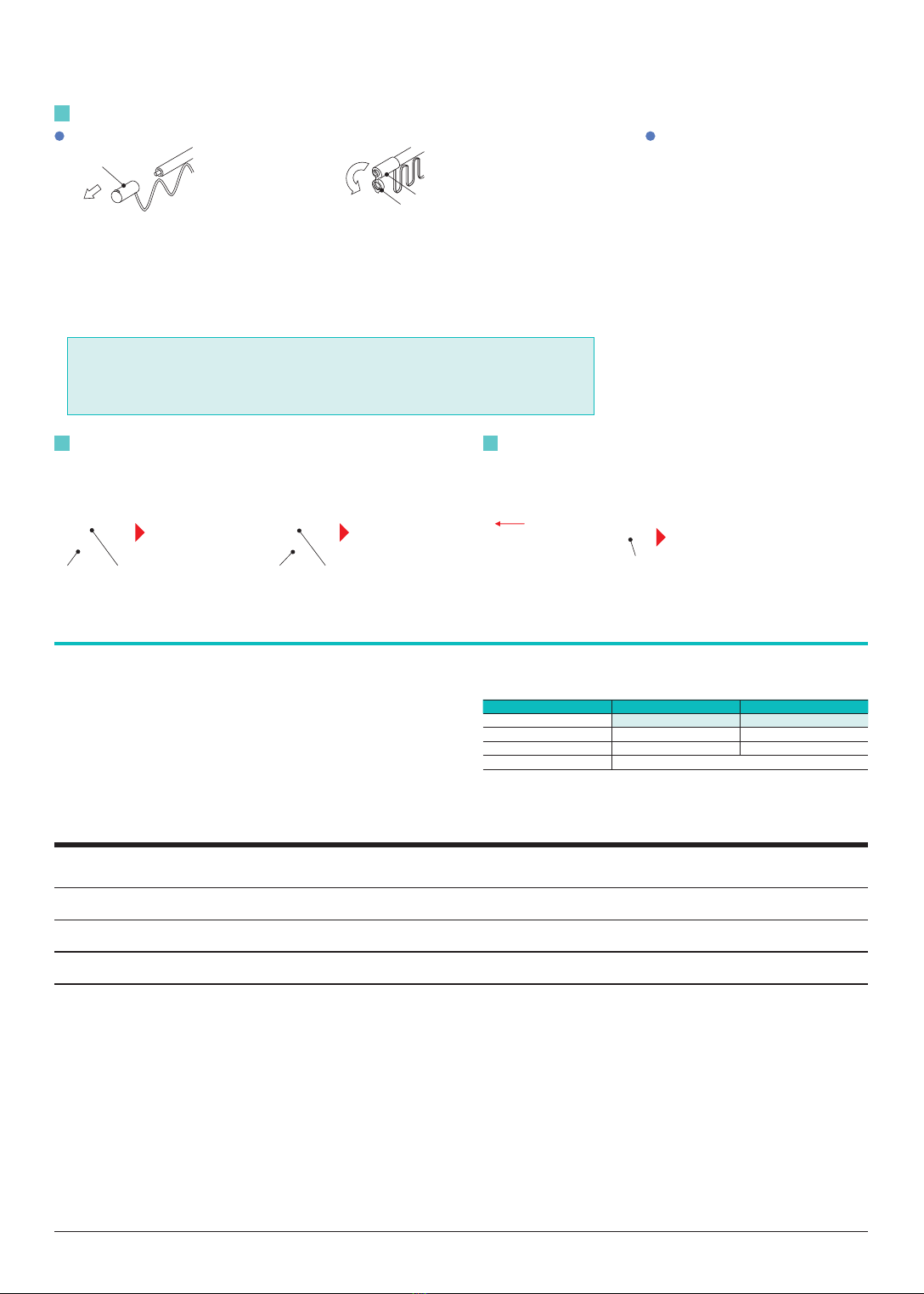

How to use*1
Cleaning Example (UPC Polish)
Enlarged image of endface before and after cleaning
Extension Features of Nozzle
(Standard type only)
Nozzle length can be extended if the adapter or connector is
not reachable.
Check the remainder of cleaning
cloth through window.
To clean the ferrule endface inside an adapter*2
Guide Cap
Few
Nil
Many
* The above is an example only. Gently pull the nozzle by pressing the unlock button, and then extended.
Lid
Guide Cap
mCleaning of Oil mCleaning of Dust
Before cleaning After cleaning
Ferrule Optical fiber
Before cleaning After cleaning
Ferrule Optical fiber
PUSH
mPoints 1. Insert the cleaner tip into the adapter or connector on jumpers straight and vertically,
and then push it.
2. Push it slowly and gently.
3. Do not push it after hearing the click sound. Take it out gently and backward.
4. Do not squeeze it into the adapter or connector.
*1 Do not use the cleaner except for the endface cleaning.
*2 Limited to the connector endface inside an adapter.
Remove the guide cap.
Insert the nozzle tip into
the adapter. Push the
body to the adapter until
it clicks.
Open the lid of guide cap.
Insert the ferrule into a hole
on the guide cap and push
the body to the adapter
until it clicks.
MPO-CLK-C / MPX-CLK-A
Multi-fiber Connector Cleaner
Product Name MPO Cleaner LIGHTRAY MPX Cleaner
Item / Model No MPO-CLK-C MPX-CLK-A
Applicable Connector MPO, MTP®LIGHTRAY MPX
Polishing method PC, APC PC, APC
No. of cleanings ≥500 times
* LIGHTRAY MPX is a trademark of The Whitaker Corporation MTP is a registered
trademark of US Conec Ltd.
MPO-CLK-C MPX-CLK-A
