One-Click®Cleaner MT-BP Instruction Manual
Thank you for choosing the One-Click®Cleaner MT-BP.TheOne-Click®Cleaner MT-BP is a
high-performance device designed for cleaning the ferrule end face.
Please carefully read this instruction manual before using this device.
1. Safety precautions
Though our device is deemed safe, improper usage or handling can still inflict injury to others.
One-Click®Cleaner MT-BP is designed to clean the Optical backplane connector system
applied to PC board components.
Fujikura Ltd. is not liable for damage caused in attempt to apply this device to other applications.
2. Notes on usage
Do not attempt to disassemble as this can cause damage to the device and void warranty.
Do not re-use cleaning cloth as this will eliminate its cleaning ability.
Do not touch the cleaning cloth as this will cause contamination.
Do not pull the cleaning cloth, use only the device body.
Do not use this cleaner when the cloth is empty, as this can cause damage to the connector.
3. Notes on storage for extended periods
Do not expose device to direct sunlight, high temperature or high humidity.
The cover on the Cap should be closed at all times when device is not in use.

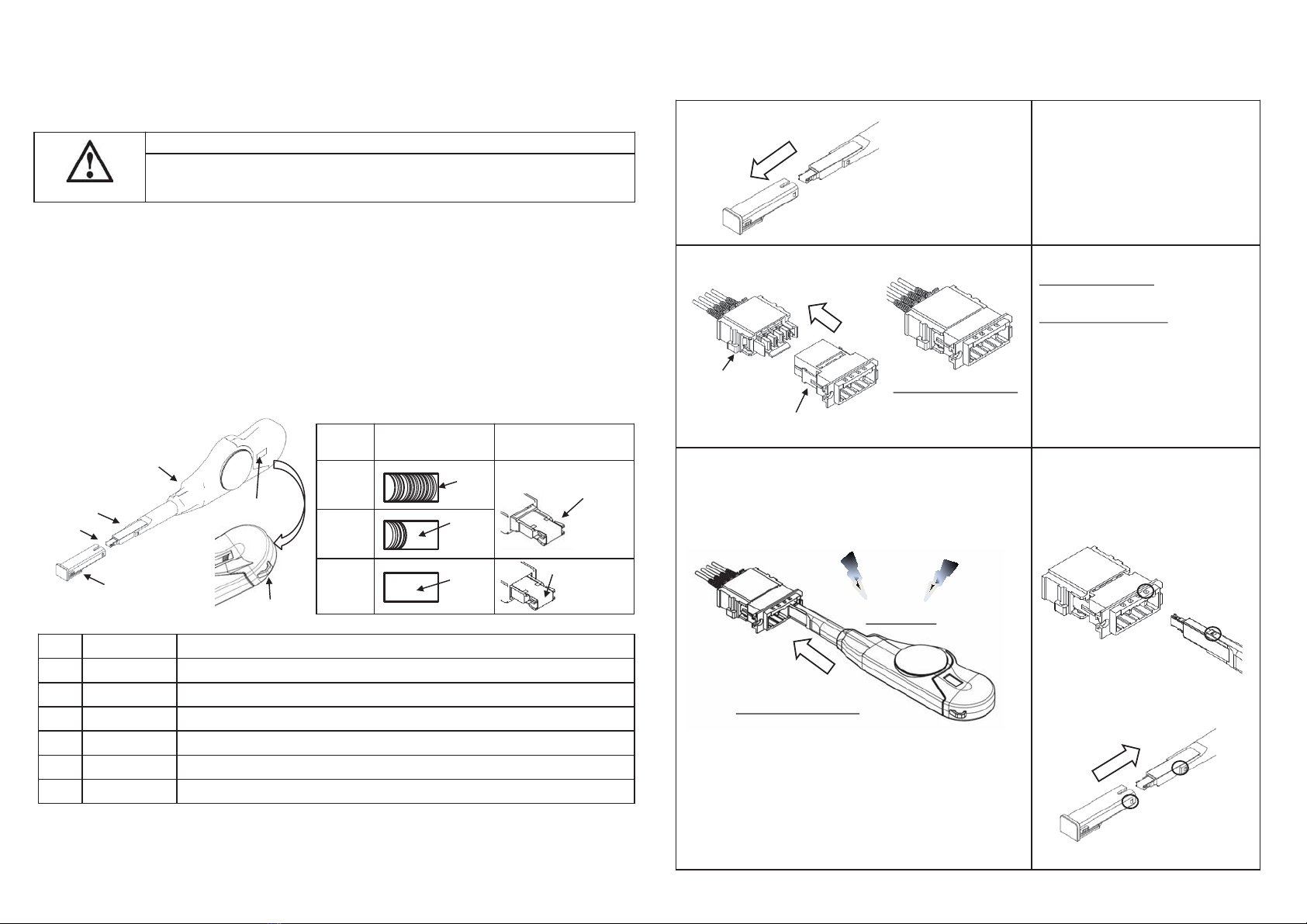

4. Device construction
Full
Little
Empty
Cloth
(white)
Clear
Clear
View of Indicator View of Nozzle end
Tip(Gray)
Cloth(white)
Tip is shorten
and unmoving
No. Part Name Function
A Tip Aligns the cleaning cloth to the connector end face .
B Nozzle Allows the tip to reach connector adapters .
C Outer Shell Houses cleaning cloth and pushed forward to clean the connector.
D Cap Acts as the dust cap.
E Indicator Provides indication of remaining cleaning cloth.
F Strap Hole Can be used to attach a strap to the cleaner (strap not included).
A. Tip
B. Nozzle
D. Cap
E. Indicator
C. OuterShell
F. Strap Hole
5. Applications
5-1. How to clean the Board side plugs
1. Remove the Cap from the device.
2. Connecting the housings.
3. Push the Outer Shell to start cleaning the
Board side plugs each port end face.
An audible “click” sound indicates end of
cleaning process.
Push straight.
CLICK!!
<Cleaning method> <Caution>
When insert the One-Click®
Cleaner MT-BP to Back panel
side housing, match the mark
of the cleaner with a housing.
match the direction each mark.
Be careful not to slant the One-Click®Cleaner
MT-BP while inserting into the adapter.
Do not overly exert force during insertion as this
may cause damage to both the connector and
the One-Click®Cleaner MT-BP.
Confirm the direction adapter.
Correct direction:
It is easy to insert.
Incorrect direction:
It cannot insert the Back panel
side housing.
To be broken,
do not push a housing by
force.
Carefully manage the cap so
you don't lose it
Back panel
side housing
Cleaner
Board side
housing
Back panel side
housing
Ready to clean.
After finishing the cleaning,
Be sure to put the Cap to its
Nozzle.

Confirm the direction plug.
Correct direction:
It is easy to insert.
Incorrect direction:
It cannot insert the Back panel
side plug into the Guide Cap.
To be broken,
do not push a plug by force.
After finishing the cleaning,
Be sure to close the Cover.
1. Open the Cover on the Guide Cap.
2. Insert the Back panel side plug
into the Guide Cap.
CLICK!!
Push straight.
match the direction each mark.
The Back panel
side plug
Guide Cap
Cover
5. Applications
5-2. How to clean the Back panel side plugs
<Caution>
3. Push the Outer Shell to start cleaning the
Back panel side plug end face.
An audible “click” sound indicates end of
cleaning process .
Close the Cover after use.
Be careful not to slant the Back panel side Plug
while inserting into the Guide Cap.
Do not overly exert force during insertion as this
may cause damage to both the connector and
the One-Click®Cleaner MT-BP.
If the guide cap comes off
when you unplug it, hold the
guide cap by hand.
<Cleaning method>
One-Click®is a Registered Trademark of Fujikura Ltd
© 2020 Fujikura, Ltd. All rights reserved.
DCML-10065(1)
