Fujioh FSR-30 User manual

1U03 3181
READ AND SAVE THESE INSTRUCTIONS.
Keep this manual in a convenient place for future reference.
FUJI INDUSTRIAL CO., LTD.
TABLE OF CONTENTS
Safety Instructions................................................................................................ 2, 3
Name of Parts .......................................................................................................... 4
Circuit Diagram ........................................................................................................ 5
Dimensions .............................................................................................................. 5
Range Hood Location .............................................................................................. 6
Installation.......................................................................................................... 7~15
1. Preparation ................................................................................................ 7~11
2. Range Hood Mounting ................................................................................... 12
3. Connecting Power Supply Wires.................................................................... 13
4. Final Assembly and Check....................................................................... 14, 15
5. Explanation to the End User by Installer........................................................ 15
Range Hood
INSTALLATION MANUAL
MODEL: FSR-30/FSR-36
FES-30/FES-36
*1U033181*
Made in Japan
Illustration: FSR-30/FSR-36
English
2~16
Français
17~32
Español
33~48
嶄 猟
49~64

2
SAFETY INSTRUCTIONS
Before installation and operation, read these instructions carefully and use this product only in the manner described
by the manufacturer in the operation manual.
The instruction shown below are used to alert you to potential personal injury and property damage hazards.
There are three hazard classifications based on potentially dangerous situations.
Obey all safety instructions that show these symbols to avoid possible injury, death and/or property damage.
WARNING:WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION:CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION:CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
WARNING
1. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
2. To reduce the risk of fire or electric shock, do not use this product with any solid-state speed control
device.
3. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
a) Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s
guidelines and safety standards such as those published by the National Fire Protection Association
(NFPA), and The American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fan must always be vented to outdoors.
e) This unit is designed for ducted or ductless installation. When ductless kit part number FDK-0004 is
installed, then this unit operates as recirculating. The end user is responsible to ensure compliance
with all Federal, State and Local Environmental and Fire codes.
4. TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
5. This unit must be grounded.
6. Install this range hood to the cabinet. Check that the hood is correctly installed, since incorrect
installation could result in the range hood becoming detached and falling off.
7. Connect only to an AC120 Volt power source or the range hood could result in fire, electric shock,
and damage.

3
: means prohibition. It indicates actions, if any, that
mustn’t be done.
: means forcible execution. It indicates actions, if any,
that must be done.
NOTE: The safety instructions are explained with the following
pictographic symbols.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or explosive material and vapors.
2. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls, ceilings or into attics, crawl spaces or garages.
3. Read specification label on this product for further information and requirements.
4. Use only for the purpose of kitchen ventilation.
5. Do not install this range hood in the bathroom or in other wet rooms since electrical shock and
damage may result.
6. Fasten the filter and other parts securely. Incorrect attachment may result in personal injury or
property damage.
7. Keep your hands and other objects away from the fan while it is in motion. The range hood may
injure you or damage itself.

4

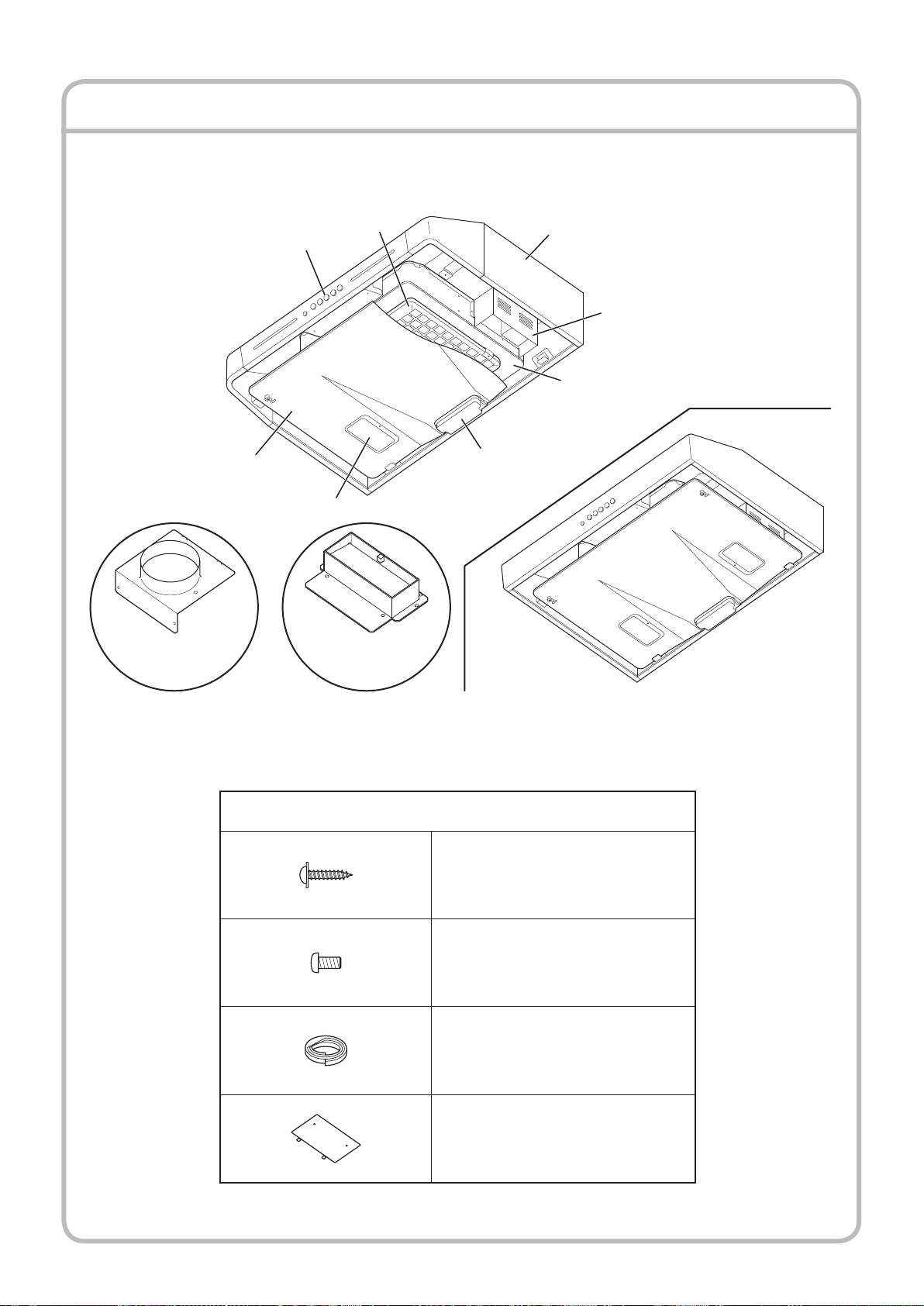

NAME OF PARTS
FSR-30/FSR-36
FES-30/FES-36
Switch
Lamp cover
Filter Body
Oil tray
Duct joint
(rectangular)
Rectifier panel
Lamp box
Fan case cover
Duct joint
(round)
Accessories
Washer Head
Wood Screw (× 6 pcs.)
Screw (× 4 pcs.)
Soft Tape (× 1 pc.)
Cover Plate (× 1 pc.)

5
DIMENSIONS
CIRCUIT DIAGRAM
AC120V
60Hz
Pilot Lamp
Lamp
Fan Switch
Yellow
Red
Red
White
Black
Black Black
White
Black White
Black
White
Black WhiteWhite
Black
White
Green
Connector
Connector
Connector
Connector
Black Black
Red Red
Orange
Brown
Blue
Orange
Brown
Blue
Orange
Brown
Blue
Capacitor
Gray
Red
White
Motor
(Unit : inch)
Dimensions
Model A B
FSR-30/FES-30 29-7/8" 27
FSR-36/FES-36 35-7/8" 33

6
1
The range hood must be installed just above the cooktop.
2
The minimum distance from the cooking surface to the bottom of the range hood
must be 24”.
3
The total weight of the FSR/FES series range hood unit are;
FSR-30/FES-30...........35.3 lbs. (16 kg)
FSR-36/FES-36...........37.5 lbs. (17 kg)
4
Power requirements are:
AC120 V, 60 Hz, 1.1 Amp
RANGE HOOD LOCATION
CAUTION
• Toprotecthandsfrominjury,wearworkinggloveswheninstallingtherangehood.
WARNING
• Checkthatthehoodiscorrectlyinstalled,sinceincorrectinstallationcouldresultinthe
detachment of the range hood and the unit could fall.

7
INSTALLATION
1. Preparation
WARNING
• Iftherangehoodisnotinstalledproperly,itcouldbecomedetachedandfall.
• Ensurethatthemetalductdoesnottouchothermetalhousingmaterials,
otherwise fire or electric shock could result.
1
According to the conditions where the range hood is installed, determine
whether it will be discharged vertically (3¼" × 10" or 7” round duct) or
horizontally (3¼" × 10" only) from the unit.
For vertical or horizontal discharge, run duct work between the hood location
and the roof cap or wall cap.
For best result in either direction, use minimum number of transitions and
elbows. Be sure to attach a roof cap or wall cap to avoid rain/wind entry.
Roof cap
Soffit
Cabinet
Range hood
Wall cap
3-1/4" × 10" or
7" round duct
(For vertical discharge)
3-1/4" × 10" duct
(For horizontal discharge)
The following method is the standard installation.
There may be some different cases depending on the structure of the cabinet where the
mounting bracket is placed or the shape and mounting condition of the unit to the cabinet.
In such a case, please arrange best possible way according to the condition of the place
where the range hood is being installed.

8
INSTALLATION (continued)

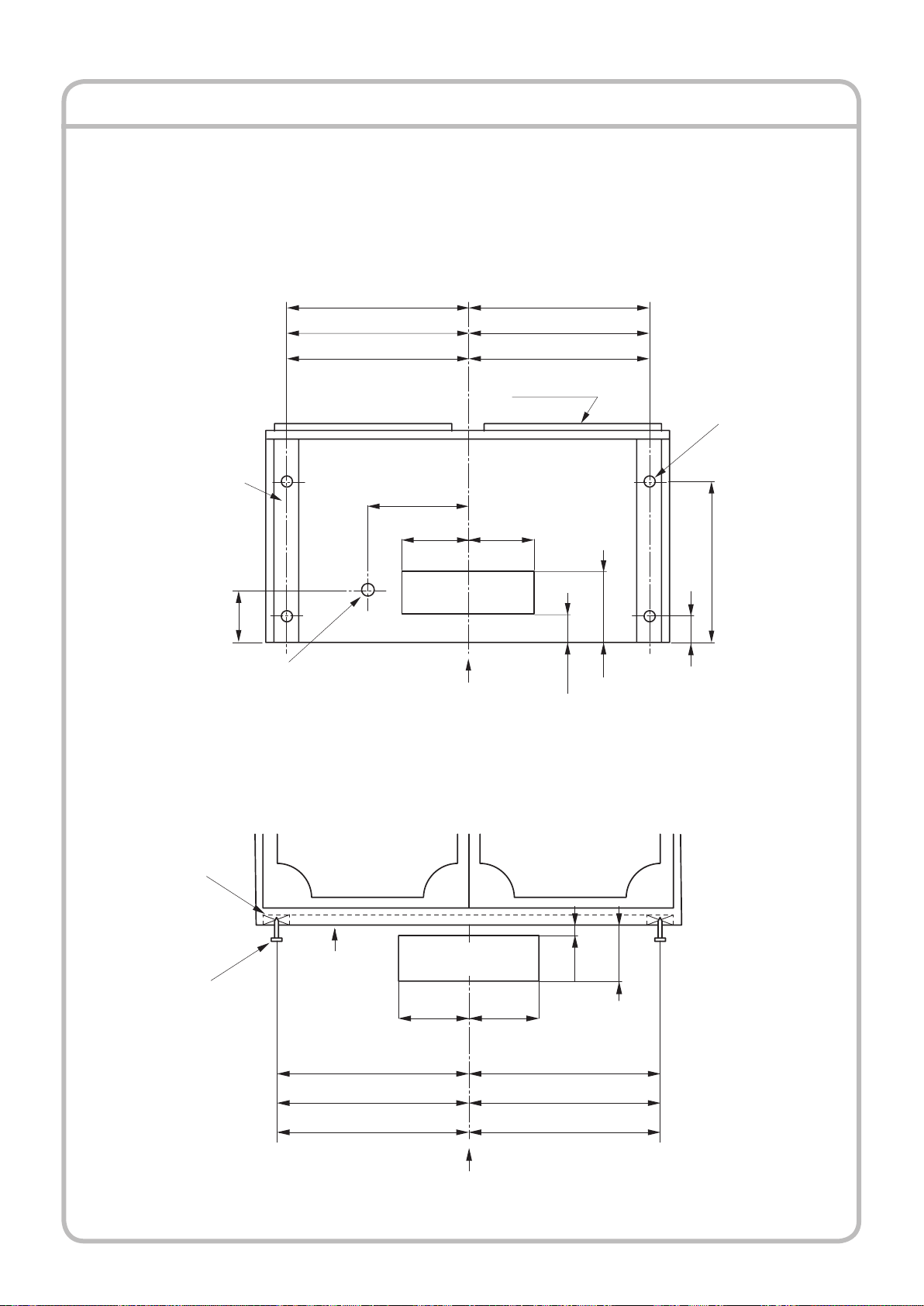

3¼" × 10" Vertical Ducting
3¼" × 10" Horizontal Ducting
13-1/2" (30" hood)
16-1/2" (36" hood)
19-1/2" (42" hood)
13-1/2" (30" hood)
16-1/2" (36" hood)
19-1/2" (42" hood)
Cabinet front
Cabinet bottom
6-1/4"
3"
2"
11"
1-1/4"
5"
Ve rtical duct access hole
5-1/4" 5-1/4"
Center line
Hood mounting
screws (4)
Wood shims
(Recessed-bottom
cabinets only)
Electrical
access hole
13-1/2" (30" hood)
16-1/2" (36" hood)
19-1/2" (42" hood)
13-1/2" (30" hood)
16-1/2" (36" hood)
19-1/2" (42" hood)
Cabinet bottom
Cabinet front
4"
1/4"
5-1/4" 5-1/4"
Center line
Hood mounting
screws (4)
Wood shims
(Recessed-bottom
cabinets only)
Horizontal duct
access hole
2
Use diagrams below, for proper placement of ductwork and electrical cutout
in cabinet or wall.

9
INSTALLATION (continued)

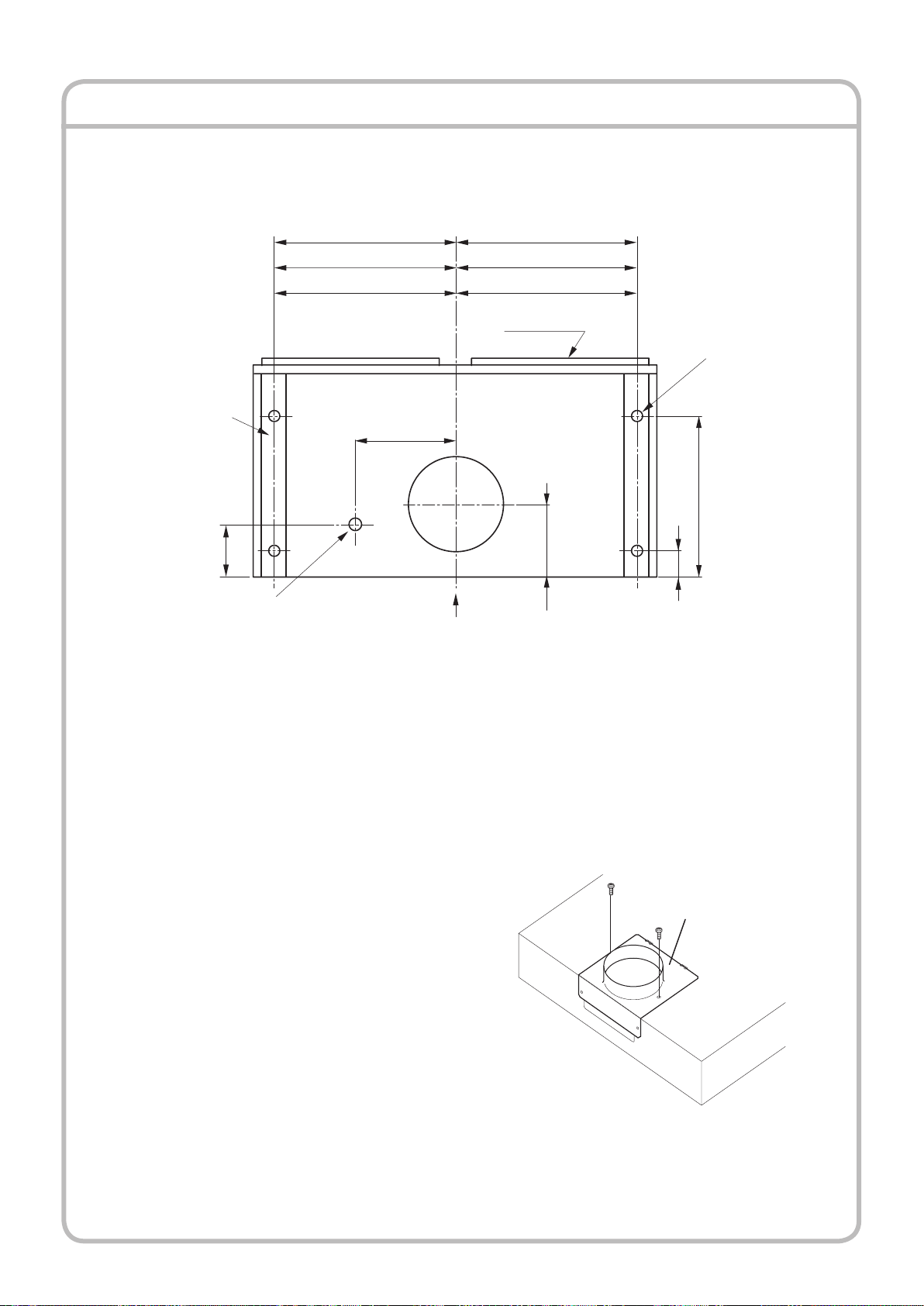

7" Round Vertical Ducting
13-1/2" (30" hood)
16-1/2" (36" hood)
19-1/2" (42" hood)
13-1/2" (30" hood)
16-1/2" (36" hood)
19-1/2" (42" hood)
Cabinet front
Cabinet bottom
6-1/4"
3"
2"
11"
5"
8" dia.
hole
Center line
Hood mounting
screws (4)
Wood shims
(Recessed-bottom
cabinets only)
Electrical
access hole
3
Run house wiring between service panel and hood location.
4
Prepare the range hood.
(1) If you want to use the rectangular
duct joint, remove the 7" round duct
joint on the top plate of the body by
removing 2 screws as shown.
Note
Keep the screws for reusing later.
7" Round
duct joint

10
INSTALLATION (continued)
(2) Loosen the mounting screws
attaching the rectifier panel, pull
the rectifier panel forward slightly
to free the mounting screws from
the mounting guide holes and the
body catches.
Note
Use a screwdriver if they are tight.
Mount the supplied 3¼"×10" rectangular
duct joint on the top plate with 4 screws
(2 pieces: removed in Step 4-1, the
others: supplied).
Then attach the supplied soft tape
around the duct joint.
Rectifier panel
Mounting screw
Catch
(3) Remove the fan case cover by
removing 4 screws.
Fan case cover
In Case of 3¼" × 10" Vertical Discharge
Duct joint
The wider side
comes in front
Soft tape

11
INSTALLATION (continued)

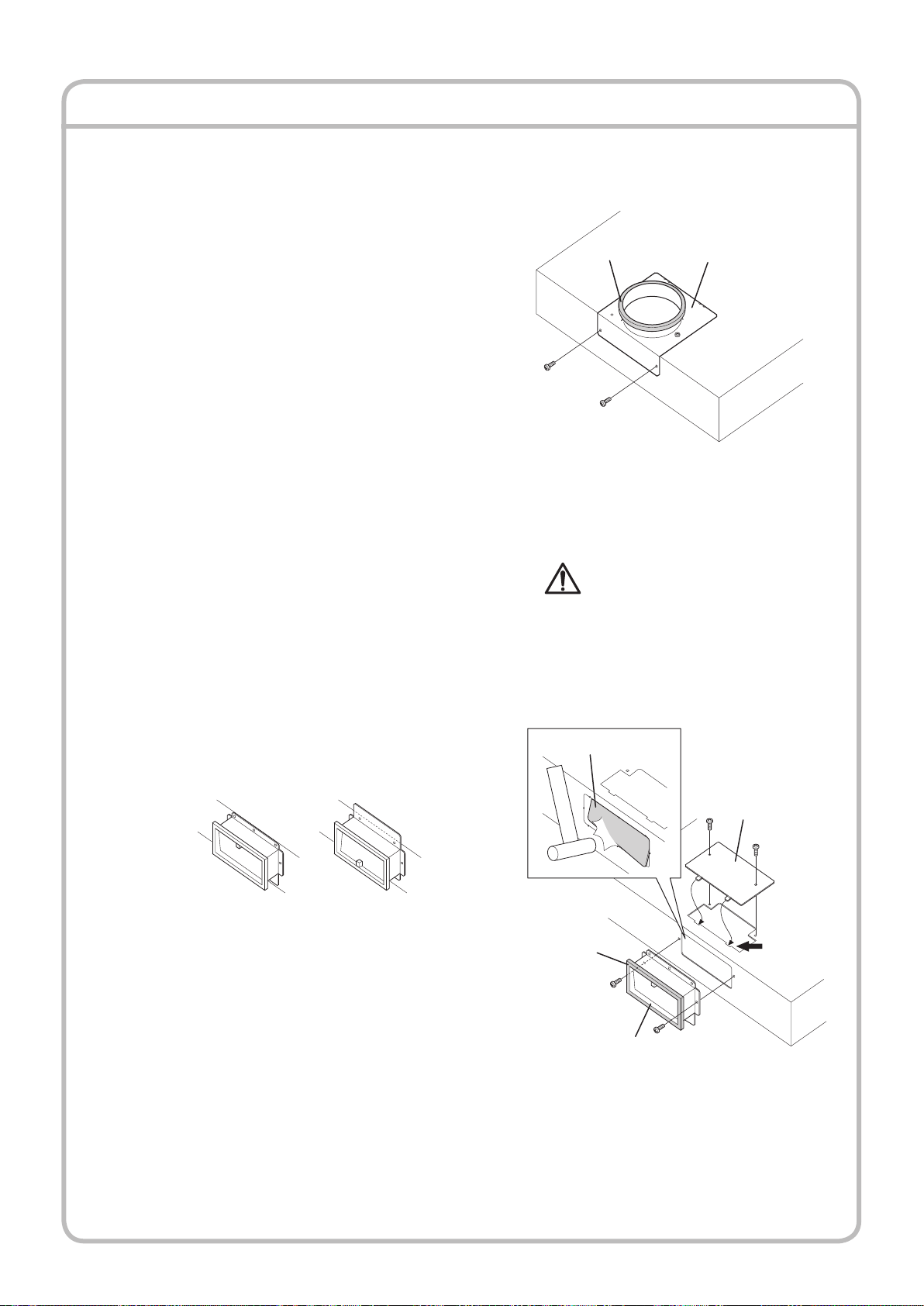

Fix the round duct joint firmly by adding 2
screws supplied on its rear side, then attach
the supplied soft tape around the duct joint.
(1) First, remove half-cut rectangular part
of the rear plate (duct knockout) using
a mallet, hammer, etc.
(2) Mount the supplied 3¼"×10" rectangular
duct joint with 2 screws.
Note
The wider side directs downward.
(3) Then attach the supplied soft tape around
the duct joint. To close the opening of the
top plate, attach the supplied cover plate
with 2 screws.
In Case of 7" Round Vertical Discharge
In Case of 3¼"×10" Horizontal Discharge
correct wrong
7" Round
duct joint
Soft tape
Cover plate
Duct joint
Duct knockout
Engage with
the notches
Hit dented points on
the rectangular edge
Soft tape
CAUTION
• Donotapplyexcessiveforce
when removing the knockout.
The fan may be damaged.

12
INSTALLATION (continued)

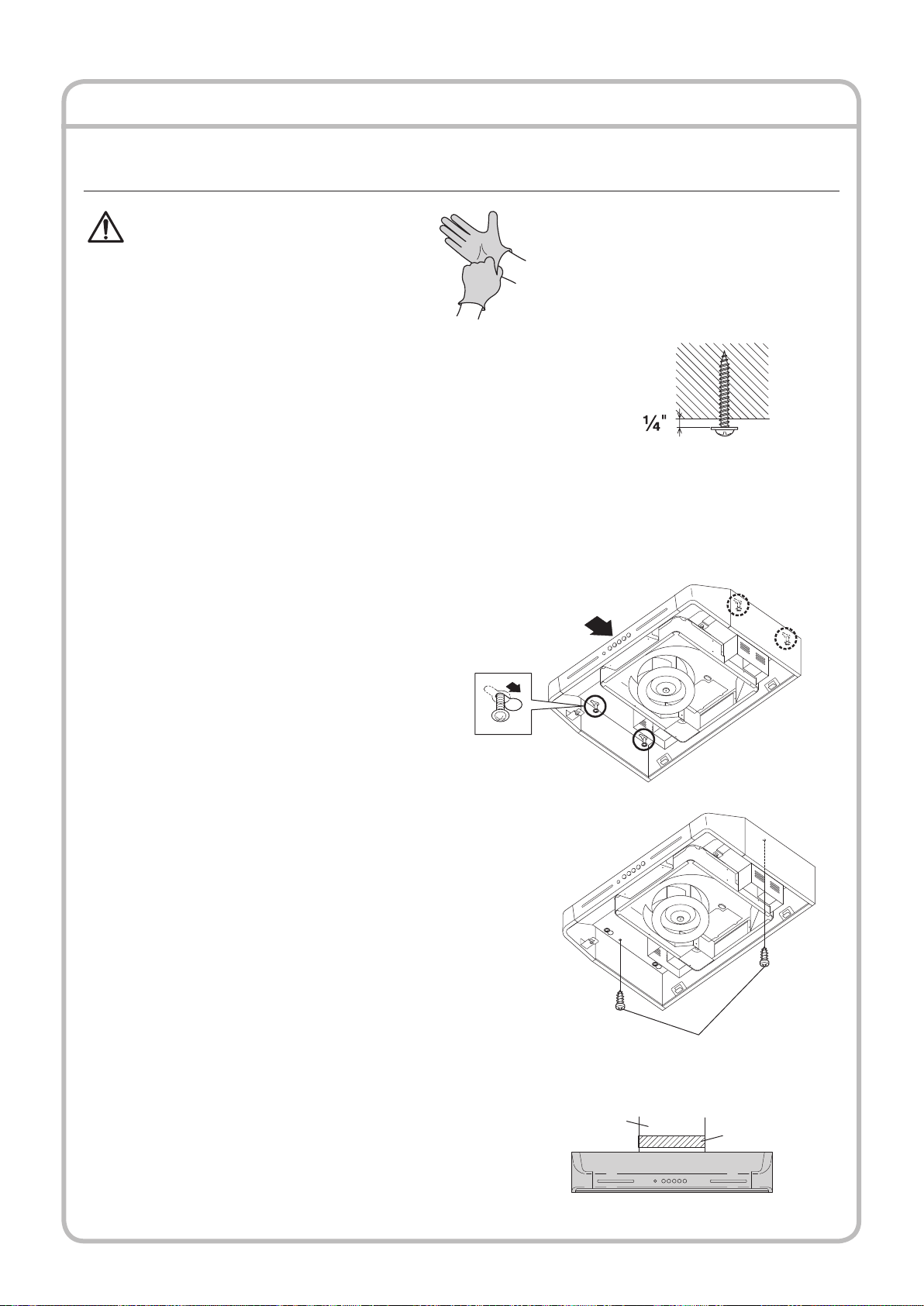

2. Range Hood Mounting
CAUTION
• Wearworkingglovestoavoidinjury.
1
Referring to “DIMENSIONS” on page 5, insert 4
washer head wood screws into the bottom plate of the
cabinet. Marking before screwing is recommended.
Allow about ¼" between the bottom plate and
screwheads for hanging the hood body.
Note
Please use suitable accessories during installation (refer to page 4).
May add or opt for other accessories as reinforcement when necessary.
2
While inserting the duct joint into the
duct end, hook the temporary fixing
holes of the body on the screws, then
slide the body backward until the
screws are engaged in narrow end of
the holes.
3
After ensuring that the range hood
is positioned properly, tighten the 4
screws and fix it firmly using 2 more
washer head wood screws.
4
Make the duct joint secure and air-
tight using non-flammable tape such
as aluminum tape, etc. (not supplied)
Te mporary
fixing hole
Washer head
wood screw
Duct tape, etc.
Duct

13
Conduit
Wire Connector
(not supplied)
Wire (unit side)
Wire (conduit side)
Range hood
Conduit
Range
hood
Nut
INSTALLATION (continued)

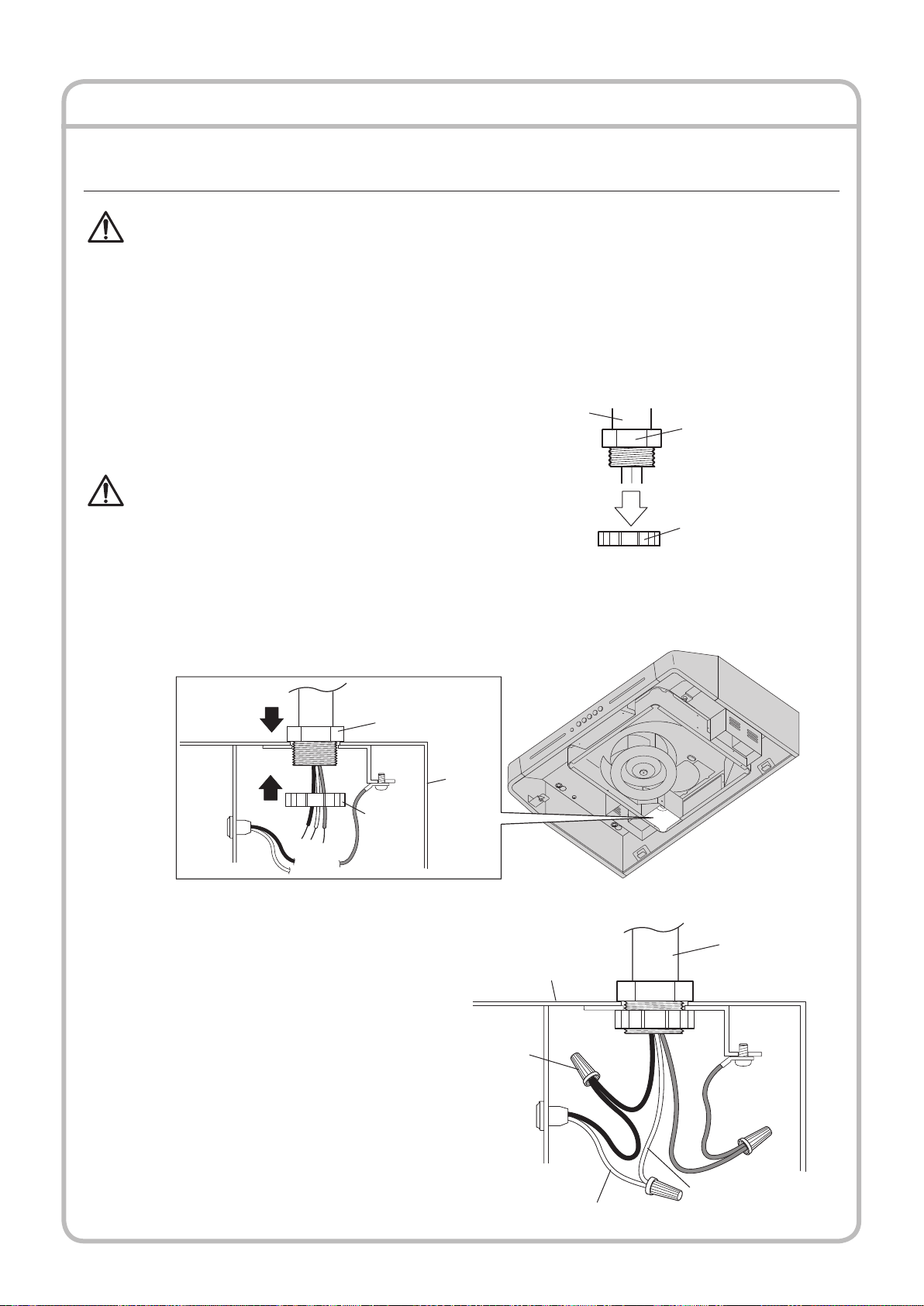

3. Connecting Power Supply Wires
WARNING
• Electricalwiringshouldbedonebyaqualiedperson(s)inaccordancewithallapplicable
codes and standards, including fire-rated construction. An unqualified person doing the
work could result in fire, electric shock or injury.
• Thisrangehooduses120VAC.Donotconnecttoothervoltagesincere,electricshock
or damage could result.
WARNING
• BesuretoswitchpowerOFFatservicepanel
before wiring.
1
Remove the nut from the conduit connector
at the end of power wiring.
3
Connect wires tightly and securely using
wire connectors (not supplied).
Connect the electrical wires as follows:
 •BlacktoBlack
 •WhitetoWhite
 •GreentoGreen
4
Make sure that all wires are connected
properly and enclosed inside of the
wiring compartment.
2
Connect the conduit through the connecting hole
of the body using the nut previously removed.
Conduit
(Not supplied)
Power
wiring
Nut
(Not supplied)

14
INSTALLATION (continued)
4. Final Assembly and Check
1
Attaching fan case cover
Attach the fan case cover with
4 screws previously removed.
2
Attaching rectifier panel
Holding the rectifier panel with both
hands, place the rear of the panel in
front of the catches and in line with the
mounting guide holes. Then slide the
panel back to engage the mounting
guides and attach the catches.
Tighten the mounting screw to attach
the panel firmly.
3
Attaching oil tray
Set the oil tray on the guide rail of the
cooker hood, then push it completely
to the end.
Oil tray
Rectifier panel Catch
Mounting
screw
Mounting guide hole
Fan case cover

15
INSTALLATION (continued)
4
Installing the light bulbs
Two 13 Watt compact fluorescent light bulbs (not supplied) can be installed in this
range hood.
Prior to operation check, install two compact fluorescent light bulbs (Minitwist, E26,
120V, 13W).
The following light bulbs are recommended for this range hood.
• SYLVANIACF13EL/MICRO120V,13W
Turn the lamps clock-wise to install.
5

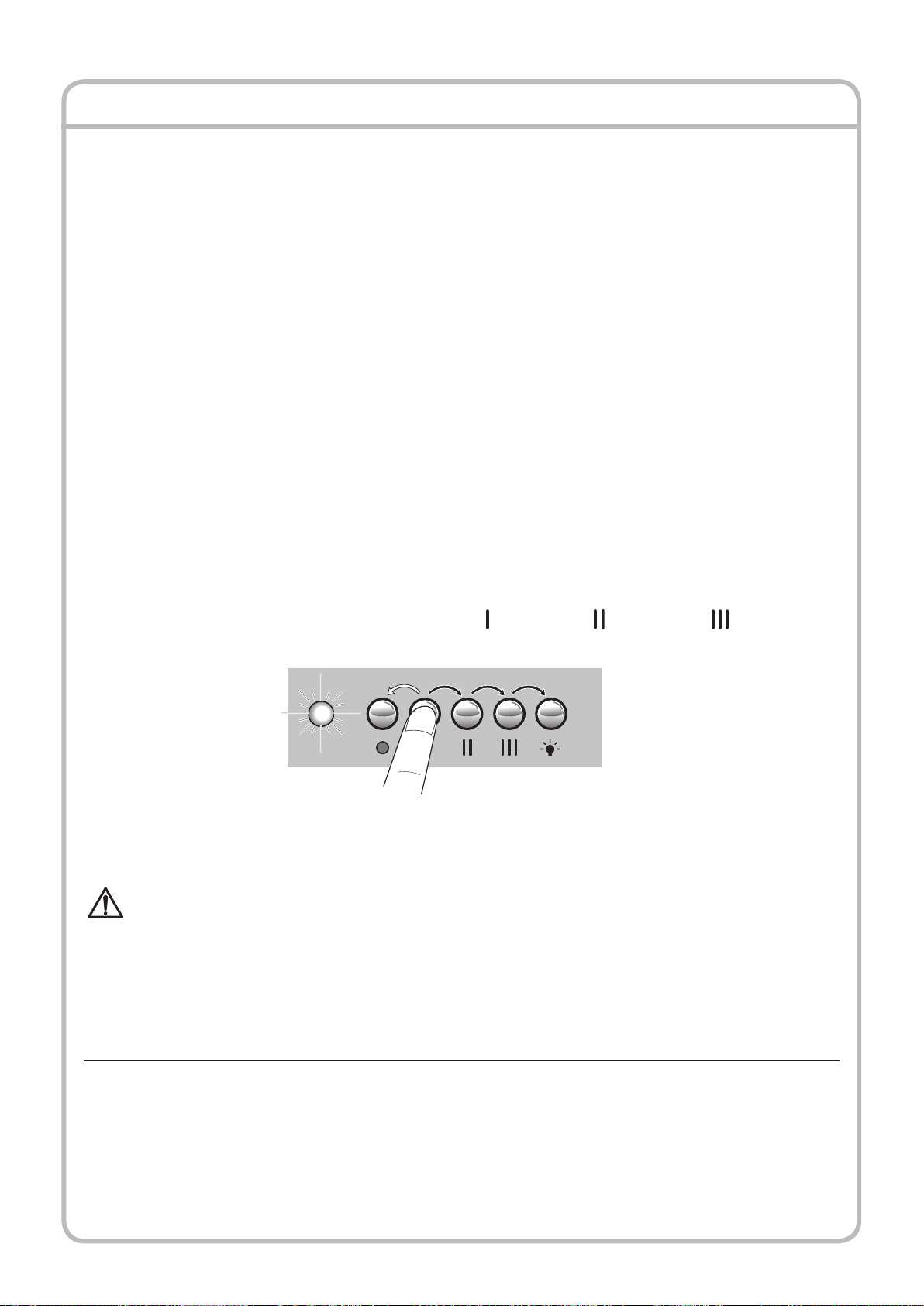

Operation check
(1) Turn on the electrical circuit to the range hood.
(2) Make sure that the switches and light operate correctly.
Refer to page 4 of the Operation Manual.
(3) Check the ventilating functions at Low ( ), Medium ( ) and High ( ) positions.
(4) Make sure that the range hood functions properly and it has no abnormal noises
and/or vibration.
5. Explanation to the End User by Installer
(1) Referring to the Operation Manual, explain the operation of this range hood to
end users.
(2) The Installation Manual and Operation Manual should be given to the end user.
• Toreducetheriskofinjury,keepyourhandsandotherobjects
away from the fan while it is in motion.
• Wearworkingglovestoavoidinjury.
CAUTION

16
Fuji Industrial USA, Inc.
16300 Christensen Rd., Ste-212 Seattle, WA 98188-3403
Telephone: [phone]
1U03 3181

1U03 3181
LISEZ ET CONSERVEZ CES INSTRUCTIONS.
Conservez ce mode d’emploi dans un endroit sûr pour référence ultérieure.
FUJI INDUSTRIAL CO., LTD.
TABLE DES MATIÈRES
Instructions de sécurité.................................................................................... 18, 19
Nomenclature......................................................................................................... 20
Schéma de câblage ............................................................................................... 21
Taille et dimensions................................................................................................ 21
Emplacement de la hotte d’aspiration.................................................................... 22
Installation........................................................................................................ 23~31
1. Préparation .............................................................................................. 23~27
2. Montage de la hotte d’aspiration.................................................................... 28
3. Connexion des câbles d’alimentation............................................................. 29
4. Montage final et vérification ........................................................................... 30
5. Explications à l’utilisateur final par l’installateur ............................................. 31
Fabriqué au Japon
Hotte D’aspiration
MANUEL D’INSTALLATION
MODÈLE: FSR-30/FSR-36
FES-30/FES-36
Illustration: FSR-30/FSR-36

18
INSTRUCTIONS DE SÉCURITÉ
Lisez attentivement ces instructions avant d’installer et de faire fonctionner l’appareil et utilisez celui-ci uniquement
de la manière indiquée par le fabricant dans le mode d’emploi.
Les instructions indiquées ci-dessous sont utilisées pour vous avertir des blessures personnelles ou des dégâts
pouvant éventuellement se produire.
Les avertissements ont été classifiés en trois catégories sur la base de situations potentiellement dangereuses.
Respectez les consignes de sécurité indiquées par ces symboles pour éviter les blessures, la mort et/ou les dégâts
matériels.
ATTENTION indique une situation potentiellement dangereuse qui, si elle n’est pas
évitée, peut provoquer un décès ou des blessures graves.
PRÉCAUTION indique une situation potentiellement dangereuse qui, si elle n’est pas
évitée, peut provoquer des blessures mineures ou légères.
PRÉCAUTION sans le symbole d’avertissement, indique une situation potentiellement
dangereuse qui, si elle n’est pas évitée, peut provoquer des dégâts matériels.
ATTENTION:
PRÉCAUTION:
PRÉCAUTION:
ATTENTION
1. POUR RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION OU DE BLESSURES
PERSONNELLES, OBSERVEZ LES PRÉCAUTIONS SUIVANTES:
a) Utilisez cet appareil uniquement de la manière indiquée par le fabricant. Si vous avez des questions,
contactez le fabricant.
b) Avant de réparer ou de nettoyer l’appareil, mettez-le hors tension sur le panneau de service et
coupez le courant de rupture de service pour éviter que l’appareil ne soit remis sous tension
accidentellement. Si le courant de rupture de service ne peut pas être coupé, fixez un moyen
d’avertissement visible, comme une étiquette, sur le panneau de service.
2. Pour réduire les risques d’incendie ou d’électrocution n’utilisez pas cet appareil avec un dispositif de
commande de vitesse à semi-conducteurs.
3. POUR RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION OU DE BLESSURES
PERSONNELLES, OBSERVEZ LES PRÉCAUTIONS SUIVANTES:
a) Les travaux d’installation et le câblage électrique devront être effectués par une ou des personnes
qualifiées, conformément aux codes et normes applicables, y compris la construction anti-incendie.
b) De l’air en suffisance doit être prévu pour la bonne combustion et l’évacuation des gaz par la
cheminée des équipements de combustion du carburant pour éviter les décharges en retour. Suivez
les directives du fabricant de l’appareil de combustion ainsi que les normes de sécurité comme
celles publiées par la National Fire Protection Association (NFPA), The American Society for Heating,
Refrigeration, Air Conditioning Engineers (ASHRAE) et les autorités du code local.
c) Si vous découpez ou percez un mur ou un plafond, n’endommagez pas le câblage électrique ou les
autres installations dissimulées.
d) Le ventilateur à conduite doit toujours être évacué vers l’extérieur.
e) Cet appareil est conçu pour une installation avec ou sans conduite. Quand la pièce FDK-0004 du kit
sans conduite est installée, cet appareil fonctionne en recirculation. L’utilisateur final est responsable
de l’assurance de la conformité à toutes les règles fédérales, d’état et d’environnement local et anti-
incendie.
4. POUR RÉDUIRE LES RISQUES D’INCENDIE, UTILISEZ UNIQUEMENT DES CONDUITES
MÉTALLIQUES.
5. Cet appareil doit être mis à la terre.
6. Installez cette hotte d’aspiration sur le coffret. Vérifiez si la hotte est bien en place, car toute
installation incorrecte peut entraîner le desserrement et la chute de la hotte.
7. Ne branchez que sur une source d’alimentation secteur de 120 volts car sinon la hotte d’aspiration
risque de provoquer un incendie, une électrocution et des dégâts.

19
: signifie interdiction. Indique des actions qui ne doivent
pas être effectuées.
: signifie exécution forcée. Indique des actions qui
doivent être exécutées.
REMARQUE: Les précautions de sécurité sont expliquées avec
les pictogrammes suivants:
PRÉCAUTION
1. Pour ventilation générale uniquement. Ne pas utiliser pour évacuer des substances ou des vapeurs
dangereuses ou explosives.
2. Pour réduire les risques d’incendie et pour évacuer correctement l’air, veillez à conduire l’air vers
l’extérieur. N’évacuez pas l’air dans les espaces entre murs et plafonds, ou dans des greniers,
espaces confinés ou garages.
3. Lisez l’étiquette des spécifications de cet appareil pour des informations et renseignements
supplémentaires.
4. Utilisez uniquement cet appareil pour la ventilation de la cuisine.
5. N’installez pas la hotte d’aspiration dans la salle de bains ou dans d’autres pièces humides car des
électrocutions ou des dégâts peuvent se produire.
6. Fixez correctement le filtre et les autres pièces. Une fixation incorrecte peut provoquer des blessures
personnelles ou des dégâts matériels.
7. Eloignez vos mains et les objets du ventilateur lorsqu’il tourne. La hotte d’aspiration pourrait vous
blesser ou être elle-même endommagée.

20
NOMENCLATURE
FSR-30/FSR-36
FES-30/FES-36
Interrupteur
Cache de lampe
Filtre Corps
Deshuileur
Jointure de conduite
(rectangulaire)
Panneau rectificateur
Boîtier de lampe
Couvercle de ventilateur
Jointure de conduite
(rond)
Accessoires
Vis de bois à collerette
(× 6 pcs.)
Vis (× 4 pcs.)
Ruban souple
(× 1 pc.)
Plaque de couverture
(× 1 pc.)
