Fujitsu Siemens Computers AMILO Xa 3530 User manual

Quick Start Guide
Copyright
© Fujitsu Siemens Computers 2008
Published by
Fujitsu Siemens Computers GmbH
Mies-van-der-Rohe-Straße 8
80807 München, Germany
Contact
www.fujitsu-siemens.com/support
All rights reserved, including intellectual property rights.
Technical data subject to modi cations and delivery subject
to availability. Any liability that the data and illustrations are
complete, actual or correct is excluded. Designations may be
trademarks and/or copyrights of the respective manufacturer,
the use of which by third parties for their own purposes may
infringe the rights of such owner. For further information see
http://www.fujitsu-siemens.com/terms_of_use.html
1
2
AMILO Notebook Xa 3530

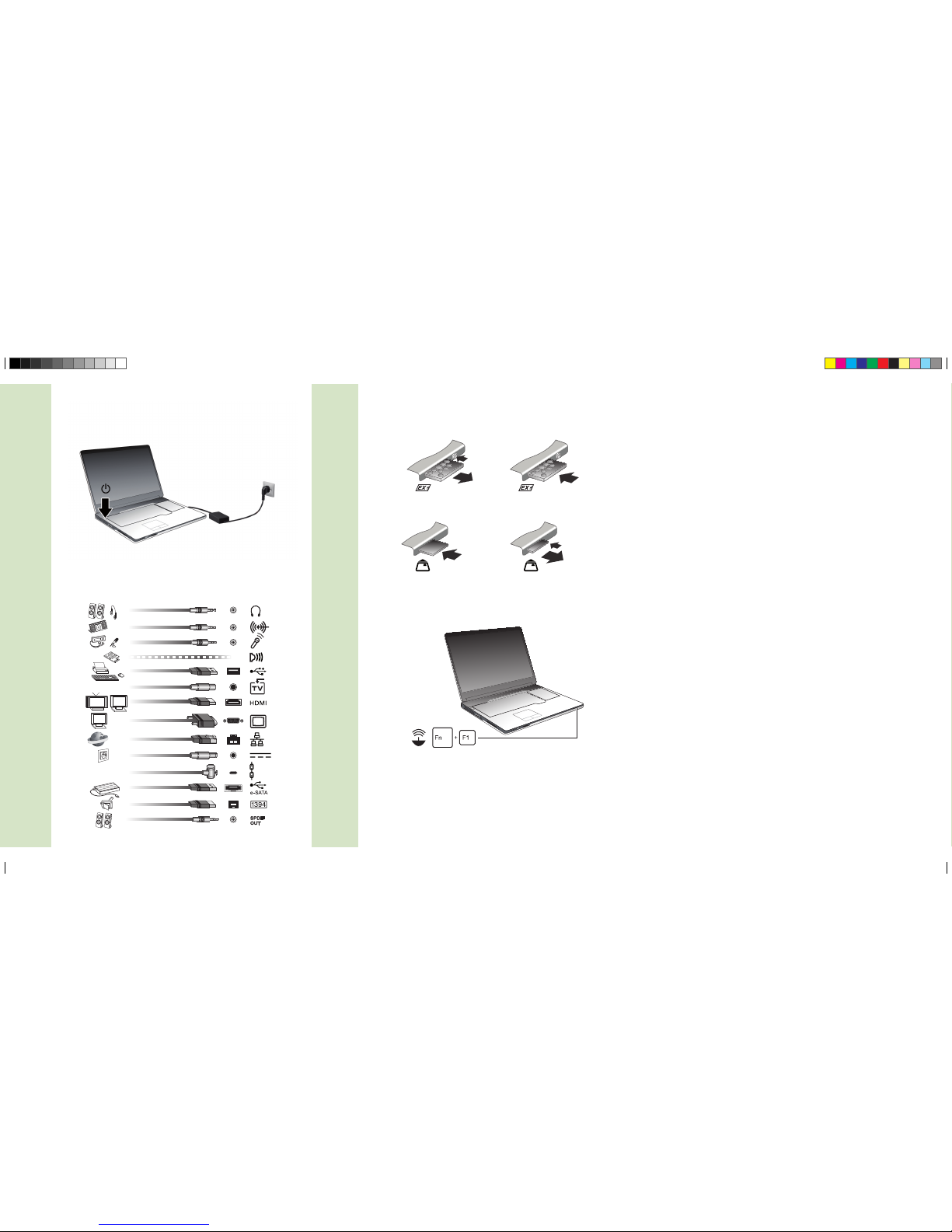

Getting started


SAP: 10600945218
FSP: 440N00626
English
Lietuviškas
Latviski
Pycckuй
440N00624.indd 1 12.06.2008 15:03:41

3
4
5
6
w
w
w
1
2
2x
440N00624.indd 2 12.06.2008 15:03:43

AMILO Notebook
Xa 3530
First-time setup
English
Lietuviškas
Latviski
Pycckuй

Microsoft, MS Windows and Windows Vista are registered trademarks of the Microsoft Corporation.
Adobe Reader is a trademark of Adobe Systems Incorporated.
MultiMediaCard is a registered trademark of Infineon Technologies AG
Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.
All other trademarks referenced are trademarks or registered trademarks of their
respective owners, whose protected rights are acknowledged.
Copyright © Fujitsu Siemens Computers GmbH 2008
All rights reserved, including rights of translation, reproduction by printing, copying
or similar methods, either in part or in whole.
Non-compliance is subject to compensation for damages.
All rights reserved, including rights created by patent grant or registration of a utility model or design.
Subject to availability and technical modifications.

Contents
English
Contents
Innovativetechnology ................................................................. 1
Hybridgraphics ......................................................................... 2
SecondharddriveinRAIDgroup ........................................................ 2
StarttheAMDRAIDXpertprogramandcalluptheHelpfunction ........................ 3
Furtherinformation ...................................................................... 3
"AMILO Notebook" Operating Manual . . . . . ............................................ 3
Portsandcontrols ..................................................................... 4
Importantnotes ........................................................................ 5
Preparing your notebookforuse ....................................................... 6
Unpacking and checking your notebook ................................................... 6
Selectingthelocation ................................................................... 7
Connecting the mains adapter ........................................................... 7
Switching the notebook on for the firsttime ................................................ 8
Technical data ......................................................................... 9
Notebook . . . . . .......................................................................... 9
Mains adapter .......................................................................... 9
10600945218, edition 1 English

Contents
English 10600945218, edition 1

Innovative technology
Innovative technology
... and ergonomic design make your AMILO Xa 3530 Notebook a reliable and convenient notebook.
If you have purchased a notebook with a Microsoft Windows operating system, this is pre-installed and
optimally configured for you. The notebook is ready to use immediately the first time you switch it on.
Your notebook features the very latest technology so that you get the best
performance from your computing experience.
• a drive for reading and writing CDs/DVDs and, depending on your particular
model, for reading Blu-ray discs
• three USB ports, providing simple expansion options for game pads, printers and more
• a combined eSATA/USB connection for connecting an external SATA
hard disk or another USB device
• Depending on the device, there may be a second hard drive so you can operate
your notebook with two hard drives in a RAID group.
• LAN and wireless LAN for Internet and network access
• a FireWire port for fast data exchange with multimedia devices
• an HDMI port for all-digital transfer of audio and video data
• an integrated webcam and digital microphones for a wide variety of multimedia applications
• a multi-format card reader for quick transfer of digital photos, music and
video clips onto your notebook
• an integrated audio controller and stereo speakers for true listening pleasure
• additional inputs and outputs for high quality audio accessories
• depending on the equipment level, a TV tuner for receiving terrestrial television channels
• a keyboard with separate numeric keypad
• an on-screen display for visual control over the key settings of your notebook
• hybrid graphics for full performance and battery-saving working mode
for less demanding applications
The user-friendly "BIOS Setup Utility" offers powerful password protection functions which can be
used to control your notebook’s hardware and protect your system better against unauthorised use.
This Operating Manual tells you how to get your AMILO notebook up and
running and how to operate it in daily use.
10600945218, edition 1 English - 1

Innovative technology
Hybrid graphics
Hybrid graphics
Your notebook is equipped with a hybrid graphics system.
The graphics unit integrated in the chip set is used for applications which are
less graphics-intensive, such as video playback, e-mail and Internet surfing.
This reduces heat generation, noise levels and power consumption. As a
result, battery life is increased (battery saver mode).
However, if more graphics power is needed - such as for games - then the additional
graphics card is used. Both graphics cards are used simultaneously (performance mode).
►You can choose between battery saver mode and performance mode (depending
on the status of the AC adapter) either via the Quick Start button (hybrid key) or
via the hardware driver (ATI Catalyst Control Center).
Second hard drive in RAID group
Redundant ArrayofIndepe ndentDisksRAID
Removal and installation of the second hard disk must only be performed by
authorised service agents of Fujitsu Siemens Computers GmbH. Unauthorised
removal and installation will invalidate your warranty.
For further information and addresses of our service partners, please
see "http://www.fujitsu-siemens.com/support".
RAID (Redundant Array of Independent Disks, also: Disk Array) is a procedure for
combining two hard disks to create a logical unit.
A so-called disk array can be used advantageously to improve performance or
alternatively to improve error tolerance (data protection).
Error tolerance is facilitated by means of data redundancy. If one drive malfunctions,
a different drive contains an exact copy of the data. This can prevent an operating
system from malfunctioning or data from being lost.
The operating system detects all hard disks in a disk array as a single physical
hard disk. The individual disk drives in a disk array are called "members". Member
configuration information is recorded in the reserved sector of the hard disk. With this
information the hard disk can be identified as a member.
There are usually a few methods by which hard disks can be combined. These methods
are referred to as different RAID levels. The different RAID levels represent different
performance and security levels as well as implementation costs.
Depending on the size of the hard disk, the process for combining two
hard drives to create a RAID group can take several hours. During this
time period, your screen will turn black.
2 - English 10600945218, edition 1

Innovative technology
Start the AMD RAIDXpert program and call up the Help function
►Call up the AMD RAIDXpert program by choosing Start - All Programs - AMD - RAID - RAIDXpert.
►Confirm the confirmation prompt by clicking Continue.
►Enter "admin" for both the login ID and the password.
►Press the "Enter" key.
The AMD RAIDXpert program starts.
►Click the Help button at the top right-hand corner of your screen.
The Help function for the AMD RAIDXpert program is called up.
Further information
General information about your AMILO Notebook can be found in the
"AMILO Notebook" operating manual.
The Windows Vista drivers for your AMILO notebook are available to download
from our website. This computer is not designed to support any other operating
systems. Fujitsu Siemens Computers accepts no liability for consequences
arising from the use of other operating systems.
Software-related portions of this manual relate to Microsoft products if
they are included with your AMILO Notebook.
Please refer to the relevant manufacturer’s operating instructions when
installing other software products.
"AMILO Notebook" Operating Manual
The "AMILO Notebook" Operating Manual can be found in the Windows Start menu
or on the Internet at "www.fujitsu-siemens.com/support".
10600945218, edition 1 English - 3

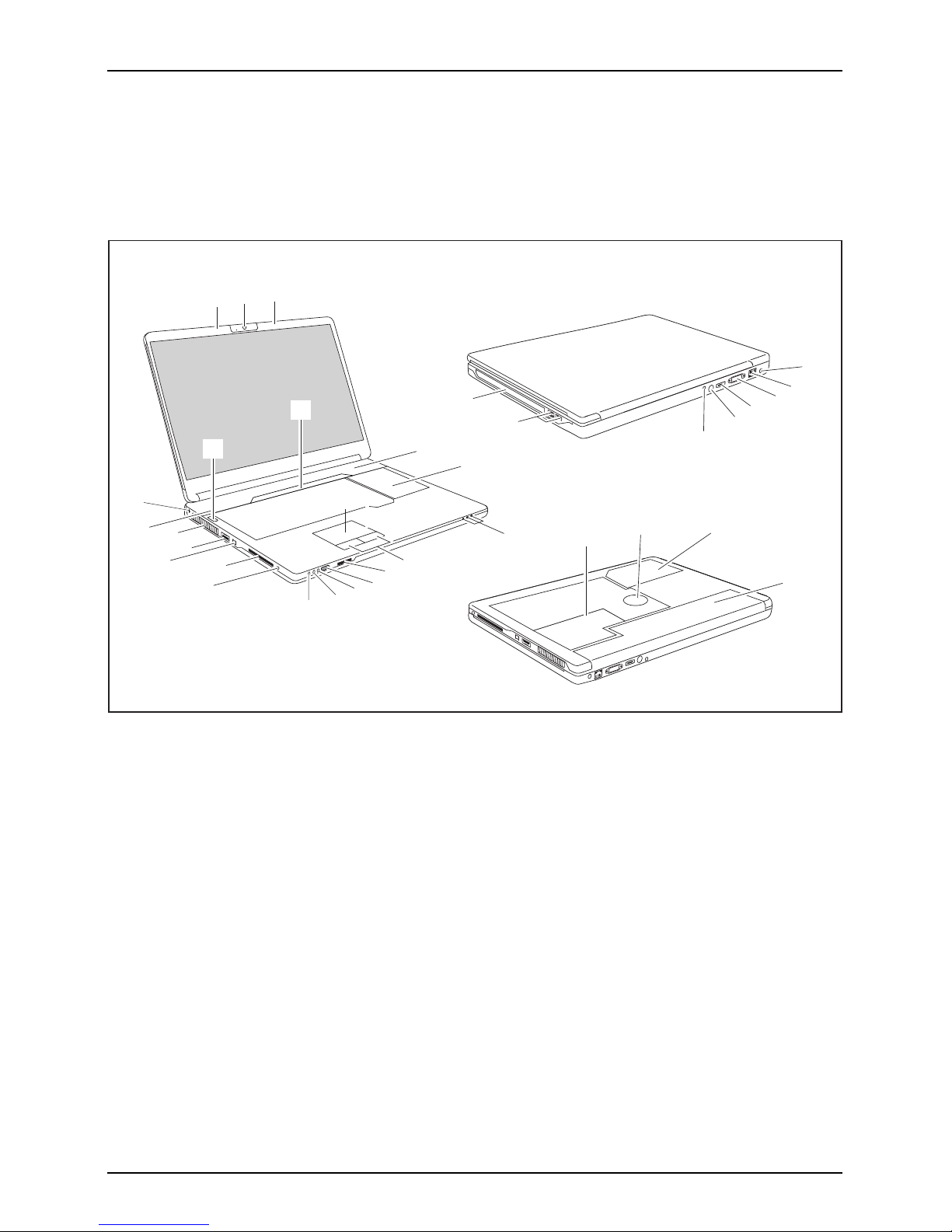

Ports and controls
Ports and controls
This chapter presents the individual hardware components of your notebook. It gives an
overview of the displays and connections on the notebook. Please familiarise yourself
with these components before you start using your notebook.
WebcamMultimediaboardTouchpadSeparatenumerickeypadKeyboardStatus indicatorsTouchpadbuttons5-in-1ca rdreaderInfraredinterfaceforremotecontrolLineInportMicrophone portHe adphonesportSP DIF/LineOutportExpressCard slotMultimediaremotecontrolFireWireportCombinedeSATA/USBportSpeakersON/OFFswitchUSBportsAntennac ableportHDMIportVGAmonitorportNetworkportDCinp utconnector(DCIN)MemoryservicecompartmentHarddiskservicecompartmentBatterySubwoofer
17
18
16
15
19
2
1
4
76
22
29 31
32
3
5
23
25
24
26
9
10
11
20
20
27
17
14
12
13
8
21
28
30
1 = Webcam
2 = Multimedia board
3 = Touchpad
4 = Keyboard with separate number block
5 = Status indicators
6 = Touchpad buttons
7 = 5-in-1 card reader
8 = Infrared interface for remote control
9 = Line In port
10 = Microphone port
11 = Headphone port
12 = SPDIF/Line Out port
13 = ExpressCard slot with multimedia
remote control
14 = FireWire port
15 = Combined eSATA/USB port
16 = Ventilation slots
17 = Loudspeaker
18 = Kensington Lock
19 = ON/OFF switch
20 = Microphone
21 = CD/DVD drive
22 = USB ports
23 = Combined audio/video port
24 = Antenna cable port (device-dependent)
25 = HDMI port
26 = Monitor port (VGA)
27 = Network port
28 = DC input connector (DC IN)
29 = Service compartment for memory
and hard disk 1
30 = Subwoofer
31 = Service compartment for hard disk 2
32 = Battery
4 - English 10600945218, edition 1

Important notes
Important notes
Please read and observe the safety instructions in the "Safety" manual
and in the "AMILO Notebook" operating manual.
When connecting a coaxial cable to the TV tuner, please make sure that it is correctly
connected to the earthing system of the building.
10600945218, edition 1 English - 5

Preparing your notebook for use
Preparing your notebook for use
First-timesetupNotebookGettingstartedNotebook
If your notebook comes with a Windows operating system then all of the necessary
hardware drivers and the supplied software will already be pre-installed.
With the operating system Microsoft Vista, it may take up to 20 minutes to prepare your
notebook for use depending on the hardware fitted and the software supplied.
When you switch on the notebook for the first time it will perform a system
check. A number of different messages may be displayed. In the process,
the display may flicker or darken temporarily.
Please follow the instructions on the screen.
It is very important that you do not switch the notebook off during this initial set-up process.
Before you can use your notebook for the first time you will need to charge the battery.
On delivery, the battery can be found in the battery compartment or in the accessories kit. The
battery must be charged if you want to operate your notebook with the battery.
When not plugged into a mains socket, the notebook runs on its built-in battery. You can
increase the battery’s life by enabling the system’s energy saving functions.

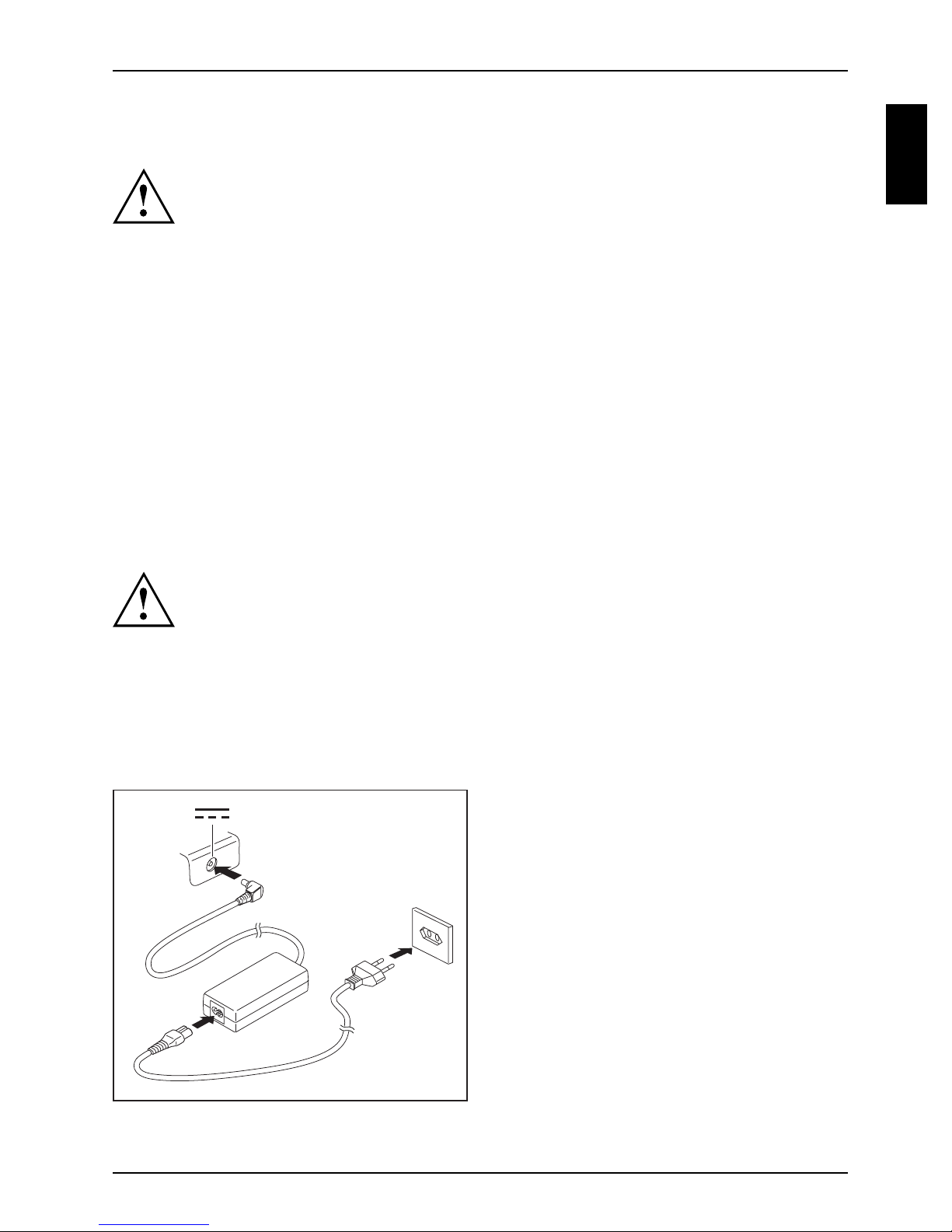

If you use the notebook in at home or in an office, we recommend you use
the mains adapter instead of the battery.
Please refer to the "AMILO Notebook" operating manual for instructions on how to connect
external devices (e.g. a mouse or a printer) to the notebook..
Unpacking and checking your notebook
Should you discover any damage incurred during transportation, notify
your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTra nsport
►Check your notebook for damage incurred during transportation.
We recommend that you keep the original packaging material.
You may need the packaging in the future if you need to transport your device.
6 - English 10600945218, edition 1

Preparing your notebook for use
Selecting the location
Location,selectingtheNotebookPo weradapter
Select a suitable location for the notebook before setting it up. Consider
the following points when selecting a location:
• Never place the notebook and the mains adapter on a heat-sensitive
surface. This could damage the surface.
• Never place the notebook on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can block the air vents and cause damage due to overheating.
• Do not place the notebook directly on your legs for extended periods. The
underside of the notebook heats up during normal operation. Extended contact
with the skin can become unpleasant or even result in burns.
• Place the notebook on a stable, flat, non-slip surface. Please note that
the rubber feet may mark certain types of surfaces.
• Keep other objects 100 mm away from the notebook and its mains
adapter to ensure adequate ventilation.
• Never cover the ventilation slots on the notebook.
• Do not expose the notebook to extreme environmental conditions. Protect
the notebook against dust, humidity and heat.
Connecting the mains adapter
Preparing foroperationMainsadapt er
Please observe the safety precautions in the enclosed "Safety" manual.
The supplied mains cable conforms to the requirements of the country in which
you purchased your notebook. Make sure that the mains cable is approved
for use in the country in which you intend to use it.
The mains cable of the mains adapter must only be connected to a mains
socket if the notebook is connected to the mains adapter.
Make sure that the rated current of the mains adapter is not higher than that
of the power system to which you connect the mains adapter (refer to the
"Technical Data" section, "Mains adapter ", Page 9 ).
1
2
3
►Connect the mains adapter cable (1) to the
DC jack (DC IN) on the notebook.
►Connect the mains cable (2) to the
mains adapter.
►Plug the mains cable (3) into a mains outlet.
10600945218, edition 1 English - 7

Preparing your notebook for use
Switching the notebook on for the first time
Switchingonforthefirsttime
We recommend that the notebook is supplied with power through
the mains adapter during this procedure.
When you switch your notebook on for the first time, the supplied software
is installed and configured. Because this installation procedure must not be
interrupted, you should set aside enough time for it to be fully completed and
connect the notebook to the mains outlet using the mains adapter.
During installation, the notebook must only be rebooted when you are requested to do so!
You will be prompted to create a backup copy of the pre-installed operating system. This
backup copy can be used later to restore your notebook to its delivery configuration.
You can find information on how to restore the operating system, drivers, manuals
and special software in the Recovery Process manual.
Your operating system is pre-installed on the hard disk to help you when you
start using your notebook for the first time.
1
►Switch the notebook on (1).
►During installation, follow the on-screen instructions.
Consult the operating system manual if anything is unclear about the requested input data.
If a Windows operating system is installed on your notebook, you will find additional
information on the system and drivers, help programmes, updates, manuals etc. on
your notebook or on the Internet at "www.fujitsu-siemens.com/support".
8 - English 10600945218, edition 1

Technical data
Technical data
Technicaldata
Notebook
Technicaldata
Ambient conditions
Operating temperature 5°C – 35°C
Dimensions
Width x Depth x Height (front/back) 398 mm x 295 mm x 37.7/44.5 mm
Weight (including battery) Approx. 3.6 kg
The data sheet for this notebook contains further technical data. The data
sheet can be found on your notebook, or alternatively it is also available to
download from the Internet at "www.fujitsu-siemens.com".
Mains adapter
Technicaldata
Electrical data
Primary (device-dependent) 90 W or 120 W
Rated voltage 100 V – 240 V (automatic)
Rated frequency 50 Hz – 60 Hz (automatic)
Secondary
Rated voltage 20 V
Maximum rated current (device-dependent) 4.5 A or 6.0 A
An additional mains adapter or power cable can be ordered at any time.
10600945218, edition 1 English - 9

Technical data
10 - English 10600945218, edition 1

AMILO Notebook
Xa 3530
Pirmasis naudojimas
English
Lietuviškas
Latviski
Pycckuй

Microsoft, MS Windows and Windows Vista are registered trademarks of the Microsoft Corporation.
Adobe Reader is a trademark of Adobe Systems Incorporated.
MultiMediaCard is a registered trademark of Infineon Technologies AG
Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.
All other trademarks referenced are trademarks or registered trademarks of their
respective owners, whose protected rights are acknowledged.
Copyright © Fujitsu Siemens Computers GmbH 2008
All rights reserved, including rights of translation, reproduction by printing, copying
or similar methods, either in part or in whole.
Non-compliance is subject to compensation for damages.
All rights reserved, including rights created by patent grant or registration of a utility model or design.
Subject to availability and technical modifications.

Turinys
Lietuviškas
Turinys
Naujausiostechnologijos… ............................................................ 1
Hibridinėgrafika ........................................................................ 2
Antrasis kietasis diskas RAID junginyje ................................................... 2
AMDRAIDXpertprogramospaleidimasirpagalbosiškvietimas ......................... 3
Kitainformacija ......................................................................... 3
Naudojimo instrukcija "AMILO nešiojamas kompiuteris" . . . . ............................. 3
Prievadaiir valdikliai ................................................................... 4
Svarbiosnuorodos .................................................................... 6
Pirmasis nešiojamojokompiuterionaudojimas ......................................... 7
Nešiojamojokompiuterioišpakavimasirpatikrinimas ....................................... 7
Pasirinkite darbo vietą................................................................... 8
Tinklo adapterio prijungimas . . ........................................................... 8
Nešiojamojo kompiuterio įjungimas pirmąkartą............................................ 9
Techninėscharakteristikos ............................................................. 10
Nešiojamasiskompiuteris ................................................................ 10
Tinkloadapteris ......................................................................... 10
10600945218, išleista 1 Lietuviškas

Turinys
Lietuviškas 10600945218, išleista 1
