Fujitsu Siemens Computers D1534 User manual

Technisches Handbuch / TechnicalManual
Mainboard D1534
RiserCard E383
Deutsch / English
answers2

Sie haben ...
... technische Fragen oder Probleme?
Wenden Sie sich bitte an:
•Ihren zuständigen Vertriebspartner
•Ihre Verkaufsstelle
Weitere Informationen finden Sie im Handbuch "Sicherheit" und "Garantie".
Aktuelle Informationen und Updates (z. B. BIOS-Update) zu unseren Mainboards finden Sie im
Internet: http://www.fujitsu-siemens.com/mainboards
Are there ...
... any technical problems or other questions you need clarified?
Please contact:
•your sales partner
•your sales outlet
You will find further information in the manuals "Safety" and "Warranty".
The latest information and updates (e. g. BIOS update) on our mainboards can be found on the
Internet under: http://www.fujitsu-siemens.com/mainboards

Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.: A26361-D1534-Z120-1-7419
Printed in the Federal Republic of Germany
AG 0503 05/03
A26361-D1534-Z120-1-7419
Mainboard D1534 TECHNISCHES HANDBUCH
TECHNICAL MANUAL

Mainboard D1534
Technisches Handbuch
Technical Manual
Deutsch
English
Ausgabe Mai 2003
May 2003 edition

Intel, Pentium und Celeron sind eingetragene Warenzeichen der Intel Corporation, USA.
Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft
Corporation.
PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines,
Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen
der jeweiligen Inhaber und werden als geschützt anerkannt.
Copyright Fujitsu Siemens Computers GmbH 2003
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.
Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved. Delivery subject to availability.
Right of technical modification reserved.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

A26361-D1534-Z120-2-7419 Umschlag /Cover
Übersicht/Overview Mainboard D1534
Interne Anschlüsse und Steckplätze / Internal
connectors and slots
PCI Riser Slot
AGP
Channel A, Slot 1
Channel B, Slot 1
1
2
3
4
6
7
8
9
10
11
12
13
14
5
Mainboard
1 = PCI-Baugruppensteckplatz für Riser
E383 / PCI riser slot for Riser E383
2 = Diskettenlaufwerk / Floppy disk drive
3 = Lüfter 1 / Fan 1
4 = Stromversorgung +12 V ( Power
supply +12 V
5 = USB C/D
6 = CD-Audio-Eingang / CD-Audio Input
7 = IDE-Laufwerke 1/2 / IDE-drives 1/2
8 = IDE-Laufwerke 3/4 / IDE-drives 3/4
9 = Stromversorgungsüberwachung /
Power control
10 = Serial ATA1
11 = Stromversorgung / Power
supply
12 = Serial ATA0
13 = S/PDIF-Anschluss / S/PDIF
connector
14 = Steckbrücken / Jumper
Optionale Komponenten / Optional
components
12
3
4
RiserCard
1 = Gehäuseüberwachung / Intrusion
switch
2 = PCI-Steckplatz 1 / PCI slot 1
3 = PCI-Steckplatz 2 / PCI slot 2
4 = Interner Lautsprecher / Internal
speaker
Externe Anschlüsse hinten /
External connectors rear
LAN
VGA
Externe Anschlüsse vorne /
External connectors front

A26361-D1534-Z120-2-7419 English
Contents
Übersicht/Overview Mainboard D1534
Mainboard D1534.............................................................................................................................1
Notational conventions ..............................................................................................................1
Important notes..................................................................................................................................2
Information about boards...........................................................................................................2
List of features...................................................................................................................................3
Special technical features - special features.............................................................................4
Interfaces and connectors ..............................................................................................................6
External ports....................................................................................................................................6
Internal ports and connectors ............................................................................................................7
Hard disk connection.................................................................................................................7

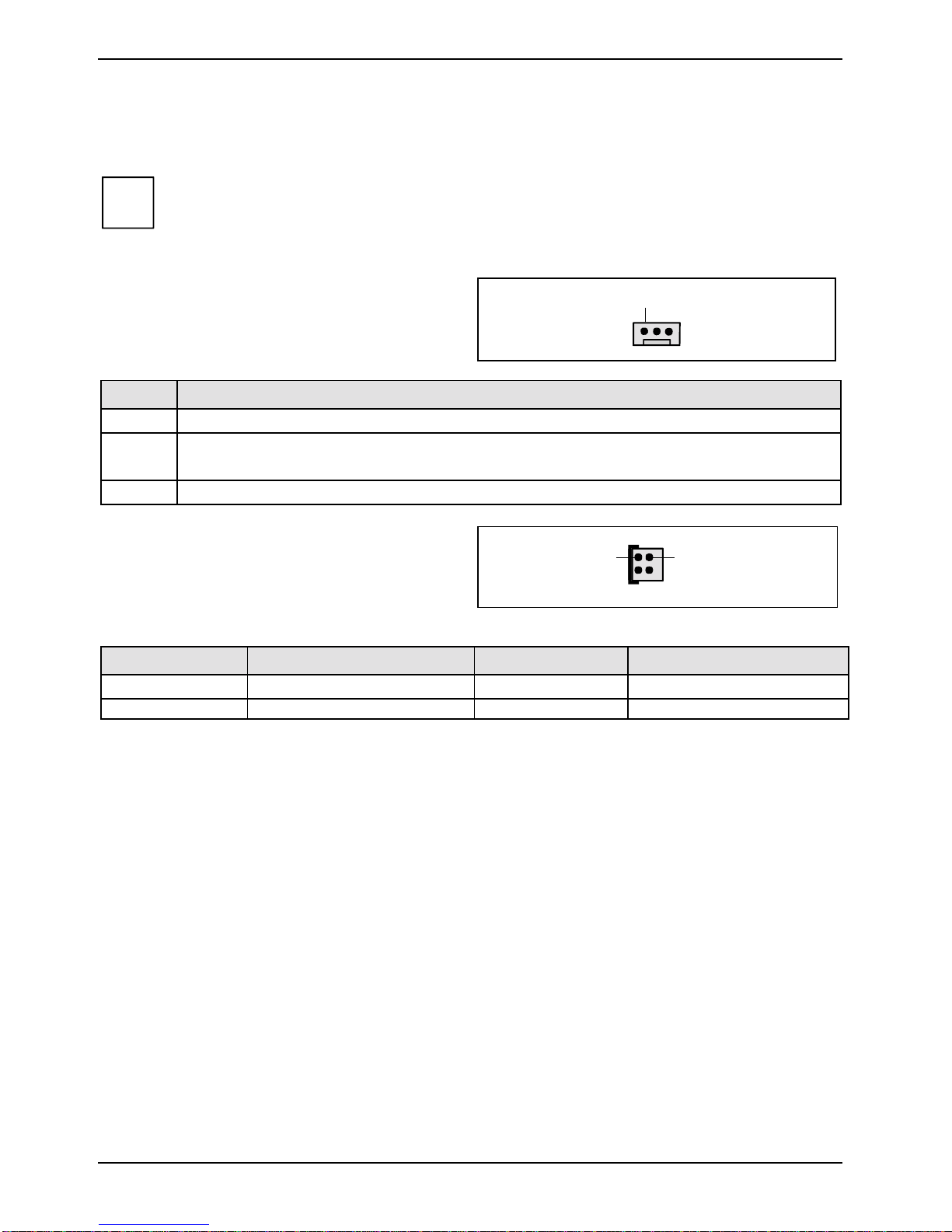

Pin assignment of internal ports.........................................................................................................8
Jumper settings.............................................................................................................................12
Add-on modules / Upgrading........................................................................................................13
Installing and removing processors..................................................................................................13
Installing processor with heat sink ...........................................................................................13
Upgrading main memory..........................................................................................................15
Upgrading AGP screen controllers...................................................................................................16
Adding PCI cards.............................................................................................................................16
PCI bus interrupts - Selecting correct PCI slot.........................................................................16
Replacing the lithium battery....................................................................................................18
BIOS update....................................................................................................................................19
BIOS Recovery - Recovering System BIOS ....................................................................................20
Microcode Update ...........................................................................................................................20
Drivers.............................................................................................................................................21
Error messages .............................................................................................................................22
DOS error messages.......................................................................................................................25
SmartCard reader - error messages ................................................................................................26
Glossary..........................................................................................................................................27

A26361-D1534-Z120-2-7419 English - 1
Mainboard D1534
Your mainboard is available in different configuration levels. Depending on the configuration chosen,
some of the hardware components described may not be available on your mainboard.
Additional information
Information on the BIOS Setup and additional descriptions of the drivers are contained:
•in the readme files on your hard disk
•on the driver floppy disks included
•on the CD "Drivers & Utilities Collection" or "Drivers & Utilities" or "ServerStart".
i
The programme Acrobat Reader must be installed to be able to open the manuals. You will
find the programme on the CD-ROM directory: utls/acrobat.
For more details please read the according readme.txt files.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!indicates information which is important for your health or for preventing physical
damage.
i
indicates additional information which is required to use the system properly.
ÊText which follows this symbol describes activities that must be performed in the order shown.
ËThis symbol indicates that you must enter a blank space (press the Space Bar) at this point.
ÚThis symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.

Mainboard D1534
2 - English A26361-D1534-Z120-2-7419
Important notes
With the mainboard installed you must open the system to access the mainboard. How to dismantle
and reassemble the system is described in the operating manual accompanying the system.
Connecting cables for peripherals must be adequately shielded to avoid interference.
!Observe the safety notes in the operating manual of your system.
Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules / Upgrading" - "Replacing
the lithium battery" section.
Components can become very hot during operation. Ensure you do not touch
components when making extensions to the mainboard. There is a danger of burns!
The shipped version of this board complies with the requirements of the EEC directive
89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the manual for
the receiving device.
i
The warranty is invalidated if the system is damaged during the installation or
replacement of expansions. Information on which expansions you can use is available
from your sales outlet or the customer service centre.
Information about boards
To prevent damage to the mainboard, the components and conductors on it, please take great care
when you insert or remove boards. Take great care to ensure that extension boards are slotted in
straight, without damaging components or conductors on the mainboard, or any other components,
for example EMI spring contacts.
Remove the plug from the mains outlet so that system and mainboard are totally disconnected from
the mains voltage.
Be careful with the locking mechanisms (catches, centring pins etc.) when you replace the
mainboard or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
When you handle boards fitted with ESDs, you must, under all circumstances,
observe the following:
•You must always discharge static build up (e.g. by touching a grounded object)
before working.
•The equipment and tools you use must be free of static charges.
•Remove the power plug from the mains supply before inserting or removing
boards containing ESDs.
•Always hold boards with ESDs by their edges.
•Never touch pins or conductors on boards fitted with ESDs.

Mainboard D1534
A26361-D1534-Z120-2-7419 English - 3
List of features
Onboard features D1534-A
Chipset 865G
VGA !
Audio !
Buzzer / int. Speaker Support / Speaker - / - / !(on
E383)
Gigabit LAN / with Alert-on-LAN !/ !
HI-SPEED USB 2.0 !
SmartCard Reader Support (USB / serial) !
Temperature monitoring !
System Monitoring !
Fujitsu Siemens Computers Keyboard Power
Button Support !
Internal ports
DIMM Sockets (DDR SDRAM, PC2100/2700/3200) 1 per channel
AGP Slot (2/4/8x, 32 bit, 66 MHz, 1.5 V) 1
PCI slot (32 bit, 33 MHz, 5 V and 3.3 V) 2 (on E383)
CNR Slot (Type A, AC‘97 only) -
IDE Interface (Ultra DMA/100) 2
Floppy Interface (up to 2.88 MB) 1
S/PDIF* (digital audio) !
CD / AUX audio input 1 / -
Wake On LAN -
USB Ports* (2.0, ~480 Mb/s) 2
Serial Ports* (FIFO, 16550 compatible) -
Fan Connectors PSU** / FAN / FAN2 / FAN3 1 / 1 / - / -
SMBus Connector* (Case Temperature) -
Intrusion Connector* (Case Open) !(on E383)
Power Connectors ATX / ATX12V / AGP PRO 1 / 1 / -
The components and connectors marked are not necessarily present on the mainboard.

Mainboard D1534
4 - English A26361-D1534-Z120-2-7419
External ports
VGA 1
Audio Mic. in / Line in / Headphone out (Line out)
(2 x 30 mW / 32 Ω)1 / 1 / 2
Game/MIDI -
LAN (RJ-45) 1
PS/2 mouse/keyboard 1 / 1
USB Ports (2.0, ~480 Mb/s) 6
Serial Ports (FIFO, 16550 compatible) 2
Parallel Port (EPP/ECP) 1
* for use with internal devices or optional Front or Rear panel
** not supported by standard power supplies
The components and connectors marked are not necessarily present on the mainboard.
Special technical features - special features
Your mainboard is available in different configuration levels. Depending on the configuration, your
mainboard is equipped with or supports the features described in the following.
Thermal Management and System Monitoring
A microcontroller developed by Fujitsu Siemens Computers reliably protects your PC
against damage caused by overheating. Overheating can lead to the data loss or
processor damage. An ingenious fan control and monitoring system prevents
unnecessary noise. Should the processor nevertheless become too hot at the
maximum fan speed, then the processor clock rate will automatically be reduced so
that the system continues to run stably. In addition, the microcontroller offers
monitoring of, for example, system voltages (12 V, 5 V, CMOS), opening of the case
and a watchdog function.
The microcontroller operates independently of the operating system and the
processor. All values are displayed with DeskView, DeskViewOEM or SystemGuard.
Harddisk Silent Mode and Harddisk Password
You can reduce the noise resulting when the hard disk is accessed to a barely
perceptible level. The resulting power decrease is approx. 10-20% depending on the
hard disk.
A password assignment for the hard disk is only possible with suitable, newer hard
disks and prevents unauthorised access to the stored data.
Silent Mode and Harddisk Password are activated in the BIOS Setup. Additional
information is contained in the "BIOS Setup" manual.

Mainboard D1534
A26361-D1534-Z120-2-7419 English - 5
Logo Boot A customer-specific logo can be displayed during system booting. The logo is loaded
using the LogoFlash tool. The logo can have a size of 640 x 480 pixels with 16
colours. The tool is provided on the CD "Drivers & Utilities" or "Drivers & Utilities
enhanced" or is available on the Internet at http://www.fujitsu-siemens.com.
DeskView / DeskViewOEM
The network-capable manageability software DeskView/DeskViewOEM* mainly
consists of three modules:
•DeskInfo shows the most important device data of the PCs in a network (local
and/or on an administrator PC).
•DeskAlert monitors the operability of all major components and triggers alarms if
necessary depending on the mainboard variant.
•DeskFlash carries out a BIOS update under Windows.
Recovery BIOS
If an error occurs during a BIOS update (e.g. due to a power failure), the system BIOS
will be destroyed. All Fujitsu Siemens Computers mainboards are equipped with a
recovery BIOS. With it a destroyed BIOS can easily be restored. Exact instructions
are provided in the chapter "BIOS Recovery - Recovering System BIOS".
IA-PC
Instantly Available PC ensures fast availability of the PC from an energy-saving mode.
Within just a few seconds the PC is in exactly the same state it was in when it was
switched off without time-consuming booting. Depending on the operating system, the
PC can be switched into an energy-saving mode with applications open by pressing
the ON/OFF switch.

Interfaces and connectors
6 - English A26361-D1534-Z120-2-7419
Interfaces and connectors
The positions of the interfaces and connectors are shown on page "Cover".
The components and connectors marked are not necessarily present on the mainboard.
External ports
The positions of the external ports are shown on page "Cover".
PS/2 keyboard port, purple PS/2 mouse port, green
Serial interface, turquoise Parallel port/Printer, burgundy
LAN LAN connector USB - Universal Serial Bus, black
Audio output (Line out), light green Microphone jack (mono), pink
Audio input (Line in), light blue
LAN connector
This mainboard has an Intel 82562EI LAN controller. This LAN controller supports the transfer rates
of 10 Mbit/s, 100 Mbit/s and 1000 Mbit/s. The LAN controller is equipped with a 40 KB transmission
and receiving buffer (FIFO) and supports WOL function through Magic Packet.
It is also possible to boot a device without its own boot hard disk via LAN. Here InCom LAN Boot or
bootix® PXE are supported.
The LAN RJ45 connector has two LEDs (light emitting diodes).
2
1
1 = a connection exists (e.g. to a hub).
2 = Link Mode: the LAN connection is active.
WOL mode: a Magic PacketTM is being
received.

Interfaces and connectors
A26361-D1534-Z120-2-7419 English - 7
Internal ports and connectors
The positions of the internal ports and connectors are shown on the Cover. Additional information on
some ports is also provided here.
Hard disk connection
An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especially designed for
the ultra ATA/66 or ultra ATA/100 mode.
ÊConnect the end of the cable marked with blue to the mainboard.
If you have connected one or two hard disks to a serial ATA (one hard disk is possible per serial
ATA connection), you must configure the respective settings in the BIOS Setup.

Interfaces and connectors
8 - English A26361-D1534-Z120-2-7419
Pin assignment of internal ports
The pin assignment of some internal connections is shown in English in the following.
i
Some of the following connectors may be optional!
Fan
(system fan - supervised)
1
Pin Signal
1GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
Processor power supply
power supply 13
Pin Signal Pin Signal
1 GND 3 +12V
2 GND 4 +12V

Interfaces and connectors
A26361-D1534-Z120-2-7419 English - 9
Power supply ATX 1
11
Pin Signal Pin Signal
1 +3.3 V (P3V3P) 11 +3.3 V (P3V3P)
2 +3.3 V (P3V3P) 12 -12 V (P12VN)
3GND13GND
4 +5V (VCC) 14 PS on (low asserted)
5GND15GND
6 +5V (VCC) 16 GND
7GND17GND
8 Powergood (high asserted) 18 -5 V (P5VN)
9 +5 V Auxiliary (VCC Aux) 19 +5 V (VCC)
10 +12 V (P12VP) 20 +5 V (VCC)
USB C/D - dual channel
(internal or external via special wire)
1 2
11 12
Pin Signal Pin Signal
1 Key 2 Chipcardreader on
3 VCC C 4 VCC D
5 Data negative C 6 Data negative D
7 Data positive C 8 Data positive D
9GND10GND
11 Key 12 not connected

Interfaces and connectors
10 - English A26361-D1534-Z120-2-7419
CD-ROM audio
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
Power control (system monitoring) 1
Pin Signal
1 AC Outlet (high asserted)
2 PS FAN Control (PS FAN C max. 3 mA)
3 Reserved
4 PS FAN Sense
5SMBCLK
6SMBDATA
7 VCC EEPROM (+3.3 V)
8GND
