Fujitsu Siemens Computers D1322 User manual

SYSTEM BOARD D1322
SYSTEM BOARD D1322
TECHNICAL MANUAL
TECHNICAL MANUAL

Sie haben ...
... technische Fragen oder Probleme?
Wenden Sie sich bitte an:
•Ihren zuständigen Vertriebspartner
•Ihre Verkaufsstelle
Weitere Informationen finden Sie im Handbuch "Sicherheit, Garantie und Ergonomie".
Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet:
http://www.fujitsu-siemens.com
Are there ...
... any technical problems or other questions you need clarified?
Please contact:
•your sales partner
•your sales outlet
You will find further information in the manual "Safety, Guarantee and Ergonomics".
The latest information on our products, tips, updates, etc., can be found on the Internet under:
http://www.fujitsu-siemens.com

Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.: A26361-D1322-Z120-1-7419
Printed in the Federal Republic of Germany
AG 0801 08/01
A26361-D1322-Z120-1-7419
SYSTEM BOARD D1322
SYSTEM BOARD D1322
TECHNICAL MANUAL
TECHNICAL MANUAL

Systembaugruppe
D1322
System Board D1322
Technisches Handbuch
Technical Manual
Deutsch
English
Ausgabe August 2001
August 2001 edition

Intel, Pentium und Celeron sind eingetragene der Intel Corporation, USA.
Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft
Corporation.
PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines,
Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen
der jeweiligen Inhaber und werden als geschützt anerkannt.
Copyright ãFujitsu Siemens Computers GmbH 2001
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.
Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved. Delivery subject to availability.
Right of technical modification reserved.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

A26361-D1322-Z120-1-7419
Contents
Introduction........................................................................................................................................1
Notational conventions ..............................................................................................................1
Important notes .................................................................................................................................1
Information about boards...........................................................................................................2
Features............................................................................................................................................3
External ports ............................................................................................................................4
Internal ports and connectors ....................................................................................................5
Temperature / System monitoring..............................................................................................6
Hard disk connection.................................................................................................................7
LAN connector...........................................................................................................................7
PCI bus interrupts......................................................................................................................8
Settings with switches and jumpers...................................................................................................8
Recovering System BIOS - switch 2..........................................................................................8
Add-on modules................................................................................................................................9
Installing and removing processors..........................................................................................10
Upgrading main memory..........................................................................................................11
Installing network board with WOL...........................................................................................12
Replacing the lithium battery....................................................................................................13
Glossary..........................................................................................................................................14

A26361-D1322-Z120-1-7419 English - 1
Introduction
i
Depending on the configuration chosen, some of the hardware components described
may not be available on your system board.
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme files on the hard disk, on the supplied
drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.
i
Supplementary information, remarks, and tips follow this symbol.
Ê Text which follows this symbol describes activities that must be performed in the order shown.
ËThis symbol indicates that you must enter a blank space (press the Space Bar) at this point.
ÚThis symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.
Important notes
Store this manual close to the device. If you pass the device on to third parties, you should pass this
manual on with it.
!Be sure to read this page carefully and note the information before you open the device.
You cannot access the system board components without first opening the device. How
to dismantle and reassemble the device is described in the Operating Manual
accompanying the device.
Please observe the safety information provided in the "Important notes" chapter in the
device's operating manual.
Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules" - "Replacing the lithium
battery" section.

Important notes
2 - English A26361-D1322-Z120-1-7419
The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the
Operating Manual or Technical Manual for the receiving device.
Connecting cables for peripherals must be adequately shielded to avoid interference.
!Components can become very hot during operation. Ensure you do not touch
components when making extensions to the system board. There is a danger of burns!
i
The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can
use is available from your sales outlet or the customer service centre.
Information about boards
To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.
Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace
the system board or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.
When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:
•You must always discharge static build up (e.g. by touching a grounded
object) before working.
•The equipment and tools you use must be free of static charges.
•Remove the power plug from the mains supply before inserting or
removing boards containing ESDs.
•Always hold boards with ESDs by their edges.
•Never touch pins or conductors on boards fitted with ESDs.

Features
A26361-D1322-Z120-1-7419 English - 3
Features
The components and connectors marked are not necessarily present on the system board.
• System board in µATX format
• mPGA478 Intel processor Pentium 4 with 400 MHz Front Side.
Pentium 4 processors support MMX technology and Intel Streaming SIMD Extensions. The size and
frequency of first-level cache and second-level cache are dependent upon the processor used.
• Intel chipset 845
• Intel 82562EM LAN controller (10/100 Mbit/s) with RJ45 interface
WOL with Magic Packetäis supported, as is booting from LAN with Bootix LAN BootP or Intel
PXE.
• Analogue Devices AD1885 (AC'97) Audio Codec
internal: Stereo CD-In, Stereo AUX-In
external: Mono Micro-In, Stereo Line-In, Game/Midi port
Stereo Line-out / headphones
• Fujitsu Siemens system monitoring and temperature monitoring
• 3 DIMM slots for 32 MB to 3 GB main memory (SDRAM memory modules meet the PC133
specification) with ECC
• Flash BIOS
• Power-on functions:
− Wake on RTC
− Wake on LAN
− Wake on PCI Cards
− Wake on USB
− COM1 wake up support (standby)
• Energy saving functions:
− APM and ACPI (requires an operating system that supports ACPI)
− Switching on/off, standby mode, suspend mode via on/off switch
− Switching on/off via software
• Security functions:
− Processor serial number
− Cover monitoring: cover monitoring reports when the cover has been opened without
authorisation.
− System, Setup and Keyboard password
− parallel and serial ports can be deactivated
− Floppy disk write-protection via BIOS Setup
− Boot hard disk virus warning function
− Flash BIOS and EEPROMs (on the memory modules) virus protection function.
• 3 PCI slots
PCI slots support 3.3 V main and auxiliary voltages.

Features
4 - English A26361-D1322-Z120-1-7419
• 1 AGP slot
The AGP slot supports 1x, 2x and 4x AGP mode. Only AGP boards with 1.5 V are supported.
• IDE hard disk controller connected to PCI bus for up to four IDE drives
(e.g. IDE hard disk drives, ATAPI CD-ROM drives)
The IDE hard disk controller are ATA33/66/100, ultra DMA capable and support PIO modes 0-
4.
• Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)
• The system board supports booting from a 120 MB IDE floppy disk drive.
• Real-time clock/calendar with integrated battery backup
• 1 internal WOL interface
• 2 internal USB ports (C / D)
• 1 external parallel port (ECP- and EPP-compatible)
• 2 external serial ports (16C550 compatible with FIFO)
• 2 external PS/2 ports for keyboard and mouse
• 2 external USB ports (A / B)

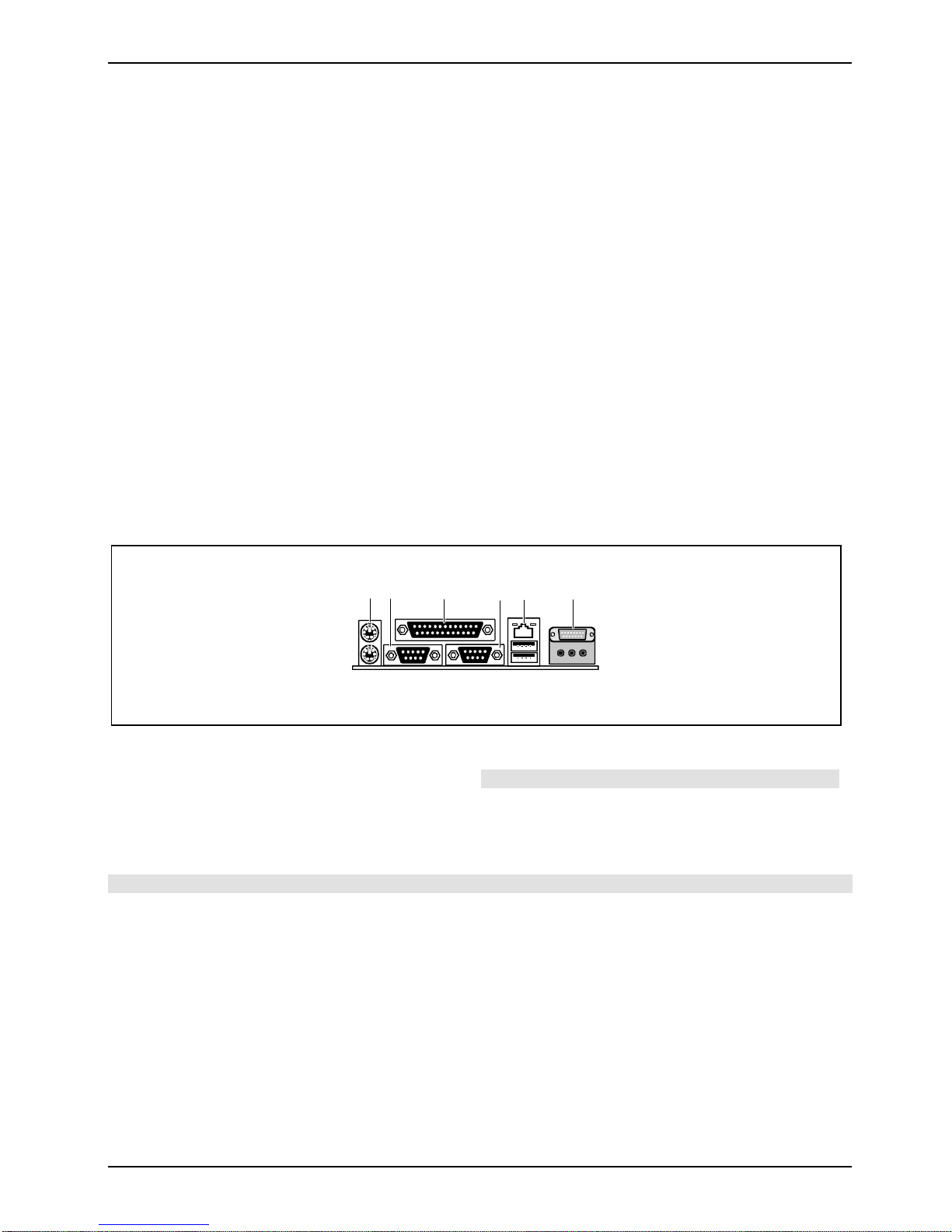

External ports
2
31 4 5
7
8
9a 9c9b
6
1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = Serial port 1
4 = Parallel port
5 = Serial port 2
6 = LAN connector
7 = USB ports A and B
8 = Game/Midi port
9a = Audio Line-Out
Headphones
9b = Audio Line-In
9c = Audio Micro-In
The components and connectors marked are not necessarily present on the system board.

Features
A26361-D1322-Z120-1-7419 English - 5

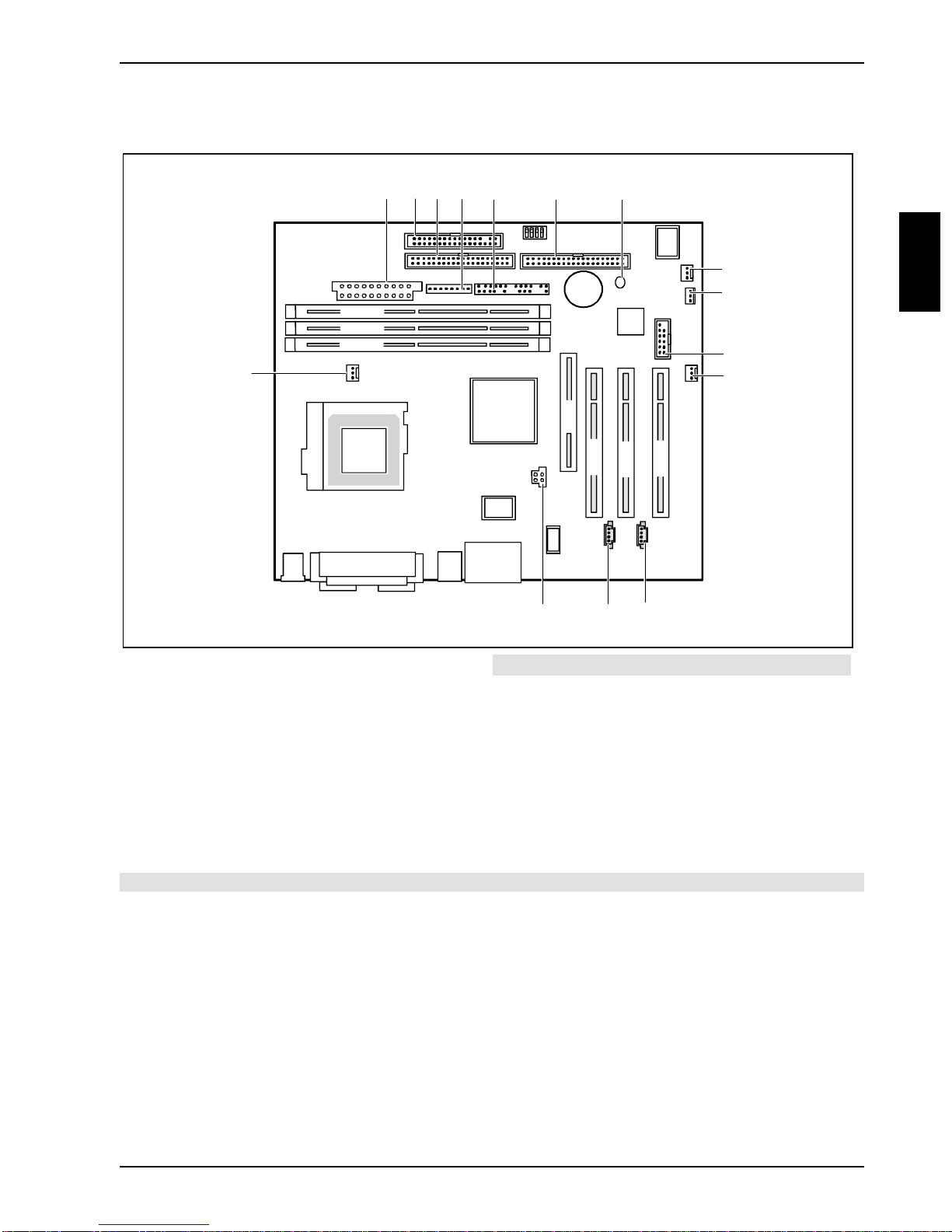

Internal ports and connectors
DIMM 2
PCI 2
PCI 3
PCI 1
AGP
DIMM 1
DIMM 3
1234 5 6
8
7
9
11
121314
15 10
1 = Power supply ATX
2 = Floppy Disk Drive
3 = IDE drives 3 and 4 (secondary)
4 = Power supply monitoring
5 = Connector for control panel and
loudspeaker
6 = IDE drives 1 and 2 (primary)
7 = Voltage indicator LED
8 = Fan 2
9 = Cover monitoring
10 = USB ports C / D *
11 = Wake On LAN
12 = CD audio input
13 = AUX audio input
14 = Power supply +12 V
15 = Fan 1 (e.g. for the processor)
The components and connectors marked are not necessarily present on the system board.

Features
6 - English A26361-D1322-Z120-1-7419
Temperature / System monitoring
Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addition, any unnecessary noise is also prevented by reducing the fan
speed, and information is provided about the system status. Cover monitoring protects the system
from unauthorised opening.
An onboard controller developed by Fujitsu Siemens Computers controls the temperature and
system monitoring.
The following functions are supported:
Temperature monitoring:
Measurement of the processor and the system temperature with an onboard temperature sensor.
Temperature control:
The temperature is controlled by adjusting the fan speed and/or by reducing the clock frequency of
the processor. The clock frequency of the processor is dependent upon the setting in the BIOS Setup.
Temperature-dependent processor speed control enables a reduced fan speed, decreasing noise.
Fan monitoring:
Fans which have been removed, blocked or sticky fans are detected. Blocked or sticky fans are
operated with 12 V pulse voltage. If the device has a monitored fan removed while the system is
switched off this is indicated by the message LED when the system is switched on again and
processed by the BIOS or the application.
Fan control:
With the exception of the auxiliary fan (AUX), the fans are regulated according to temperature.
Sensor monitoring:
The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sensor run at maximum speed, to achieve the greatest possible protection of the
hardware. If the device has a monitored fan removed while the system is switched off this is
indicated by the message LED when the system is switched on again and processed by the BIOS or
the application.
Cover monitoring:
Unauthorised opening of the cover is detected, even when the system is switched off. However, this
will only be indicated when the system is switched on again.

Features
A26361-D1322-Z120-1-7419 English - 7
Voltage monitoring:
The voltages 12 V, 5 V and the CMOS battery are monitored.
With hardware monitoring - regardless of the operating system and processor - the advantages
compared to conventional software monitoring are clear:
− suitable for all operating systems and processor types
− no additional load on processor (performance)
− optimum temperature protection, even if process faults or faults are present in the
operating system
− optimum noise reduction
Three different operating modes are available and can be configured in BIOS Setup - System
Management.
Hard disk connection
An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especially designed for
the ultra ATA/66or ultra ATA/100 mode.
Ê Connect the end of the cable marked with blue to the system board.
LAN connector
This system board has an optional Intel 82550EM LAN controller which supports transfer speeds of
10 Mbit/s and 100 Mbit/s. The LAN controller is equipped with a 3 KB transmission and receiving
buffer (FIFO) and supports WOL function through Magic Packetä.
It is also possible to boot a device without its own boot hard disk via LAN. Here Bootix LAN BootP
and Intel PXE are supported.
Basic AOL II is also supported. Basic AOL II helps to protect systems against theft or damage.
Basic AOL II can also inform the administrator about hardware faults and software errors.
The LAN RJ45 connector is equipped with a yellow and a green LED (light emitting diode).
1
2
1 = Yellow indicator
2 = Green indicator
Yellow a connection exists (e.g. to a hub).
Green Link Mode: the LAN connection is active.
WOL mode: a Magic PacketTM is being received.

Settings with switches and jumpers
8 - English A26361-D1322-Z120-1-7419
PCI bus interrupts
The following table shows which PCI bus interrupts are assigned on the system board.
PCI bus interrupt Component on system board:
B, C, D, A PCI bus slot 1
C, D, A, B PCI bus slot 2
D, A, B, C PCI bus slot 3
A, B AGP slot
D First USB controller
H Second USB controller
E LAN controller
B SMBus
B AC'97 Audio
Settings with switches and jumpers
1234
ON
Switch 1 = must always be set to off
Switch 2 = System BIOS recovery
Switch 3 = must always be set to off
Switch 4 = must always be set to off
i
The clock frequency of the processor is set automatically.
Recovering System BIOS - switch 2
Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).
On The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS-
Diskette" restores the System BIOS on the system board.
Off Normal operation (default setting).

Add-on modules
A26361-D1322-Z120-1-7419 English - 9
Add-on modules
!Exit Suspend mode, switch off the device and remove the power plug from the mains
supply, before carrying out any of the procedures described in this chapter!
Even when you have switched off the device, parts (e.g. memory modules, AGP and PCI
extension boards) are still supplied with power. The voltage indicator LED will glow if this
is the case.
All PCI slots support 3.3 V main and auxiliary voltages. AGP boards support 1,5 V main
and auxiliary voltages.
DIMM 2
PCI 2
PCI 3
PCI 1
AGP
DIMM 1
DIMM 3
1
3
45
7
2
6
1 = Socket for processor with heat sink
2 = Location bank 1 for main memory
3 = Location bank 2 for main memory
4 = Location bank 3 for main memory
5 = Lithium battery
6 = PCI slots 1, 2, 3
7 = AGP slot

Add-on modules
10 - English A26361-D1322-Z120-1-7419
Installing and removing processors
32
1
A
45
32
1
A
45
Ê Pull the lever in the direction of the arrow (1) and lift it as far as it will go (2).
Ê Remove the old processor from the socket (3).
Ê Insert the new processor in the socket so that the angled corner of the processor matches the
coding on the socket (A) with regard to the position (4).
!The angled corner of the processor may be covered by the heat sink. In this case let
yourself be guided by the marking in the rows of pins on the underside of the processor.
Ê Push the lever back down until it clicks into place (5).

Add-on modules
A26361-D1322-Z120-1-7419 English - 11
Upgrading main memory
These slots are suitable for DIMM format 32, 64, 128, 256, 512, 1024 MB SDRAM memory
modules.
Memory modules with different memory capacities can be combined.
!You may only use unbuffered 3.3 V memory modules. Buffered memory modules are not
supported.
SDRAM memory modules must meet the PC133 specification.
Installing a memory module
2
2
Ê Push the holders on each side of the memory compartment outwards.
Ê Insert the memory module into the location (1).
Ê At the same time flip the lateral holders upwards until the memory module snaps in place (2).
Removing a memory module
1
1
Ê Push the clips on the right and left of the compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).

Add-on modules
12 - English A26361-D1322-Z120-1-7419
Installing network board with WOL
Ê Install the network board as described in the operating manual for your unit.
Ê Push the WOL cable onto the WOL plug connector of the system board.
i
To use the WOL functionality of a network board the power supply must provide a
5 V auxiliary voltage of at least 1 A. If the system board was not already
incorporated in a device when you bought it you must check whether your power
supply can provide the auxiliary voltage.
You may find further information in the supplied description of the network board.
