Introduction
This Technical Manual describes the system board D1306, which can be equipped with up to four
Intel processors.
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme files on the hard disk, on the supplied
drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.
i
Supplementary information, remarks, and tips follow this symbol.
Ê Text which follows this symbol describes activities that must be performed in the order shown.
ËThis symbol indicates that you must enter a blank space (press the Space Bar) at this point.
ÚThis symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.
Important notes
Store this manual close to the device. If you pass the device on to third parties, you should pass this
manual on with it.
!Be sure to read this page carefully and note the information before you open the device.
You cannot access the system board components without first opening the device. Ho
w
to dismantle and reassemble the device is described in the Operating Manual
accompanying the device.
Please observe the safety information provided in the "Important notes" chapter in the
device’s operating manual.
Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules" - "Replacing the lithium
battery" section.

Important notes
2 - English A26361-D1306-Z120-1-7419
The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the
Operating Manual or Technical Manual of the receiving device.
Connecting cables for peripherals must be adequately shielded to avoid interference.
!Components can become very hot during operation. Ensure you do not touch
components when making extensions to the system board. There is a danger of burns!
i
The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can
use is available from your sales outlet or the customer service centre.
Information about boards
To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.
Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace
the system board or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.
When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:
• You must always discharge static build up (e.g. by touching a grounded
object) before working.
• The equipment and tools you use must be free of static charges.
• Remove the power plug from the mains supply before inserting o
r
removing boards containing ESDs.
• Always hold boards with ESDs by their edges.
• Never touch pins or conductors on boards fitted with ESDs.

Features
A26361-D1306-Z120-1-7419 English - 3
Features
• two processor slots for Pentium III processors with up to 1,4 GHz and higher ("end of lifetime")
and 133 MHz Front Side Bus
512 Kbyte second level cache
• four 64 bit PCI slots with 66 MHz
• two 32 bit PCI slots with 33 MHz
• four DIMM slots (PC133) for up to 4 Gbyte main memory (SDRAM memory modules)
• onboard SCSI controller Ultra 160 to the 64 bit/66MHz PCI bus with LVDS (Low Voltage
Differential) SCSI-Interface
• Screen controller ATI Rage XL VGA with 24 bit and 230 MHz RAMDAC
• Intel 82559GM Ethernet LAN controller with 10/100 Mbit/s
• IDE hard disk controller connected to PCI bus
ultra DMA33 mode capable, supports PIO modes 0-4
• Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)
• Server management onboard with Scylla
• system monitoring
• Security functions:
− Cover monitoring: cover monitoring reports when the cover has been opened without
authorisation.
− Simple error detection and correction in the main memory with an ECC (only for memory
modules with ECC)
− System, Setup and Keyboard password
− parallel and serial ports can be deactivated
− Write protection for floppy disk drive
− Boot hard disk virus warning function
− Flash BIOS and EEPROMs (on the memory modules) virus protection function.
• one external parallel interface (ECP- and EPP-compatible)
• two external serial ports (COM1 and COM2)
• two external and one internal USB port (USB = Universal Serial Bus)
• 1 internal WOL interface
• two external PS/2 interfaces for keyboard and mouse
• Real-time clock/calendar with integrated battery backup

Features
4 - English A26361-D1306-Z120-1-7419

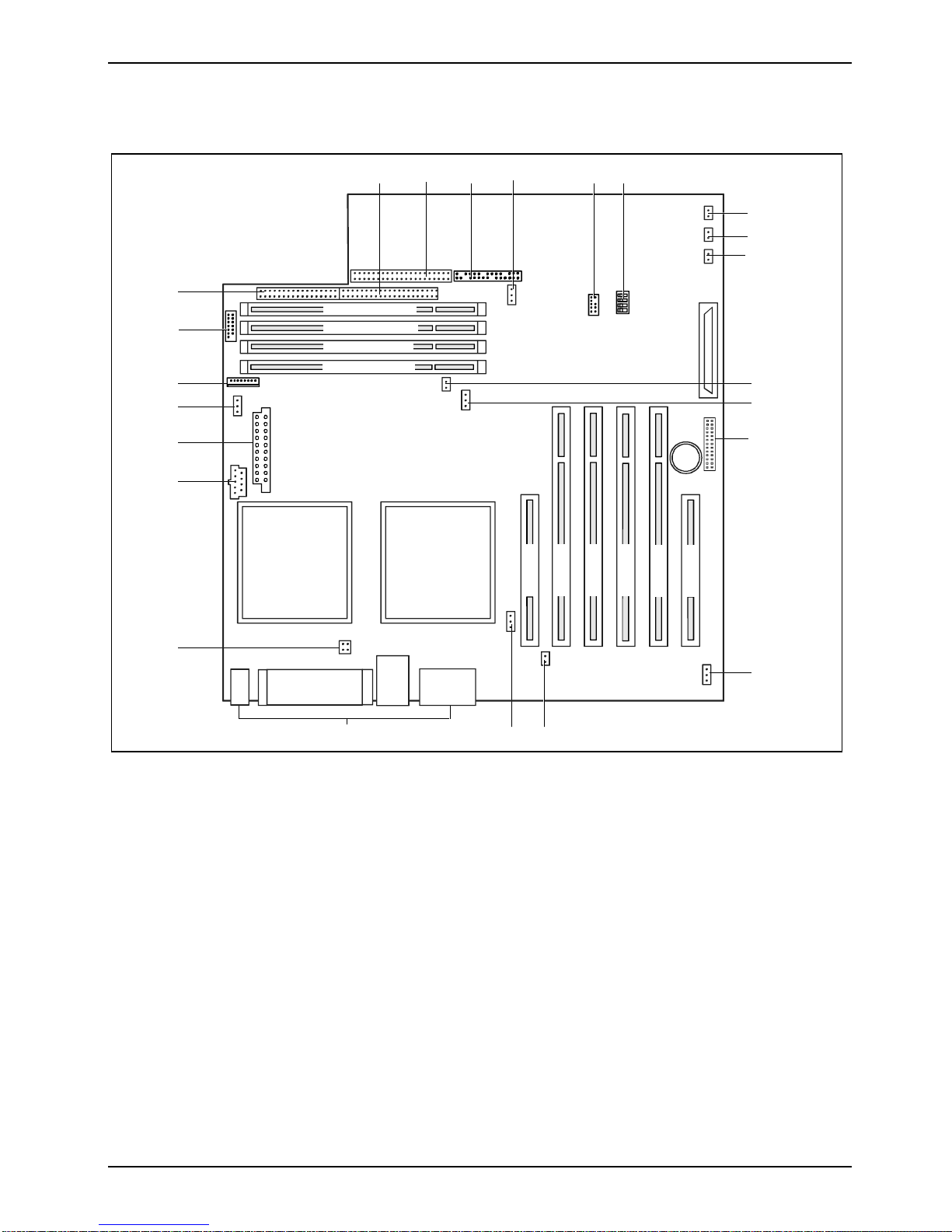

Interfaces and connectors
12356
7
8
9
10
11
12
13
16
17
18
19
20
21
23
4
DIMM Module 1B
DIMM Module 0B
DIMM Module 1A
DIMM Module 0A
Pentium III
CPU 0 Pentium III CPU 1
PCI Bus 6 PCI Bus 4 PCI Bus 3 PCI Bus 2 PCI Bus 1 PCI Bus 5
1415
22
1 = IDE drives (primary)
2 = IDE drives (primary)
3 = Control panel
4 = Fan (SysFan 2)
5 = USB port
6 = Switch block
7 = Cover monitoring
8 = SMB 1
9 = SMB 2
10 = NMI
11 = Fan (CPU 1)
12 = Connector for RSB (Remote Service
Board)
13 = Wake On LAN (WOL)
14 = Power supply RSB
15 = Fan (SysFan 1)
16 = External ports
17 = Power supply (ATX 12 V)
18 = Power supply (ATX 3,3 V)
19 = Power supply (ATX)
20 = Fan (CPU 0)
21 = Power supply monitoring
22 = Power supply (Intel 3.3 V)
23 = Port for floppy disk drive

Features
A26361-D1306-Z120-1-7419 English - 5
External ports
123 4 5 6
78
1 = PS/2 mouse port
2 = Serial interface COM1
3 = Parallel port
4 = Serial port COM2
5 = LAN connecto
r
6 = VGA port
7 = USB port 1 and 2
8 = PS/2 keyboard port
!If a USB chipcard reader (SmartCard reader) is installed, no device may be connected to
serial interface 2 (COM2).
Please use the current driver from the supplied driver disk for the USB chipcard reader
(SmartCard reader).
Temperature / System monitoring
Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addition, any unnecessary noise is also prevented by reducing the fan
speed, and information is provided about the system status. Cover monitoring protects the system
from unauthorised opening.
The temperature and system monitoring are controlled by an onboard controller developed by
Fujitsu Siemens.
The following functions are supported:
Temperature monitoring:
Measurement of the processor temperature, measurement of the system temperature with an
onboard temperature sensor, measurement of the ambient temperature with an optional temperature
sensor.
Fan monitoring:
Fans that are no longer available, blocked or sticky fans are detected. Blocked or sticky fans are
operated with 12 V pulse voltage. Fans removed while the system is switched off are signaled by
the Display news LED when the system is switched on again and processed by the BIOS or the
application.
Fan control:
The fans are regulated according to temperature.
Sensor monitoring:
The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sensor run at maximum speed, to achieve the greatest possible protection of the
hardware. Temperature sensors removed while the system is switched off are signaled by the
Display news LED and processed by the BIOS or the application.

Features
6 - English A26361-D1306-Z120-1-7419
Cover monitoring:
Unauthorised opening of the cover is detected, even when the system is switched off. However, this
will only be indicated when the system is switched on again.
LAN connector
This system board has an Intel 82559 LAN controller. The LAN controller is equipped with a 3 KB
transmission and receiving buffer (FIFO) and supports WOL function through Magic Packetä.
It is also possible to boot a device without its own boot hard disk via LAN. Here Bootix LAN BootP
and Intel PXE are supported.
The LAN RJ45 connector is equipped with a yellow and a green LED (light emitting diode).
12
1 = Yellow indicator
2 = Green indicator
Green a connection exists (e.g. to a hub).
Yellow Link Mode: the LAN connection is active.
WOL mode: a Magic PacketTM is being received.

Features
A26361-D1306-Z120-1-7419 English - 7
PCI bus resources
PCI slots
The following table shows an overview of the PCI slots:
PCI slot 64bit/32bit Description Bus frequency
6 32 bit 32 bit PCI bus slot 33 MHz / 5 V
5 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
4 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
3 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
2 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
1 32 bit 32 bit PCI bus slot 33 MHz / 5 V
PCI IRQ line x - Assignment of the PCI interrupts
PCI IRQ Line x defines which ISA interrupts are used for the separate PCI slots.
If you select Auto in the BIOS setup, the interrupts are assigned automatically and no further
settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can use several PCI
interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI boards (default) only use one PCI
interrupt (INTA#) per PCI slot.
The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for every PCI slot.
The same interrupt can be assigned simultaneously to several PCI boards. You should avoid this
condition due to reduced performance.
If you use a setting other than Auto, the Plug&Play functionality of the system BIOS for the
corresponding PCI boards is deactivated.
Auto The PCI interrupts are assigned automatically in accordance with the Plug&Play
guidelines.
Disabled No ISA interrupt is assigned to the PCI interrupt.
3, 4, 5, 7, 10, 11, 12, 14, 15
The selected ISA interrupt is assigned to the PCI interrupt. You may not select an
ISA interrupt that is used by a component on the system board (e.g. controller) or an
ISA board.

Features
8 - English A26361-D1306-Z120-1-7419
A B C D
Slot 1 PCI IRQ line 0 PCI IRQ line 1 PCI IRQ line 2 PCI IRQ line 3
Slot 2 PCI IRQ line 4 PCI IRQ line 5 PCI IRQ line 6 PCI IRQ line 7
Slot 3 PCI IRQ line 6 PCI IRQ line 7 PCI IRQ line 4 PCI IRQ line 5
Slot 4 PCI IRQ line 8 PCI IRQ line 9 PCI IRQ line 10 PCI IRQ line 11
Slot 5 PCI IRQ line 10 PCI IRQ line 11 PCI IRQ line 8 PCI IRQ line 9
Slot 6 PCI IRQ line 2 PCI IRQ line 3 PCI IRQ line 0 PCI IRQ line 1
VGA PCI IRQ line 12 - - -
SCSI PCI IRQ line 13 - - -
LAN PCI IRQ line 14 - - -
USB PCI IRQ line 12 - - -
A..D = Interrupt output of the PCI controller
Screen resolution
Depending on the operating system used the screen resolutions in the following table refer to the
screen controller on the system board. If you are using an external screen controller, you will find
details of supported screen resolutions in the Operating Manual or Technical Manual supplied with
the controller.
Screen resolution Refresh rate (Hz) Max. number of colours
640x480 200 16.7 mio.
800x600 200 16.7 mio.
1024x768 150 16.7 mio.
1057x864 120 16.7 mio.
1280x1024 100 16.7 mio.
1600x1200 85 16.7 mio.
Shaded screen resolutions are not supported by LCD monitors (TFT).

Features
A26361-D1306-Z120-1-7419 English - 9
Settings with switches
ON
1234
Switch 1 = must always be set to o
ff
Switch 2 = System BIOS recovery
Switch 3 = Write-protection for floppy disk
Switch 4 = Write-protection for Flash BIOS
Recovering System BIOS - switch 2
Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).
on The system boots from the "Flash BIOS floppy disk" from Drive A and reprograms
the system BIOS on the board.
off The System BIOS is started with the system BIOS from the system board (default
setting).
Write protection for floppy disks - switch 3
Switch 3 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).
on The floppy disk drive is write-protected.
off Floppy disks can be read, written and deleted (default setting).
Write protection for Flash BIOS - switch 4
Switch 4 is used to define whether the System BIOS is write protected or not.
on The System BIOS can neither be written to nor deleted. Flash-BIOS update from
floppy disk is not possible (default setting).
off The System BIOS can be written or deleted. Flash-BIOS update from floppy disk is
possible
Processor's clock speed
The clock frequency of the processor is set automatically. It cannot be changed manually.
If 2 processors are installed, these processors must be of the same type and frequency, as
otherwise the system will "hang". This means two Pentium III Tualatin or two Pentium III
Coppermine with the same clock frequency must be used.

Add-on modules
10 - English A26361-D1306-Z120-1-7419
Add-on modules
!For all steps described in this chapter pull the power plug out of the mains outlet!
DIMM Module 1B
DIMM Module 0B
DIMM Module 1A
DIMM Module 0A
Pentium III
CPU 0 Pentium III CPU 1
PCI Bus 6 PCI Bus 4 PCI Bus 3 PCI Bus 2 PCI Bus 1 PCI Bus 5
8
10
1
3
4
5
6
2
911
7
1 = Socket for processor 1 (CPU 0)
2 = Socket for processor 2 (CPU 1)
3 = Location 0A for main memory (bank 0)
4 = Location bank 1A for main memory
5 = Location 0B for main memory (bank 0)
6 = Location bank 1B for main memory
(bank 1)
7 = SCSI connection
8 = Lithium battery
9 = PCI slot 1
10 = PCI slots 2 -5
11 = PCI slot 6
PCI slots PCI 2, PCI 3, PCI 4 and PCI 5 support 3.3 V operation and auxiliary voltages. PCI slots
PCI 1 and PCI 6 support 5 V operating voltage.

Add-on modules
A26361-D1306-Z120-1-7419 English - 11
Slot sequence
• Insert 64 bit / 66 MHz adapter preferably into PCI slots 2, 3.
• Insert 64 bit / 33 MHz adapter preferably into PCI slots 4, 5.
• Insert 32 bit / 33 MHz adapter preferably into PCI slots 1, 6.
!Take special care to the coding of the PCI slot and the adapter when you select a PCI
slot.
Upgrading main memory
These slots are suitable for 128, 256, 512 and 1024 Mbyte SDRAM memory modules of the DIMM
format. The board supports a maximum of 4 Gbytes.
In other words, you fit the first pair to bank 0, and the second pair in bank 1. One memory bank
must always be fully equipped with memory modules of the same type.
!You may only use buffered (registered) 3.3V memory modules. Unbuffered memor
y
modules are not permitted.
SDRAM memory modules must be designed for a clock frequency of 133 MHz (meets
PC133 specification).
Installing a memory module
2
2
Ê Push the holders on each side of the memory compartment outwards.
Ê Insert the memory module in the slot while folding the side holders up until the memory module
engages (2).

Add-on modules
12 - English A26361-D1306-Z120-1-7419
Removing a memory module
1
1
Ê Push the clips on the right and left of the compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).
