Mainboard D1691
Your mainboard is available in different configuration levels. Depending on the configuration chosen,
some of the hardware components described may not be available on your mainboard.
You have purchased one of the most powerful Intel Xeon®-based workstation solutions in a standard
SSI EEB v3.5 form factor.
Based on the Intel E7525 chipset, the D1691 features some state-of-the-art technologies such as
dual/single 800 MHz FSB Xeon® processor support, multiple PCI-Express buses, dual channel
DDR-II memory design, onboard PCI-Express Gigabit Ethernet port, Serial-ATA IDE ports, and
multiple USB2.0 (Universal Serial Bus) ports.
By doubling the capability of existing AGP8x designs with transfer rates of 4.0 Gigabytes per second
in each direction over a x16 PCI Express lane for graphics controllers, the onboard x16 PCI-Express
slot supports a high performance graphics infrastructure for high-end gaming or multimedia.
i
The programme Acrobat Reader must be installed to be able to open the manuals. You will
find the programme on the CD-ROM directory: utls/acrobat.
For more details please read the according readme.txt files.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!indicates information which is important for your health or for preventing physical damage.
i
indicates additional information which is required to use the system properly.
Ê Text which follows this symbol describes activities that must be performed in the order shown.
!This symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.

Mainboard D1691
2 A26361-D1691-Z120-1-7619, edition 5
Important notes
With the mainboard installed you must open the system to access the mainboard. How to dismantle
and reassemble the system is described in the operating manual accompanying the system.
Connecting cables for peripherals must be adequately shielded to avoid interference.
!
Observe the safety notes in the operating manual of your system.
Incorrect replacement of the lithium battery may lead to a risk of explosion.
Components can become very hot during operation. Ensure you do not touch components
when making extensions to the mainboard. There is a danger of burns!
The shipped version of this board complies with the requirements of the EEC directive
89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the manual for
the receiving device.
i
The warranty is invalidated if the system is damaged during the installation or replacement
of expansions. Information on which expansions you can use is available from your sales
outlet or the customer service centre.
Information about boards
To prevent damage to the mainboard, the components and conductors on it, please take great care
when you insert or remove boards. Take great care to ensure that extension boards are slotted in
straight, without damaging components or conductors on the mainboard, or any other components,
for example EMI spring contacts.
Remove the plug from the mains outlet so that system and mainboard are totally disconnected from
the mains voltage.
Be careful with the locking mechanisms (catches, centring pins etc.) when you replace the
mainboard or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
When you handle boards fitted with ESDs, you must, under all circumstances,
observe the following:
●You must always discharge static build up (e.g. by touching a grounded object)
before working.
●The equipment and tools you use must be free of static charges.
●Remove the power plug from the mains supply before inserting or removing
boards containing ESDs.
●Always hold boards with ESDs by their edges.
●Never touch pins or conductors on boards fitted with ESDs.

Mainboard D1691
A26361-D1691-Z120-1-7619, edition 5 3
Hardware Specifications
Processors
●Dual mPGA604 ZIF sockets
●Supports single or dual Intel Xeon®
processors (Nocona)
●800MHz Front-Side Bus
●Dual onboard 4-phase VRD10.1 compliant
voltage regulation design
Integrated Mass Storage Port
●Two ICH5-R integrated SATA ports up to
1.5 Gbit/s with SATA RAID 0,1 under
Windows
●Two bus-master UDMA ATA100/66/33
Parallel IDE channels support up to 4
ATA/ATAPI compliant devices
Chipset
●Intel’s Tumwater (E7525) chipsets
– E7525 MCH (North Bridge)
– ICH5R (South Bridge)
– PXH (PCI-X hub)
●Winbond W83627HF-AW Super I/O chip
Integrated SCSI (optional)
●Adaptec 7902 dual channel Ultra320 SCSI
at PCI-X 100MHz
●Adaptec Host RAID support
●Adaptec Zero-Channel RAID ready
through PCI slot 5 (green PCI-X
connector)
Expansion Slots
●One X16 PCI-Express high-performance
Graphics slot
●One PCI-X 64-bit 133/100/66MHz (3.3-
Volt) slot
●Two PCI-X 64-bit 100/66MHz (3.3-volt)
slots – one ZCR capable
●Two PCI 32-bit 33MHz (5-Volt) slots
●Total of six usable slots
Integrated LAN
●Broadcom BCM5751T PCI Express
Gigabit Ethernet with integrated TPM
System Hardware Monitoring
●Total four 3-pin fan headers with
tachometer monitoring and PWM control
●Chassis intrusion header
●Temperature and voltage monitoring
Memory
●Eight 240-pin 1.8-Volt DDR-II 400 DIMM
sockets
●Dual channel memory bus
●Supports ECC or non-ECC memory
Up to 16GB of Registered DDR-II modules
BIOS
●Phoenix First BIOS 8Mbit flash ROM
●Supports ACPI 2.0, PnP, DMI 2.0
●Auto configuration of IDE devices
●Multiple boot options
●Power Management: ACPI S1, S4 and S5
modes
IEEE
●Texas Instruments TSB43AB22A Ctrl.
●Two ports 400Mbit
Other Integrated I/O Interfaces
●One floppy connector for up to two drives
●One UART serial port connector
●One ECP/EPP/SPP parallel connector
●Four USB2.0 ports (2 front USB ports via
an optional cable)
●PS/2 mouse & keyboard ports

Mainboard D1691
4 A26361-D1691-Z120-1-7619, edition 5
Integrated Audio
●Intel ICH5R AC’97 compliant audio link
●Analog Device AD1981B CODEC
●Line-in, Line-out, Mic-in rear vertical jacks
and a front panel audio header
●One 4-pin CD-ROM audio input header
●One 4-pin Auxiliary header
Form Factor
●SSI EEB 3.5 footprint AT03 (12”x13”)
●EEB V3.51 power connectors
●Rear I/O
– Stacked PS/2 mouse and keyboard
connectors
– One parallel connector
– One GbE RJ45 connector
– Four stacked USB connectors
– Stacked audio connector for MIC,
Line_out and Line_in.
– SPDIF
– IEEE1394
Regulatory
●FCC Class B (Declaration of Conformity)
●European Community CE (Declaration of
Conformity)
i
Fujitsu Siemens Computers reserves the right to add support or discontinue support for
any OS with or without notice.
Software Specifications
OS (Operating System) Support
●Microsoft Windows XP Professional
●Microsoft Windows 2000 Professional
●Red Hat 8.0, 9.0 (not certified)
●SuSE Server 8.0 (not certified)
●Other distributions of Linux pending validation
i
Fujitsu Siemens Computers reserves the right to add support or discontinue support for
any OS with or without notice.

Mainboard D1691
A26361-D1691-Z120-1-7619, edition 5 5

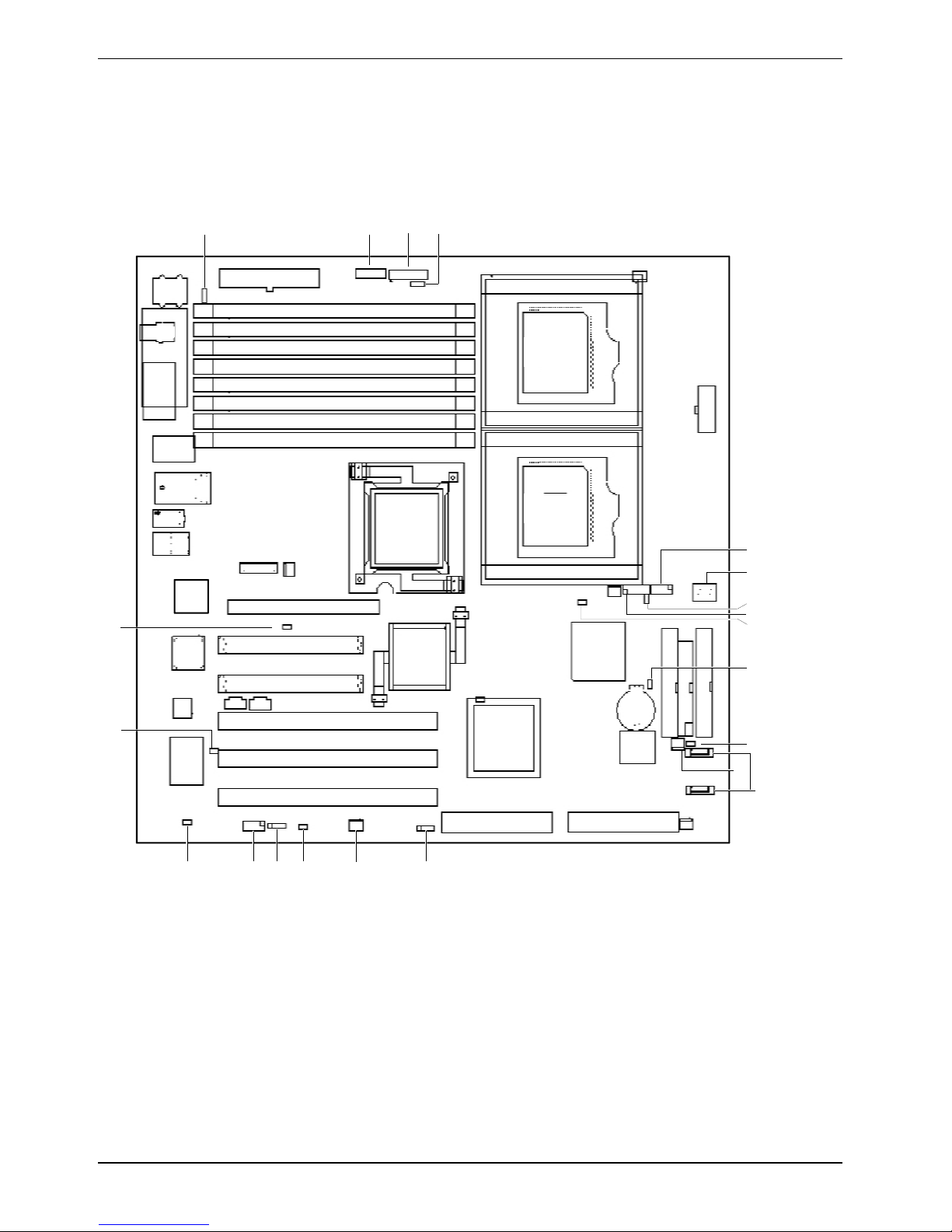

Board Diagram
The above picture is purely representative. Due to engineering updates and new board revisions,
certain components may change and or be repositioned. The picture above may or may not look
exactly like the board you received.
The following page includes details on the vital components of this motherboard.

Choose Proper Parts For Your System
6 A26361-D1691-Z120-1-7619, edition 5
Choose Proper Parts For Your System
Before you installing a system with this motherboard, make sure your major system parts meet the
following basic guidelines and requirements:
Central Processor Unit (CPU) Considerations
●Process Type and Package
D1691 supports Intel Xeon® processors in 604-pin Pin Grid Array package.
●Front Side Bus (FSB)
The processor host bus, or called Front Side Bus (FSB), always operates at 800 MHz. Choose
Intel Xeon® 800 MHz FSB processors for D1691.
The system will not be operational when installing Intel Xeon® 533 or 400 MHz FSB
processors.
●Single/Dual Processor System
D1691 board supports single or dual Intel Xeon® processors.
Single Processor System:
When only install a single processor on D1691, the processor must be installed on the CPU0
ZIF (Zero-Insertion-Force) socket.
Dual Processor System:
D1691 supports dual processor configurations only in which both processors operate with the
same FSB frequency, core frequency, and have the same internal cache sizes. Mixing
processors operating at different FSB frequency, core frequency, or cache sizes may cause
system non-operation or damages on processors and/or the motherboard.
Memory Considerations
●Memory Type
D1691 supports up to eight 240-pin 1.8-Volt DDR-II 400 Registered ECC DIMM modules. The
DDR2-400 memory modules can be using 256Mb, 512Mb and 1Mb memory chips.
DDR-I or Unbuffered DDR memory modules are not supported by D1691 design.
●Memory Installation
D1691 is based on Intel’s E7525 Tumwater chipset, which supports 144-bit wide dual memory
channels in memory interleaved scheme. System requires minimum two memory modules, as
a pair, to boot up the system.
For further information see "Installing the Memory" chapter.

Choose Proper Parts For Your System
A26361-D1691-Z120-1-7619, edition 5 7
Power Supply Considerations
●Power connectors

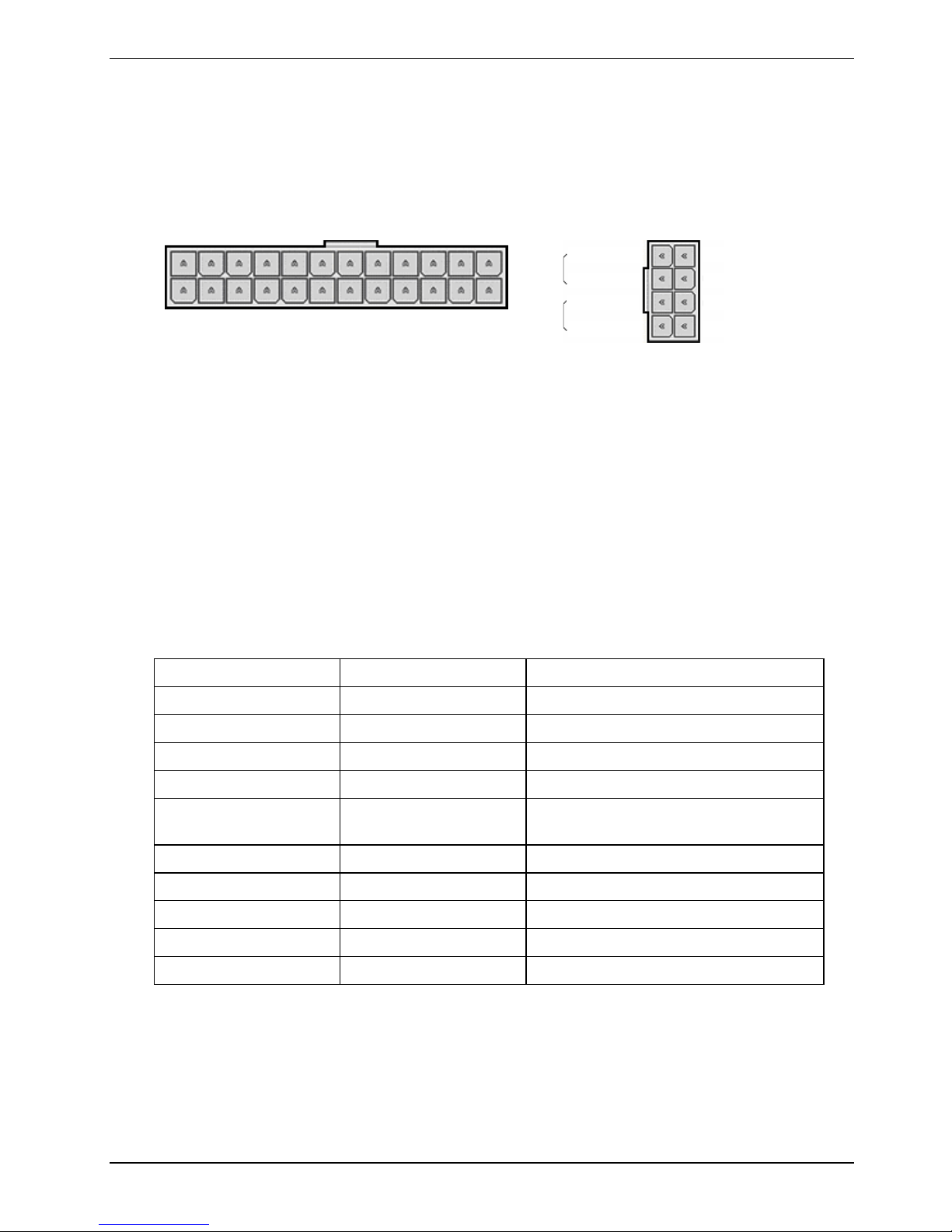

D1691 supports EPS/12V power supply unit (PSU) with two power connectors listed below.
EPS/12V Power Connectors
++12V_CPU0
+12V_CPU0
+12V_CPU1
+12V_CPU1 GND
GND
GND
GND
24-pin system power connector 8-pin CPU power connector
(split CPU power planes)
●Split processor power planes
D1691 supports dual Intel’s 800 MHz FSB Xeon® processors, which could reach up to 140
Watts per processor. (Check Intel’s web for the processor specifications.) By following SSI EEB
v3.51 specifications, D1691 is designed with two separate voltage regulator circuits to provide
the power for both onboard processors in separate power rail. Using a power supply with a
combined CPU power plane from the CPU power connector is not allowed and may cause the
system to fail to power up or damage to the power supply.
●Power requirements
Check your power supply specifications to ensure sufficient power currents for each power rail
based on your system configuration.
The major system components/parts power sources are listed below as reference:
Components/Parts Main Power Source Power Connectors
CPU0 +12V_CPU0 8-pin CPU power connector
CPU1 +12V_CPU1 8-pin CPU power connector
Memory (Normal) +12V 24-pin power connectors
System logic +3.3V 24-pin power connectors
X16 PCI-Express
Graphic card slot
+12V and +3.3V 24-pin power connectors
PCI-X-slots +12V and +3.3V 24-pin power connectors
32-bit PCI slot +12V, +5V and +3.3V 24-pin power connectors
Cooling fans +12V 24-pin power connectors
IDE/SATA hard drives +12V and +5V From PSU
CDROM/DVD drives +12V and +5V From PSU

Board Installation
8 A26361-D1691-Z120-1-7619, edition 5
Board Installation
Overview Mainboard D1691
CPU0
CPU1
DIMM 1 (white)
DIMM 2 (white)
DIMM 3 (black)
DIMM 4 (black)
DIMM 5 (white)
DIMM 6 (white)
DIMM 7 (black)
DIMM 8 (black)
SCSI
PXH ICH5
SCSI channel A SCSI channel B
SIO
IEEE
1394
BIOS
LAN
primary IDE
secondary IDE
Floppy
SATA1
SATA2
FAN4
Audio
MCH
power conn
power
Audio
IEEE 1394
LAN
USB
KB/M
COM
SPDIF
parallel
Battery
PCI-E x 16
PCI 32/33 5V
PCI 32/33 5V
PCI-X 133 (orange slot)
PCI-X 100
PCI-X 100 ZCR (green slot)
PC98
FAN1
FAN2
FAN3
Aux
CD
5
6
7
8
9
10
12
11
14
15
1617
18
19
1234
21
20
13
1 = PS/2 Wakeup 12 = Remote Temperature Sensor
2 = LCD Header 13 = Serial ATA (SATA2 blue)
3 = Front Panel Header 14 = SCSI LED Header (Optional)
4 = CPU0/CPU1 ITP Jumper 15 = INTR Chassis Intrusion Header
5 = Front USB Header (yellow) 16 = Bus Speed Override
6 = IEEE 1394 Connector 17 = Internal Speaker Connector
7 = Internal Buzzer Enable 18 = Front Panel Audio Header
8 = Internal USB With Chipcardreader Support 19 = LAN Disable
9 = don´t use 20 = BIOS Write Protect
10 = Clear CMOS Switch 21 = RCV BIOS Recovery Jumper
11 = LAN TPM enable/disable

Board Installation
A26361-D1691-Z120-1-7619, edition 5 9
Jumper Example
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover
To indicate the location of pin-1
Clear CMOS Switch
You can reset the CMOS settings by shorting this header (J108), if you have
forgotten your system/setup password or need to clear system BIOS settings.
●Power off system and disconnect both power connectors from the
motherboard
●Short J108 for several seconds to Clear CMOS
●Remove Jumper
Reconnect power & power on system
Fan Connector
Pin 1
Pin1: GND
Pin2: Power
Pin3: Tachometer
This 3-pin fan connector supports tachometer monitoring.
There are four 3-pin fan connectors on D1691. Use these connectors to connect chassis and
processor cooling fans to your motherboard. Cooling fans can keep the system stable and
reliable for its product’s life.

Board Installation
10 A26361-D1691-Z120-1-7619, edition 5
Front Panel Header
Normally, a chassis has some control or signal wires can be connected onto a motherboard for hard
drive LED, Power LED, power button, and reset button;
The front panel header has been implemented on D1691 for such purposes.
Function PIN # PIN # Function
HDD LED+ 1 2 LED_GRN
HDD LED# 3 4 LED_YEL
GND 5 6 FP_PBTN#
FP_RESET 7 8 GND
+5V 9 10 FP_SLP#
n.c. 11 12 GND
GND4 13 14 Key
n.c. 15 16 n.c.
Intrusion 17 18 GND
Front USB Connector
Function Pin# Pin# Function
Power 1 2 Power
USB6- 3 4 USB7-
USB6+ 5 6 USB7+
GND 7 8 GND
Key 9 10 Reserved
SCSI LED Header (Optional)
Pin# Function
4 NC
3 LED2-
2 LED2-
1 NC

Board Installation
A26361-D1691-Z120-1-7619, edition 5 11
Serial ATA Connectors (SATA1 & SATA2)
SATA 2 (blue)
SATA 1(black)
User can connect up to two serial ATA hard disks
to run IDE mode or configure both drives to a
RAID under Windows. The RAID level 0 or level
1 function is supported for Microsoft’s Windows
XP and Windows 2000 operating systems.
i
For information regarding the setup of SATA/RAID, you may search the contents of the
driver CD that shipped with your motherboard.
Internal USB with Chipcardreader support (black)
!"
""
""
""
""
!"
Signal Pin Pin Signal
Key 1 2 CCR on
Power 3 4 Power
USB4- 5 6 USB5-
USB4+ 7 8 USB5+
GND 9 10 GND
Key 11 12 n. c.
Front Panel Audio Header
""
""
""
"!
""
If you remove the front panel audio cable you have to put jumpers on Pin 5&6 and
Pin 9&10 to get audio or microphone signals on your rear audio connections.
Signal Pin Pin Signal
MIC In FP 1 2 Audio GND
MIC BIAS 3 4 Audio Analog
Right Front out 5 6 Right Rear In
No Connect 7 8 Key
Left Front Out 9 10 Left Rear In
!
Do not place jumpers on this header in any other configuration. Doing so
could result in damage to the motherboard!

Board Installation
12 A26361-D1691-Z120-1-7619, edition 5
Internal Buzzer enable
"" Open – disables internal Buzzer
"" Closed – enables internal Buzzer
LAN TPM Enable
"" Open – TPM can enabled or disabled via BIOS setting
"" Closed – enables TPM, no matter of BIOS setting
PS/2 Wakeup
""" Close Pin-1 and 2 no PS/2 device wakeup
""" Close Pin- 2 and 3 – enables PS/2 device wakeup
BIOS Write Protect
"" Open – (Default) FWH can be written
"" Closed – FWH write protection
INTR – Chassis Intrusion Header
Active Low
Pin 1
Pin 1 Presence Detect Pin 2 Case Open Pin 3 GND
LCD header
""
""
!"
""
""
""
""
Signal Pin Pin Signal
n.c. 1 2 GND
n.c. 3 4 GND
Key 5 6 RFU
LAN Action 7 8 LAN Link
HD aktiv 9 10 Alert
Message 11 12 Sleep
Power 13 14 VDD
