Fujitsu AS G07KGTA Series Original operating manual

SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTEDtype
Models Indoor unit Outdoor unit
INVERTER
AS*G07KGTA
AS*G09KGTA
AS*G12KGTA
AS*G14KGTA
AO*G07KGCA
AO*G09KGCA
AO*G12KGCA
AO*G14KGCA
Models
SERVICE
INSTRUCTION
RSG07KGTA
RSG09KGTA
RSG12KGTA
RSG14KGTA
ROG07KGCA
ROG09KGCA
ROG12KGCA
ROG14KGCA

CONTENTS
1. DESCRIPTION OF EACH CONTROL OPERATION
1. COOLING OPERATION................................................................................................
3. DRY OPERATION.........................................................................................................
2. HEATING OPERATION.................................................................................................
5. INDOOR FAN CONTROL..............................................................................................
4. AUTO CHANGEOVER OPERATION............................................................................
7. LOUVER CONTROL.....................................................................................................
6. OUTDOOR FAN CONTROL..........................................................................................
9. TIMER OPERATION CONTROL...................................................................................
8. COMPRESSOR CONTROL..........................................................................................
11. TEST OPERATION CONTROL...................................................................................
10. ELECTRONIC EXPANSION VALVE CONTROL........................................................
13. FOUR-WAY VALVE EXTENSION SELECT................................................................
12. PREVENT TO RESTART FOR 3 MINUTES ( 3 MINUTES ST ).................................
15. MANUAL AUTO OPERATION ( Indoor unit body operation ).....................................
14. AUTO RESTART.........................................................................................................
16. FORCED COOLING OPERATION..............................................................................
17. COMPRESSOR PREHEATING..................................................................................
19. ECONOMY OPERATION............................................................................................
21. OUTDOOR UNIT LOW NOISE OPERATION..............................................................
20. HUMAN SENSOR........................................................................................................
01-01
01-02
01-03
01-04
01-05
01-07
01-08
01-09
01-10
01-13
01-13
01-13
01-14
01-14
01-14
01-15
01-15
18. 10°C HEAT OPERATION............................................................................................ 01-15
01-15
01-16
22. POWERFUL OPERATION.......................................................................................... 01-16
24. OFF DEFROST OPERATION CONTROL...................................................................
23. DEFROST OPERATION CONTROL........................................................................... 01-17
01-19
25. VARIOUS PROTECTIONS.......................................................................................... 01-20
01-13
2. TROUBLE SHOOTING
2-1 ERROR DISPLAY.......................................................................................................
2-1-1 INDOOR UNIT AND WIRED REMOTE CONTROLLER DISPLAY.....................
2-1-2 WIRED REMOTE CONTROLLER DISPLAY (OPTION).....................................
2-2 TROUBLE SHOOTING WITH ERROR CODE............................................................
2-3 TROUBLE SHOOTING WITH NO ERROR CODE.....................................................
02-01
02-01
02-03
02-04
02-31
2-4 SERVICE PARTS INFORMATION.............................................................................. 02-36

3. APPENDING DATA
3-1 FUNCTION SETTING.................................................................................................
3-1-1 INDOOR UNIT....................................................................................................
3-1-2 Procedures to change the Function Setting for wireless RC..............................
03-01
03-01
03-05
3-2 Thermistor Resistance Values.....................................................................................
3-2-1 INDOOR UNIT....................................................................................................
3-2-2 OUTDOOR UNIT................................................................................................
03-07
03-07
03-07

1 . DESCRIPTION OF EACH
CONTROL OPERATION
WALL MOUNTED type
INVERTER

( Fig.1 : Outdoor temperature zone )

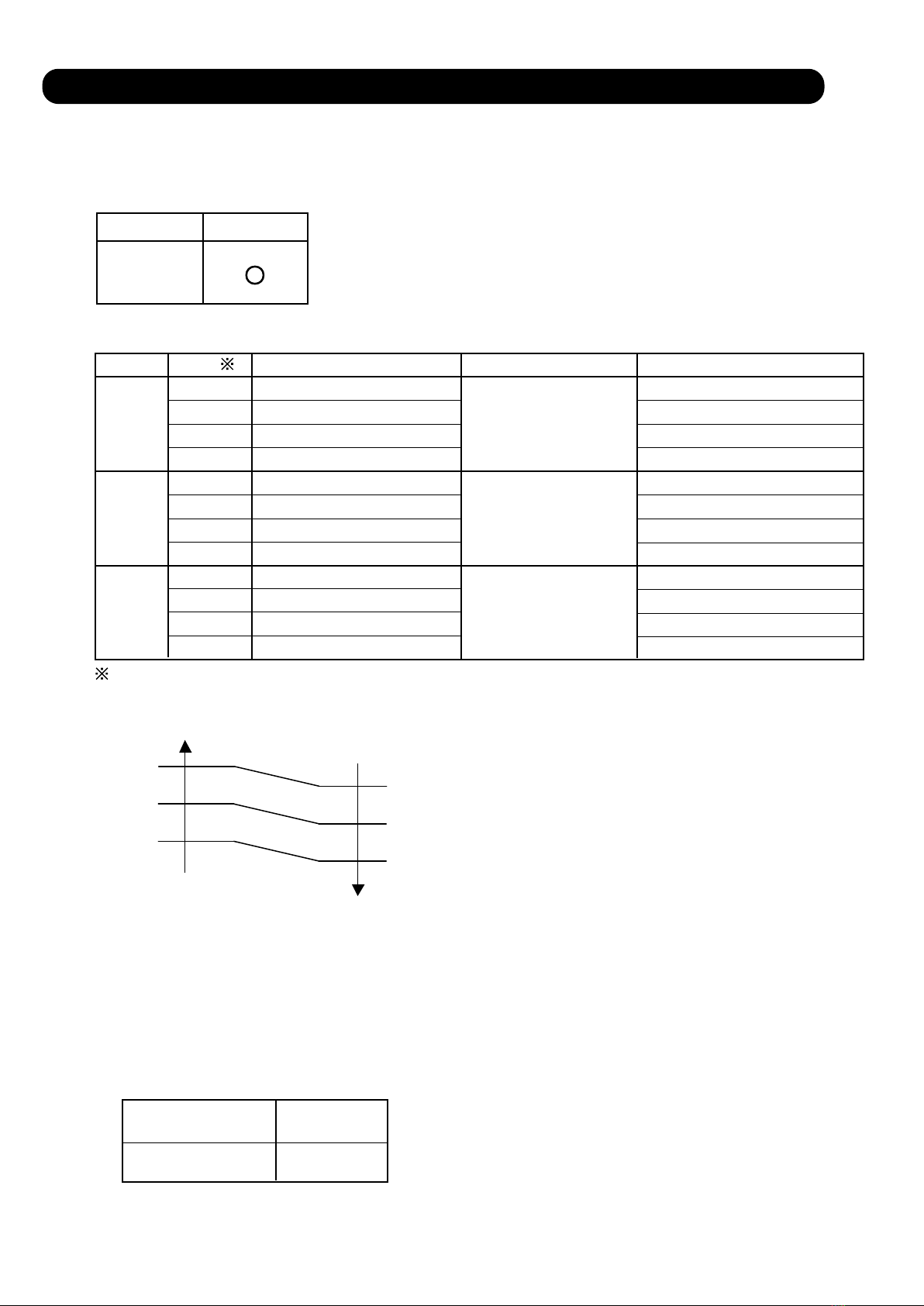

1. COOLING OPERATION
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
Minimum
frequency
Maximum
frequency
Maximum
frequency
12rps 44rps
47rps
62rps
67rps
12rps 83rps58rps
36°C
A zone
34°C 32°C
B zone
30°C 21°C
C zone
19°C
D zone
Indoor fan mode
Me Lo Quiet
A zone 62rps 36rps 24rps 18rps
B zone 62rps 36rps 24rps 18rps
C zone 62rps 36rps 24rps 18rps
D zone 44rps 34rps 22rps 16rps
E zone 44rps 34rps 22rps 16rps
F zone 44rps 34rps 22rps 16rps
( Table 1 : Compressor frequency range )
01-01
E zone
F zone
10°C
0°C
12°C
2°C
* When the room temperature is between +6°C to -1°C of the setting temperature,
the compressor frequency is controlled within the range shown in Table1.
However, the maximum frequency is limited in the range shown in Fig.1 based on the indoor
fan mode and the outdoor temperature.
* If the room temperature is some degrees lower than a set temperature,
the compressor will be stopped.
AO*G09KGCA
AO*G12KGCA
AO*G14KGCA
A zone 67rps 38rps 26rps 18rps
B zone 67rps 38rps 26rps 18rps
C zone 67rps 38rps 26rps 18rps
D zone 47rps 36rps 24rps 16rps
E zone 47rps 36rps 24rps 16rps
F zone 47rps 36rps 24rps 16rps
A zone 83rps 42rps 30rps 18rps
B zone 83rps 42rps 30rps 18rps
C zone 83rps 30rps 18rps
D zone 58rps 40rps 28rps 16rps
E zone 58rps 40rps 28rps 16rps
F zone 58rps 40rps 28rps 16rps
A zone 83rps 42rps 30rps 18rps
B zone 83rps 42rps 30rps 18rps
C zone 83rps 42rps 30rps 18rps
D zone 58rps 40rps 28rps 16rps
E zone 58rps 40rps 28rps 16rps
F zone 58rps 40rps 28rps 16rps
42rps
Outdoor
temperature
Outdoor
temperature
( Table 2 : Limit of maximum speed based on outdoor temperature )
AO*G07KGCA
AO*G09KGCA
AO*G07KGCA
AO*G12KGCA
AO*G14KGCA
Outdoor
temp. zone Hi
* If the room temperature is 6°C higher than a set temperature, the compressor operation
frequency will attain to maximum performance.
When the compressor operates for 30 minutes continuously at over the maximum frequency ,
the maximum frequency is changed from Maximum Frequency to Maximum Frequency .

2. HEATING OPERATION
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is lower by 6°C than a set temperature, the compressor operation
frequency will attain to maximum performance.
* If the room temperature is some degrees higher than a set temperature,
the compressor will be stopped.
* When the room temperature is between +1°C to -6°C of the setting temperature,
the compressor frequency is controlled within the range shown in Table 3.
( Table 3 : Compressor frequency range )
01-02
Minimum
frequency
Maximum
frequency
12rps 110rps
12rps 110rps
AO*G07KGCA
AO*G09KGCA
AO*G12KGCA
AO*G14KGCA

01-03
3. DRY OPERATION
The compressor frequency shall change according to the temperature, set temperature,
and room temperature variation which the room temperature sensor of the indoor unit body has
detected as shown in the Table 4.
Ts+0.5°C
Ts -1.5°C
Ts -0.5°C
Ts+1.5°C
( Table 4 : Compressor frequency in Dry mode)
( Fig.2 : Compressor control based on room temperature )
Operating
frequency
22rps
16rps
0rps
X zone
J zone
Y zone
X zone
J zone
Y zone
Room
temperature
Room
temperature

4. AUTO CHANGEOVER OPERATION
01-04

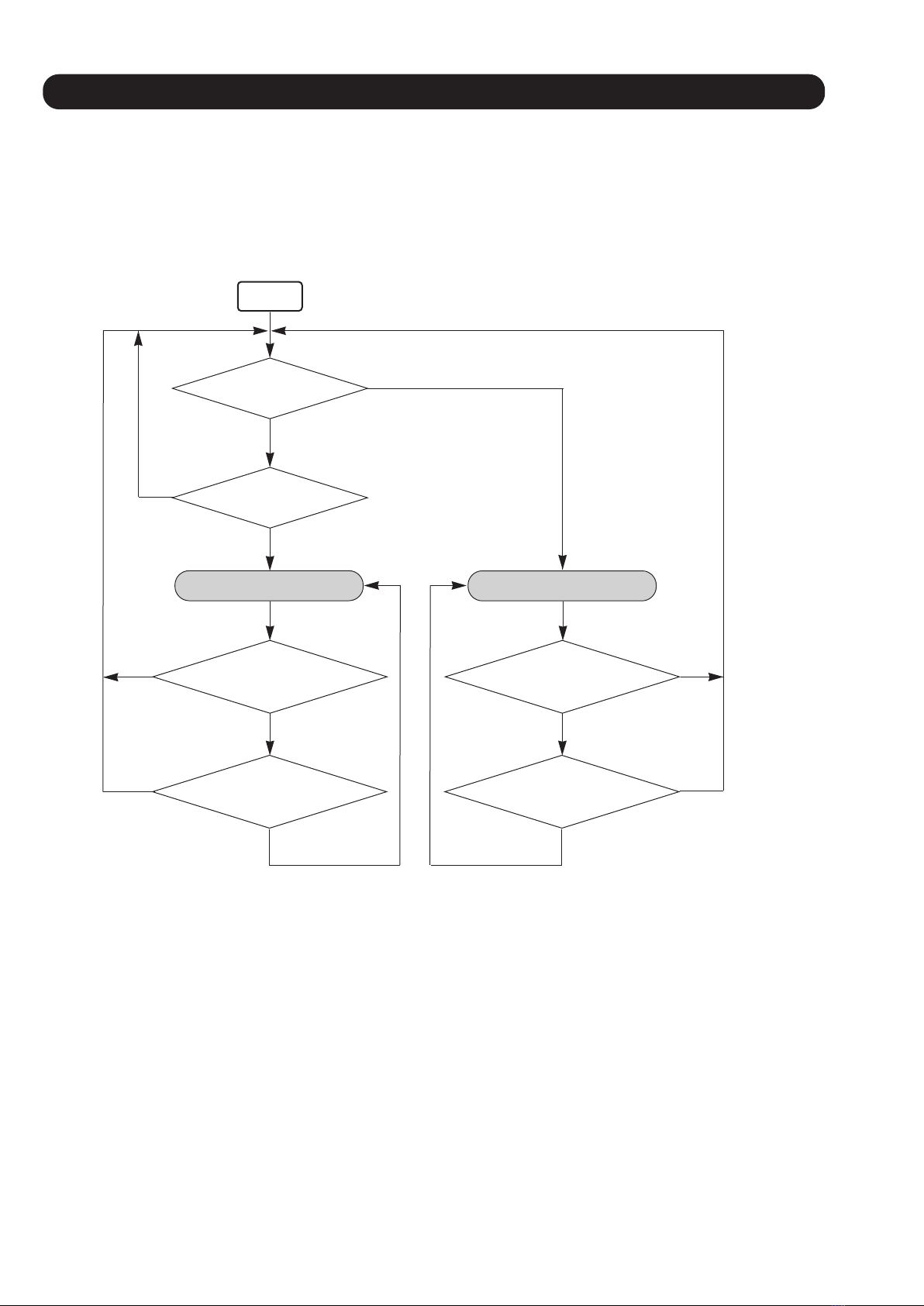

(Fig. 3 : Operation flow chart in Auto changeover)
START
Room temp.
Room temp.
>Ts+2°C ?
COOLING OPERATION
HEATING OPERATION
YES
YES
NO
NO
NO
NO
YES
YES
TS: Setting temperature
<Ts- 2°C ?
Thermostat remains
in OFF state for 6 minutes or
longer?
System stops
or operation command other than
auto changeover operation?
NO
NO
Thermostat remains
in OFF state for 6 minutes or
longer?
System stops
or operation command other than
auto changeover operation?
YES
YES
When the air conditioner is set to the AUTO mode by remote control, operation starts in the optimum
mode from among the Heating, Cooling, and Monitoring modes.
During operation, the optimum mode is automatically switched in accordance with temperature changes.
The temperature can be set between 18 C and 30 C in 0.5 C steps.
° ° °

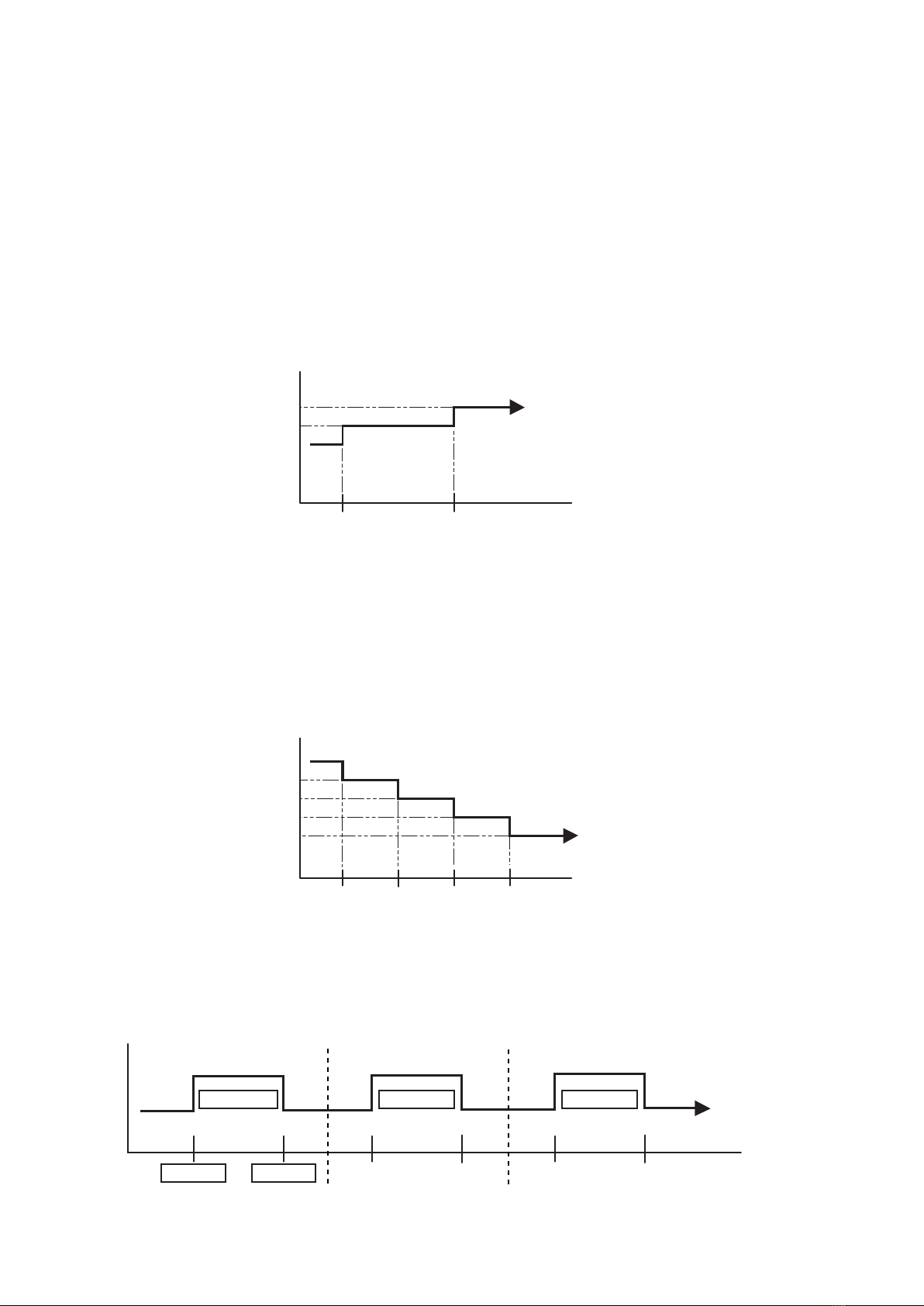

5. INDOOR FAN CONTROL
The airflow can be switched in 5 steps such as Auto, Quiet, Lo, Me, Hi, while the indoor fan only runs.
When fan mode is set at [Auto], it operates on [Me] fan Speed.
01-05
2. FAN OPERATION
3. COOLING OPERATION
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature,
as shown in Fig4.
On the other hand, if switched in [Hi] [Quiet], the indoor motor will run at a constant airflow of [Cool]
operation modes Quiet, Lo, Me, Hi, as shown in Table 5.

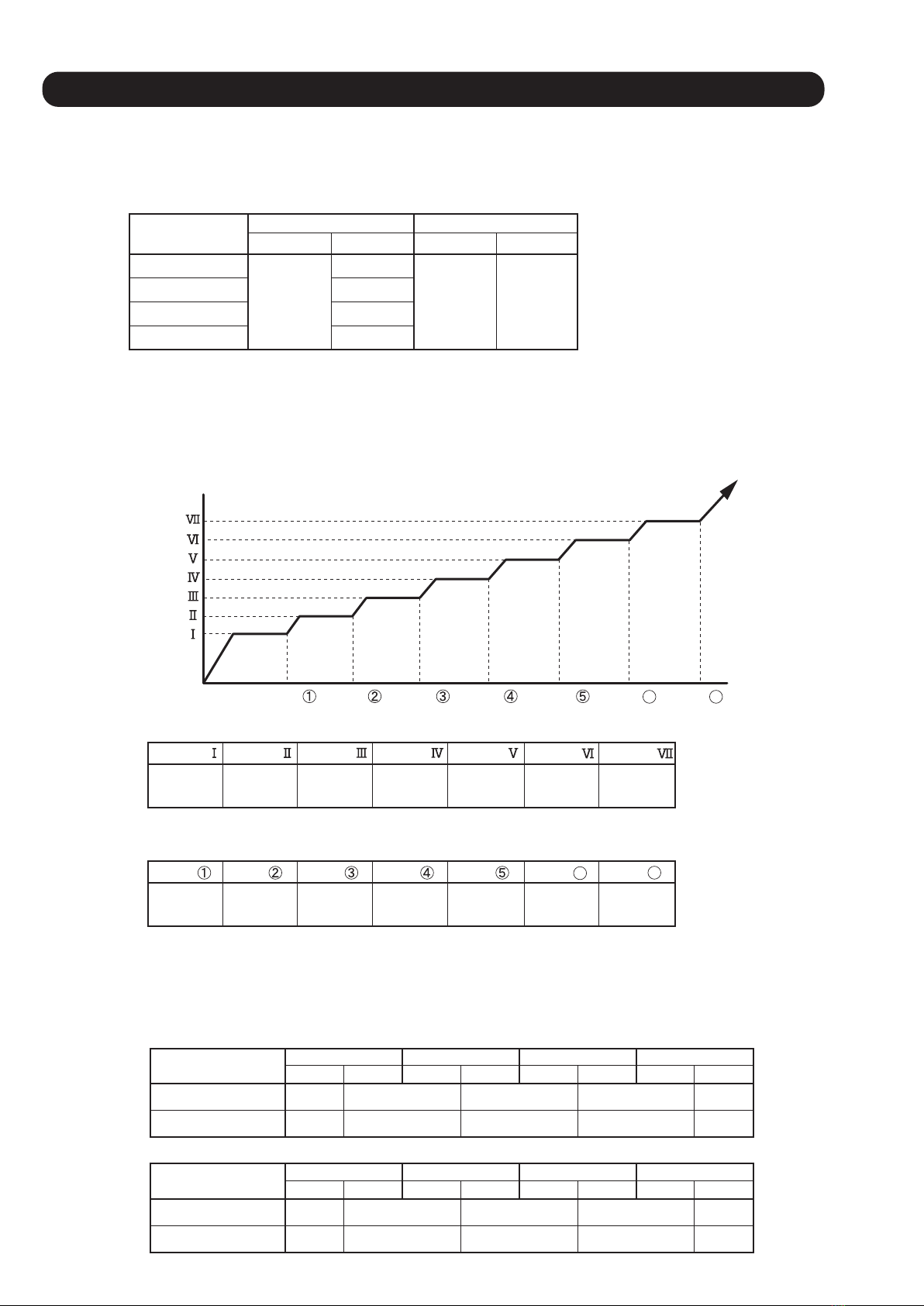

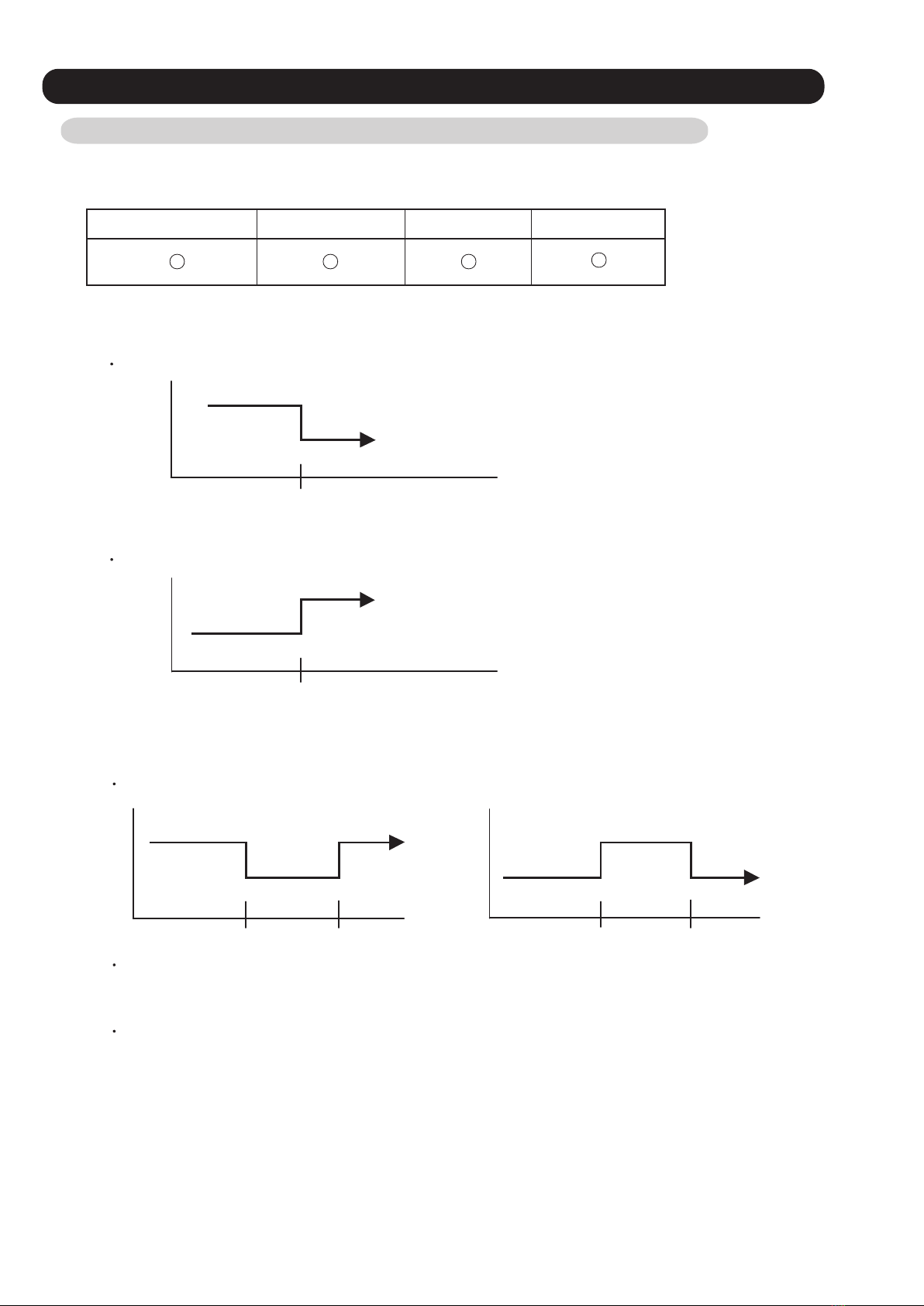

( Fig.4 : Airflow change - over ( Cooling : Auto ) )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > 2°C
1°C > TR-Ts
2°C > TR-Ts > 1°C
=
TR-Ts > 2.5°C
=
1.5°C > TR-Ts
2.5°C > TR-Ts > 1.5°C
=
Hi mode
Me mode
Lo mode
1. Fan speed

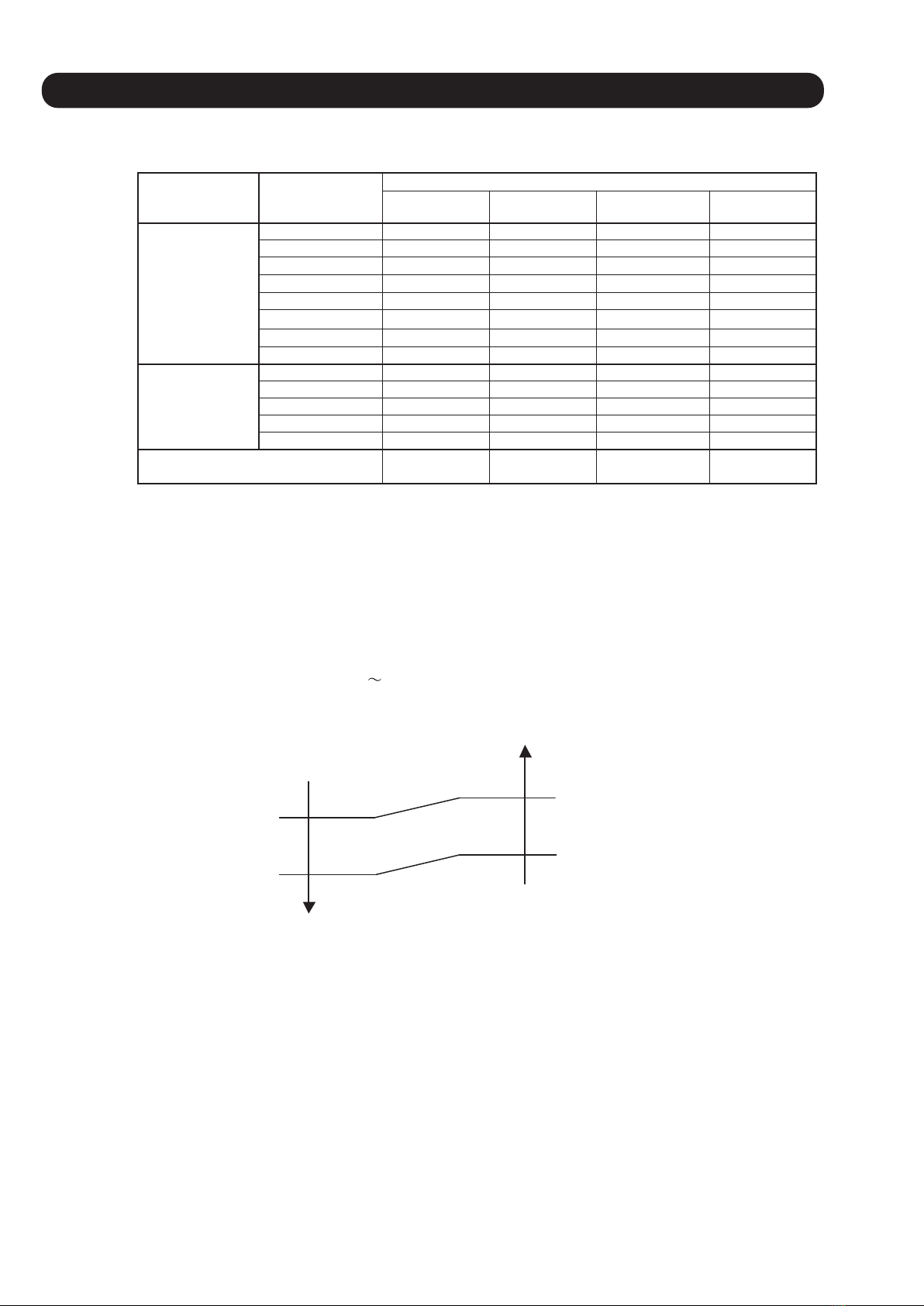

( Table 5 : Indoor fan speed )
Operation mode Air flow mode
Speed (rpm)
Cooling/ Fan
Heating
Dry X zone: 550
J zone: 550
X zone: 550
J zone: 550
X zone: 550
J zone: 550
AS*G07KGTA AS*G09KGTA AS*G12KGTA
4. DRY OPERATION
Refer to the Table 5.
During the dry mode operation, the fan speed setting can not be changed.
AS*G14KGTA
X zone: 590
J zone: 590
Hi
Hi
Me+
Me
Me
Lo
Lo
Quiet
Quiet
S-Lo
Cool air prevention
Powerful
Powerful
1200
1130
1040
950
790
620
550
400
1040
890
750
550
1110
1230
1160
1070
980
800
620
550
400
1100
920
750
550
1170
1290
1220
1140
1060
900
630
550
470
1130
950
790
550
1220
1330
1260
1160
1080
900
670
590
470
1220
1000
810
590
1290

The maximum value of the indoor fan speed is set as shown in Fig.6 based on the detected
temperature by the indoor heat-exchanger sensor on heating mode.
( Fig.6 : Cool air prevension control )
01-06
5. HEATING OPERATION
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature,
as shown in Fig. 5
On the other hand, if switched in [Hi] [Quiet], the indoor motor will run at a constant airflow
of [Heat] operation modes Quiet, Lo, Me, High, as shown in Table 5.
6. COOL AIR PREVENTION CONTROL (Heating mode)
( Fig.5 : Airflow change - over ( Heating : Auto ) )
TR-Ts > -1.5°C
=
-2.5°C > TR-Ts
-1.5°C > TR-Ts > -2.5°C
=
TR-Ts > -1°C
=
-2°C > TR-Ts
-1°C > TR-Ts > -2°C
=
When the room
temperature rises When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
Lo mode
Me mode
Me+ mode
42°C
30°C
34°C
Indoor heat exchanger
temperature Indoor heat exchanger
temperature
Hi
Me+
Lo
Cool air
prevention
39°C
37°C
37°C
32°C
28°C
S-Lo
Switch the airflow [Auto] at cooling mode, and the indoor fan motor will run as shown in Fig.7.
Switch the airflow at cooling mode, and the indoor fan motor will run as shown in Fig.7.
It depends on the Function setting "Indoor unit fan control for energy saving."
7. MOISTURE RETURN PREVENTION CONTROL (Cooling mode& Dry mode)
8. INDOOR UNIT FAN (CONTROL FOR ENERGY SAVING (Cooling mode)
( Fig.7 : Indoor fan control )
Compressor
ON
OFF
Indoor fan
Setting air flow
Indoor fan
(as shown in Table 7)
S-Lo
OFF
10 30 60 180 60 180 60 10 30
(sec)
( Table 6 : Indoor fan speed )
X zone J zone
AS*G07/09/12KGTA 550rpm 550rpm 550rpm
AS*G14KGTA 590rpm 590rpm 590rpm
Dry Cooling
42°C
30°C
34°C
Indoor heat exchanger
temperature Indoor heat exchanger
temperature
Powerful
Hi
Lo
Cool air
prevention
39°C
37°C
37°C
32°C
28°C
S-Lo
<Normal operation> <Powerful operation>

6. OUTDOOR FAN CONTROL
( Table 8 : Outdoor fan speed )
*The outdoor fan speed mentioned above depends on the compressor frequency, outdoor heat
exchanger and outside temperature.
(When the compressor frequency increases, the outdoor fan speed also changes to the higher
speed. When the compressor frequency decreases, the outdoor fan speed also changes to the
lower speed.)
*After the defrost control is operated on the heating mode, the fan speed keeps at the higher speed
as table9 without relating to the compressor frequency.
01-07
( Table9 : Outdoor fan speed after the defrost )
1. Outdoor Fan Motor
2. Fan Speed
AC Motor DC Motor
Following table shows the type of the outdoor fan motor. The control method is different
between AC motor and DC motor.
( Table 7 : Type of Motor )
1070rpm
1120rpm
Cooling Heating
09KGCA
07KGCA
AO*G07/ 09KGCA
14KGCA
12KGCA
Y
Z
Zone
Refer to Fig.8
(rpm)
F
G
Y
Z
F
G
Y
Z
F
G
Dry
990/ 300/ 270/ 240/ 220/ 200
990/ 800/ 680/ 550/ 480
1070/ 780/ 600/ 450
1070/ 800/ 640/ 600/ 450
1120/ 870/ 710/ 660/ 500
990/ 630/ 550/ 390/ 250/ 200
990/280/250/220/200
990/280/250/220/200
990/ 300/ 270/ 240/ 220/ 200
990/ 300/ 270/ 240/ 220/ 200
990/ 800/ 680/ 550/ 480
990/ 920/ 810/ 670/ 570/ 520
990/ 630/ 550/ 390/ 250/ 200
990/ 630/ 610/ 450/ 310/ 200
990/280/250/220/200
990/280/250/220/200
990/ 300/ 270/ 240/ 220/ 200
990/ 300/ 270/ 240/ 220/ 200
990/ 630/ 550/ 390/ 250/ 200
990/ 630/ 610/ 450/ 310/ 200
990/280/250/220/200
990/ 300/ 270/ 240/ 220/ 200
990/ 730/ 680/ 600/ 470/ 380/ 340
990/ 730/ 680/ 600/ 470/ 380/ 340
990/ 780/ 760/ 630/ 490/ 390/ 360
990/ 630/ 550/ 390/ 250/ 200
990/280/250/220/200
AO*G12/ 14KGCA
( Fig.8 : Outside air temperature zone selection )
21°C
10°C
Outside air
temperature
Outside air
temperature
Z zone
Y zone
F zone
G zone
12°C
2°C
19°C
0°C

7. LOUVER CONTROL
1. VERTICAL LOUVER CONTROL
3. SWING OPERATION

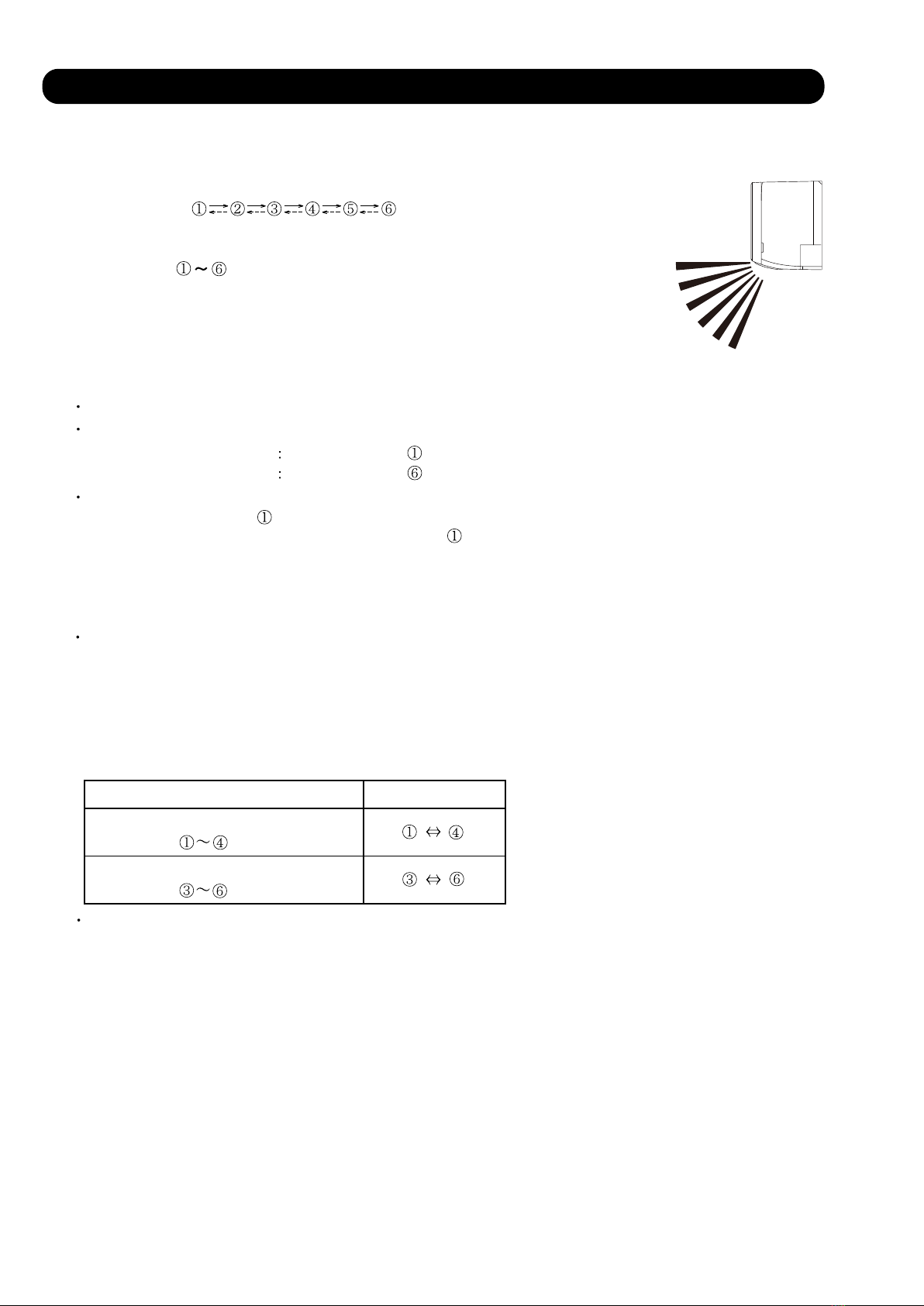

Each time the button is pressed, the air direction range will change as follow:
(Function Range)
01-08
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode Horizontal flow
Heating mode Downward flow
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Table10 : Swinging Range)
Air Direction RangeFig.9 :
Cooling / Dry mode
Fan mode ( )
Types of Air flow Direction Setting:
The Remote Controller's display does not change.
Use the air direction adjustments within the ranges shown above.
During AUTO mode operation, for the first a few minutes after beginning operation,
air-flow will be horizontal ; the air direction cannot be adjusted during this period.
The air flow direction setting will temporarily become when the temperature of the air -flow is
low at the start of the Heating mode.
Range
Heating mode
Fan mode ( )
The SWING operation may stop temporarily when the air conditioner’s fan is not operating,
or when operating at very low speeds.
2. ADJUST THE RIGHT-LEFT LOUVERS
Move the Right-Left louvers to adjust air flow in the direction you prefer.
To select Vertical Airflow Swing Operation
To select Horizontal Airflow Swing Operation
(No function)
ALL MODE : 1
2
3
456

8. COMPRESSOR CONTROL
01-09
1. OPEARTION FREQUENCY RANGE
The operation frequency of the compressor is different based on the operation mode as
shown in the Table 11.
Cooling / Dry Heating
Minimum Maximum Minimum Maximum
62rps
67rps
83rps
83rps
12rps12rps 110rps
45rps 56rps 68rps
(Table 11 : Compressor frequency range)
2. OPEARTION FREQUENCY CONTROL AT NORMAL START UP
The compressor frequency soon after the start-up is controlled as shown in the Fig.10
(Fig.10 : Compressor control at start-up)
Time Time Time Time Time
(Frequency)
Frequency Frequency Frequency Frequency Frequency
Frequency
Frequency
Frequency
Frequency
Frequency
Time Time Time Time Time
60sec 140sec 170sec 220sec 280sec 360sec 430sec
(Time)
77rps 84rps
Frequency
Frequency
Time 6Time 7
Time 7
Frequency Frequency
Time 6
93rps 103rps
3. LIMITATION OF COMPRESSOR FREQUENCY BY OUTDOOR TEMPERATURE
The minimum compressor frequency is limited by outdoor temperature as shown in the Table12.
Over Under Over Under Over Under Over Under
Over Under Over Under Over Under Over Under
AO*G07/ 09/ 12KGCA
AO*G14KGCA
20rps ---rps 28rps 36rps
36rps28rps20rps ---rps
---rps
20rps
(Table12 : Limitation of Compressor Frequency)
38°C 19°C 10°C 0°C
[ Cooling/ Dry ]
AO*G07/ 09KGCA
AO*G12/ 14KGCA
1rps 1rps 36rps 37rps
25 rps17rps1rps 1rps
15rps
10rps
19°C 5°C 0°C -15°C
[ Heating ]
AO*G07KGCA
AO*G09KGCA
AO*G12KGCA
AO*G14KGCA

9. TIMER OPEARTION CONTROL
1. OPEARTION FREQUENCY RANGE
The Table 13 shows the available timer setting based on the product model.
ON TIMER / OFF TIMER PROGRAM TIMER SLEEP TIMER
OFF timer : When the clock reaches the set time, the air conditioner will be turned off.
Operation mode
Stop mode
Set time of timer
ON timer : When the clock reaches the set time, the air conditioner will be turned on.
Operation mode
Stop mode
Set time of timer
The program timer allows the OFF timer and ON timer to be used in combination one time.
Operation mode
Operation will start from the timer setting (either OFF timer or ON timer) whichever is closest
to the clock's current timer setting.
The order of operations is indicated by the arrow in the remote control unit's display.
SLEEP timer operation cannot be combined with ON timer operation.
( Table 13 : Timer Setting )
2. PROGRAM TIMER
Stop mode Stop mode Stop mode
Operation mode Operation mode
Set time Set time Set time Set time
01-10
9-1 WIRELESS REMOTE CONTROLLER
WEEKLY TIMER

3. SLEEP TIMER
If the sleep is set, the room temperature is monitored and the operation is stopped automatically.
If the operation mode or the set temperature is change after the sleep timer is set, the operation is
continued according to the changed setting of the sleep timer from that time ON.
Set temperature rises
( Ts : Set temperature )
Stop of operation
Set temperature lowers
( Ts : Set temperature )
Ts
Stop of operation
In the cooling operation mode
When the sleep timer is set, the setting temperature is increased 1°C.
It increases the setting temperature another 1°C after 1 hour.
After that, the setting temperature is not changed and the operation is stopped at the time
of timer setting.
Ts
+1°C
+2°C
Set 60min
In the heating operation mode
When the sleep timer is set, the setting temperature is decreased 1°C.
It decreases the setting temperature another 1°C every 30 minutes.
Upon lowering 4°C, the setting temperature is not changed and the operation stops at
the time of timer setting.
-4°C
-3°C
-2°C
-1°C
Set 30min 30min 30min
01-11
4. WEEKLY TIMER
This timer function can set operation times of the each day of the week.
All days can be set together,the weekly timer can be used to repeat the timer setting for all of the days.
Setting day Setting day Setting day
ON OFF ON OFF ON OFF
Set time Set time

01-12
9-2 WIRED REMOTE CONTROLLER (OPTION)
The table13 shows the available timer setting based on the product model.
ON TIMER / OFF TIMER WEEKLY TIMER DAY OFF
( Table13 : Timer Setting )
1. ON TIMER / OFF TIMER
Same to 9-1 1. ON TIMER / OFF TIMER and shown in those.
2. WEEKLY TIMER
This timer function can set operation times of the each day of the week.
All days can be set together,the weekly timer can be used to repeat the timer setting for all of the days.
Setting day Setting day Setting day
ON OFF ON OFF ON OFF
Set time Set time
The DAY OFF setting is only available for days for which weekly settings already exist.
The DAY OFF setting can only be set one time. The DAY OFF setting is cancelled automatically
after the set day has passed.
Normal
Next day setting
If the operating time carries over to the next day (during a next day setting), the effective
DAY OFF range will be set as shown below.
3. DAY OFF setting
Stop mode Stop mode
Operation mode
Stop mode
Operation mode
Preceding day Next day
DAY OFF
Stop mode Stop mode
Operation mode
Stop mode
Operation mode
DAY OFF
Setting day
Preceding day Next daySetting day

10. ELECTRONIC EXPANSION VALVE CONTROL
The most proper opening of the electronic expansion valve is calculated and controlled under the present
operating condition based on the Table15.
The compressor frequency, the detected temperature by the discharge temperature sensor,
the indoor heat exchanger sensor, the outdoor heat exchanger sensor, and the outdoor temperature sensor.
The expansion valve is set at 480 pulses 110seconds after the compressor had stopped.
At the time of supplying the power to the outdoor unit, the initialization of the electronic
expansion valve is operated (528 pulses are input to the closing direction).
01-13
( Table15 : The pulse range of the electronic expansion valve control )
Cooling / Dry mode
Heating mode
Operation mode Pulse range
Between 0 to 480 pulses.
AO*G09KGCA
AO*G07KGCA
AO*G12KGCA
AO*G14KGCA
Initialization will start after 24 hours pass from the last initialization, and the compressor stops
The compressor won't enter operation status for 2 minutes and 20 seconds after the compressor is stopped,
even if any operation is given.
[ Release ]
Perform the test operation for 60 minutes.
Pressing the START/STOP button will stop the test operation.
[ Operation method ](With Wireless Remote Controller)
Before starting the test run,wait for 1 minute after connecting the power supply.
By the wireless remote controller
To start the run, press the “START/STOP”button, the “TEST RUN” button on the remote controller with a by
using the tip of a ballpoint pen or other small object.
[ Release ]
Perform the test operation for 60 minutes.
Pressing the MANUAL AUTO button of the indoor unit for more than 3 seconds.
[ Using the Wired remote control (Option) ]
If the Operation lamp is on, press the START/STOP button to turn it off.
Press the MODE and the FAN buttons at the same time for more than two seconds
to start the test operation.
The operation lamp will light up and "o1" will be displayed on the set temperature display.
At the time when the air conditioner is switched from the cooling mode to heating mode, the
compressor is stopped, and the four-way valve is switched in 3 minutes later after
the compressor stopped.
12. PREVENT TO RESTART FOR 3 MINUTES ( 3 MINUTES ST )
13. FOUR-WAY VALVE EXTENSION SELECT
11. TEST OPERATION CONTROL
[ Operation method ]
The outdoor unit, may not operate, depending on the room temperature.
In this case, keep on pressing the MANUAL AUTO button of the indoor unit for more than 10 seconds.
The Operation lamp and Timer lamp will begin to flash simultaneously during cooling test run.
Then, heating test run will begin in about 3 minutes when HEAT is selected by the remote control operation.
(When the air conditioner is running by pressing the test run button, the Operation lamp and Timer lamp
will simultaneously flash slowly.)

15. MANUAL AUTO OPERATION (Indoor unit body operation)
When the remote control is lost or battery power dissipated, this function will work without the remote control.
When MANUAL AUTO button is set more than 3seconds and less than 10seconds, MANUAL AUTO OPERATION
will be started as shown in Table16.
To stop operation, press the MANUAL AUTO button for 3seconds.
(Table16 : MANUAL AUTO OPERATION)
01-14
16. FORCED COOLING OPERATION (TEST OPERATION)
Forced cooling operation is started when press MANUAL AUTO button for 10 seconds or more.
During the forced cooling operation, it operates regardless of room temperature sensor.
Operation LED and timer LED blink at the same time during the forced cooling operation.
They blink for 1 second ON and 1 second OFF on both operation LED and timer LED (same as test operation).
Forced cooling operation is released after 60 minutes of starting operation or pressing MANUAL AUTO button
for 3 seconds.
( Table17 : FORCED COOLING OPERATION )
When FORCED COOLING OPERATION is set, the operation is controlled as shown in Table17.
When the power was interrupted by a power failure, etc. during operation, the operation contents
at that time are memorized and when power is recovered, operation is automatically started with
the memorized operation contents.
When the power is interrupted and recovered during timer operation, since the timer operation time
is shifted by the time the power was interrupted, an alarm is given by blinking (7 sec ON/2 sec OFF)
the indoor unit body timer lamp.
[ Operation contents memorized when the power is interrupted ]
Operation mode
Set temperature
Set air flow
Timer mode and set time (set by wireless remote controller)
Set air flow Direction
Swing
ECONOMY operation
10°C HEAT operation
Outdoor low noise operation
Human sensor
14. AUTO RESTART
OPERATION MODE Auto changeover
FAN CONT. MODE Auto
TIMER MODE Continuous
SETTING TEMP. 24°C
SETTING LOUVER Standard
SWING
ECONOMY
OFF
OFF
(No timer setting available)
Forced cooling operation
Cooling
Hi
Horizontal
(It is changed follow as setting of remote controller)
OFF
Room Temp is not controlled
Manual auto operation
-
-
OPERATION MODE
FAN CONT. MODE
TIMER MODE
SETTING TEMP.
SETTING LOUVER
SWING
ECONOMY
Intake grille

01-15
17. COMPRESSOR PREHEATING
18. 10°C HEAT OPERATION
10°C HEAT operation performs as below when pressing 10°C HEAT button or Weekly timer setting on the remote
controller.
Mode Heating
Setting temperature 10°C
Fan mode Auto
LED display Economy
Defrost operation Operate as normal
( Table 18 : 10°C HEAT operation )
19. ECONOMY OPERATION
20 . HUMAN SENSOR CONTROL
The ECONOMY operation functions by pressing ECONOMY button on the remote controller.
At the maximum output, ECONOMY Operation is approximately 70% of normal air conditioner operation
for cooling and heating.
The ECONOMY operation is almost the same operation as below settings.
Mode Cooling/ Dry Heating
Target temperature Setting temp.+1°C Setting temp.-1°C
( Table 19 )
Mode Cooling/ Dry Heating
Target temperature Setting temp.+2°C Setting temp.-4°C
( Table 20 )
The HUMAN SENSOR functions by pressing SENSOR button on the remote controller.
When the sensor detects that there is no one in the room for 20 minutes or more,
it automatically changes the operation as below settings.
When someone comes back into the room, the human sensor will detect this, and
automatically revert to the original settings.
90°
6 m
6 m
50° 50°
Vertical angle 90°(Side view) Horizontal angle 100°(Top view)
( Application range )
The sensor unit should detect when the human body (estimate: 100cmX30cm) or the object
which has more than 4 degreesC temp, difference from the background and are crossed with
1.0m/s speed in front of the sensor unit.
When the outdoor heat exchanger temperature is lower than -4°C and the heating operation has
been stopped for 30 minutes, power is applied to the compressor and the compressor is heated.
(By heating the compressor, warm air is quickly discharged when operation is started.)
When operation was started, and when the outdoor temperature rises to -2°C or greater,
preheating is ended.

01-16
21. OUTDOOR UNIT LOW NOISE OPERATION
The OUTDOOR UNIT LOW NOISE Operation functions by pressing OUTDOOR UNIT LOW NOISE button
on the remote controller.
This operation stops the PFC control, and changes the Current release operation/release value.
OUTDOOR UNIT LOW NOISE Operation mode can be used during cooling, heating and automatic operation.
It can not be used in Fan and Dry mode
Control / Release
Current release
operation/release value 3.5A / 3.0A
( Table 21 )
22. POWERFUL OPERATION
The POWERFUL OPERATION functions by pressing POWERFUL button on the remote controller.
The indoor unit & outdoor unit will operate at maximum power as shown in Table22.
Release Condition is as follows.
[Cooling / Dry]
- Room tenperature < Setting temperature - 0.5°C or Operation time has passed 20 minutes.
COMPRESSOR FREQUENCY Maximum
FAN CONT. MODE Powerful
SETTING LOUVER Cooling/ Dry : 3, Heating : 6
(Table22)
Powerful operation
=
=
[Heating]
- Room tenperature > Setting temperature +0.5°C or Operation time has passed 20 minutes.
