Fujitsu ARG25ALC User manual

SPLIT TYPE
AIR CONDITIONER (50Hz)
DUCT type
Models Indoor unit Outdoor unit
ARG25ALC
ARG25RLC
ARY25ALC
ARY25RLC
ART25ALC
ART25RLC
ARG30ALC
ARG30RLC
ARY30ALC
ARY30RLC
ART30ALC
ART30RLC
AOG25ANBL
AOG25RNBL
AOY25ANBL
AOY25RNBL
AOT25ANAL
AOT25RNAL
AOT25RZDL
AOG30AMBL
AOG30AMBH
AOG30RMBL
AOY30AMBL
AOY30AMBH
AOY30RMBL
AOT30AMBL
AOT30RMBL
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
INDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . . 18
OUTDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . 21
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

TYPE
INDOOR UNIT ARG25ALC ART25ALC ARG25RLC
ARY25ALC ARY25RLC
OUTDOOR UNIT AOG25ANBL AOT25ANAL AOG25RNBL AOT25RNAL AOT25RZDL
AOY25ANBL AOY25RNBL
COOLING CAPACITY (kW) 7.00 - 7.10 7.10 6.80 - 7.05 7.05 7.00
HEATING CAPACITY (kW) - - 7.75 - 8.00 8.00 7.90
POWER SOURCE V220 - 240 240 220 - 240
Hz
RUNNING CURRENT (COOL) A13.0 - 13.6 13.0 12.6 - 12.6 12.6 13.9
RUNNING CURRENT (HEAT) A- - 11.6 - 11.6 11.6 12.8
INPUT WATTS (COOL) kW 2.64 - 2.77 2.85 2.70 - 2.80 2.80 3.00
INPUT WATTS (HEAT) kW - - 2.45 - 2.55 2.55 2.70
E.E.R (COOL) kW/kW 2.65 - 2.56 2.49 2.52 - 2.52 2.52 2.33
E.E.R (HEAT) kW/kW - - 3.16 - 3.14 3.14 2.93
STARTING CURRENT A61 35 61 35 45
MOISTURE REMOVAL l/h 2.2 2.5 2.2
COMPRESSOR TYPE
CODE AWG5532EXC
REFRIGERANT R-22 g 2100 2050 2200
FAN SPEED INDOOR HIGH r.p.m
FAN SPEED INDOOR MED r.p.m
FAN SPEED INDOOR LOW r.p.m
FAN SPEED OUTDOOR r.p.m 740 720 740
AIR FLOW INDOOR m3/h
AIR FLOW OUTDOOR m3/h 2590 3000 2590
DIMENSIONS IN (H x W x D) mm
DIMENSIONS OUT (H x W x D) mm 643 x 840 x 336 700 x 900 x 350 643 x 840 x 336
WEIGHT IN (NET/GROSS) kg
WEIGHT OUT (NET/GROSS) kg 65 / 73 67 / 79 69 / 77
MAX PIPE LENGTH/HEIGHT m
REMOTE CONTROLLER TYPE
REFRIGERANT CHARGE (FULL CHARGE AMOUNT)
PIPE LENGTH 7.5m (25ft) 10m (33ft) 15m (49ft) 20m (66ft) 25m (82ft) Additional refrigerant
ARG25ALC / AOG25ANBL 2100g (74.1 oz) 2143g (75.6 oz) 2228g (78.6 oz) 2313g (81.6 oz) 2398g (84.6 oz) 17g/m (0.18 oz/ft)
ARY25ALC / AOY25ANBL
ART25ALC / AOT25ANAL 2050g (72.3 oz) 2100g (74.1 oz) 2200g (77.6 oz) 2300g (81.1 oz) 2400g (84.7 oz) 20g/m (0.22 oz/ft)
ARG25RLC / AOG25RNBL 2200g (77.6 oz) 2300g (81.1 oz) 2500g (88.2 oz) 2700g (95.2 oz) 2900g (102.3 oz) 40g/m (0.43 oz/ft)
ARY25RLC / AOY25RNBL
ART25RLC / AOT25RNAL 2100g (74.1 oz) 2225g (78.5 oz) 2475g (87.3 oz) 2725g (96.1 oz) 2975g (104.9 oz) 50g/m (0.54 oz/ft)
ART25RLC / AOT25RZDL
COOLING & HEATINGCOOLING
240
Ｓ Ｐ Ｅ Ｃ Ｉ Ｆ Ｉ Ｃ Ａ Ｔ Ｉ Ｏ Ｎ Ｓ
ART25RLC
2.5
50
2100
2JS438D5CA02
Hermetic type, 2 pole, Single phase, Induction motor
890
820
745
720
1100 (at 100Pa)
3000
270 x 1210 x 700
700 x 900 x 350
70 / 82
WIRED
25 / 15
43 / 58
1
2003.05.08

REFRIGERANT CHARGE (FULL CHARGE AMOUNT)
PIPE LENGTH 7.5m (25ft) 10m (33ft) 15m (49ft) 20m (66ft) 25m (82ft) 30m (98ft) Additional refrigerant
ARG30ALC / AOG30AMBL 2400g (84.7 oz) 2450g (86.4 oz) 2550g (89.9 oz) 2650g (93.5 oz) 2750g (97.0 oz) 2850g (100.5 oz) 20g/m (0.22 oz/ft)
ARY30ALC / AOY30AMBL
ART30ALC / AOT30AMBL
ARG30ALC / AOG30AMBH 2500g (88.2 oz) 2550g (89.9 oz) 2650g (9305 oz) 2750g (97.0 oz) 2850g (100.5 oz) 2950g (104.1 oz) 20g/m (0.22 oz/ft)
ARY30ALC / AOY30AMBH
ARG30RLC / AOG30RNAL 2700g (95.2 oz) 2825g (100.5 oz) 3075g (108.5 oz) 3325g (117.3 oz) 3575g (126.1 oz) -50g/m (0.54 oz/ft)
ARY30RLC / AOY30RNAL
AOT30RLC / AOT30RNAL
TYPE
INDOOR UNIT ART30ALC ARG30RLC ART30RLC
ARY30RLC
OUTDOOR UNIT AOG30AMBL AOG30AMBH AOT30AMBL AOG30RMBL AOT30RMBL
AOY30AMBL AOY30AMBH AOY30RMBL
COOLING CAPACITY (kW) 8.80 8.30 - 8.60 8.60
HEATING CAPACITY (kW) 9.30 - 9.50 9.50
POWER SOURCE V240 220 - 240 240
Hz
RUNNING CURRENT (COOL) A15.3 15.9 - 15.7 15.5
RUNNING CURRENT (HEAT) A14.5 - 14.7 14.5
INPUT WATTS (COOL) kW 3.40 3.40 - 3.55 3.50
INPUT WATTS (HEAT) kW 3.05 - 3.20 3.27
E.E.R (COOL) kW/kW 2.59 2.44 - 2.42 2.46
E.E.R (HEAT) kW/kW 3.05 - 2.97 2.91
STARTING CURRENT A45 90 45
MOISTURE REMOVAL l/h
COMPRESSOR TYPE
CODE NH52VNHT NHT52VAAT NH52VNHT
REFRIGERANT R-22 g 2400 2500 2400
FAN SPEED INDOOR HIGH r.p.m
FAN SPEED INDOOR MED r.p.m
FAN SPEED INDOOR LOW r.p.m
FAN SPEED OUTDOOR r.p.m
AIR FLOW INDOOR m3/h
AIR FLOW OUTDOOR m3/h
DIMENSIONS IN (H x W x D) mm
DIMENSIONS OUT (H x W x D) mm
WEIGHT IN (NET/GROSS) kg
WEIGHT OUT (NET/GROSS) kg
MAX PIPE LENGTH/HEIGHT m
REMOTE CONTROLLER TYPE
8.60 - 8.80
220 - 240
-
-
15.5 - 15.3
3.30 - 3.40
COOLING & HEATINGCOOLING
ARG30ALC
ARY30ALC
-
50
2700
Hermetic type, 2 pole, Single phase, Induction motor
-
2.61 - 2.59
90
4.0
NH52VNHT
1240
1140
1040
760730
1750 (at 100Pa)
3450
270 x 1210 x 700
3320
900 x 900 x 350
80 / 92
WIRED
43 / 58
30 / 15 25 / 15
79 / 91
2
2003.05.08

197
46996
4066 184
68
382
243
196
126
700
141
139 83 264
1,177
1,063
1,135
264 264
270
96
58
26
26
117
220
200
75
42
205
Unit : mm
DIMENSIONS
INDOOR UNIT
Models : ARG25ALC
ARY25ALC
ART25ALC
ARG30ALC
ARY30ALC
ART30ALC
ARG25RLC
ARY25RLC
ART25RLC
ARG30RLC
ARY30RLC
ART30RLC
OUTDOOR UNIT
Models : AOG25ANBL
AOY25ANBL
AOG25RNBL
AOY25RNBL
3
2003.05.08

Models :
Models : AOG30AMBH, AOG30RMBL
AOY30AMBH, AOY30RMBL
AOG30AMBL, AOT30RMBL
AOY30AMBL,
AOT30AMBL
Unit : (mm)
900
930
900
350
15
900
15
930
700
350
AOT25ANAL
AOT25RNAL
AOT25RZDL
4
2003.05.08

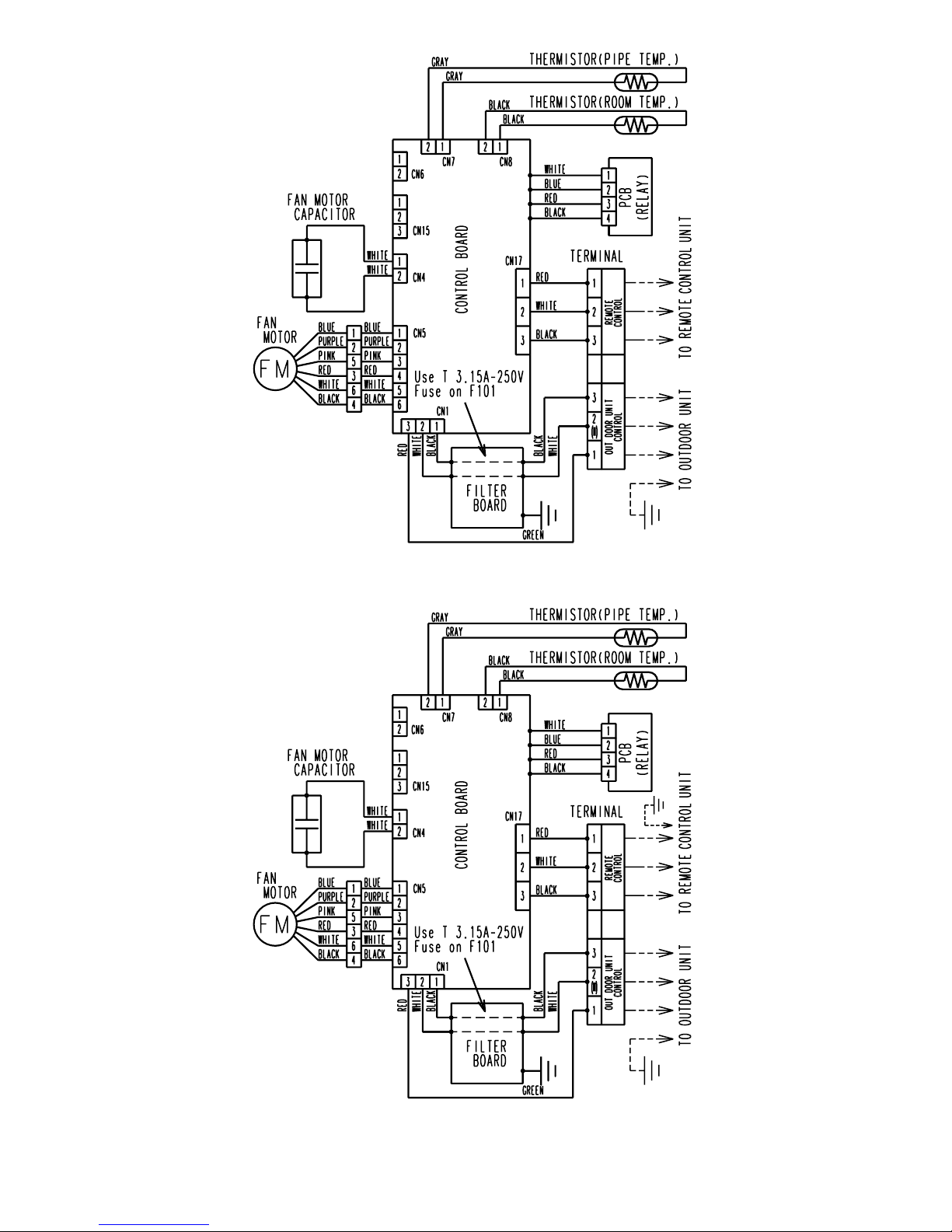

CIRCUIT DIAGRAM
Models : ARG25ALC
ARY25ALC
Models : ARG25RLC
ARY25RLC
52003.05.08

Models : ART25ALC
Models : ART25RLC
62003.05.08

CR COMPOSITE
OUTDOOR
THERMOSTAT
CH
L
FAN MOTOR
CAPACITOR
TERMINAL
BLACK
BLACK BLACK BLACK
WHITE
WHITE
WHITE
L N 3
2
(N)
1
TO INDOOR UNIT
TO POWER SUPPLY
FUSE 5A
WHITE
BLACK BLUE
RED
WHITE
BLACK BLUE
RED
FAN
MOTOR
MAIN
RELAY
BROWN BROWN
6
5
4
1
COMPRESSOR
CAPACITOR
COMPRESSOR
C
S
R
BLACK
BLACK
BLUE
GRAY
RED
RED
RED
WHITE
SOFT STARTER
START
CAPACITOR
INTERNAL
OVERLOAD
PROTECTOR
4365 21

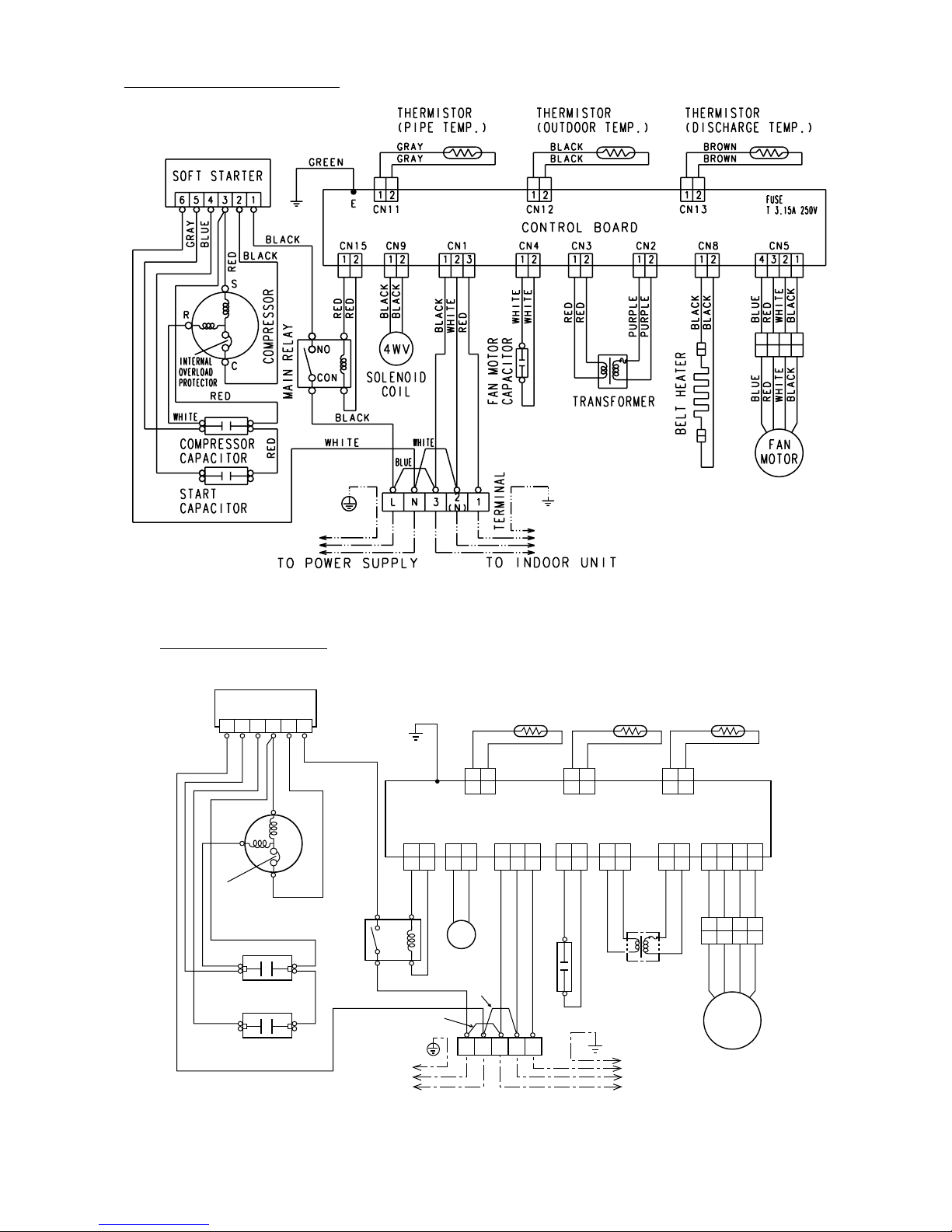

Models : AOG25ANBL
Models : AOT25ANAL
AOY25ANBL
7
2003.05.08

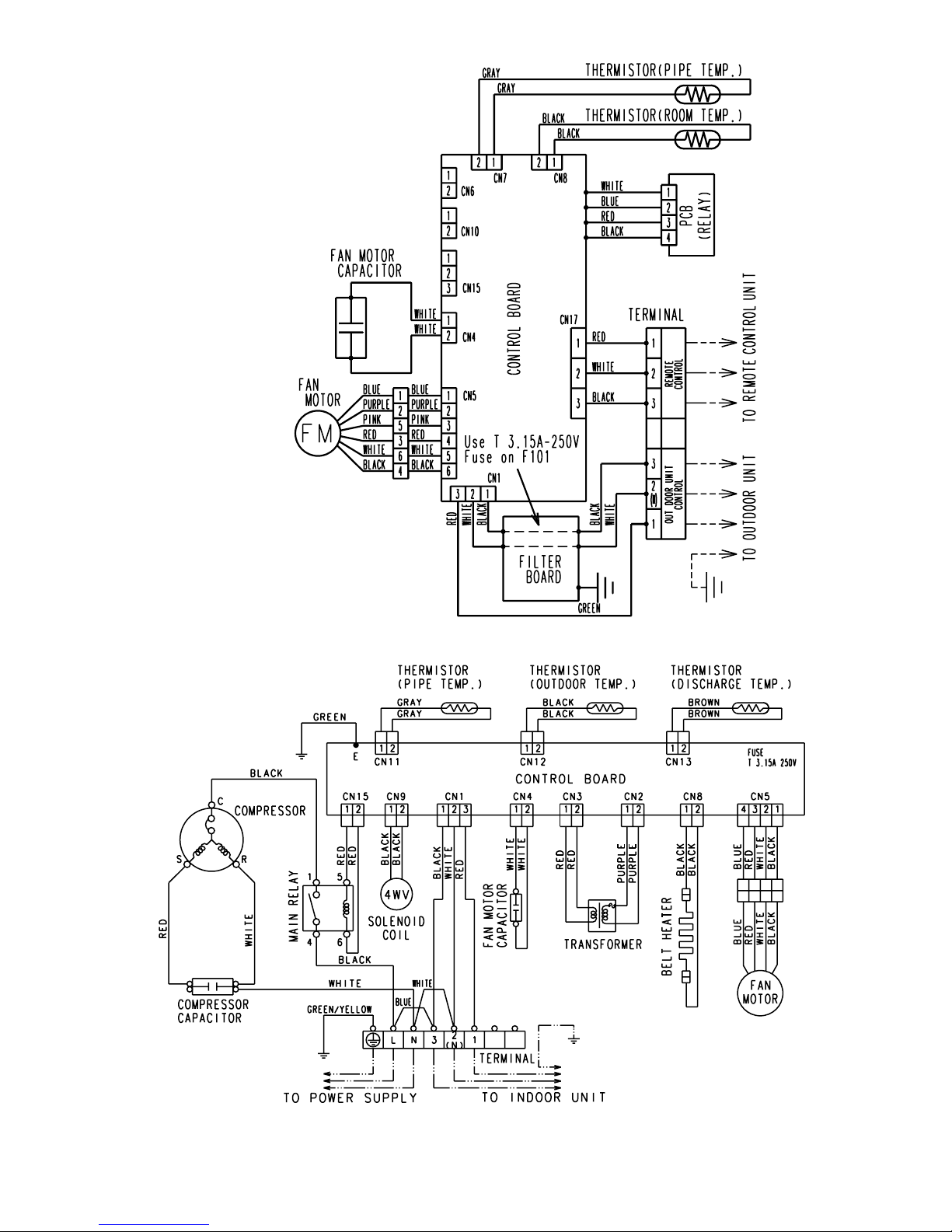

Model : AOG25RNBL
AOY25RNBL
82003.05.08

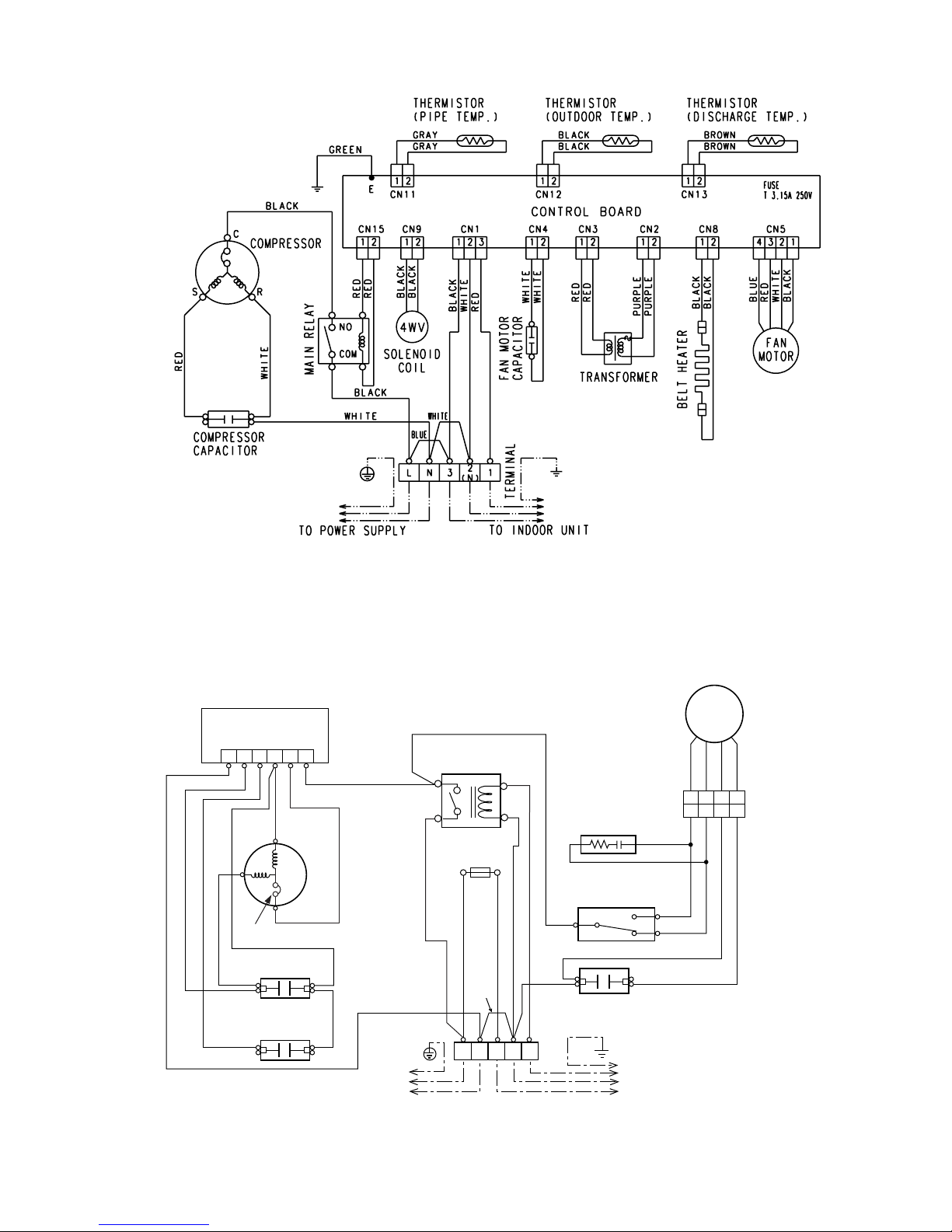

Model : AOT25RNAL
TRANSFORMER
SOLENOID
COIL
FAN MOTOR CAPACITOR
MAIN RELAY
TERMINAL
THERMISTOR
(PIPE TEMP.)
THERMISTOR
(OUTDOOR TEMP.) (DISCHARGE TEMP.)
THERMISTOR
GREEN
PURPLE PURPLE
WHITE
YELLOW YELLOW
BLACK
BLACK
BLUE
BLACK BLACK
BLACK
BLACK
GRAY
GRAY
BROWN
BROWN
RED RED
RED
WHITE
BLACK BLUE
RED
WHITE
BLACK BLUE
RED
RED RED
WHITE
WHITE
CN15 CN9 CN1 CN4 CN3 CN2 CN5
CN11
ECN12 CN13
FUSE
T 3.15A 250V
CONTROL BOARD
12 12 12
12 12341212431212 1
FAN
MOTOR
4WV
L N 3
2
(N)
1
TO INDOOR UNIT
TO POWER SUPPLY
NO
COM
START
CAPACITOR
COMPRESSOR
C
S
R
RED
RED
BLUE GRAY
RED
WHITE
BLACK
BLACK
COMPRESSOR
SOFT STARTER
CAPACITOR
OVERLOAD
PROTECTOR
32456 1
Model : AOT25RZCL
2003.05.08 9

ARY30ALC
Model : ARG30ALC
Model : ART30ALC
10
2003.05.08

Models : AOG30AMBL, AOY30AMBL
(N)
LN 1
32
C
RS
BLACK BLACK
BLUE
RED
BLACK
BLACK
BLACK
RED
GREEN/YELLOW
BLACK
WHITE
WHITE
WHITE
WHITE WHITE
FAN
MOTOR
TERMINAL
FAN MOTOR
CAPACITOR
COMPRESSOR
CAPACITOR
COMPRESSOR
THERMAL
PROTECTOR
INTERNAL
OVERLOAD
PROTECTOR
CONNECTOR
CR COMPOSITE
H
L
C
OUTDOOR
THERMOSTAT
BROWN BROWN
6
5
4
1
MAIN RELAY
FUSE
5A
Model : AOT30AMBL
(N)
LN 1
32
BLUE
BLUE
RED
RED
RED
RED
GREEN/YELLOW
BLACK
BLACK
BLACK
BLACK BLACK BLACK
GRAY
BROWN
BROWN
WHITE
WHITE WHITE
TERMINAL
SOFT STARTER
6
4
3
2
1
5
FUSE
5A
HL
C
OUTDOOR
THERMOSTAT
6
5
4
1
MAIN RELAY
C
RS
COMPRESSOR
INTERNAL
OVERLOAD
PROTECTOR
BLACK
WHITE
FAN
MOTOR
FAN MOTOR
CAPACITOR
THERMAL
PROTECTOR
CONNECTOR
WHITE
COMPRESSOR
CAPACITOR (RUN)
COMPRESSOR
CAPACITOR (START)
2003.05.08 11

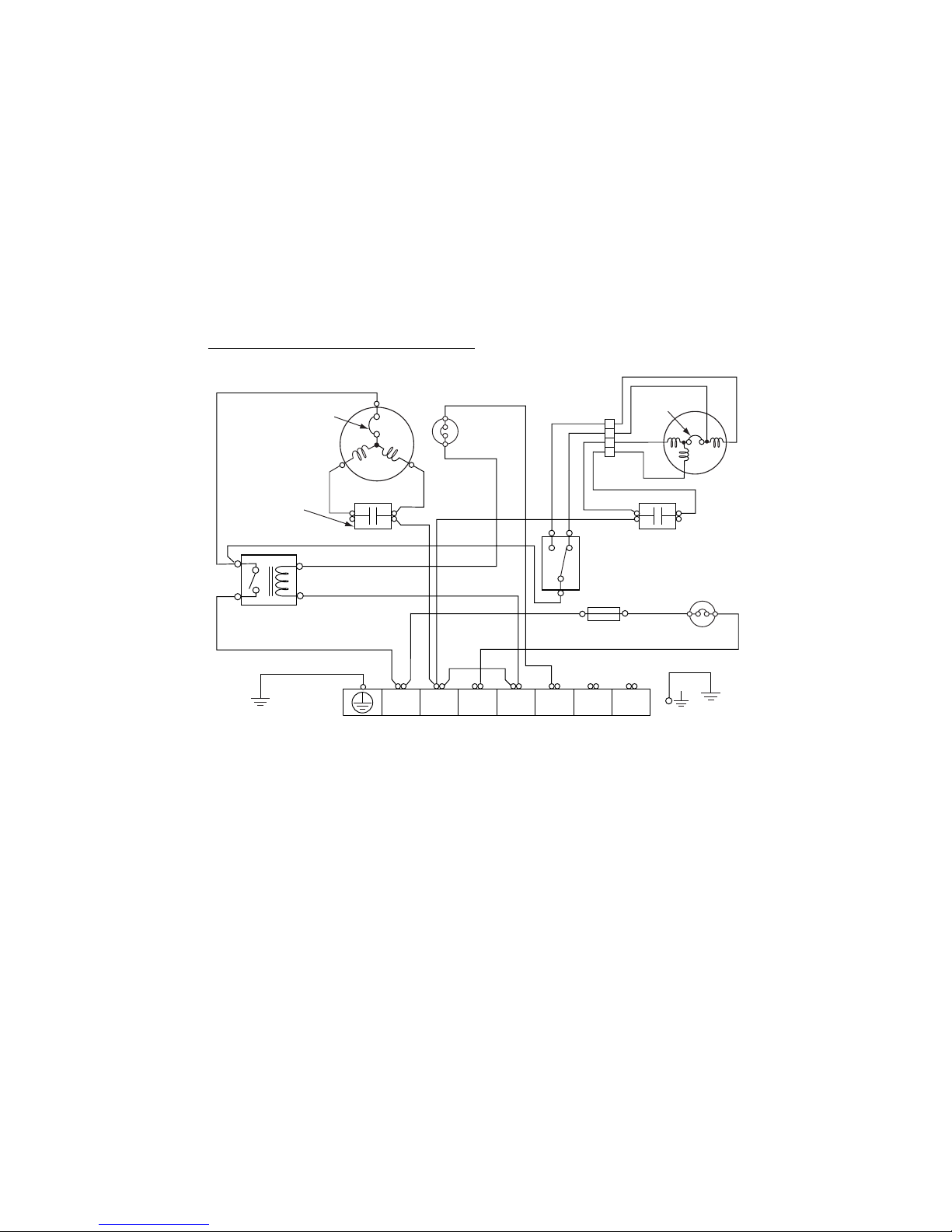

Models : AOG30AMBH, AOY30AMBH
(N)
LN 1
32
C
RS
BLACK
BLUE
RED
BLACK
RED
GREEN/YELLOW
BLACK
BLACK
BLACK
BLACK
BLACK
BROWN
BROWN
BROWN
WHITE
WHITE
WHITE
WHITE
WHITE
6
5
4
1
HL
C
FAN
MOTOR
FUSE
5A
TERMINAL
FAN MOTOR
CAPACITOR
COMPRESSOR
CAPACITOR
COMPRESSOR
MAIN RELAY
THERMAL
PROTECTOR
INTERNAL
OVERLOAD
PROTECTOR
CONNECTOR
OUTDOOR
THERMOSTAT PRESSURE
SWITCH
THERMAL
SWITCH
122003.05.08

Model : ARG30RLC
Model : AOG30RMBL
2003.05.08 13
ARY30RLC
AOY30RMBL

Model : ART30RLC
Model : AOT30RMBL
2003.05.08 14
TRANSFORMER
SOLENOID
COIL
FAN MOTOR CAPACITOR
MAIN RELAY
THERMISTOR
(PIPE TEMP.)
THERMISTOR
(OUTDOOR TEMP.) (DISCHARGE TEMP.)
THERMISTOR
GREEN
PURPLE PURPLE
WHITE
YELLOW YELLOW
BLACK
BLACK
BLUE
BLACK BLACK
BLACK
BLACK
GRAY
GRAY
BROWN
BROWN
RED RED
RED
WHITE
BLACK BLACK BLACK BLUE
RED
WHITE
BLACK BLUE
RED
RED RED
WHITE
WHITE
CN15 CN9 CN1 CN4 CN3 CN2 CN5
CN11
ECN12 CN13
FUSE
T 3.15A 250V
PRINTED CIRCUIT BOARD
12 12 12
12341212 1
FAN
MOTOR
4WV
TO INDOOR UNIT
TO POWER SUPPLY
NO
COM
START
CAPACITOR
COMPRESSOR
C
S
R
RED
RED
BLUE GRAY
RED
WHITE
BLACK
BLACK
COMPRESSOR
SOFT STARTER
CAPACITOR
OVERLOAD
PROTECTOR
32456 1
BELT HEATER
TERMINAL
GREEN/YELLOW
L N 3
2
(N)
1
12
CN2
12121243
1
4
5
6

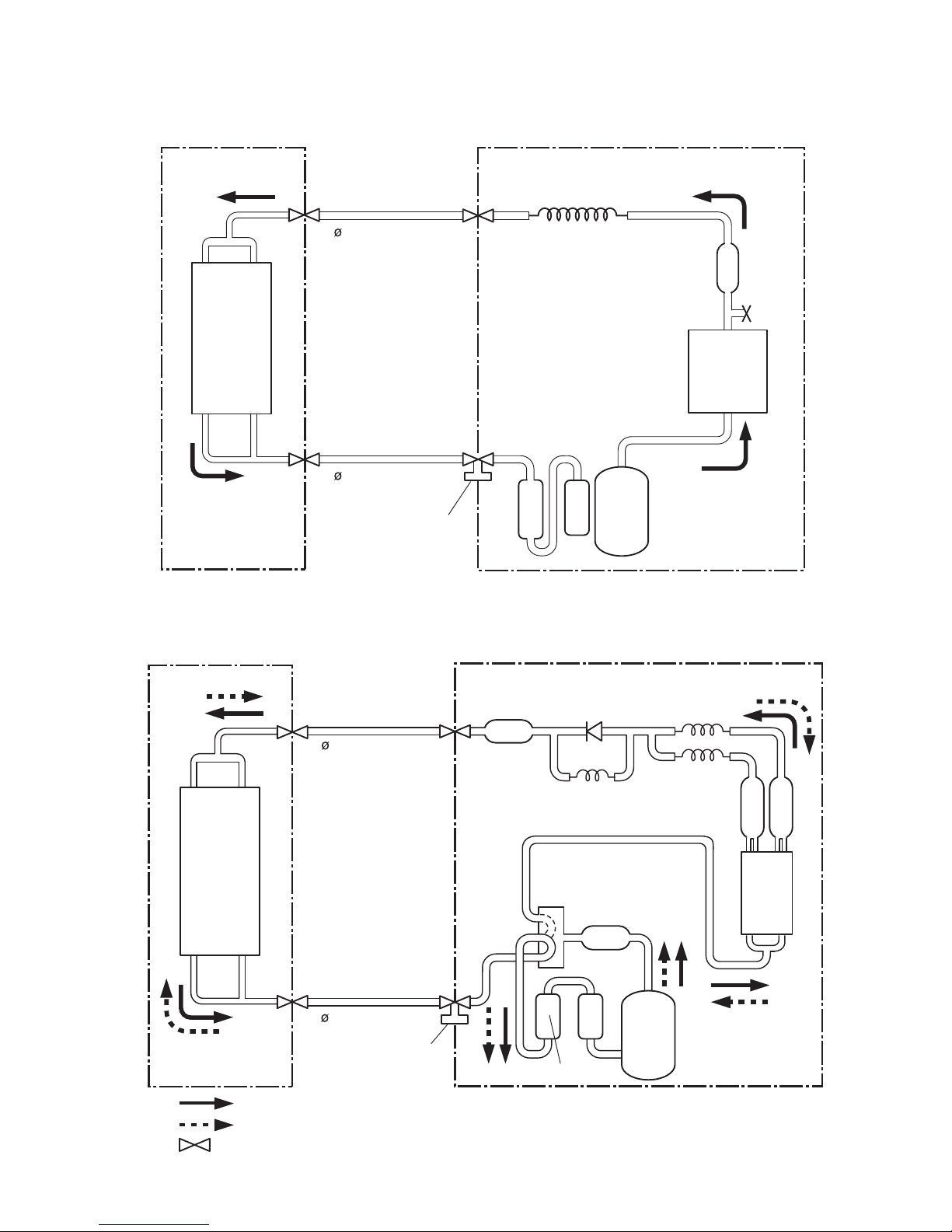

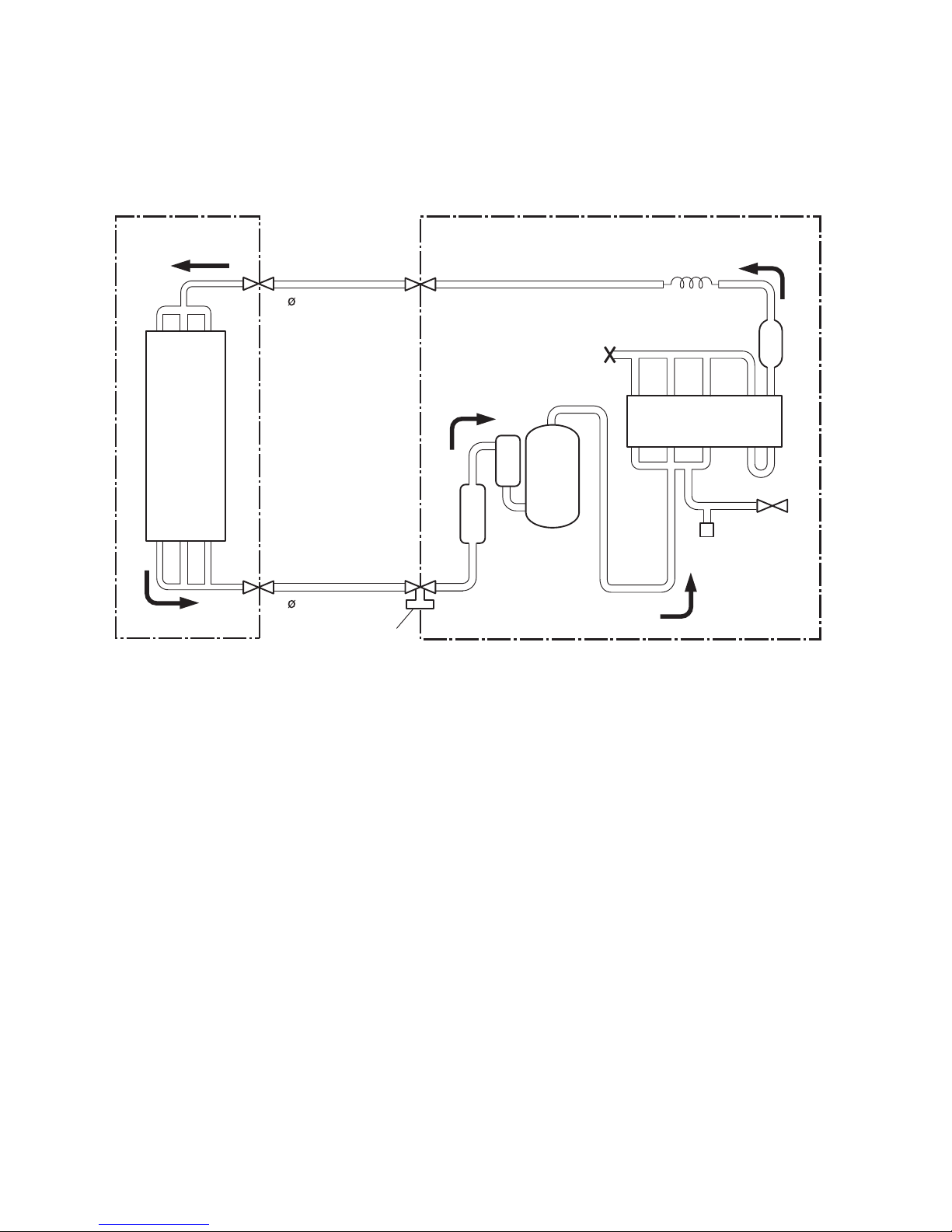

REFRIGERANT SYSTEM DIAGRAM
Models :
Dryer
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8") Capillary tube
Charging valve Compressor
OUTDOOR UNIT
Condenser
INDOOR UNIT
Evaporator
Accumulator
Models :
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
INDOOR UNIT
Evaporator
Cooling
Heating
: Flare coupling
Check valve
Compressor
Dryer
Muffler
Strainer Strainer
OUTDOOR UNIT
Condenser
4-Way
valve
Accumulator
Charging valve
ARG25ALC / AOG25ANBL
ARY25ALC / AOY25ANBL
ART25ALC / AOT25ANAL
ARG25RLC / AOG25RNBL
ARY25RLC / AOY25RNBL
ART25RLC / AOT25RNAL
ART25RLC / AOT25RZDL
2003.05.08 15

Models :
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Capillary tube
Charging valve
Compressor
Dryer
OUTDOOR UNITINDOOR UNIT
Condenser
Check joint
Evaporator
Accumulator
Models :
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Capillary tube
Strainer
Charging valve
Compressor
4-Way valve
Accumulator
Dryer
OUTDOOR UNIT
Condenser
Distributor
Check joint
INDOOR UNIT
Evaporator
Cooling
Heating
:Flare coupling
ARG30ALC / AOG30AMBL
ARY30ALC / AOY30AMBL
ART30ALC / AOT30AMBL
ARG30RLC / AOG30RMBL
ARY30RLC / AOY30RMBL
ART30RLC / AOT30RMBL
16
2003.05.08

Models :
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Capillary tube
Charging valve
Compressor
Dryer
OUTDOOR UNITINDOOR UNIT
Condenser
Check joint
Pressure
switch
Evaporator
Accumulator
ARG30ALC / AOG30AMBH
ARY30ALC / AOY30AMBH
172003.05.08

440V
6uF
MANUAL AUTO
SWITCH
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
ARY25ALC,ARG25ALC,ART25ALC : EZ-00209WSE-C
ARY30ALC,ARG30ALC,ART30ALC : EZ-0020PWSE-C
I N D O O R P R I N T E D C I R C U I T B O A R D
C I R C U I T D I A G R A M
Models : ARY25ALC ARY30ALC
ARG25ALC ARG30ALC
ART25ALC ART30ALC
18
2003.05.08

SECONDARY
PRIMARY
D6
D2FL20U
C9
1000
/25V
+
R8 10K <1/10W>
C54
0.01
<F>
+
C8
100
/6.3V
R7
330
<1/4W>
D2
D1FL20U
D3
MTZJ5.1B
D4
D1FL20U
C7 0.047
<ECQB>
R6 100
<1/2W>
T1
SWITCHING TRANSFORMER
ZFT29B01 14V
12V
IC2
7812
+
C11
10/
25V
5V
IC3
7805
IO
G
IO
G
5V
C13
0.1
<F>
C14
100/
6.3V
+C15
0.1
<F>
C47
0.1
<F>
NC
JM10
5V
R29 - R32
10K <1/10W> x 4
R33 - R36
1.0K <1/10W> x 4
C26 - C29
0.01 x 4
<F>
SW2
DRS4016-5
VA1
470
<TNR>
C
8
4
2
1
1
5
2
3
4
10
14
18
5V
IC10 HI2002
14V
R93 - R96
10K <1/10W> x 4
C17
0.01
<F> Q3
DTC124EKA
14V
CR6
0.01
<F>
5V
CR5
0.01
<F>
R9 390
<1/10W>
R10
10K
<1/10W>
R14 10K
<1/10W>
IC5 (1/7)
uPA2003GR
10 7 41
42
59
58
57
56
72
71
33
67
4
7
75
68
74
65
66
55
54
52
3
2
1 76
77
8
9
10
6
25
15
14
26
35
34
28
29
30
31
64
27
32
61
53
62
63
78
79
80
40
39
38
37
36
43
44
45
46
47
48
49
24
23
22
73
60
21
20
19
51
50
70 69 3
1
X1 X2
2
RESET
XT1
P43
P44
P45
P35
P34
P33
P14
P13
P12
P01
P121
P00
P55
P50
P03
P54
P53
P52
P51
P56
P57
P47
P23
P24
P46
P131
P72
P71
P70
P11
P10P15
P16
P17
P120
P122
P123
P05
P04
VDD0
VDD1
AVRF0
AVRF1
AVSS
VSS0
VSS1
I C
XT2
P124
P125
P126
P127
P65
P66
P02
P64
P63
P62
P61
P60
P67
P30
P31
P32
P36
P37
P40
P41
P42
9
6
5
4
3
2
8
15
14
13
12
11
NC
NC
C22 - C25
0.01 x 4
<F>
IC5 (1/7)
uPA2003GR
R25 - R28
1.0K <1/10W> x 4
5V R21 - R24
10K <1/10W> x 4
K4
K3
K1
K2
5V
R42 1.0K <1/10W>
R41 1.0K <1/10W>
R40 1.0K <1/10W>
X1 CSTS0500MG03-T
C44
0.1
<F>
C10
0.01
<F>
C30
0.01
<F>
C12
0.01
<F>
E
OUTDOOR UNIT
1
2
3
TERMINAL BOARD
FAN MOTOR
F M
L
N
TM101
TM102
R1 3.3
<RGGS-5W>
D1
D3SB60
JM6
+
C5
100/
450V
Q1
2SC4236
R4 330K
<SPRH-2W>
R2 1.5
<RSP2-2W>
Q2
2SC1815
R3 100
<1/10W>
ELF17N015A
VA102 470
<TNR>
LF101
VA101 470
<TNR>
SA101
RA-362M
F1
3.15
<BET>
FH1 FH2
E101 W103 W104
C104
0.01
<F>
C103
0.01
<F>
C101
0.22
<RE-C>
C105
0.022
<YE>
C106
0.022
<YE>
C3 0.22 <RE>
R88 120 <1/2W>
DRAIN PUMP
K4
G5NB-1A DC12V
CN6-2
CN6-1
CN6 B2P3-VH-B-E BLUE
C6
4700P
<ECQM>
R5 62K
<RSP2-2W>
D5
1SR139-600
D10
1SR139-600
5V
R15 - R17
10K <1/10W> x 3
JM1
JM2
JM3 R20 1.0K <1/10W>
R18 1.0K <1/10W>
R19 1.0K <1/10W>
C19 - C21
0.01 x 3
<F>
NC
R77 - R79
10K <1/10W> x 4
5V CN8 B2B-XASK-1-A
CN8-1 BLACK
CN8-2 BLACK
CN7 B2B-XAKK-1-A
CN7-1 GRAY
CN7-2 GRAY
ROOM TEMPERATURE THERMISTOR
PIPE TEMPERATURE THERMISTOR
5V
R48
10K
<1/10W>
Q4
DTC124EKA
R49 1.0K
<1/10W>
C38
0.01
<F>
14V
HEATER
5V
C1
0.1
<F>
R67 10K
<1/10W>
R67 1.0K
<1/10W>
CR7
0.01
<F>
NC
NC
NC
NC
5V 5V
5V
R51 1.0K
<1/10W>
R52 10K
<1/10W>
12V
12V
R63
15.4K (1%)
<1/10W>
12V
R64
28K (1%)
<1/10W>
12V
5V
R55 10K
<1/10W>
5V
C49
0.01
<F>
C45
0.1
<F>
IC8
PST600C
1
3
2
5V
C31
0.01
<F>
C16
0.01
<F>
C43
0.01
<F>
RJ1 1.0K
<1/10W>
RJ2 10K
<1/10W>
NC
NC
NC
R72 1.0K <1/10W>
R81 1.0K <1/10W>
R71 1.0K <1/10W>
5V
CR2 - CR5
10K <1/10W> x 4
SW4
DSS803
R70 10K <1/10W>
R69 10K <1/10W>
R80 10K <1/10W>
IC11-1
BA10358
-
NO.3
NO.2
NO.1
R92 10K
<1/10W>
Q7
2SC982
R65 390
<1/10W>
IC11-2
BA10358
D7
DA226U
R66 10K
<1/10W>
-
+
+
R62 4.7K
<1/10W>
R91 10K
<1/10W>
Q5
2SC2712
R60 10K
<1/10W>
R61 10K
<1/10W>
Q6
2SC2712
IC5 (1/7)
116
5
6
7
84
3
2
1
5V
IC7
BR93LC46RF
C39
0.1
<F>
D0
D1
CK
CS
VCC
NC
NC
GND
5V
C37
0.1
<F>
C34
0.1
<F>
R100 10K <1/10W>
R58 10K <1/10W>
R75 10K <1/10W> R76 10K <1/10W>
R43
10K (1%)
<1/10W>
R45
49.9K (1%)
<1/10W>
C32
1000P
<R>
C35
1000P
<R>
R44 1.0K
<1/10W>
R46 1.0K
<1/10W>
R50 10K <1/10W>
5V
R47 390
<1/10W>
CN14
B4B-XH-AM
HA
JEM-A
CN14-4
CN14-2
CN14-1
CN14-3
CN10-1
CN10-2
CN10
B3B-XAMK-1-A
GREEN
REMOTE CONTROL UNIT
EZ-002PHSE-R
TERMINAL BOARD 3 2 1
L2
L4
L3
CN17-3
CN17-2
CN17-1
CN17
B3B-XAKK-1-A
BLACK
UL1430 AWG22 RED
UL1430 AWG22 WHITE
UL1430 AWG22 BLACK
CN15-1
CN15-3
CN15-2 FLOAT SWITCH
CN15
B3B-XARK-1-A
RED
VA2
TEST
CN9-1
CN9-5
CN9-4
CN9-3
CN9-2
SSR1
G3MC-201P-VD
+
-
SW1
DSS803
NO.1
NO.2
NO.3
CN4-1
CN4-2
CN5-1
CN5-2
CN5-6
CN5-5
CN5-4
CN5-3
SL
L
M
H
K3
G5S-1 DC12V
K2
G5S-1 DC12V
K1
G5S-1 DC12V
CN1
B3P5-VH-B-C
BLACK
CN1-1
CN1-2
CN1-3
UL1015 AWG16 GREEN
CN4
B2P3-VH-B-Y
YELLOW
UL1015 AWG20
WHITE
UL1015 AWG20 WHITE
UL1015 AWG18
BLACK
UL1015 AWG18 WHITE
UL1015 AWG18 RED
UL1015 AWG18 BLACK
UL1015 AWG18 WHITE
UL1015 AWG18 RED
CN5
B6P11-VH-B WHITE
UL1015 AWG22 WHITE
UL1015 AWG22 BLUE
UL1015 AWG22
UL1015 AWG22 BLACK
PURPLE
UL1015
AWG22
PINK
UL1015
AWG22
RED
I C 1
uPD780058GC-497-8BT
R59 10K <1/10W>
R99 10K <1/10W>
R98 10K <1/10W>
R97 10K <1/10W>
REMOTE CONTROLLER CUSTOM
CODE SWITCHING (R1)
REMOTE CONTROLLER CUSTOM
CODE SWITCHING (R2)
POWER SUPPLY PCB
ROOM TEMPERATURE CORRECTION
(HEATING OPERATION)
ROOM TEMPERATURE CORRECTION
(HEATING OPERATION)
ZONE CONTROL SWITCHING
CN9
B5P-SHF-1AA
R39 10K
<1/10W>
R37 10K
<1/10W>
R38 10K
<1/10W>
POWER SOURCE
240V
50Hz
NO.3 FAN SWITCHING
NO.2 FAN SWITCHING
NO.1 ROOM TEMPERATURE CORRECTION
(COOLING OPERATION)
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
EZ-00225HSE-C
FAN CAPACITOR
450V
2.3uF
Models : ARY25RLC
ARG25RLC
ART25RLC
2003.05.08 19
