Fujitsu ASUH30LPAS User manual

AIR CONDITIONER
Wall mounted type
SERVICE MANUAL
INDOOR
ASUH30LPAS
ASUH36LPAS
OUTDOOR
AOUH30LPAS1
AOUH36LPAS1
SR_AS053EF_01
2021.12.03

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2021 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST

1. GENERAL INFORMATION
2021.12.03
SR_CH01_AS053EF_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type
Wall mounted
Inverter heat pump
Model name ASUH30LPAS ASUH36LPAS
Power supply 208/230 V ~ 60 Hz
Power supply intake Outdoor unit
Available voltage range 187—253 V
Capacity
Cooling
Rated kW 8.79 9.67
Btu/h 30,000 33,000
Min.—Max. kW 2.90—9.50 2.90—10.00
Btu/h 9,900—32,400 9,900—34,100
Heating
Rated kW 8.79 9.96
Btu/h 30,000 34,000
Min.—Max. kW 2.55—9.67 2.55—10.26
Btu/h 8,700—33,000 8,700—35,000
Heating
(17 °F)*1
Rated kW 5.69 6.57
Btu/h 19,400 22,400
Max. kW 8.44 8.97
Btu/h 28,800 30,600
Input power
Cooling Rated
kW
3.07 4.08
Min.—Max. 0.45—4.03 0.45—4.29
Heating Rated 2.46 3.1
Min.—Max. 0.53—3.15 0.53—3.32
Heating
(17 °F)*1
Rated 1.98 2.43
Max. 4.26 4.49
Current Cooling Rated A 13.4 17.8
Heating 10.9 13.5
EER Cooling kW/kW 2.86 2.37
Btu/hW 9.8 8.1
COP Heating kW/kW 3.57 3.21
Btu/hW 12.2 11.0
SEER Cooling Btu/hW 18.0 18.0
HSPF Heating Btu/hW 11.0 11.0
Power factor Cooling %99.6 99.7
Heating 98.1 99.8
Moisture removal pints/h (L/h) 9.7 (4.6) 10.1 (4.8)
Maximum operating current*2Cooling A18.9 18.9
Heating 18.9 18.9
Fan
Airflow rate
Cooling
HIGH
CFM (m3/h)
812 (1,380) 812 (1,380)
MED 665 (1,130) 665 (1,130)
LOW 536 (910) 536 (910)
QUIET 418 (710) 418 (710)
Heating
HIGH 812 (1,380) 812 (1,380)
MED 665 (1,130) 665 (1,130)
LOW 536 (910) 536 (910)
QUIET 418 (710) 418 (710)
Type × Q'ty Crossflow fan × 1
Motor output W 78
Sound pressure level*3
Cooling
HIGH
dB (A)
50 50
MED 45 45
LOW 38 38
QUIET 32 32
Heating
HIGH 49 49
MED 44 44
LOW 38 38
QUIET 32 32
Heat exchanger type
Dimensions (H × W × D) in (mm)
Main 1: 18-3/16 × 35-3/8 × 1-1/16 (462 × 898 × 26.6)
Sub 1: 4-15/16 × 35-3/8 × 1/2 (126 × 898 × 13.3)
Sub 2: 3-5/16 × 35-3/8 × 1/2 (84 × 898 × 13.3)
Fin pitch FPI (mm)
Main 1: 21 (1.2)
Sub 1: 18 (1.4)
Sub 2: 18 (1.4)
Rows × Stages
Main 1: 2 × 22
Sub 1: 1 × 6
Sub 2: 1 × 4
Pipe type Copper
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net in (mm) 13-3/8 × 45-1/4 × 11 (340 × 1,150 × 280)
Gross 15-15/16 × 50 × 17-11/16 (405 × 1,270 × 450)
Weight Net lb (kg) 39 (17.5)
Gross 51 (23.0)
Connection pipe Size Liquid in (mm) Ø3/8 (Ø9.52) Gas Ø5/8 (Ø15.88)
Method Flare
Drain hose
Material PP+HDPE
Tip diameter in (mm) Ø17/32 (Ø13.8) (I.D.),
Ø19/32 to 21/32 (Ø15.0 to 16.8) (O.D.)
Operation range Cooling °F (°C) 64 to 90 (18 to 32) %RH 80 or less
Heating °F (°C) 86 (30) or less
Remote controller type Wireless (Option: Wired, Mobile app*4 [FGLair™])
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type
Wall mounted
Inverter heat pump
Model name ASUH30LPAS ASUH36LPAS
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80°FDB (26.67°CDB) /67°FWB (19.44°CWB), and outdoor temperature of 95°FDB (35°CDB) / 75°FWB (23.9°CWB).
– Heating: Indoor temperature of 70°FDB (21.11°CDB) /59°FWB (15.56°CWB), and outdoor temperature of 47°FDB (8.33°CDB) /43°FWB (6.11°CWB).
– *1: Heating (17°F): Indoor temperature of 70°FDB (21.11°CDB) /60°FWB (15.56°CWB), and outdoor temperature of 17°FDB (-8.33°CDB) /15°FWB (-9.44°CWB).
– Pipe length: 25 ft (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *2: Maximum current is maximum value when operated within the operation range.
• *3: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *4: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOUH30LPAS1 AOUH36LPAS1
Power supply 208/230 V ~ 60 Hz
Power supply intake Outdoor unit
Available voltage range 187—253 V
Starting current A 13.4 17.8
Fan
Airflow rate Cooling CFM (m3/h) 2,187 (3,715) 2,187 (3,715)
Heating 2,187 (3,715) 2,187 (3,715)
Type × Q'ty Propeller fan × 1
Motor output W 100
Sound pressure level *1 Cooling dB (A) 52 53
Heating 54 54
Heat exchanger type
Dimensions
(H × W × D) in (mm) Main 1: 29-3/4 × 35-5/8 × 11/16 (756 × 905 × 18.19) Main 2: 29-3/4 × 35-5/8 × 11/16 (756 × 905 × 18.19)
Fin pitch FPI Main 1: 18 (1.45)
Main 2: 18 (1.45)
Rows × Stages Main 1: 1 × 36
Main 2: 1 × 36
Pipe type Copper
Fin type Type (Material) Aluminum
Surface treatment Blue fin
Compressor Type DC twin rotary
Motor output W 1,360
Refrigerant
Type R410A
Charge lb oz 4 lb 10 oz 4 lb 10 oz
g 2,100 2,100
Refrigerant oil Type POE (RB68)
Amount in3 (cm3)48.8 (800)
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net in (mm) 31 × 37 × 12-5/8 (788 × 940 × 320)
Gross 38-1/16 × 40-7/16 × 17-1/2 (966 × 1,027 × 445)
Weight Net lb (kg) 117 (53)
Gross 134 (61)
Connection pipe
Size Liquid in (mm) Ø3/8 (Ø9.52)
Gas Ø5/8 (Ø15.88)
Method Flare
Pre-charge length
ft (m)
66 (20)
Max. length 164 (50)
Max. height difference 98 (30)
Drain hose Material LDPE
Tip diameter in (mm) Ø1/2 (Ø13.0) (I.D.), Ø5/8 to 11/16 (Ø16.0 to 16.7) (O.D.)
Operation range Cooling °F (°C) 14 to 115 (-10 to 46)
Heating 5 to 75 (-15 to 24)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80 °FDB (26.67 °CDB) / 67 °FWB (19.44 °CWB), and outdoor temperature of 95 °FDB (35 °CDB) / 75 °FWB (23.9 °CWB).
– Heating: Indoor temperature of 70 °FDB (21.11 °CDB) / 59 °FWB (15 °CWB), and outdoor temperature of 47 °FDB (8.33 °CDB) / 43 °FWB (6.11 °CWB).
– Pipe length: 25 ft (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit

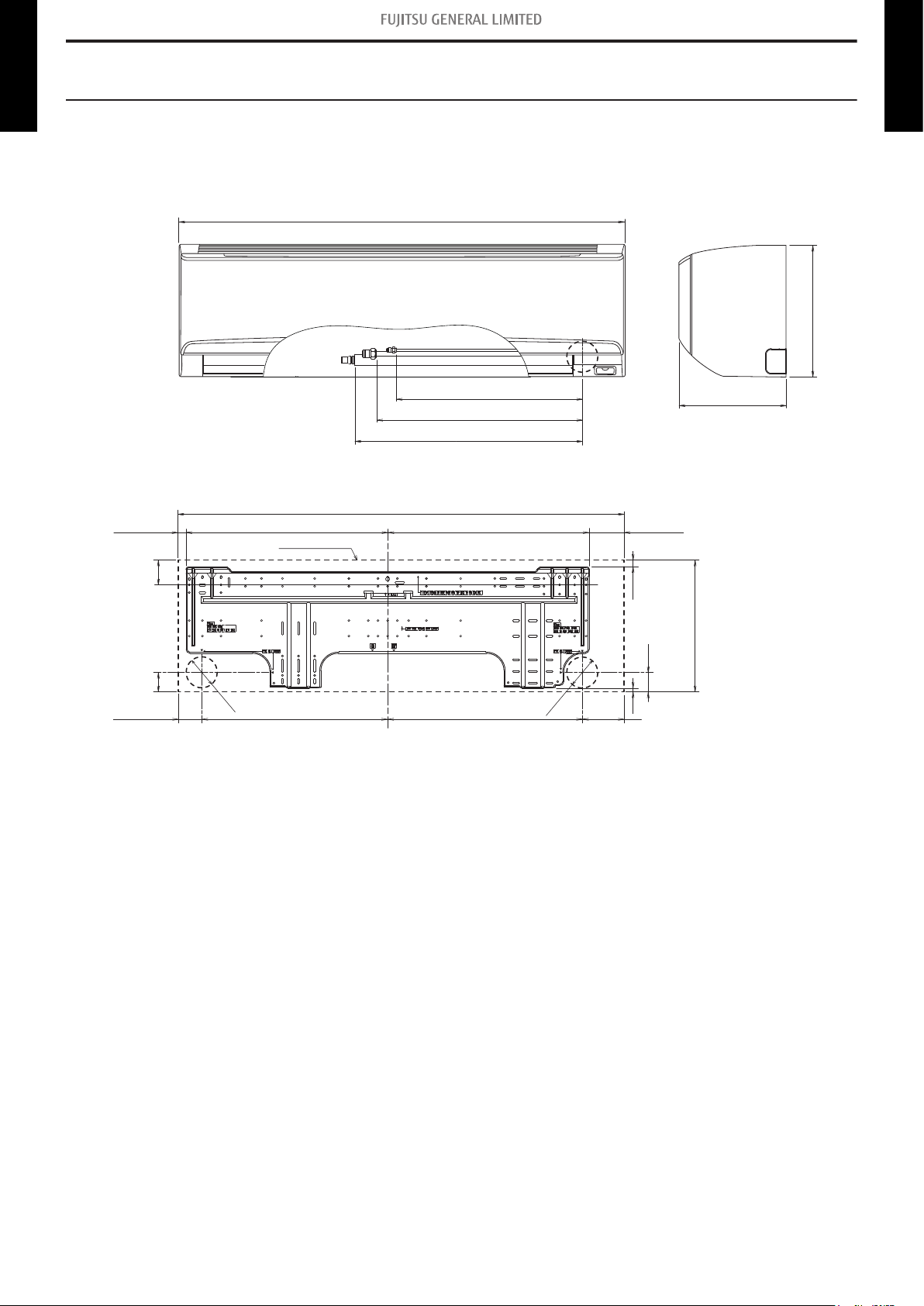

¢Models: ASUH30LPAS and ASUH36LPAS
Unit: in (mm)
Outline of unit
20-1/2 (520) 3-9/16 (90)
13/16 (20)
2-1/2 (64)
18-7/8 (479)2-6/16 (61)
4-1/4
(108)19-6/8 (502)
20-1/2 (520)
1-15/16 (50)
1-15/16
(50)
7/16 (11)
13-6/16 (340)
ø80
ø80
13-6/16
(340)
11 (280)
10/16
(16)
45-1/4 (1,150)
19 (483)
21-7/16 (544)
22-1/16 (560)
45-1/4 (1,150)
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Installation space requirement
Provide sufficient installation space for product safety.
CAUTION
Do not place any other electrical products or household belongings under the product. Conden-
sation dripping from the product might get them wet, and may cause damage or malfunction to
the property.
2-1/2 (63)
or more
3-8/1 (80)
or more
1-15/16 (50)
or more
1-15/16 (50)
or more
2-3/4 (70)
or more
Outline of unit
5-1/2 (140)
or more
59-1/16 (1,500) or more
70-7/8 (1,800) or more
Unit: in (mm)
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit
¢Models: AOUH30LPAS1 and AOUH36LPAS1
Unit: in (mm)
Top view
Bottom view
Side view
Front view
37 (940)
12-5/8 (320)
1-9/16 (40) 9/16 (14)
1
(25)
1 (25) 7/8 (23)
2-16/16 (75)
2-3/16 (55)
2-1/2
(63)
9/16
(15)
15-3/8 (390)
3-1/2
(89)
31 (788)
7/8 (23)
1/2 (13)
4-3/4 (120)
5-1/16 (129)
3-3/8 (85)
1-15/16 (50)
1-15/16 (50)
5/8
(16)
1-7/8
(48)
1-15/16 (50)
2-5/16 (59)
5-3/16 (131)
3-3/4 (95)
3-3/4 (96)
5-1/2
(140)
2-Ф7/8 (22)
Cable port 2-Ф7/8 (22)
Cable port
2-Ф1/8 (28)
Cable port 2-Ф1/8 (28)
Cable port
Pipe port
Pipe port
25-9/16 (650)
13-7/8 (352)
3-way valve
(Gas)
3-way valve
(Liquid)
1-1/4 (48)
Liquid
A
Detail A
5-5/8
(143)
5-13/16
(147)
2-3/16 (55)
Liquid
1-9/16
(40)
12-5/8 (320)
10-7/16
(265)
13-15/16 (354)
10-1/2 (266)
Liquid
11-5/8 (296)
Gas
2-1/2 (64)
Gas
Rear view
Detail B
B
Detail C
C
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2021.12.03
SR_CH02_AS053EF_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1
2. Indoor unit parts list....................................................................................02-2
2-1. Models: ASUH30LPAS and ASUH36LPAS....................................................................02-2
3. Outdoor unit parts list.................................................................................02-6
3-1. Models: AOUH30LPAS1 and AOUH36LPAS1 ...............................................................02-6
4. Accessories ...............................................................................................02-10
4-1. Indoor unit ....................................................................................................................02-10
4-2. Outdoor unit..................................................................................................................02-10
5. Refrigerant system diagrams...................................................................02-11
5-1. Models: AOUH30LPAS1 and AOUH36LPAS1 .............................................................02-11
6. Wiring diagrams ........................................................................................02-12
6-1. Indoor unit ....................................................................................................................02-12
6-2. Outdoor unit..................................................................................................................02-13
7. PC board diagrams ...................................................................................02-14
7-1. Models: ASUH30LPAS and ASUH36LPAS..................................................................02-14
7-2. Models: AOUH30LPAS1 and AOUH36LPAS1 .............................................................02-15

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ASUH30LPAS and ASUH36LPAS
¢Exterior parts
1
a
8
8
7
13
3
4
5
6
12
11
11
11
11
2
10
9
2-1. Models: ASUH30LPAS and ASUH36LPAS - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9386990004 Bracket panel ♦
2 9313951047 Conduit holder ♦
3 9386958011 Louver U ♦
4 9386959018 Louver Z ♦
5 9383765063 WLAN adapter holder assy ♦
6 9387074017 Wire cover assy ♦
7 9315212016 Air clean filter assy ♦
8 9386960007 Air filter ♦
9 9334139011 Wireless remote controller ♦
10 9334098004 Remote controller holder ♦
11 9386986007 Screw cap ♦
12 9387072211 Front panel total assy ♦
13 9382114039 Intake grille assy ♦
a— Front panel —
2-1. Models: ASUH30LPAS and ASUH36LPAS - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Chassis
59
50
69
68
a
b
c
d
e
f
52
56
57
51
55 54
58
53
64
66
61
62
63
67
h60
65
65
65
g
2-1. Models: ASUH30LPAS and ASUH36LPAS - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
50 9382185077 Evaporator total assy ♦
51 9901013010 Terminal ♦
52 9711732156 Main PCB (30 model) ♦
9711732163 Main PCB (36 model) ♦
53 9316577008 Thermistor spring B ♦
54 9900627027 Thermistor assy ♦
55 9386988001 Room thermistor holder ♦
56 9711146090 Display assy ♦
57 9711147035 Indicator PCB ♦
58 9603933005 DC fan motor ♦
59 9361756007 Drain hose insulation T ♦
60 9387063004 Link holder assy ♦
61 9900139186 Step motor ♦
62 9387062007 Gear cover assy ♦
63 9900384234 Step motor ♦
64 9387060034 Casing assy ♦
65 9318743012 Pipe bracket ♦
66 9388540009 Drain hose assy ♦
67 9316177017 Drain cap ♦
68 9387055009 Crossflow fan assy ♦
69 9306628017 Bearing C assy ♦
a— Box shield assy —
b— Control box —
c— PCB holder A —
d— Control cover —
e— Motor cover —
f— Motor cover —
g— Cable guide —
h— Casing —
2-1. Models: ASUH30LPAS and ASUH36LPAS - (02-5) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. Outdoor unit parts list
3-1. Models: AOUH30LPAS1 and AOUH36LPAS1
¢Exterior parts and chassis
13
8
2
1
9
16
24
17
18
15
14
23
19
20
21
22 5
4
3
3
10
12
11
25
b
a
76
3-1. Models: AOUH30LPAS1 and AOUH36LPAS1 - (02-6) - 3. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
