Fujitsu ASY17FSBQ User manual

SPLIT TYPE ROOM AIR
CONDITIONER
WALL MOUNTED type
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . 1
REFRIGERANT SYSTEM DIAGRAM
. . .
3
CIRCUIT DIAGRAM
. . . . . . . . . . . . . . . .
4

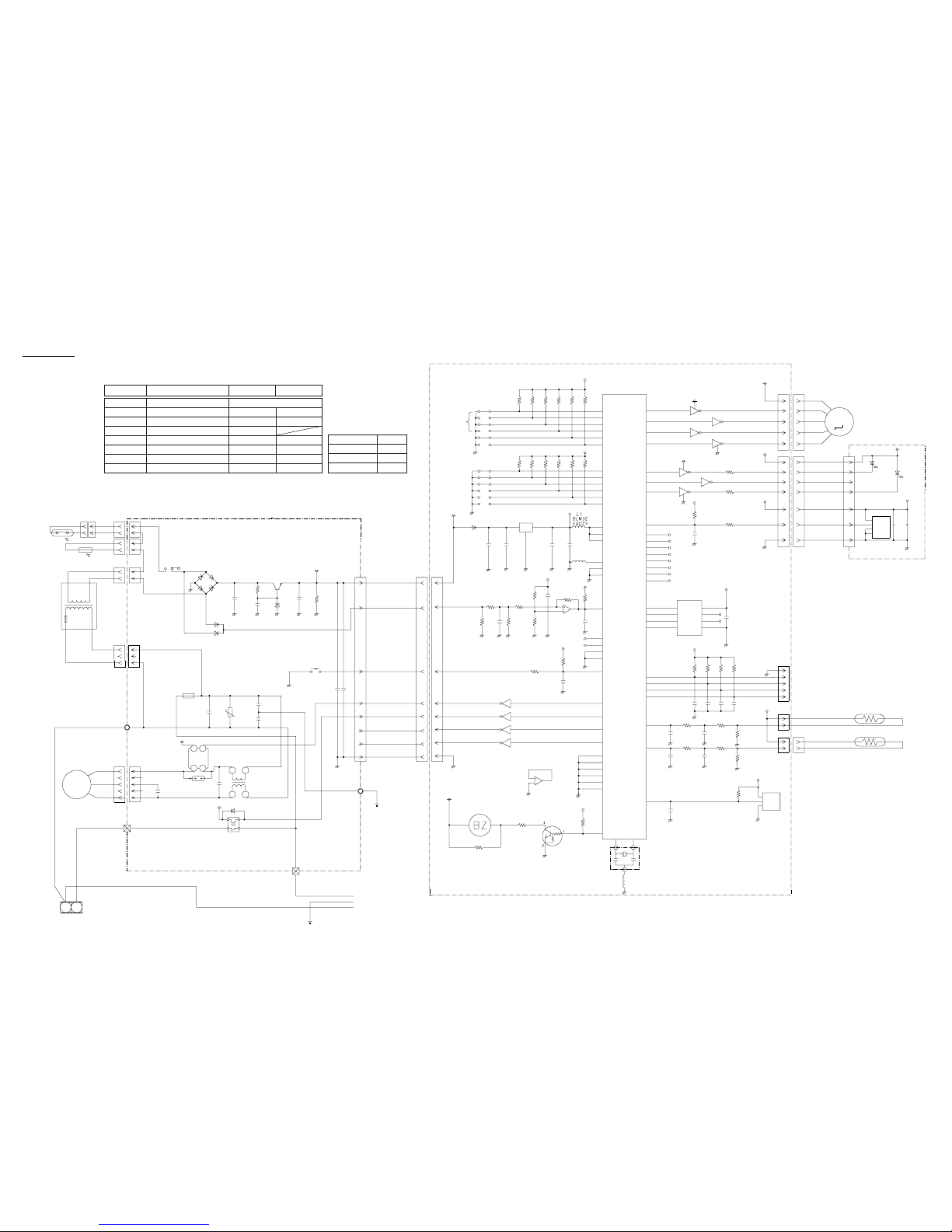

PCB CIRCUIT DIAGRAM
. . . . . . . . . . . .
6
OUTLINE AND DIMENSIONS
. . . . . . . .
2

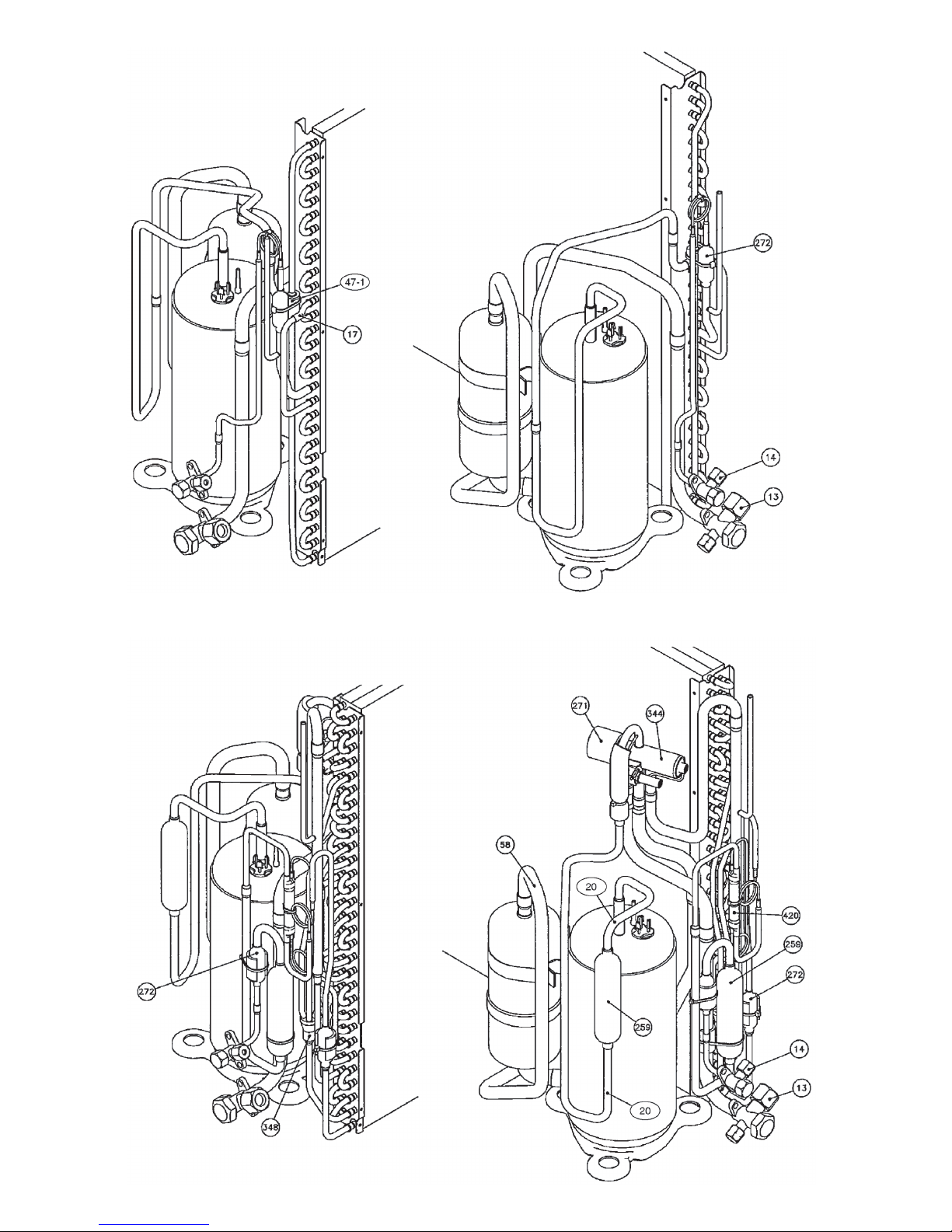

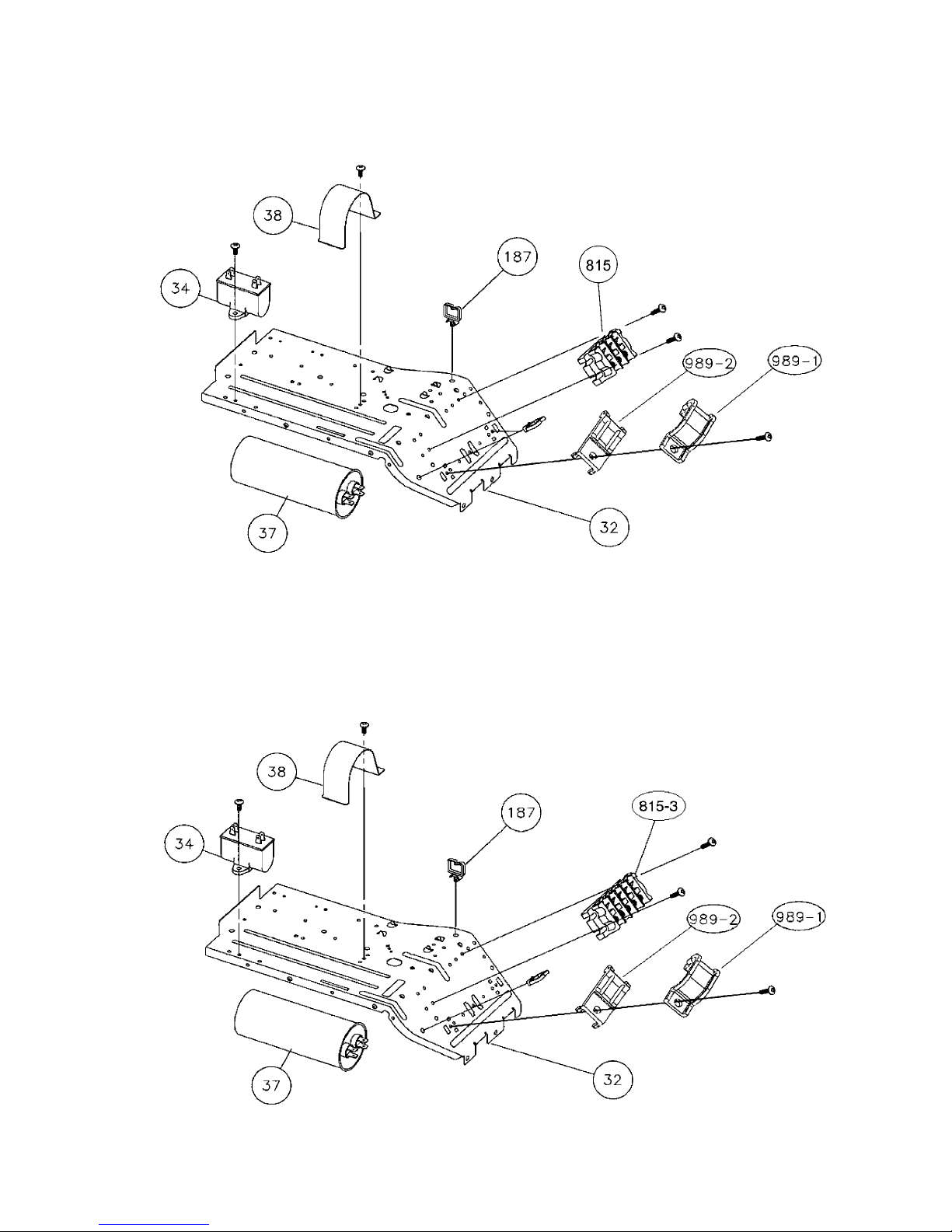

DISASSEMBLY ILLUSTRATION
. . . . . . .
9
FAILURE DETECTION
. . . . . . . . . . . . . .
8

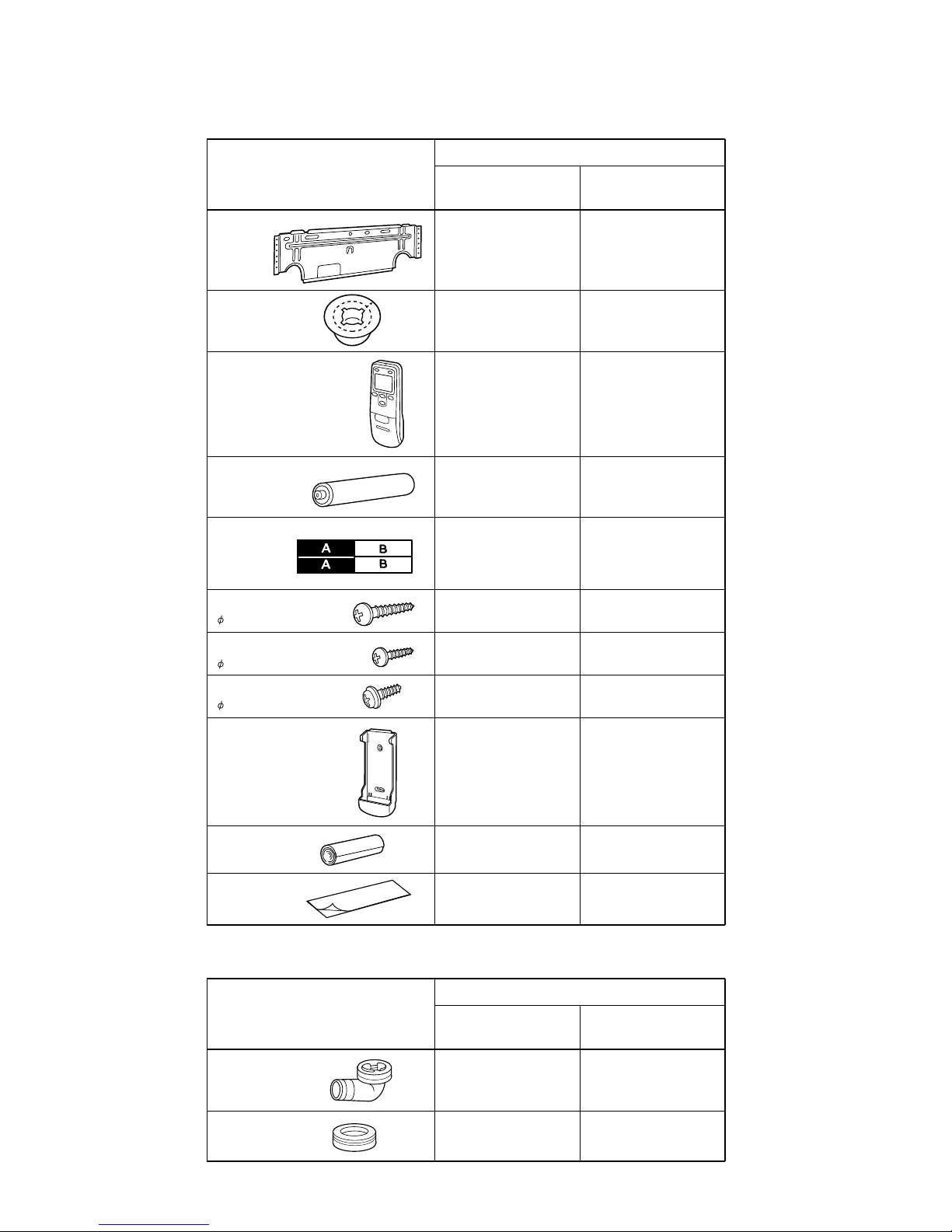

PARTS LIST . . . . . . . . . . . . . . . . . . . . . 15
Indoor unit Outdoor unit
ASY17FSBQ AOY17FNBK
ASY17USBQ AOY17UNBK
( made in Thailand )
ASY17FSCQ AOY17FNBN
ASY17USCQ AOY17UNBN
( made in China )

12005.03.22
SPECIFICATIONS
INDOOR UNIT ASY17FSBQ
ASY17FSCQ
ASY17USBQ
ASY17USCQ
OUTDOOR UNIT AOY17FNBK
AOY17FNBN
AOY17UNBK
AOY17UNBN
COOLING CAPACITY (kW)
4.70 4.70
HEATING CAPACITY (kW)
--- 5.40
COMPRESSOR
FAN MOTOR
DIMENSIONS
TYPE
Hermetic type, Permanent split condenser,
2 pole, Single phase, Induction motor, Rotary
DISCRIMINATION
5KS225DAC
DISCRIMINATION (INDOOR UNIT)
DISCRIMINATION (OUTDOOR UNIT)
INDOOR UNIT
OUTDOOR UNIT
INDOOR UNIT
OUTDOOR UNIT
MFA - 17AT
MFB - 24JTT
POWER SOURCE 230
HI-SPEED 1,300
FAN SPEED
FAN SPEED
MED-SPEED 1,210
780
LO-SPEED
( r.p.m. )
( r.p.m. )
1,110
H x W x D (mm)
H x W x D (mm)
285 x 900 x 172
650 x 830 x 320
WEIGHT
GROSS / NET (kg)
GROSS / NET (kg)
13 / 10
51 / 47 56 / 52
POWER SOURCE (V)
230
FREQUENCY (Hz)
50
RUNNING CURRENT (A) COOLING
8.3 7.9
HEATING --- 8.9
INPUT WATTS (kW) COOLING
1.85 1.76
HEATING --- 1.99
E.E.R. (kW/kW) COOLING
2.54 2.67
HEATING --- 2.71
MOISTURE REMOVAL ( /hr)
2.1
AIR CIRCULATION-Hi (m3/hr)
560
ELECTRICAL DATA
Note : Between 7.5 m and 20 m, when using a connection pipe other than that in the table,
charge additional refrigerant with 0.53 oz (15 g) / 3.3 ft (1 m) as the criteria.
REFRIGERANT CHARGE (R410A)
FULL CHARGE
AMOUNT
25 ft ( 7.5 m )
33 ft ( 10 m )
49 ft ( 15 m )
66 ft ( 20 m )
29.5 oz ( 838 g )
28.2 oz ( 800 g )
45.4 oz ( 1,288 g )
44.1 oz ( 1,250 g )
32.2 oz ( 913 g )
34.8 oz ( 988 g )
48.1 oz ( 1,363 g )
50.7 oz ( 1,438 g )
Pipe Length

OUTDOOR UNIT
Models : AOY17FNBK
AOY17UNBK
AOY17FNBN
AOY17UNBN
Air flow
Bottom
603
343
OUTLINE AND DIMENSIONS
Unit : mm
Models : ASY17FSBQ
ASY17USBQ
ASY17FSCQ
ASY17USCQ
INDOOR UNIT
900
172
180
285
350
830
650
12
22005.02.16

REFRIGERANT SYSTEM DIAGRAM
ASY17FSCQ / AOY17FNBN
Models : ASY17FSBQ / AOY17FNBK
Refrigerant pipe
12.70 mm (1/2")
Refrigerant pipe
6.35 mm (1/4")
Charging valve
Distributor
Distributor
Distributor
Distributor
INDOOR UNIT
Evaporator
Capillary tube
Compressor
Strainer
OUTDOOR UNIT
ASY17USCQ / AOY17UNBN
Models : ASY17USBQ / AOY17UNBK
Cooling
Heating
Flare coupling
Refrigerant pipe
12.70mm(1/2")
Refrigerant pipe
6.35mm(1/4")
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Distributor
Muffler
Condenser
Evaporator
32005.02.16

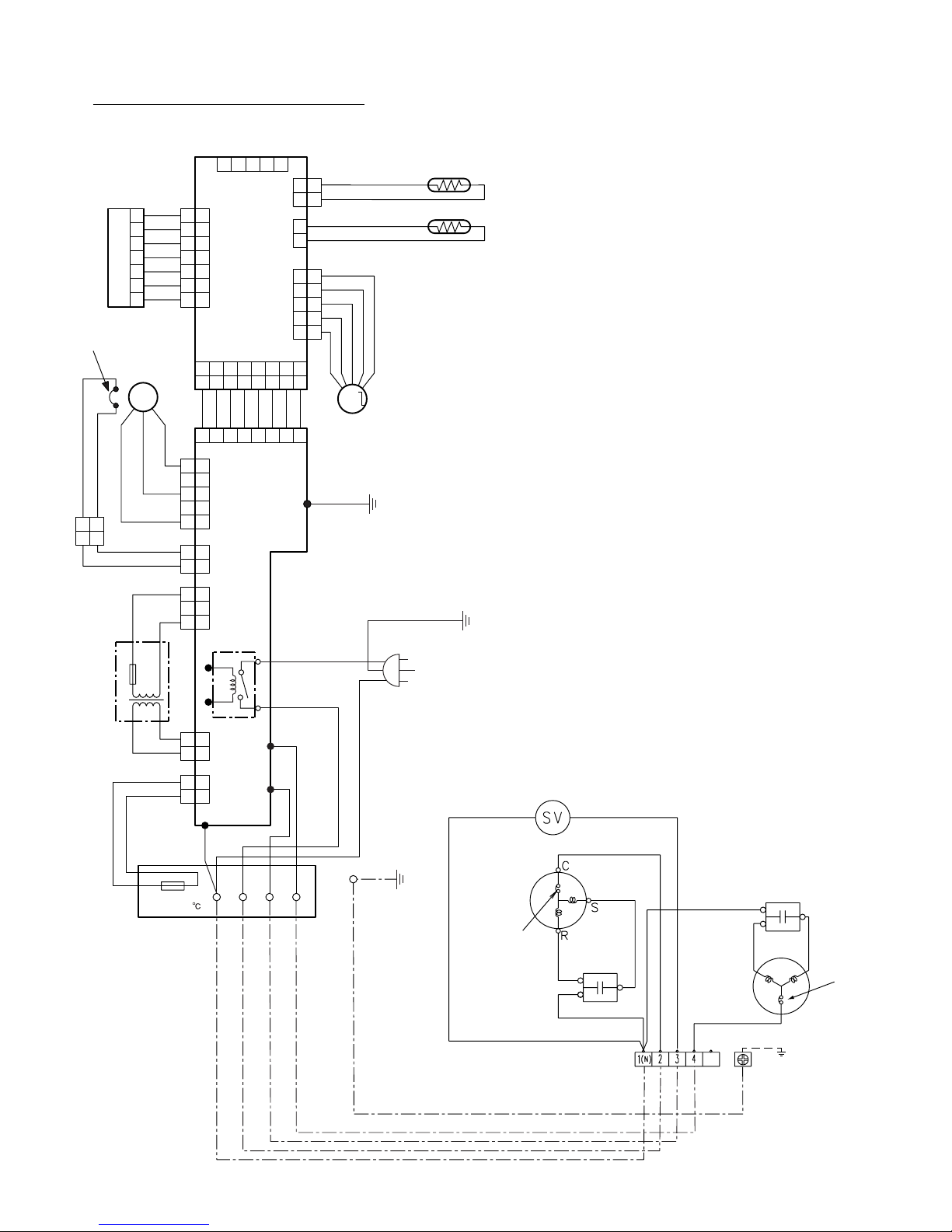

CIRCUIT DIAGRAM
INDOOR UNIT
OUTDOOR UNIT
Models : ASY17FSBQ / AOY17FNBK
ASY17FSCQ / AOY17FNBN
12345
TERMINAL
TEST
CN 11
CN 13
4 3
POWER
RELAY
Controller PCB
Power Supply PCB
Thermistor
(pipe temp.)
Thermistor
(room temp.)
Step Motor
Fan
Motor
DISPLAY BOARD
BLACK
BLACK
GRAY
GRAY
BLUE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLUE WHITE
WHITE BLUE
BLACK
GRAY GRAY
1 2
N
WHITE
GREEN
WHITE WHITE
WHITE
WHITE
BLACK
PURPLE
PURPLE
BROWN
Use T 3.15A - 250V fuse on F101
RED
RED
ORANGE
WHITE WHITE WHITE WHITE WHITE
WHITE
BLUE ORANGE YELLOW PINK RED
2 1
CN 12CN 8
CN 9
2 1
2 1
12345
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5 6 7 12345
CN 105
E
1 2
CN 106
1 2 1 2
2 2 1 1
3
CN 103
1 2 3 1 2
CN 102
W103 W102
W101
1 2 1 2
CN 101
1 2 1 2 3
4 5
12345 67
1234567
6 7 8
1 2 3 4 5 6 7 8
CN 16
CN 107
CN 201
1 2 3 4 5 6 7 8
M
FM
Thermal
Protector
Transformer
THERMAL FUSE
THERMAL
FUSE 102
GREEN
/ YELLOW
Compressor
Terminal
Compressor
Capacitor
Fan Motor
Capacitor
Fan Motor
Internal
Overload
Protector
Thermal
Protector
42005.02.16

INDOOR UNIT
OUTDOOR UNIT
ASY17USCQ / AOY17UNBN
Models : ASY17USBQ / AOY17UNBK
12345
Terminal
TEST
CN 11
CN 13
4 3
POWER
RELAY
CONTROL BOARD
POWER SUPPLY BOARD
Thermistor
(room temp.)
Step Motor
Thermal Protector
Fan
Motor
Thermistor
(pipe temp.)
DISPLAY BOARD
BLACK
BLACK
GRAY
GRAY
BLUE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLUE WHITE
WHITE BLUE RED BLUE
1234
N
WHITE
GREEN
WHITE WHITE
WHITE
WHITE
BLACK
PURPLE
PURPLE
RED
RED
ORANGE
WHITE WHITE WHITE WHITE WHITE
WHITE
BLUE ORANGE YELLOW PINK RED
2 1
CN 12CN 8
CN 9
2 1
2 1
12345
1 2 3 4 5
1 2 3 4 5
1234567 12345
CN 105
E
1 2
CN 106
1 2 1 2
2 2 1 1
3
CN 103
1 2 3 1 2
CN 102
W103 W102
W101
1 2 1 2
CN 101
1 2 1 2 3
4 5
12345 67
1234567
6 7 8
1 2 3 4 5 6 7 8
CN 16
CN 107
CN 201
1 2 3 4 5 6 7 8
M
FM
TRANSFORMER
THERMAL FUSE
GREEN / YELLOW
4-way Valve
Compressor
Fan Motor
Fan Motor
Capacitor
Thermal
Protector
Internal
Overload
Protector
Compressor
Capacitor
Black
Black
Red
Red White
White
White
White
Black
Black
Terminal
52005.02.16
BLACK
GRAY GRAY
BROWN
Use T 3.15A - 250V fuse on F101
THERMAL
FUSE 102

5V
5V
5V
R19
10K
C19
1000P
<R>
5V
12V
12V
R18 1.2K <1/4W>
R16 1.8K <1/4W>
R22 330
5V
12V
STEP MOTOR
12V
I C6-7 MC1413D
I C5-2 MC1413D
I C6-4 MC1413D
I C6-5 MC1413D
I C6-6 MC1413D
I C5-3 MC1413D
MC1413DI C5-1
C21
0.1
<F>
I C7
NM93C46
5V
R29
10K
R28
10K
R27
10K
R26
10K
NC
NC
NC
NC
NC
NC
NC
NC
5V
5V
5V
5V
C22 - C25
0.1 <F> x 4
R32
22K
R30
22K
R33
22K
R34
10K (1%)
C32
0.1
<F>
C26
1.0
<F>
R31
22K
C33
0.1
<F>
C27
1.0
<F>
R35
49.9K (1%)
5V
R15
100K
C14
0.1
<F>
I C4
PST600C
X1
8.38MHz
L3
BLM32
<A07>
VCC
GND
OUT
TEST
CN11 BS5P-SHF-1AA
CN12 2P-SAN
CN13 B2B-XH-AM
ROOM TEMPERATURE THERMISTOR
HEART EXCHANGER THERMISTOR
CN11-5
CN11-1
CN11-2
CN11-3
CN11-4
CN13-1 GRAY
CN13-2 GRAY
CN12-2 BLACK
CN12-1 BLACK
CN9 173977-7 (AMP)
CN8 B5B-PH-K-S
12V
CN201
D201
SLR-34
<RED>
D202
SLR-342
<GRN>
OPERATE
TIMER
+
C202
10/
25V
C201
0.1
<F>
X201
SBX1810-22
VDD
DA
GND
GND
9
107
512
8
11
13
4
6
9
14
16
15
2
3
1
8
CN8-1
RED
CN8-2
PINK
CN8-3
YELLOW
CN8-4
ORANGE
CN8-5
BLUE
CN9-1 BLUE
CN9-2 WHITE
CN201-1
CN201-2
CN9-3 WHITE CN201-3
CN9-4 WHITE CN201-4
CN9-5 WHITE CN201-5
CN9-6 WHITE CN201-6
CN9-7 WHITE CN201-7
UL1061 AWG26
INDICATOR PCB
EZ-030HSE-D
M
18
7
6
5
4
3
2
CS
SK
D1
D0
VCC
NC
NC
GND
31
30
X1X0
27
RESET
BZ7
5V
R9
10K
Q1
DTC124EK
C20
0.1
<F>
R23
330
R20
10K
C34
0.1
<F>
NC
NC
R51
1.5K
I C3-2
NJM2904
R8
1M
P05
C13
0.1
<F>
7
5
6
R6
33K
R7
22K
R5
R4
4.7K
10K
R3
1.0K
R2
22K
C12
0.1
<F>
I C5-4 MC1413D
I C5-7 MC1413D
I C5-5 MC1413D
I C5-6 MC1413D
I C3-1
NJM2904
R25 1.2K
<1/2W>
BZ1
PKM13EPY
R24
1.0K
12V
12V I C2
7805
5V
5V
12
11
48
47
46
45
56
55
54
53
52
51
50
49
18
17
16
37
10
38
39
40
33
34
35
36
AN1
AN0
P10
P11
P12
P13
P00
P01
P02
P03
P04
P06
P07
P57
P56
P55
P23
P47
P22
P21
P20
P27
P26
P25
P24
29
28
26
25
24
23
43
42
44
41
14
15
13
9
8
22
21
57
32
20
19
64
6
5
4
3
2
1
63
62
61
60
59
58
MOD1
MOD0
P64
P63
P62
P61
P15
P16
P14
P17
AN3
AN4
AN2
P46
P45
I NT0
AVSS
VSS
VSS
AVR
AVCC
VCC
P43
P42
P41
P40
P37
P36
P35
P34
P33
P32
P31
P30
I O
G
1
2
3
C10
0.1
<F>
C11
0.1
<F> L2
BLM32
<A07>
C10
0.1
<F>
+
C6
1000
/25V
D5
D1F60
R11
10K
R10
10K
R12
10K
R13
10K
R14
10K
R36
10K
R42
10K
R41
10K
R40
10K
R39
10K
R38
10K
R37
10K
JP1
JP2
JP6
JP5
JP4
JP3
JP7
JP8
JP9
JP10
JP11
JP12
13
10
12
11
4
7
5
6
1
2
3
UL3271 AWG20
GREEN
E
MANUAL AUTO
SWITCH
SW102
C108
0.1
<F>
+
C111
10/
25V
12V
R102
10K
<1/4W>
CN107 CN16 175487-8
UL1061 AWG26
CN107-8 WHITE
CN16-8
CN16-1
CN107-1 BLUE
CN107-2 WHITE
CN16-2
CN107-7 WHITE
CN16-7
CN107-4 WHITE
CN16-4
CN107-6 WHITE
CN16-6
CN16-5
CN107-5 WHITE
CN16-3
CN107-3 WHITE
POWER SOURCE
220 / 240V
50Hz
BROWN
GREEN / YELLOW
BLUE
K101-3
BLK WHT
NL
TERMINAL BOARD
12V
K101
G4A-1A
D107 1SR35
L101
ELF15N008A
C102
0.1
VA102
CP2470
C101
1.3
FAN CAPACITOR
K101-4
WHITE
UL1015
AWG14
F M
FAN MOTOR
CN105-5
ORANGE
CN105-3
BLACK
CN105-1
WHITE
CN105
B3P5-VH-B
UL1015
AWG22
AC I N
W101 BLACK
12V
+-SSR101
G3MB-202PL-UTU
VA101
470V
C103
0.1
C110
4700P
C109
4700P
F101
3.15A
<250V>
D103 1SR35
D102 1SR35
CN103
B2P3-VH-B
CN102
B2B-XH-A +
+C107
0.1
<F>
D104
RD16E-B1
C105
10/
25V
C104
2200
/50V
Q101
2SD880
R101 1.0K
<1/4W>
D101 S1VB20
3
4
2
1
POWER SWITCH
SW101
8SS1012-1
CN106 B2P-VH-B
CN101
53405
-0210
POWER SUPLLY PCB
EZ-097VWSE-P
PRIMARY
SECONDARY
POWER
TRANSFORMER
EZ-030HSE-T
THERMAL FUSE
PURPLE
PURPLE
CN103-3
CN103-1
CN102-1 RED
CN102-2 RED
THERMAL FUSE ( 102 )
CN101-1 GRAY
CN101-2
GRAY
THERMAL
PROTECTOR ( 110 )
WHITE
WHITE
SLP
02V
SLR
02VFCN106-1
WHITE
WHITE
CN106-2
MODEL CHANGING
REMOTE CONTROL
CUSTOM CODE
AUTO CHANGE OVER
HEATING TEMP.
CORRECTION 1
HEATING TEMP.
CORRECTION 2
AUTO RESTART
MULTI / SINGLE
UP / DOWN WIND
DIRECTION SELECTOR
OUTDOOR FAN DELAY
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
EZ-099MWSE-C ( F )
I C 1
MB89625R-SH-686
Models :
ASY17FSBQ
ASY17FSCQ
INDOOR PCB CIRCUIT DIAGRAM
Jumper wire configurations
Switch Function ON/Linked OFF/Open
JP 1/2/3/4 Model change over (Depends on model)
JP5 Custom code A B
JP6 Auto change-over enable disable
JP-7/8 Heating compensation (See table 3)
JP9 Auto restart enable disable
JP10 Multi\single (not in use) (not in use)
JP11 Up-Down airflow flap (not in use) (not in use)
JP12 Outdoor fan delay (not in use) (not in use)
Table 3
ON / ON +4
ON / OFF 0
OFF / ON -2
OFF / OFF +2
62005.02.16

58
59
60
61
62
63
1
2
3
4
5
6
64
19
20
32
57
21
22
8
9
13
15
14
41
44
42
43
23
24
25
26
28
29
7
30
X0 X1
31
BZ
P15
P61
P62
P63
P64
MOD1
MOD0
P17
P14
P16
P45
P46
AN2
AN4
AN3
I NT0
AVSS
VSS
VSS
VCC
AVCC
AVR
P30
P31
P32
P33
P34
P35
P36
P37
P40
P41
P42
P43
P24
P25
P26
P27
P20
P21
P22
P47
P23
P55
P56
P57
P07
P06
P05
P04
P03
P02
P01
P00
P13
P12
P11
P10
AN0
AN1
RESET
36
35
34
33
40
39
38
10
37
16
17
18
49
50
51
52
53
54
55
56
45
46
47
48
11
12
27
5V
C33
0.1
<F>
C32
0.1
<F>
5V
R15
100K
C14
0.1
<F>
IC4
PST600C
R35
49.9K (1%)
VCC
OUT
GND
R33
22K
R32
22K
C27
1.0
<F>
C26
1.0
<F>
R31
22K
R30
22K
R34
10K (1%)
5V
5V
R26 - R29
10K
C22 - C25
0.1 <F>
C21
0.1
<F>
IC7
NM93C46
5V
8
7
6
5
1
2
3
4
CS
SK
D1
D0
VCC
NC
NC
GND
5V
R19
10K
C19
1000P
<R>
5V
R22 330
R16 1.8K <1/4W>
R18 1.2K <1/4W>
12V
12V
IC6-4 MC1413D
IC6-6 MC1413D
IC6-5 MC1413D
IC6-7 MC1413D
12V
710
12
5
611
13
4
3
1
9
14
16
8
215
IC5-3
IC5-1
IC5-2
MC1415D
MC1415D
MC1415D
L3
BLM32
<A07>
X1
8.38 MHz
R9
10K
Q1
DTC124EK
3
2
1
5V
R23
330
R20
10K
C20
0.1
<F>
IC3-2
NJM2904
C34
0.1
<F>
5V
5V
IC3-2
NJM2904
IC5-4 MC1413D
IC5-6 MC1413D
IC5-5 MC1413D
IC5-7 MC1413D
R51
1.5K
R8
1M
C13
0.1
<F>
R7
22K
R6
33K
R4
4.7K
R5
10K
R3
1K
C12
0.1
<F>
R2
22K
L2
BLM32
<A07>
C11
0.1
<F>
C10
0.1
<F>
C9
0.1
<F>
+
C6
1000
/25V
L1
BLM32
<A07>
5V
12V
D5
D1F60
IC2
7805
1
2
3
I O
G
+
-
5
67
4
7
5
6
8
13
10
12
11
3
21
+
-
R24
1K
12V
BZ1
PKM13EPY
R25 1.2K
<1/2W>
5V
R38
10K
R37
10K
R42
10K
R41
10K
R40
10K
R39
10K
R10
10K
R36
10K
R14
10K
R13
10K
R12
10K
R11
10K
5V
B Z
ROOM TEMPERATURE THERMISTOR
HEAT EXCHANGER THERMISTOR
CN12
CN11
CN13 B2B-XH-AM
2P-SAN
BS5P-SHF-1AA
CN11-5
CN11-1
CN11-2
CN11-3
CN11-4
CN12-1
CN12-2
CN13-2
CN13-1
GRAY
GRAY
BLACK
BLACK
TEST
UL1061 AWG26
CN9-7
CN201-7
WHITE
CN201-6
CN201-5
CN201-4
CN201-3
CN201-2
CN201-1
WHITE
WHITE
WHITE
WHITE
WHITE
BLUE
CN9-2
CN9-6
CN9-3
CN9-5
CN9-4
CN9-1
OPERATE
TIMER
GREEN
RED
VDD
DA
GND
GND
5V
12V
D201
SLR-34
<RED>
D202
SLR-34
<GRN>
X201
SBX1810-22
C202
10/
25V
+
C201
0.1
<F>
INDICATOR PCB
EZ-030HSE-D
STEP MOTOR
M
CN201
CN9
CN8
173977-7 (AMP)
CN8-1
RED
PINK
YELLOW
ORANGE
BLUE
CN8-5
CN8-4
CN8-3
CN8-2
UL1061 AWG26
CN107-8 CN16-8WHITE
CN16CN107
CN107-6
CN107-7
CN107-3
CN107-4
CN107-2
CN107-1
CN16-4
CN16-6
CN16-7
CN16-3
CN16-2
CN16-1
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLUE
CN107-5 CN16-5
UL3271 AWG20
GREEN
E
BROWN
BLUE
GREEN / YELLOW
POWER SOURCE
220 / 240V
50Hz
K101-3
K102 G5S-1
K103 G5S-1
K101 G4A-1A
12V
D105 1SR35
D106 1SR35
D107 1SR35
L101
ELF15N008A
CR102
120/0.2
CR101
120/0.2
VA102
CP2470
C102
0.1
C101
1.3
FAN
CAPACITOR
SSR101
G3MB-202PL-UTU
CN105
B3P5-VH-B
+-
12V
C103
0.1
VA101
470V
C110
4700P
C109
4700P
MANUAL AUTO
SWITCH
C108
0.1
<F>
C111
10/
25V
F101
3.15A
<250V>
12V
R102
10K
<1/4W>
C107
0.1
<F>
D104
RD16E-B1
+
+
C105
10/
25V
Q101
2SD880
D103 1SR35
D102 1SR35
C104
2200
/50V
R101
1K
<1/4W>
D101 S1VB20
POWER SWITCH
SW101
8SS1012-1
4
2
1
3
CN106 B2P-VH-B
CN101
53405
-0210
CN102
B2B-XH-A
CN103
B2P3-VH-B
POWER
TRANSFORMER
EZ-030HSE-T
PRIMARY
SECONDARY
THERMAL FUSE
PURPLE RED
RED
PURPLE
CN103-1
CN103-3
CN102-1
CN102-2
THERMAL FUSE (102 )
CN102-2
CN101-1
GRAY
GRAY
FAN MOTOR
THERMAL PROTECTOR
WHITE
WHITE
CN106-1
CN106-2
WHITE
WHITE
SLP
02V
SLR
02VE
UL1015 AWG22
AC IN
W101
(BLACK)
FAN MOTOR
CN105-5
ORANGE
BLACK
WHITE
CN105-1
CN105-3
UL1015 AWG14
K101-4
(WHITE)
W103
4-WAY VALVE
(RED)
UL1015 AWG22
W102
OUT-FAN
(BLUE)
UL1015 AWG22
BLK WHTRED BLU
4
3L
N
TERMINAL BOARD
POWER SUPPLY PCB
EZ-097THSE-P
I C 1
MB89625R-SH
-680
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
EZ-099THSE-C ( F )
JP1
JP10
JP9
JP8
JP7
JP6
JP5
JP4
JP3
JP2
JP12
JP11
MODEL CHANGING
REMOTE CONTROL
CUSTOM CODE
AUTO CHANGE OVER
HEATINGTEMP.
CORRECTION 1
HEATINGTEMP.
CORRECTION 2
AUTO RESTART
MULTI / SINGLE
UP / DOWN WIND
DIRECTION SELECTOR
OUTDOOR FAN DELAY
F M
Models :
ASY17USBQ
ASY17USCQ
Jumper wire configurations
Switch Function ON/Linked OFF/Open
JP 1/2/3/4 Model change over (Depends on model)
JP5 Custom code A B
JP6 Auto change-over enable disable
JP-7/8 Heating compensation (See table 3)
JP9 Auto restart enable disable
JP10 Multi\single (not in use) (not in use)
JP11 Up-Down airflow flap (not in use) (not in use)
JP12 Outdoor fan delay (not in use) (not in use)
Table 3
ON / ON +4
ON / OFF 0
OFF / ON -2
OFF / OFF +2
72005.02.16

82008.02.04
FAILURE DETECTION
Room thermistor failure
Indoor unit
heat exchanger thermistor failure
Operation lamp
Timer lamp
Operation lamp
Timer lamp
Room thermistor failure
Indoor unit
heat exchanger thermistor failure
Operation lamp : 3 flash
Timer lamp : 3 flash
on
on
on
off
off
on
off
0.5 sec
0.1 sec
off
TIMER
OPERATION

DISASSEMBLY ILLUSTRATION
ASY17FSCQ
ASY17USCQ
Models : ASY17FSBQ
ASY17USBQ
92005.02.16

ASY17FSCQ
ASY17USCQ
Models : ASY17FSBQ
ASY17USBQ
102005.02.16

AOY17FNBN
AOY17UNBN
Models :
AOY17UNBK
112005.02.16
AOY17FNBK

AOY17UNBN
AOY17FNBN
AOY17UNBK
Models : AOY17FNBK
122005.02.16

AOY17FNBN
Models : AOY17FNBK
AOY17UNBN
Models : AOY17UNBK
132005.02.16

AOY17FNBN
Models : AOY17FNBK
AOY17UNBN
Models : AOY17UNBK
142007.10.30

PARTS LIST
28 Air Seal 9304111016 9304111016
63 Front Panel Assy 9354645158 9354645158
65 Louver Assy 9354646049 9354646049
74 Filter 9304097013
108 Base 9304107033
109 Casing
9304097013
9304107033
9304108016 9304108016
122 Bearing-B Assy 9304470007 9304470007
127 Drain Hose Assy 9368754013 9368754013
146 Evaporator Assy 9363335002 9363335002
151 Control Box 9304092001 9304092001
158 Connecting Pipe Assy 9363632002 9363632002
164 Fan Motor 96004320139600432013
169 Cross-flow Fan Assy 9306327002 9306327002
178 Motor Cushion-G 9304669005 9304669005
184-1 Thermostat Spring-A 313728262708 313728262708
185 Wire Clamp 9356959000 9356959000
188 Power Cord Assy 9906072018 9906072018
233 Power Transformer 9701803026 9701803026
235 Thermistor Assy-Pipe 9702325015 9702325015
236 Controller PCB Assy 9704341044 9704341204
240 Remote Control 9356602029 9356602036
251 Hose Clamp 9304077008 9304077008
268 Motor Cover-B 9304231004 9304231004
281 Clamp Metal (Pipe) 9304242000 9304242000
283 Bushing-A 9303529010 9303529010
345 Filter Guide 9304110019 9304110019
385 Indicator PCB Assy 9701119219 9701119219
401 Wall Hook Bracket 9304093008 9304093008
406 Louver-L Assy 9354644014 9354644014
407 Louver-R Assy 9354643017 9354643017
425 Earth Terminal 9357852003 9357852003
652-1 Thermistor Holder Pipe 313714262805 313714262805
736 Operation Panel 9354230002 9354230002
743 Remote Control Holder 9305642014 9305642014
758 Decoration Plate-A 9354223011 9354223011
759 Intake Grille-B 9357856018 9357856018
761 Side Cover-R 9303518052 9303518052
762 Side Cover-L 9303520093 9303520093
764 Drain Cap Assy 9304150008 9304150008
767-1 Bottom Cover-A 9303536056 9303536056
767-2 Bottom Cover-B 9303537053 9303537053
780 Key Top (Slide Switch) 9303526002 9303526002
815 Terminal-2P -----
815-3 Terminal-4P ----- 9701955039
848 Catcher 9306545000
870 Arm
9701955022
9306545000
9303525005 9303525005
871 Arm Spring 9304377009 9304377009
872 Indicator Case 9303631003 9303631003
874 Control Box Cover 9304094005 9304094005
875 Power Supply PCB Assy 9702451073 9702451066
876 Step Motor 9304535003 9304535003
963 Fan Guard 9356881011 9356881011
977 Louver Clip, Plastic 9356880014 9356880014
978 Wire Bracket-L 9356878011 9356878011
979 Wire Bracket-R 9356877014 9356877014
983 Thermostat Protective Cover 9356882001 9356882001
INDOOR UNIT
Ref. Description
Part parts
ASY17USBQ
ASY17USCQ
ASY17FSBQ
ASY17FSCQ
152005.02.16

OUTDOOR UNIT
26 Compressor Cover
29 Separate Wall
32 Control Box
34 Capacitor, Plastic
37 Running Capacitor
38 Capacitor Clamp
69-3 Bolt, Hex. Socket
85 Valve Plate Ptd
107 Rubber Seat-A
39 Propeller Fan Assy
41 Motor Induct
45-1 Motor Bracket
45-2 Motor Bracket-Top
45-3 Motor Bracket Center
45-4 Motor Bracket Bottom
46 Compressor Assy
47-1 Rubber (Discharge Pipe)
55 Special Nut M8
51 Special Nut M5
64 Side Panel L Ptd
982-1 Cord Clamp
982-2 Cord Clamp-C
9372327012
9371933016
9371935010
9900130022
9703107122
9351770013
301210060360
9371928012
9351049010
9366378013
9601671022
9371929019
9371931012
9371930015
9371932019
9372558027
313194159807
9355091008
9300301015
9371926018
109 Termminal Cover (Comp)
187 Clip (Cable)
272 Strainer
412 Cover Gasket (Comp.)
527 Protectiive Net
420 Capillary Assy
734 Top Plate
754 Terminal Gask. Washer
815 Terminal-3P
9371511016
9352715006
9369287008
9371512013
9371934013
9372197066
9371925011
9351053017
9900203016
9356857009
9359677000
2 Fan Guard
4 Emblem-Rear
16 Condenser Assy
9371187013
9351355005
9372181041
17 U-Pipe Y 9372638019
5 Front Panel Ptd
7 Connector Cover (Cabinet)
8 Wire Assy (Comp)
9 Side Panel R
12 Base Assy
13 3-Way Valve Assy
14 2-Way Valve Assy
9371924014
9366398004
9372334010
9371927015
9371920054
9372205112
9372204016
Ref. Description
Part number
AOY17FNBK
AOY17FNBN
2 Fan Guard
4 Emblem-Rear
5 Front Panel Ptd
7 Connector Cover (Cabinet)
8 Wire Assy (Comp)
9 Side Panel R
12 Base Assy
13 3-Way Valve Assy
14 2-Way Valve Assy
16 Condenser Assy
26 Compressor Cover
29 Separate Wall
32 Control Box
34 Capacitor, Plastic
37 Running Capacitor
38 Capacitor Clamp Metal
69-3 Bolt, Hex. Socket
85 Valve Plate
107 Rubber Seat-A
109 Teminal Cover (Comp)
187 Clip (Cable)
199 Br Sheet
272 Strainer
412 Cover Gasket (Comp.)
527 Protectiive Net
39 Propeller Fan Assy
41 Motor Induct
45-1 Motor Bracket
45-2 Motor Bracket-Top
45-3 Motor Bracket Ctr
45-4 Motor Bracket Bottom
46 Compressor Assy
55 Special Nut M8
51 Special Nut M5
64 Side Panel L
734 Top Panel
271 4-Way Valve Rubber
259 Muffler
343 Solenoid
344 4-Way Valve
9371187013
9351355005
9371924014
9366398004
9314792007
9371927015
9371920054
9314678011
9314681011
9314475016
20 Discharge Pipe Assy 9372318119
9372327012
9371933016
9371935010
9900130022
9703107122
9351770013
301210060360
9371928012
9351049010
9371511016
9352715006
9363708059
9369287008
9371512013
9371934013
9366378013
9601671022
9371929019
9371931012
9371930015
9371932019
9372558027
9355091008
58 Suction Pipe Assy 9372175026
9300301015
9371926018
9371925011
420 Capillary Assy
754 Terminal Gask. Washer
815-3 Terminal-5P
982-1 Cord Clamp
982-2 Cord Clamp-C
9372197042
9351053017
9900203023
9356857009
9359677000
313728251908
9372369012
9900165017
9970036019
348 Distributor 9368859008
Ref. Description
Part number
AOY17UNBK
AOY17UNBN
162007.10.30

313166024302
Drain cap
9303029015
Part number
9305642014
9308117007
301141164200
0700019036
9304536000
9305114009
9305642014
9308117007
301141164200
0700019036
9304536000
9305114009
Cable mark
9301385007
-----
-----
-----
9304093008
313714296205
9356602036
(AR-AB10)
ASY17USBQ
ASY17USCQ
0600185534
Part number
9304093008
313714296205
9356602029
(AR-AB9)
INDOOR UNIT
OUTDOOR UNIT
Name and Shape ASY17FSBQ
ASY17FSCQ
Name and Shape AOY17FNBK
AOY17FNBN
0600185534
AOY17UNBK
AOY17UNBN
Remote control
Wall cap
Remote control
holder
Battery (penlight)
Cloth tape
Tapping screw (Big)
( 4 x 20)
Tapping screw (Small)
( 3 x 12)
Seal-A
Flange screw
( 4 x 10)
Wall hook bracket
STANDARD ACCESSORIES
Drain pipe
(Including
drain packing)
172005.02.16

0401G2482
