Fujitsu AU*A30LBLU Service manual

DESIGN & TECHNICAL MANUAL
SINGLE
INDOOR
OUTDOOR
AOA30LBTL AOA30LFTL
AOA36LBTL AOA36LFTL
AUA30LBLU
AUA36LBLU
AIR CONDITIONER
Cassette type

1. INDOOR UNIT
D2D_AU034E/04
2010.07.07
CASSETTE TYPE :
AUA30LBLU
AUA36LBLU

CONTENTS
1. INDOOR UNIT
1. FEATURE.................................................................................................................. 01 - 01
2. REMOTE CONTROLLER............................................................................. 01 - 04
3. SPECIFICATIONS.............................................................................................. 01 - 06
4. DIMENSIONS ........................................................................................................ 01 - 07
5. WIRING DIAGRAMS........................................................................................ 01 - 09
6. CAPACITY TABLE ............................................................................................ 01 - 10
6-1. COOLING CAPACITY...................................................................................... 01 - 10
6-2. HEATING CAPACITY........................................................................................01 - 11
7. FAN PERFORMANCE.................................................................................... 01 - 12
7-1. AIR VELOCITY DISTRIBUTION..................................................................... 01 - 12
7-2. AIR FLOW.......................................................................................................... 01 - 17
7-3. FRESH AIR ........................................................................................................ 01 - 19
7-4. DUCT CONNECTION....................................................................................... 01 - 20
8. OPERATION NOISE......................................................................................... 01 - 22
8-1. NOISE LEVEL CURVE .................................................................................... 01 - 22
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 23
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 24
10. SAFETY DEVICES ............................................................................................ 01 - 25
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 26
11-1. EXTERNAL INPUT ........................................................................................... 01 - 26
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 27
12. FUNCTION SETTING...................................................................................... 01 - 29
12-1. INDOOR UNIT ................................................................................................... 01 - 29
12-2. WIRED REMOTE CONTROLLER.................................................................. 01 - 30
13. OPTIONAL PARTS ........................................................................................... 01 - 33

- (01 - 01) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
FEATURE1.
MODEL

INDOOR UNIT OUTDOOR UNIT
AUA30LBLU AOA30LBTL
AOA30LFTL
AUA36LBLU AOA36LBTL
AOA36LFTL
FEATURES

Energy saving
z
All DC design•
Heat exchange efciency increased and larger air ow by adoption of new type turbo fan•
Advancement in comfort
z
Quiet operation was realized by adoption of new type turbo fan•
Improvement of air stream•
Adoption of high efficiency turbo fan
High efciency achieved by equaling the performance of the wing and air passing the heat
exchanger
Improvement of the flap
Making space between the ceiling, the air ows far wide and ceiling does not get dirty.
Rear part
Front part Ceiling
Round Flap
Much less temperature irregularity
happens by spreading airflow widely
Bottom view
500mm
Wind
velocity
Fast
Slow 3-dimensional wing
: Spin direction : Airflow direction
No airflow
separation
Quiet
< Motor side >
Heat exchanger

- (01 - 02) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
High lift drain pump
z
850mm
Ceiling panel
Simplication of drain water check
z
Drain and contamination check are possible
without removing the decoration panel.
Can be easily checked by removing the drain
cover.
DRAIN CAP
DRAIN COVER
Easy installation
z
Easy setting by wired
remote controller
Improvement of installation & maintenance
z
Adjustment of nut is possible after installation•
Mounting position of body can be ne adjusted after Decoration panel mounting.
Grille corner
Adjustment
can be done just taking
off the corner part

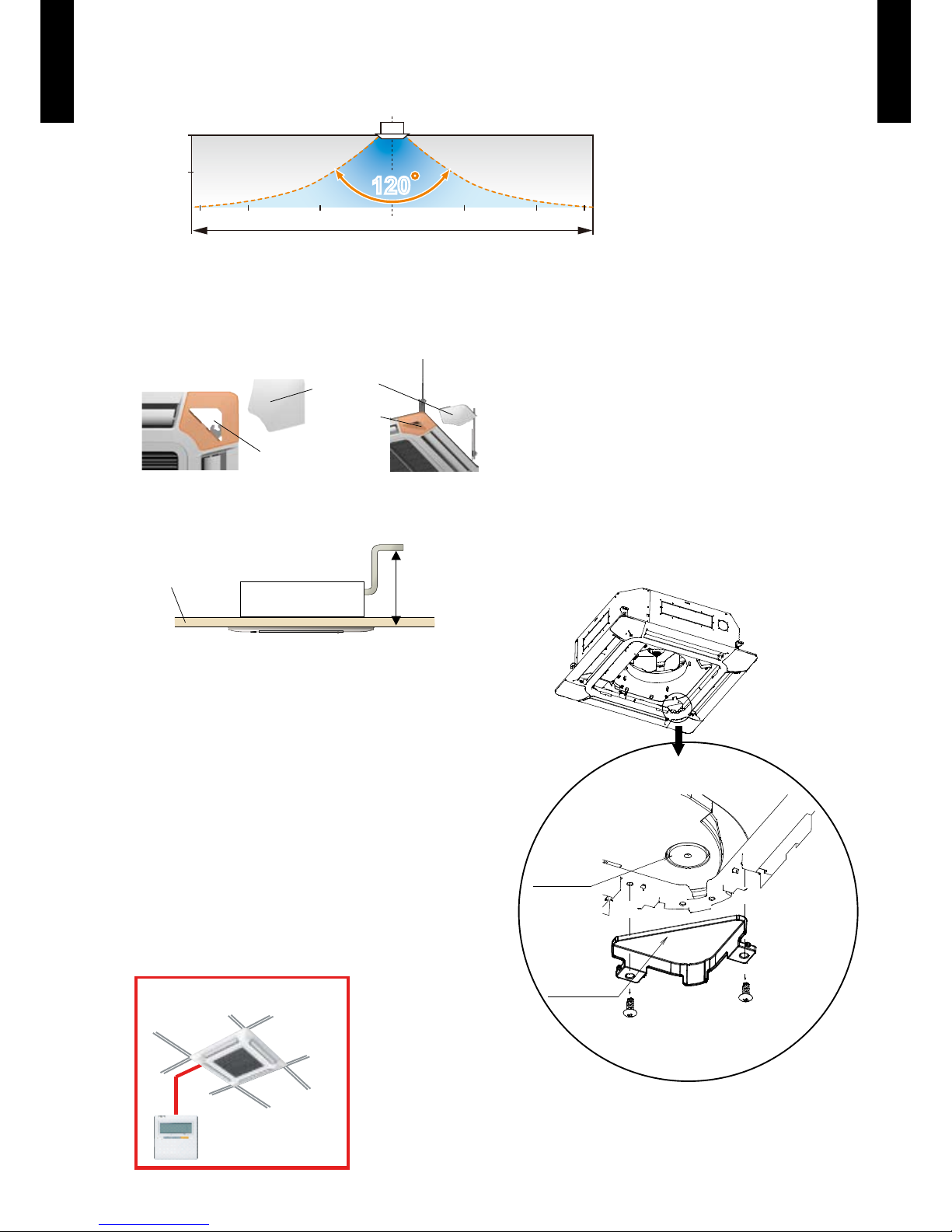

Wide & powerful airflow
The wind is widely delivered by a high efciency fan and round ap.
1.5
3
7 5 3 73 5
Side view
Airflow range of 2m / s
120120
[ m ]
[ m ]

- (01 - 03) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
FUNCTION SETTING

Outlet direction selection
z
Performs operation matched to the number of outlets when 4 directions are unnecessary and •
outlets are blocked when the ceiling cassette is installed in a corner, etc.
Ceiling switching function
z
Also delivers air to high ceilings by selecting the mode and raising the air ow according to the
height of the ceiling.
Standard ...Operates at normal air ow.
Mode 1 ...Air ow becomes smaller than normal.
Mode 2 ...Air ow becomes greater than normal.
Filter sign
z
The indoor unit has sign to inform the user that it is time to clean the lter
Cooling room temperature correction
z
Heating room temperature correction
z
Auto restart
z
The units restart automatically when the current was returned even when there was a power
interruption during operation.
Room temperature sensor switching
z
Switches from room temperature judgment by room temperature sensor attached to indoor
unit body to room temperature judgment by room temperature sensor attached to wired remote
controller.
Economy operation
z
The power consumption can be reduced.
Powerful mode ...Standard
Soft mode ...Performs operation which reduces the power consumption

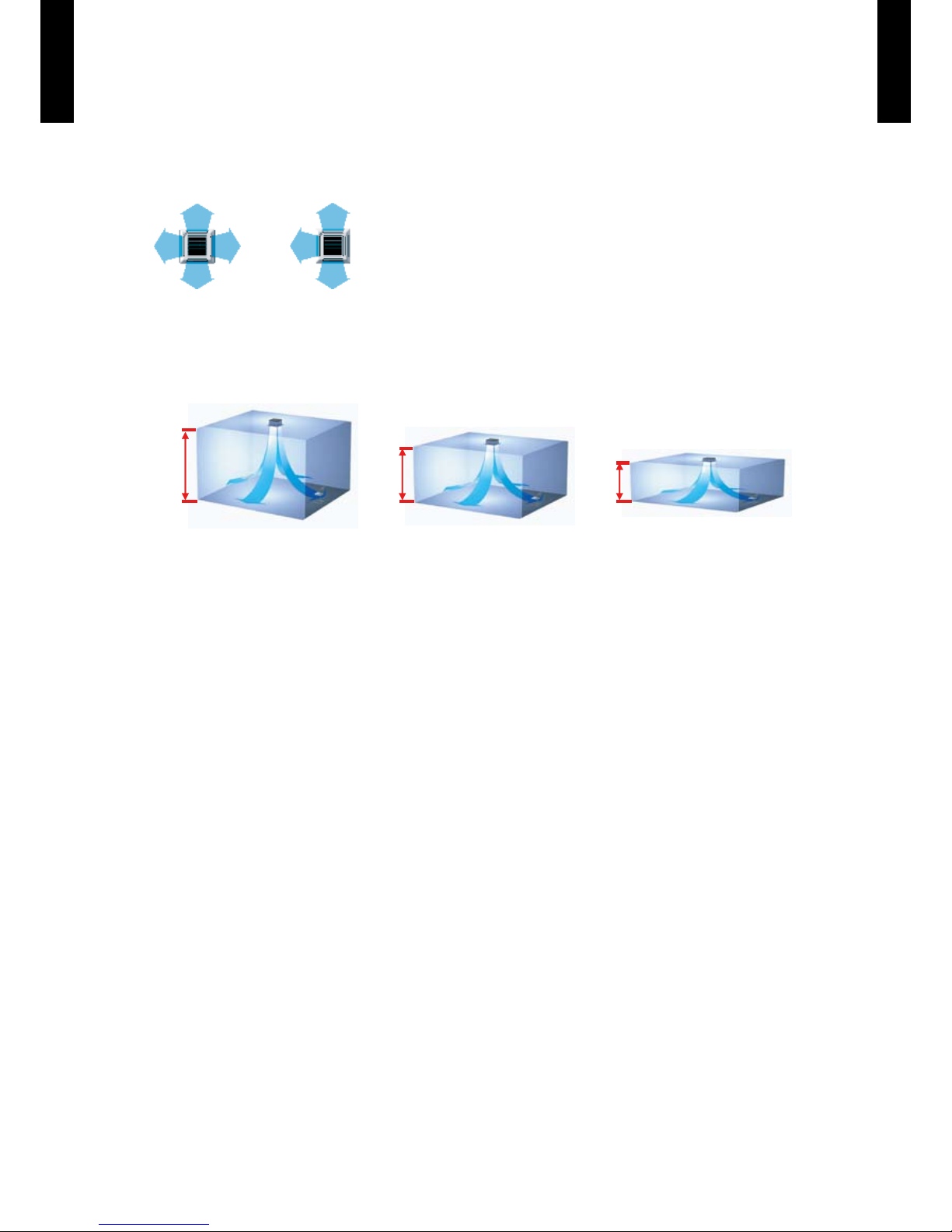

4-way direction 3-way direction
4-way direction mode: Set when there are 4 outlets
(shipped state).
3-way direction mode: Set when there are 3 outlets.
Low ceiling (Mode 1)
4.2m 3.2m 2.7m
High ceiling (Mode 2) Standard ceiling (Standard)
*1
*1 : AU*A30L is 3.6m

- (01 - 04) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
REMOTE CONTROLLER2.
WIRED REMOTE CONTROLLER
FEATURES

Various timer setup (ON / OFF / WEEKLY) are possible.

Equipped with weekly timer as standard function.

(2 times Start / Stop per day for a week)
When setting up a timer, operation mode and a temperature

setup can be changed.
When a failure occurs,the error code is displayed. (Maximum of 16)

Error indication.(A maximum of 16 error histories are memorizable.)

Up to 16 indoor units can be simultaneously controlled.

Economy operation are possible.

Easy installation with a slim shape with no bulge in the back.

The room temperature can be controlled by being detected the

temperature accurately with built-in thermo sensor.
Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
High performance and compact size
z
Three functions are combined in
one unit.
Built-in timers
z
Wired
remote
controller
Weekly
timer
Setback
timer
+ +
Weekly timer Setback timer
At "Weekly timer" + "Set back timer" setup
Easy-to-understand operation
z
[Variable timer control]
The operation/display sections are zoned
according to time and operation, enabling
variable programming to match application.
Simple installation
z
Components are compatible with standard
switch boxes. Flat back construction allows
equipment to be installed wherever it is
needed.
SU MO TU WE TH FR SA
7
3 12 6 9 15 18 21
SU MO TU WE TH FR SA
7
3 12 6 9 15 18 21
SU MO TU WE TH FR SA
3 12 6 9 15 18 21
Possible to set ON/OFF time to operate twice each day
of the week.
Setup screen example
(Set to Wednesday: 8:00 to 20:00.)
Screen
after setup
European
switch box
JIS box
Setup screen example
(Set from Sunday to Saturday: 12:00 to 15:00, 28 °C.)
Possible to set temperature for two time spans and
for each day of the week.
Easy-to-understand time bar display
24°C
036912 15 18 21 Time
28°C
036912 15 18 21 Time
28°C
24°C
036912 15 18 21 Time
24°C 28°C 24°C
Timer
area
Operation
area

- (01 - 05) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
FUNCTIONS

Display panel
DIMENSION

SPECIFICATION

15
11
10
9
8
21
3
5
14
4
12
13
6
7
17
16 18
19 20
21
120 17
120
SIZE (H x W x D mm) 120 x 120 x 17
WEIGHT ( g ) 160
CABLE LENGTH ( m ) 10
POWER ( V ) 12
1START/STOP button
Pressed to start and stop operation.
2Set temperature button
Selects the setting temperature.
3Master control button
Selects the operating mode(AUTO, HEAT, FAN, COOL, DRY).
4Fan control button
Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH).
5Economy button
Turns the economy efcient mode on and off.
6 Timer mode (CLOCK ADJUST) button
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY
TIMER). Set the current time.
7 Day (DAY OFF) button
Temporarily cancels of one day timer.
8 Set back button
Pressed to select the set back timer.
9Set time button
Pressed to set time.
10 Delete button
The schedule of a weekly timer is deleted.
11 Set button
Sets the date, hour, minute and on-off time.
12 Vertical airow direction and swing button
Push for two seconds to change the swing mode.
13 Horizontal airow direction and swing button
Push for two seconds to change the swing mode.
14 Filter button
15 Operation lamp
Lights during operation and when the timer is on.
16 Timer and clock display
17 Operation mode display
18 Fan speed display
19 Operation lock display
20 Temperature display
21 Function display
Defrost display
Thermo sensor display
Economy display
Vertical swing display
Horizontal swing display
Filter display
Functions will be different due to type of indoor unit.
For details, please see operation manual.
[ Unit : mm ]
Front View

- (01 - 06) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
SPECIFICATIONS3.
Type CASSETTE MODEL
INVERTER HEATPUMP
Model name Indoor unit AUA30LBLU AUA36LBLU
Outdoor unit AOA30LBTL AOA30LFTL AOA36LBTL AOA36LFTL
Power source 230V~ 50Hz
Available voltage range 198-264V~ 50Hz
European energy label Cooling A A
Heating A A
Capacity
Cooling
Rated kW 8.50 10.00
BTU/h 29000 3 4100
Min.-Max. kW 2.80 - 10.00 2.80 - 11.20
BTU/h 9500 - 34100 9500 - 38200
Heating
Rated kW 10.00 11.2 0
BTU/h 3 410 0 38200
Min.-Max. kW 2.70 - 11.20 2.70 - 12.70
BTU/h 9200 - 38200 9200 - 43300
Input power
Cooling Rated
kW
2.65 3.11 3 .12
Max. 3.88 4.56 4.22
Heating Rated 2.77 3.02
Max. 3.88 4.56
Current
Cooling Rated
A
11.6 13.7
*Max. 17.0 20.0 18.5
Heating Rated 12.2 13.3
*Max. 17.0 20.0
EER Cooling kW/kW 3.21 3.21
COP Heating 3.61 3.71
Moisture removal l/h (pints/h) 2.5(5.3) 3.5(7.4)
Fan
Airow
rate
Cooling
High
m3/h
1600 1800
Med 1400 1400
Low 1270 1270
Quiet 1150 1150
Heating
High 1600 1800
Med 1400 1400
Low 1270 1270
Quiet 1150 1150
Type × Q'ty Turbo Fan × 1
Motor output W80 80
Sound pressure level
Cooling
High
dB(A)
40 43
Med 38 38
Low 36 36
Quiet 32 32
Heating
High 40 43
Med 38 38
Low 36 36
Quiet 32 32
Heat exchanger type
Dimensions (H × W × D) mm
252 × 2030 × 26.6
252 × 2093 × 26.6
252 × 2030 × 26.6
252 × 2093 × 26.6
Fin pitch 1.2 1.2
Rows x Stages 2 × 12 2 × 12
Pipe type Copper Copper
Fin type Aluminium Aluminium
Enclosure (Panel)
Material HIPS
Colour WHITE
Approximate colour of MUNSELL N 9.25/
Dimensions
( H×W×D)
NET Unit
mm
288 × 842 × 842
Panel 50 × 950 × 950
Gross Unit 360 × 960 × 985
Panel 115 × 1020 × 1000
Weight
NET Unit
kg(lb.)
26(58)
Panel 5.5(12)
Gross Unit 32(71)
Panel 8.5(19)
Connection pipe Size Liquid mm Ø 9.52 (Ø 3 / 8 in.) Ø 9.52 (Ø 3 / 8 in.) Gas Ø15.88 (Ø 5 / 8 in.) Ø15.88 (Ø 5 / 8 in.)
Method Flare Flare
Operation range Cooling °C 18 to 32 18 to 32 %RH 80 or less 80 or less
Heating °C 16 to 30 16 to 30
Remote controller type WIRED
Drain pipe Material PVC (VP25)
Size mm Outer diameter : 32.0 / Inner diameter : 25.0
Note :
Specications are based on the following conditions.
Cooling : Indoor temperature of 27 °CDB / 19 °CWB.and outdoor temperature of 35 °CDB/24 °CWB.
Heating : Indoor temperature of 20 °CDB / 15 °CWB.and outdoor temperature of 7 °CDB/6 °CWB.
Pipe length : 5 m, Height difference : 0 m.(Outdoor unit - Indoor unit)
The maximum current and the maximum input value are the maximum values when operated within the operation range(temperature)
*The maximum current is the total current of indoor unit and outdoor unit.

- (01 - 07) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
DIMENSIONS4.
MODEL
 : AUA30L, AUA36L
Ceiling opening and hanging bolt pitch
z
(Unit : mm)
Refrigerant piping and drain piping positions
z
Airow split-ow duct and fresh air inlet positions
z
288 mm 298 mm
40 mm 10 mm
140 - 145 mm
50 - 100 mm
950 mm(Panel frame)
mm54-02mm54-02
50 mm
80 mm
130 mm
130 mm
130 mm
200 mm
840 mm(Body frame)
795 mm(Hanging bolt pitch)
699 mm(Hanging bolt pitch)
860 - 910 mm(Ceiling opening)
950 mm(Panel frame)
mm54-02mm54-02
840 mm(Body frame)
860 - 910 mm(Ceiling opening)
60 mm278 mm358 mm
140 mm
180 mm
200 mm
Drain pipe
(Connect the attached drain hose)
88 mm 70 mm
2.5 mm hole
2.5 mm hole
250 mm
352 mm
100 mm
83 mm83 mm
90 mm
100 mm
mm581mm581
Airflow split-flow duct connecting port
Airflow split-flow duct connecting port
Airflow split-flow duct connecting port
Fresh air inlet position
Fresh air inlet position
Drain pipe
Refrigerant pipe
Detailed diagram of branched duct connecting port
(4 sides)
Burling hole pitch Cut out
Cut out
Airflow split-flow duct connecting port
10
4

- (01 - 08) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L

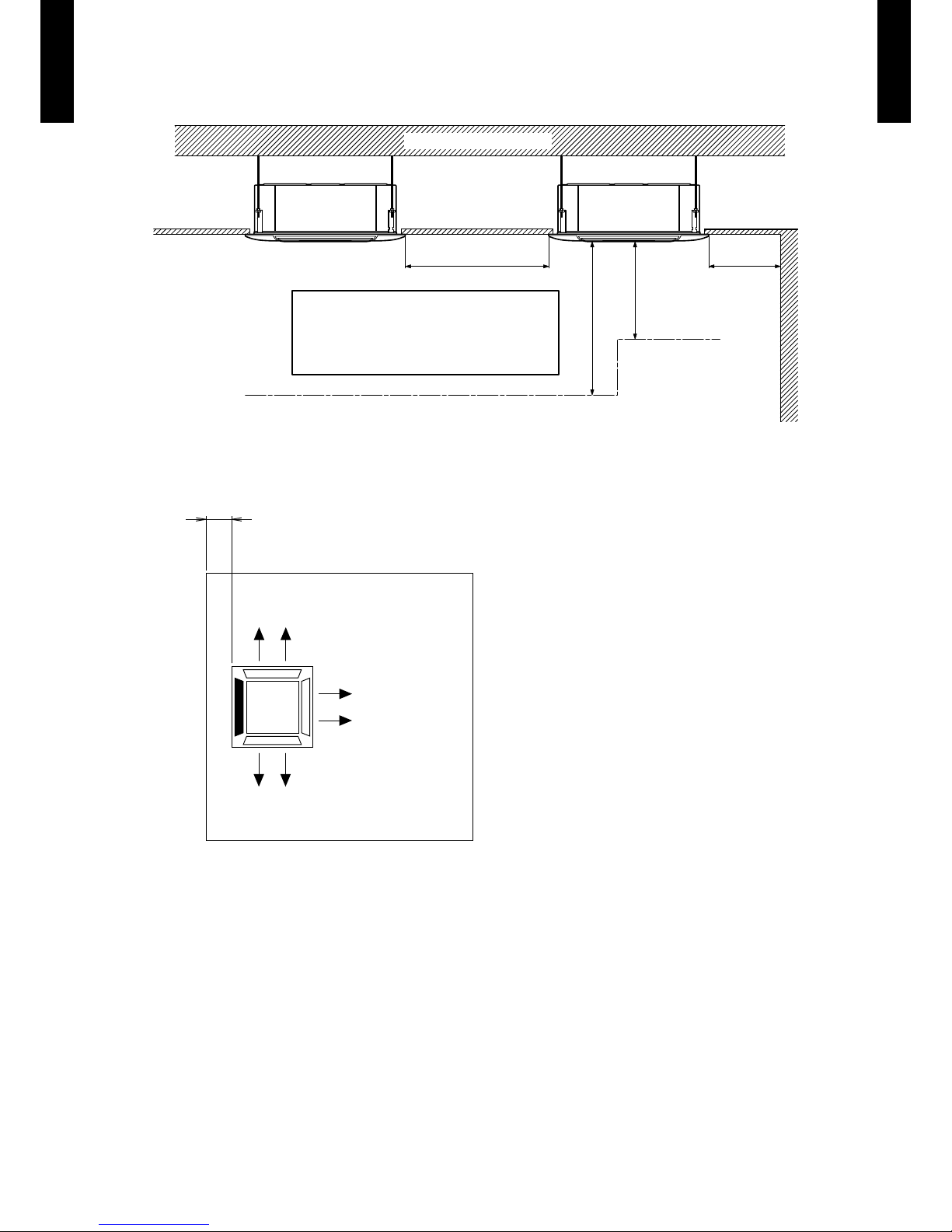

INSTALLATION PLACE

(Unit : mm)
3-way directions setting
z
(Unit : mm)
To set “3-way directions”, the air outlet shutter plate (UTR-YDZC) sold separately must be installed
and “outlet-direction” switched to “3-way” by remote controller.
1,500
or more
1,000 or more
1,800 or more
Obstruction
3,000 or more
Strong and durable ceiling
Floor
Ceiling mode “Low” : 2.7 m
Ceiling mode “Standard” : 3.2 m
Ceiling mode “High” : 3.6 m (30 model)
4.2 m (36 model)
100 or more

- (01 - 09) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L

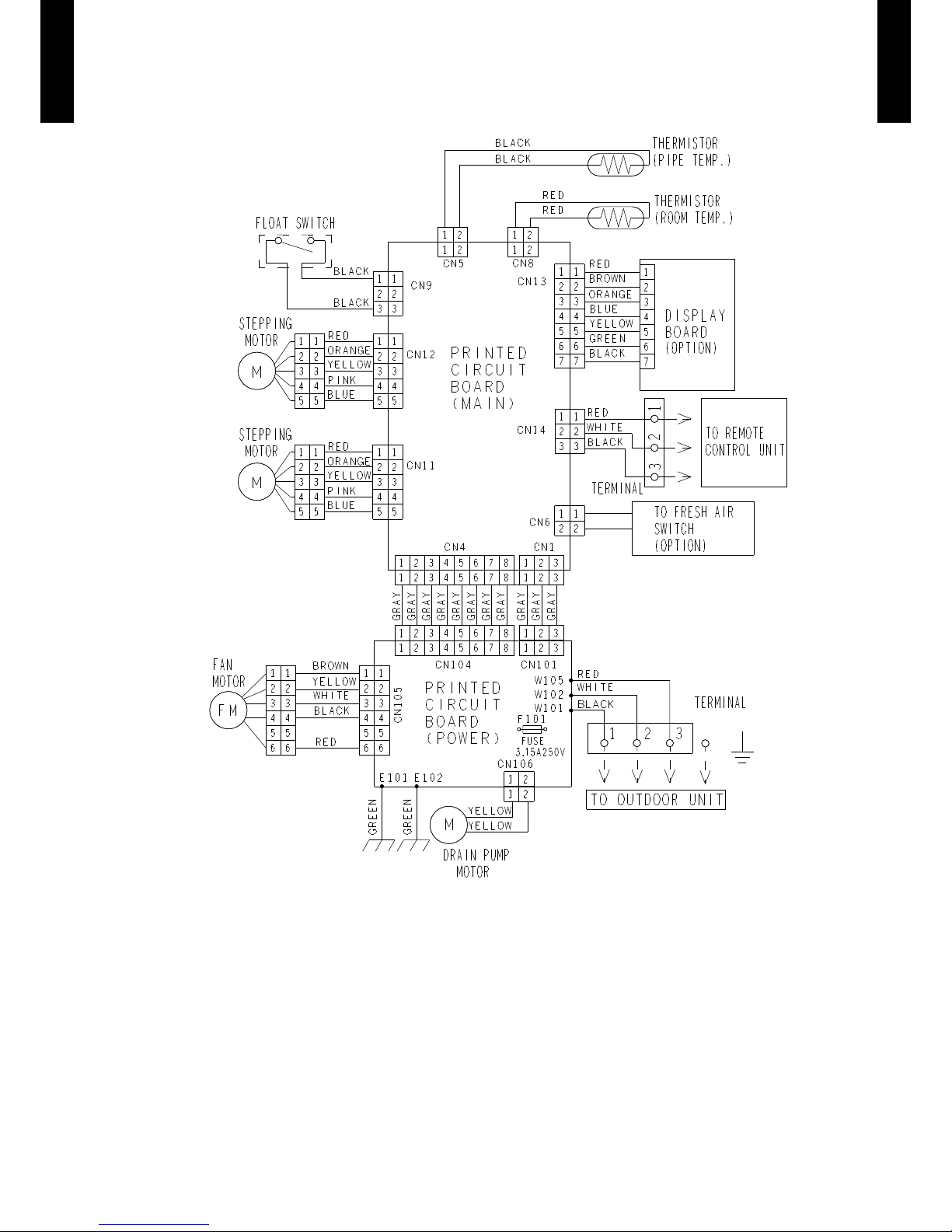

WIRING DIAGRAMS5.
MODEL
 : AUA30L, AUA36L

- (01 - 10) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
CAPACITY TABLE6.
COOLING CAPACITY6-1.
This table is created using the maximum capacity.
MODEL
 : AUA30L
MODEL
 : AUA36L
AFR : Air ow rate (m3/min)
TC : Total capacity (kW)
SHC : Sensible Heat capacity (kW)
PI : Power Input (kW)
AFR 26.7
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
-15 8.67 6.58 1.20 9.66 6.62 1.22 9.99 7.20 1.22 10.65 7.22 1.24 10.98 7.80 1.24 11.64 7.77 1.25 12.29 8.27 1.27
-10 8.52 6.38 1.64 9.49 6.42 1.66 9.81 6.98 1.67 10.46 7.00 1.69 10.79 7.56 1.70 11.43 7.53 1.71 12.08 8.02 1.73
08.12 6.26 2.11 9.04 6.30 2.15 9.35 6.85 2.16 9.97 6.87 2.18 10.28 7.42 2.19 10.89 7.39 2.21 11.51 7.87 2.23
5 7.99 6.11 2.14 8.90 6.14 2.17 9.21 6.68 2.19 9.81 6.70 2.21 10.12 7.23 2.22 10.72 7.21 2.24 11.33 7.68 2.26
10 7.96 6.19 2.19 8.87 6.23 2.23 9.17 6.77 2.24 9.77 6.79 2.26 10.07 7.34 2.27 10.68 7.31 2.29 11.28 7.78 2.32
15 8.63 6.48 2.41 9.62 6.52 2.45 9.94 7.09 2.46 10.60 7.11 2.49 10.93 7.68 2.50 11.58 7.65 2.53 12.24 8.14 2.55
20 9.82 7.03 2.97 10.94 7.07 3.01 11.31 7.69 3.03 12.06 7.71 3.06 12.43 8.33 3.08 13.18 8.30 3.11 13.92 8.84 3 .14
25 9.48 6.89 3.31 10.56 6.93 3.36 10.92 7.53 3.38 11.64 7.56 3.41 12.00 8.16 3.43 12.72 8.13 3.46 13.44 8.66 3.50
30 8.81 6.70 3.34 9.81 6.74 3.39 10.15 7.32 3.41 10.81 7.35 3.44 11.15 7.93 3.46 11.82 7.90 3.50 12.49 8.42 3.53
35 7.90 6.12 3.35 8.80 6.16 3.40 9.10 6.69 3.42 9.70 6.71 3.45 10.00 7.25 3.47 10.60 7.22 3.51 11.20 7.69 3.54
40 6.16 5.13 2.94 6.86 5.16 2.99 7.09 5.61 3.01 7.56 5.63 3.04 7.80 6.08 3.05 8.26 6.05 3.08 8.73 6.45 3.11
46 5.44 4.92 2.91 6.06 4.95 2.96 6.27 5.39 2.97 6.68 5.40 3.00 6.89 5.83 3.02 7.30 5.81 3.05 7.71 6.19 3.08
AFR 30.0
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
-15 9.33 7.37 1.29 10.39 7.41 1.31 10.74 8.06 1.32 11.45 8.08 1.33 11.80 8.73 1.34 12.51 8.70 1.35 13.22 9.26 1.36
-10 9.22 7.23 1.69 10.27 7.27 1.71 10.62 7.90 1.72 11.32 7.93 1.74 11.67 8.56 1.75 12.37 8.53 1.77 13.07 9.08 1.78
08.77 7.13 2.18 9.77 7.17 2.22 10.10 7.80 2.23 10.77 7.82 2.25 11.10 8.45 2.26 11.77 8.41 2.29 12.44 8.96 2.31
58.69 6.98 2.25 9.68 7.02 2.28 10.01 7.64 2.29 10.67 7.66 2.32 11.00 8.27 2.33 11.66 8.24 2.35 12.32 8.78 2.38
10 8.62 7.06 2.25 9.60 7.10 2.29 9.93 7.72 2.30 10.58 7.75 2.32 10.91 8.37 2.34 11.56 8.33 2.36 12.22 8.88 2.38
15 9.17 7.17 2.42 10.21 7.22 2.46 10.56 7.85 2.47 11.25 7.87 2.50 11.60 8.50 2.51 12.30 8.47 2.54 13.00 9.02 2.56
20 10.70 7.92 2.99 11.92 7.97 3.03 12.33 8.66 3.05 13.14 8.69 3.08 13.54 9.39 3.10 14.36 9.35 3 .13 15.17 9.96 3.16
25 10.64 8.02 3.32 11.86 8.06 3.38 12.26 8.77 3.39 13.07 8.79 3.43 13.47 9.50 3.45 14.28 9.46 3.48 15.09 10.08 3.51
30 10.24 7.76 4.05 11.40 7.81 4.11 11.79 8.49 4.13 12.57 8.51 4.17 12.96 9.19 4.19 13.73 9.16 4.24 14.51 9.75 4.28
35 8.85 6.78 4.03 9.86 6.82 4.10 10.19 7.42 4.12 10.86 7.44 4.16 11.20 8.04 4.18 11.87 8.01 4.22 12.54 8.53 4.26
40 6.80 5.96 3.09 7.58 6.00 3.14 7.84 6.52 3.16 8.35 6.54 3.19 8.61 7.07 3.20 9.13 7.04 3.24 9.65 7.50 3.27
46 6.11 5.84 2.96 6.81 5.87 3.01 7.04 6.39 3.02 7.50 6.41 3.05 7.74 6.92 3.07 8.20 6.89 3.10 8.67 7.34 3.13

- (01 - 11) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
HEATING CAPACITY6-2.
This table is created using the maximum capacity.
MODEL
 : AUA30L
MODEL
 : AUA36L
AFR : Air ow rate (m3/min)
TC : Total capacity (kW)
PI : Power Input (kW)
AFR 26.7
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC PI TC PI TC PI TC PI TC PI
-15 -16 8.34 3.37 8.14 3.44 7.94 3.51 7.75 3.58 7.55 3.65
-10 -11 8.79 3.38 8.58 3.45 8.37 3.52 8.16 3.59 7.95 3.66
-5 -7 9.55 3.41 9.32 3.48 9.09 3.55 8.86 3.62 8.64 3.69
0-2 10.12 3.37 9.88 3.44 9.64 3.51 9.40 3.58 9.16 3.65
5 3 11.23 3.35 10.96 3.42 10.69 3.49 10.43 3.56 10.16 3.62
7 6 11.76 3.33 11.48 3.40 11.2 0 3.47 10.92 3.54 10.64 3.61
10 812.12 3.30 11.83 3.37 11.5 4 3.44 11.25 3.51 10.96 3.57
15 10 10.86 2.52 10.60 2.57 10.34 2.62 10.09 2.67 9.83 2.71
20 15 10.87 2.23 10.61 2.28 10.35 2.33 10.09 2.37 9.83 2.41
24 18 11.31 2.25 11.0 4 2.30 10.78 2.34 10.51 2.39 10.24 2.43
AFR 30.0
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC PI TC PI TC PI TC PI TC PI
-15 -16 9.63 3.92 9.40 4.00 9.17 4.08 8.94 4.17 8.71 4.25
-10 -11 9.70 3.96 9.47 4.04 9.24 4.13 9.01 4.21 8.77 4.29
-5 -7 10.69 4.07 10.43 4.16 10.18 4.24 9.92 4.33 9.67 4.41
0-2 12.54 3.99 12.24 4.08 11.9 4 4.16 11.64 4.24 11. 3 4 4.33
5 3 13.18 3.81 12.87 3.89 12.55 3.97 12.24 4.05 11.92 4.13
7 6 13.34 3.36 13.02 3.43 12.70 3.50 12.38 3.57 12.07 3.64
10 813.74 3.19 13.42 3.26 13.09 3.33 12.76 3.39 12.43 3.46
15 10 12.26 2.55 11.97 2.60 11.67 2.65 11.38 2.71 11.09 2.75
20 15 12.28 2.26 11.99 2.31 11.69 2.36 11.40 2.40 11.11 2.44
24 18 12.80 2.28 12.49 2.32 12.19 2.37 11.8 8 2.42 11. 5 8 2.46

- (01 - 12) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
FAN PERFORMANCE7.
AIR VELOCITY DISTRIBUTION7-1.
STANDARD MODE7-1-1.
MODEL
 : AUA30L

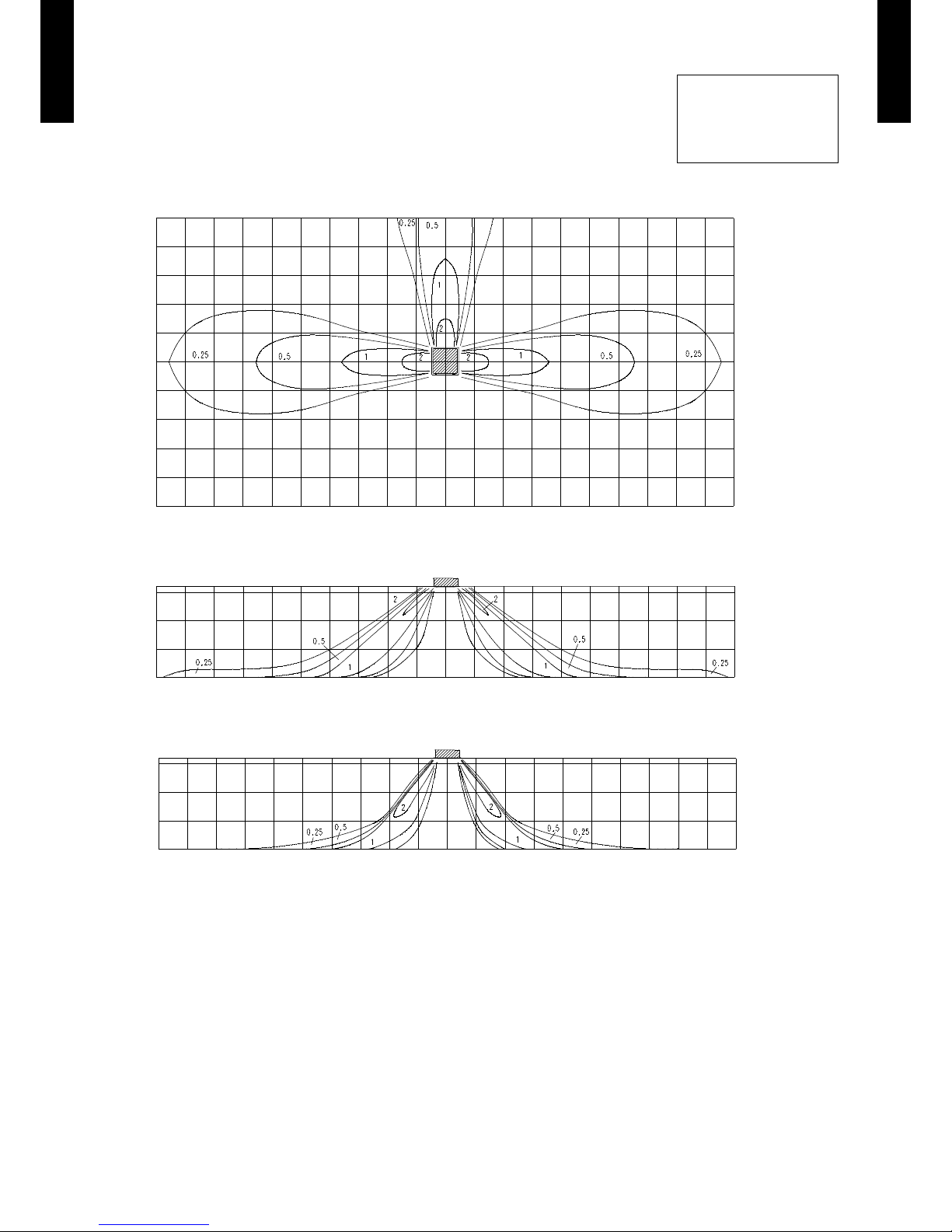

4-way air outlet
z

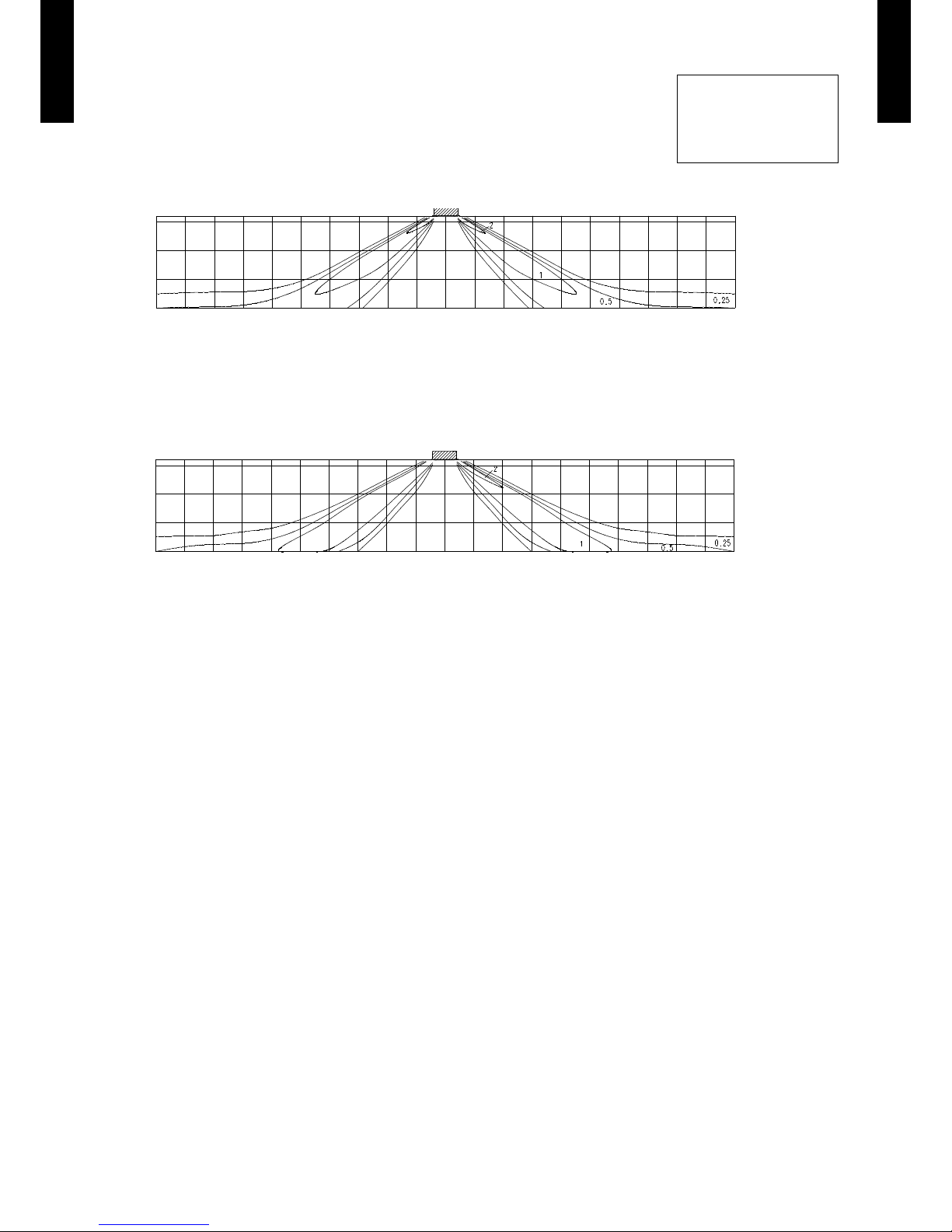

Note:
Condition
Fan speed : High
Operation mode : FAN
Ceiling mode : Standard
5
4
3
2
1
0
1
2
3
4
5
Unit : m/s(m)
(m)
TOP VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Downward
10 987654321012345678910
10 987654321012345678910
10 987654321012345678910

- (01 - 13) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L

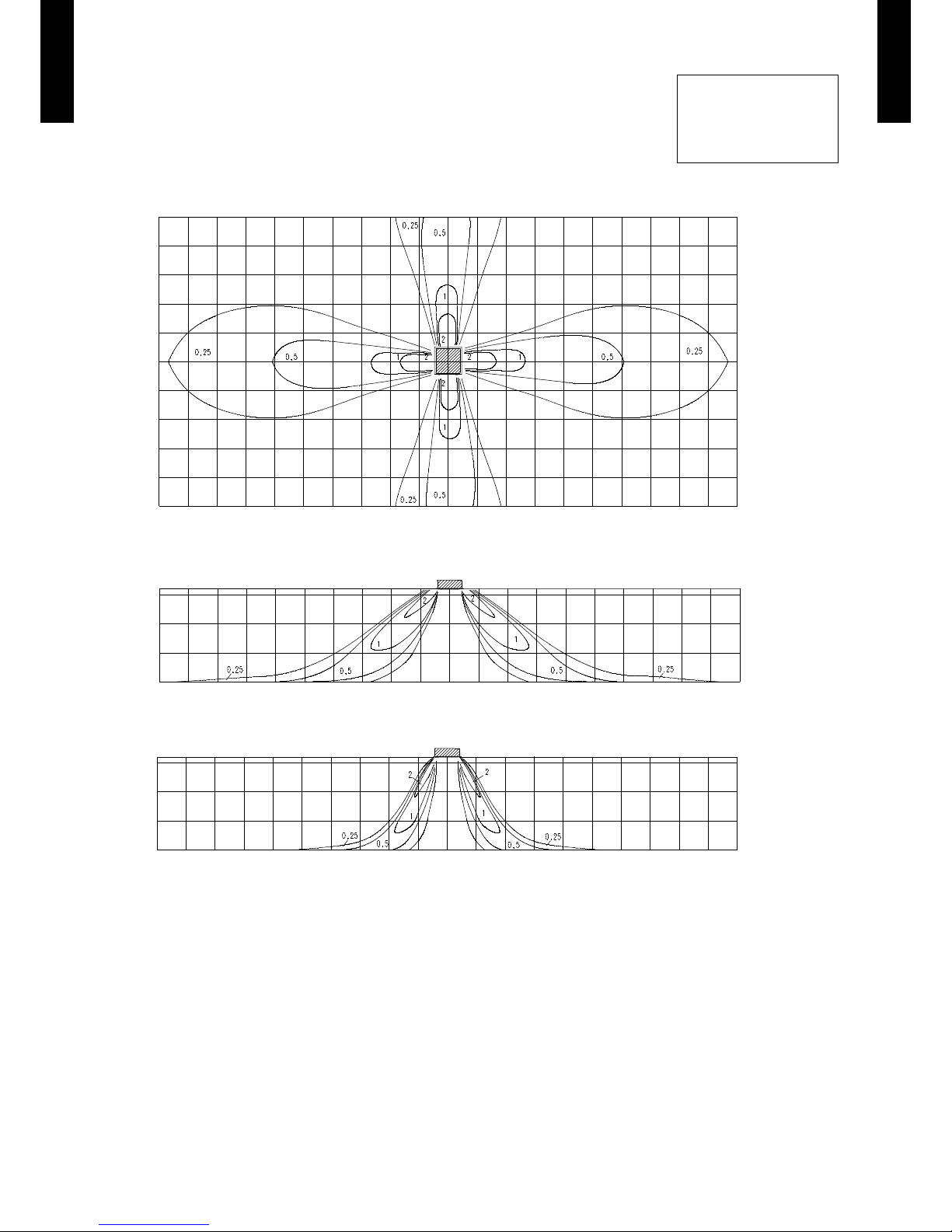

 MODEL: AUA36L
4-way air outlet
z
Note:
Condition
Fan speed : High
Operation mode : FAN
Ceiling mode : Standard
5
4
3
2
1
0
1
2
3
4
5
Unit : m/s(m)
(m)
TOP VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Downward
10 987654321012345678910
10 987654321012345678910
10 987654321012345678910

- (01 - 14) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
 MODEL: AUA30L
3-way air outlet
z
Note:
Condition
Fan speed : High
Operation mode : FAN
Ceiling mode : Standard
5
4
3
2
1
0
1
2
3
4
5
Unit : m/s(m)
(m)
TOP VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Downward
10 987654321012345678910
10 987654321012345678910
10 987654321012345678910

- (01 - 15) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
 MODEL: AUA36L
3-way air outlet
z
Note:
Condition
Fan speed : High
Operation mode : FAN
Ceiling mode : Standard
5
4
3
2
1
0
1
2
3
4
5
Unit : m/s(m)
(m)
TOP VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Upward
3.2
2
1
0
Unit : m/s(m)
(m)
SIDE VIEW
VERTICAL LOUVER
: Downward
10 987654321012345678910
10 987654321012345678910
10 987654321012345678910

- (01 - 16) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
SPECIAL UPWARD MODE7-1-2.
MODEL
 : AUA30L
4-way air outlet
z
MODEL
 : AUA36L
4-way air outlet
z
Note:
Condition
Fan speed : High
Operation mode : FAN
Ceiling mode : Standard
10 987654321012345678910
10 987654321012345678910 (m)
Unit : m/s
3.2
2
1
0
(m)
SIDE VIEW
VERTICAL LOUVER
: Special upward
(m)
SIDE VIEW
VERTICAL LOUVER
: Special upward
Unit : m/s(m)
3.2
2
1
0

- (01 - 17) -
CASSETTE TYPE AUA30-36L CASSETTE TYPE AUA30-36L
AIR FLOW7-2.
4-WAY OUTLET7-2-1.
MODEL
 : AUA30L
Cooling / Heating
z
MODEL
 : AUA36L
Cooling / Heating
z
Fan speed
Number of
rotations
(r.p.m)
Airow
HIGH 570
m3/h 1600
l/s 444
CFM 942
MED 510
m3/h 1400
l/s 389
CFM 824
LOW 470
m3/h 1270
l/s 353
CFM 747
QUIET 420
m3/h 1150
l/s 319
CFM 677
Fan speed
Number of
rotations
(r.p.m)
Airow
HIGH 640
m3/h 1800
l/s 500
CFM 1059
MED 510
m3/h 1400
l/s 389
CFM 824
LOW 470
m3/h 1270
l/s 353
CFM 747
QUIET 420
m3/h 1150
l/s 319
CFM 677
