Fujitsu Inverter Halcyon ASU9RMLQ User manual

R410A
D2D_MU016E/04
2009.05.07
INDOOR UNIT
1. MULTI TYPE : 3-4ROOMS TYPE
ASU9RMLQ
ASU12RMLQ
ASU18RMLQ
ARU9RML
ARU12RML
ARU18RML
AUU9RML
AUU12RML
AUU18RML

-
(
01 - 01
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
1. FEATURE
1-1. MODEL
INDOOR UNIT
ARU9RML
AOU36RML1
OUTDOOR UNIT
Concealed Ceiling
type (small)
Wall Mounted Type
ARU12RML
ARU18RML
Concealed Ceiling
type
ASU9RMLQ
ASU12RMLQ
ASU18RMLQ
AUU9RML
AUU12RML
AUU18RML
Cassette Type
(Compact)

-
(
01 - 02
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
INDOOR UNIT CONNECTION PATTERNS
NO.1
Indoor unit
NO.2
Indoor unit
NO.3
Indoor unit
NO.4
Indoor unit
1 9,000 9,000 9,000 -
2 9,000 9,000 12,000 -
3 9,000 12,000 12,000 -
4 12,000 12,000 12,000 -
5 18,000 9,000 9,000 -
6 9,000 9,000 9,000 9,000
CONNECTION
PATTERN
When 3 and 4 indoor units are connected ( Btu/h )
MODEL : AOU36RML1

-
(
01 - 03
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
1-2. SELECT FUNCTION
Auto restart
When the air conditioner power was temporarily turned off by a power failure etc.
It restarts automatically after the power recovers.
(Operated by setting before the power failure.)
WALL MOUNTED TYPE
Clean room conditioning is realized by equipping the plasma air cleaner
Plasma air cleaner quickly removes small dust particles and odors.
Original plasma air cleaning unit effectively cleans the air in the room.
Coil dry operation
The indoor unit evaporator can be dried by pressing the COIL DRY button
on the remote control unit.
Wired remote control unit (option)
The optional wired remote control unit can be used.
Auto restart
When the air conditioner power was temporarily turned off by a power failure etc.
It restarts automatically after the power recovers.
(Operated by setting before the power failure.)
CONCEALED CEILING TYPE
Thin and compact indoor unit
Setting the room temperature detection location
The detection location of the room temperature can be selected from the following
three example. Choose the detection location that is best for the installation location.
A. Indoor unit setting ( factory setting )
B. Remote controI unit setting
C. Indoor unit / remote control unit setting ( room temperature sensor selection)
CASSETTE TYPE (COMPACT)
When the air conditioner power was temporarily turned off by a power failure etc.
It restarts automatically after the power recovers. (Operated by setting before the power failure.)
Auto restart
The Remote control unit signal code can be changed by four patterns.
Remote control unit signal code setting

-
(
01 - 04
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
2-1. WIRELESS REMOTE CONTROLLER (FOR WALL MOUNTED TYPE)
2. REMOTE CONTROLLER
FEATURES
Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible.
Can be used jointly with Wired remote controllers.
Four kinds of timers. Easy operation.
Select from four different timer programs (ON / OFF / PROGRAM / SLEEP).
Built-in timers
The program timer operates the ON and OFF timer once within a 24 hour period.
Program timer
Wireless remote controller is an accessory of all indoor units.
Sleep timer
The sleep timer function automatically corrects the temperature thermostat setting according to
the time setting to prevent excessive cooling and heating while sleeping.
Cooling operation/dry operation
60min.
When the sleep timer is set, the set temperature
automatically rises 2 °F(1.2°C) every hour. The
set temperature can rise up to a maximum of
4 °F(2.4°C).
Heating operation
When the sleep timer is set, the set temperature
automatically drops 2°F(1.2°C) every 30 minutes.
The set temperature can drop to a maximum of
8 °F(4.8°C).
30min.
60min.
90min.
Timer setting
Timer setting
2°F(1.2°C) 4 °F
(2.4°C)
2 °F(1.2°C) 4°F(2.4°C)
6°F
(3.6°C)
8 °F
(4.8°C)

-
(
01 - 05
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
SPECIFICATION
SIZE [H×W×D in. (mm)]
WEIGHT oz. (g)
6 - 15/16 × 2 - 7/32 × 23/32 (176 × 56 × 18)
3(85) w/o batteries
Display panel
MASTER CONTROL button
RESET button
TIMER MODE button
FAN CONTROL button
START/STOP button
AIR CLEAN button
AIR FLOW DIRECTION SET button
AIR FLOW DIRECTION SWING button
SET TIME button(+/-)
Remote Control Unit Display
Operating Mode Display
Clock Display
Timer Mode Display
Fan Speed Display
Temperature Set Display
SWING Display
AIR CLEAN Display
COIL DRY Display
Transmit Indicator
SET TEMP. buttons( / )
Signal Transmitter
TEST RUN button
CLOCK ADJUST button
SLEEP button
COIL DRY button
FUNCTIONS
1
1
7
4
11
13
14
2
8
9
10
15
12
16
19
24
25
23
17
22
21
20
18
3
5
6
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Perform a test run only when installing the air
conditioner .If the signal to perform a test run is received
during normal operation, the air conditioner's thermostat
will malfunction.
If the signal to perform a test run is received during
normal operation, the unit will switch to the test
operation mode and the indoor unit's OPERATION and
TIMER indicator lamps will flash simultaneously.
To stop the test operation mode, press the START/STOP
button to stop the air conditioner.

-
(
01 - 06
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
FEATURES
High performance and compact size
Built-in timers
Easy-to-understand operation Simple installation
Wired
remote
controller
Weekly
timer
Setback
timer
Three functions are combined in
one unit.
Components are compatible with standard
switch boxes. Flat back construction allows
equipment to be installed wherever it is
needed.
[ Variable timer control ]
The operation/display sections are zoned accord-
ing to time and operation, enabling variable pro-
gramming to match application.
European
switch box
JIS box
SU MO TU WE TH FR SA
7
3 12 69 15 18 21
F
AM
Equipped with weekly timer as standard function.
(2 times Start / Stop per day for a week)
When a failure occurs,the error code is displayed. (Maximum of 16)
Various timer setup (ON / OFF / WEEKLY) are possible.
Easy installation with a slim shape with no bulge in the back.
When setting up a timer, operation mode and a temperature
setup can be changed.
Error indication.(A maximum of 16 error histories are memorizable.)
Built in room temperature sensor.
Setup screen example
[Set from Sunday to Saturday: PM12:00 to PM3:00, 84°F(28°C)]
Setback timerWeekly timer
At "Weekly timer" + "Set back timer" setup
Possible to set ON/OFF time to operate twice each day
of the week.
Possible to set temperature for two time spans and for
each day of the week.
76°F 84°F 76°F
(24°C 28°C 24°C)
Screen
after setup
SU MO TU WE TH FR SA
7
3 12 69 15 18 21
Easy-to-understand time bar display
PM
SU MO TU WE TH FR SA
7
3 12 69 15 18 21
AM F
Setup screen example
[Set to Wednesday: AM8:00 to PM8:00,76°F(24°C)]
0 3 6 9 12 15 18 21
76°F (24°C)
12 3 6 9 12 3 6 9
AM PM
time O'clock 0 3 6 9 12 15 18 21
84°F (28°C)
12 3 6 9 12 3 6 9
AM PM
time O'clock
76°F (24°C) 84°F (28°C)
0 3 6 9 12 15 18 21
12 3 6 9 12 3 6 9
AM PM
time O'clock
Timer
area
Operation
area

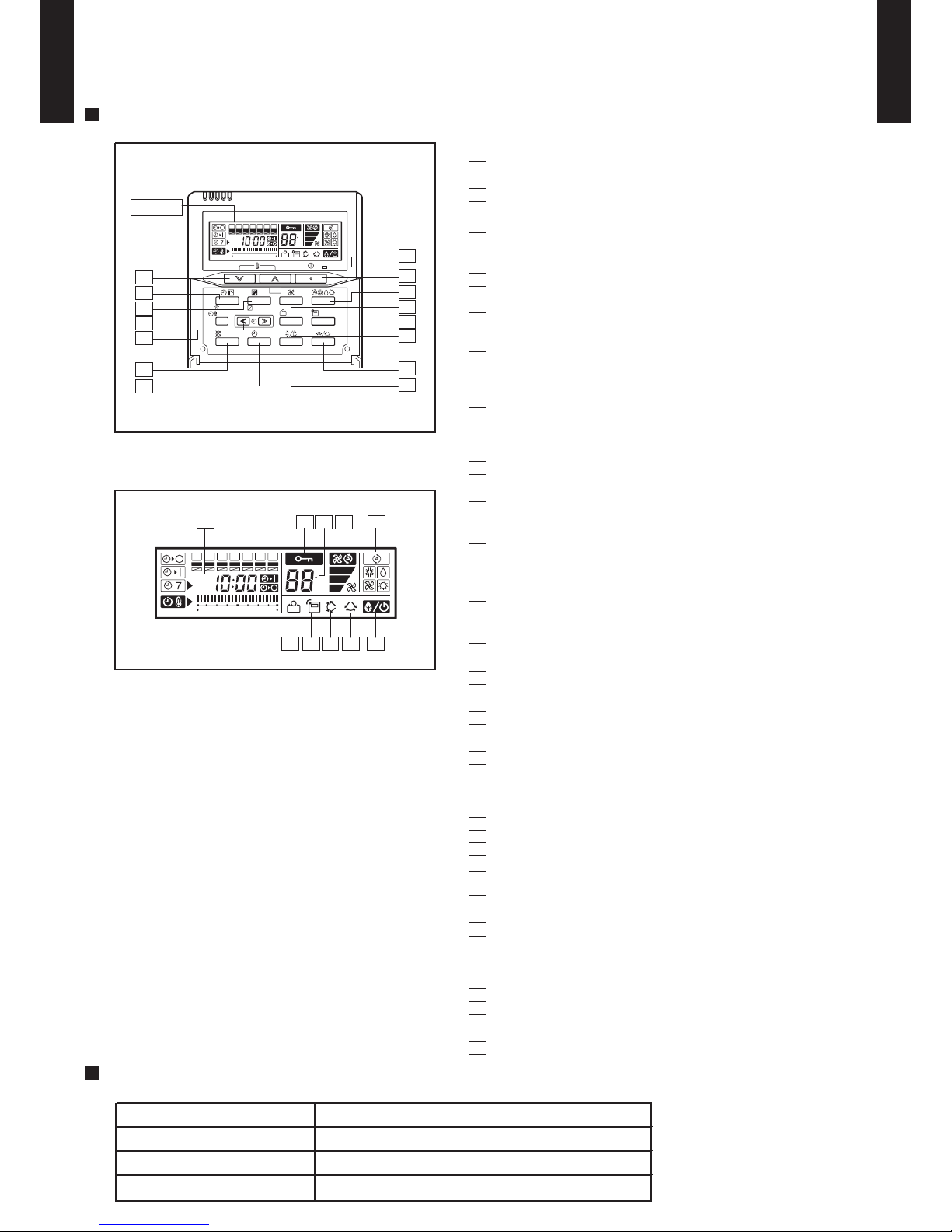

2-2. WIRED REMOTE CONTROLLER
(FOR CONCEALED CEILING TYPE and OPTIONAL PART
FOR WALL MOUNTED TYPE)
SU MO TU WE TH FR SA
3 12 69 15 18 21
PM
F

-
(
01 - 07
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
Display panel
FUNCTIONS
SPECIFICATION
SIZE [H x W x D in. (mm)] 4-23/32 x 4-23/32 x 43/64 (120 x 120 x 17)
WEIGHT oz.( g ) 5-5/8 (160)
CABLE LENGTH ft.( m )
POWER ( V )
33 (10)
12
Display
15
14
12
13
11
10
9
21
3
5
4
7
8
6
DAY OFF
DELETE SET
ENERGY
SAVE
SET BACK
DAY
CLOCK ADJUST
SU MO TU WE TH FR SA
369 12 15 18 21
THERMO
SENSOR
AM
PM F
17
16 1819 20
2122 2324 25
SU MO TU WE TH FR SA
369 12 15 18 21
AM
PM F
1START/STOP button
Pressed to start and stop operation.
5Energy save button
Turns the energy efficient mode on and off.
Operation lamp
Lights during operation and when the timer is on.
15
Set button
Sets the date, hour, minute and on-off time.
12
14
Vertical air flow direction and swing button*
Push for two seconds to change the swing mode
Master control button
Selects the operating mode(AUTO, HEAT, FAN, COOL, DRY).
3
4
Fan control button
Selects the fan speed (AUTO, LOW, MED, HIGH).
Central control display
19
Operation mode display
17
18
Fan speed display
Timer and clock display
16
Temperature display
20
Day (DAY OFF) button
8
Temporarily cancels of one day timer.
Horizontal air flow direction and swing button*
13
Push for two seconds to change the swing mode.
Stand by display
21
Indicates during defrosting operation.
Set time button
Pressed to set time.
10
Set Temperature button
2
Selects the setting temperature.
Set back button
9
Pressed to select the set back timer.
11
Delete button
The schedule of a weekly timer is deleted.
7
Timer mode (CLOCK ADJUST) button
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER)
Set the current time.
6Thermo sensor button
Selects whether the room temperature is detected at the
indoor unit (remote sensor) or the remote controller.
Vertical swing display*
22
Horizontal swing display*
23
Energy save display
24
*These functions are not available for concealed ceiling type.
Thermo sensor display
25

-
(
01 - 08
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
High performance and compact size
FEATURES
Equipped with weekly timer as standard function.
(2 times Start / Stop per day for a week)
When a failure occurs,the error code is displayed. (Maximum of 16)
Various timer setup (ON / OFF / WEEKLY) are possible.
Economy operation are possible.
Easy installation with a slim shape with no bulge in the back.
When setting up a timer, operation mode and a temperature
setup can be changed.
Error indication.(A maximum of 16 error histories are memorizable.)
Up to 16 indoor units can be simultaneously controlled.
The room temperature can be controlled by being detected the temperature
accurately with built-in thermo sensor.
Three functions are combined in
one unit.
Simple function setting
Setting of the air conditioner selection function is performed by remote controller.
2-3. WIRED REMOTE CONTROLLER (FOR CASSETTE TYPE)
Easy-to-understand operation Simple installation
Timer
area
Operation
area
Components are compatible with standard
switch boxes. Flat back construction allows
equipment to be installed wherever it is
needed.
[Variable timer control ]
The operation/display sections are zoned accord-
ing to time and operation, enabling variable pro-
gramming to match application.
European
switch box
JIS box
Wired
remote
controller
Weekly
timer
Setback
timer
Built-in timers
Setup screen example
[Set to Wednesday: AM 8:00 to PM 8:00. 76°F (24°C)]
Setup screen example
[Set from Sunday to Saturday: PM12:00 to PM3:00, 84°F (28°C).]
Setback timerWeekly timer
At "Weekly timer" + "Set back timer" setup
Possible to set ON/OFF time to operate twice each day
Easy-to-understand time bar display
Screen
after setup
of the week.
Possible to set temperature for two time spans and
for each day of the week.
76°F 84°F 76°F
24°C 28°C 24°C
0 3 6 9 12 15 18 21
76°F (24°C)
12 3 6 9 12 3 6 9
AM PM
time O'clock
84°F (28°C)
0 3 6 9 12 15 18 21
12 3 6 9 12 3 6 9
AM PM
time O'clock
84°F (28°C)
76°F (24°C)
0 3 6 9 12 15 18 21
12 3 6 9 12 3 6 9
AM PM
time O'clock

-
(
01 - 09
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
Display panel
15
11
10
9
8
21
3
5
14
4
12
13
6
7
17
16 18
19 20
21
FUNCTIONS
Defrost display
Thermo sensor display
Economy display
Vertical swing display
Horizontal swing display*
Filter display
1
Pressed to start and stop operation.
13
Horizontal airflow direction and swing button*
Push for two seconds to change the swing mode.
5Economy button
Turns the economy efficient mode on and off.
8
Set back button
Pressed to select the set back timer.
14 Filter button
12
Vertical airflow direction and swing button
Push for two seconds to change the swing mode.
9
Set time button
Pressed to set time.
17
Operation mode display
7
Day (DAY OFF) button
Temporarily cancels of one day timer.
6
Timer mode (CLOCK ADJUST) button
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER).
Set the current time.
10
Delete button
The schedule of a weekly timer is deleted.
Master control button
Selects the operating mode(AUTO, HEAT, FAN, COOL, DRY).
3
4
Fan control button
Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH).
18
Fan speed display
16
Timer and clock display
Operation lamp
Lights during operation and when the timer is on.
15
20
Temperature display
21
Function display
19
Operation lock display
Set temperature button
Selects the setting temperature.
2
11
Set button
Sets the date, hour, minute and on-off time.
*These functions are not available.
SPECIFICATION
SIZE [H x W x D in. (mm)] 4-23/32 x 4-23/32 x 43/64 (120 x 120 x 17)
WEIGHT oz. ( g ) 5-5/8 (160)
CABLE LENGTH ft. ( m )
POWER ( V )
33 (10)
12
START/STOP button

-
(
01 - 10
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
Cooling operation/dry operation
60min.
1 °C 2 °C
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The
set temperature can drop to a maximum of 4 °C.
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Timer setting
• Code selector switch eliminates unit
being wrongly switched.
(Up to 4 codes can be set.)
AB C D
ABCD
Mixed-up
After code change
Switching remote control unit signal code
Setting of the air conditioner selection function is performed by remote controller.
Simple function setting
FEATURES
Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible.
Easy to change transmission code (4 patterns) by button operation.
Four kinds of timers. Easy operation.
Select from four different timer programs (ON / OFF / PROGRAM / SLEEP).
Built-in timers
The program timer operates the ON and OFF timer once within a 24 hour period.
Program timer
The sleep timer function automatically corrects the temperature thermostat setting according to the
time setting to prevent excessive cooling and heating while sleeping.
Sleep timer
2-4. WIRELESS REMOTE CONTROLLER
(OPTIONAL PART FOR CASSETTE TYPE)
Cooling operation/dry operation
60min.
When the sleep timer is set, the set temperature
automatically rises 2 °F(1.2°C) every hour. The
set temperature can rise up to a maximum of
4 °F(2.4°C).
Heating operation
When the sleep timer is set, the set temperature
automatically drops 2°F(1.2°C) every 30 minutes.
The set temperature can drop to a maximum of
8 °F(4.8°C).
30min.
60min.
90min.
Timer setting
Timer setting
2°F(1.2°C) 4 °F
(2.4°C)
2 °F(1.2°C) 4°F(2.4°C)
6°F
(3.6°C)
8 °F
(4.8°C)

-
(
01 - 11
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
Display panel
2
49
3
1
16
15
5
17
18
19
21
24
23
22
25
10
FUNCTIONS
1
MODE button
Selects the operating mode (AUTO, HEAT, FAN, COOL, DRY).
/Start / end R.C. custom code change. (Max 4 types)
4
Filter reset button
5
Sleep button
Pressed to select sleep timer.
6
Fan button
Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH).
7
START/STOP button
Pressed to start and stop operation.
8
Set button (Vertical)
Air flow direction vertical set button.
9
Set button (Horizontal)*
Air flow direction horizontal set button.
18
Economy display
20
Sleep display
21
Transmit indicator
22
Fan speed display
23
Swing display
24
Timer mode display
25
Clock display
Operating mode display
19
17
Temperature set display
2
Economy button
3
Set temp. button ( / )
Set remote controller custom code buttons
Sets the indoor temp./ Sets R.C. custom code.
Swing button
Air flow direction swing button.
10
12
Timer set ( / ) button
Sets the current time and on-off time.
11
Timer mode button
Pressed to select the timer mode. (OFF TIMER, ON TIMER,
PROGRAM TIMER, TIMER CANCEL)
Test run button
Used when testing the air conditioner after installation.
15
Signal transmitter
16
14
Reset button
Used when replacing batteries.
13
Clock adjust button
Sets the current time.
13
11
12
14
8
7
6
20
* These functions are not available.
SPECIFICATION
SIZE [H x W x D in. (mm)] 6-11/16 x 2-7/32 x 3/4 (170 x 56 x 19)
WEIGHT oz. ( g ) 3 (85) w/o batteries
ACCESSORY Holder

-
(
01 - 12
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
ASU9RMLQ ASU12RMLQ ASU18RMLQ
kW 2.80 3.50 5.20
BTU/h 9500 12000 17800
kW 1.50-3.30 1.50-4.00 1.80-5.60
BTU/h 5100-11300 5100-13600 6100-19000
kW 3.20 4.10 6.00
BTU/h 11000 14000 20500
kW 1.50-3.80 1.50-4.50 1.60-6.70
BTU/h 5100-13000 5100-15400 5500-23000
pints/h (l/h) 1.7 ( 0.8 ) 2.3 ( 1.1 ) 4.9 ( 2.3 )
High 312 ( 530 ) 365 ( 620 ) 377 ( 640 )
Med 271 ( 460 ) 318 ( 540 ) 347 ( 590 )
Low 224 ( 380 ) 265 ( 450 ) 294 ( 500 )
Quiet 194 ( 330 ) 224 ( 380 ) 253 ( 430 )
High 312 ( 530 ) 365 ( 620 ) 377 ( 640 )
Med 271 ( 460 ) 318 ( 540 ) 347 ( 590 )
Low 241 ( 410 ) 282 ( 480 ) 294 ( 500 )
Quiet 206 ( 350 ) 241 ( 410 ) 253 ( 430 )
W
High 37 42 44
Med 33 38 42
Low 27 32 38
Quiet 24 27 33
High 37 42 44
Med 33 38 42
Low 29 33 38
Quiet 25 29 33
FPI 21 ( 2ROW ) / 18 ( 1ROW )
2 × 16 + 1 × 4
LIQUID
GAS Φ 3/8 (9.52) Φ 1/2 (12.7)Φ 3/8 (9.52)
20 (9.5)
12-7/16 × 32-7/8 × 14-3/16 (316 × 835 × 360)
11-5/32 × 31-3/32 × 9-1/16 (283 × 790 × 230)
WHITE
( Approximate color of MUNSELL N 9.25/ )
26 (12)
Φ 1/4 (6.35)
°F (°C)
%RH
°F (°C)
13-7/32 × 25 × 1-1/16
3-5/16 ×25 ×17/32
(336×635×26.6, 84×635×13.3)
13-7/32 × 25 × 1-1/16
(336 × 635 × 26.6)
13-7/32 × 25 × 1-1/16
(336 × 635 × 26.6)
DRAIN PIPE in.(mm)
FLARE
80 or less
64 to 90 ( 18 to 32 )
60 to 88 ( 16 to 31 )
OPERATION RANGE COOLING
HEATING
SIZE
in. (mm)
MATERIAL
WIRELESS [WIRED (OPTION)]
CONNECTION PIPE in. (mm)SIZE
METHOD
MOISTURE REMOVAL
SOUND PRESSURE
LEVEL
TYPE x Q'ty
MOTOR OUTPUT
CFM
(m3/h)
FAN
AIR FLOW
RATE
NET
GROSS
CAPACITY
HEATING
RATED
MIN.-MAX.
RATED
MIN.-MAX.
COOLING
INNER DIAMETER Φ 1(25.5)
PVC
INVERTER HEAT PUMP TYPE
ALUMINUM
230/208V ~ 60Hz
187-253V ~ 60Hz
Cross Flow × 1
42
2 × 16
OUTER DIAMETER Φ 9/16(14.0)
TYPE
MODEL NAME
POWER SOURCE
AVAILABLE VOLTAGE RANGE
DIMENSIONS
H × W × D
WALL MOUNTED MODELS
REMOTE CONTROLLER TYPE
HIPS
WEIGHT
dB(A)
FIN TYPE
ENCLOSURE
DIMENSION
(H × W × D)
FIN PITCH
HEAT
EXCHANGER
TYPE
COOLING
HEATING
COOLING
HEATING
ROWS x STAGES
PIPE TYPE
in. (mm)
GROSS lb. (Kg)
NET
21
COPPER TUBE
MATERIAL
COLOR
Note:
Specifications are based on the following conditions.
Power source of specifications : 230V
Cooling: Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB,and outdoor temperature of 95°F (35?) DB/75°F (23.9°C) WB.
Heating: Indoor temperature of 70°F (21.1C) DB / 60°F (15.6C) WB,and outdoor temperature of 47°F (8.3C) DB/43°F (6.1C) WB.
Pipe length : 24ft. 7in.(7.5m),Height difference : 0 ft.(0m) [Outdoor unit - Indoor unit]
3. SPECIFICATIONS
3-1. WALL MOUNTED TYPE

-
(
01 - 13
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
ARU9RML ARU12RML ARU18RML
kW 2.80 3.50 5.20
BTU/h 9500 12000 17800
kW 1.50-3.30 1.50-4.00 1.80-5.60
BTU/h 5100-11300 5100-13600 6100-19000
kW 3.20 4.10 6.00
BTU/h 11000 14000 20500
kW 1.50-3.80 1.50-4.50 1.60-6.70
BTU/h 5100-13000 5100-15400 5500-23000
pints/h (l/h) 1.9 ( 0.9 ) 2.5 ( 1.2 ) 3.4 ( 1.6 )
High 294 ( 500 ) 412 ( 700 ) 494 ( 840 )
Med 241 ( 410 ) 377 ( 640 ) 412 ( 700 )
Low 218 ( 370 ) 324 ( 550 ) 377 ( 640 )
Quiet
High 294 ( 500 ) 412 ( 700 ) 494 ( 840 )
Med 241 ( 410 ) 377 ( 640 ) 412 ( 700 )
Low 218 ( 370 ) 324 ( 550 ) 377 ( 640 )
Quiet
SIROCCO × 1 SIROCCO × 2 SIROCCO × 2
W11 21 21
in.WG ( Pa )
High 39 ( 34 ) 36 ( 33 ) 40 ( 36 )
Med 35 ( 30 ) 34 ( 30 ) 36 ( 34 )
Low 32 ( 27 ) 31 ( 28 ) 34 ( 32 )
Quiet
High 39 ( 34 ) 36 ( 33 ) 40 ( 36 )
Med 35 ( 30 ) 34 ( 30 ) 36 ( 34 )
Low 32 ( 27 ) 31 ( 28 ) 34 ( 32 )
Quiet ———
———
———
———
FPI 18 20 20
3 × 14 2 × 14 3 × 14
8-35/64 x 25-5/8 x 23-1/2
( 217 × 650 × 596 )
12-3/4 x 20-29/32 x 27
( 324 x 785 x 686 )
40 (18)
48 (22)
LIQUID
GAS Φ 1/2 (12.7)
°F (°C)
%RH
°F (°C) 60 to 88 ( 16 to 31 )
FAN
AIR FLOW
RATE
MATERIAL
COLOR
ROWS x STAGES
PIPE TYPE
HEAT
EXCHANGER
TYPE
dB(A)
FIN TYPE
ENCLOSURE
SOUND PRESSURE
LEVEL
Non Measuring duct
(Set the Measuring duct 1)
COOLING
HEATING
DIMENSION
(H × W × D)
FIN PITCH
OUTER DIAMETER Φ 1-1/32 (26.0)
TYPE
MODEL NAME
POWER SOURCE
AVAILABLE VOLTAGE RANGE
DRAIN PIPE
DIMENSIONS
(H × W × D)
CONCEALED CEILING MODELS
REMOTE CONTROLLER TYPE
WEIGHT
INNER DIAMETER Φ 27/32 (21.5)
PS
INVERTER HEAT PUMP TYPE
ALUMINUM
230/208V ~ 60Hz
187-253V ~ 60Hz
( 324 x 1075 x 686 )
55 (25)
-
COOLING
MOISTURE REMOVAL
CAPACITY
HEATING
RATED
MIN.-MAX.
RATED
MIN.-MAX.
MOTOR OUTPUT
CFM
(m3/h)
COOLING
HEATING
TYPE x Q'ty
in. (mm)
8-35/64 × 37-1/64 × 23-1/2
(217 × 940 × 596)
12-3/4 x 42-5/16 x 27
GALVANIZED STEEL SHEET
COPPER TUBE
11-9/16 x 27-9/16 x 1-9/16
( 294 × 700 × 39.9 )
11-9/16 x 27-9/16 x 1-1/16
( 294 × 700 × 26.6 )
11-9/16 x 16-5/32 x 1-9/16
( 294 × 410 × 39.9 )
NET
in. (mm)
NET
GROSS
lb. (Kg)
SIZE
METHOD
MATERIAL
WIRED
Φ 1/4 (6.35)
OPERATION RANGE COOLING 64 to 90 ( 18 to 32 )
80 or less
HEATING
64 (29)
Φ 3/8 (9.52)
in. (mm)
RECOMMENDED STATIC PRESSURE 0 - 0.16 ( 0 to 40 )
FLARE
SIZE
GROSS
CONNECTION PIPE in. (mm)
Note:
Specifications are based on the following conditions.
Power source of specifications : 230V
Cooling: Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB,and outdoor temperature of 95°F (35°C) DB/75°F (23.9°C) WB.
Heating: Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB,and outdoor temperature of 47°F (8.3°C) DB/43°F (6.1°C) WB.
Pipe length : 24ft. 7in.(7.5m),Height difference : 0 ft.(0m) [Outdoor unit - Indoor unit]
1:Detail is in 8-2-2.CONCEALED CEILING TYPE.
3-2. CONCEALED CEILING TYPE

-
(
01 - 14
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
3-3. CASSETTE TYPE
Note :
Specifications are based on the following conditions.
Power source of specifications : 230V
CoCooling : Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB.and outdoor temperature of 95°F (35.00°C) DB/75°F (23.9°C) WB.
Heating : Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB.and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length : 24ft. 7in. (7.5 m), Height difference : 0ft. (0 m). (Outdoor unit - Indoor unit)
AUU9RML AUU12RML AUU18RML
kW 2.60 3.50 5.20
BTU/h 8800 12000 17800
kW 1.5-3.3 1.5-4.0 1.8-5.6
BTU/h 5100-11300 5100-13600 6100-19000
kW 3.20 4.10 6.00
BTU/h 11000 14000 20500
kW 1.5-3.8 1.5-4.5 1.6-6.7
BTU/h 5100-13000 5100-15400 5500-23000
pints/h (l/h) 1.9 ( 0.9 ) 2.5 ( 1.2 ) 3.4 ( 1.6 )
High 318 ( 540 ) 359 ( 610 ) 441( 750 )
Med 288 ( 490 ) 312 ( 530 ) 359 ( 610 )
Low 259 ( 440 ) 277 ( 470 ) 306 ( 520 )
Quiet 230 ( 390 ) 241 ( 410 ) 241 ( 410 )
High 318 ( 540 ) 353 ( 600 ) 471 ( 800 )
Med 288 ( 490 ) 312 ( 530 ) 418 ( 710 )
Low 259 ( 440 ) 277 ( 470 ) 353 ( 600 )
Quiet 230 ( 390 ) 241 ( 410 ) 265 ( 450 )
W
High 33 37 42
Med 31 33 37
Low 29 31 33
Quiet 26 27 27
High 34 37 44
Med 32 33 40
Low 29 31 37
Quiet 27 28 30
FPI
UNIT
PANEL
UNIT
PANEL
LIQUID
GAS Φ 1/2 (12.7)
°F (°C)
%RH
°F (°C)
TYPE CASSETTE MODELS
INVERTER HEAT PUMP TYPE
Model name
COOLING
HEATING
RATED
RATED
Power source 230 / 208V ~ 60Hz
Available voltage range 187-253V ~ 60Hz
MIN. - MAX.
MIN. - MAX.
FAN
AIR FLOW
RATE
COOLING
TYPE x Q'ty
CFM
(m3/h)
HEATING
MOISTURE REMOVAL
CAPACITY
ROWS x STAGES 2 × 10
PIPE TYPE
Turbo x 1
MOTOR OUTPUT 42
SOUND PRESSURE
LEVEL
COOLING
dB (A)
HEATING
in. (mm)
FIN PITCH 21
8-9/32 x 51-9/16 x 17/32 + 8-9/32 x 49-7/32x 17/32
( 210×1310×13.3 + 210×1250×13.3 )
Copper tube
FIN TYPE Aluminum
ENCLOSURE
(Panel)
MATERIAL PS
COLOR WHITE
( Approximate color of MUNSELL N 9.25/ )
HEAT
EXCHANGE
TYPE
DIMENSIONS
(H x W x D)
DIMENSIONS
(H x W x D)
NET
UNIT
in. (mm)
GROSS
UNIT
PANEL 1-15/16×27-9/16×27-9/16
( 49×700×700 )
9-21/32×22-7/16×22-7/16
( 245×570×570 )
PANEL
10-7/16×28-3/4×24-19/32
( 265×730×625 )
4-23/32×30-1/8×29-23/32
( 120×765×755 )
WEIGHT
NET 33 ( 15 )
5.7 ( 2.6 )
GROSS 40 ( 18 )
10 ( 4.5 )
CONNECTION PIPE SIZE in. (mm) Φ 1/4 (6.35)
Φ 3/8 (9.52)
METHOD FLARE
OPERATION RANGE COOLING 64 to 90 ( 18 to 32 )
80 or less
HEATING 60 to 88 ( 16 to 31 )
REMOTE CONTROLLER TYPE WIRED [WIRELESS : OPTION]
DRAIN PIPE
MATERIAL ABS
SIZE in. (mm) OUTER DIAMETER Φ 1 (25.4)
INNER DIAMETER Φ3/4 (19.4)
lb. (Kg)

-
(
01 - 15
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
4-1. WALL MOUNTED TYPE
MODEL : ASU9R, ASU12R, ASU18R
Side view
INSTALLATION PLACE
Front view
4. DIMENSIONS
[Unit : Inch (mm)]
[Unit : Inch (mm)]
1-31/32 (50)
or over
Wall hook bracket
3-17/32 (90)
or over
(Wall cap)
96 (2400)
or over
59-1/16 (1500)
or over
2-3/8 (60)
or over
14-7/8
(378)
8-1/32
(204)
9-31/32
(253)
9-7/16
(240)
3-31/32
(101)
7/16
(11)
5-15/16
(151)
8-11/16
(221)
9-1/2
(241)
Wall hook
brackel
7-17/32
(191)
10-15/16
(278)
13-1/2
(343)
12-17/32
(318)
6-3/16 x 3/4 (hole)
(5 x 19 (hole))
for bolt
6-31/32 x 3/16 (hole)
(25 x 5 (hole))
for bolt
60-ø3/16 (5) (hole)
for tapping screw
ø3-5/32 (80) or more
for pipe inlet
ø3-5/32 (80) or more
for pipe inlet
16-7/32
(412)
4-3/4
(121)
6-23/32
(171)
10-5/8
(270)
10-13/16
(275)
8-15/16
(227)
9-3/16 x 15/16 (hole)
(5 x 24(hole))
for bolt
9-1/16
(230)
31-3/32
(790)
11-5/32
(283)

-
(
01 - 16
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
4-2. CONCEALED CEILING TYPE
MODEL : ARU9R
Refrigerant pipe flare connection (Liquid)
Refrigerant pipe flare connection (Gas)
Drain pipe connection
Bottom view
Front view
Top view Side view (R)
Rear view View A
Bolt Pitch
Bolt Pitch
Outlet
5-5/16 (135) 5-5/16 (135)
22-5/64 (560)
4-23/32 (120) 4-23/32 (120) 4-23/32 (120)
13/64
(ø5 hole)
[Unit : Inch (mm)]

-
(
01 - 17
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
BIRD'S-EYE VIEW
[Unit : Inch (mm)]
BRACKETS
BRACKETS
CONTROL BOX
AIR FLOW OUTLET
INSTALLATION PLACE
[Unit : Inch (mm)]
6 (150)
or more
12 (300)
or more
Indoor Unit Right
side
Left
side
Strong and durable ceiling
MAINTENANCE HOLE
Maintenance hole
Control box
Unit
4 (100)
or more
12 (300)
or more

-
(
01 - 18
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
MODEL : ARU12R, ARU18R
Refrigerant pipe flare connection (Liquid)
Refrigerant pipe flare connection (Gas)
Drain pipe connection
[Unit : Inch (mm)]
Bottom view
Front view
Side view (R)
Top view
Rear view View A
Bolt Pitch
Bolt Pitch
Outlet
6-9/64 (156)
5-33/64 (140) 5-33/64 (140) 5-33/64 (140)5-33/64 (140)
6-9/64 (156) 6-9/64 (156)
25/64 (10)
2-63/64 (76)
5-29/32 (150)
8-35/64 (217)
5-29/32 (150)

-
(
01 - 19
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
BIRD'S-EYE VIEW
BRACKETS
CONTROL BOX
AIR FLOW OUTLET
BRACKETS
INSTALLATION PLACE
[Unit : Inch (mm)]
6 (150)
or more 12 (300)
or more
Indoor Unit Right
side
Left
side
Strong and durable ceiling
MAINTENANCE HOLE
Maintenance hole
4 (100)
or more
12 (300)
or more
Control box
Unit
[Unit : Inch (mm)]
