Fujitsu N6010 - LifeBook - Mobile Pentium 4 3.2 GHz User manual

Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and
completeness of this document. However, as ongoing development efforts are continually
improving the capabilities of our products, we cannot guarantee the accuracy of the contents of
this document. We disclaim liability for errors, omissions, or future changes. The absence of a
product or service name, slogan, or logo does not constitute a waiver of any trademark or other
intellectual property rights relating to that name, slogan, or logo owned by Fujitsu Computer
Systems Corporation, its parent, subsidiaries, and affiliated companies.
Fujitsu and the Fujitsu logo are registered trademarks and Instant MyMedia is a trademark of
Fujitsu Ltd. WinDVD and InterVideo are registered trademarks and WinDVR is a trademark of
InterVideo, Inc. All other trademarks mentioned herein are the property of their respective
owners.
© Copyright 2004 Fujitsu Computer Systems Corporation. All rights reserved. No part of this
publication may be copied, reproduced, translated, stored or transmitted in any electronic
form without the written consent of Fujitsu Computer Systems Corporation.
Fujitsu Computer Systems Corporation
1250 E. Arques Avenue, (M/S 122),
Sunnyvale, California 94085
For more information, call 1-877-372-3473 or
visit our Web site at: http://us.fujitsu.com/computers. For technical support
call:1-800-8fujitsu (1-800-838-5487) or e-mail us at: [e-mail]
B6FH-3381-01EN-00
TVTuner.book Page 1 Friday, October 8, 2004 1:32 PM

DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name:
Address:
Telephone:
Declares that product:
Fujitsu Computer Systems Corporation
1250 E. Arques Avenue, M/S 122, Sunnyvale, CA 94085
[phone]
TV Tuner Module PIXX-NTTN/U3W-XA
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. The
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, (2) This device must
accept any interference received, including interference that may cause undesired
operation.
TVTuner.book Page 2 Friday, October 8, 2004 1:32 PM

1
Table of Contents
TV Tuner Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introducing the TV Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TV Tuner Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Top/Front Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Left Side Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Right Side Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Control Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting the TV tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting an Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

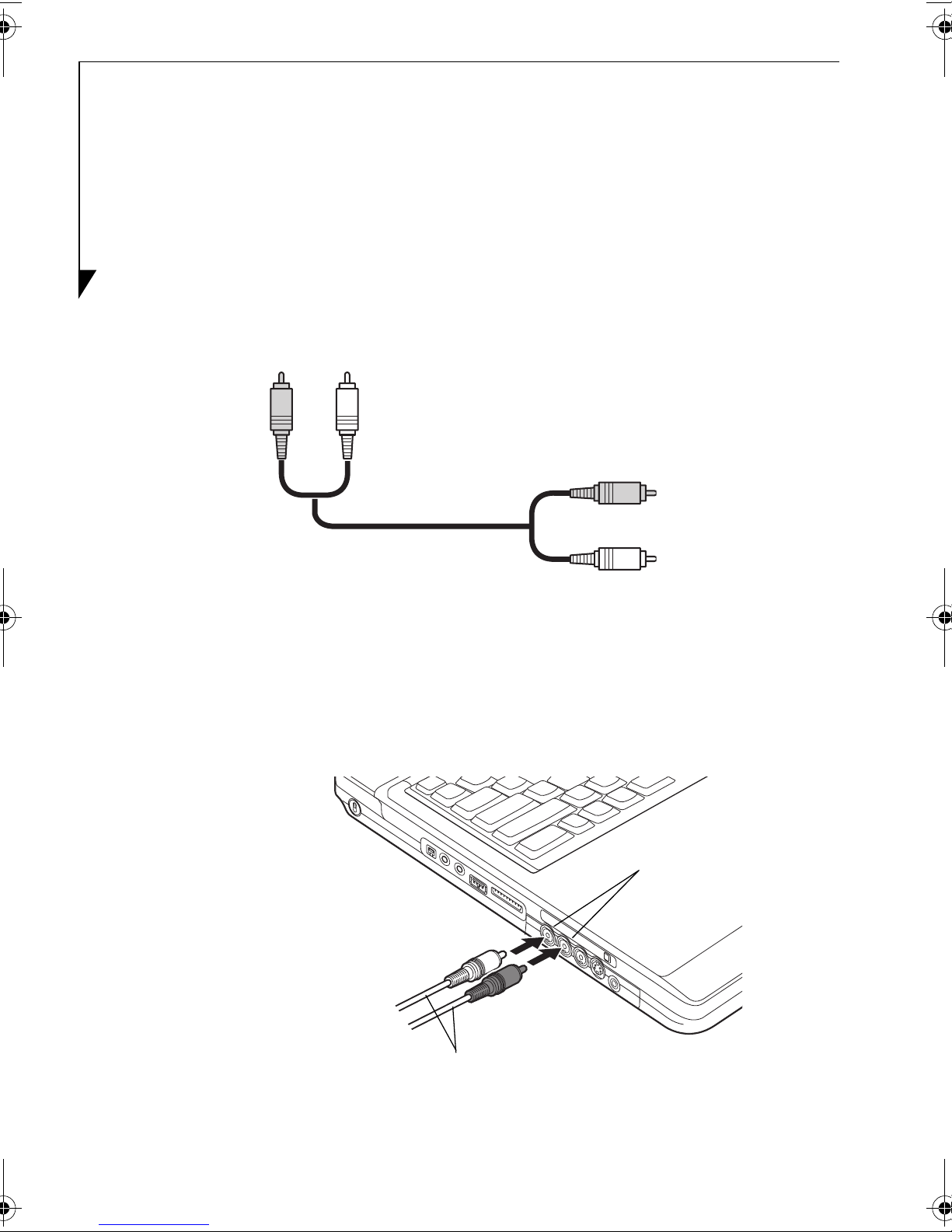

Connecting an External Audio Device . . . . . . . . . . . . . . . . . . . . . 14
Connecting an External Video Device . . . . . . . . . . . . . . . . . . . . . . 15
Composite Video Cable Connection . . . . . . . . . . . . . . . . . 15
S-Video Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting up Instant MyMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting Up/Skipping Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting Up Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Skipping Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Starting/closing Instant MyMedia . . . . . . . . . . . . . . . . . . . . . . . . 18
Starting Instant MyMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Starting with one button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Exiting Instant MyMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TVTuner.book Page 1 Friday, October 8, 2004 1:32 PM

2
Watching TV and External Video without Booting Up . . . . . . . . . 19
Watching Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Switching to TV Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Muting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Watching Video from External Devices . . . . . . . . . . . . . . . . . . . . 20
Copying from an External Device to DVD . . . . . . . . . . . . . . . . . . 20
Recording TV Programs on a DVD . . . . . . . . . . . . . . . . . . . . . . . . 21
Usable Disc Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Before recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Initializing a DVD disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting the recording mode . . . . . . . . . . . . . . . . . . . . . . . . 22
Recording TV programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Watching Recorded TV Programs or Videos . . . . . . . . . . . . . . . . 23
Playing TV programs or videos recorded on the notebook . . . . . . 23
Operations during play . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Playing CD/DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Playing CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operations during play . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Playing DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Operations during play . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the DVD menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Playing the TV programs or videos recorded on a DVD . . . . . . . . 28
Playing TV programs recorded by Instant MyMedia . . . . . 28
Playing TV programs/videos recorded on other recorders . 28
Changing the play settings for DVDs . . . . . . . . . . . . . . . . . . . . . 29
Changing the region code . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting the play start position . . . . . . . . . . . . . . . . . . . . . . 29
Changing a language used in audio and captions . . . . . . . 29
Using bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TVTuner.book Page 2 Friday, October 8, 2004 1:32 PM

3
Changing the setting to Karaoke . . . . . . . . . . . . . . . . . . . . 30
Adjusting the display quality . . . . . . . . . . . . . . . . . . . . . . . 30
Changing the parental lock settings . . . . . . . . . . . . . . . . . . . . . . . 31
DVD/Movie Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Television V-Chip Standards . . . . . . . . . . . . . . . . . . . . . . . 31
Setting the parental lock for DVD/CD mode . . . . . . . . . . . 32
Setting the parental lock for TV mode . . . . . . . . . . . . . . . . 32
Changing a password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adjusting the Display Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Changing display types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Setting the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Adjusting the display quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Returning to the initial state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Troubleshooting and Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
The screen does not appear . . . . . . . . . . . . . . . . . . . . . . . . 36
The screen image is distorted . . . . . . . . . . . . . . . . . . . . . . . 36
Audio does not come on, or doesn’t sound right . . . . . . . . 37
Certain procedures don’t work properly . . . . . . . . . . . . . . . 37
Recording can’t be performed . . . . . . . . . . . . . . . . . . . . . . 38
Recovery of Instant MyMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Execute the recovery of Instant MyMedia . . . . . . . . . . . . . 39
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Tuner Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Remote Control Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Fujitsu Computer Systems Contact Information . . . . . . . . . . . . . . 41
TVTuner.book Page 3 Friday, October 8, 2004 1:32 PM

4
TVTuner.book Page 4 Friday, October 8, 2004 1:32 PM

5
TV Tuner User’s Guide
This user’s guide contains information on connecting the TV Tuner and using the related
applications on your Fujitsu LifeBook notebook. We strongly recommend that you read this
guide before using the TV tuner.
Depending upon which application you employ, you can use the notebook to play media
whether the notebook is booted up or not. If the notebook is not booted up (pre-boot) you can
use Instant MyMedia. If the notebook is booted up (post-boot), you can use WinDVR,
WinDVD, or Microsoft Media Player. The following table illustrates the capabilities of the
applications.
TV TUNER APPLICATIONS
• Before proceeding with the TV tuner connection, you should install WinDVR
from the TV Tuner Application Disc included with the notebook.
• This manual deals primarily with using Instant MyMedia with the TV Tuner. For
detailed information about the WinDVD and WinDVR applications, please see
the associated Help files by opening the application, right-clicking on the
application screen, then selecting Help from the dropdown menu. Note that the
WinDVD and WinDVR manuals are written generically, and some features may
not apply to your TV Tuner.
Purpose (Pre-boot) (Post-boot)
Watch television Instant
MyMedia (IM) ---
Record programs on DVD-RAM IM WinDVR
Record programs on DVD-R and DVD+/-RW
discs --- WinDVR
Record programs on the notebook’s hard drive --- WinDVR
Watch videos from an external device IM WinDVD Creator
Plus
Listen to audio CDs IM Media Player
Watch commercial DVDs IM WinDVD
Play back programs recorded on a DVD IM WinDVR, WinDVD
Play back programs recorded on hard drive --- WinDVR, WinDVD
TVTuner.book Page 5 Friday, October 8, 2004 1:32 PM

6
INTRODUCING THE TV TUNER
When you receive your notebook, the TV Tuner is pre-installed. Along with the TV Tuner, you
should have received the following items:
• Remote Control
• AA Batteries (quantity: 2)
• Antenna Cable Adapter (Coaxial-to-75 ohm F-Type)
• TV Tuner Applications Disc
• Instant MyMedia Disc
• TV Tuner Getting Started Guide (this manual)
Figure 1. TV Tuner and Features (Top/Front)
12
3
456
12
7
8
9
10
11
11
TVTuner.book Page 6 Friday, October 8, 2004 1:32 PM

7
TV TUNER FEATURES
The TV Tuner can be run either with the remote control or using buttons located in the Fujitsu
LifeBook Media Player Panel above the keyboard. The features of the Fujitsu LifeBook that are
related to the TV Tuner, including Media Player Panel, are itemized in the table below.
Top/Front Features
For top and front features related to the TV Tuner, refer to Figure 1.
Note that only features related to the TV Tuner are detailed in the
following tables and illustrations; see the notebook User’s Guide for
information about other features.
Item Name Description
1 Channel This button is used to change the TV channels.
2TV When this button is pressed and the notebook has not been booted up,
Instant MyMedia will be automatically activated, switching the notebook
into TV mode. If the notebook is in DVD/CD or Video mode when the
button is pressed, it will be switched into TV mode.
3DVD/CDWhen this button is pressed and the notebook has not been booted up,
Instant MyMedia will be automatically activated, switching the notebook
into DVD/CD mode. If the notebook is in TV or Video mode when the
button is pressed, it will be switched into DVD/CD mode.
4Stop/Eject
If this button is pressed while recording a DVD in TV mode, or while an
audio CD or DVD video is being played, record/play will be stopped. If you
press the button a second time, the media tray will be ejected so that you
can remove the disc. If this button is pressed while video pictures on the
hard disc are being played in video mode, play is stopped and a list of
playable videos is displayed.
5Play/
Pause
If you press this button while play has been stopped or paused in DVD/CD
or video mode, play will restart. If you press the button while a DVD or
video is playing, play will stop temporarily.
6Back When you press this button while an audio CD or a DVD is being played in
DVD/CD mode, the player will return to the previous track if the current
track hasn’t yet started. If the track has already started, you will return to
the beginning of the current track.
7Next When you press this button while an audio CD or a DVD is being played in
DVD/CD mode, the player will advance to the next track.
TVTuner.book Page 7 Friday, October 8, 2004 1:32 PM

8
Figure 2. Left Side Features
Left Side Features
For left side features related to the TV Tuner, refer to Figure 2.
8 Power/
Suspend/
Resume
Used to turn the notebook on and off, to put the notebook into suspend
mode, or to resume from suspend mode.
9Volume
Level
The current volume level is displayed. The volume levels range from 1 to
15.
10 Volume
Control
Use this button to adjust the volume while watching or listening to a DVD/
CD or TV. Press the upper half of the button (“+”) to increase the volume,
and the lower half (“-”) to lower the volume.
11 Stereo
Speakers
Speakers used for listening to output from TV, DVD, or CD. Note that in
addition to the two stereo speakers, there is a subwoofer underneath the
notebook which supplements the stereo speakers with bass tones to
provide a true multi-range audio experience.
12 Remote
Control
IR Port
The Remote Control IR Port is used to receive signals from the TV Tuner
remote control device. The remote control must be within line-of-sight of
the IR port in order to function properly. Be sure not to obstruct the IR port
when using the remote control.
Item Name Description
1 Headphone
Jack
Used to connect to commercially available headphones.
2 Audio Input
Jacks
Used to connect to the audio output of external devices such as video
decks or set top boxes.
3 Video Input
Jack
(Composite)
Used to connect to the video output port of external video devices. The
image input from a device connected to this jack is displayed when
“Composite” input is selected.
Item Name Description
1
2345
TVTuner.book Page 8 Friday, October 8, 2004 1:32 PM

9
Figure 3. Right Side Features
Right Side Features
For right side features related to the TV Tuner, refer to Figure 3.
Figure 4. Rear Panel Features
Rear Panel Features
For rear panel features related to the TV Tuner, refer to Figure 4.
4S-Video
Input Port
Used to connect to the S-video output port of external video devices.
The image input from a device connected to this jack is displayed when
“S-Video” input is selected.
5 Antenna
Mini-Jack
Used to connect a TV or cable TV antenna using the RF adapter cable
included with the kit.
Item Name Description
1 Media Tray
Eject Button
Used to eject the media tray so you can insert or remove a disc.
2Optical
Drive
Depending upon the configuration of your notebook, this drive can
be used to play audio CDs, DVD videos, or to record a TV program on
DVD-RAM, or DVD-R.
Item Name Description
1 DC In Jack Used to connect the AC Adapter to the notebook.
2 Air Vents The air vents allow the fan to draw in outside air to cool the notebook.
Item Name Description
1
2
1
2
TVTuner.book Page 9 Friday, October 8, 2004 1:32 PM

10
REMOTE CONTROL FEATURES
Figure 5. Remote Control Layout
This section describes the buttons on the remote control device that came with your TV Tuner.
For more information on the remote control, read this entire document. For features listed
below, reference Figure 5.
Item Name Description
1PowerPressing this button while media is running will terminate the media
and power down the notebook. If the notebook is powered down,
pressing this button will power it up.
2MyMediaIf power to the notebook is off, pressing this button will activate
Instant MyMedia and the main menu will be displayed. Note that this
button is not active if the notebook has been booted up.
1
2
3
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
4
12
TVTuner.book Page 10 Friday, October 8, 2004 1:32 PM

11
3Live This button is only used with the WinDVR application (post-boot).
Pressing this button allows you to exit Time Shift (TS) mode.
4TS Time Shift (TS) allows you to pause a live TV broadcast while running
WinDVR (post-boot)
5Numeric
Pad
Pressing the buttons while in TV mode allows you to select channels
directly. Pressing the buttons while in CD/DVD mode allows you to
move to the chapter that corresponds to the number pressed.
6BrowseWhen using WinDVR, pressing the Browse button causes thumbnail
images of all available channels to be arrayed on the screen.
7Cursor
Move
The cursor move buttons allow you to move the cursor Up, Down,
Left, or Right.
8 Record Pressing the Record button while you are in MyMedia TV mode will
start the recording on DVD-RAM. Pressing this button while in
WinDVR (post-boot) allows you to record to the notebook’s hard drive
or any of the applicable disc media.
9Play/
Pause
If you press this button while play has been stopped or paused in
DVD/CD or video mode, play will restart. If you press the button while
a DVD or video is playing, play will stop temporarily.
10 Fast
Rewind
When this button is pressed while a DVD or video is being played, the
video pictures or audio are rewound. The button can be pressed
repeatedly to increase the speed of the rewind.
11 Back When you press this button while an audio CD or a DVD is being
played in DVD/CD mode, the player will return to the previous track if
the current track hasn’t yet started. If the track has already started,
you will return to the beginning of the current track.
12 Stop/Eject If this button is pressed while recording a DVD or while an audio CD
or DVD video is being played, record/play will be stopped. If you press
the button a second time, the media tray will be ejected so that you
can remove the disc. If pressed while video pictures on the hard disc
are being played in video mode, play is stopped and a list of playable
videos is displayed.
13 Volume
Up
Pressing this button increases the volume.
14 Audio
Switch
When you press the Audio Switch button while sound multiplex
broadcasting is being watched in TV mode or a DVD video with
multiple audio (i.e., multiple languages) is playing, the audio output is
switched.
Item Name Description
TVTuner.book Page 11 Friday, October 8, 2004 1:32 PM

12
15 Volume
Down
Pressing this button decreases the volume.
16 Screen When using the WinDVR application, pressing this button toggles
between full screen display and the Window size.
17 Mute Pressing the Mute button disables the speakers temporarily. No audio
is heard until you press the Mute button again.
18 Display When pressed while in TV mode, the current channel will be
displayed.
19 DVD When this button is pressed and the notebook has not been booted
up, Instant MyMedia will be automatically activated, switching the
notebook into DVD/CD mode. If the notebook is in TV or Video mode
when the button is pressed, it will be switched into DVD/CD mode.
20 TV When this button is pressed, power to the notebook is deactivated,
Instant MyMedia is activated, and the notebook is automatically
switched to TV mode.
21 List When using Instant MyMedia, press the List button to display a list of
video files on the hard disk drive.
22 Menu When using Instant MyMedia, press this button to view the menu
screen while in TV or DVD/CD mode.
23 Enter Used to choose selections and values from the main menu or the
submenu screens.
24 Return When in TV mode, pressing the Return button returns you to the
previously viewed channel.
25 Fast
Forward
When this button is pressed while a DVD or video is being played, the
video pictures or audio will advance. The button can be pressed
repeatedly to increase the speed of the advance.
26 Next While playing media in DVD/CD mode, pressing this button will skip
to the next track or chapter.
27 TV/Video When pressed while in TV mode, display on the screen is switched.
Each time the button is pressed, the displays cycle from TV to S-Video
input to Composite Video.
28 Channel
Up
If pressed while in TV mode, the channel will switch to the next higher
channel.
Item Name Description
TVTuner.book Page 12 Friday, October 8, 2004 1:32 PM

13
CONNECTING THE TV TUNER
Your TV Tuner and Instant MyMedia will work “out-of-the-box”, but if you want to connect
your notebook to an external device, follow the instructions in this section.
The following external devices can be connected to the notebook to work with Instant
MyMedia:
• Image devices such as video decks and video cameras. These can be connected either with
composite cables or S-Video cables.
• Audio devices can be connected via the video audio input jack on the notebook.
Connecting an Antenna
In order to receive television signals, you must first hook up an antenna to your notebook. An
RF antenna adapter was included with the notebook for hooking up the antenna. Note that this
requires an antenna (either cable or standalone) with a coaxial connection.

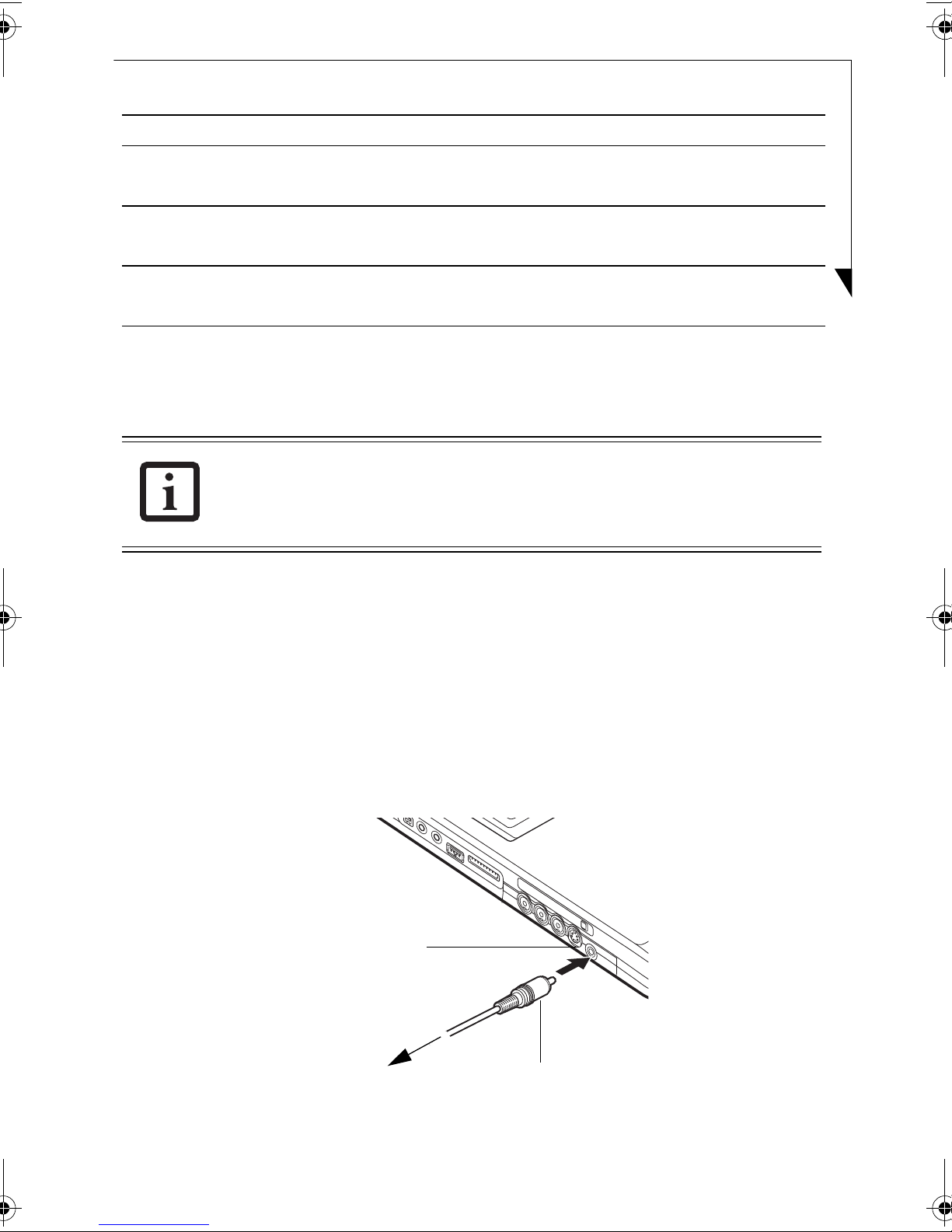

Figure 6. Connecting the Antenna
29 Channel
Down
If pressed while in TV mode, the channel will switch to the next lower
channel.
30 Angle When pressed while viewing a DVD for which there are multiple
shooting angles, the angle will switch.
31 Subtitle When pressed while viewing a DVD for which there are multiple
subtitles, the subtitle will switch.
• The WinDVR application located on the TV Tuner Application Disc should be
installed before connecting the TV tuner.
• If you are connecting external devices to your notebook, be sure to read the
instructions that accompany them before connecting them.
Item Name Description
Antenna Jack
Antenna Adapter
To antenna
TVTuner.book Page 13 Friday, October 8, 2004 1:32 PM

14
To connect an antenna to your notebook:
1. Connect the wide coaxial connector end of the RF antenna adapter to the coaxial connector
on the antenna (this includes cable TV antennas).
2. Connect the other end of the adapter to the antenna jack on the left side of the notebook, as
shown in Figure 6.
Connecting an External Audio Device
You can listen to media from an external device such as an external CD player by connecting it
to your notebook. In order to connect an audio device, you will first need to purchase a standard
RCA cable harness (red/white, max 1Vrms), as shown in Figure 7.
Figure 7. Audio Cable
To connect the audio cable:
1. Connect the cable to the audio output jacks on the external device by matching the colors
of the cable with the colors of the jacks.
2. Connect the cable to the audio input jacks on the notebook by matching the colors of the
cable with the colors of the jacks (See Figure 8).
Figure 8. Audio Input Connection
Audio Cable
Audio Jacks
TVTuner.book Page 14 Friday, October 8, 2004 1:32 PM

15
Connecting an External Video Device
You can view videos and images from an external device on your notebook. Depending upon
the configuration of the device, you will need to purchase either a composite RCA video cable
(Figure 9) or an S-Video 4-pin cable (Figure 11). You will also need to connect an audio cable,
as described in “Connecting an External Audio Device” on page 14. The video cables use
different ports, as described below.
Composite Video Cable Connection
Figure 9. Composite Video Cable
To connect a composite video cable:
1. Connect the cable to the video output jack on the external device.
2. Connect the cable to the video input jack on the notebook (See Figure 10).
3. Connect the audio cable between the external device and the notebook, as described in
“Connecting an External Audio Device” on page 14.
Figure 10. Video Cable (Composite) Connection
S-Video Cable Connection
Figure 11. S-Video Cable
Video Cable
Video Jack
TVTuner.book Page 15 Friday, October 8, 2004 1:32 PM

16
To connect an S-Video cable:
1. Connect the cable to the video output jack on the external device.
2. Connect the cable to the video input jack on the notebook (See Figure 12).
3. Connect the audio cable between the external device and the notebook, as described in
“Connecting an External Audio Device” on page 14.
Figure 12. S-Video Cable Connection
SETTING UP INSTANT MYMEDIA
When using Instant MyMedia for the first time, setup will begin automatically after Instant
MyMedia is activated. Follow the steps below to complete installation.
1. Verify that the system is not powered on, then press the MyMedia button on the remote
control. During the first portion of the installation, the notebook will cycle through several
The S-Video connector is keyed so that it can only be inserted when it is aligned
properly with the port. Be sure to examine the orientation of the connector with
the port before inserting it. Forcible insertion may cause damage to the connector
and/or port.
When performing the installation, do not wear headphones initially; the volume
may be greater than expected.
Be sure to follow the steps indicated below. Attempting to install Instant MyMedia
using different steps could result in failure to start. Note that Instant MyMedia will
cause the system to reboot twice during this installation procedure. If Instant
MyMedia fails to start after following these steps, refer to the Troubleshooting
section of this manual.
S-Video Cable
S-Video Port
TVTuner.book Page 16 Friday, October 8, 2004 1:32 PM

17
screens as different portions of the installation take place. At the end of this portion, the
notebook will turn off.
2. Verify that the power indicator is not lit.
3. Press the MyMedia button on the remote control again. The last portion of the installa-
tion will begin. At the completion of installation, the notebook will turn off.
4. Press the MyMedia button on the remote control again. The Instant MyMedia main menu
will appear. Instant MyMedia is now ready to use.
SETTING UP/SKIPPING CHANNELS
Setting Up Channels
1. Press the MyMedia button on the remote control to display the main menu.
2. If it’s not already selected, select TV with the cursor buttons, then press the [Enter] button
on the remote control. Instant MyMedia enters TV mode.
3. Press the [Menu] button to display the menu.
4. Select Antenna or Cable, depending upon how your tuner is connected. Press [Enter].
5. In the left hand panel, select Favorite Channel List. To automatically assign a broadcast
station to unassigned channels, set the selection to On.
6. Select Auto Scan with the cursor buttons, select Run, then press [Enter].
7. A channel search will begin. During the channel search, channels are switched one after
another; this could take some time. Each time a channel search is performed, different
channels may be detected due to changing reception conditions.
Skipping Channels
You can determine which detected channels are displayed and which are skipped using the
remote control or the channel button on the notebook.
1. Press the Menu button to display the menu and select TV Channel using the Cursor Move
buttons.
2. Press the right-cursor move button to enter the list of channels. Select a channel and press
the [Enter] button. Channels with a circle to the left are the channels that are set; they will
not be skipped.
3. If you want to skip a detected channel, select the channel you want to skip and press the
[Enter] button. The circle will disappear, indicating that the channel will be skipped.
4. When you have finished setting the skip status of the channels, press the left-cursor but-
ton, select [Exit], and press the [Enter] button.
Channels can still be selected using the numbered buttons on the remote control,
even if they have been selected to skip.
TVTuner.book Page 17 Friday, October 8, 2004 1:32 PM

18
STARTING/CLOSING INSTANT MYMEDIA
Starting Instant MyMedia
1. Start Instant MyMedia by pressing MyMedia on the remote control.
2. Select the mode you want using the cursor buttons, then press the [Enter] button.
•TV Mode
In TV mode, you can watch television, record the program you are watching on DVD, or
watch videos from an external device connected to your notebook.
•DVD/CD Mode
In DVD/CD mode, you can watch DVDs or listen to CDs.
•Playback Mode
When in Playback mode, you can watch TV programs that have been recorded on the
notebook hard disk and videos stored in the My Video folder.
•PC Boot
PC Boot closes Instant MyMedia and boots up the notebook.
Starting with one button
When the notebook is powered off, you can start the TV mode by pressing the [TV] button on
the remote control. Similarly, when the notebook is powered off, you can start the DVD/CD
mode by pressing the [DVD] button on the remote control.
Exiting Instant MyMedia
1. Press the MyMedia button to display the main menu.
2. Select Power Off, then press the [Enter] button. Instant MyMedia will be terminated and
the notebook will be powered off.
• When the notebook is being used, Instant MyMedia cannot be activated.
• When the Instant MyMedia main menu is displayed, the volume and [Mute]
buttons on the remote control and the volume control button on the notebook
cannot be used.
Pressing the notebook power button will also terminate Instant MyMedia and
power off the notebook.
TVTuner.book Page 18 Friday, October 8, 2004 1:32 PM
