System Board D2671
for RX200 S4
Technical Manual
Edition December 2007

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
[email protected].
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2007 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

D2671 (RX200 S4) Technical Manual
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 CE Certificate of Conformity . . . . . . . . . . . . . . . . . . 10
2.3 Environmental protection . . . . . . . . . . . . . . . . . . . 11
3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

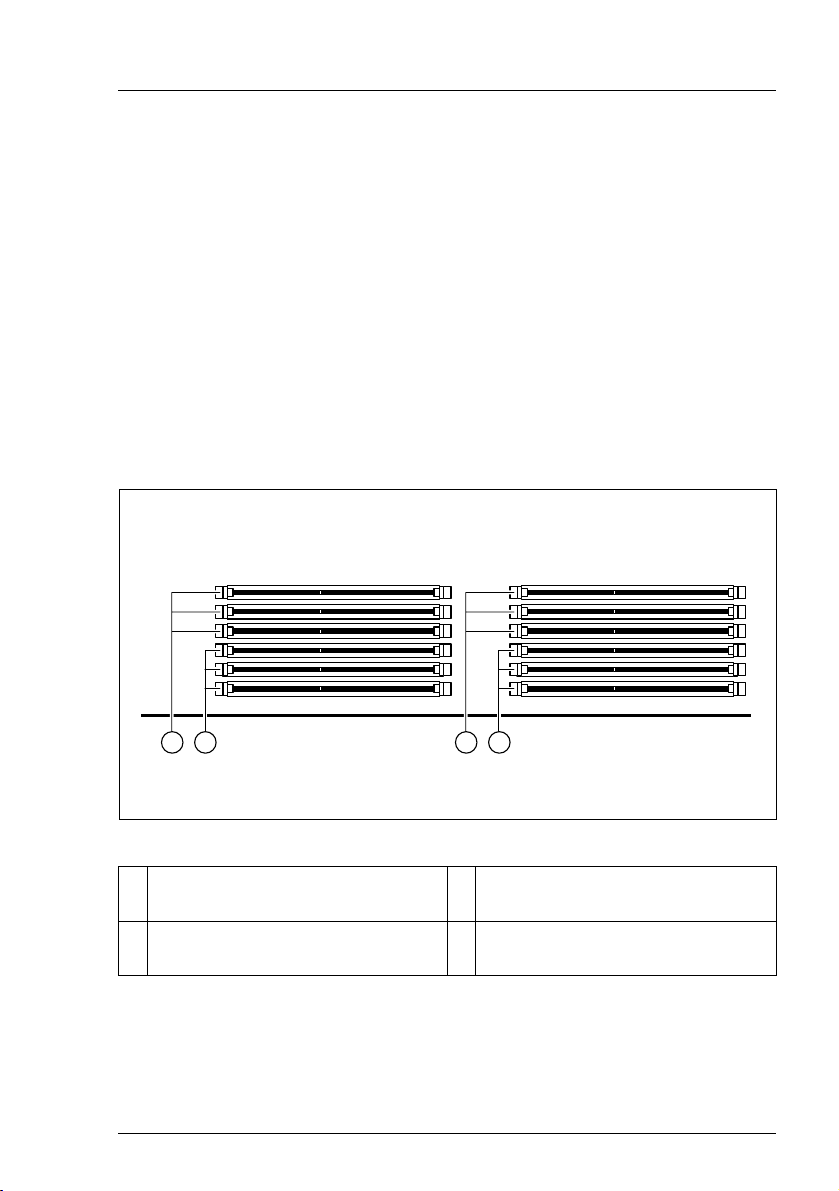

3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3 PCI slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . 20
3.5 Temperature / system monitoring . . . . . . . . . . . . . . . 20
3.6 Ports and indicators . . . . . . . . . . . . . . . . . . . . . . 22
3.6.1 External ports and indicators . . . . . . . . . . . . . . . . . . 25
3.6.2 Internal diagnostic LEDs indicators . . . . . . . . . . . . . . . 29
3.6.3 Settings with jumpers . . . . . . . . . . . . . . . . . . . . . . 30
4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 33
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

D2671 (RX200 S4) Technical Manual 5
1 Introduction
This technical manual describes the system board D2671, which is equipped
with one or two Intel® processors.
Further information you will find in the BIOS description.
For additional driver information, refer to the Readme files located on the server
hard disk and on the supplied CDs or DVDs.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
italics indicates commands, menu options or software
programs.
fixed font indicate system output on the monitor.
semi-bold fixed font indicates values to be entered through the keyboard.
[Key symbol] indicates keys according to their representation on the
keyboard.
If capital letters are to be entered explicitly, then the
Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time, then
this is shown by placing a hyphen between the two key
symbols.
"Quotation marks" Indicates names of chapters and terms that are being
emphasized.
ÊDescribes an operation that must be performed.
VCAUTION! Pay particular attention to texts marked with this
symbol. Failure to observe these warnings may
endanger your life, destroy the system or lead to the
loss of data.
IIndicates additional information, notes and tips
Table 1: Notational conventions

D2671 (RX200 S4) Technical Manual 7
2 Important notes
In this chapter you will find essential information regarding safety when working
with the system boardserver.
VCAUTION!
With the system board installed you must open the system to access the
system board. How to access the system is described in the service
supplement manual accompanying your system.
When installing the system board, refer to the specific installation infor-
mation in the operating and/or service supplement manual for the
respective server.
2.1 Notes on safety
VCAUTION!
●The actions described in these instructions should only be performed
by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.
●Transport the device only in the antistatic original packaging or in
packaging that protects it from knocks and jolts.
●Only install expansions that are allowed for the system board. If you
install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are approved for installation
can be obtained from our customer service center or your sales
outlet.
●The warranty expires if the device is damaged during the installation
or replacement of system expansions.

8 Technical Manual D2671 (RX200 S4)
Notes on safety Important notes
V●Components can become very hot during operation. Ensure you do
not touch components when making extensions to the system board.
There is a danger of burns!
●Transmisson lines to peripheral devices must be adequately shielded.
●To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
●Never connect or disconnect data transmission lines during a storm
(risk of lightning hazard).
Batteries
VCAUTION!
●Incorrect replacement of lithium battery may lead to a risk of
explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.
It is essential to observe the instructions in the chapter “Replacing the
lithium battery”.

D2671 (RX200 S4) Technical Manual 9
Important notes Notes on safety
Modules with electrostatic-sensitive components
Boards with electrostatic sensitive devices (ESD) are marked with the following
label:
Figure 1: ESD label
You must follow the instructions below when handling modules containing
electrostatic-sensitive components
●You must always discharge yourself of static charges (e.g. by touching a
grounded object) before touching the components.
●The equipment and tools you use must be free of static charges.
●Remove the power plug from the power socket before inserting or removing
boards containing ESDs.
●Always hold boards with ESDs by theit edges.
●Do not touch any exposed pins or conductors on a component.
●Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install/deinstall the board.
●Place all components on a static-free surface.
IYou will find a detailed description for handling ESD components in the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

10 Technical Manual D2671 (RX200 S4)
CE Certificate of Conformity Important notes
Notes about boards
●During installation/deinstallation of the system board, observe the specific
instructions described in the service manual for the server.
●Remove the plug from the mains outlet so that system and system board are
totally disconnected from the mains voltage.
●To prevent damage to the system board, the components and conductors on
it, please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the system board, or any other components,
for example EMI spring contacts.
●Be careful with the locking mechanisms (catches, centring pins etc.) when
you replace the system board or components on it, for example memory
modules or processors.
●Never use sharp objects (screwdrivers) for leverage.
2.2 CE Certificate of Conformity
The shipped version of this board complies with the requirements
of the EEC directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PRIMERGY configuration.

D2671 (RX200 S4) Technical Manual 11
Important notes Environmental protection
2.3 Environmental protection
Environmentally-friendly product design and development
This product has been designed in accordance with the Fujitsu Siemens
Computers standard for “environmentally friendly product design and devel-
opment”. This means that key factors such as durability, selection and labeling
of materials, emissions, packaging, ease of dismantling and recycling have
been taken into account.
This saves resources and thus reduces the harm done to the environment.
Energy-saving information
Devices that do not need to be constantly switched on should be switched off
until they are needed as well as during long breaks and after completion of work.
Packaging information
Do not throw away the packaging. You may need it later for transporting the
system. If possible, the equipment should only be transported in its original
packaging.
Information on handling consumables
Please dispose of batteries in accordance with local regulations.
In accordance with EU directives, batteries must not be disposed of with
unsorted domestic waste. They can be returned free of charge to the manufac-
turer, dealer or an authorized agent for recycling or disposal.
All batteries containing pollutants are marked with a symbol (a crossed-out
garbage can). They are also marked with the chemical symbol for the heavy
metal that causes them to be categorized as containing pollutants:
Cd Cadmium
Hg Mercury
Pb Lead

12 Technical Manual D2671 (RX200 S4)
Environmental protection Important notes
To Germany applies:
– Private customers can return spent batteries free of charge at the point of
sale or in its immediate proximity.
– The commercial end-user is legally obliged to return defective or spent
batteries to the distributor or designated return and collection systems
available to you.
Labels on plastic casing parts
Please avoid sticking your own labels on plastic parts wherever possible, since
this makes it difficult to recycle them.
Returns, recycling and disposal
Details regarding the return and recycling of devices and consumables within
Europe can also be found in the "Returning used devices" manual, via your local
Fujitsu Siemens Computers branch or from our recycling center in Paderborn:
Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn
Tel. [phone]
Fax [phone]
The device must not be disposed of with domestic waste. This
device is labeled in compliance with European directive
2002/96/EG on waste electrical and electronic equipment
(WEEE).
This directive sets the framework for returning and recycling
used equipment and is valid across the EU. When returning
your used device, please use the return and collection systems
available to you. Further information can be found at
www.fujitsu-siemens.com/recycling.

D2671 (RX200 S4) Technical Manual 13
3 Features
3.1 Overview
Processors
– 1 or 2 x Intel®Dual or Quad-Core Xeon™ processors
– 2 processor sockets LGA771 for
– Intel®Dual-Core Xeon™ Woodcrest / Woodcrest LV processors with
1066/1333 MHz front side bus (266/333 MHz quadruple transmission
rate), second-level cache 4 MB, max. clock frequency 3 GHz, max.
power draw 80 W
– Intel®Dual-Core Xeon™ Wolfdale DP / Wolfdale DP Performance
processors with 1066/1333 MHz front side bus (266/1333 MHz
quadruple transmission rate), second-level cache 6 MB, max. clock
frequency 3 GHz and more, power draw approx. 65/80 W
– Intel®Quad-Core Xeon™ Clovertown / Clovertown LV / Clovertown
Performance processors with 1066/1333 MHz front side bus (266/1333
MHz quadruple transmission rate), second-level cache 8 MB, max. clock
frequency 3 GHz and more, max. power draw 120 W
– Intel®Quad-Core Xeon™ Harpertown / Harpertown Performance
processors with 1066/1333 MHz front side bus (266/1333 MHz
quadruple transmission rate), second-level cache 12 MB, max. clock
frequency 3 GHz and more, max. power draw 120 W
Main memory
– 12 slots for main memory FBD-533 and FBD-667 (FBD - Fully Buffered
DIMMs) memory modules
2 branches, each with 2 channels for three modules for 512 MB, 1 Gbyte, 2
Gbyte and 4 Gbyte of memory
– maximum 48 Gbyte of memory
– supports “2 way” and “4 way interleaved memory subsystems” (2 or 4
identical memory modules have to installed at the same time)
– ECC multiple bit error detection and single bit error correction
– memory scrubbing function

14 Technical Manual D2671 (RX200 S4)
Overview Features
– Single Device Data Correction (SDDC) function (Chipkill™)
– memory mirroring function
– memory sparing function
Chips on the system board
– Intel® 5000P chipset (Blackford)
– Intel® 5000P Memory Controller Hub (MCH) Chipset (north bridge)
– Intel® 6311 ESB2-T I/O Controller Hub (south bridge)
– 2 LAN Controller Broadcom NetXtreme BCM5708C (10/100/1000BASE-T
TOE and Ethernet Controller with PCI Express)
– ISCSI 1.0/iSER Host Bus Adapter (HBA)
– RDMA Network Interface Controller (RNIC)
– TOE Chimney-enabled network accelerator
– Supports WOL functionality with Magic PacketTM
– Supports PXE functionality (Remote Boot)
– Onboard iRMC S2 Server Management Controller with integrated graphics
controller and associated 10/100 service LAN port
– Flash EPROM for:
– IME firmware
–BIOS
–LAN
– Server Management (SM)
Internal connectors
– 1 SATA connector (DVD-ROM)
– 2 SATA connectors (only for 3.5" hard disk)
– 1 USB connector (USB 2.0)
–I
2C connector
– power connector (12V, 5V, 3.3V, -12V, 5V standby)

D2671 (RX200 S4) Technical Manual 15
Features Overview
– power supply monitoring and controlling
– fan backplane monitoring and controlling
–I
2C connector to the SAS/SATA HDD backplane
– HDD activity connector
– control panel
– battery holder
External connectors
– 1 serial port (COM1) for system and BMC (shared)
– 2 PS/2 interfaces for keyboard and mouse
– 4 USB 2.0 ports with 480 Mbits/s (2 x front, 2 x rear)
– 1 VGA port
– 2 RJ45 LAN ports
– 1 service LAN port
PCI slots
There are three PCI expansion slots on the system board:
– Two PCI Express x8 expansion slots
– One PCI Express x4 expansion slot (low-profile, half-length)
The Riser card contained in the PCI Riser Kit optionally provides three
expansion slots arranged at an angle of 90° instead of the three expansion slots
on the system board.
– One standard half length PCI Express expansion x8 slot
– One low-profile half length PCI Express expansion x8 slot
– One low-profile half length PCI Express expansion x4 slot (mechanically:
x8), intended for an optional SAS RAID card only.

16 Technical Manual D2671 (RX200 S4)
Overview Features
BIOS features
– Phoenix BIOS V 4.0 Release 6.0
– SMBIOS 2.31 (DMI)
– MultiProcessor Specification 1.4
– Server Hardware Design Guide 3.0
– WfM 2.0
– IPMI V2.0
– ACPI 1.0b support
– LSI SCSI BIOS with IME (Integrated Mirroring Enhanced)
– USB keyboard/mouse
– boot possible from:
– CD-ROM
–USBdrive
– LAN (PXE and iSCSI)
– console redirection support
– OEM logo
– CPU, memory disable
– memory mirroring and memory sparing support
Environmental protection
Battery in holder
Form factor
285 x 455 mm

D2671 (RX200 S4) Technical Manual 17
Features Main memory
3.2 Main memory
The system board supports up to 48 Gbyte main memory. 12 slots (2 branches
each with 2 channels with 3 slots each) are available for the main memory.
ECC with memory scrubbing and with the Single Device Data Correction
(SDDC) function is supported.
The 12 slots are divided into 4 channels with 3 slots each:
– Channel 1: FBD 1A, FBD 2A and FBD 3A
– Channel 2: FBD 1B, FBD 2B and FBD 3B
– Channel 3: FBD 1C, FBD 2C and FBD 3C
– Channel 4: FBD 1D, FBD 2D and FBD 3D
Figure 2: Structure of the main memory in channels and slots
1 DIMM slots channel 1
FBD 1A-3A
3 DIMM slots channel 3
FBD 1C-3C
2 DIMM slots channel 2
FBD 1B-3B
4 DIMM slots channel 4
FBD 1D-3D
1 2 3 4

18 Technical Manual D2671 (RX200 S4)
Main memory Features
Module population
– The memory modules have to be registered Fully Buffered DIMMs (ECC
DDR2 533/667).
– Memory modules with 512 MB, 1 Gbyte, 2 Gbyte or 4 Gbyte of memory can
be used.
– The memory slots have to be populated in pairs.
– The module capacity between pairs can differ: pair 1A/1B can be populated
with two 512 Mbyte modules and pair 2A/2B with two 1 Gbyte modules.
– In the case of a mixed configuration, the memory module pairs with the lower
capacity should be installed first.
Install identical modules (of the same type, manufacturer, speed, timing, and
organization) per the instructions below:
– When operating in non-mirror mode:
– Always use two DIMMs per configuration for a memory upgrade.
– Install the first pair in the FBD 1A and FBD 1B slots.
– Observe the following channel pair sequence during installation:
– FDB 1C – FDB 1D
– FBD 2A – FDB 2B
– FBD 2C – FDB 2D
– FBD 3A – FDB 3B
– FBD 3C – FDB 3D
– When operating in single DIMM mode, the module should be installed in the
FBD 1A slot.

D2671 (RX200 S4) Technical Manual 19
Features PCI slots
3.3 PCI slots

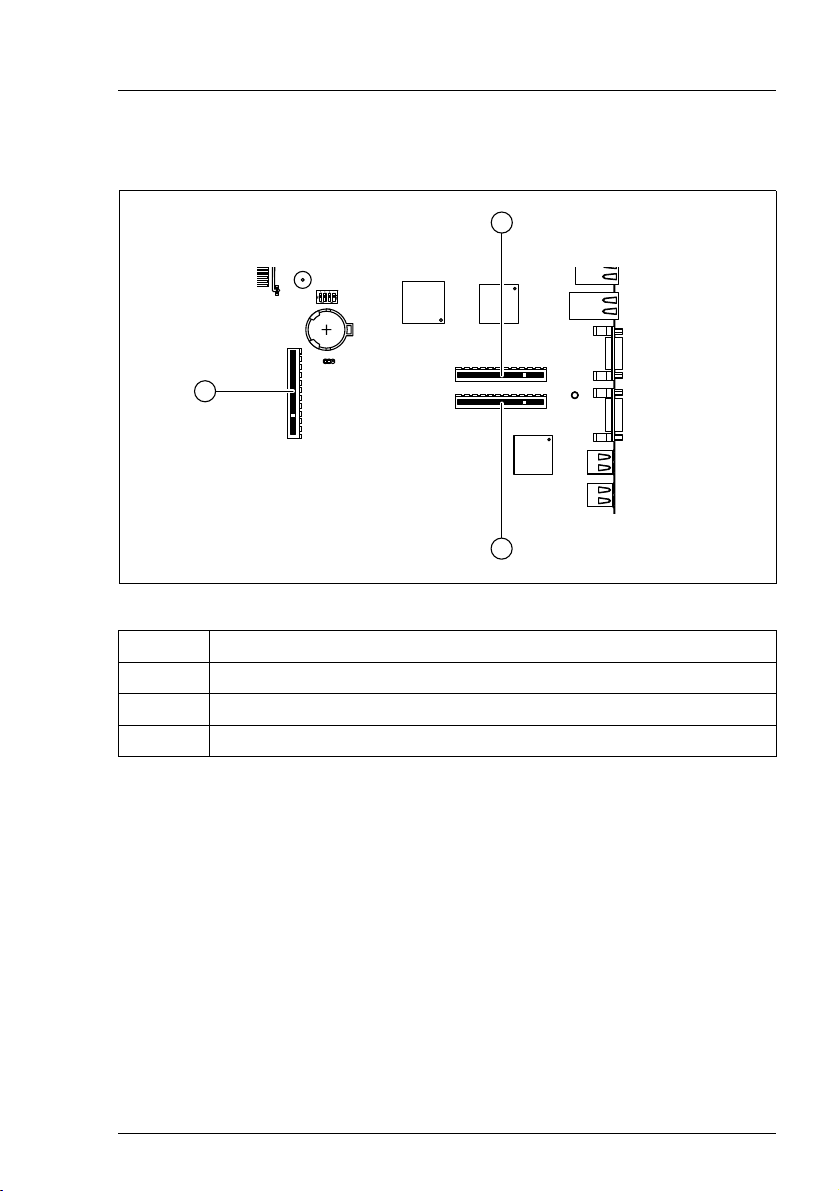

Figure 3: Representation of the PCI slots
PCI additional cards are integrated on the system board using a Riser card. The
Riser card provides three expansion slots at an angle of 90° to the system board
(two slots for PCIe controllers and one slot for a RAID card).
PCI slot Description
1 PCI Express x8 (low profile, half-length)
2 PCI Express x8 (standard profile, half-length)
3 PCI Express x4 - mechanically x8 (low profile, half-length)




20 Technical Manual D2671 (RX200 S4)
Screen resolution Features
3.4 Screen resolution
Depending on the operating system used the screen resolutions in the following
table refer to the screen controller on the system board. If you are using an
external screen controller, you will find details of supported screen resolutions
in the operating manual or technical manual supplied with the controller.
3.5 Temperature / system monitoring
Temperature and system monitoring aim to reliably protect the computer
hardware against damage caused by overheating. In addition, any unnecessary
noise is also prevented by reducing the fan speed, and information is provided
about the system status.
The temperature and system monitoring are controlled by the iRMC controller
(integrated Remote Management Controller).
The following functions are supported:
Temperature monitoring
Measurement of the processor temperature, measurement of the ambient
temperature by a temperature sensor on the LED board.
Fan monitoring
Fans that are no longer available, blocked or sticky fans are detected.
Fan control
The fans are regulated according to temperature.
Screen resolution Refresh rate (Hz) Max. number of colours
640x480 85 32 bit
800x600 85 32 bit
1024x768 85 32 bit
1152x864 75 24 bit
1280x1024 60 24 bit
1600x1200 65 16 bit
