System Board D2785
for TX120 S2
Technical Manual
Edition April 2009

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
[email protected]ujitsu.com.
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2009 FujitsuTechnologySolutionsGmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

D2785 (TX120 S2) Technical Manual
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 CE certificate of conformity . . . . . . . . . . . . . . . . . . 10
2.3 ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Environmental protection . . . . . . . . . . . . . . . . . . . 11
3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3 PCI bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . 18
3.5 Temperature / system monitoring . . . . . . . . . . . . . . . 19
3.6 Connectors and indicators . . . . . . . . . . . . . . . . . . 20
3.6.1 System board . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.6.2 Connector panel . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.6.3 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 27
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

D2785 (TX120 S2) Technical Manual 5
1 Introduction
This technical manual describes the system board D2785, which is equipped
with one Intel®processor.
You will find further information in the manual “BIOS Setup”.
Further information about drivers is provided in the readme files on the hard
disk, or on the supplied CDs/DVDs.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
Text in talics indicates commands or menu items.
Text in fixed font indicates system output on the monitor.
Text in semi-bold
fixed font
indicates values to be entered through the
keyboard.
[Key symbol] indicates keys according to their representation on
the keyboard.
If capital letters are to be entered explicitly, then the
Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time,
then this is shown by placing a hyphen between the
two key symbols.
“Quotation marks” indicate names of chapters and terms that are
being emphasized.
Êdescribes activities that must be performed in the
order shown.
VCAUTION! describes activities that must be performed in the
order shown.
Iindicates additional information, notes and tips.
Table 1: Notational conventions

D2785 (TX120 S2) Technical Manual 7
2 Important notes
In this chapter you will find essential information regarding safety when working
with the system board.
VCAUTION!
With the system board installed you must open the system to access the
system board. How to access the system board of your system is
described in the appropriate service supplement.
When handling the system board, refer to the specific notes on safety in
the operating manual and/or service supplement for the respective
server.
2.1 Notes on safety
VCAUTION!
●The actions described in these instructions should only be performed
by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.
●Transport the device only in the antistatic original packaging or in
packaging that protects it from knocks and jolts.
●Only install expansions that are allowed for the system board. If you
install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are suitable can be
obtained from the customer service centre or your sales outlet.
●The warranty expires if the device is damaged during the installation
or replacement of system expansions.

8 Technical Manual D2785 (TX120 S2)
Notes on safety Important notes
VCAUTION!
●Components can become very hot during operation. Ensure you do
not touch components when making extensions to the system board.
There is a danger of burns!
●Transmission lines to peripheral devices must be adequately
shielded.
●To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
●Never connect or disconnect data transmission lines during a storm
(lightning hazard).
Batteries
VCAUTION!
●Incorrect replacement of lithium battery may lead to a risk of
explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.
It is essential to observe the instructions in chapter “Replacing the
lithium battery”.
Modules with electrostatic-sensitive components
Boards with electrostatic sensitive devices (ESD) are marked with the following
label:
Figure 1: ESD label

D2785 (TX120 S2) Technical Manual 9
Important notes Notes on safety
When you handle components fitted with ESDs, you must observe the following
points under all circumstances:
●You must always discharge yourself of static charges (e.g. by touching a
grounded object) before working.
●The equipment and tools you use must be free of static charges.
●Shut-down the system and remove the power plug from the power socket
before inserting or removing boards containing ESDs.
●Always hold boards with ESDs by their edges.
●Never touch pins or conductors on boards fitted with ESDs.
●Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install/deinstall the board.
●Place all components on a static-safe base.
IYou will find a detailed description for handling ESD components in the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).
Notes about boards
●During installation/deinstallation of the board, observe the specific instruc-
tions described in the service supplement for the respective server.
●Shut-down the system and remove the power plug from the power socket
before you make modifications on an installed board.
●To prevent damage to the board, the components and conductors on it,
please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the board, or any other components, for
example EMI spring contacts
●Be careful with the locking mechanisms (catches, centring pins etc.) when
you replace the system board or components on it, for example memory
modules or processors.
●Never use sharp objects (screw drivers) for leverage.

10 Technical Manual D2785 (TX120 S2)
CE certificate of conformity Important notes
2.2 CE certificate of conformity
2.3 ENERGY STAR
The board complies with the requirements of the EC directives
2004/108/EC regarding “Electromagnetic Compatibility” and
2006/95/EC “Low Voltage Directive”. This is indicated by the CE
marking (CE = Communauté Européenne).
Compliance was tested in a typical PRIMERGY configuration.
In some particular configurations1the PRIMERGY TX120 S2 is
equipped with a power management system which, in energy-
saving mode, reduces the power consumption to <65 W. The
server thus satisfies the requirements of the U.S. Environmental
Protection Agency (EPA).
The EPA estimates that computer systems use around 5 % of all
electricity in the office sector and that this figure is growing
rapidly. If all computer systems and peripherals were placed in
energy-saving mode when not in use, the overall savings in
electricity could amount to some US $ 2 billion annually. These
savings would also prevent the emission of 20 million tons of
carbon dioxide into the atmosphere - equivalent to the emissions
from 5 million automobiles.
As an ENERGY STAR partner, Fujitsu Technology Solutions
GmbH has determined that in some particular configurations this
product meets the ENERGY STAR guidelines for energy
efficiency.
1These servers are always delivered with a particular setting in the BIOS setup. For details
please see the manual “D2785 BIOS Setup Utility for PRIMERGY TX120 S2” on the
PRIMERGY ServerView Suite DVD 2.

D2785 (TX120 S2) Technical Manual 11
Important notes Environmental protection
2.4 Environmental protection
Environmentally friendly product design and development
This product has been designed in accordance with standards for ”environmen-
tally friendly product design and development“. This means that key factors
such as durability, selection and labeling of materials, emissions, packaging,
ease of dismantling and recycling have been taken into account.
This saves resources and thus reduces the harm done to the environment.
Energy-saving information
Devices that do not need to be constantly switched on should be switched off
until they are needed as well as during long breaks and after completion of work.
Packaging information
Do not throw away the packaging. You may need it later for transporting the
system. If possible, the equipment should only be transported in its original
packaging.
Information on handling consumables
Please dispose of batteries in accordance with local regulations.
In accordance with EU directives, batteries must not be disposed of with
unsorted domestic waste. They can be returned free of charge to the manufac-
turer, dealer or an authorized agent for recycling or disposal.
All batteries containing pollutants are marked with a symbol (a crossed-out
garbage can). They are also marked with the chemical symbol for the heavy
metal that causes them to be categorized as containing pollutants:
Cd Cadmium
Hg Mercury
Pb Lead
Labels on plastic casing parts
Please avoid sticking your own labels on plastic parts wherever possible, since
this makes it difficult to recycle them.

12 Technical Manual D2785 (TX120 S2)
Environmental protection Important notes
Returns, recycling and disposal
Details regarding the return and recycling of devices and consumables within
Europe can also be found in the "Returning used devices" manual, via your local
Fujitsu Technology Solutions branch or from our recycling center in Paderborn:
Fujitsu Technology Solutions
Recycling Center
D-33106 Paderborn
Tel. [phone]
Fax [phone]
The device must not be disposed of with domestic waste.
This device is labeled in compliance with European directive
2002/96/EG on waste electrical and electronic equipment
(WEEE).
This directive sets the framework for returning and recycling
used equipment and is valid across the EU. When returning
your used device, please use the return and collection
systems available to you. Further information can be found at
www.ts.fujitsu.com/recycling.

D2785 (TX120 S2) Technical Manual 13
3 Features
3.1 Overview
Processors
– Intel®CoreTM 2 Duo processor P8400/T9400, 1066 MHz FSB
– 478 pin Micro FCPGA processor socket
Main memory
– 4 slots for main memory DDR2 533/667 MHz (unbuffered),
SDRAM memory modules with 1 GB, 2 GB and 4 GB
– maximum 16 GB of main memory
– minimum 1 GB of main memory
– ECC multiple bit error detection and single bit error correction
Chips on the system board
– Intel 5100 MCH (north bridge) chipset
– Intel 82801GR ICH9-R (south bridge) chipset
– SMC 8700C (for Service LAN)
– Intel ICH9-R integrated Gigabit Ethernet controller with Intel 82567 LM
– Flash EPROM for:
– local BIOS update via bootable USB device
– remote BIOS update via LAN
– Onboard iRMC S2 Server Management controller with integrated graphic
controller and associated service LAN connector
– ADT7462 temperature and system monitoring controller

14 Technical Manual D2785 (TX120 S2)
Overview Features
Internal connectors
– 1x front panel connector
– 1x ATX power supply connector
– 1x ATX 12V (CPU) power supply connector
– 2x system fan connectors
– 1x SATA connector
– 1x SATA MLC1 connector
– 1x SAS-LED connector
– 1x USB 2.0 connector (for an optional backup drive)
– 1x connector for the front side Service LAN connector
External connectors
– Rear side:
– 1x serial interface (COM1)
– 1x VGA connector
– 1x RJ45 Service LAN connector
– 1x RJ45 LAN connector
– 5x USB 2.0 connectors
– Front side:
– 1x RJ45 Service LAN connector (optional)
– 2x USB 2.0 connectors
Slots for expansion boards (low profile)
– 1 x PCI (32 Bit / 33 MHz) expansion slot
– 3 x PCI Express x8 expansion slots
BIOS
Phoenix System BIOS V 4.06 (Trusted Core)
Environmental protection
Battery in holder
Form factor, slot compatibility list
260 mm x 305 mm

D2785 (TX120 S2) Technical Manual 15
Features Overview
TPM (option)
The system board can be equipped with a TPM (Trusted Platform Module) by
the manufacturer or by an add-on kit. This module enables programs from third
party manufacturers to store key information (e.g. drive encryption using
Windows Bitlocker Drive Encryption).
The TPM is activated via the BIOS system (for more information, refer to the
BIOS manual).
VCAUTION!
– When using the TPM, note the program descriptions provided by the
third party manufacturers.
– You must also create a backup of the TPM content. To do this, follow
the third party manufacturer's instructions. Without this backup, if the
TPM or the system board is faulty you will not be able to access your
data.
– If a failure occurs, please inform your service about the TPM
activation before it takes any action, and be prepared to provide them
with your backup copies of the TPM content.

16 Technical Manual D2785 (TX120 S2)
Main memory Features
3.2 Main memory
The system board supports up to 16 Gbyte main memory. 4 slots (2 memory
banks with 2 modules) are available for the main memory. Each memory bank
can be populated with 1 GB, 2 GB or 4 GB unbuffered DDR2 memory modules.
Module population
Figure 2: Detail - slots of the main memory
– If the memory modules are populated in pairs, each pair must consist of
identical memory modules (2-way interleaved mode).
– The module capacity between pairs can differ: pair 1A/1B can be populated
with two 1 GB memory modules and pair 2A/2B with two 2 GB memory
modules.
Following table shows the mandatory population order:
Modes DIMM-1A DIMM-1B DIMM-2A DIMM-2B
single channel populated empty empty empty
dual channel populated populated empty empty
single / dual
channel1
1The dual channel mode is only activated, if the memory size installed in the DIMM-2A slot is
equal to the sum of the memory modules installed in the DIMM-1A and DIMM-1B slots.
(e. g.: DIMM-1A=1GB, DIMM-1B=1GB, DIMM-2A=2GB)
populated populated populated empty
dual channel populated populated populated populated
DIMM 1A
DIMM 1B
DIMM 2A
DIMM 2B
Channel A
Channel B

D2785 (TX120 S2) Technical Manual 17
Features PCI bus
3.3 PCI bus
PCI slots

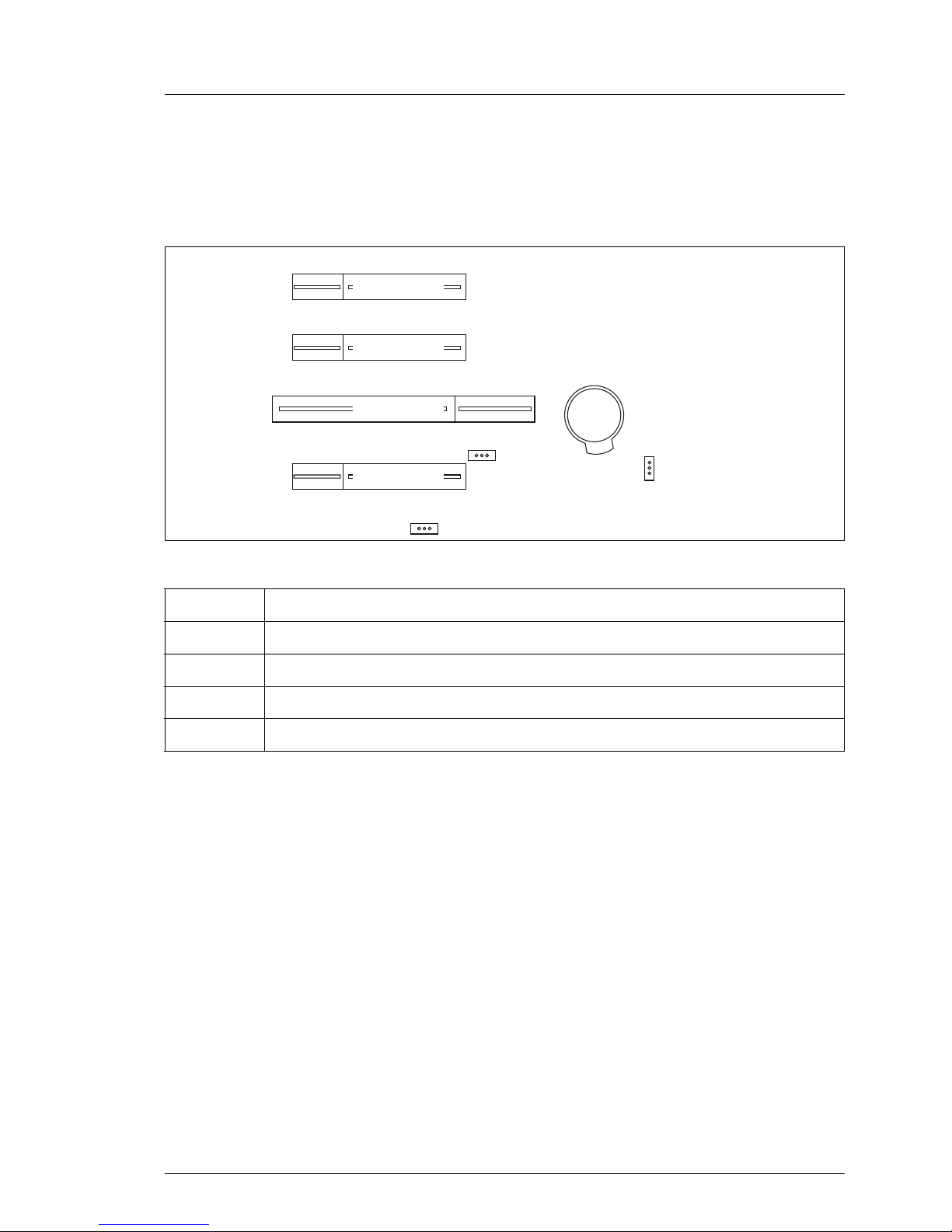

Figure 3: Detail - PCI slots
PCI, PCI Express interrupts
Each device connected to a PCI bus or PCI Express can use up to four interrupt
signals depending on the functionality.
PCI and PCI-X buses use four lines named INTA to INTD, typically connected
to all devices on the bus in order to periodically balance interrupt load. An
interrupt signal may thereby be used simultaneously by multiple devices
(interrupt sharing).
PCI Express devices send their interrupts through messages. This avoids
restrictions in wiring.
PCI slot Description
1 PCI-Express x8 bus-slot
2 PCI-Express x8 bus-slot
3 32 bit PCI bus slot (32-Bit/33MHz)
4 PCI-Express x8 bus-slot
PCI slot 1
PCI slot 2
PCI slot 3
PCI slot 4

18 Technical Manual D2785 (TX120 S2)
Screen resolution Features
The following interrupt signals are used in the system:
Assignment of the PCI interrupts
If you select Auto in the BIOS setup, the interrupts are assigned automatically
and no further settings are required.
3.4 Screen resolution
Depending on the operating system used the screen resolutions in the following
table refer to the Matrox graphic controller on the system board. The Matrox
graphic controller is integrated in iRMC S2 (integrated Remote Management
Controller).
If you are using a different graphic controller, you will find details of supported
screen resolutions in the documentation supplied with the graphic controller.
Slot/device Property Interrupt signal
VGA iRMC S2 graphic Int B
LAN Intel 82567 LM Int A
Slot 1 PCIe x8 Int A, B, C, D
Slot 2 PCIe x8 Int A, B, C, D
Slot 3 PCI (33 MHz) Int A, B, C, D
Slot 4 PCIe x8 Int A, B, C, D
Screen resolution Maximal refresh rate (Hz) Maximal colour depth
640x480 85 32 Bit
800x600 85 32 Bit
1024x768 85 32 Bit
1152x864 75 24 Bit
1280x1024 60 24 Bit

D2785 (TX120 S2) Technical Manual 19
Features Temperature / system monitoring
3.5 Temperature / system monitoring
Temperature and system monitoring aim to reliably protect the computer
hardware against damage caused by overheating. In addition, any unnecessary
noise is also prevented by reducing the fan speed, and information is provided
about the system status.
The temperature and system monitoring are controlled by an onboard controller.
The following functions are supported:
Temperature monitoring
Measurement of the processor and the inhouse temperature by an onboard
sensor, measurement of the ambient temperature by a I²C temperature sensor.
Fan monitoring
Fans that are no longer available, blocked or sticky fans are detected.
Fan control
The fans are regulated according to temperature.
Sensor monitoring
The removal of, or a fault in, a temperature sensor is detected. Should this
happen all fans monitored by this sensor run at maximum speed, to achieve the
greatest possible protection of the hardware.
Voltage monitoring
When voltage exceeds warning level high or falls below warning level low an
alert will be generated.
System Event Log (SEL)
All monitored events of the system board are recorded in the System Event Log.
They could be retrieved after a reboot via ServerView.

20 Technical Manual D2785 (TX120 S2)
Connectors and indicators Features
3.6 Connectors and indicators
3.6.1 System board
Figure 4: Internal connectors of the system board D2785
FAN2
SYS FRONT PANEL
ATX 12V1
Upper
BPL I2C
CONN
JP7
JP6 FRONT LAN
JP5
FAN1
SYS
USB
DRIVE
ATX PWR1
SATA
MLC1
SATA
JP2
JP3
USB
3/4/6
USB 7/8
LAN
Service
LAN
COM1
VGA
iRMC S2
Battery
CPU
12
3
4
5
6
7
8
Intel
ICH9-R
Intel
82567
DIMM 1A DIMM 1B DIMM 2A DIMM 2B
Intel
MCH
PCI slot 1 PCI slot 2 PCI slot 3 PCI slot 4
9
10
TPM
11
