Fujitsu D3231-S User manual

TechNotes V1.2
Industrial Mainboard Series
D3231-S
D3235-S
D3236-S
D3243-S

a
g
e
2
Page
TechNotes D323x-S_D3243-S V1.2 Page 2 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Content
1Safety Instructions 6
2Feature Overview 7
2.1 Basic Layout D3231-S 11
2.2 Basic Layout D3235-S 12
2.3 Basic Layout D3236-S 13
2.4 Basic Layout D3243-S 14
2.5 Block Diagram D3231-S & D3236-S 15
2.6 Block Diagram D3235-S 16
2.7 Block Diagram D3243-S 17
2.8 External Connectors D3231-S / D3236-S & D3243-S 18
2.9 External Connectors D3235-S 19
2.10 Onboard components D323x-S 20
2.11 Onboard components D3243-S 21
2.12 Summary: Feature Differences D323x-S 22
2.13 I/O-Shield 23
3Interfaces & Connectors 24
3.1 Frontpanel Connector [Updated] 24
3.2 Internal Serial (COM) Port Connector 25
3.3 External Serial (COM) Port Connector 25
3.4 Internal Parallel Port Connector 26
3.5 Internal USB2.0 Connector (2 Ports) 26
3.6 Internal USB3.0 Connector (2 Ports) 27
3.7 External USB3.0 Connector 27
3.8 PS/2 Keyboard Port 28
3.9 PS/2 Mouse Port 28
3.10 LAN Connector 29
3.11 DVI-I Connector 29
3.12 DisplayPort V1.2 Connector 30

a
g
e
3
Page
TechNotes D323x-S_D3243-S V1.2 Page 3 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
3.13 Serial ATA Connectors 30
3.14 mSATA Pinout / Mini-PCIe Pinout [Updated] 31
3.15 mSATA / Mini-PCIe BIOS Setup Options [New] 32
3.16 Fan Connectors 33
3.17 Power Supply Fan Connector 33
3.18 Rear Audio / Frontpanel Audio Connector [Updated] 34
3.19 S/PDIF Connector 36
3.20 GPIO (Feature Connector) 37
3.21 Power Supply Connector D323x-S (Multirail) 38
3.22 Additional Power Supply Connector D323x-S (12V for Processor) 38
3.23 Power Supply Connectors D3243-S (ATX Multirail or Single 12V Operation) [Updated] 39
3.23.1 D3243-S ATX Multirail Operation [Updated] 39
3.23.2 D3243-S Single 12V Operation [Updated] 40
3.23.3 D3243-S Single 12V Operation –Min / Max Config [New] 41
3.24 Chassis Intrusion [Updated] 42
4System Monitoring 43
4.1 D3236-S / D3231-S: Temperature Sensors and Fan Connectors 44
4.2 D3243-S: Temperature Sensors and Fan Connectors 45
4.3 D323x-S / D3243-S: SystemGuard 46
4.4 D323x-S: SystemGuard - Details 47
4.5 D3243-S: SystemGuard - Details 48
4.6 SilentFanConfigManager –Customize System Monitoring Settings 49
4.7 Components for continous 24/7 operation @ +60°C 50
4.8 Capacitor Endurance Time Comparison 51
4.9 Temperature Reference Points D323x-S 52
4.10 Temperature Reference Points D3243-S (front) 53
4.11 Temperature Reference Points D3243x-S (rear) 54
4.12 BMC –BIOS Default Settings D323x-S 55
4.13 BMC –BIOS Default Settings D3243-S 56
5Power Supply 57
5.1 ATX Power Supply / Single 12V Supply [Updated] 57
6Display Options 58
6.1 Summary: Video Output Options D323x-S / D3243-S 58
6.2 VGA Output 59

a
g
e
4
Page
TechNotes D323x-S_D3243-S V1.2 Page 4 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
6.3 VGA Output 59
6.4 DVI Output 60
6.5 HDMI Output 61
6.6 DisplayPort Output [Updated] 62
6.7 Dual Digital plus VGA Output (3 Displays) 63
6.8 Three Digital Outputs (3 Displays) 64
6.9 LVDS Display & Backlight Inverter (D3243-S) 65
6.10 LVDS Connector Details (D3243-S) 66
6.11 Backlight Inverter Connector Details (D3243-S) 67
6.12 LVDS Timing & Screen Resolution (D3243-S) 68
6.13 LVDS Tool [Updated] 71
6.14 LVDS –Influence on Graphics Output D3243-S [New] 72
6.15 LVDS Cabling Reference 74
6.16 LVDS Sample Cabling for AuO-G150 75
7Operating System Support 76
7.1 Support for Windows 7 / Windows 8.1 77
7.2 Linux Support [Updated] 78
8Mainboard Tools 79
Common Mainboard Tools [Updated] 79
8.1 BIOS Boot Logo Tool 79
8.2 EditCMOS 79
8.3 OEMIDENT 79
8.4 SystemGuard 80
Industrial Tools 81
8.5 SilentFanConfig-Manager 81
8.6 LVDS Tool 81
8.7 Windows System-Monitoring API (BMCAPI) 82
8.8 Linux System-Monitoring Driver (“LM-Sensors”) 82
9Known Issues & Important Notes 83
9.1 Driver support for MS Windows XP / MS Win8 [Updated] 83
9.2 Memory Issue 83
9.3 Possible Power Supply Issue 83
9.4 SATA Interface (Intel chipset limitation) 84
9.5 SATA / eSATA Signal Quality [New] 84
9.6 Graphics driver: Support for Collage Mode 84

a
g
e
5
Page
TechNotes D323x-S_D3243-S V1.2 Page 5 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
9.7 mSATA support 84
9.8 USB3.0 Performance 85
9.9 Support for Haswell Refresh (HR) Processors [New] 86
9.10 PCI Slots D323x-S [New] 87
9.11 PCI Express Slots [New] 87
9.12 Intel iAMT / vPRO Manageability Support [New] 88
10 Miscellaneous 89
10.1 Specific BIOS Modes “Always On” & “Never Off” (D3243-S) [New] 89
10.2 Battery Lifetime [New] 90
10.3 Trusted Platform Module (TPM) [Updated] 91
10.4 System Watchdog (WD) 92
10.5 BIOS Update / BIOS Recovery 95
10.6 BIOS/CMOS: Reset Defaults 96
10.7 BIOS integrated HW Diagnostic Tool 97
10.8 BIOS integrated Erase Disk Tool 97

a
g
e
6
Page
TechNotes D323x-S_D3243-S V1.2 Page 6 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
1Safety Instructions
3 Copyright2011FUJITSU
TechNotesD307x-S V1.1
Safety Instructions
Do not connect or disconnect any cables or modules to or from any onboard connectors (except
for the rear I/O connectors) until the mainboard is completely powered down.
Any damage caused to the mainboard by misuse of the onboard connectors is excluded from the
standard warranty. Fujitsu Technology Solutions cannot be held liable for any damage that results
from incorrect use of any onboard connectors.
The system integrator is fully responsible for the usage of appropriate connectors and cables in
order to fulfill the technical requirements (electrical contact, durability, power/current levels,
signal integrity etc.)
Important Note (D3243-S):
If the Power Supply is changed from Multirail to
12V only or vice versa, make sure to disconnect
the mainboard D3243-S from any power at least
for 10 minutes!

a
g
e
7
Page
TechNotes D323x-S_D3243-S V1.2 Page 7 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
2Feature Overview
•Based on latest Intel Lynxpoint single-chip technology (iQ87 resp. iH81)
•Support for full range of latest LGA1150 Haswell and Hawell Refresh processors
(Intel CoreTM-i Gen 4; up to 95W TDP)
•Intel® Core™ i7 / i5 / i3 –4xxx processor series
•Intel® Pentium® G3xxx processor series
•Intel® Celeron® G18xx processor series
•Intel® “TE” Haswell-based embedded processor series
•iAMT 9.1 / VPro 2014 Manageabilty Support
Note: Available feature set depends on PCH and
installed processor
•Max. four memory sockets DDR3-1333/1600 supporting up to 32GB
•Intel Gbit LAN i217LM (“Clarkville”) onboard
•iAMT support
•Second Intel Gbit LAN i210AT (optional)
•Teaming support

a
g
e
8
Page
TechNotes D323x-S_D3243-S V1.2 Page 8 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
•Trusted Platform Module TPM V1.2 (Infineon) onboard (optional)
•Latest Intel®HD Graphics (integrated in processor)
•Simultaneous use of integrated graphics and PCIe graphics possible
•Onboard option for up to three digital displays (1 x DVI / 2 x DisplayPort V1.2)
or two digital displays (2 x DisplayPort V1.2) and 1 x VGA (DVI-I via VGA converter)
•Support of 4k resolutions (3840 x 2160) via DisplayPort V1.2
•Support of spanned displays ( Collage Mode )
•PCI Express Gen3 (Q87) / PCI Express Gen2 (H81)

a
g
e
9
Page
TechNotes D323x-S_D3243-S V1.2 Page 9 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
•Internal Socket for USB stick / Dongle onboard (optional)
•USB 3.0 onboard
•Multichannel audio (5.1) incl. S/PDIF onboard
•6-Layer PCB (D323x-S) resp. 8-Layer PCB (D3243-S)
•Improved electrical signal quality
•Improved durability

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 10 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
Designed & approved for 24/7 continuous operation @ 60°C
High Efficiency core voltage regulator design (80-85%)
Extended lifecycle up to 5 years
BIOS-POST/-Boot & OS –HW Watchdog onboard
Easy SW integration via Windows API & Linux Driver
mSATA Socket (D3231-S/D3236-S) resp. mSATA Socket & Mini-PCIe Socket (D3243-S)
for OS installation or harddisk caching
incl. USB 2.0 interface for USB-based modules

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 11 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.1 Basic Layout D3231-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 12 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.2 Basic Layout D3235-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 13 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.3 Basic Layout D3236-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 14 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview

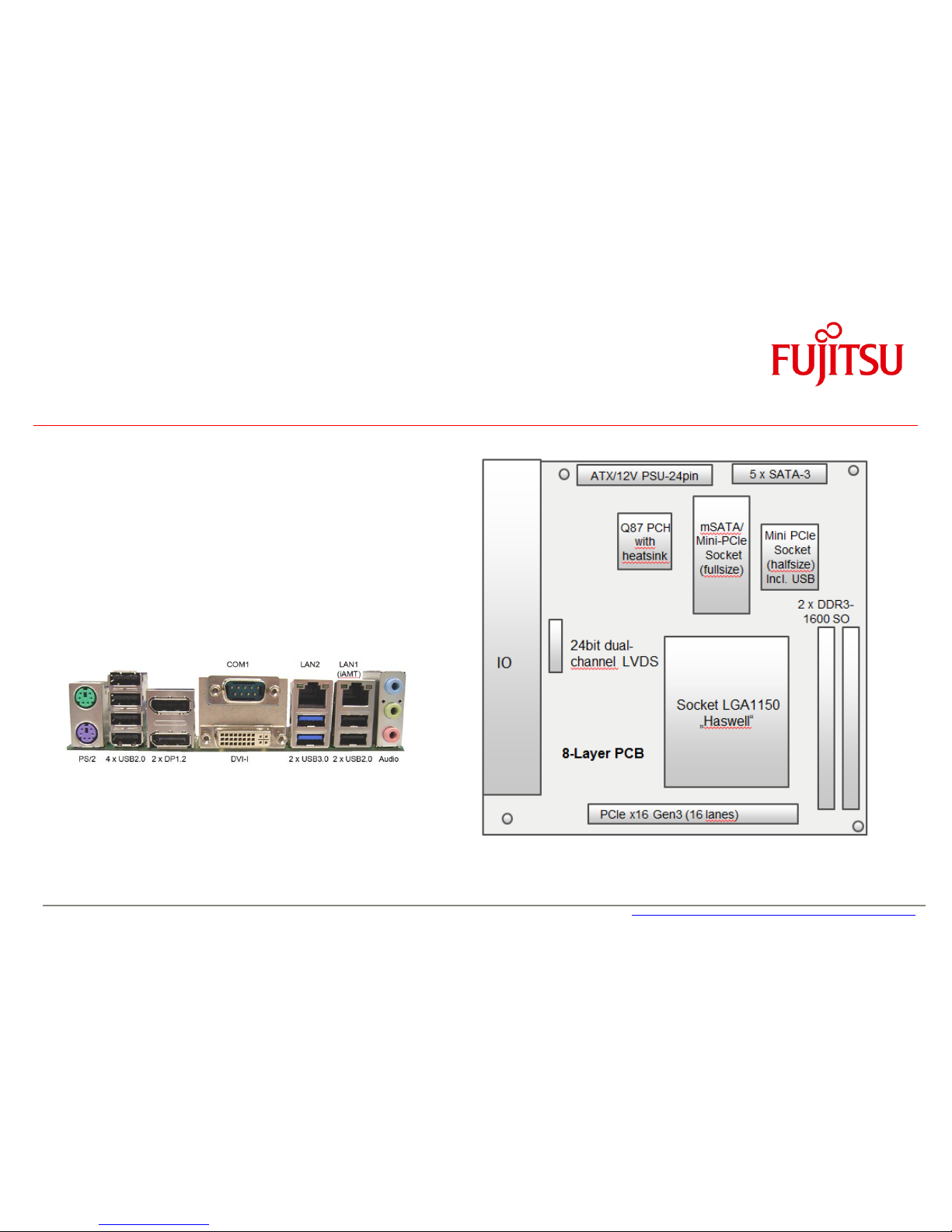

2.4 Basic Layout D3243-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 15 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.5 Block Diagram D3231-S & D3236-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 16 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.6 Block Diagram D3235-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 17 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.7 Block Diagram D3243-S

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 18 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.8 External Connectors D3231-S / D3236-S & D3243-S
PS/2 Kbd / Mouse
4 x USB 2.0
Dual DisplayPort V1.2
COM1; DVI-I
LAN2 / 2 x USB 3.0
LAN1 (iAMT) / 2 x USB2.0
Audio

a
g
e
1
Page
TechNotes D323x-S_D3243-S V1.2 Page 19 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.9 External Connectors D3235-S
PS/2 Kbd / Mouse
4 x USB 2.0
DisplayPort V1.2
DVI-I
LAN1 / 2 x USB2.0
Audio

a
g
e
2
Page
TechNotes D323x-S_D3243-S V1.2 Page 20 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.10 Onboard components D323x-S
Frontpanel
mSATA Socket 2)
Processor Fan (4 pin)
12V Supply (Processor)
PCIe x16 (16 Lanes, Gen2/3)
PCIe x8 (1 Lane, Gen2, open slot)
24 pin ATX PS
Up to 6 x SATA III
2x USB 3.0 (Frontpanel)
Fan2 (4 pin PWM)
2 x USB 2.0 (Internal)
Intrusion 2)
Frontpanel Audio & S/PDIF 2)
6 Layer PCB
Up to 4 x PCI
1 x PCIe x16 (4 lanes/2lanes, Gen2)
Processor LGA1150
COM Port
8 Bit GPIO 2)
USB 2.0 Socket (Stick) 2)
Fan 4 (4 pin PWM)1)2)
Fan3 (4 pin PWM / 3 pin) 2)
Parallel Port
1) PSU fan and FAN4 shared!
(BIOS Setup Option)
2) Not available on D3235-S
PSU Fan Control 1)
SCSI LED
