LINE THERMAL PRINTER
MODEL KD02906-12XX Series
User’s Manual
KD96009-0648
FUJITSU LIMITED

WEEE MARK
,I\RXZDQWWRGLVSRVHWKLVSURGXFWGRQRWPL[ZLWKJHQHUDOKRXVHKROGZDVWH7KHUHLVD
VHSDUDWHFROOHFWLRQV\VWHPVIRUXVHGHOHFWURQLFVSURGXFWVLQDFFRUGDQFHZLWKOHJLVODWLRQXQGHU
WKH:((('LUHFWLYH'LUHFWLYH(&DQGLVHIIHFWLYHRQO\ZLWKLQ(XURSHDQ8QLRQ
:HQQ6LHGLHVHV3URGXNWHQWVRUJHQZROOHQGDQQWXQ6LHGLHVELWWHQLFKW]XVDPPHQPLWGHP
+DXVKDOWVPOO(VJLEWLP5DKPHQGHU:((('LUHNWLYHLQQHUKDOEGHU(XURSlLVFKHQ8QLRQ
'LUHNWLYH(&JHVHW]OLFKH%HVWLPPXQJHQIUVHSDUDWH6DPPHOV\VWHPHIUJHEUDXFKWH
HOHNWURQLVFKH*HUlWHXQG3URGXNWH
6LYRXVVRXKDLWH]YRXVGpEDUUDVVHUGHFHWDSSDUHLOQHOHPHWWH]SDVjODSRXEHOOHDYHFYRV
RUGXUHVPpQDJqUHV,OH[LVWHXQV\VWqPHGHUpFXSpUDWLRQGLVWLQFWSRXUOHVYLHX[DSSDUHLOV
pOHFWURQLTXHVFRQIRUPpPHQWjODOpJLVODWLRQ:(((VXUOHUHF\FODJHGHVGpFKHWVGHV
pTXLSHPHQWVpOHFWULTXHVHWpOHFWURQLTXHV'LUHFWLYH(&TXLHVWXQLTXHPHQWYDODEOH
GDQVOHVSD\VGHO¶8QLRQHXURSpHQQH
/HVDSSDUHLOVHWOHVPDFKLQHVpOHFWULTXHVHWpOHFWURQLTXHVFRQWLHQQHQWVRXYHQWGHVPDWLqUHV
GDQJHUHXVHVSRXUO¶KRPPHHWO¶HQYLURQQHPHQWVLYRXVOHVXWLOLVH]HWYRXVYRXVHQGpEDUUDVVH]
GHIDoRQLQDSSURSULpH
6LGHVHDGHVKDFHUVHGHHVWHSURGXFWRQRORPH]FOHFRQUHVLGXRVGRPpVWLFRVGHFDUiFWHU
JHQHUDO([LVWHXQVLVWHPDGHUHFRJLGDVHOHFWLYDGHDSDUDWRVHOHFWUyQLFRVXVDGRVVHJ~Q
HVWDEOHFHODOHJLVODFLyQSUHYLVWDSRUOD'LUHFWLYD&(VREUHUHVLGXRVGHDSDUDWRV
HOpFWULFRV\HOHFWUyQLFRV5$((YLJHQWH~QLFDPHQWHHQOD8QLyQ(XURSHD
6HGHVLGHUDWHJHWWDUHYLDTXHVWRSURGRWWRQRQPHVFRODWHORDLULILXWLJHQHULFLGLFDVD(VLVWH
XQVLVWHPDGLUDFFROWDVHSDUDWRSHULSURGRWWLHOHWWURQLFLXVDWLLQFRQIRUPLWjDOODOHJLVOD]LRQH
5$(('LUHWWLYD&(YDOLGDVRORDOO¶LQWHUQRGHOO¶8QLRQH(XURSHD
'HSRQHHUGLWSURGXFWQLHWELMKHWJHZRQHKXLVKRXGHOLMNDIYDOZDQQHHUXKHWZLOWYHUZLMGHUHQ(U
EHVWDDWLQJHYROJHGH:(((ULFKWOLMQ5LFKWOLMQ(* HHQVSHFLDDOZHWWHOLMN
YRRUJHVFKUHYHQYHU]DPHOV\VWHHPYRRUJHEUXLNWHHOHNWURQLVFKHSURGXFWHQZHONDOOHHQJHOGW
ELQQHQGH(XURSHVH8QLH
+YLVGXYLOVNLOOHGLJDIPHGGHWWHSURGXNWPnGXLNNHVPLGHGHWXGVDPPHQPHGGLWDOPLQGHOLJH
KXVKROGQLQJVDIIDOG'HUILQGHVHWVHSDUDWLQGVDPOLQJVV\VWHPIRUXGWMHQWHHOHNWURQLVNHSURGXNWHU
LRYHUHQVVWHPPHOVHPHGORYJLYQLQJHQXQGHU:(((GLUHNWLYHWGLUHNWLY(&VRP
NXQHUJOGHQGHLGHQ(XURSLVNH8QLRQ
6HTXLVHUGHLWDUIRUDHVWHSURGXWRQmRRPLVWXUHFRPROL[RFRPXP'HDFRUGRFRPDOHJLVODomR
TXHGHFRUUHGD'LUHFWLYD5(((±5HVtGXRVGH(TXLSDPHQWRV(OpFWULFRVH(OHFWUyQLFRV
&(H[LVWHXPVLVWHPDGHUHFROKDVHSDUDGRSDUDRVHTXLSDPHQWRVHOHFWUyQLFRVIRUDGH
XVRHPYLJRUDSHQDVQD8QLmR(XURSHLD
-HĪHOL]DPLHU]DV]SR]E\üVLĊWHJRSURGXNWXQLHZ\U]XFDMJRUD]HP]H]Z\Ná\PL
GRPRZ\PLRGSDGNDPL:HGáXJG\UHNW\Z\:((('\UHNW\ZD(&
RERZLą]XMąFHMZ8QLL(XURSHMVNLHMGODXĪ\ZDQ\FKSURGXNWyZHOHNWURQLF]Q\FK
QDOHĪ\VWRVRZDüRGG]LHOQHVSRVRE\XW\OL]DFML
En
Ge
Fr
Sp
It
Du
Da
Por
Pol

IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instruction manual, may cause
interference to radio communications. It has been tested and found to comply with
the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC
Rules, which are designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
CAUTION: Use shielded cable for this equipment.
Sicherheitshinweis
Die Steckdose zum Anschluß dieses Druckers muß nahe dem Gerät angebracht und
leicht zugänglich sein.
For Uses in Canada
This Class A digital apparatus complies with Canadian ICES-003.
This digital apparatus does not exceed the class A limits for radio noise emissions
from digital apparatus, as set out in the radio interference regulations of the Canadian
department of communications.
Pour L’utilisateurs Canadiens
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Cet appareil numérique ne dépasse pas les limites de carégorie a pour les émissions
de bruit radio émanant d’appareils numériques, tel que prévu dans les réglements
sur l’interférence radio du départment Canadien des communications.
This printer conforms to the following Standards:
Low Voltage Directive 73/23/EEC, 93/68/EEC and the EMC Directive 89/336/EEC,
92/31/EEC, 93/68/EEC.
LVD:EN60950-1
EMC : EN55022 Class A
EN61000-3-2
EN61000-3-3
EN55024
This declaration is applied only for 230V model.
Declaration of Conformity

— 1 —
GENERAL PRECAUTIONS
●Before using this product, be sure to read through this manual. After having read
this manual, keep it in a safe, readily accessible place for future reference.
●The information contained herein is subject to change without prior notice.
●Reproduction or transfer of part or all of this document in any means is prohibited
without permission from FUJITSU LIMITED.
●Note that FUJITSU LIMITED is not responsible for any operation results regardless
of missing, error, or misprinting in this manual.
●Note that FUJITSU LIMITED is not responsible for any trouble caused as a result
of using options or consumables that are not specified in this manual.
●Except explained elsewhere in this manual, do not attempt to service, disassemble,
or repair this product.
●Note that FUJITSU LIMITED is not responsible for any damage attributable to
incorrect operation/handling or improper operating environments that are not
specified in this manual.
●Data is basically for temporary use and not stored for an extended period of time
or permanently. Please note that FUJITSU LIMITED is not responsible for damage
or lost profit resulting from the loss of data caused by accidents, repairs, tests or
other occurrence.
●If you find loss of information, error, or uncertain matter, please contact your
distributor.
●If you find any disordered or missing page(s), contact your distributor for
replacement.

— 2 —
SAFETY PRECAUTIONS ... WHICH SHOULD BE STRICTLY OBSERVED
Before using this product for the first time, carefully read these SAFETY PRECAUTIONS.
Improper handling may result in accidents (fire, electric shock or injury).
In order to prevent injury to operators, third parties, or damage to property, special
warning symbols are used in the User’s Manual to indicate important items to be strictly
observed.
●After having read this Manual, keep it in a safe, readily accessible place for future
reference.
●Some of the descriptions contained in this manual may not be relevant to some printer
models.
The following describes the degree of hazard and damage that could occur if the printer
is improperly operated by ignoring the instructions indicated by the warning symbols.
This symbol is used to alert your attention to important items.
WARNING
Neglecting precautions indicated by this symbol may result in injury or damage to
properties.
CAUTION
This symbol is used to alert you to the danger of electric shock or electrostatic
damage.
This symbol denotes a request to unplug the Powered USB cable.
This symbol is used to indicate useful information, such as procedures, instructions
or the like.
This symbol is used to indicate prohibited actions.
Neglecting precautions indicated by this symbol may result in fatal or serious injury.

— 3 —
■Do not use or store this product in a place where it will be exposed
to:
* Flames or moist air.
* Direct sunlight.
* Hot airflow or radiation from a heating device.
* Salty air or corrosive gases.
* Ill-ventilated atmosphere.
* Chemical reactions in a laboratory.
* Airborne oil, steel particles, or dust.
* Static electricity or strong magnetic field.
•Neglecting these warnings may result in printer failure, overheating,
emission of smoke, fire, or electric shock.

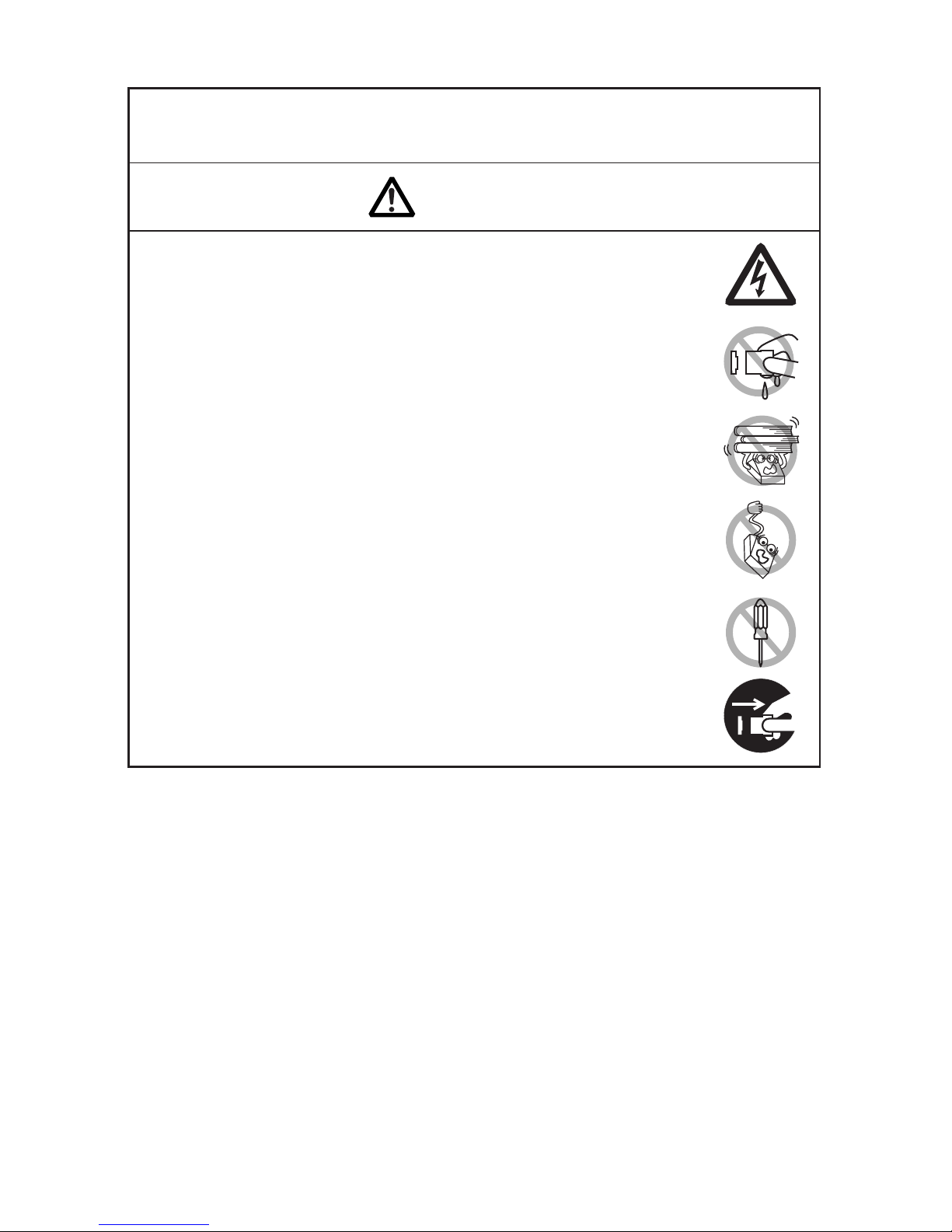

PRECAUTIONS ON PRINTER INSTALLATION
■Do not drop any foreign object nor spill liquid into the printer. Do not
place any object on the printer either.
■Do not drop any metallic object such as paper clip, pin or screw into
the printer.
■Do not place a flower vase, pot or cup containing water on the printer.
■Do not spill coffee, soft drinks or any other liquid into the printer.
■Do not spray insecticide or any other chemical liquid over the printer.
•Ametallic foreign object, if accidentally dropped into the printer, may
cause printer failure, fire, or electric shock. Should any foreign object
enter the printer, immediately turn the printer off, unplug the Powered
USB cable, and call your local distributor.
Do not handle the printer in the following ways:
■Do not allow the printer to sustain strong impacts or hard jolts (e.g.,
trampling, dropping, striking with a hard edge).
■Never attempt to disassemble or modify the printer.
•Neglecting to handle properly may result in printer failure,
overheating, emission of smoke, fire, or electric shock.
WARNING
■Install, use, or store the printer out of the reach of children.
•Electric appliances could cause an unexpected injury or accident if
they are handled or used improperly.
•Keep the power cord and signal cables out of the reach of children.
Also children should not be allowed to gain access to any internal
part of the printer.
•The plastic bag the printer came in must be disposed of properly or
kept away from children. Wearing it over the head may lead to
suffocation.

— 4 —
Do not use the printer under the following conditions.
■A state subject to vibration or unstable state.
■A state with this product slanted.
• Otherwise dropping may cause injury.
• Poor print quality may occur.
■A state where the printer ventilation holes are obstructed by a nearby
wall or other equipment.
■A state where any object is placed on the printer
■A state where the printer is covered or wrapped by a cloth or bed
clothing
•Be careful about internal heat buildup, which could cause fire and
deform the case.
■Avoid using the printer interconnected with a cable or cord that has
no protection against noise. (For interconnections, use shielded or a
twisted pair of cables and ferrite cores, or other anti-noise devices.)
■A state where this product is installed vertically or sidelong.
•Malfunction, failure, or electric shock may result.
CAUTION

— 5 —
PRECAUTIONS IN HANDLING THE PRINTER
Please observe the following precautions for Powered USB cable.:
■Do not plug or unplug the Powered USB cable with a wet hand.
■Use the Powered USB cable only at the specified POS unit.
■Do not use a deformed or damaged the Powered USB cable.
■Do not move the printer while the printer power is on.
•Neglecting to handle properly may result in printer failure, emission
of smoke, fire, or electric shock.
•An overload may cause the power cord to overheat or fire or the circuit
breaker to trip.
■Do not allow anything to rest on the power cord. Do not place the
printer where the power cord will be trampled on.
■Do not use or carry the printer with its power cord bent, twisted, or
pulled.
■Do not attempt to modify the power cord unnecessarily.
■Do not lay the Powered USB cable in the neighbor of a heating device.
•Neglecting these cautions may cause wires or insulation to break,
which could result in leakage, electric shock, or printer failure. If the
Powered USB cable sustains damage, contact your distributor.
■If the printer will not be used for a long time, pull out the Powered
USB cable.
■Plug or unplug the power cord or signal cable after turning off the
printer and the appliance connected to the printer.
WARNING

— 6 —
Caution label is attached on the position shown in the following figure. Carefully
read the precautions in handling before using the printer.
THIS LABEL INDICATES THE
RISK OF ANY INJURY DUE TO
“HIGH TEMPERATURE” OF THE
PRINT HEAD.
To prevent possible malfunction or failure observe the following.
■Avoid operating the printer without paper properly loaded.
■Avoid the use of paper not complying with specifications.
•May result in poor print quality.
■Avoid using torn pieces of paper or spliced with plastic adhesive
tapes.
■Avoid forcibly pulling already loaded paper by hand.
■Avoid wedging the paper into the printer.
•May jam paper. To release, refer to “Removing Jammed Paper” in
this manual.
■Avoid using a sharp pointed device to operate panel keys.
■Please connect the Powered USB cable surely.
■Only use the printer with devices that have designated solenoid
specifications for the cash drawer interface connector.
•Neglecting this caution may result in malfunction or failure.
CAUTION
■Do not transport this printer with the paper roll inside.
•Printer failure or breakage may occur.

— 7 —
Observe the following precautions for daily maintenance.
■When cleaning the printer, pull out the Powered USB cable.
■Use a soft, dry cloth for cleaning the surface of the printer case.
■For severe stains, use a soft cloth slightly dampened with water.
■Never use organic cleaning solvent such as alcohol, paint thinner,
trichloroethylene, benzene, or ketone. Never use a chemically
processed cleaning cloth.
■To remove paper dust, use a soft brush.
CAUTION
•The thermal head is at a dangerously high temperature immediately
after printing. Allow it to cool off before launching maintenance work.
DAILY MAINTENANCE
To prevent injury and printer failures from worsening, observe the
following:
■Do not touch the printing surface of the thermal head.
■Do not touch any of the moving parts (e.g., paper cutter, gears, active
electrical parts) while the printer is working.
■In case of trouble do not attempt to repair the printer. Ask FUJITSU
LIMITEDservice for repair.
■Be careful that the printer cover does not entrap your hands or fingers.
■Be careful with sharp edges on the printer. Do not allow them to
injure you or damage property.
•May result in electric shock, burn, or injury.
CAUTION
If the printer emits smoke, an odd smell, or unusual noise while printing,
immediately abort the current print session and pull out the Powered
USB cable.

— 8 —
THE TABLE OF CONTENTS
1. GENERAL OUTLINE ................................................................... 9
1.1 Features ..........................................................................................9
1.2 Unpacking .....................................................................................10
1.3 Model Classification.....................................................................10
1.4 Basic Specifications .....................................................................11
2. EXPLANATION OF PRINTER PARTS........................................ 12
2.1 Printer Appearance ......................................................................12
2.2 Printer Cover Inside .....................................................................14
2.3 Other Built-in Functions...............................................................14
3. PREPARATION ..........................................................................15
3.1 Connecting Interface Cables .......................................................15
3.2 Connecting the Cash Drawer ......................................................16
3.3 Partition for Paper Roll ................................................................17
3.4 Adjusting the Paper Near-end Sensor ........................................18
4. MAINTENANCE AND TROUBLESHOOTING ..........................19
4.1 Setting/Replacing the Paper Roll ................................................19
4.2 Removing Jammed Paper ...........................................................19
4.3 Cleaning the Print Head ...............................................................20
4.4 Self-printing ..................................................................................20
4.5 Hexadecimal Dump Printing .......................................................21
4.6 Error Indication .............................................................................21
5. OTHER ....................................................................................... 22
5.1 External Views and Dimensions .................................................22
5.2 Printing Paper ...............................................................................23
5.3 Manual Setting of Memory Switch.............................................24

— 9 —
1. GENERAL OUTLINE
This product is a thermal line printer designed for use with a POS terminal.
With extensive features, they can be used in a wide range of applications.
1.1 Features
●Drop-in Paper Roll mechanism facilitating easy paper handling and head
cleaning.
●High speed (220 mm/s) printing.
●Versatile roll capacity with ability to use 80 mm and 58 mm wide paper rolls. (Dedicated
for each model)
●Can use paper roll with a maximum of 102 mm diameter.
●Equipped with Powered USB interface as standard
●Built-in cash drawer interface.
●Auto cutter mechanism provided as a standard.
●User customization such as memory switch setting are available.
●Page mode. Now you can arrange pages freely.
●Registration of user-defined characters and logos into flash memory.
●Barcode printing
●2-color printing is supported (When specified paper is used).

— 10 —
1.2 Unpacking
When unpacking the printer, confirm that the following are provided:
●Printer: 1
●Sample paper roll: 1 roll
●User’s manual (This manual): 1
Printer Sample paper roll
User’s manual
(This manual)
1.3 Model Classification
The position of partition and color of case differ depending on the model used.
•KD02906-1200 (Spec: 58mm wide, white)
•KD02906-1201 (Spec: 58mm wide, black)
•KD02906-1202 (Spec: 80mm wide, white)
•KD02906-1203 (Spec: 80mm wide, black)

— 11 —
1.4 Basic Specifications
Item Specifications
Model KD02906-1200 , KD02906-1201, KD02906-1202, KD02906-1203
Print method Line thermal dot print method
Print width *1 72 mm/576 dots, 48 mm/384 dots
Dot density 8 ×8 dots/mm (203 dpi)
Print speed 220 mm/s (Fastest, print density 130 %), 1760 dot lines/s
Number of print
columns *2
Character size *3 Font A: 1.50 ×3.00 mm
Font B: 1.25 ×3.00 mm
Font C: 1.00 ×2.00 mm
Character type Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/
865/866/WPC1252/Katakana/Thai code 18
User memory 384 KB (Capable of registering user-defined characters and logos)
Types of bar code UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128,
CODABAR, CODE 93
Line spacing 3.75 mm
Paper roll Thermal paper roll: /80 mm/58 mm ×Maximum φ102 mm
Paper thickness: 65-85 µm
Interfacing Powered USB
Cash drawer interface 2 cash drawers are supported.
Input buffer 4k bytes/45 bytes
Supply voltage DC 24 V ±10%
Power consumption Approx. 70W (in normal printing)
Weight Approx. 1.7 kg
Outside dimensions 128 (W) ×207 (D) ×135 (H) mm
Operating temperature 0 to 40°C, 10 to 90% RH (No condensation)
and humidity
Storage temperature −40 to 70°C, 10 to 90% RH (No condensation)
and humidity
Reliability Print head life: 150 km, 2 ×108pulses (At normal temperature/
humidity with recommended paper used)
Auto cutter life:2 million cuts (At normal temperature/
humidity with recommended paper used)
Safety standard UL, C-UL, FCC Class A, TÜV-GS, CE Marking
+0
−1
80mm 58mm
Font A 48 35 12 ×24
Font B 57 42 10 ×24
Font C 72 52 8 ×16
Number of print columns
(columns)
Dot configuration
(Dot)
Paper width
Font
+0
−1
Notes:
*1: When paper width is 80, 58 mm
*2: The number of digits is specific to each model. Do not change it.
*3: As each character size includes the space inside the character font, actual character looks
smaller.

— 12 —
2. EXPLANATION OF PRINTER PARTS
2.1 Printer Appearance
Printer cover
Operation panel
Cover open lever
Rear connector
(Front view) (Rear view)
●Printer cover
Paper is loaded under this cover.
●Cover open lever
To refill or replace paper, open the printer cover by lifting the cover open
lever.

— 13 —
●POWER LED
Illuminated when the printer power is on and off when the printer power is
off. May blink or light in a special mode or in case of failure.
●ERROR LED
Illuminated or blinks when paper is empty or in case of failure.
The interval length of blinking represents the type of error.
●FEED button
Pressing this button once causes the paper to feed one line. The longer the
button is pressed, the more paper is fed.
In case of auto cutter error, press the FEED button after removing the cause
of the error.

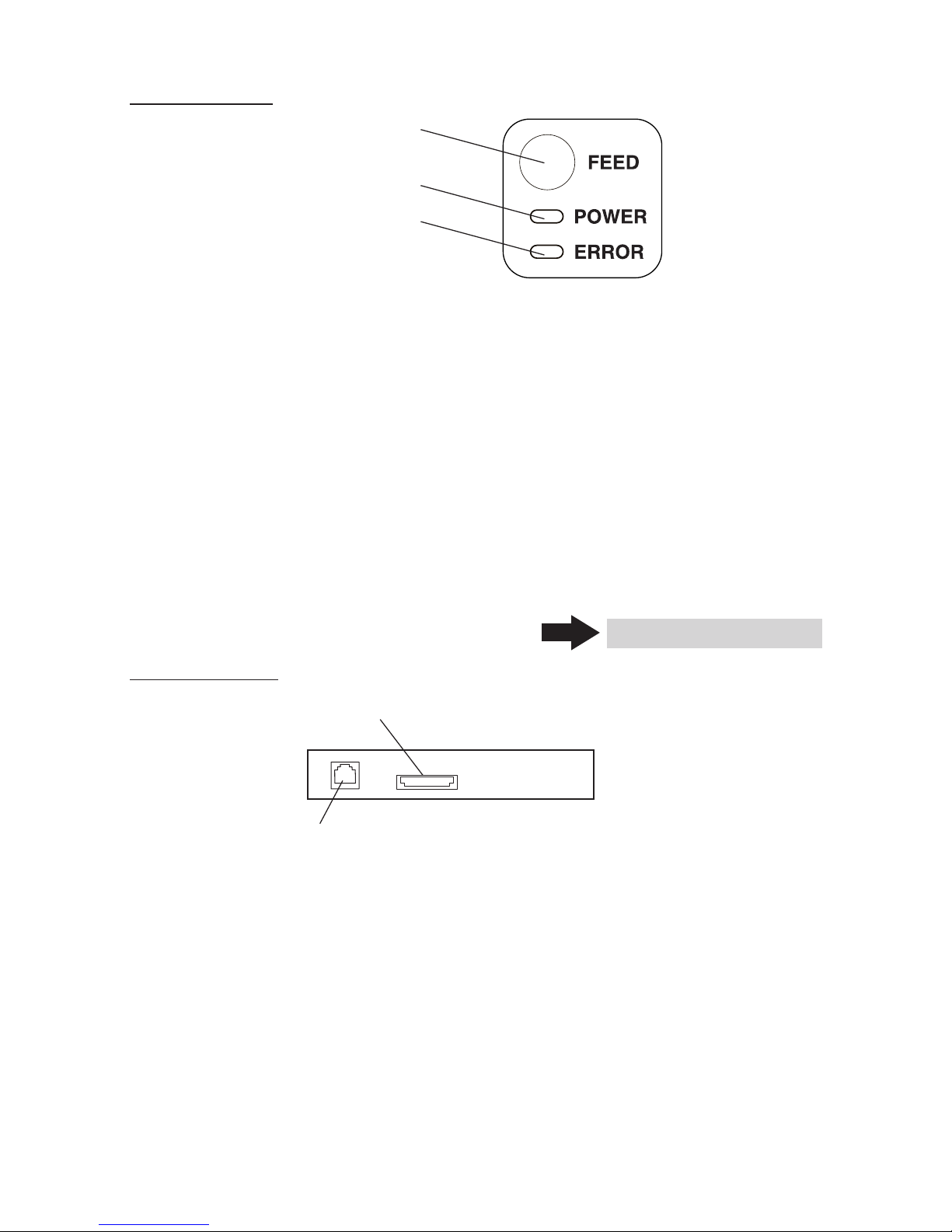

POWER LED
FEED button
ERROR LED
Powered USB Interface connector
Cash drawer
kick-out connector
Rear Connectors
Operation Panel
●Powered USB interface connector (Serial, parallel, etc.)
Connects to the interface cable.
●Cash drawer kick-out connector
Connects to the cable from the cash drawer.
See 4.6 Error Indication

— 14 —
2.2 Printer Cover Inside
●Paper-end sensor
Stops printing when this sensor detects paper end.
2.3 Other Built-in Functions
●Buzzer
This printer has a built-in buzzer. It is operated in case of cutter error with memory
switch SW5-1 set to be valid.
●User memory
Allows downloading of user-defined characters and logo data in the
nonvolatile memory. This data remains stored even after the printer power
is off. For the registration method, refer to Command Reference Manual in
separate document. To acquire the Command Reference Manual, contact your
distributer.
●Memory switch
Setting of various kinds of functions can be stored in nonvolatile memory.
The functions are valid even if the printer power is turned off.
adapter and then plug the AC power cord to the wall outlet.
●Paper feed roller
Feeds paper as part of print
mechanism.
●Paper-near-end sensor
Detects near paper end, change
position in accordance with the
outer diameter of paper core.
●Auto cutter
Cuts the paper with a command
at the end of printing. Cutting
method is selectable between
partial cut and full cut with a
command.
●Print (thermal) head
Prints characters and/or graphic
data on thermal paper.
Print (thermal) head
Paper-end sensor
Auto cutter
Paper-near-end
sensor
Paper feed roller
See 4.6 Error Indication

— 15 —
CAUTION!
■When disconnecting the cable, always hold the connector.
■Avoid locating the interface cable in places which may cause tripping or falling.
3. PREPARATION
3.1 Connecting Interface Cables
Confirm that the power switch of the POS terminal is OFF and connect the interface
cable. Orient the interface cable connector correctly and insert it into the POS terminal.

— 16 —
CAUTION!
DO NOT connect any other device than the specified cash drawer to the cash drawer
kick-out connector. (DO NOT connect a telephone line either.)
3.2 Connecting the Cash Drawer
Cash drawer
kick-out connector
Cash drawer cable connector
1. Confirm that the power switch of the POS
terminal is OFF.
2. Confirm the top and bottom of the cash
drawer cable connector and insert it into
the cash drawer kick-out connector at the
back of the printer.
(1) Connector Pin Configuration
(2) Electrical characteristics
1) Driving voltage: 24 VDC
2) Driving current: Approx. 1A max. (shall not exceed 510 ms.)
3) DRSW signal: Signal levels: “L” = 0 to 0.5 V, “H” = 3 to 5 V
(3) DRSW signal
The signal status can be tested with
the DLE+EOT, GS+a, or GS+r command.
(4) Drive Circuit (printer side)
No. Signal Function
1FG Frame Ground
2DRAWER 1 Drawer 1 drive signal
3DRSW Drawer switch input
4VDR Drawer drive power supply
5DRAWER 2 Drawer 2 drive signal
6GND Common ground on circuits
61
Connector used:
TM5RJ3-66 (Hirose)
or equivalent
Applicable connector:
TM3P-66P (Hirose) or
equivalent
CAUTION!
■No output is produced while printing.
■The cash drawers 1 and 2 cannot be driven simultaneously.
■A solenoid used for the cash drawer should be of 24 Ωor more. The output current
should be kept at 1A or less; otherwise, breakdown or burning could occur.
VDR
1
2
3
4
5
6
VDR
5V

— 17 —
3.3 Partition for Paper Roll
At the time of shipment, this partition is set to 80-mm wide (with one partition)
or 58-mm wide (with two partitions) depending on the model. Do not remove
the partition.
Partition
80mm type 58mm type
