Fujitsu LPF-4800 User manual

En-1
EnglishFrançais
Deutsch
Español
USER’S MANUAL
LCD PROJECTOR
LPF-4800/LPF-4800E
Important Information..................................... En-3
Important Safeguards .................................... En-3
Features ......................................................... En-6
Checking the Accessories.............................. En-7

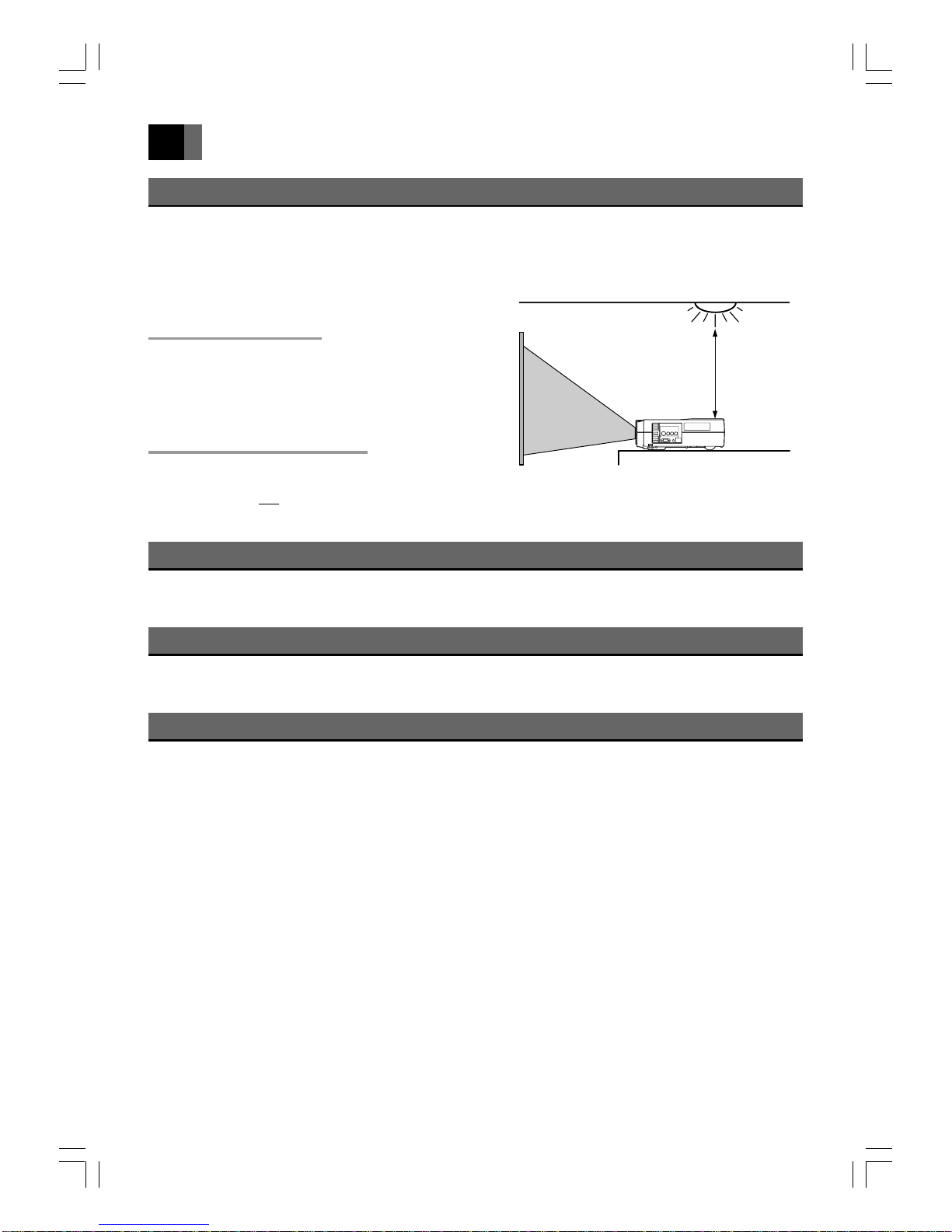

Points to Note................................................. En-8

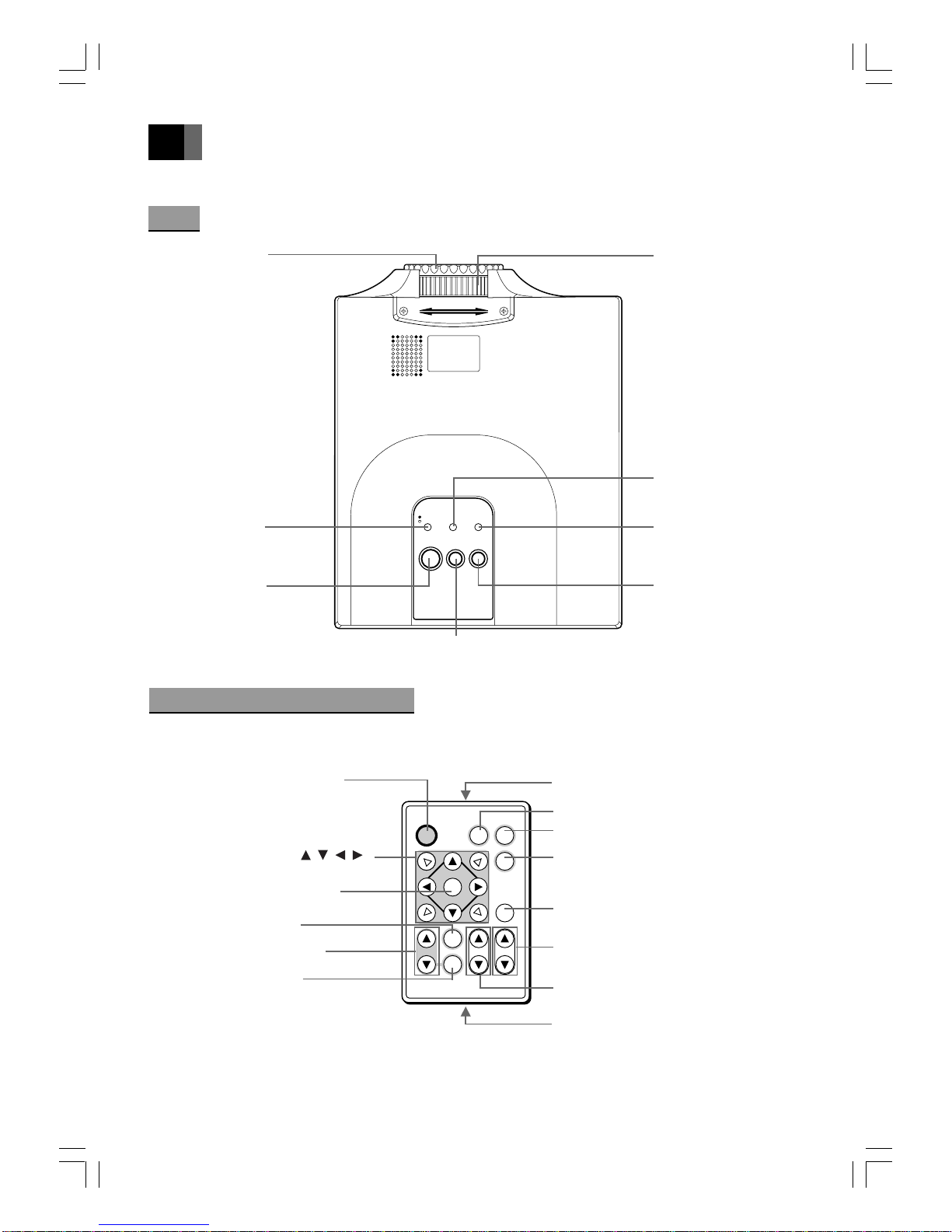

Names of Parts ............................................ En-11
Handling the Wireless Remote
Control Unit............................................... En-13

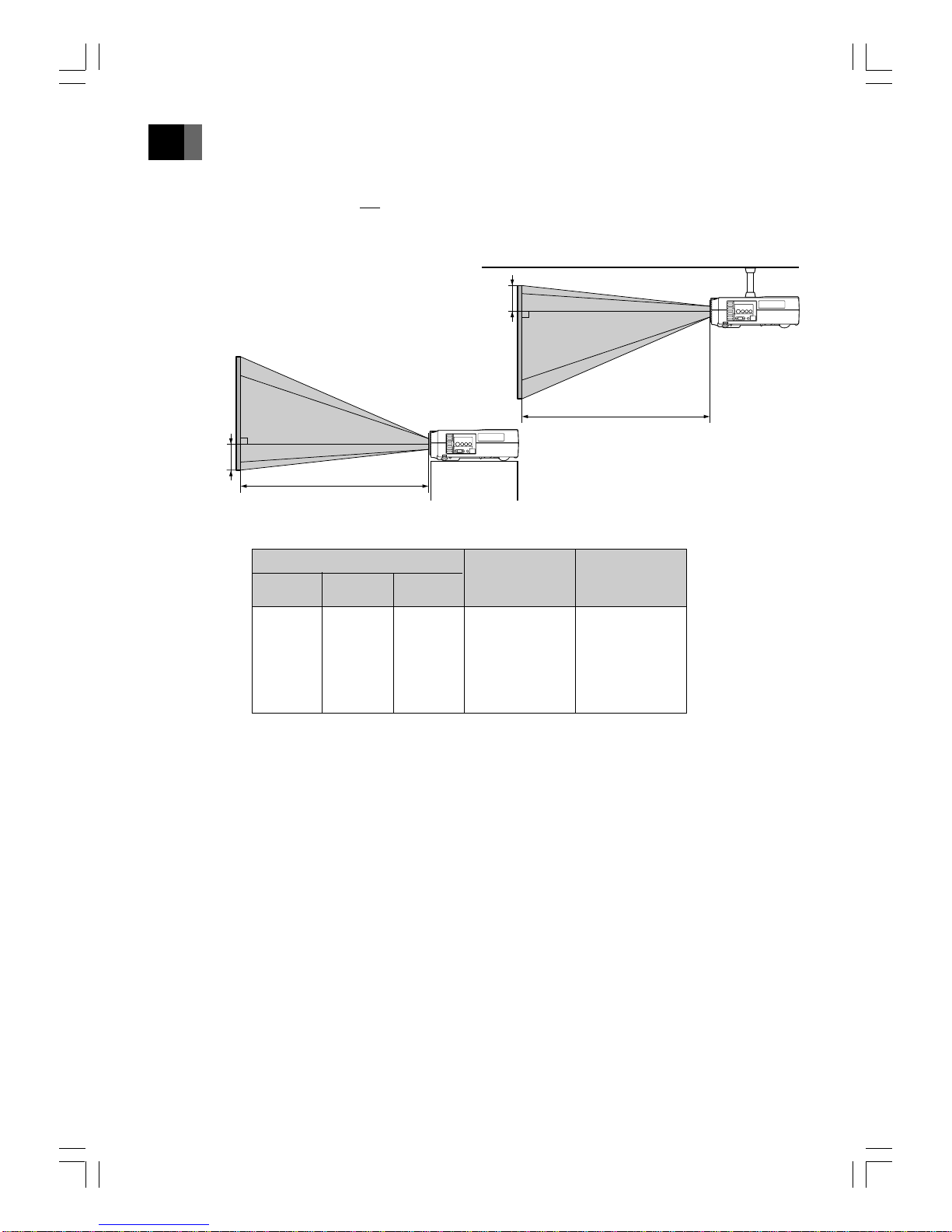

Setting Up .................................................... En-14
External Connection
To a Personal Computer ........................... En-16
To a Video/Laser Disk/DVD....................... En-17
Connecting the Power Source...................... En-18
Basic Operation............................................ En-18
Operating the Menu Screens ....................... En-22
Adjusting the IMAGE.................................... En-24
Adjusting the POSITION .............................. En-26
Setting the DISPLAY .................................... En-27
Setting the INSTALLATION .......................... En-28
Maintenance and Care................................. En-29
Changing the Lamp...................................... En-30
Troubleshooting............................................ En-32
Specifications ............................................... En-33
CONTENTS

En-2
DECLARATION OF CONFORMITY
We : FUJITSU GENERAL (U.K.) CO. LIMITED
Ground Floor, Elstree House, Elstree Way, Borehamwood, Herts WD6 1LS
as the representative of
Manufacturer : Shinjyo Fujitsu General Limited
702-3 Kanazawa Shinjyo-shiYamagata Japan
declares under our sole responsibility that the product
Product Type : LCD Projector
Model Name : LPF-4800, LPF-4800E
to which this declaration relates is in conformity with the following standards :
European standards :
EMC : a. EN 55022 1994, classA
b. EN 61000-3-2 1995
c. EN 61000-3-3 1995
d. EN 50082-1 1992
(IEC 801-2 1991/IEC 801-3 1984/IEC 801-4 1988)
Safety : a. EN 60950 1992/ A1: 1993 / A2: 1993 / A3: 1995 / A4: 1997
By conformance with the standards referenced the product follows the provisions of the directives listed below:
a. EC Council Directive 89/336/EEC of 3 May 1989
b. EC Council Directive 92/31/EEC of 28 April 1992
c. EC Council Directive 93/68/EEC of 22 July 1993
d. EC Council Directive 73/23/EEC of 19 February 1973
Place of Issue : U.K.
Date of Issue : December 2000 Signature : H.Hirosaki, Chief Executive
FUJITSU GENERAL (U.K.) CO. LIMITED
Declaration Reference : FUJITSU GENERAL (U.K.) CO. LIMITED
Ground Floor, Elstree House, Elstree Way, Borehamwood, Herts WD6 1LS
Tel: [phone]
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful inter-
ference when the equipment is operated in a commercial environment.This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

En-3
EnglishFrançais
Deutsch
Español
Dear Customer:
We have prepared this USER’S MANUAL to assist you in the operation of your new LCD Projector. We thank you for your
purchase and hope you will be satisfied with the quality and performance of this projector.
Please read the instructions carefully, and keep them available for future reference.
Important Information
WARNING: THIS UNIT HAS AN EXTREMELY BRIGHT LIGHT SOURCE. DO NOT
STARE INTOTHE BEAM OF LIGHT. BE ESPECIALLY CAREFULTHAT
CHILDREN DO NOT STARE DIRECTLY INTOTHE LIGHT.
WARNING: TO REDUCETHE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT
EXPOSETHIS PRODUCTTO RAIN OR MOISTURE.
This unit has been engineered and manufactured to assure your personal safety. IMPROPER USE CAN RESULT IN POTENTIAL
ELECTRICAL SHOCK OR FIRE HAZARD.
In order not to defeat the safeguards incorporated into this LCD projector, observe the following basic rules for its installation, use and service.
Please read these “Important Safeguards” carefully before use.
–– All the safety and operating instructions should be read before the product is operated.
–– The safety and operating instructions should be retained for future reference.
–– All warnings on the product and in the operating instructions should be adhered to.
–– All operating instructions should be followed.
–– Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious
damage to the product.
–– When the product is used on a cart, care should be taken to avoid quick stops, excessive
force, and uneven surfaces which may cause the product and cart to overturn, damaging
equipment or causing possible injury to the operator.
–– When connecting other products such as VCR’s and personal computers, you should turn off the power of this product for protection
against electric shock.
–– When using this product, you should connect the enclosed three-wire type power supply cord.
–– When there is an abnormal condition such as smoke or a strange smell in the machine, always pull out the plug from the wall outlet.
If a projected image does not appear or other abnormality occurs, make sure that no smoke comes out of the machine and contact your sales
office. This condition may cause fire or electrical shock.
Important Safeguards
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with the arrowhead
symbolinatriangle,isintendedtoalert
theusertothepresenceofuninsulated
“dangerous voltage” within the prod-
uct’s enclosure that may be of suffi-
cient magnitude to constitute a risk of
electric shock to persons.
Theexclamationpoint within a trian-gle
isintendedtoalerttheusertothepres-
ence of important operating and main-
tenance instructions in the literature
accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT IF SPECIFIED USER
SERVICE SCREWS MARKED “ ”

En-4
–– Do not insert metallic objects, flammable objects or water in the ventilation holes.
If a foreign object enters the unit, always pull out the electrical plug from the wall outlet and contact your sales office.This condition may
cause fire or electrical shock.
–– Do not place any heavy object on the electrical cord.
The cord will be damaged and this condition may cause fire or electrical shock.
–– Do not loosen any screws that are not indicated by the arrow mark.
The unit contains internal parts which have high voltage or high temperatures. Touching these parts may cause electrical shock or severe
burns.
–– Do not touch the electrical plug when there is thunder or lightning.
Touching the projector in this condition may cause electrical shock.
–– Do not place the electrical cord near a heater or other object that generates high temperatures.
Place the electrical cord so it does not touch a heater. This may cause fire or electrical shock.
–– Do not place the projector in an unstable location.
If the projector is placed on a shaky frame or unstable location it may fall and cause injury.
–– Only use the accessory electrical cord.
Fire or electrical shock may occur if a nonstandard cord is used.
–– Contact your sales office when transporting the projector.
If you install or transport the unit by yourself, it may fall and cause a fire, electrical shock or other damage.
–– Clean the electrical plug periodically to prevent dust from accumulating.
Fire or electrical shock may occur if the insulation on the electrical plug becomes defective.
–– If the lamp storage cover is broken when replacing the lamp, do not use the projector and contact your sales office for repair.
–– Always place the projector at a minimum of 30 cm (12 inches) away from a wall.
Place the projector in a well ventilated area because it generates high temperatures. Never place the projector on a carpet or blanket
because this may cause a fire.
–– The electrical plug of the main unit is equipped with a three line plug that contains a ground line. Contact an electrical technician to connect
the ground line when connecting it to a wall outlet with a two core plug.
–– Insert the electrical plug securely to the end of the wall outlet.
If the plug is inserted incorrectly, this may cause fire or electrical shock.
–– Do not place vases, cups or other object containing water or fluids on top of the projector.
Do not use the projector in rain, wind or other inclement weather. Fire or electrical shock may occur if rain or other objects enter the unit.
–– Do not insert metallic objects, or flammable objects such as plastic or paper into the lamp unit or lamp storage unit.
Contact your sales office if a foreign object enters the unit. This may cause fire or electrical shock.
–– When the lamp unit is used, do not drop any object on the unit or subject parts such as the glass surface, connector, connector terminal,
cables and case to impact.
Do not use the unit if it is subjected to shock or scratched. Contact your sales office. This condition may cause a fire or electrical shock.
–– Never cover the ventilation holes.
Do not seal or shut off the ventilation holes on the front, right side and left side of the projector.
–– Do not touch the terminal end of the lamp unit or the screws which secure the connector.
Even if the screws become loose, do not attempt to perform the repair operation yourself and contact your sales office. This condition may
result in fire, electrical shock or other damage.
–– Do not turn on the electricity or the lamp when the lens cap is attached.
The lens cap will become deformed due to the heat of the lamp and may cause fire or severe burns.
–– Do not clean the lens directly.
Looking at the lens during operation is dangerous because it projects a strong light during operation. This may cause severe damage to your
eyes.
–– Always pull out the electrical plug when the unit is not used for a long period of time.
If the plug is not removed, the insulation may deteriorate and cause electrical shock or a fire due to current leakage.
–– Always grasp the plug firmly and never pull on the electrical cord to remove the electrical plug from the wall outlet.
If the cord is pulled, it may be damaged and cause fire or electrical shock.
–– Always turn off the power before connecting the cables and other connections.
Read the instruction manuals of the other equipment connected to the projector thoroughly. Always turn off the main power switch before
connecting any cables. Fire or electrical shock may occur when these operations are performed if the main power is turned on.
–– Do not apply any force on the projector.
If the projector is suspended or a load is applied to it from a heavy object upon it, the projector may fall and be damaged.
Important Safeguards (continued)

En-5
EnglishFrançais
Deutsch
Español
–– Be careful not to expose the projector to any steam, oily smoke, heat or humidity.
Never place the projector in a location subject to steam, oily smoke heat or humidity. This may cause fire or electrical shock.
–– Never place flammable objects such as a cigarette lighter, matches, gas canisters, spray cans, fireworks or plastic materials close to the
lamp ventilation holes. This may cause fire or other damage.
–– Always turn off the power switch before replacing the lamp. Allow the unit to cool off for at least one hour before replacing the lamp.
Replace the lamp according to the directions in the operation manual. Fire, burns or electrical shock may occur if the replacement is
performed incorrectly.
–– A laser beam is projected if the laser button in the accessory wireless remote control is pressed. Never look directly into the laser beam.
The laser beam may cause damage if it enters the eyes directly.
–– As there is the possibility that ozone (O3) will be generated by the lamp power supply, handle the projector correctly according to the
warnings listed in this operation manual.
–– Be careful to avoid condensation.
Dew or moisture condensation may be produced inside the projector if there are temperature differences between the inside and outside of
the unit. Make sure that the projector has warmed up to room temperature before using it. This condition may cause electrical leakage,
shock or fire.
–– Be careful when transporting the projector.
When transporting the projector, always remove the electrical plug and other cables. Be extremely careful to avoid dropping it or subject-
ing it to any shock or impact as this may cause fire or electrical shock.
–– Never touch the electrical plug with wet hands.
This may cause electrical shock.
–– Do not touch the lamp storage cover interlock mechanism.
Fire, electrical shock or other damage may occur if the interlock mechanism does not operate correctly.
–– This product should be operated only with the type of power source indicated on the label. If you are not sure of the type of power supply
to your home, consult your product dealer or local power company.
–– Use a plug with a ground terminal. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet,
contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.
–– Use only the accessory cable designed for this product to prevent shock.
The power supply voltage rating of this product is AC 100 – 240 V, the power cable attached conforms to the following power supply
voltage. Use only the power cable designated by our dealer to ensure Safety and EMC.
When it is used by other power supply voltage, the power cable must be changed.
The included cable differs according to the model. Power cable
Power supply voltage: AC 100 – 125 V AC 200 – 240 V AC 240 V
About the lithium battery
WARNING
–– Keep the lithium battery out of reach of children. Should the battery be swallowed, immediately consult a doctor.
CAUTION
–– Do not recharge, disassemble, heat or dispose of battery in fire.
–– Use a CR2025 (3V) lithium battery only. Never use other types of battery with this product.
–– Do not handle the battery with metallic tools.
–– Do not store the lithium battery with metallic materials.
–– When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in
your country/area.
–– Always check carefully that you are loading battery with its (+) and (–) poles facing in the proper directions.

En-6
Features
The LPF-4800/4800E projector enlarges PC or video images and projects them onto a 23 – 249-inch screen (available on
the market).
■High brightness and high resolution meet every occasion
• Achieves a brightness of 1500 ANSI, the highest level for this class of projector.
• A wide range of resolutions from VGA to SXGA can be met.
■Functional design
• A4 file size and light weight (approx. 3.6 kg). The projector is easy to carry and set up.
■Handy pocket-sized card-type remote control unit
• 5 mm-thick card-type remote control unit can easily be carried in your pocket.
■Simple correction of image trapezoid distortion
• Distortion of the trapezoid caused by the angle of incidence with the screen can be corrected easily using the
keystone correction function.
■Clear, easy-to-use OSD (on-screen display)
• The input signal status, life of the lamp and present adjustment status can be checked all at once using the status
display function.

En-7
EnglishFrançais
Deutsch
Español
Checking the Accessories
Wireless remote control unit ×1
CR 2025 lithium battery ×1
User’s manual ×1
(this manual)
Power cable ×1
RGB cable ×1
(Parts No. 8110430014)
AV cable ×1
(Parts No. 8302280021)
Lens cap (to protect the lens) ×1
POWER AUTO MUTE
MODE
STATUS
CANCEL
MENU
ENTER
KEYSTONE VOLUME ZOOM-PAN

En-8
Points to Note
Transporting the projector
Put the projector in the original packaging when transporting. Excessive pressure on the lens may result in damage.
About the lamp
• The lamp is an expendable item. It should be changed when
the “Approaching Recommended Lamp Life!” message is
displayed or when the lamp is nearing the end of its service
life as indicated by failure, a dark image or poor colors.
Replace with a new lamp (available at the store where the
projector was purchased).
• Change the lamp when the warning message shown on the
right is displayed.
• The lamp will fail to light about 100 hours after the message
is displayed.
For instructions on how to change the lamp, see page En-30.
Note
• Frequent turning on and off the power makes the lamp life shorter.
Precautions when connecting to a PC
• When connecting the projector to a notebook PC
When connecting the projector to a notebook PC, enable the RGB external image output on the PC (simultaneous display
on the LCD and CRT or set on the CRT). For details, see the instruction manual supplied with the PC.
• Setting the PC display
When selecting the type of display on Windows 95/98/2000, etc. or when setting is required, select [Super VGA 800 ×
600], [Super VGA 1024 ×768], [SuperVGA 1280 ×1024] or [Standard VGA 640 ×480] on a standard monitor.
Power sequence
• Precautions when turning on power
If the projector is connected to a PC, turn the projector on before turning the PC on. (This is particularly important if
using a Macintosh computer.)
• Precautions when turning off power
If the projector is connected to a PC, turn the PC off before turning the projector off.
Ground connection
•The power plug is a 3-pin plug with ground wire. If using a 2-pin socket, be sure to earth the projector.
• Have an electrician perform the grounding.
• Ground the projector before plugging in to the power source. Before removing the ground connection, be sure to remove
the plug from the power source.
• This projector is a Class A information technology device based on Voluntary Control Council for Interference by
Information Technology Equipment (VCCI) standards. If used in a home environment, it may cause interference
and the user may be required to take appropriate measures.
• This projector conforms to high frequency guidelines.
WARNING
Approaching Recommended Lamp Life!
(Warning message)
The lamp will fail to light and the POWER-ON, TEMP
and LAMP monitors will flash about 100 hours after
this message is displayed.
LAMP
TEMP.
STAND-BY
PO
W ER-ON
(Power) (Temperature) (Lamp)
▼

En-9
EnglishFrançais
Deutsch
Español
Monitor Display
• Normal or abnormal operation of the internal parts is indicated by the 3
monitors on the front of the projector. (See illustration on right)
• When the power cable is plugged into the socket, the POWER-ON
monitor lights red and the projector is in standby status.
• When the POWER button is pressed in standby status, the POWER-ON
monitor lights green and the lamp comes on.
• When the POWER button is pressed while the lamp is on and “Power
Off” is selected on the confirmation screen, the POWER-ON monitor
lights orange and the lamp cools for about 2 minutes. The POWER-ON
monitor then changes to red and the projector returns to standby status.
• In the event of an abnormality, depending on the fault, the POWER-ON, TEMP and LAMP monitors light or flash red as
shown below and the power is automatically turned off. Follow the instructions below to remedy the fault.
POWER-ON, TEMP and
LAMP monitors are all
flashing.
LAMPTEMP.
STAND-BY
PO W ER-ON
(Monitor Display)
(Power) (Temperature) (Lamp)
Adjustment of internal
temperature malfunc-
tion.
Internal temperature is
abnormally high.
Lamp fails to light.
Fan failure
End of service life of
lamp.
Unplug power cable from socket to cancel display.
Wait until internal parts have cooled, then start up again.
If condition persists, take to store where purchased for
repairs.
If ventilation opening is blocked, remove blockage and
allow projector to cool.
Check air filter and if it is blocked with dirt, clean or
replace. (See page En-29)
If condition persists, take to store where purchased for
repairs.
Wait 1 minute and start up again. At this time, fan rotates
for about 1 minute to cool internal parts. If condition
persists, take to store where purchased for repairs.
If rotation of the cooling fan is obstructed, remove
obstruction.
Unplug power cable from socket to cancel display.
If condition persists, take to store where purchased for
repairs.
Contact store where purchased and replace with a new
lamp. See page En-30 for instructions on how to change
the lamp.
As shown left, the monitors light or flash red, or are off.
Monitor Display Condition Remedy
(Power) (Temperature) (Lamp)
LAMPTEMP.
STAND-BY
PO W ER
-
ON
POWER-ON monitor is on
and TEMP and LAMP
monitors are flashing.
POWER-ON monitor is on
and TEMP monitor is
flashing.
POWER-ON monitor is on
and LAMP monitor is
flashing.
POWER-ON monitor is on
and TEMP and LAMP
monitors flash alternately.
On Flashing Off

En-10
Points to Note (continued)
Illumination around projector
The projector has two wireless remote control unit light receivers, on the front and rear. If the receivers are subjected to
strong light such as from fluorescent lights, the remote control unit may not function properly. In this case, move the
projector away from the fluorescent light or other light source, or position it so that light from the light source does not
shine directly on the receivers.
Moving the projector away
from the light source
Move the projector at least 2 m (6.5 feet) from the fluorescent
light or other light source. Keep the wireless remote control unit
light receivers out of direct sunlight.
To disable the wireless remote
control unit light receivers
Change the remote control input setting using the function
settings.
For details, see page En-28.
Image characteristics
The projector is equipped with a liquid crystal panel. The colors and contrast of the projected image may differ from the
CRT image on a TV or PC.
Screen
If you are choosing a screen, first check the characteristics carefully and choose one that suits your purpose. Do not use a
polarizing screen with this projector as the image may appear reddish.
Using a mobile phone near the projector
If you use a mobile phone, transceiver or other device that generates radiowaves near the projector, it may cause distortion
of the image or noise from the speaker. Use such devices at a distance from the projector.
Light source
Over 2 m

En-11
EnglishFrançais
Deutsch
Español
Names of Parts
The figures in brackets refer to the relevant page number.
Front
Back
Side
Right side
Wireless remote control
unit light receiver [10, 13]
Projection lens [14]
Adjuster button [15]
Adjuster [15]
Wireless remote
control unit light
receiver [10, 13]
AUDIO RGB/COMPONENT
AUDIO
S-VIDEO VIDEO
LR
IN
PUT1
IN
PUT1
Built-in security slot
This security slot supports
the MicroSaver Security
System of Kensington
Micorware Inc.
AC 100 – 240 V input
terminal [18, 30]
INPUT 1 terminal
S-VIDEO terminal
VIDEO terminal
AUDIO L/R
terminals [17]
INPUT 2 terminal
RGB/COMPONENT terminal
AUDIO terminal
[16, 17]

En-12
W – ZOOM – T
FOCUS
LAMP
MODE
TEMP.
STAND-BY
PO W ER-ON
AUTOPOWER
LCD PROJECTOR
Names of Parts (continued)
The figures in brackets refer to the relevant page number.
Top
Wireless Remote Control Unit
POWER AUTO MUTE
MODE
STATUS
CANCEL
MENU
ENTER
KEYSTONE VOLUME ZOOM-PAN
Adjustment buttons ( , , , )/
Pointer buttons [19, 20, 22 – 28]
POWER button
[8, 9, 18, 30] MODE button [18, 19]
AUTO button [19, 21]
POWER button [8, 9, 18, 30]
MENU button [22]
ZOOM-PAN buttons [20]
CANCEL button [20]
MUTE button [20]
MODE button [18, 19]
KEYSTONE buttons [21]
STATUS button [21]
AUTO button [19, 21]
VOLUME buttons [20]
ENTER button [19, 22 – 26]
Wireless remote control unit infrared
light emitting window [13]
Lamp monitor (LAMP)
[8, 9]
Temperature monitor
(TEMP.) [8, 9]
Power monitor
(STAND-BY/OIWER-
ON) [8, 9, 18]
Zoom ring [14, 19]
Focus ring [19]
Battery tray [13]

En-13
EnglishFrançais
Deutsch
Español
Handling theWireless Remote Control Unit
Loading the Battery (CR2025 lithium battery)
1While pushing the lock in the
direction 1, slide the tray out (2)
from the back of the wireless
remote control unit.
2Insert the battery, making sure that
the positive and negative poles are
correctly oriented.
3Close the tray.
10°
10°
10°
10°
About the Battery
• Remove the battery if the wireless remote control unit is not used for an extended period of time.
• When changing the batteries, use a CR2025 (3 V) lithium battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s
rules that apply in your country/area.
Note
• If the wireless remote control unit is placed face down, the buttons will be pressed and the projector will be put in
operation status, resulting in exhaustion of the battery. Be sure to store the remote control unit face up.
Caution
• To prevent the battery from exploding, replace only with the same or equivalent type recommended by the manufacturer.
Range of Use of the Wireless Remote Control Unit
Warning
• Do not disassemble or modify the wireless remote control unit supplied with the projector as this may result in
injury or failure.
Within 5 m Within 5 m
1
2

En-14
Setting Up
• There are 3 ways of setting the projector up: front projection, ceiling hanging projection and rear projection.
• By adjusting the zoom ring (see page En-19), you can choose the screen size as shown below.
Offset (O)
Projection distance (L)
* Offset is the distance from the middle of the projection lens to the bottom edge of the screen.
* “Screen Size (inch)” is the diagonal length of the screen.
* 23-inch screen size is available only for wide screen and the projection distance is 1.1 m.
60 91 122 2.4 – 3.0 2.7
80 122 163 3.2 – 4.1 3.63
100 152 203 4.0 – 5.1 4.55
150 229 305 6.0 – 7.7 6.86
200 305 406 8.0 – 10.3 9.16
249 380 506 10.0 XXX
Screen Size
Screen Size
(inch) Height (cm) Width (cm)
Projection
distance L
(m)
Offset O
(cm)
Projection distance (L)
Offset (O)
(Front projection)
(Ceiling hanging projection)

En-15
EnglishFrançais
Deutsch
Español
Adjustment
• Adjust the height of the projector using the 2 adjusters on the front.
• If the relation between the position of the projector and the screen is not correct, the image will be distorted and blurred.
Release the adjuster buttons to fix the adjusters.
Note
• If you wish to lower the projector to its original position before storing it, press the adjuster buttons and slowly
lower the projector. It can then be stored easily.
Warning
• Place at least 30 cm (12 inches) away from the wall. Do not set up where ventilation is poor as this may lead to
fire.
• Do not place on a carpet or blanket as this may lead to fire.
• Do not block the ventilation holes on the front, right side and left side of the projector, as this may lead to fire.
Adjuster
Adjuster button
Lift the front of the projector, then press the
two adjuster buttons on the sides of the
projector.
The adjuster legs will loosen and extend.
Up Down
1
Turn the adjusters for fine adjustment.
2
3

En-16
AT Interchangeable Equipment
External Connection
• This projector can be connected to a personal computer, TV, video deck, laser disk player, DVD, video camera, etc.
• Before making any connections or disconnections, make sure that the projector and the equipment to which it is con-
nected are turned off. Read the instruction manual supplied with the equipment to which the projector is connected.
To a Personal Computer
Note
• Use an RGB cable that matches the shape of the image output terminal on your PC.
• For details of the PC frequencies suitable for this projector, see the list of RGB-compatible frequencies on page En-35.
• When connecting the projector to a Macintosh computer, be sure to use the optional MAC connector, otherwise a blank
display may result.
• When connecting the projector to a Macintosh notebook computer, in addition to the optional MAC connector, a
special adapter (commercially available) may be necessary.
[Projector Side]
To AUDIO
terminal
(sound can be
produced)
To sound output
terminal
To RGB/
COMPONENT
terminal (this
connection
enables PC
images to be
projected)
To RGB output
terminal
Stereo audio
cable
RGB cable
(supplied)
Macintosh
* MAC connector
[Projector Side]
To AUDIO
terminal
(sound can be
produced)
To sound output
terminal
To RGB/
COMPONENT
terminal (this
connection
enables PC
images to be
projected)
To RGB output
terminal
Stereo audio
cable
RGB cable
(supplied)
* MAC connector
When using a MAC connector, set the dip switches as follows.
VGA/SVGA Mode →Switches 2, 3, 6, 7 ON
Mac 16" Mode (832 x 624) →Switches 1, 3, 6, 7 ON
Mac 19" Mode (1024 x 768) →Switches 1, 2, 6, 7 ON
Mac 21" Mode (1152 x 870) →Switches 1, 2, 3, 4, 6, 7 ON
Mac 16" Multi. scan →Switches 1, 4, 6, 7, 9 ON
Mac 21" Multi. scan →Switches 1, 4, 6, 7, 8 ON

En-17
EnglishFrançais
Deutsch
Español
Note
• When connecting the projector to equipment with stereo sound output, be sure to connect the L/R audio output or
stereo audio cable. When there is no image input (blue background screen), there will be no audio output.
• For component video input, it is necessary to set the component signals separately. For details, see page En-27.
[Projector Side]
To S-VIDEO terminal (used
to connect equipment with S
image output terminal)
To VIDEO & AUDIO L/
R terminals
(this connection
enables image and
sound output)
To S image
output terminal To video/audio output terminals
To AUDIO terminal
(used to connect
equipment with
component output
terminal)
To audio output terminal
(on equipment with
component output
terminal)
To RGB/
COMPONENT
terminal
(used to connect
equipment with
component output
terminal)
To Cr,Y, Cb terminal
(on equipment with
component output
terminal)
Laser disk player Video deck DVD player
AV cable
(supplied)
Stereo audio
cable
RCA-Dsub cable
(optional) S terminal cable
AV equipment
To aVideo/Laser Disk/DVD

En-18
LAMP
MODE
TEMP.
STAND-BY
PO W ER-ON
AUTOPOWER
LCD PROJECTOR
POWER AUTO MUTE
MODE
STATUS
CANCEL
MENU
ENTER
KEYSTONE VOLUME ZOOM-PAN
Turning the Projector On and Off
Turning On
¡Press the POWER button.
The POWER-ON monitor lights green and the
lamp comes on.
POWER-ON monitor display on projector front
Green : In operation
Red : Standby status
Orange : Lamp cooling
Important
• Always remove the lens cap before turning the
lamp on, otherwise the lens cap may become
deformed.
• The power cannot be turned off by pressing the
POWER button again for 1 minute after the
lamp comes on.
• Turn the projector on before turning the PC on,
otherwise the image display may be adversely
affected.
POWER BUTTON WAS PUSHED!
Push POWER button or
Move the cursor to “Power Off”
and push ENTER button
to turn projector off.
Power Off Cancel
When the button on the unit is pressed:
Basic Operation
Connecting the Power Source
1
Turning Off
¡ Press the POWER button.
The confirmation screen is displayed.
When the button on the remote control unit is
pressed:
2
Plug the power cable (supplied)
into the power terminal on the
back of the projector.
POWER BUTTON WAS PUSHED!
Push POWER button again to turn
projector off.
To cancel, push AUTO button or
MODE button.
ENTER button
Insert the power plug into the
power socket.
The POWER-ON monitor lights red and the
projector is in standby status.
AUTO button
POWER button
MODE button
POWER button MODE button
AUTO button
Adjustment button
POWER-ON monitor

En-19
EnglishFrançais
Deutsch
Español
Adjusting the Focus
¡Rotate the Focus ring.
The operation screen is exited soon after making
the adjustment.
➝
Selecting the Desired Image
¡Press the MODE button.
The input source switches as shown below each
time the MODE button is pressed.
RGB
VIDEO or S-VIDEO
COMPONENT
Important
• When the preojector is turned on, you can only
select [RBG] or [VIDEO or S-VIDEO].
If you want to select [COMPONENT], select
[On] in [Component Selection] on the DIS-
PLAY menu. (See page En-27)
• Select [WIDE] or [NORMAL] for the COMPO-
NENT input signal. (See page En-27)
The input source display is exited soon after the
selection is made.
If you press the adjustment button on the remote
control unit to select [Power Off] and then press
the ENTER button, the power will be turned off.
You can also press the POWER button again to
turn the power off.
When the power is turned off, the following
operations are performed.
1. The POWER-ON monitor changes from green
to orange. (Lamp is cooling)
2. The cooling fan rotates for 2 minutes. The
buttons on the projector operation panel and the
remote control unit cannot be operated for 1
minute after cooling of the lamp starts. (Opera-
tion can berestarted after 1 minute.)
3. When cooling is finished, the fan stops, the
POWER-ON monitor changes from orange to
red, and the projector is in standby status.
Note
• The cooling fan continues to rotate while the
inside of the projector is hot, even after the
POWER button is pressed. Do not unplug the
power cable from the socket while the cooling
fan is rotating (approx. 2 minutes).
➝
➝
Adjusting the Size of the Picture
¡Rotate the Zoom ring.
Rotate in the direction “W” to increase the size of
the picture.
Rotate in the direction “T” to decrease the size of
the picture.
The operation screen is exited soon after making
the adjustment.
Note
• Match the size of the screen used to the
projection distance. See “Setting Up” on page
En-14.
Zoom ring
Focus ring

En-20
POWER AUTO MUTE
MODE
STATUS
CANCEL
MENU
ENTER
KEYSTONE VOLUME ZOOM-PAN
Adjusting theVolume
(This function is performed only by the wireless
remote control unit.)
¡Press theVOLUME buttons
( , ).
The adjustment screen is displayed.
Press to increase the volume.
Press to decrease the volume.
The screen is exited soon after completing
adjustment.
The factory default setting is 20.
Muting the Sound and Image
(This function is performed only by the wireless
remote control unit.)
¡Press the MUTE button.
The sound and image can be temporarily muted by
pressing the MUTE button.
Mute status switches as shown below when the
MUTE button is pressed.
Sound muted ([MUTE] appears on screen)
Sound and image muted
Normal status
Pointer buttons
ZOOM-PAN buttons
CANCEL button
MUTE button
VOLUME buttons
➝➝
50
Volume
➝
Partially Enlarging the Picture
(This function is performed only by the wireless
remote control unit.)
Press the ZOOM-PAN buttons
( , ).
Press to enlarge the image.
Press to return the enlarged image to its original
size.
The area can be enlarged 1 – 25 times (area ratio)
in 15 stages each time is pressed.
Move the image to the area you
wish to watch using the pointer
buttons on the remote control
unit.
Note
• Press the CANCEL button to cancel partial
enlargement and return to normal status.
• The mode is canceled when the menu screen is
displayed or when the input source is switched.
1
2
Basic Operation (continued)
