Fujitsu PRIMERGY BX620 S4 User manual

PRIMERGY BX620 S4
2-way Server Blade
Options Guide
Edition May 2007

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
[email protected].
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1488-001.fm
Copyright © 2007 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

BX620 S4 Options Guide
Contents
1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Documentation Overview . . . . . . . . . . . . . . . . . . . . 5
1.2 Extensions and Conversions . . . . . . . . . . . . . . . . . . 7
1.3 Structure of the Server Blade . . . . . . . . . . . . . . . . . . 8
1.4 Notational conventions . . . . . . . . . . . . . . . . . . . . 10
2 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Notes on Safety . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Opening the Server Blade . . . . . . . . . . . . . . . . . . . 17
5 Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.1 Installing a Second Processor . . . . . . . . . . . . . . . . . 21
6 Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.1 Fitting Rules . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.2 Upgrading / Exchanging Main Memory . . . . . . . . . . . . 32
7 Optional I/O Module . . . . . . . . . . . . . . . . . . . . . . 35
7.1 Installing an I/O Daughter Card . . . . . . . . . . . . . . . . 40

OptionsGuide BX620 S4
Contents
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1489-001.fm
8 Storage Modules . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.1 Storage Module Variants . . . . . . . . . . . . . . . . . . . . 44
8.2 Replacing a Storage Module . . . . . . . . . . . . . . . . . . 51
9 Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.1 Closing the Server Blade . . . . . . . . . . . . . . . . . . . . 53
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

BX620 S4 Options Guide 5
1 Preface
The PRIMERGY BX620 S4 2-way Server Blade is an Intel-based server blade
with outstanding network qualities. Combined with Gbit Ethernet LAN SB9F
switch blades, it offers LAN connections via 6 onboard Ethernet channels in the
BX600 S3 basic unit. The server blade can also be operated in the BX600 S2
basic unit, in which case, however, only 2 of the 6 onboard Ethernet channels
of the server blade can be used.
The PRIMERGY BX620 S4 server blade offers several new forward-looking
technologies such as dual-core processors, FBD memory modules with
extended mirroring, modular hard disk controller configuration and 2.5-inch SAS
or SATA hard disks.
1.1 Documentation Overview
IPRIMERGY manuals are available in PDF format on the ServerBooks
DVD. The ServerBooks DVD is part of the ServerStart Suite supplied with
every server.
The PDF files of the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available on the Internet can be found using the URL:
http://manuals.fujitsu-siemens.com. The PRIMERGY server documentation
can be accessed using the Industry standard servers navigation option.
Concept and target groups
This Options Guide shows you how to extend and upgrade your server.
VCAUTION!
The activities described in this manual may only be performed by
technical specialists.
IThe installation and removal of the hot-plug components is described in
the Operating Manual supplied with the server.

6 OptionsGuide BX620 S4
Documentation Overview Preface
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1490-001.fm
Additional Documentation About the Server
The PRIMERGY BX620 S4 documentation comprises the following additional
documents:
– „Quick Start Software - PRIMERGY ServerView Suite“ (leaflet)
– The “Guarantee” manual (print version supplied with the system; PDF file
available on the ServerBooks DVD supplied)
– The “Safety notes and other important information” manual (print version
supplied with the system; PDF file available on the ServerBooks DVD
supplied)
– The “Ergonomics” manual (PDF file available on the ServerBooks DVD
supplied)
– “Returning used devices” (PDF file available on the ServerBooks DVD
supplied)
– “Helpdesk” (leaflet with worldwide helpdesk telephone numbers)
– “BIOS Setup” (PDF file available on the ServerBooks DVD supplied)
– “PRIMERGY BX620 S4 Server Blade Operating Manual” (PDF file available
on the ServerBooks DVD supplied)
– The “ServerView Suite” contains the ServerStart CD and the ServerBooks DVD
as well as the printed version of the “PRIMERGY ServerView Suite - Server-
Start” manual. The manual is also available as a PDF file on the ServerBooks
DVD.
IYou can order an additional copy of the ServerBooks DVD by sending
an e-mail to the following address, quoting your server data: Reklamat-
[email protected]
Further sources of information:
– Technical Manual for the relevant rack
– Manual for the monitor
– Manual on ServerView Server Management
– Manual on the RemoteView Remote Test and Diagnostics System
– Documentation for boards and drives
– Documentation for your operating system
– Information files on your operating system
(See also chapter “Related publications” on page 59)

BX620 S4 Options Guide 7
Preface Extensions and Conversions
1.2 Extensions and Conversions
Second Processor
If only one processor is installed in your server blade, you can upgrade it to
include a second one. You may only use processors of the same type in the
server blade. The second processor must have the same clock frequency as the
first.
Extension of the Main Memory
The main memory sockets are suitable for "Fully Buffered DIMM" (FBD) 533-
MHz memory modules. Memory modules must be installed in pairs. The two
memory modules of one bank must always have the same capacity.
Optional I/O Modules
The server blade has one slot for an extension board (daughter card) which can
be used to provide two Fibre Channel (FC) connections or two additional
Ethernet connections. The following I/O modules are available:
– 2 Gbit Fibre Channel daughter card (PCI-X)
– 4 Gbit Fibre Channel daughter card (PCIe)
– 1 Gbit Ethernet daughter card (PCIe)
– 10 Gbit Ethernet daughter card (PCIe)
To be able to use the additional I/O functionality, at least one Fibre Channel or
Ethernet I/O blade must be installed in the NET3 and/or NET4 slots of the
BX600 basic unit. For further information on I/O blades, see the operating
manual for your BX600 basic unit (see “Related publications” on page 59).
Storage Modules
The hard disks are controlled by a storage module (controller) that can be
plugged into the motherboard and which may also have additional functions.
SATA only offers one storage module variant, while SAS offers a total of four
different variants: SAS, SAS/RAID, SAS/PCI-X and SAS/PCIe. The two PCI
variants allow the installation of low-profile PCI modules.
Storage modules can be installed/replaced via the front of the server blade
without having to take off the housing cover. However, they cannot be replaced
while the system is running (non-hot-plug) - the server blade must be switched
off.

8 OptionsGuide BX620 S4
Structure of the Server Blade Preface
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1490-001.fm
1.3 Structure of the Server Blade

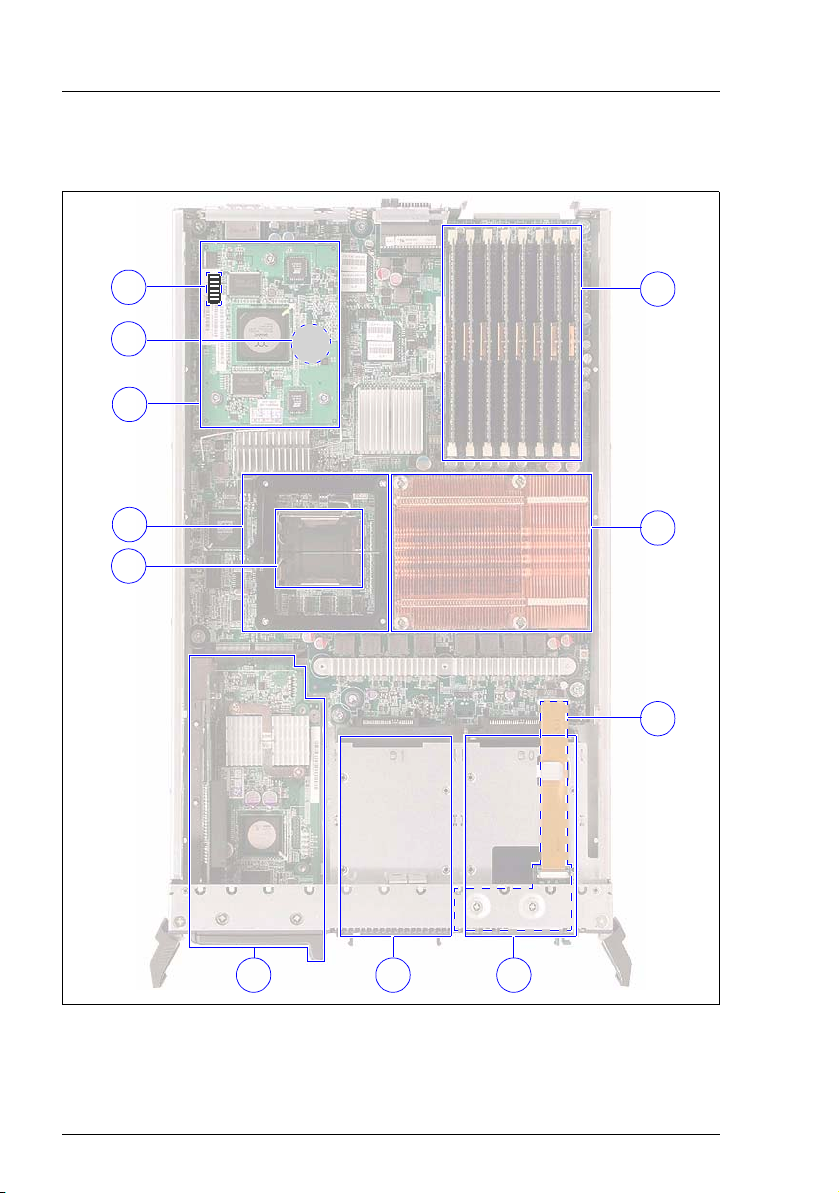

Figure 1: PRIMERGY BX620 S4 server blade
figure 1 shows the positions of the most important components of the BX620 S4
2-way server blade.
1
9
46
2
8
7
11
3
5
10

BX620 S4 Options Guide 9
Preface Structure of the Server Blade
IThe memory modules, the I/O daughter card and the storage module
must be installed in the server blade before it is placed in the basic unit.
DIP Switch Settings
The server blade comes with the DIP switches set in the following positions:
1 Sockets for FBD memory modules
2 Heat sink of the first processor
3 Control panel board with foil cable
4 2.5-inch hard disk module 1 (SAS or SATA)
5 2.5-inch hard disk module 2 (SAS or SATA)
6 Storage module
7 Socket for second processor
8 Dummy heat sink
9 I/O daughter card (Fibre Channel or Gigabit Ethernet), optional
10 Lithium battery (on the system board)
11 DIP switch (on the system board)
Switch Function Default
1 Delete password OFF
2 Clear CMOS memory OFF
3 Restore system BIOS OFF
4 Not assigned OFF
5 Switch for keyboard/mouse controller ON
6 Not assigned
Table 1: Preset DIP switches

10 OptionsGuide BX620 S4
Notational conventions Preface
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1490-001.fm
The switch settings have the following meanings:
1.4 Notational conventions
The following notational conventions are used in this manual:
Switch 1 ON Delete password enabled
OFF Delete password disabled
Switch 2 ON Clear CMOS memory enabled
OFF Clear CMOS memory disabled
Switch 3 ON Restore system BIOS enabled
OFF Restore system BIOS disabled
Switch 4 ON Top block swap enabled
OFF Top block swap disabled
Switch 5 ON Keyboard/mouse controller cannot be programmed
(normal operation)
OFF Keyboard/mouse controller can be programmed
Switch 6 ON Not assigned
OFF Not assigned
Text in italics indicates commands, menu items or software programs.
„Quotation marks“ indicate names of chapters and terms that are being
emphasized.
Êdescribes activities that must be performed in the order
shown.
VCAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
Iindicates additional information, notes and tips.

BX620 S4 Options Guide 11
2Procedure
VCAUTION!
●The activities described in this manual should only be performed by
engineers, service personnel or technical specialists.
●Equipment repairs should only be performed by qualified staff.
●Any failure to observe the guidelines in this manual, and any unautho-
rized opening or improper repairs could endanger the user (through
electric shock, fire hazards) or damage the equipment.
●Please note that any unauthorized opening of the device will result in
the invalidation of the warranty and exclusion from all liability.
ÊFirst of all please familiarize yourself with the safety instructions in the
chapter “Notes on Safety” on page 13ff.
ÊMake sure that all the manuals you need (see “Additional Documentation
About the Server” on page 6) are available, printing out the PDF files if
necessary.
You will definitely need
– the Operating Manual for the server blade and
– the Service Supplement.
ÊShut down the server blade correctly, switch it off and remove it from the
basic unit as described in the chapter “Preparation” on page 17f.
ÊExtend or upgrade your server blade as described in the relevant chapter.
IThe installation and removal of the hot-plug components is described
in the Operating Manual supplied with the server blade.
ÊClose the server blade, place it back in the basic unit and switch on the
server blade as described in chapter “Completion” on page 53f.
ÊStart the operating system and, if necessary, configure it as required (see
the Operating Manual).

© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1491-001.fm

BX620 S4 Options Guide 13
3 Notes on Safety
IThe following safety instructions are also provided in the manual “Safety
notes and other important information”.
This device complies with the relevant safety regulations for data processing
equipment, including electronic office machines for use in an office
environment.
If you have any questions as to whether you can set up the device in your
particular environment, please contact your sales outlet or our customer service
centre.
VCAUTION!
●The activities described in this manual should only be performed by
engineers, service personnel or technical specialists.
●Equipment repairs should only be performed by qualified staff.
●Any failure to observe the guidelines in this manual, and any unautho-
rized opening or improper repairs could endanger the user (through
electric shock, fire hazards) or damage the equipment.
●Please note that any unauthorized opening of the device will result in
the invalidation of the warranty and exclusion from all liability.
Before starting up
VCAUTION!
●During installation and before operating the device, observe the
instructions on environmental conditions for your device.
●If the device is brought in from a cold environment, condensation may
form both inside and on the outside of the device.
Wait until the device has acclimatized to room temperature and is
absolutely dry before starting it up. Material damage may be caused
to the device if this requirement is not observed.
●Transport the device only in the original packaging or in packaging
that protects it from knocks and jolts.

14 OptionsGuide BX620 S4
Notes on Safety
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1492-001.fm
Installation and Operation
VCAUTION!
●Read the notes on installation and operation in the operating manual
for your BX600 basic unit (see “Related publications” on page 59).
●When installing the server blade in the basic unit, beware of the
energy hazard at the midplane conctacts. A short-circuit on these
contacts may damage the system.
●Data cables must be adequately shielded to avoid interference.
●For the LAN wiring, the requirements according to standards EN
50173 and EN 50174-1/2 apply. The minimum requirement is the use
of a protected LAN line of category 5 for 10/100 Mbps Ethernet,
and/or category 5e for Gigabit Ethernet. The requirements of the
specification ISO/IEC 11801 must also be taken into account.
●Route the cables in such a way that they do not form a potential
hazard (tripping) and cannot be damaged. When connecting the
device, refer to the relevant notes in the Operating Manual.
●Do not connect or disconnect any data transmission cables during a
thunderstorm (lightning hazard).
●Be careful to ensure that no objects (e.g. jewelry, paper clips etc.) or
liquids get inside the device (electric shock, short circuit).
●In emergencies (e.g. damaged casing, control elements or cables,
penetration of liquids or foreign bodies), switch off the device immedi-
ately, unplug it from the grounded power outlets, and contact your
customer service center.
●Proper operation of the device (in accordance with IEC60950/EN
60950) is only ensured if the casing is completely assembled and the
rear covers for the installation openings are in place (electric shock,
cooling, fire protection, interference suppression).
●Install only system extensions that satisfy the requirements and rules
governing safety, electromagnetic compatibility, and telecommunica-
tions terminal equipment.
If you install other extensions, you may damage the system or violate
these safety regulations.
Information on which system extensions are suitable can be obtained
from the customer service center or your sales outlet.

BX620 S4 Options Guide 15
Notes on Safety
VCAUTION!
●The components marked with a warning label (e.g. lightning symbol)
may only be opened, removed, or exchanged by authorized, qualified
personnel, with the exception of the hot-plug/hot-swap components.
●If you cause a defect on the device by installing or exchanging system
extensions, the warranty will be invalidated.
●Only set the resolutions and refresh rates specified in the operating
manual for your monitor.
Otherwise, you may damage the monitor. If you are in any doubt,
contact your sales outlet or customer service center.
Batteries
VCAUTION!
●Incorrect replacement of batteries may lead to a risk of explosion. The
batteries may only be replaced with identical batteries or with a type
recommended by the manufacturer.
●Do not throw batteries into the trash can. They must be disposed of
in accordance with local regulations concerning special waste.
●The battery must be disposed of in accordance with local regulations
concerning special waste.
●Replace the lithium battery on the system board in accordance with
the instructions in the service supplement for the server blade.
●All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). In addition, the marking is provided with
the chemical symbol of the heavy metal decisive for the classification
as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead

16 OptionsGuide BX620 S4
Notes on Safety
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1492-001.fm
Modules with Electrostatic-Sensitive Devices
Modules with electrostatic-sensitive devices are identified by the following
sticker:
Figure 2: ESD label
When you handle components fitted with ESDs, you must always observe the
following points:
●Switch off the system and remove the power plugs from the power outlets
before installing or removing components with ESDs.
●You must always discharge static build-up (e.g. by touching a grounded
object) before working with such components.
●Any devices or tools that are used must be free of electrostatic charge.
●Wear a suitable grounding cable that connects you to the external chassis of
the system unit.
●Always hold components with ESDs at the edges or at the points marked
green (touch points).
●Do not touch any connectors or conduction paths on an ESD.
●Place all the components on a pad which is free of electrostatic charge.
IFor a detailed description of how to handle ESD components, see the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

BX620 S4 Options Guide 17
4 Preparation
VCAUTION!
Please observe the safety information in the chapter “Notes on Safety”
on page 13ff.
4.1 Opening the Server Blade
ÊExit all applications and shut down the server blade correctly.
ÊPress the On/Off button on the server blade control panel.
Removing the Server Blade from the Basic Unit
Figure 3: Removing the server blade
ÊPress the two touch points (1) to unlock the
ejection levers.
ÊOpen out the two ejection levers (2) simul-
taneously to disengage the server blade.
1
1
2
2

18 OptionsGuide BX620 S4
Opening the Server Blade Preparation
© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1493-001.fm
Figure 4: Removing the server blade
ÊPull the server blade out of the basic unit.

BX620 S4 Options Guide 19
Preparation Opening the Server Blade
Removing the Cover
Figure 5: Removing the cover
ÊPress the two touch points (1) of the cover simultaneously to disengage it,
and slide back the cover as far as it will go in the direction of the arrow (2).
ÊTake off the cover.
The server blade components are now freely accessible (see figure 1 on
page 8).
1 1
2

© cognitas. Gesellschft für Technik-Dokumentation mbH 2007 Pfad: H:\windows\_projekte\BX620_S4\Options-Guide\2007-05\Archiv\bx620s4-og-en\OBJ_DOKU-1493-001.fm
